2BXHF-WS9501DLSWireless Transceiver Module

WS9501DLS User manual  Supports the global license-free ISM 433MHz band.  Reception sensitivity no less than -120 dBm at an airspeed of 9.6kbps  Support2-(G)FSKModulation method  3-5.3Wide voltage input  2x10-2.54 pin header interface, dimensions 45mm x 28mm x 10.5mm UART Module WS9501DLS User manual 2 / 20 Document Information Product Model WS9501DLS Product Overview EFR32FG23 Uart Module Document type User manual Document Number Document Version v2.1 2023.06.14 Document version updated Serial number Version number Revised content Revision date Reviser 1 v1.0 Initial version 2022.08.09 2 v2.0 Update format 2022.09.20 3 v2.1 Update Frequency range 2023.06.14 WS9501DLS User manual 3 / 20 1 ProductOverview ........................................................................................................................................................................................ 4 1.1 ProductIntroduction ...................................................................................................................................................................... 4 1.2 Features and functions ................................................................................................................................................................. 4 1.3 Application scenario ..................................................................................................................................................................... 4 2 Pin definitions ............................................................................................................................................................................................. 5 3 Electricaland othersParameter .............................................................................................................................................................. 7 3.1 Limit parameters............................................................................................................................................................................. 7 3.2 Work parameters ............................................................................................................................................................................ 7 3.3 Radio frequencyPerformance parameters............................................................................................................................. 7 3.4 Other parameters ........................................................................................................................................................................... 8 4 ModulePackage size ................................................................................................................................................................................. 9 WS9501DLS User manual 4 / 20 1 ProductOverview 1.1 ProductIntroduction The WS9501, based on the EFR32FG23 SoC chip solution, is an ideal solution for sub-GHz “Internet of Things” applications in smart home, security, lighting, building automation, and metering systems. Its high-performance sub-GHz radio provides long-range communication while remaining resilient to interference from 2.4 GHz technologies such as Wi-Fi. This single-chip multi-core solution delivers outstanding security, ultra-low power consumption, and rapid wake-up times. It integrates internally a power amplifier, low-noise amplifier, SAW filter, low-pass filter, and other components, enabling longer communication ranges, superior harmonic suppression, and excellent anti-interference performance. 1.2 Features and functions Features and functions Support 433.1025-434.6025MHz 3—5.3Wide voltage input Support2-(G)FSKModulation method On-chip 20dBm PA, On-board LNA, SAW, Low-pass filter 3.3Maximum Emission Current under V Supply80mA Sleep current below 5uA Reception sensitivity no less than -120 dBm @ airspeed 9..6kbps Airspeed0.625kbps-4 MbpsAdjustable Software Function LBTPower-on self-test, with out-of-band suppression hardware measures. Industrial-grade standard design, supports-40°C~85°CLong-term use 2x10-2.54Pin header interface, 45mm 28mm x 10.5mm size 1.3 Application scenario Application scenarios Construction machinery control Wait Remote control Smart home devices and industrial sensors, among others Smart agricultural sensors Wireless alarm security system Building Automation Solutions Healthcare products Advanced Metering Infrastructure (AMI) WS9501DLS User manual 5 / 20 2 Pin definitions Pin name Type Description 1 GND I Power reference ground 2 GND I Power reference ground 3 TXD O The module sends data,Internal chipPA08,ExternalRecommendationAdd pull 4 SLEEP I Module sleep: High level—wake up; Low level—sleep. 5 RXD I/O The module receives data; internal chip PA0.6,External recommendationsAdd pull 6 WAKEUP O Module wake-up output, high-level wake-up 7 PA04 I/O Reserved I/O 8 PA03 I/O Reserved I/O 9 SWDIO I/O Module program burning interface 10 SWCLK I Module program burning interface 11 STATUS O Module status indicator output,Low level: Module idle High level: Module busy 12 Heartbeat O Module heartbeat output, output is100HertzSquare wave 13 M0 I Mode 0 pin, internal chip PC01 14 PC02 I/O General IO 15 M1 I Mode 1 pin, internal chip PC03 16 nRESET I Module reset, active low WS9501DLS User manual 6 / 20 17 GND I Power reference ground 18 GND I Power reference ground 19 VDD1 I Module power supplyInput 20 VDD2 I Module power supplyInput MAIN ANT2 I/O Main antenna,MMCXMother seat,Send and receiveOne piece DIV ANT1 I/O Auxiliary antenna,MMCXMother seat,Does not come soldered by default. M2.5 2.7mm hole For non-metallic fixed screw holes, it is recommended to use M.2.5Screw For detailed information on the pin definitions, software drivers, and communication protocols of the module, please refer to:Silicon LabsOfficialEFRA32FG32Datasheet WS9501DLS User manual 7 / 20 3 Electricaland othersParameter 3.1 Limit parameters Parameter Sym…

Text truncated - open the document above for the full version.

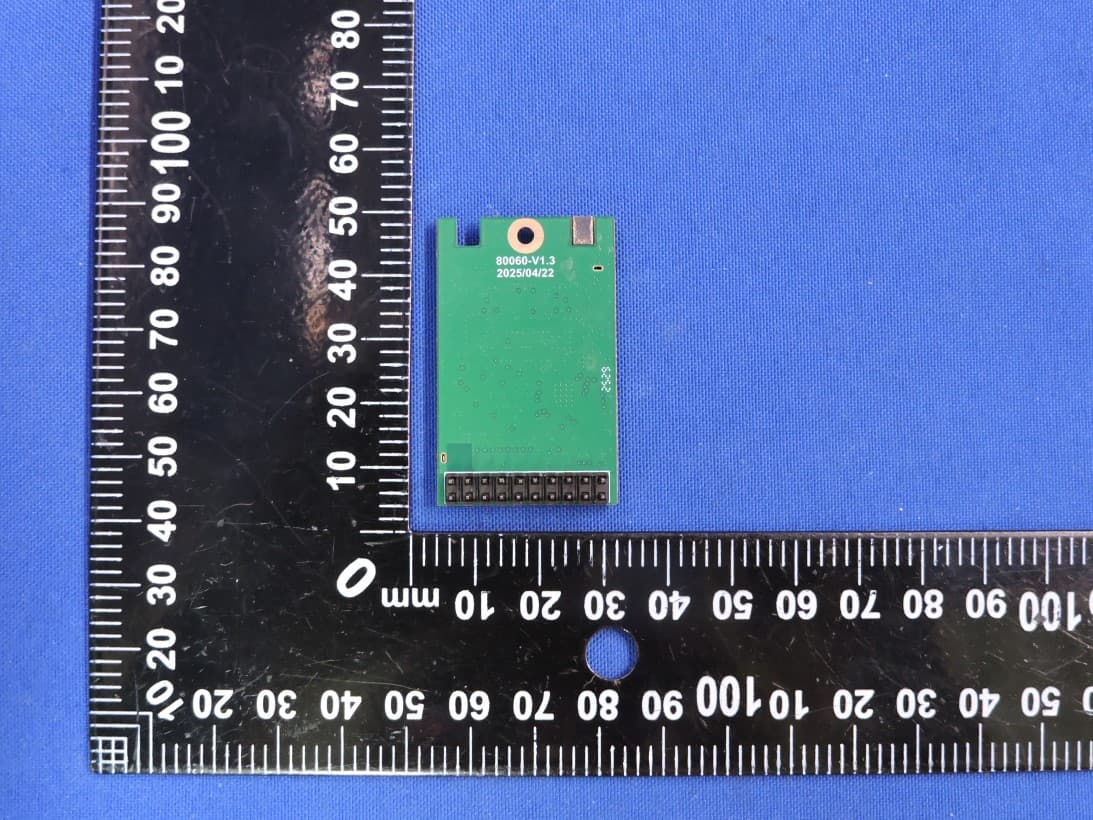

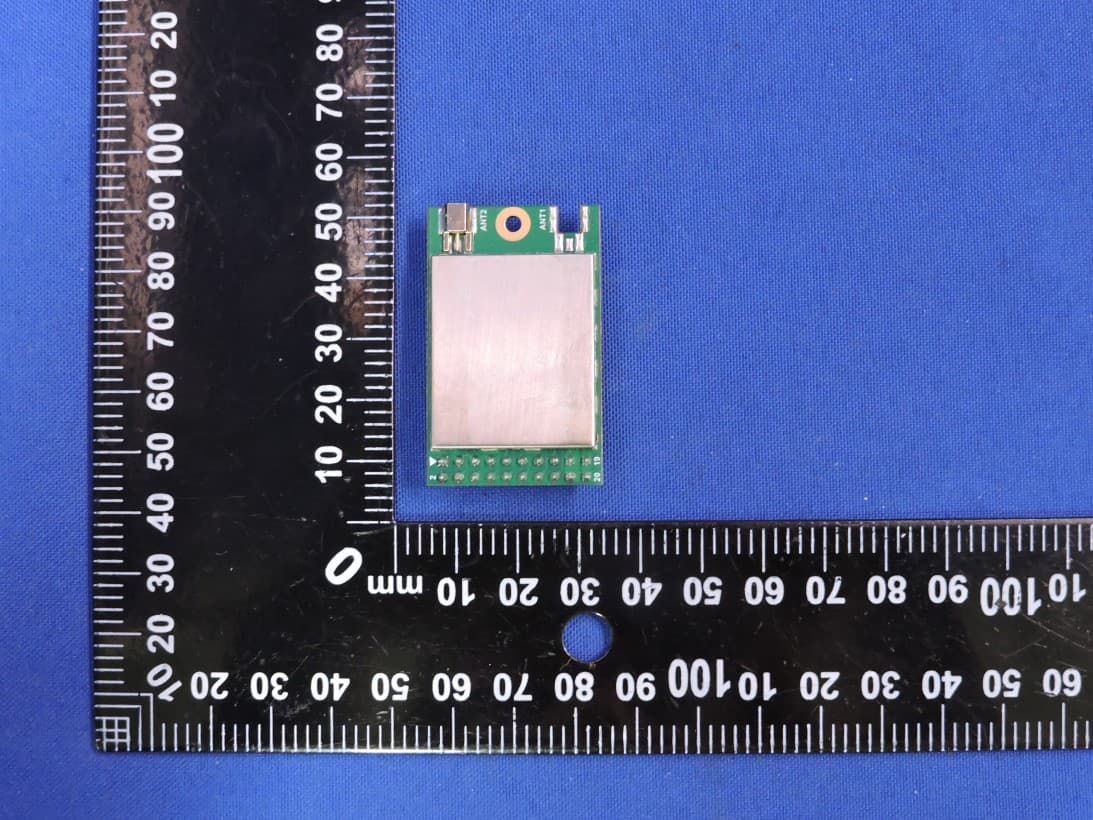

EUT PHOTO(Internal Photos) Model: WS9501DLS Photo 1 Photo 2

EUT TEST PHOTO RE (Below 30MHz) RE (30MHz-1GHz) RE (Above 1GHz) ※※※※※ END OF REPORT ※※※※※

Report No.: ZKT-260821L1388E-1 Page 1 of 93 FCC TEST REPORT FCC ID:2BXHF-WS9501DLS Report Number. ................................ : ZKT-260821L1388E-1 Date of Test ........................................Jul. 30, 2026 to Aug. 21, 2026 Date of issue .................................... : Aug. 21, 2026 Total number of pages ....................... 93 Test Result ...................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name .......................... : Xuzhou WIKA Electronics Control Technology Co., Ltd. Address .......................................... : No.11 Baoliansi Road, Xuzhou Economic Development Zone, Xuzhou, Jiangsu, China Manufacturer's name ................... : Chengdu Silent Smart Technology Co., Ltd. Address .......................................... : 303-7,Floor 3,Building 12,No.38,South Jinke Road,Jinniu Hi-tech Industrial Park,Chengdu,Sichuan,China Test specification: Standard ........................................... : FCC Rules Part 15.231 ANSI C63.10-2020+Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Test procedure ................................. : / Non-standard test method .............. : N/A Test Report Form No. ..................... : TRF-EL-111_V0 Test Report Form(s) Originator ..... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Wireless Transceiver Module Trademark ...................................... : N/A Model/Type reference ...................... : WS9501DLS Ratings ............................................. : Input: DC 5V Report No.: ZKT-260821L1388E-1 Page 2 of 93 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Report No.: ZKT-260821L1388E-1 Page 3 of 93 Table of Contents Page 1. VERSION 5 2. SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3. GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 TEST CHANNEL 9 3.3 DESCRIPTION OF TEST MODES 9 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 3.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 4. EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 18 4.2.3 TEST SETUP 18 4.2.4 EUT OPERATING CONDITIONS 19 4.2.5 TEST RESULTS 20 5. 20DB OCCUPIED BANDWIDTH 84 5.1 APPLIED PROCEDURES / LIMIT 84 5.2 TEST PROCEDURE 84 5.3 DEVIATION FROM STANDARD 84 5.4 TEST SETUP 84 5.5 EUT OPERATION CONDITIONS 84 5.6 TEST RESULTS 85 6. CALCULATION OF AVERAGE FACTOR 87 7. TRANSMITTER TIMEOUT 90 7.1 APPLICABLE STANDARD 90 7.2 TEST PROCEDURE 90 7.5 EUT OPERATION CONDITIONS 90 Report No.: ZKT-260821L1388E-1 Page 4 of 93 Table of Contents Page 7.6 TEST RESULTS 91 8. ANTENNA REQUIREMENT 92 9. TEST SETUP PHOTO 93 10. EUT CONSTRUCTIONAL DETAILS 93 Report No.: ZKT-260821L1388E-1 Page 5 of 93 1. VERSION Report No. Version Description Approved ZKT-260821L1388E-1 Rev.01 Initial issue of report Aug. 21, 2026 Report No.: ZKT-260821L1388E-1 Page 6 of 93 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.231) , Subpart C Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emission N/A 15.209 & 15.231(e) Fundamental & Radiated Spurious Emission Measurement PASS 15.231(c) 20dB Occupied Bandwidth PASS 15.231(e) Dwell Time PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: ZKT-260821L1388E-1 Page 7 of 93 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 927491 Designation Number: CN1431 IC Registered No.: 27033 CAB identifier: CN0110 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expanded uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 3m camber Radiated spurious emission(9KHz-30MHz) U=4.5dB 2 3m camber Radiated spurious emission(30MHz-1GHz) U=4.8dB 3 3m chamber Radiated spurious emission(1GHz-6GHz) U=4.9dB 4 3m chamber Radiated spurious emission(6GHz-40GHz) U=5.0dB 5 Conducted Disturbance U=3.2dB 6 RF Band Edge U=1.68dB 7 RF Power Conducted U=1.86dB 8 RF Conducted Spurious Emission U=2.2dB 9 RF Occupied Bandwidth U=1.8MHz 10 RF Power Spectral Density U=1.75dB 11 Dwell Time U=0.02ms 12 Humidity Uncertainty U=5.3% 13 Temperature Uncertainty U=0.59°C Report No.: ZKT-260821L1388E-1 Page 8 of 93 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF…

Text truncated - open the document above for the full version.

1of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 *433MHzSuckerAntenna *433MHzoffrequency *BNCPlugForRG-58Cable *ROHScompliance *433MHzWirelessCommunication *WLANdevice,WLANRouter,e.g.,AP,PICWirelessCard TheantennawasspeciallydesignedbyShanghaiZhenyiCommunicationTechnologyCo.,Ltd,for 433MHzSuckerAntennaapplications.Ithasexcellentstabilityandsensitivitytoconsistentlyprovide highsignalreceptionefficiency. ProductName 433MHzSuckerAntenna PartNo.STXPA187650BAB433 Frequency433MHz V.S.W.R ≤2.0 Gain（dBi） 1.0(MAX) PolarizationVertical StorageTemp-30°C~+70°C OperatingTemperature-30 °C~ +70 °C ImpedancewithMatching50Ω Dimension H182.6*φ76(mm) 1.Feature 4.GeneralData 3.Description 2.Application STXPA187650BAB433Specification 433MHzSuckerAntenna 2of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 RecommendMatchingCircuit Returnloss、VSWR&Smithchart 5.TypicalElectricalCharacteristics Reference: 001=(N/A) 002=0Ω 003=(N/A) 3of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 FrequencyTotalData Frequency(MHz)Directivity(dB)Gain(dB)Efficiency(dB)Efficiency(%) 4254.8433-0.5558-5.39928.8468 4264.6479-0.716-5.363929.0811 4274.5997-0.677-5.276829.6703 4284.5489-0.6243-5.173230.3863 4294.5269-0.5266-5.053531.2353 4304.5602-0.3596-4.919832.2119 4314.5911-0.1783-4.769433.3474 4324.6168-0.0105-4.627334.4565 4334.63940.5495-4.489935.5636 4344.66081.0000-4.375836.511 4354.6760.4038-4.272337.3916 4364.71950.5038-4.215837.8811 4374.73380.5772-4.156538.4013 4384.74710.6585-4.088639.0066 4394.7590.7513-4.007839.7395 4404.76460.8483-3.916440.5848 4of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 Gain(dB)&Efficiency(%) -5 -4.5 -4 -3.5 -3 -2.5 -2 -1.5 -1 -0.5 0 0.5 1 1.5 2 2.5 3 425426427428429430431432433434435436437438439440 Gain(dB) 0 10 20 30 40 50 60 70 80 90 100 425426427428429430431432433434435436437438439440 Efficiency(%) 5of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 Phi=0° Phi=90° 6of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 Theta=90° 7of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 y XZPlaneYZPlaneXYPlane 2D&3Dtestpattern 425MHz xx y zz 8of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 \ y XZPlaneYZPlaneXYPlane 433MHz xx y zz 9of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 y XZPlaneYZPlaneXYPlane 440MHz xx y zz 10of10 Highperformanceproductforyou 上海贞翼通讯技术有限公司 STXPA187650BAB433 6.Dimension

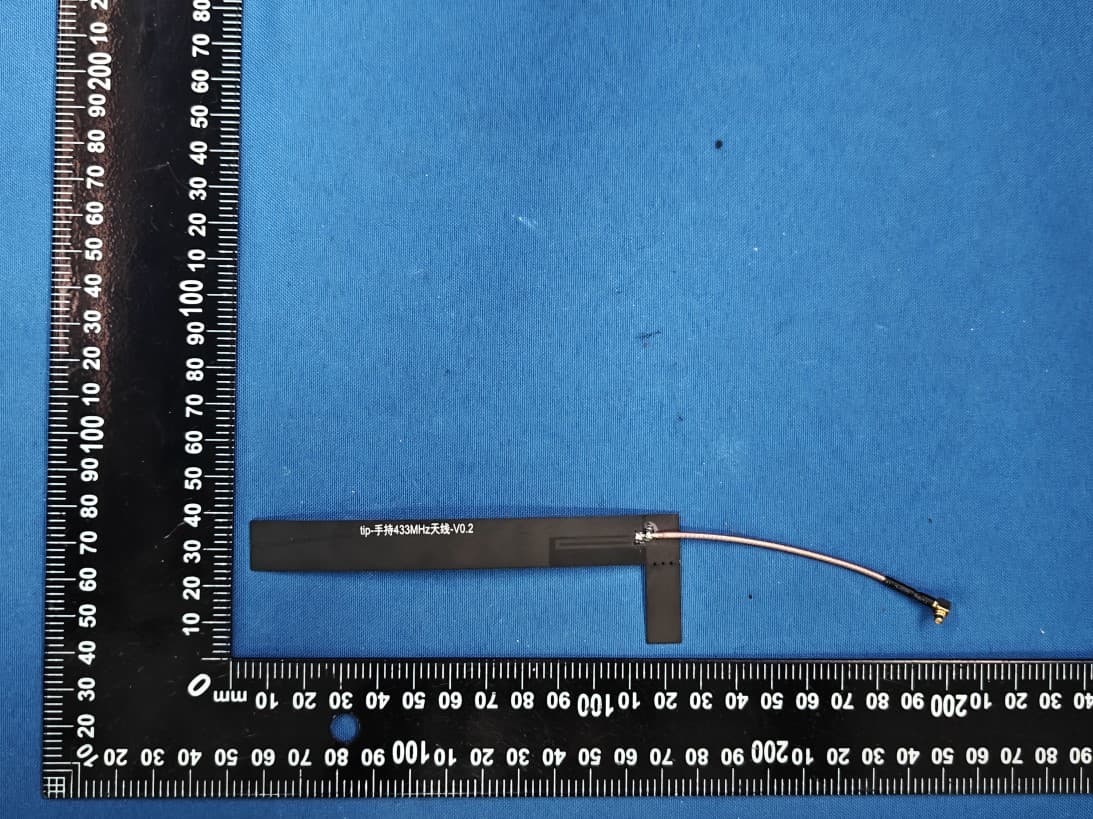

承认书 SPECIFICATION FORAPPROVAL 客户名称 Customer: 产品名称 ProductName: 规格描述 Description: 客户料号 CUSTP/N: 贞翼料号 SOANT.P/N: 发出日期 ApprovalDate: 核准 Approved 审核 CheckedBy 制作 MadeBy 客户承认 CustomerApprove 核准 Approved 审核 CheckedBy 承办 UndertakeBy 120.20mm*36.40mm，MMCXRG178L=90mm 2026年3月16日 433MHzFPCAntenna 袁佳桦 itp024073-433F1-1 朱志兵 王伟 上海贞翼通信技术有限公司 ShanghaiZhenyiCommunicationTechnologyCo.,Ltd 贞翼通信 ZHENYICOMMUNICATION Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~2~ 上海贞翼通信技术有限公司 目录 No. 承认书内容页面备注 1 封面 1-1 2 目录 2-2 3 承认书变更履历表 3-3 4TECHNICALDATE4-4 5 工程图 5-5 6 测试报告 6-7 Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~3~ 上海贞翼通信技术有限公司 承认书变更履历表 No. 原版变更日期变更内容变更项目描述 1A02026-03-16 新增 --------------- Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~4~ 上海贞翼通信技术有限公司 TECHNICALDATE 1.ElectricalProperties:（电气特性） 1.1FrequencyRange（频率范围）...............433MHz 1.2Impedance（输入阻抗）........................50Ω 1.3VSWR（驻波）.............................................<2 1.4PeakGain（最高增益）..............................-3.5dBi 2.PhysicalProperties:（物理特性） 2.1Cable（线缆）.............................................Φ1.79 2.2CableColor（线材颜色）...........................brown（棕色） 2.3PCBmaterial（天线材质）........................FPC 2.4Termofvalidity（有效期）........................Oneyear（未拆封） 2.5OperatingTemp（工作温度）.....................-40°C~+85°C 2.6StorageTemp（存储温度）...........................-40°C~+85°C 2.7StorageHumidity（存储湿度）.....................50±20%RH Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~5~ 上海贞翼通信技术有限公司 工程图： Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~6~ 上海贞翼通信技术有限公司 匹配电路 未改动 测试报告 Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~7~ 上海贞翼通信技术有限公司 无源测试数据 Frequency/MhzMaxGain/dBiEfficiency/% 430-3.8826.55 431-3.8326.85 432-3.7327.54 433-3.5828.44 434-3.5029.17 435-3.3729.31 436-3.3928.91 437-3.4528.31 438-3.4628.12 439-3.3228.77 440-3.0030.55 441-2.8431.77 442-2.5633.65 443-2.2435.65 444-2.0136.9 445-1.9536.98 446-2.0635.89 447-2.2634.43 448-2.4633.19 449-2.6132.43 450-2.7132.14

1of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 *433MHzDipoleAntenna *433MHzoffrequency *LMR100BlackCable *ROHScompliance *433MHzWirelessCommunication *WLANdevice,WLANRouter,e.g.,AP,PICWirelessCard TheantennawasspeciallydesignedbyShanghaiZhenyiCommunicationTechnologyCo.,Ltd,for 433MHzAntennaapplications.Ithasexcellentstabilityandsensitivitytoconsistentlyprovidehigh signalreceptionefficiency. ProductName 433MHzDipoleAntenna PartNo.STDPA551420MBA433 Frequency433MHz V.S.W.R ≤2.0 Gain（dBi） -2.0dBi PolarizationVertical StorageTemp-30°C~+70°C OperatingTemperature-30 °C~ +70 °C ImpedancewithMatching50Ω Dimension 54*Φ14(mm) 1.Feature 4.GeneralData 3.Description 2.Application STDPA551420MBA433Specification 433MHzDipoleAntenna 2of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 RecommendMatchingCircuit Returnloss、VSWR&Smithchart 5.TypicalElectricalCharacteristics Reference: 001=(N/A) 002=0Ω 003=(N/A) 3of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 FrequencyTotalData Frequency(MHz)Directivity(dB)Gain(dB)Efficiency(dB)Efficiency(%) 4305.5621-2.0022-7.564317.5216 4315.6032-1.9642-7.567517.5086 4325.6416-1.9441-7.585717.4354 4335.6722-2.0000-7.602117.3697 4345.6999-1.925-7.624917.2785 4355.7177-1.9301-7.647817.1879 4365.6897-1.9721-7.661817.1326 4375.7102-2.0333-7.743516.8132 4385.803-2.0524-7.855416.3857 4395.8714-2.1359-8.007315.8224 4405.8526-2.3387-8.191315.166 4415.6561-2.6689-8.325114.7059 4425.2329-3.1034-8.336314.668 4434.7118-3.46-8.171715.2344 4444.5611-3.3369-7.89816.2255 4454.7528-2.8547-7.607517.3482 4464.9106-2.4139-7.324518.5159 4475.0841-2.0391-7.123219.3946 4485.2308-1.7294-6.960220.1363 4495.3481-1.4811-6.829220.753 4505.4428-1.2922-6.73521.2082 4of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Gain(dB)&Efficiency(%) 5of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Phi=0° Phi=90° 6of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Theta=90° 7of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Frequency=430MHz 2D&3Dtestpattern 8of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Frequency=433MHz 9of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Frequency=440MHz 10of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Frequency=445MHz 11of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 Frequency=450MHz 12of12 Highperformanceproductforyou 上海贞翼通信技术有限公司 STDPA551420MBA433 6.Dimension

承认书 SPECIFICATION FORAPPROVAL 客户名称 Customer: 产品名称 ProductName: 规格描述 Description: 客户料号 CUSTP/N: 贞翼料号 Zhenyi.P/N: 发出日期 ApprovalDate: 核准 Approved 审核 CheckedBy 制作 MadeBy 客户承认 CustomerApprove 核准 Approved 审核 CheckedBy 承办 UndertakeBy 127*77mm433MHz天线接LMR100黑色线 2024年04月13日 433MHz天线 孙忠勤 STDPA1357715MBA433 周愉 王水利 上海贞翼通信技术有限公司 ShanghaiZhenyiCommunicationTechnologyCo.,Ltd 贞翼通信 ZHENYICOMMUNICATION Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~2~ 上海贞翼通信技术有限公司 目录 No. 承认书内容页面备注 1 封面 1-1 2 目录 2-2 3 承认书变更履历表 3-3 4TECHNICALDATE4-4 5CableSPEC5-5 6 工程图 6-6 Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~3~ 上海贞翼通信技术有限公司 承认书变更履历表 No. 原版变更日期变更内容变更项目描述 1A02023-03-01 新增 --------------- 2A12024-01-25 图纸铁片背面增贴背胶 3A22024-04-13 图纸去掉背胶，表面加绝 缘膜 Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~4~ 上海贞翼通信技术有限公司 TECHNICALDATE 1.ElectricalSpecifications 1.1FrequencyRanges........................................433MHz 1.2Impedance....................................................50ΩNominal 2.PhysicalProperties 2.1CableType.....................................................LMR100 2.2CableColor.....................................................黑色 2.3Connector..........................................................MMCX公针 2.4Antenna.........................................................ABS+PC，黑色表面细砂纹 2.5CableAttenuations........................................0.28dB/[email protected] 0.41dB/[email protected] 0.62dB/[email protected] 1.02dB/[email protected] 1.12dB/[email protected] 1.62dB/[email protected] 1.74dB/[email protected] 2.6Antennashelflife...............................................一年 2.7OperatingTemperature...................................-40°C~+85°C 2.8StorageTemperature......................................-40°C~+85°C Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~5~ 上海贞翼通信技术有限公司 CableSPEC RG、细微射频同轴电缆RG174/50Ω 结构图Structuredrawing 结构特性Structurecharacteristics 结构Structure项目Item标准值Standardvalue ①内导体Innerconductor 材料Material裸铜线Barecopperwire (绞合)标称外径(mm)(Intertwist)NOM.O.D.(mm)0.495±0.02 ②绝缘层Insulation 材料Material聚乙烯PE 标称外径(mm)NOM.O.D.(mm)1.5±0.05 ③外导体Outerconductor 材料Material镀锡铜线Tinnedcopperwire 标称外径(mm)NOM.O.D.(mm)2±0.05 覆盖率(%)Coverageratio(%)≥90 ④护套层Jacket 材料Material聚乙烯PE 颜色Color黑Black 标称外径(mm)NOM.O.D.(mm)2.8±0.1 电性能特性Electricalcharacteristics 项目Item 标准值 Standard value 项目Item频率Frequency 标准值Standardvalue 单位Unit:dB/m 电容(pF/m)Capacitance(pF/m)101 衰减 Attenuation 0.1GHz≤0.28 速率(%)Velocity(%)660.2GHz≤0.41 阻抗(Ω)Impedance(Ω)50±20.4GHz≤0.62 驻波比Standingwaveratio—0.9GHz≤1.02 最大工作电压(V)Max.operatingvoltage(V)15001GHz≤1.12 最大工作频率(GHz)Max.operatingfrequency(GHz)11.8GHz≤1.62 2.34GHz≤1.74 可靠性Dependability 项目Item单位Unit标准值Standardvalue 最小弯曲半径(一次)Min.bendingradiusstaticmm12 最小弯曲半径(重复)Min.bendingradiusrepeatedmm— 工作温度范围Operatingtemperature°C-40~+85 使用提示Usetips 存储环境Storageenvironment温度：30°C以下：湿度：20%~65% 最佳保存周期Thebestsavecycle 2个月；2个月以上作业性下降，如上锡效果变差,但电性能不受影响。夏季高温高 湿环境开剥后需尽快流转 加工温度Processingtemperature70°C极限情况下,可短时间承受 绝缘收缩InsulationShrink固有材料特性。绝缘：0.5mm以下 绝缘收缩InsulationShrink加工长度低于5cm易发生 Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~6~ 上海贞翼通信技术有限公司 工程图： 王水利 STDPA1357715MBA433 PARTNAME CABLE CONNECTOR 热缩套管 433MHz ANTENNA L15*4.0mm PVC Black RG-174 CABLE,Black,50Ω MMCX Jack RG-174 CABLE 天线本体 127*77mm Black Copyright©ShanghaiZhenyiCommunicationTechnologyCo.,Ltd ~7~ 上海贞翼通信技术有限公司 铁片工程图 正面表面加一层绝缘膜 绝缘膜 增贴背胶 接地板 王水利 NOTE: 1.材质:不锈钢; 2.表面无毛刺，划痕等外观不良; 去掉背胶，表面加绝缘膜

Report NO.: ZKT-260821L1388E-2 Page 1 of 8 RF EXPOSURE EVALUATION FCC ID:2BXHF-WS9501DLS Report Number. .............................. : ZKT-260821L1388E-2 Date of Test ...................................... : Jul. 30, 2026 to Aug. 21, 2026 Date of issue .................................... : Aug. 21, 2026 Total number of pages ..................... : 8 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Xuzhou WIKA Electronics Control Technology Co., Ltd. Address .......................................... : No.11 Baoliansi Road, Xuzhou Economic Development Zone, Xuzhou, Jiangsu, China Manufacturer's name ................... : Chengdu Silent Smart Technology Co., Ltd. Address .......................................... : 303-7,Floor 3,Building 12,No.38,South Jinke Road,Jinniu Hi-tech Industrial Park,Chengdu,Sichuan,China Test specification: Standard ........................................... : FCC 47CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-111_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Wireless Transceiver Module Trademark ...................................... : N/A Model/Type reference ...................... : WS9501DLS Ratings ............................................. : Input: DC 5V Report NO.: ZKT-260821L1388E-2 Page 2 of 8 Testing procedure and testing location: Testing Laboratory ..................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Report NO.: ZKT-260821L1388E-2 Page 3 of 8 Table of Contents 1. VERSION 4 2. TEST FACILITY 5 3 GENERAL DESCRIPTION OF EUT 6 Report NO.: ZKT-260821L1388E-2 Page 4 of 8 1. VERSION Report No. Version Description Approved ZKT-260821L1388E-2 Rev.01 Initial issue of report Aug. 21, 2026 Report NO.: ZKT-260821L1388E-2 Page 5 of 8 2. TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 927491 Designation Number: CN1431 IC Registered No.: 27033 CAB identifier: CN0110 Designation Number: CN0110 Report NO.: ZKT-260821L1388E-2 Page 6 of 8 3 GENERAL DESCRIPTION OF EUT Product Name: Wireless Transceiver Module Trade Mark: N/A Model No.: WS9501DLS Serial No.: N/A Model Different.: N/A Hardware Version: V1.3 Software Version: V208 Sample(s) Status: Engineer sample Channel numbers: 16 Operation Frequency: 433MHz Modulation technology: FSK Antenna Type: Sucker antenna Dipole Antenna Horn Antenna FPC Antenna Antenna gain: Sucker antenna: 1dBi Dipole Antenna: -2dBi Horn Antenna: 0.5dBi FPC Antenna :-3.5dBi Power Supply: Input: DC 5V Note1: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Note2: The EUT's all information provided by client. Report NO.: ZKT-260821L1388E-2 Page 7 of 8 According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093, Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Report NO.: ZKT-260821L1388E-2 Page 8 of 8 Here, For SRD Antenna Type Frequency Power (dBuV/m) @3m Power (dBm) Turn up Power (MHz) Dipole Antenna 434.6025 71.86 -23.34 -24±1dBm FPC Antenna 433.8025 71.15 -24.05 -24±1dBm Horn Antenna 433.8025 71.53 -23.67 -24±1dBm Sucker antenna 433.8025 71.14 -24.06 -24±1dBm Note: Power(dBm) = dBuV/m@3m -95.2 Antenna Type Frequency (MHz) Separation distance (cm) Tune Up Power (dBm) Max Tune Up Power (mW) Power Density (mW/cm²) Limit (mW/cm²) Result Dipole Antenna 434.6025 20 -23 0.005010.000001 0.2897 Pass FPC Antenna 433.8025 20 -23 0.00463 0.000001 0.2897 Pass Horn Antenna 433.8025 20 -23 0.00463 0.000001 0.2897 Pass Sucker antenna 433.8025 20 -23 0.00463 0.000001 0.2897 Pass Conclusion: Note: 1.The Maxinum power is less than the limit, complies with the exemption requirements.
