Tkbm01BLECL5.0 Product Specification Document product presentation Product Overview • The module integrates high-precision gyroscopes, accelerometers, and geomagnetic field sensors, utilizing a high-performance microprocessor along with advanced dynamic simulation algorithms and Kalman filtering techniques to rapidly determine the module's real-time motion attitude. • By employing advanced digital filtering technology, it effectively reduces measurement noise and enhances measurement accuracy. • The module integrates a pose resolver combined with a dynamic Kalman filtering algorithm, enabling precise determination of the current orientation in dynamic environments with an accuracy of 0.2 degrees and exceptional stability— outperforming even certain professional inclinometers! • The module features a built-in voltage stabilization circuit with an operating voltage range of 3.3 V to 5 V, and its pin voltages are compatible with both 3.3 V and 5 V embedded systems, ensuring easy connectivity. • The high-performance Cortex-M4 core processor operates at a clock frequency of up to 168 MHz, delivering both low power consumption and superior performance. • Bluetooth BLE 5.0 wireless transmission with stable performance and a range of up to 50 meters. Product Features • The module integrates high-precision gyroscopes, accelerometers, and geomagnetic field sensors, utilizing a high-performance microprocessor along with advanced dynamic simulation algorithms and Kalman filtering techniques to rapidly determine the module's real-time motion attitude. • By employing advanced digital filtering technology, it effectively reduces measurement noise and enhances measurement accuracy. • The module integrates a pose resolver combined with a dynamic Kalman filtering algorithm, enabling precise determination of its current orientation in dynamic environments with an accuracy of 0.2° and exceptional stability—outperforming even certain professional inclinometers. • The X-axis heading angle incorporates geomagnetic sensor-based filtering and fusion, addressing the cumulative error caused by gyroscope integration drift in the 6-axis algorithm and enabling long-term stable output of heading angle data. Note: Due to magnetic field detection, calibration is required before use; during operation, maintain a distance of at least 20 cm from magnetic interference sources, electronic devices, magnets, speakers, and other hard magnetic objects. • Operating current: ≈15 mA; Broadcast current: ≈150 μA; Standby current: 10–50 μA. • Data Interface: baud rate 115,200. • Data output frequency: 0.2 Hz to 200 Hz; for data packet transmission, 50 Hz to 200 Hz is used, with 10 Hz as the default. • Bluetooth 5.0: Compatible with Android and iOS operating systems (actual functionality may vary depending on the device model) Parameter Indicator Accelerometer Parameters parameter condition representative value range ±16g resolution ratio ±16g 0.0005(g/LSB) sampling rate 2KHz RMS noise Bandwidth = 100 Hz 0.75~1mg-rms Static Zero Drift horizontal arrangement ±20~40mg Thermophilic -40°C ~ +85°C ±0.15mg/°C tape width 5~256Hz Gyroscopic Parameters parameter condition representative value range ±2000°/s resolution ratio ±2000°/s 0.061(°/s)/(LSB) sampling rate 2KHz RMS noise Bandwidth = 100 Hz 0.028~0.07(°/s)-rms Static Zero Drift horizontal arrangement ±0.5~1°/s Thermophilic -40°C ~ +85°C ±0.005~0.015 (°/s)/°C tape width 5~256Hz Magnetometer Parameters parameter condition representative value range ±2Gauss resolution ratio ±2Gauss 0.0667mGauss/LSB Tilt, Roll Angle Parameters parameter condition representative value range X:±180° Y:±90° Inclination Accuracy 0.2° resolution ratio horizontal arrangement 0.0055° Thermophilic -40°C ~ +85°C ±1° Course Angle Parameter parameter condition representative value range Z:±180° Course Accuracy 9-axis algorithm, magnetic field calibration, dynamic/static 1° (under conditions without magnetic field interference) 【1】 6-axis algorithm, static 0.5° (dynamic integral accumulation error exists) 【2】 resolution ratio horizontal arrangement 0.0055° remark： 【1】Before use, perform magnetic field calibration in the test environment to ensure the sensor is familiar with the local magnetic field conditions. During calibration, maintain a distance from magnetic interference sources. 【2】 In vibrating environments, cumulative errors may occur; the exact magnitude cannot be determined and should be verified during actual testing. Module Parameters essential parameter parameter condition least value give tacit consent to crest value CI UART 115200bps 115200bps 115200bps Output Content 3-axis acceleration, 3-axis angular velocity, 3-axis magnetic field, 3-axis angle, quaternion, port status output speed 0.2Hz 10Hz 200Hz start time 1000ms Number of Cascades Computer Bluetooth 4 Bluetooth Transmission Range Open Environment 50m weight 18.88g working temperature -20°C 60°C Storage Temperature -40°C 85°C impact resistance 20000g Electrical Parameters parameter condition least value give tacit consent to crest value charging voltage 5V cell voltage 3.7V Working Current 10HZ 15mA Radio Current 150uA Standby current 50uA battery capacity 200mAH power dissipation 55.5mW working hours 30 hours Charging Time 2 hours 3 hours product size Interface Definition interface specification Interface Name interface function TYPE-C Charging and Serial Output【1】 remark ： 【1】Supports TYPE-C connectivity for data viewing on PCs; the CH340 driver must be installed on the PC. Connect the Bluetooth adapter to your computer remark ： 【1】When using a Bluetooth 5.0 USB adapter, you must use the corresponding host computer. Bluetooth wireless connection for Android phones application area • Virtual Reality/Augmented Reality, Head-Mounted Display • Large-scale agricultural mechanization for automatic cultivation • Safety Monitoring for Work at Altitude • Drone, a manned aircraft • Industrial Posture Monitoring • Human Motion Tracking/Capture • Robot, autom…

Text truncated - open the document above for the full version.

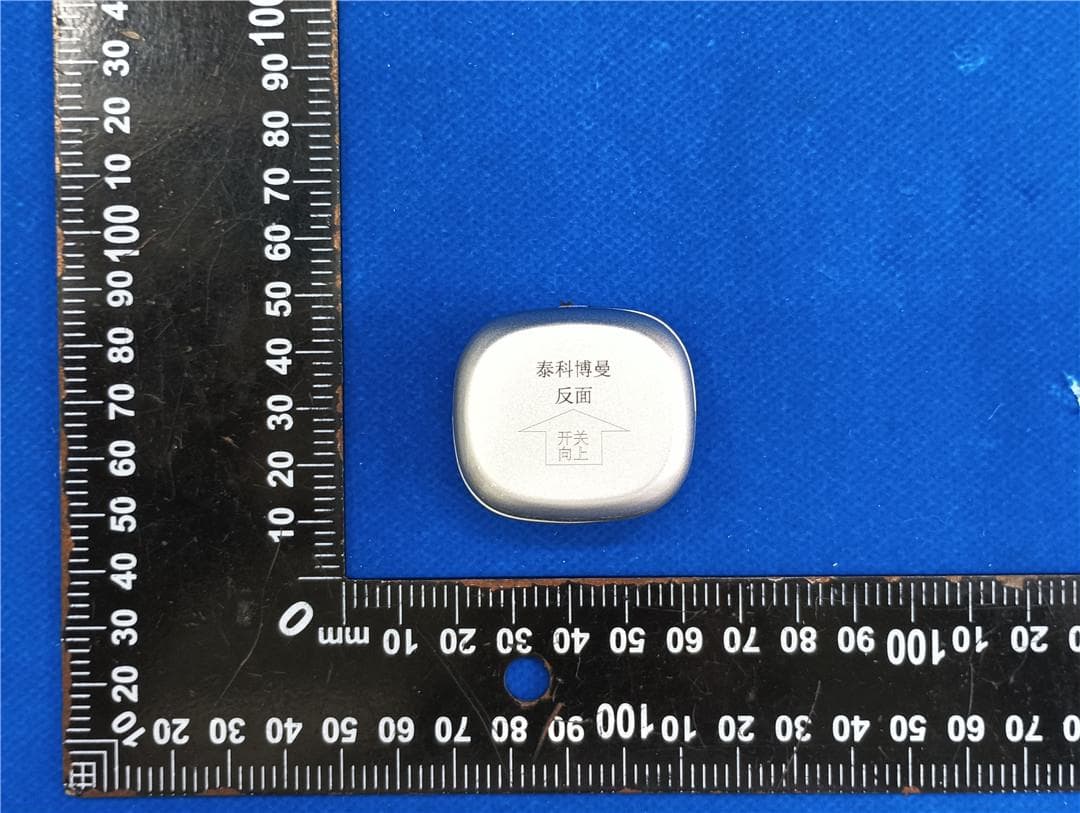

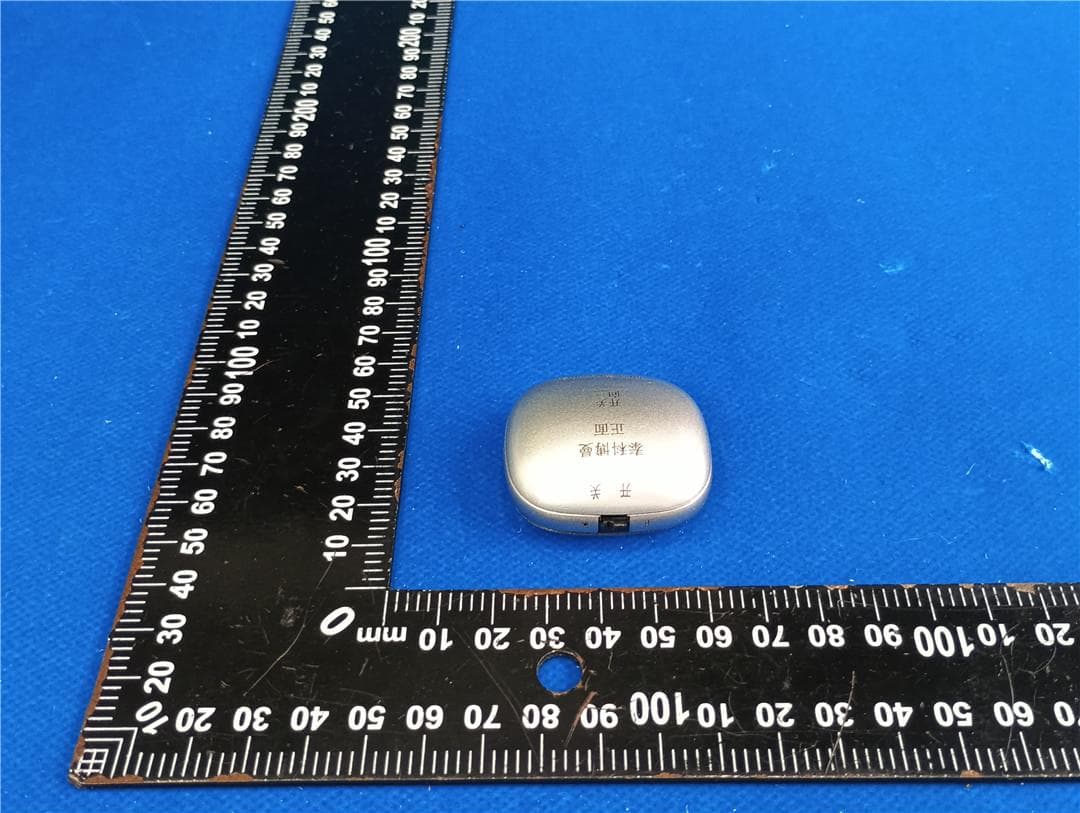

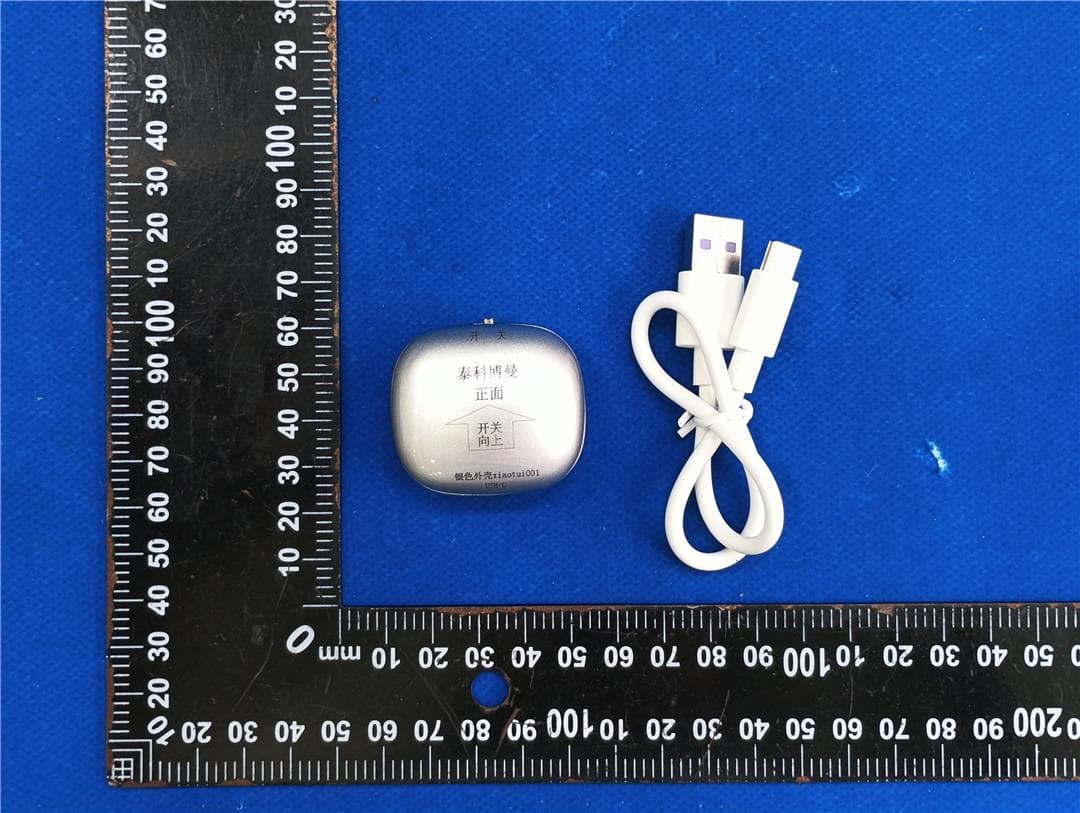

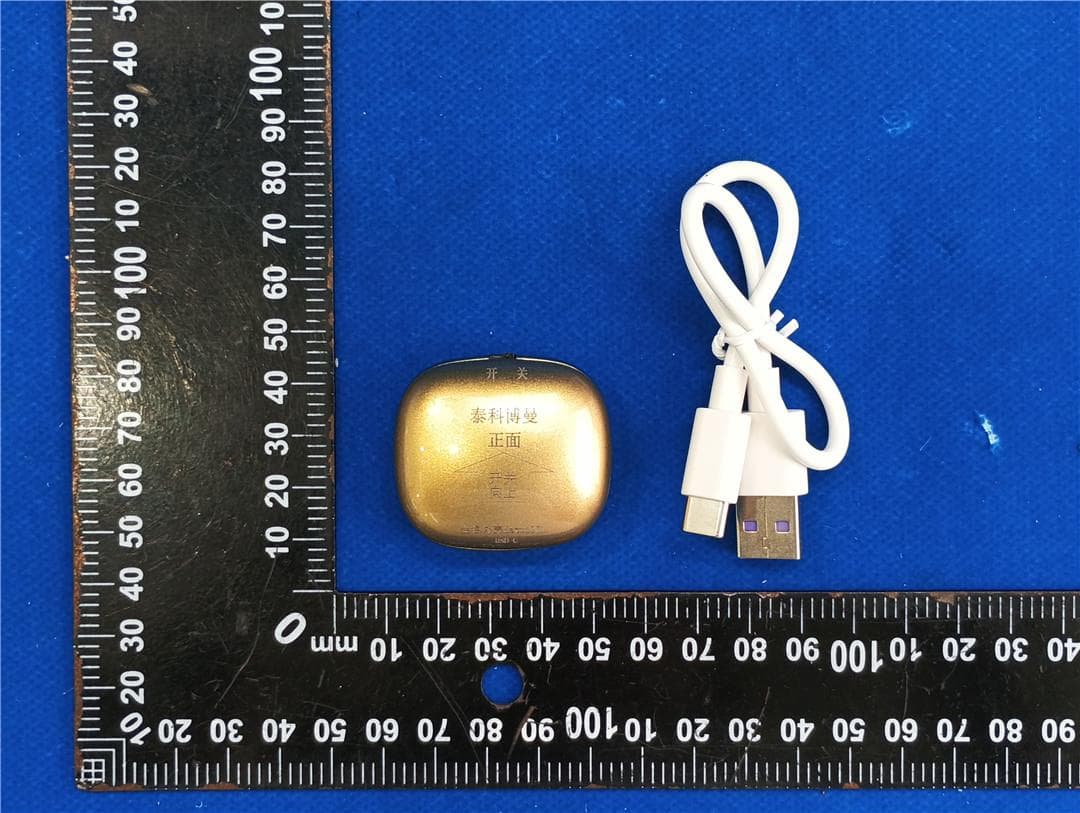

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026061230 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Asmedray Model No.: TKBM01BLECL5.0 EUT Constructional Details External Photo Report No.: HTT2026061230 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT2026061230 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT2026061230 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BXHR-TKBM01BLECL

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2026061230 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Asmedray Model No.: TKBM01BLECL5.0 EUT Constructional Details Internal Photo Report No.: HTT2026061230 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------ ANTENNA

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT2026061230F02 2BXHR-TKBM01BLECL Compiled by ( position+printed name+signature) . : File administrators Heber He Supervised by ( position+printed name+signature) . : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) . : RF Manager Kevin Yang Date of issue .................................... : Jul. 17, 2026 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Address ............................................ : No.28 Changyang Road, Xitaihu Science and Technology Industrial Park, Changzhou, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Asmedray Manufacturer .................................... : Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Trade Mark ........................................ N/A Model/Type reference ...................... : TKBM01BLECL5.0 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT2026061230F02 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Asmedray Model /Type : TKBM01BLECL5.0 Listed Models : N/A Applicant : Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Address : No.28 Changyang Road, Xitaihu Science and Technology Industrial Park, Changzhou, China Manufacturer : Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Address : No.28 Changyang Road, Xitaihu Science and Technology Industrial Park, Changzhou, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2026061230F02 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 8 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT2026061230F02 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT2026061230F02 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Jun. 30, 2026 Testing commenced on : Jun. 30, 2026 Testing concluded on : Jul. 17, 2026 2.2 Product Description Product Description: Asmedray Model/Type reference: TKBM01BLECL5.0 Power supply: DC 3.7V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab): Model: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT2026061230-1# (Engineer sample) HTT2026061230-2# (Normal sample) Hardware version: TKBM01BLECL5.0-001 Software version: / Bluetooth BLE Supported type: Bluetooth low Energy Modulation: GFSK Operation frequency: 2402MHz to 2480MHz Channel number: 40 Channel separation: 2 MHz Bit Rate of Transmitter: 1Mbps/2Mbps Antenna type: Chip Antenna Antenna gain: 4.30 dBi 2.3 Special Accessories The…

Text truncated - open the document above for the full version.

1 Appendix RF Test Data for BLE Company: : Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. EUT : Asmedray FCC ID: : 2BXHR-TKBM01BLECL Model Number : TKBM01BLECL5.0 Report No. : HTT2026061230F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 0.395 0.625 63.20 1.99 0.03 2440 0.395 0.625 63.20 1.99 0.03 2480 0.395 0.625 63.20 1.99 0.03 2M SISO 2402 0.210 0.625 33.60 4.74 0.00 2440 0.210 0.625 33.60 4.74 0.03 2480 0.210 0.625 33.60 4.74 0.03 3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 4 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 5 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 6 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.039 / Pass 2440 1 1.043 / Pass 2480 1 1.045 / Pass 2M SISO 2402 1 2.039 / Pass 2440 1 2.046 / Pass 2480 1 2.049 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.687 >=0.5 Pass 2440 1 0.692 >=0.5 Pass 2480 1 0.693 >=0.5 Pass 2M SISO 2402 1 1.145 >=0.5 Pass 2440 1 1.142 >=0.5 Pass 2480 1 1.146 >=0.5 Pass 7 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 8 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 9 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 10 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 11 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 12 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 13 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -1.66 <=30 Pass 2440 -1.58 <=30 Pass 2480 -1.56 <=30 Pass 2M SISO 2402 -1.61 <=30 Pass 2440 -1.55 <=30 Pass 2480 -1.54 <=30 Pass 14 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit(dBm/3kHz) 1M SISO 2402 -1.74dBm/100kHz <=8 Pass 2440 -1.66dBm/100kHz <=8 Pass 2480 -1.64dBm/100kHz <=8 Pass 2M SISO 2402 -1.71dBm/100kHz <=8 Pass 2440 -1.64dBm/100kHz <=8 Pass 2480 -1.62dBm/100kHz <=8 Pass 15 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 16 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 17 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 18 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -1.72 2440 1 -1.65 2480 1 -1.63 2M SISO 2402 1 -1.68 2440 1 -1.67 2480 1 -1.60 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -1.72 -21.72 Pass 2440 1 -1.65 -21.65 Pass 2480 1 -1.63 -21.63 Pass 2M SISO 2402 1 -1.68 -21.68 Pass 2440 1 -1.67 -21.67 Pass 2480 1 -1.60 -21.60 Pass 19 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 20 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 21 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV 22 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV 23 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV 24 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV 25 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV 26 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : HTT2026061230F01 2BXHR-TKBM01BLECL Compiled by ( position+printed name+signature) : File administrators Heber He Supervised by ( position+printed name+signature) : Project Engineer Bruce Zhu Approved by ( position+printed name+signature) : RF Manager Kevin Yang Date of issue ...................................: Jul. 17, 2026 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ..........................................: 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name...........................: Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Address ...........................................: No.28 Changyang Road, Xitaihu Science and Technology Industrial Park, Changzhou, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Asmedray Trade Mark ......................................: N/A Manufacturer ...................................: Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Model/Type reference .....................: TKBM01BLECL5.0 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 3.7V From Battery and DC 5V From External Circuit Result ..............................................: PASS Report No.: HTT2026061230F01 Page 2 of 34 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Asmedray Model /Type : TKBM01BLECL5.0 Listed Models : N/A Applicant : Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Address : No.28 Changyang Road, Xitaihu Science and Technology Industrial Park, Changzhou, China Manufacturer : Jiangsu Tech-Bio-Med Medical Equipment Co., Ltd. Address : No.28 Changyang Road, Xitaihu Science and Technology Industrial Park, Changzhou, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2026061230F01 Page 3 of 34 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions ........................................................................................................................ 7 3.4 Summary of measurement results .........................................................…

Text truncated - open the document above for the full version.

CA-C03规格书 CA 广州寒武纪电子科技有限公司 -C03_V02 1 SMD天线规格书 CrossAir TM SMD 天线系列 符合RoHS规范 PN: CA-C03 2.4 GHz ISM 频段天线 GUANGZHOU HANWUJI ELECTRONIC TECHNOLOGY CO., LTD Room 1119, Building 1, Hongda Business Creative Park, No. 96 Yuanxiang Road, Yunpu Street, Huangpu District, Guangzhou, China CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 2 特点 1. 尺寸仅5.5 X 2.0 X 1.0 mm 3 的小尺寸SMD贴片天线. 2. 低能量损耗，高天线效率。 3. 在温湿度变化的情况下具有高稳定性。 应用 1. 2.4GHz ISM 频段天线应用 2. 蓝牙、ZigBee、无线应用、智能家居应用等 3. WIFI（仅2.4G） 结构 1、天线馈电端 2、馈电识别标志 3、天线焊接固定端 尺寸 三视图 符号 尺寸(mm) L 5.5±0.2 w 2.0±0.1 T 1.0±0.1 a 0.5±0.1 CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 3 电气特性 CA-C03 Specification 工作频率范围Working Frequency 2450±50MHz 带宽Band Width >100MHz 阻抗Impedance 50Ω 增益Gain(dBi) 4.3（peak） 驻波比VSWR <2 工作温度Operation Temperature -40°C~+95°C 可承受功率Power Capacity 3W 天线2.4G工作频率需要通过阻抗匹配器件调试来实现. 天线焊盘和走线设计 PCB原理图 设计尺寸图 CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 4 匹配器件值 串联器件Series 1 电阻0Ω 并联器件Shunt 1 高频电感3nh 串联器件Series 2 电阻0Ω CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 5 测试板上天线测试 (板厚 1.0mm) 天线 S11 特性 天线 VSWR 特性 CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 6 效率和辐射图 效率、辐射图、增益等性能是基于测试板设计得到的。 CA-C03天线的规格特性测试数据是 基于测试PCB板尺寸以及下图所示的测试方向所得到的。以下数据是在ETS 3D 微波暗室测 试完成的. 增益和效率 带宽 2.4G-2.5GHz 峰值增益Peak Gain 4.3dBi 带内平均增益 Average Gain across the band 4.1dBi 带内增益范围 Gain Range across the band 3.9dBi~4.3dBi 峰值效率Peak Efficiency 81.7% 带内平均效率 Average Efficiency across the band 80.2% 带内效率范围 Efficiency Range across the band 78.6%~81.7% Z Y X CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 7 Theta @2.45 GHz Phi @2.45 GHz Total @2.45 GHz 焊接条件 可靠无损的典型焊接规范如下图所示： CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 8 包装 塑胶载带规格 (单位:mm) CA-C03规格书 广州寒武纪电子科技有限公司 CA-C03_V02 9 Index Ao Bo ΦD T W Dimension (mm) 3.0±0.1 6.0±0.1 1.55±0.05 1.6±0.1 16±0.2 Index E F Po P1 P2 Dimension (mm) 1.75±0.1 7.0±0.1 4.0±0.1 4.0±0.1 2.0±0.1 卷盘尺寸 Index A B C Dimension(mm) 330 100 13.5 标准数量： 3000 PCS/盘. 存储环境 产品存储时应满足下列条件： 温度 : -10°C~+40°C 湿度 : 30% 至 70% 相对湿度 产品放置的位置不要接触腐蚀性气体，如硫磺等。氯气或酸可能导致产品电极氧化 造成可焊接性变差。 产品应放置在工具箱里且避免受潮、灰尘的影响。 产品应存放在仓库中且避免热、振动、阳光直射。 产品应在密闭条件下储存。
