2BXIS-GRIP-METER-1Lumen Bloom Grip Meter

Grip Meter User Interface Power / Set Button Press the Power / Set button to turn the Grip Meter on or off. Up Button Press the Up button to adjust the LED display brightness. The display has 5 brightness levels. Down Button Press the Down button to switch the force unit between kilograms (kg) and pounds (lb). Adjusting Knob Turn the Adjusting Knob to change the handle position. Adjust the handle to fit the user’s grip size Charging Interface Use the USB-C charging port to recharge the Grip Meter. The device is compatible with standard 5 V / 1 A USB chargers. It can also be charged from compatible USB-C iPhone and Android devices using the included USB-C power delivery cable. Device Specifications Feature Specification Battery 3.7 V 1S lithium-polymer battery Battery Capacity 300 mAh Charging USB-C rechargeable Display Brightness 5 adjustable levels Force Units kg / lb FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

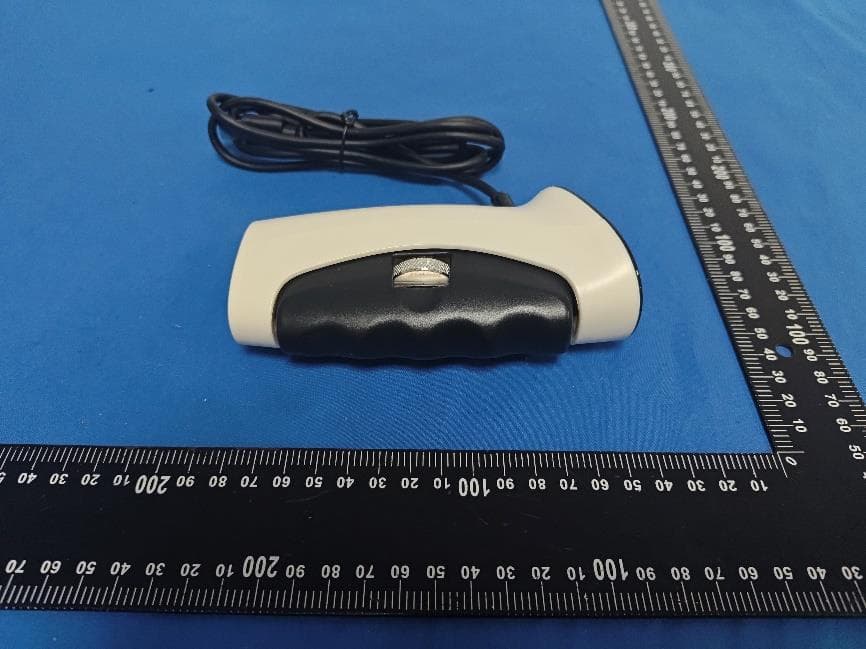

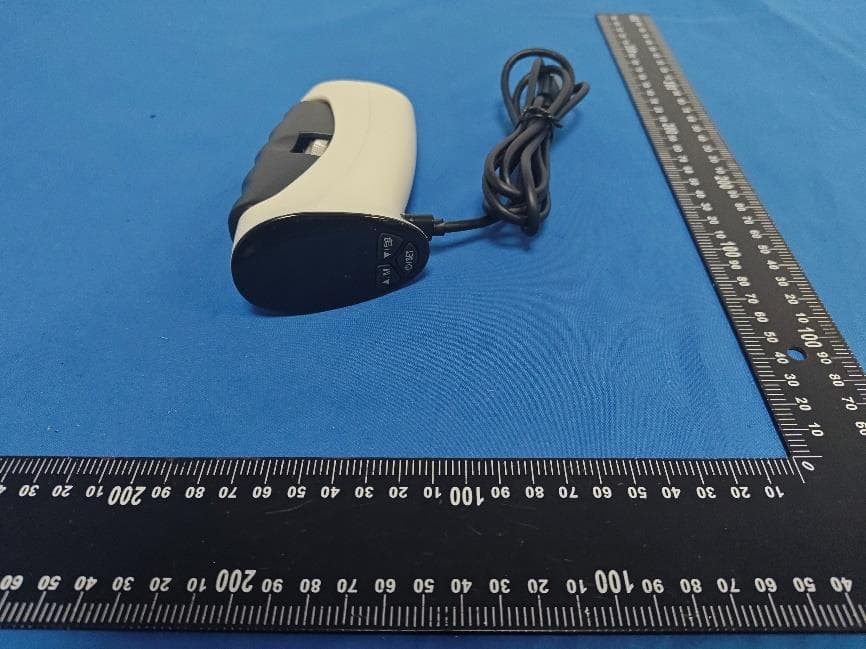

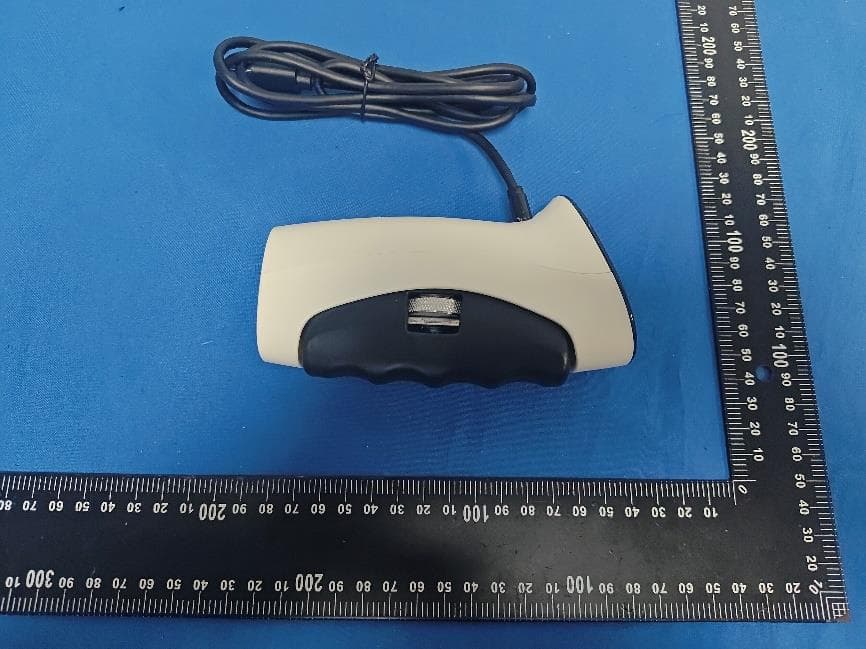

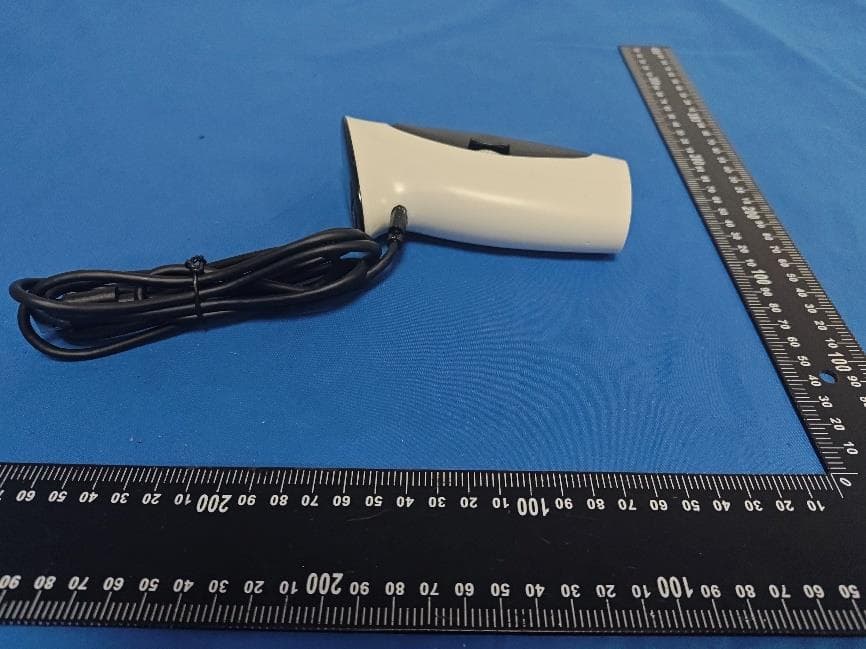

FCC ID:2BXIS-GRIP-METER-1 External Photos of the EUT FCC ID:2BXIS-GRIP-METER-1 FCC ID:2BXIS-GRIP-METER-1

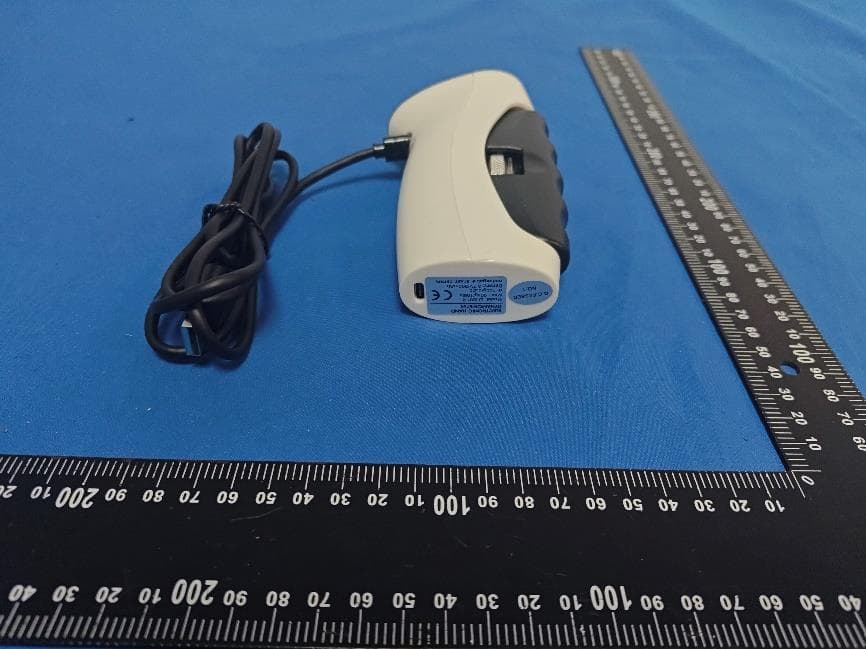

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BXIS-GRIP-METER-1

FCC ID:2BXIS-GRIP-METER-1 Internal Photos of the EUT FCC ID:2BXIS-GRIP-METER-1 FCC ID:2BXIS-GRIP-METER-1 ANT FCC ID:2BXIS-GRIP-METER-1 FCC ID:2BXIS-GRIP-METER-1

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26072702503 2BXIS-GRIP-METER-1 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 29, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Lumen Bloom LLC Address............................................ : 16 S Rutledge St Pentwater MI 49449 Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Lumen Bloom Grip Meter Trade Mark ....................................... : N/A Manufacturer .................................... : Lumen Bloom LLC Model/Type reference ...................... : grip-meter-1 Listed Models ................................... : N/A Rating ............................................... : Input: DC 5V Battery: 3.7V 300mAh 1.11Wh Result ............................................... : PASS Report No.: CTA26072702503 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Lumen Bloom Grip Meter Model /Type : grip-meter-1 Listed Models : N/A Applicant : Lumen Bloom LLC Address : 16 S Rutledge St Pentwater MI 49449 Manufacturer : Lumen Bloom LLC Address : 16 S Rutledge St Pentwater MI 49449 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26072702503 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26072702503 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile an…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26072702501 2BXIS-GRIP-METER-1 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Jul. 29, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Lumen Bloom LLC Address ...........................................: 16 S Rutledge St Pentwater MI 49449 Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Lumen Bloom Grip Meter Trade Mark ......................................: N/A Manufacturer ...................................: Lumen Bloom LLC Model/Type reference .....................: grip-meter-1 Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: DC 5V Battery: 3.7V 300mAh 1.11Wh Result ..............................................: PASS Report No.: CTA26072702501 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Lumen Bloom Grip Meter Model /Type : grip-meter-1 Listed Models : N/A Applicant : Lumen Bloom LLC Address : 16 S Rutledge St Pentwater MI 49449 Manufacturer : Lumen Bloom LLC Address : 16 S Rutledge St Pentwater MI 49449 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26072702501 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .................................................................................................... 8 3.5 Statement of the measurement uncertainty ...................................................................................... 8 3.6 Equipments Used during the Test ......................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26072702502 2BXIS-GRIP-METER-1 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 29, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Lumen Bloom LLC Address ............................................ : 16 S Rutledge St Pentwater MI 49449 Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Lumen Bloom Grip Meter Trade Mark ....................................... : N/A Manufacturer .................................... : Lumen Bloom LLC Model/Type reference ...................... : grip-meter-1 Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: DC 5V Battery: 3.7V 300mAh 1.11Wh Result ............................................... : PASS Report No.: CTA26072702502 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Lumen Bloom Grip Meter Model /Type : grip-meter-1 Listed Models : N/A Applicant : Lumen Bloom LLC Address : 16 S Rutledge St Pentwater MI 49449 Manufacturer : Lumen Bloom LLC Address : 16 S Rutledge St Pentwater MI 49449 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26072702502 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Description ................................................................................................................................. 8 3.5 Statement of the measurement uncertainty ....................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BXIS-GRIP-METER-1 Company : Lumen Bloom LLC EUT : Lumen Bloom Grip Meter Model Number : grip-meter-1 Report No. : CTA26072702502 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.200 2456.960 2467.160 0.5 PASS 11G Ant1 2412 15.440 2404.360 2419.800 0.5 PASS 2437 15.560 2429.280 2444.840 0.5 PASS 2462 15.320 2454.440 2469.760 0.5 PASS 11N20SISO Ant1 2412 16.920 2403.480 2420.400 0.5 PASS 2437 16.760 2428.520 2445.280 0.5 PASS 2462 16.600 2453.840 2470.440 0.5 PASS 11N40SISO Ant1 2422 35.520 2404.640 2440.160 0.5 PASS 2437 35.440 2419.640 2455.080 0.5 PASS 2452 35.520 2434.480 2470.000 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.460 2405.2787 2418.7387 --- --- 2437 13.476 2430.2831 2443.7591 --- --- 2462 13.457 2455.3078 2468.7648 --- --- 11G Ant1 2412 16.924 2403.5467 2420.4707 --- --- 2437 16.846 2428.6045 2445.4505 --- --- 2462 16.762 2453.6531 2470.4151 --- --- 11N20SISO Ant1 2412 17.896 2403.0559 2420.9519 --- --- 2437 17.928 2428.0560 2445.9840 --- --- 2462 17.921 2453.0953 2471.0163 --- --- 11N40SISO Ant1 2422 36.140 2404.1162 2440.2562 --- --- 2437 36.050 2419.1069 2455.1569 --- --- 2452 36.128 2434.1013 2470.2293 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Average Test Mode Antenna Frequency[M Hz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 6.26 ≤30.00 PASS 2437 6.33 ≤30.00 PASS 2462 6.45 ≤30.00 PASS 11G Ant1 2412 5.98 ≤30.00 PASS 2437 5.81 ≤30.00 PASS 2462 5.73 ≤30.00 PASS 11N20SISO Ant1 2412 5.77 ≤30.00 PASS 2437 5.63 ≤30.00 PASS 2462 5.70 ≤30.00 PASS 11N40SISO Ant1 2422 5.93 ≤30.00 PASS 2437 5.82 ≤30.00 PASS 2452 5.87 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -19.59 ≤8.00 PASS 2437 -19.45 ≤8.00 PASS 2462 -18.97 ≤8.00 PASS 11G Ant1 2412 -25.40 ≤8.00 PASS 2437 -26.40 ≤8.00 PASS 2462 -25.90 ≤8.00 PASS 11N20SISO Ant1 2412 -24.12 ≤8.00 PASS 2437 -25.38 ≤8.00 PASS 2462 -25.34 ≤8.00 PASS 11N40SISO Ant1 2422 -28.54 ≤8.00 PASS 2437 -28.84 ≤8.00 PASS 2452 -28.93 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -6.41 -55.41 ≤-26.41 PASS High 2462 -5.43 -57.76 ≤-25.43 PASS 11G Ant1 Low 2412 -10.49 -40.09 ≤-30.49 PASS High 2462 -10.58 -57.47 ≤-30.58 PASS 11N20SIS O Ant1 Low 2412 -10.68 -42.8 ≤-30.68 PASS High 2462 -10.65 -58.4 ≤-30.65 PASS 11N40SIS O Ant1 Low 2422 -13.84 -42.68 ≤-33.84 PASS High 2452 -13.86 -58.04 ≤-33.86 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -6.94 -6.94 --- PASS 30~1000 -6.94 -69.24 ≤-26.94 PASS 1000~26500 -6.94 -46.52 ≤-26.94 PASS 2437 Reference -5.70 -5.70 --- PASS 30~1000 -5.70 -68.2 ≤-25.7 PASS 1000~26500 -5.70 -47.24 ≤-25.7 PASS 2462 Reference -5.48 -5.48 --- PASS 30~1000 -5.48 -68 ≤-25.48 PASS 1000~26500 -5.48 -46.89 ≤-25.48 PASS 11G Ant1 2412 Reference -11.36 -11.36 --- PASS 30~1000 -11.36 -69.28 ≤-31.36 PASS 1000~26500 -11.36 -46.57 ≤-31.36 PASS 2437 Reference -10.89 -10.89 --- PASS 30~1000 -10.89 -67.4 ≤-30.89 PASS 1000~26500 -10.89 -47 ≤-30.89 PASS 2462 Reference -11.54 -11.54 --- PASS 30~1000 -11.54 -69.63 ≤-31.54 PASS 1000~26500 -11.54 -47.15 ≤-31.54 PASS 11N20SISO Ant1 2412 Reference -11.98 -11.98 --- PASS 30~1000 -11.98 -67.77 ≤-31.98 PASS 1000~26500 -11.98 -46.81 ≤-31.98 PASS 2437 Reference -12.18 -12.18 --- PASS 30~1000 -12.18 -69.06 ≤-32.18 PASS 1000~26500 -12.18 -47.06 ≤-32.18 PASS 2462 Reference -10.55 -10.55 --- PASS 30~1000 -10.55 -68.61 ≤-30.55 PASS 1000~26500 -10.55 -46.8 ≤-30.55 PASS 11N40SISO Ant1 2422 Reference -13.78 -13.78 --- PASS 30~1000 -13.78 -68.46 ≤-33.78 PASS 1000~26500 -13.78 -46.85 ≤-33.78 PASS 2437 Reference -14.01 -14.01 --- PASS 30~1000 -14.01 -68.5 ≤-34.01 PASS 1000~26500 -14.01 -46.08 ≤-34.01 PASS 2452 Reference -13.96 -13.96 --- PASS 30~1000 -13.96 -69.19 ≤-33.96 PASS 1000~26500 -13.96 -46.93 ≤-33.96 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.36 8.40 99.52 0.02 0.12 2462 8.35 8.39 99.52 0.02 0.12 11G Ant1 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.17 0.22 77.27 1.12 5.88 2462 0.17 0.22 77.27 1.12 5.88 11N40SISO Ant1 2422 0.18 0.22 81.82 0.87 5.56 2437 0.18 0.22 81.82 0.87 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.03 2.00 0.03 37.20 ≤54 PASS AV 2388.140 -59.37 2.00 0.03 37.86 ≤54 PASS AV 2390.000 -59.56 2.00 0.03 37.67 ≤54 PASS Peak 2310.000 -52.81 2.00 0.00 44.39 ≤74 PASS Peak 2368.770 -49.25 2.00 0.00 47.95 ≤74 PASS Peak 2390.000 -51.5 2.00 0.00 45.70 ≤74 PASS High 2462 AV 2483.500 -59.75 2.00 0.02 37.47 ≤54 PASS AV 2488.510 -59.22 2.00 0.02 38.00 ≤54 PASS AV 2500.000 -59.92 2.00 0.02 37.30 ≤54 PASS Peak 2483.500 -51.08 2.00 0.00 46.12 ≤74 PASS Peak 2493.570 -48.5 2.00 0.00 48.70 ≤74 PASS Peak 2500.000 -52.76 2.00 0.00 44.44 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -61.16 2.00 1.03 37.07 ≤54 PASS AV 2389.960 -59.62 2.00 1.03 38.61 ≤54 PASS AV 2390.000 -59.62 2.00 1.03 38.61 ≤54 PASS Peak 2310.000 -51.37 2.00 0.00 45.83 ≤74 PASS Peak 2341.470 -48.99 2.00 0.00 48.21 ≤74 PASS Peak 2390.000 -51.56 2.00 0.00 45.64 ≤74 PASS High 2462 AV 2483.500 -59.81 2.00 1.25 38.64 ≤54 PASS AV 2497.530 -59.34 2.00 1.25 39.11 ≤54 PASS AV 2500.000 -60.3 2.00 1.25 38.15 ≤54 PASS Peak 2483.500 -50.84 2.00 0.00 46.36 ≤74 PASS Peak 2491.370 -48.97 2.00 0.00 48.23 ≤74 PASS Peak 2500.000 -51.55 2.00 0.00 45.65 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.76 2.00 1.12 37.56 ≤54 PASS AV 2383.200 -59.76 2.00 1.12 38.56 ≤54 PASS AV 2390.000 -60 2.00 1.12 38.32 ≤54 PASS Peak 2310.000 -52.68 2.00 0.00 44.52 ≤74 PASS Peak 2368.380 -49.63 2.00 0.00 47.57 ≤74 PASS Peak 2390.000 -52.78 2.00 0.00 44.42 ≤74 PASS High 2462 AV 2483.500 -59.98 2.00 1.12 38.34 ≤54 PASS AV 2499.950 -59.21 2.00 1.12 39.11 ≤54 PASS AV 2500.000 -59.21 2.00 1.12 39.11 ≤54 PASS Peak 2483.500 -51.64 2.00 0.00 45.56 ≤74 PASS Peak 2485.870 -49.59 2.00 0.00 47.61 ≤74 PASS Peak 2500.000 -52.98 2.00 0.00 44.22 ≤74 PASS 49 11N40S…
