2BXJD-LX80Bluetooth Selfie

封底 封面 2.4 Bluetooth Selfie Function 1.Turn on Bluetooth on your phone 2.5earch for“AB Shutter3”and connect to the device Bluetooth signal 3.Hold the Bluetooth remote and pressthe button to control photo taking /video recording 4.Enables long-distance selfies and group photos without assistance from others 2.5 Tripod Expansion PRECAUTIONS 1.Non-MagSafe phones must use the adapter metal ring and should be leftfor 12 hours before use to avoid weak attachment or accidental dropping 2.Do not clamponto fragile or easily deformed objects,to avoid damagingthe device or the mounting surface 3.Keep the Bluetooth remote away from strong electromagntic interference to avoid dsconnection 4.Use a dry cloth for cleaning.Do notallow liquid to enter the device 5.Do not place the device in high-temperature or humid environments, toextend service life FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure req uirement. The device can be used in portable exposure conditio n without restriction. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. USER MANUAL LX80 TRAVEL STAND Key Selling Points: MagSafe Magnetic Attachment|360°Rotation Bluetooth Selfie|Multi-Scenario Mounting The bottom of the stand is equipped witha standard 1/4 inch threadedinterface,which can be mounted directly ona tripodforstable shoting and long recording sessions. PRODUCT OVERVIEW 1.1 Core Components · Magnetic Head:supports MagSafe attachment,rotates freely 360°,and fits multiple shooting angles · Reinforced Clamp:opens with the side button;built-in silicone anti-slip pads help preventslipping and protect the device · Bluetooth Remote:wirelesslycontrols phone photography for long distance selfies · 1/4-inch threaded interface:compatible with tripods · Adapter metal ring:accessory for non-MagSafe phones 1.2 Dimensions ● Folded size:6.17cm×4.27cm×9.55cm · Expanded siz:6.17 m×4.27 m×1.5cm INSTALLATION AND USE 2.1 Phone Compatibility Preparation ●iPhone(MagSafe models) Attach the phone directly to the magnetic head.No extra acessory is needed. · Other phones(non-MagSafe models) 1.Peel off the adhesive backing from the adaptermetal ring 2.Place the ringflat in the center of the back of the phone 3.Let it sit for 12 hours before use so the adhesive can bond completely 2.2 Mounting and Application Scenarios 1.Press and hold the side button on the stand to open the reinforced lamp 2.Align the clamp with a fixed position such as a desk,door frame,or suitcase handle,then release the button to clamp firmly 3.The silicone anti-slip pads wilfit automaticallyto help prevent slipping 2.3Angle Adjustment The magnetichead supports 360°horizontal rotation and multi- angletilt adjustment allowing freswitching among portrait,landscape, upward,and downward shooting positions,

Shenzhen Beishen Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Beishen Technology Co., Ltd. Address: 3rd Floor, Building A, No.2 Youtian Road, Anliang 5th Village, Yuanshan Subdistrict, Longgang District, Shenzhen, China Product Name: Bluetooth Selfie FCC ID: 2BXJD-LX80 Model(s): LX80 2.911(d)(5)(i) Equipment Type We, [Shenzhen Beishen Technology Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Qing Cai Date: Aug. 10, 2026 Signature: Title and Company name: Manager; Shenzhen Beishen Technology Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Beishen Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Beishen Technology Co., Ltd. Address: 3rd Floor, Building A, No.2 Youtian Road, Anliang 5th Village, Yuanshan Subdistrict, Longgang District, Shenzhen, China Product Name: Bluetooth Selfie FCC ID: 2BXJD-LX80 Model(s): LX80 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Beishen Technology Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Qing Cai Date: Aug. 10, 2026 Signature: Title and Company name: Manager; Shenzhen Beishen Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the Shenzhen Beishen Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2

Shenzhen Beishen Technology Co., Ltd. Agent Authorization Company: Shenzhen Beishen Technology Co., Ltd. Address: 3rd Floor, Building A, No.2 Youtian Road, Anliang 5th Village, Yuanshan Subdistrict, Longgang District, Shenzhen, China Product Name: Bluetooth Selfie Model Number(s): LX80 Product Description: Bluetooth Selfie We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Aug. 10, 2026 Name: Qing Cai Title: Manager Company: Shenzhen Beishen Technology Co., Ltd.

< Shenzhen Beishen Technology Co., Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Aug. 10, 2026 Subject; Request for Long Term Confidentiality FCC ID: 2BXJD-LX80 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Qing Cai Title: Manager

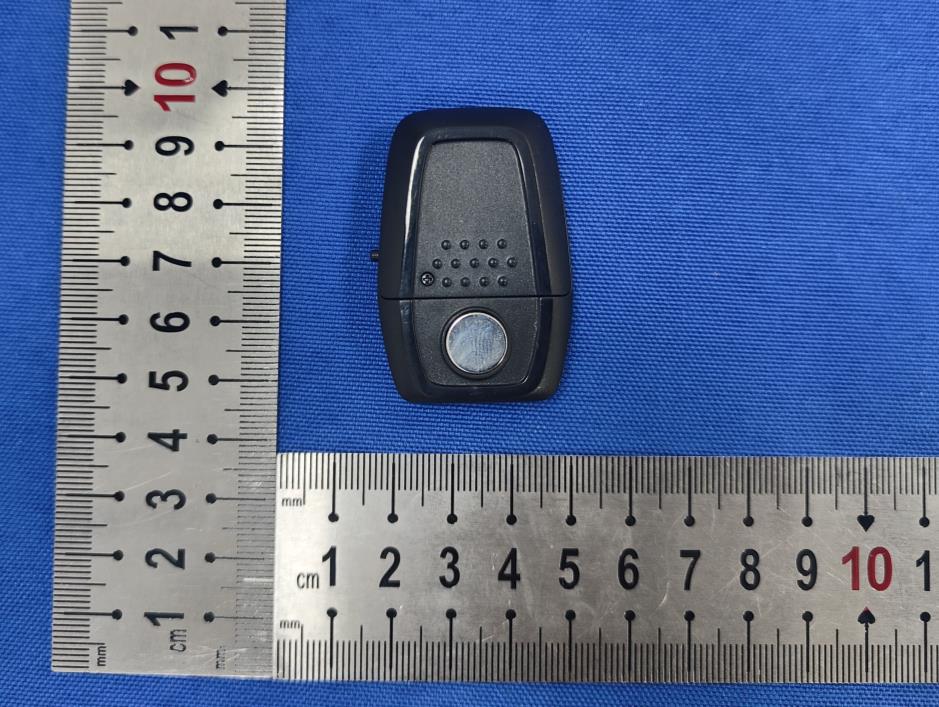

Model: LX80 Model: LX80 Model: LX80 Model: LX80

FCC ID LABEL: Label Location: FCC ID: 2BXJD-LX80 0.3cm 1.5cm

Model: LX80 Model: LX80 Model: LX80 BLE Antenna Model: LX80

MPE ESTIMATION FCC ID: 2BXJD-LX80 1. Limit for Portable Equipment Exposure Frequency 1-g SAR 100MHz-6GHz 3.0 According to 447498 D01 General RF Exposure Guidance v07 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] •[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 2. Estimation Result BLE: Frequency Reading result(dBμV/m) PK Output Power (dBm) Output Power(mW) Test Separation Distance (mm) Measurement Result 1-g SAR GFSK 2440 MHz 93.57 -1.63 0.687 5 0.2146 3.0 Note: PK Output Power (dBm)= Reading result(dBμV/m)-95.2 Reading result see the test report UNIA26072111ER-61. The SAR evaluation is not required. ------The End------

Summary Inverted F Antenna Specification ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 37.38mm Antenna type PCB Antenna Manufacture Yichip Microelectronics (Hangzhou) Co.,Ltd. Test Company TA Technology (Shanghai) Co., Ltd. Test Address Building 1, No. 400, Fangchun Road, China (Shanghai) Pilot Free Trade Zone Test Instrument Keysight E5071B Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 3D Radiation Pattern

Page 1 of 30 Report No.: UNIA26072111ER-61 FCC RADIO TEST REPORT FCC ID: 2BXJD-LX80 Sample : Bluetooth Selfie Trade Mark : N/A Main Model : LX80 Additional Model : N/A Report No. : UNIA26072111ER-61 Prepared for Shenzhen Beishen Technology Co., Ltd. 3rd Floor, Building A, No.2 Youtian Road, Anliang 5th Village, Yuanshan Subdistrict, Longgang District, Shenzhen, China Prepared by Shenzhen United Testing Technology Co., Ltd. D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China Page 2 of 30 Report No.: UNIA26072111ER-61 TEST RESULT CERTIFICATION Applicant .................................... : Shenzhen Beishen Technology Co., Ltd. Address ....................................... : 3rd Floor, Building A, No.2 Youtian Road, Anliang 5th Village, Yuanshan Subdistrict, Longgang District, Shenzhen, China Manufacturer ............................. : Shenzhen Beishen Technology Co., Ltd. Address ....................................... : 3rd Floor, Building A, No.2 Youtian Road, Anliang 5th Village, Yuanshan Subdistrict, Longgang District, Shenzhen, China Product description Product ........................................ : Bluetooth Selfie Trade Mark .................................. : N/A Model Name ................................ : LX80 Test Methods ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249, ANSI C63.10: 2020 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ................... : Jul. 23, 2026 ~ Aug. 03, 2026 Date of Issue ................................................ : Aug. 04, 2026 Test Result .................................................... : Pass Edited by: Abe Yang Reviewed by: Kelly Cheng Approved by: Liuze Page 3 of 30 Report No.: UNIA26072111ER-61 Table of Contents Pages 1 TEST SUMMARY 4 1.1 TEST PROCEDURES AND RESULTS 4 1.2 TEST FACILITY 5 1.3 MEASUREMENT UNCERTAINTY 6 1.4 ENVIRONMENTAL CONDITIONS 6 2 GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 CARRIER FREQUENCY OF CHANNELS 8 2.3 DESCRIPTION OF TEST MODES 8 2.4 TEST SETUP 9 2.5 EQUIPMENT USED IN TESTED SYSTEM 9 2.6 MEASUREMENT INSTRUMENTS LIST 10 3 CONDUCTED EMISSION 11 3.1 TEST LIMIT 11 3.2 TEST SETUP 11 3.3 TEST PROCEDURE 12 3.4 TEST RESULT 12 4 RADIATED EMISSION 13 4.1 TEST LIMIT 13 4.2 TEST SETUP 14 4.3 TEST PROCEDURE 15 4.4 TEST RESULT 15 5 BAND EDGE 21 5.1 TEST LIMIT 21 5.2 TEST SETUP 21 5.3 MEASUREMENT EQUIPMENT USED 21 5.4 TEST PROCEDURE 21 5.5 TEST RESULT 21 6 20dB Bandwidth 24 6.1 TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) 24 6.2 MEASUREMENT EQUIPMENT USED 24 6.3 TEST PROCEDURE 24 6.4 TEST RESULT 24 7 ANTENNA REQUIREMENT 27 8 PHOTO OF TEST 28 Page 4 of 30 Report No.: UNIA26072111ER-61 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS Note: “N/A” denotes test is not applicable in this Test Report. Item FCC Rules Description of test Result 1 FCC Part 15.207 Conducted Emission N/A 2 FCC Part 15.209/15.249 Radiated Emission Pass 3 FCC Part 15.249/15.205 Band Edge Pass 4 FCC Part 15.215 20dB Bandwidth Pass 5 FCC Part 15.203 Antenna Requirement Pass Page 5 of 30 Report No.: UNIA26072111ER-61 1.2 TEST FACILITY Test Firm : Shenzhen United Testing Technology Co., Ltd. Address : D101&D401, No. 107, Kaicheng High-Tech Park, Taoyuan Community, Dalang Sub-District, Longhua District, Shenzhen, Guangdong, China The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19.The testing quality system of our laboratory meets with ISO/IEC-17025 requirements. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: A2LA Certificate Number: 4747.01 The EMC Laboratory has been accredited by A2LA, and in compliance with ISO/IEC 17025:2017 General Requirements for testing Laboratories. FCC Registration Number: 674885 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. IC Registration Number: 31584 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. Page 6 of 30 Report No.: UNIA26072111ER-61 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. A. Conducted Measurement: Test Site Method Measurement Frequency Range U, (dB) NOTE UNI ANSI 9kHz ~ 150kHz 2.96 150kHz ~ 30MHz 2.44 B. Radiated Measurement: Test Site Method Measurement Frequency Range U, (dB) NOTE UNI ANSI 9kHz ~ 30MHz 2.50 30MHz ~ 1000MHz 4.80 Above 1000MHz 4.13 C. RF Conducted Method: Item Measurement Uncertainty Uncertainty of total RF power, conducted U c = ±0.8 dB Uncertainty of RF power density, conducted U c = ±2.6 dB Uncertainty of spurious emissions, conducted U c = ±2 % Uncertainty of Occupied Channel Bandwidth U c = ±2 % 1.4 ENVIRONMENTAL CONDITIONS During the measurement the environmental conditions were within the listed ranges: NORMAL CONDITIONS EXTREME CONDITIONS Temperature range (°C) 15 - 35 -20 - 50 Relative humidty range 20 % - 75 % 20 % - 75 % Pressure range (kPa) 86 - 106 86 - 106 Note: The Extreme Temperature and Extreme Voltages declared by the manufacturer. Page 7 of 30 Report No.: UNIA26072111ER-61 2 GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product: Bluetooth Selfie Trade Mark: N/A Ma…

Text truncated - open the document above for the full version.

Model: LX80 Radiated Emission test Model: LX80 RF Conducted test
