2BXJW-T2Headphones

HONGKONG BAOKANGDA LIMITED
Headphones - FCC ID 2BXJW-T2 - HONGKONG BAOKANGDA LIMITED
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Sep 02, 2026
Application Purpose
Original Equipment
Equipment Note
Headphones
Frequency Range
2402.00000000 - 2480.00000000
Company
HONGKONG BAOKANGDA LIMITED
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

JoySpark T5 JoySpark T5 JoySpark T5 JoySpark T5 JoySpark T5 JoySpark T5 dB Adjustment W ireless headphones T2 dB Adjustment Connection Profile 7 0 85 dB ( ( 2 dB 74dBA/85dBA 85dBA FR ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI UK REP GOAL REACH CONSULTING LTD OFFICE 1029 3 HARDMAN STREET 10TH FLOOR, SPINNINGFIELDS MANCHESTER,UK M3 [email protected] BAC DE TRI 3+ EU REP SUCCESS COURIER [email protected] CALLE RIO TORMES NUM.1, PLANTA 1, DERECHA, OFICIN A 3, Fuenlabrada, Madrid, 28947 Spain DAS IST KEIN SPIELZEUG. VERSCHLUCKBARE KLEINTEILE NICHT FÜR KINDER UNTER 3 JAHREN GEEIGNET. ESTO NO ES UN JUGUETE. PELIGRO DE ASFIXIA. PIEZAS PEQUEÑAS,NO APTO PARA NIÑOS MENORES DE 3 AÑOS. CECI N'EST PAS UN JOUET. RISQUE D'ÉTOUFFEMENT. PETITES PIÈCES,DÉCONSEILLÉ AUX ENFANTS DE MOINS DE 3 ANS. QUESTO NON È UN GIOCATTOLO. PERICOLO DI SOFFOCAMENTO. PICCOLE PARTINON ADATTO AI BAMBINI SOTTO I 3 ANNI. 721,(-(67=$%$:.$5<=<.2=$'à$:,(1,$0$à((/(0(17<1,(2'32:,('1,('/$'=,(&,321,ĩ(-/$7 721(1Ë+5$ý.$1(%(=3(ýË8'8â(1Ë0$/eýÈ67,1(9+2'1e352'ċ7,0/$'âË/(7 DIT IS GEEN SPEELGOED. VERSTIKKINGSGEVAAR. KLEINE ONDERDELEN. NIET GESCHIKT VOOR KINDEREN JONGER DAN 3 JAAR. DET HÄR ÄR INTE EN LEKSAK. KVÄVNINGSRISK. SMÅ DELAR. INTE LÄMPLIG FÖR BARN UNDER 3 ÅR. WARNING: CHOKING HAZARD-Small parts. Not for children under 3 years. WARNING. The battery is not replaceable. Product name: HeadphonesModel No.: T2 Manufacturer: HONGKONG BAOKANGDA LIMITEDManufacturer Address: ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HONGKONG Importer HONGKONG BAOKANGDA LIMITED ӆӿӢ䞯相ӚӢҵӽӱӎԆѶ睢㾅㬾䊍ӡ禾⏓ӞӢѵ泛Ӳ掫ԆӚӊӱҹ㑬ӿҿҵӾ〱ӈӝ擗⣯ҿ摘ӊәҷӱӎԆѶ Address ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HK [email protected] FCC ID: 2BXJW-T2 1.5 1.5 ~~ H

Attestation Statements

Attestation Statements (2026/8/25) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BXJW-T2) (HONGKONG BAOKANGDA LIMITED), the undersigned, hereby authorize FCC US Agent, LLC to act as our designated U.S. agent for service of process, (HONGKONG BAOKANGDA LIMITED) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US Agent, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information: Company Name: HONGKONG BAOKANGDA LIMITED Address: ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HONGKONG Contact Name: CHEN KANG FRN: 0038743514 Telephone No: +86 13267218010 Email: [email protected] Signature [CHEN KANG] U.S. Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Signature [Tim Payne]

Attestation Statements

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: HONGKONG BAOKANGDA LIMITED Grantee code: 2BXJW FRN: 0038743514 FCC ID: 2BXJW-T2 Contact Name: CHEN KANG Address: ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HONGKONG Telephone No: +86 13267218010 Fax No: / Email: [email protected] i. [HONGKONG BAOKANGDA LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [HONGKONG BAOKANGDA LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [HONGKONG BAOKANGDA LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Date: 2026/8/25 Applicant’s Name: HONGKONG BAOKANGDA LIMITED Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Attestation Statements

HONGKONG BAOKANGDA LIMITED Code 00018768 Ed. 2 Item 1. The device is able to install software/program installation? ☐Yes, go to Item 2. ☒No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky cybersecurity or anti-virus software. Item 2. Technical Requirements for Kaspersky Cybersecurity Software: # General Requirements (For all Devices) Yes / No or N/A Comments 1 Internet connection for activation and updates (For all Operating Systems) N/A # General Requirements (For Windows Devices) Yes / No or N/A Comments 1 Storage: 1500 MB free space on the hard drive N/A Device Headphones Company name HONGKONG BAOKANGDA LIMITED Grantee code 2BXJW FCC ID 2BXJW-T2 FRN 0038743514 Contact name CHEN KANG Address ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HONGKONG Telephone number +86 13267218010 [email protected] Chipset/module information Bluetooth: AC7006F Operating System (if applicable) / Storage Capacity (hard drive or other permanent memory storage, if applicable) / 2 2 Operating System: Microsoft Windows 8, 8.1, 10 & 11 Home / Pro / Enterprise Microsoft Windows 7 Starter / Home Basic & Premium / Professional / Ultimate SP1 or higher N/A 3 Processor: 1 GHz or higher (x86 or x64) N/A 4 Memory (RAM)1 GB (32-bit) or 2 GB (64-bit) N/A 5 Screen Resolution: Minimum resolution of 1024 x 768 N/A # General Requirements (For macOS devices) Yes / No or N/A Comments 1 Operating System macOS® 13 – 14 N/A 2 Memory (RAM)4 GB N/A 3 Storage: 3455 MB free space on the hard drive N/A # General Requirements (For Android Devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: Android™ 10 – 14 N/A 3 Screen Resolution: Minimum resolution of 320 x 480 N/A # General Requirements (for iOS devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: iOS® 17 N/A After reviewed the technical requirements, is the device capable of supporting the installation of Kaspersky software? ☐ Yes, go to Item 3. 3 ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky software Item 3. Connectivity Capabilities: # Physical Interface Purpose Justification 1 1 # Wireless Interface Purpose Justification 1 1 After the review of this items, the device: ☒ Cannot support installation of any cybersecurity or anti-virus software on the covered list. ☐ Potentially can operate with any cybersecurity or anti-virus software on the covered list – additional third- party proof is provided to demonstrate compliance with requirements as of 2.911(d)5(i),(ii) – “Proof of Compliance with Covered List Software Requirements” of this document applies Signature: Name: CHEN KANG Date: 2026/8/25 1 The justification field is used to justify why the software cannot be received through that interface. Check the annex for more indications.

Attestation Statements

TCB CALL página 1 File FCC ID: 2BXJW-T2 Please upload an exhibit that explains how does the TCB verify the new agent information: 1- Is the address of the agent a valid physical US mailing address (not a US post office box, not a virtual mailbox, not P.O. Boxes, not a vacant lot, not a public building, etc.) ○ We have checked if the address exists in a real and potential building (Google maps) + official US register, after this verification and the evidence below we can guarantee the following: not a US post office box not a virtual mailbox not P.O. Boxes not a vacant lot not a public building(note) ► We checked the FCC FRN Search based on the information provided by the grantee. On the official register from : https://opencorporates.com/companies/us_il/LLC_12842678 In google: TCB CALL página 2 Bank information TCB CALL página 3 ► CONCLUSION by TCB: The ASOP defined and provided by grantee is VALID and confirmed. Therefore the exhibit "C5266091_X23_Ed1_US_Agent_Letter" included in the file is ok. 2- Is the agent physically located at that valid US address such that the agent can be legally served at that address? Yes , check above 3- Has the listed agent clearly agreed in writing to serve as the agent for the grantee at that address? Yes, it is included in the exhibit "C5266091_X23_Ed1_US_Agent_Letter" >

Cover Letter(s)

C5266091_X10_Ed.2 1/1 HONGKONG BAOKANGDA LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2026/8/25 Subject: Request for Confidentiality FCC ID: 2BXJW-T2 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: CHEN KANG Title: Manager

Cover Letter(s)

C5266091_X8_Ed.1 1/1 Letter of Authorization HONGKONG BAOKANGDA LIMITED Company: HONGKONG BAOKANGDA LIMITED Address: ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HONGKONG Product Name: Headphones Model Number: T2 FCC Identifier: 2BXJW-T2 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: CHEN KANG Date: 2026/8/25 Title: Manager Signature of applicant:

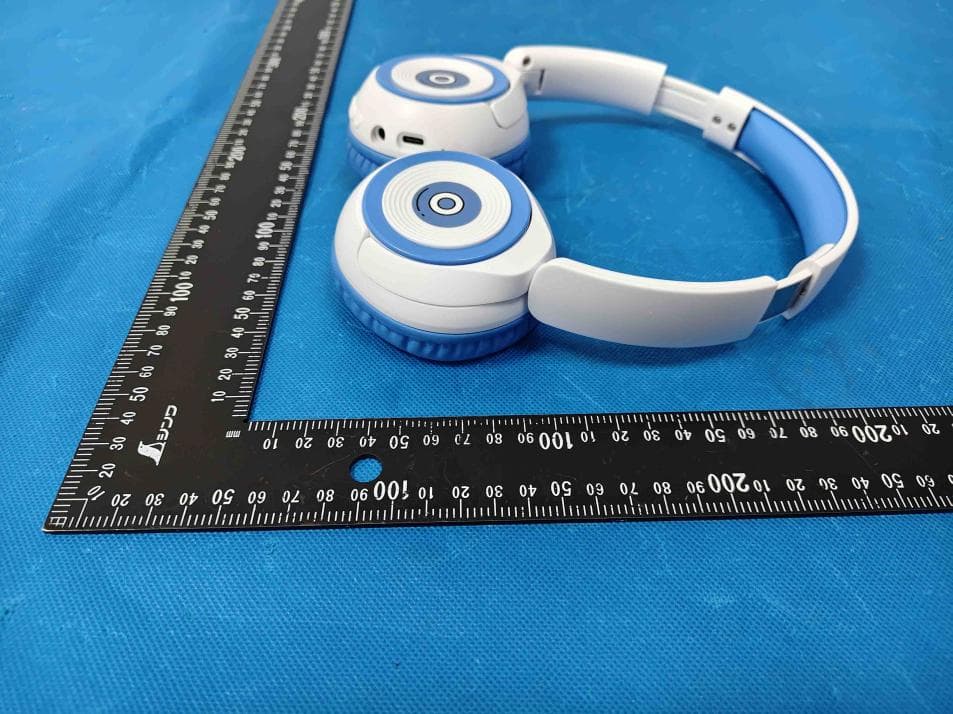

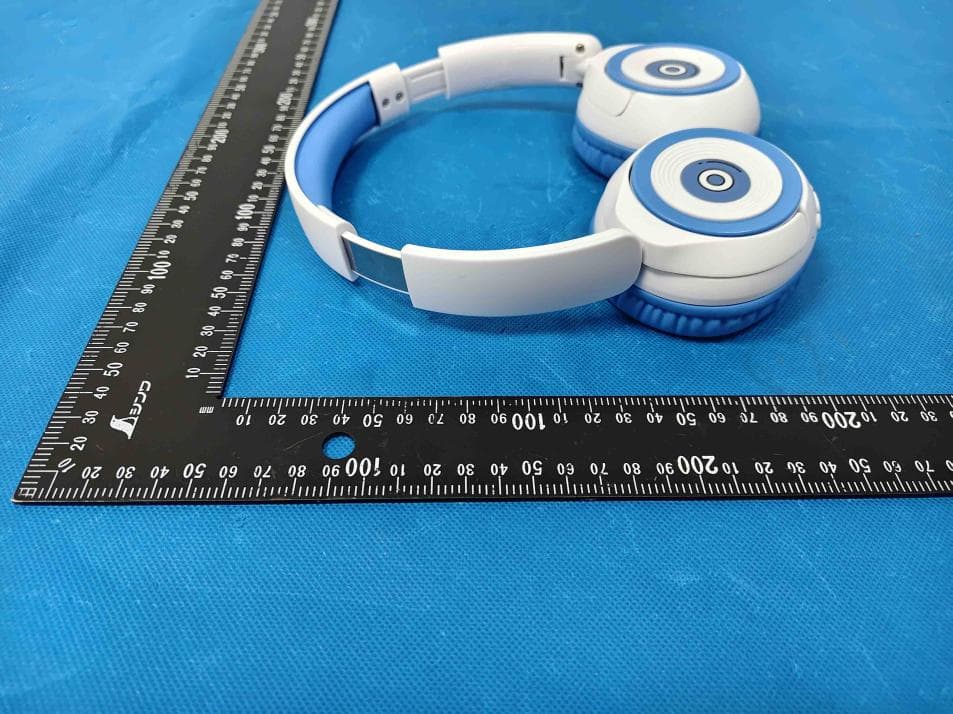

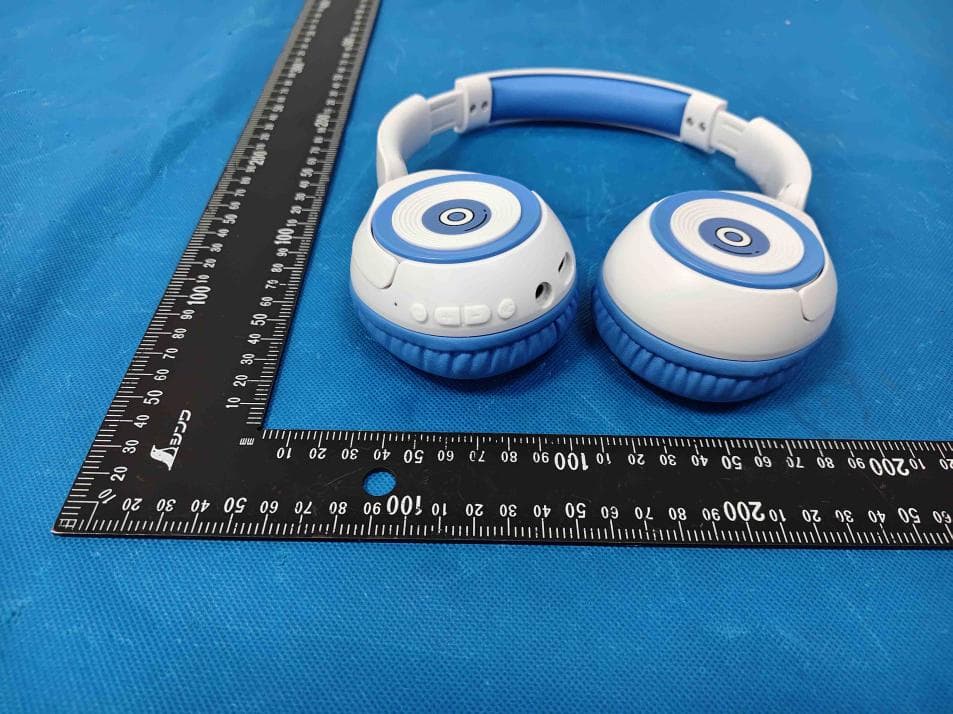

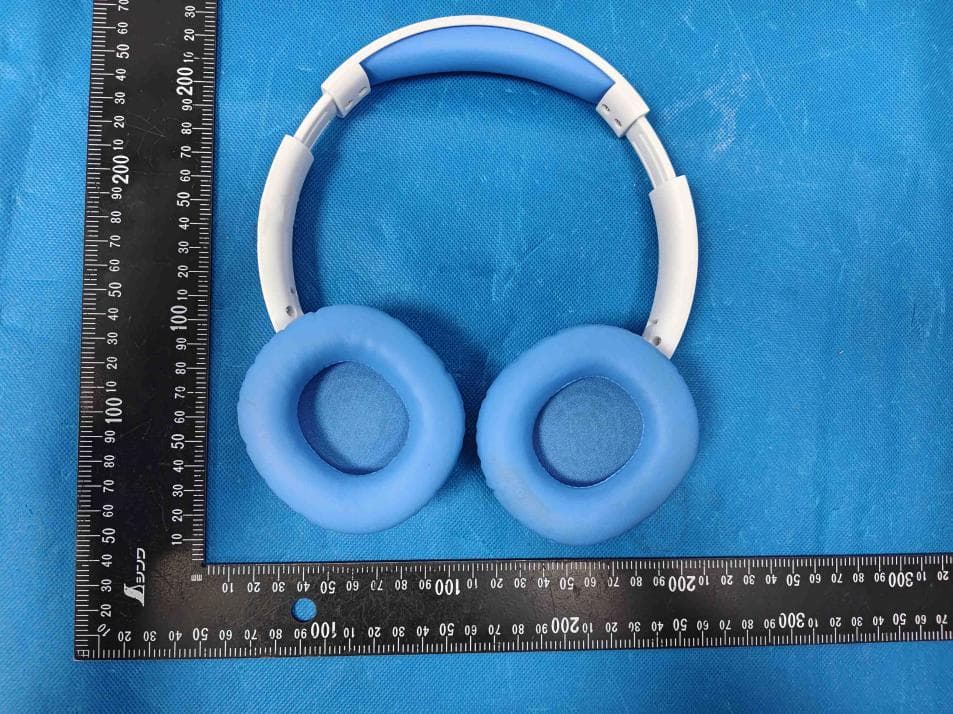

External Photos

Report No.: BCTC2608630719E External Photos Report No.: BCTC2608630719E Report No.: BCTC2608630719E Report No.: BCTC2608630719E

ID Label/Location Info

Label & Location FCC ID: 2BXJW-T2

Internal Photos

Report No.: BCTC2608630719E Internal Photos Report No.: BCTC2608630719E Antenna Report No.: BCTC2608630719E

RF Exposure Info

RF EXPOSURE EVALUATION METHOD FCC ID: 2BXJW-T2 Applicable standard: In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093). and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Condition Mode Frequency (MHz) Conducted Power (dBm) NVNT 1-DH1 2402 2.80 NVNT 1-DH1 2441 3.00 NVNT 1-DH1 2480 2.33 NVNT 2-DH1 2402 3.81 NVNT 2-DH1 2441 3.94 NVNT 2-DH1 2480 3.33 NVNT 3-DH5 2402 3.82 NVNT 3-DH5 2441 3.94 NVNT 3-DH5 2480 3.32 max possible output power (PK, conducted):4±1dBm 5dBm=3.16mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.402=0.979≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.441=0.987≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.480=0.995≤3.0 BLE: Modulation Frequency Maximum Conducted Output Power(PK) (MHz) (dBm) BLE 1M 2402 2.79 2440 2.99 2480 2.37 BLE 2M 2402 2.84 2440 3.07 2480 2.40 max possible output power (PK, conducted):3±1dBm 4dBm=2.51mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.402=0.778≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.440=0.784≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.480=0.791≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Test Report

No.:BCTC/KJ-RF-ICT-001 Page 1 of 88 Edition:B.1 TEST REPORT Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC2608630719-1E Applicant: HONGKONG BAOKANGDA LIMITED Product Name: Headphones Test Model: T2 Tested Date: 2026-08-04 to 2026-08-19 Issued Date: 2026-08-19 Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 2 of 88 Edition:B.1 FCC ID: 2BXJW-T2 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Technology Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Headphones Trademark: JoySpark Model/Type Reference: T2 Prepared For: HONGKONG BAOKANGDA LIMITED Address: ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HONGKONG Manufacturer: HONGKONG BAOKANGDA LIMITED Address: ROOM140, 1/F TUSPARK, 118 WAI YIP ST, KWUN TONG, HONGKONG Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: Room 101M, Unit 1, Building1, Pengyuan, No.18, Lilang Road, Shanglilang, Nanwan Subdistrict, Longgang District, Shenzhen, Guangdong, China Sample Received Date: 2026-08-04 Sample Tested Date: 2026-08-04 to 2026-08-19 Report No.: BCTC2608630719-1E Test Standards FCC 47 CFR Part 15 Subpart C (clause 15.247) ANSI C63.10-2020 + Cor.1-2023+C63.10a-2024 + Errata to C63.10a-2024 Test Results PASS Remark: This is Bluetooth Classic radio test report. Prepared by : Reviewer by : Approved by: Louis Zeng Mike Zheng Sewen Guo Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 3 of 88 Edition:B.1 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT operating Conditions ................................................................................... 20 7.5 Test Result .......................................................................................................... 21 8. Radiated Band Emission Measurement and Restricted Bands of Operation ...... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test procedure .................................................................................................... 28 8.4 EUT operating Conditions ................................................................................... 28 8.5 Test Result .......................................................................................................... 29 9. Spurious RF Conducted Emissions ..................................................................... 30 9.1 Block Diagram Of Test Setup .............................................................................. 30 9.2 Limit .................................................................................................................... 30 9.3 Test procedure .................................................................................................... 30 9.4 Test Result .......................................................................................................... 31 10. 20 dB Bandwidth ...........…

Text truncated - open the document above for the full version.

Test Report

Product specification Quick Reference Date XHL-RF02 Frequenc Range 2402 ~ 24888888 0MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.35 (Input pwr – loss pwr) Peak EIRP(d Bm) 1.35 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Peak Gain (dBi) 1.68 Maximum Power (dBm) 1.35(XY-plane) Minimum Power (dBm) -0.48(XY-plane) Avg. Power (dBm) -0.435(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.35-0.481.68-3.881.1 -2.996 0.2 % MODEL Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Test Report

Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 51 of 88 Edition:B.1 Band Edge(Hopping) NVLT 3-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVLT 3-DH5 2480MHz Hopping Emission Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 52 of 88 Edition:B.1 10. 20 dB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 20 dB relative to the maximum level measured in the fundamental emission. Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 53 of 88 Edition:B.1 10.4 Test Result Condition Mode Frequency (MHz) -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 0.995 Pass NVNT 1-DH5 2441 0.955 Pass NVNT 1-DH5 2480 0.997 Pass NVNT 2-DH5 2402 1.273 Pass NVNT 2-DH5 2441 1.277 Pass NVNT 2-DH5 2480 1.311 Pass NVNT 3-DH5 2402 1.275 Pass NVNT 3-DH5 2441 1.311 Pass NVNT 3-DH5 2480 1.299 Pass Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 54 of 88 Edition:B.1 Test Graphs -20dB Bandwidth NVLT 1-DH5 2402MHz -20dB Bandwidth NVLT 1-DH5 2441MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 55 of 88 Edition:B.1 -20dB Bandwidth NVLT 1-DH5 2480MHz -20dB Bandwidth NVLT 2-DH5 2402MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 56 of 88 Edition:B.1 -20dB Bandwidth NVLT 2-DH5 2441MHz -20dB Bandwidth NVLT 2-DH5 2480MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 57 of 88 Edition:B.1 -20dB Bandwidth NVLT 3-DH5 2402MHz -20dB Bandwidth NVLT 3-DH5 2441MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 58 of 88 Edition:B.1 -20dB Bandwidth NVLT 3-DH5 2480MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 59 of 88 Edition:B.1 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 1 watt or 30dBm (at least 75 nonoverlapping hopping channels) 2400-2483.5 PASS 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm (all other frequency hopping systems) 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 2.80 30 Pass NVNT 1-DH5 2441 3.00 30 Pass NVNT 1-DH5 2480 2.33 30 Pass NVNT 2-DH5 2402 3.81 21 Pass NVNT 2-DH5 2441 3.94 21 Pass NVNT 2-DH5 2480 3.33 21 Pass NVNT 3-DH5 2402 3.82 21 Pass NVNT 3-DH5 2441 3.94 21 Pass NVNT 3-DH5 2480 3.32 21 Pass Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 60 of 88 Edition:B.1 Test Graphs Power NVLT 1-DH5 2402MHz Power NVLT 1-DH5 2441MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 61 of 88 Edition:B.1 Power NVLT 1-DH5 2480MHz Power NVLT 2-DH5 2402MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 62 of 88 Edition:B.1 Power NVLT 2-DH5 2441MHz Power NVLT 2-DH5 2480MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 63 of 88 Edition:B.1 Power NVLT 3-DH5 2402MHz Power NVLT 3-DH5 2441MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 64 of 88 Edition:B.1 Power NVLT 3-DH5 2480MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 65 of 88 Edition:B.1 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 2402.044 2403.048 1.004 0.663 Pass NVNT 1-DH5 2442.050 2441.070 0.980 0.637 Pass NVNT 1-DH5 2479.030 2480.046 1.016 0.665 Pass NVNT 2-DH5 2403.050 2402.038 1.012 0.849 Pass NVNT 2-DH5 2442.050 2441.040 1.010 0.851 Pass NVNT 2-DH5 2480.054 2479.054 1.000 0.874 Pass NVNT 3-DH5 2403.186 2402.186 1.000 0.850 Pass NVNT 3-DH5 2442.046 2441.050 0.996 0.874 Pass NVNT 3-DH5 2480.054 2479.050 1.004 0.866 Pass Note: For conducted power less than 0.125 W(21 dBm), the limit can be set using hopping channel carrier frequencies that are separated by 25 kHz or two thirds of the 20 dB bandwidth of the hopping channel, whichever is greater. Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 66 of 88 Edition:B.1 Test Graphs CFS NVNT 1-DH5 2402MHz CFS NVNT 1-DH5 2441MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 67 of 88 Edition:B.1 CFS NVNT 1-DH5 2480MHz CFS NVNT 2-DH5 2402MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 68 of 88 Edition:B.1 CFS NVNT 2-DH5 2441MHz CFS NVNT 2-DH5 2480MHz Report No.:BCTC2608630719-1E No.:BCTC/KJ-RF-ICT-001 Page 69 of 88 Edition:B.1 CFS NVNT 3-DH5 2402MHz CFS …

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: BCTC2608630719E Conducted Emission Measurement Photos Report No.: BCTC2608630719E Radiated Emission Measurement Photos
