2BXKL-6606security camera

产品说明书 Ai口袋摄像机

使用产品前请仔细阅读本说明书，并妥善保管。每次使用前，请 仔细检查产品，若出现破损、变形，请勿使用。

使用本产品，即视为对说明书声明的全部认可和接受。对于直 接或间接因使用本产品而造成的滥用、不利于、影响、损害、伤 害、惩罚或者其它法律后果，本公司将不承担任何责任。

用戶应遵循包括但不限于本文提及的使用注意事项。在国家法 律法规范围内，本承诺解释权、修改权归本公司所有。 提示:
说明书中的产品、配件、用戶界面等插图均为示意图，仅供 参考由于产品的更新与升级，产品实物与示意图可能略有差异， 请以实物为准。 使用须知产品介绍 提示:本产品的型号、参数、安全信息显示在说明书中以及充电座底部的产品、配件、用戶界面等插图 均为示意图，仅供参考。由于产品的更新与升级，产品实物与示意图可能略有差异，请以实物为准。 下载APP 睿博士 扫描二维码，下载并安装APP。 打开
APP首⻚在⻚面添加摄像机， 根据APP提示方式添加设备。 提示:由于APP的升级与更新，在实际操作可能与以上描述略有差异，请按照当前APP内指引进行操 作。连接时需保证网络畅通，且监控正常开启。 OTG功能 设备开机状态下，⻓按模式切换键5s
进入OTG传输模式。


语言播报：语音提示设备已进入文件传输模式，监控功能失效； 当文件传输完成后，请关机后再开机使用，否则会出现设备工作 异常。
此时基于进入了电脑与设备连接的传输模式，电脑上可以看到
设备，类似像U盘一样，可以拷⻉文件；若想退出OTG功能，则设 备关机后再开机。

注意事项 摔落或碰撞可能会损坏产品，导致工作异常 请勿在过度潮湿或可能会导致本产品进水的环境下使用本产 品，以免影响正常使用 使用本产品时，请注意防尘防沙 本产品适用的工作温度为-30°C~60°C，请勿在温度过高或者 过低的环境中使用本产品 为更好地使用本产品，应避免镜头正面及侧面靠近玻璃、白墙 等反光物体，以免造成画面近处亮、远处暗或者发白的现象 使用前，请确保机器的充电座接触点没有脏污、氧化等，如果 电源连接线出现损坏、破损，为了避免无法正常使用，请联系 售后服务进行更换。 基本参数售后服务产品性能故障表 非保修条例 未经授权的维修、误用、碰撞、疏忽、滥用、进液、事故、改动、不正 确的使用非本产品配件，或撕毁、涂改标贴、防伪标记； 已超过三包有效期； 因不可抗力造成的损坏; 不符合《产品性能故障表》所列性能故障的情况; 因人为原因导致机器、底座及其配件产生《产品性能故障表》所 列性能故障。 提示: 因运输过程中需使用包装箱保证产品运输安全，建议您自签收之 日起至少保留包装盒30天。 性能故障 通电不开机 无法重置 连接APP不出图像 镜头异常 ⻨克⻛不工作或工作异常 扬声器不工作或工作异常 其它硬件故障导致功能无法使用
采用0.5T算力高性能AI主控
，2304*1296（ 3MP）高清图像
，
H.265+编码
，昼夜画面清晰细腻； 支持精准人形检测，检测精度达到99.88%，大幅度降低误检漏 检问题； 全天24H录像，检测到人形后，快至50ms切换为全帧率录像， 不遗漏任何细节。 采用
H.265+低编码技术，节省存储空间，降低网络带宽以及减 少4G流量消耗； 深度优化回音消除算法技底噪处理，语音对讲效果更好； 全网通4G网络
，频段覆盖全
，通电即可自动连接服务器
，扫码 即可添加设备，彻底解决无线类摄像机产品对码难问题； 三重掉线保护机制
，保障设备不掉线
，支持故障检测功能，协 助安装人员快速定位故障问题； 支持一键切换高帧率录像工作模式，工作模式智能切换； 支持检测到人形目标后，及时推送消息通知；
支持双光灯板 ，支持4种夜视模式：黑白夜视、全彩夜视、智能 夜视、星光夜视； 支持指示灯显示工作状态； 支持OTG功能，传输录像文件到电脑上进行存储剪辑分享； 3.7V电池供电，支持充电器及充电宝充电； 支持
TF
卡录像及云存储录像（需付费购买），TF
卡最大支持
256G；
APP
支持
17国语言(简体中文/繁体中文/英语/芬兰语/韩语/法 语/葡萄牙语/泰语/西班牙语/波兰语/印度尼西亚语/德语/意大 利语/俄语/日语/越南语/阿拉伯语/土耳其语)。 产品名称 智能云台机 保修记录 产品名称 制造编号 经销商名称 客戶名称 客戶地址 客戶电话 购买日期 日


期问题描述 tpcy-c充电口 镜头 包装清单 量 合 质 格 品 证 产 PASS ⻨克⻛ 拍照键/模式切换键 补光灯 充电指示灯 工作指示灯 喇叭 TF
卡槽SIM卡槽 开机/复位键 Product
Introduction Packing
List lens fill
light charging
indicator
light Work
Indicator
Light microphone Photo
button/mode
switch
button horn 产品使用 请使用输出电压 5V(MAX),输出电 流2A(MAX)的充 电器进行充电。 长按电源键可以进行开/关机， 连续短按两下复位。 1.连接摄像机 设备开机听到机器联网成功后，手机打开下载好的APP，点击右上⻆+号，进入扫码，扫描机身/包装盒 上的二维码，APP出现监控画面即绑定添加成功。 2.快速安装 本机支持桌面摆放，粘贴，磁吸，挂脖佩戴等方式。 （1）桌面摆放 （2）粘贴安装 安装⻆度建议下倾15~20左右。 3M胶贴 底座 首先在要安装的位置粘贴上底座 支架 夹套 把机器装进夹套里，同时把支架连接上 并扭紧配套的镙丝 底座 提示:粘贴安装要选择平整的墙面或窗戶玻璃上，注意不要用手碰到胶，以免影响粘性,贴于被贴的物 体上,贴完后用手整体按压20秒左右,使之排出内部空气，以便粘牢。 夹套 Precautions Basic
Parameters after-sale
serviceProduct
Performance
Fault
Table Tips: Due
to
the
need
to
use
packaging
boxes
during
transportation
to
ensure
product
safety,
it
is
recommended
that
you
keep
the
packaging
boxes
for
at
least
30
days
from
the
date
of
receipt. Performance
malfunction Power
on
but
not
turning
on Cannot
reset Unable
to
generate
images
when
connecting
to
the
app Camera
abnormality Microphone
not
working
or
working
abnormally Speaker
not
working
or
working
abnormally Other
hardware
failures
result
in
the
inability
to
use
the
function product
name Intelligent
gimbal
machine Warranty
Record product
name Manufacturing
number Dealer
Name Customer
Name customer
address customer
phone purchasing
date DateProblem
description Warranty
Card PASS Camera
X1


3M
adhesive
X1


Product
Usage 1.Connect
camera After
the
device
is
turned
on
and
the
machine
is
successfully
connected
to
the
internet,
open
the
downloaded
APP
on
your
phone,
click
on
the+sign
in
the
upper
right
corner,
enter
the
scan
code,
scan
the
QR
code
on
the
body/packaging
box,
and
the
APP
will
display
a
monitoring
screen,
indicating
successful
binding
and
addition. 2.Quick
Installation This
machine
supports
desktop
placement,
pasting,
magnetic
attraction,
neck
hanging,
and
other
methods. (1) Desktop placement (2) Paste installation The installation angle is recommended to tilt downwards by about 15-20 degrees. 3M adhesive tape base First, paste the base onto the location to be installed support jacket Install the machine into the jacket and connect the bracket at the same time And tighten the matching screws tightly base Tip:
When
pasting
and
installing,
choose
a
flat
wall
or
window
glass.
Be
careful
not
to
touch
the
adhesive
with
your
hands
to
avoid
affecting
its
adhesion.
Stick
it
onto
the
object
being
pasted,
and
after
pasting,
press
it
down
with
your
hands
for
about
20
seconds
to
release
the
internal
air
and
ensure
a
firm
adhesion. jacket Product
Manual AI
Pocket
Camera Please
read
this
manual
carefully
and
keep
it
properly
before
using
the
product.
Before
each
use,
please
carefully
inspect
the
product.
If
there
is
any
damage
or
deformation,
do
not
use
it. By
using
this
product,
it
is
deemed
as
full
recognition
and
acceptance
of
the
statement
in
the
manual.
The
company
shall
not
be
liable
for
any
abuse,
harm,
influence,
damage,
injury,
punishment
or
other
legal
consequences
directly
or
indirectly
caused
by
the
use
of
this
product. Users
should
follow
the
usage
precautions
mentioned
in
this
article,
including
but
not
limited
to.
Within
the
scope
of
national
laws
and
regulations,
the
interpretation
and
modification
rights
of
this
commitment
belong
to
our
company. Reminder:
The
illustrations
of
products,
accessories,
user
interfaces,
etc.
in
the
manual
are
only
schematic
diagrams
for
reference.
Due
to
product
updates
and
upgrades,
there
may
be
slight
differences
between
the
actual
product
and
the
schematic
diagram.
Please
refer
to
the
actual
product
for
accuracy. Instructions
for
Use Download
the
APP HiEasy Scan
the
QR
code,
download
and
install
the
app. Open
the
homepage
of
the
app
and
add
a
camera
on
the
page, Add
devices
according
to
the
prompts
on
Tip:
Due
to
the
upgrade
and
update
of
the
APP,
there
may
be
slight
differences
in
actual
the
app. operation
from
the
above
description.
Please
follow
the
instructions
in
the
current
APP
for
operation.
When
connecting,
it
is
necessary
to
ensure
that
the
network
is
unobstructed
and
Reminder:
The
model,
parameters,
and
safety
inform…

Text truncated - open the document above for the full version.

To:FederalCommunicationsCommissio ShenzhenAikechuangpinTechnologyCo.,Ltd. U.S. Agent Letter of Attestation n 7435OaklandMillsRoad,Columbia,MD21046,USA Date:Aug.18,26 Ref:AttestationStatement–Part2.911(d)(7)filing FCCID:2BXKL-6606 ShenzhenAikechuangpinTechnologyCo.,Ltd.(“theapplicant”)certifiesthat,asofthedateofthe filingoftheapplication,HOPEKCORPORATIONINC(“theagent”)isourdesignatedU.S.agentfor serviceofprocessfortheabovereferenceFCCID.Theapplicantacceptstomaintainanagentfor serviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., ortheconclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater.Theapplicantfurtheracknowledgesitisourresponsibilitytoinform theFCCwhenevertheagentinformationchanges. HOPEKCORPORATIONINC ("theagent)understanditistheagent'sobligationtoacceptserviceof processintheUnitedStatesformattersrelatedtotheapplicableequipment,andatthephysical U.S.addressandemailaddress. DesignatedU.S.Agent CompanyName:HOPEKCORPORATIONINC FRN:0034562900 GC:N/A Address:16755CoyoteBushDrUnit84,SanDiego, CA92127UnitedStates Signature: ContactPerson:YangyangXu Tel:561-875-9826Email:[email protected] Tel:1501406622 Applicant Company Name: Shenzhen Aikechuangpin Technology Co., Ltd. Address: Rm 1005, Tower 3, Manjinghua Yiluan Bldg, Signature: No. 230 Avenue, Xixiang, Bao'an, Shenzhen, China FRN: 0038743829 Contact Person: Yong Gan 0 Email:[email protected]

Shenzhen Aikechuangpin Technology Co., Ltd. Model Difference Data: August 10, 2026 Product description: security camera Model name: 6606, 6609, 6610, 6611, 6612, 6613, 6615, 9562, 6601, 6008, 6009, 6002, 6003, 6005, 6006, 6007, 6010, 9836, 9936, 9632, 5601,9560, 6701, 6702, 6703, 6607, 6608 Trade Name: / FCC ID: 2BXKL-6606 The product has many models, only the model name and color is different, and the other parts such as the circuit principle, pcb and electrical structure are the same. Regards Sincerely Client’s signature: Client’s name / title: Yong Gan (Manager) Contact information / address: Rm 1005, Tower 3, Manjinghua Yiluan Bldg., No. 230 Avenue, Xixiang, Bao'an, Shenzhen, China

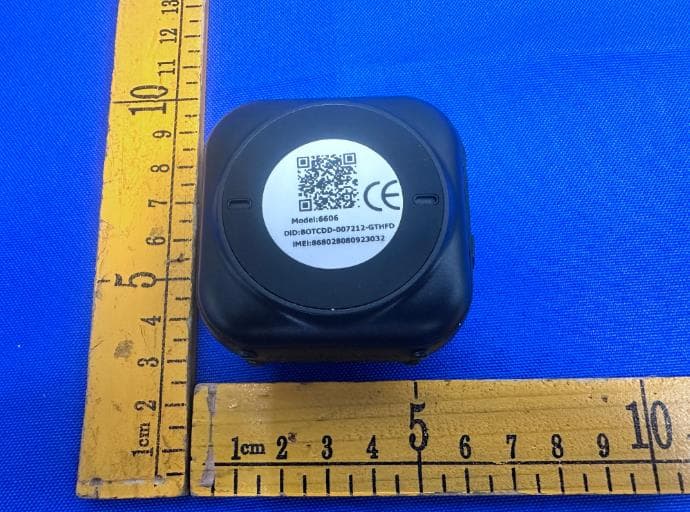

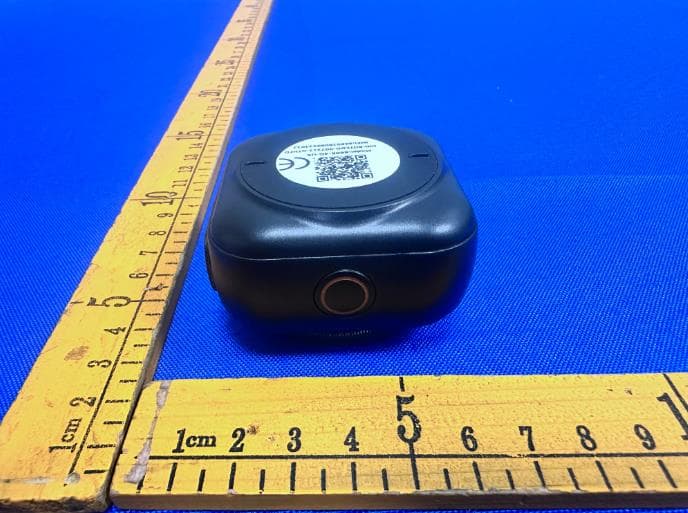

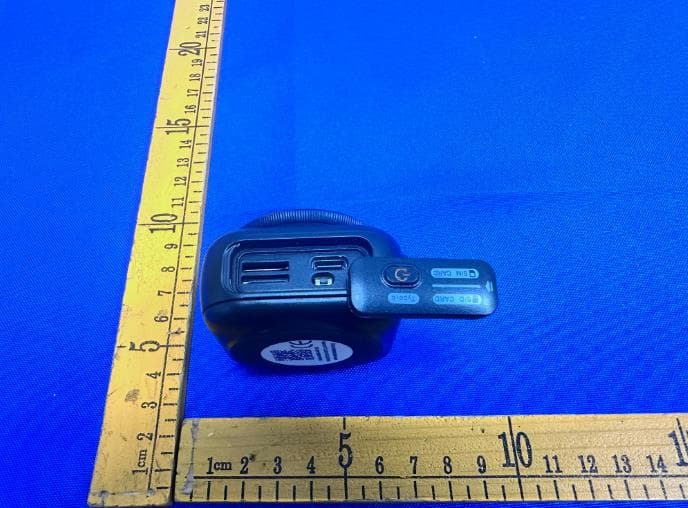

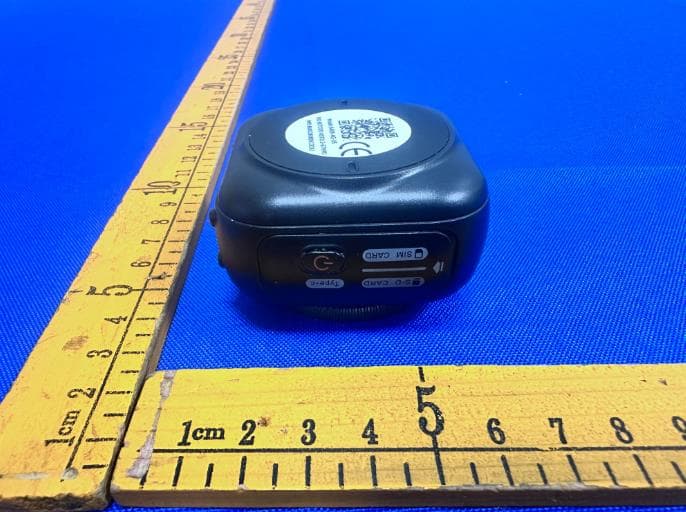

External Appendix FCC ID: 2BXKL-6606 Model: 6606

Label Location: security camera FCC ID: 2BXKL-6606 Model: 6606

Internal Appendix FCC ID: 2BXKL-6606 Model: 6606 ANT

Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 94 TEST REPORT Compiled by: Reviewed by: Approved by: Zhang Mao cheng Martin Feng Rita Xiao / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Test item description: security camera FCC ID: 2BXKL-6606 Trademark(s): N/A Model/Type reference: 6606, 6609, 6610, 6611, 6612, 6613, 6615, 9562, 6601, 6008, 6009, 6002, 6003, 6005, 6006, 6007, 6010, 9836, 9936, 9632, 5601,9560, 6701, 6702, 6703, 6607, 6608 Applicant’s name: Shenzhen Aikechuangpin Technology Co., Ltd. Address: Rm 1005, Tower 3, Manjinghua Yiluan Bldg, No. 230 Avenue, Xixiang, Bao'an, Shenzhen, China Manufacturer: Shenzhen Aikechuangpin Technology Co., Ltd. Address: Rm 1005, Tower 3, Manjinghua Yiluan Bldg, No. 230 Avenue, Xixiang, Bao'an, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jul. 30, 2026 Sample tested Date: Jul. 30, 2026 to Aug. 13, 2026 Issue Date: Aug. 13, 2026 Report No.: CTB26073008901RH01 Test Standards FCC 47 CFR Part2(2.1093), FCC 47 CFR Part1( 1.1310) FCC 47 CFR Part1( 1.1307), ANSI/IEEE C95.1-2019 IEEE 1528-2013 & Published RF Exposure KDB Procedures Test Results PASS Remark: This is SAR test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB26073008901RH01 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 94 Contents Page 1 COVER PAGE ........................................................................................................................................................................... 1 CONTENTS ......................................................................................................................................................................... 2 1.VERSION .................................................................................................................................................................. 4 2.PRODUCT INFORMATION AND TEST SETUP............................................................................................... 5 2.1 PRODUCT INFORMATION ................................................................................................................................... 5 3 EQUIPMENT USED DURING TEST ................................................................................................................... 6 3.1 EQUIPMENT LIST ............................................................................................................................................... 6 3.2 TEST EQUIPMENT CALIBRATION ....................................................................................................................... 7 4 SAR INTRODUCTION ........................................................................................................................................... 8 4.1 INTRODUCTION .................................................................................................................................................. 8 4.2 SAR DEFINITION ............................................................................................................................................... 8 5 SAR MEASUREMENT SETUP ............................................................................................................................. 9 5.1 SAR MEASUREMENT SETUP ...................................................................................................................... 9 5.2 DASY5 E-FIELD PROBE SYSTEM .................................................................................................................... 10 5.3 PROBE SPECIFICATION ..................................................................................................................................... 10 5.4 ISOTROPIC E-FIELD PROBE .............................................................................................................................. 10 5.5 PHANTOMS ...................................................................................................................................................... 11 5.6 DEVICE HOLDER .............................................................................................................................................. 11 6 SAR TEST PROCEDURE .................................................................................................................................... 12 6.1 SCANNING PROCEDURE ................................................................................................................................... 12 6.2 EXTRAPOLATION ............................................................................................................................................. 15 6.3 TEST POSITION – BODY CONFIGURATIONS .................................................................................................... 15 7 EXPOSURE LIMIT ............................................................................................................................................... 16 7.1 UNCONTROLLED ENVIRONMENT ..................................................................................................................... 16 7.2 CONTROLLED ENVIRONMENT .................................................................…

Text truncated - open the document above for the full version.

V1.0ReportNo.:DACE260730003RF001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 1 of 48 RFTESTREPORT For ShenzhenAikechuangpinTechnologyCo.,Ltd. ProductName:securitycamera TestModel(s):6606 ReportReferenceNo.:DACE260730003RF001 FCCID:2BXKL-6606 Applicant’sName:ShenzhenAikechuangpinTechnologyCo.,Ltd. Address: Rm1005,Tower3,ManjinghuaYiluanBldg,No.230Avenue,Xixiang, Bao'an,Shenzhen,China TestingLaboratory:ShenzhenDACETestingTechnologyCo.,Ltd. Address: 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark, TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen, Guangdong,China TestSpecificationStandard: 47CFRPart24E 47CFRPart22H 47CFRPart27 DateofReceipt:July30,2026 DateofTest:July30,2026toAugust5,2026 DateofIssue:August5,2026 Result:Pass Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenDACE TestingTechnologyCo.,Ltd.ThisdocumentmaybealteredorrevisedbyShenzhenDACETestingTechnology Co.,Ltd.personnelonly,andshallbenotedintherevisionsectionofthedocument.Thetestresultsinthe reportonlyapplytothetestedsample V1.0ReportNo.:DACE260730003RF001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 2 of 48 Applyforcompanyinformation Applicant’sName:ShenzhenAikechuangpinTechnologyCo.,Ltd. Address:Rm1005,Tower3,ManjinghuaYiluanBldg.,No.230Avenue,Xixiang, Bao'an,Shenzhen,China ProductName:securitycamera TestModel(s):6606 SeriesModel(s):6609,6610,6611,6612,6613,6615,9562,6601,6008,6009,6002, 6003,6005,6006,6007,6010,9836,9936,9632,5601,9560,6701, 6702,6703,6607,6608 TestSpecificationStandard(s):47CFRPart24E 47CFRPart22H 47CFRPart27 NOTE1: Themanufacturershouldensurethatallproductsinseriesproductionareinconformitywiththeproductsampledetailedin thisreport.Iftheproductinthisreportisusedinanyconfigurationotherthanthatdetailedinthereport,themanufacturer mustensurethenewsystemcomplieswithallrelevantstandards. Compiledby: Supervisedby: Approvedby: LucyMo/TestEngineerBenTang/ProjectEngineerMachaelMo/Manager August5,2026August5,2026August5,2026 V1.0ReportNo.:DACE260730003RF001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 3 of 48 RevisionHistoryOfReport VersionDescriptionREPORTNo.IssueDate V1.0OriginalDACE260730003RF001August5,2026 V1.0ReportNo.:DACE260730003RF001 102,BuildingH1,&1/F.,BuildingH,HongfaScience&TechnologyPark,TangtouCommunity,ShiyanSubdistrict,Bao'anDistrict,Shenzhen,Guangdong,China Web:http://www.dace-lab.comTel:+86-755-23010613E-mail:[email protected] 4 of 48 CONTENTS 1TESTSUMMARY...........................................................................................................................................................................5 1.1TESTSTANDARDS................................................................................................................................................................5 1.2SUMMARYOFTESTRESULT..............................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................................................6 2.1CLIENTINFORMATION..........................................................................................................................................................6 2.2DESCRIPTIONOFDEVICE(EUT).......................................................................................................................................6 2.3DESCRIPTIONOFTESTMODES.........................................................................................................................................7 2.4DESCRIPTIONOFSUPPORTUNITS...................................................................................................................................7 2.5EQUIPMENTSUSEDDURINGTHETEST..........................................................................................................................7 2.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 2.7AUTHORIZATIONS..................................................................................................................................................................9 2.8ANNOUNCEMENT...................................................................................................................................................................9 3EVALUATIONRESULTS(EVALUATION)..........................................................................................................................10 3.1ANTENNAREQUIREMENT..................................................................................................................................................10 3.1.1Conclusion:..............................................................................................................................10 4RADIOSPECTRUMMATTERTESTRESULTS(RF)....................................................................................................11 4.1EFFECTIVE(ISOTROPIC)RADIATEDPOWEROUTPUT................................................................................................11 4.1.1E.U.T.Operation:.....................................................................................................................11 4.1.2TestSetupDiagram:................................................................................................................11 4.1.…

Text truncated - open the document above for the full version.

Setup Appendix FCC ID: 2BXKL-6606 Model: 6606 Spurious Unwanted Emission SAR
