2BXMCF5816-H16 ports reader

F5816-H The F5816-H is an 16-port UHF RFID reader developed by the technical team at sanray , based on the next-generation Impinj E710 RFID chip. It is a high-performance and cost-effective UHF RFID reader module. The output power is configurable from 5dBm to 33dBm, with a tag reading distance of over 12meters (depending on antenna gain and tag size), and it offers excellent multi-tag inventory performance. The SIMx400 module is stable and reliable, featuring advanced multi-tag identification algorithms that enable fast tag reading whether the tags are stationary or in motion. Its superior anti-interference design and carrier cancellation functionality ensure consistent operation in various environments. With multiple configuration modes, it is widely applicable in scenarios such as warehousing, logistics, production lines, and inspection systems. Product advantages 2011-2026 Shenzhen Sanray Technology Co., Ltd. www.sanrayrfid.com RFID HARDWARE/RFID SOFTWARE • ARMv7-M architecture 32bit Cortex-M4 CPU, integrated FPU, MPU, DSP, the highest work main frequency is 200MHz, 512KByte Flash • Support ISO 18000-6C/UHF EPC Class1 Gen2&Gen2X • Provide Windows，Linux and Android SDK, and API based on C, C#/.NET, JAVA • Support inventory of temperature tags, the output parameters include the RSSI and phase value of the tag return signal • Maximum 33dBm power output • Excellent anti-collision algorithm and high sensitivity. The fastest speed of inventory tags is greater than 1000tag/s • Multiple inventory modes suitable for most applications. • The UART serial communication baud rate can be set from 9600bp to 921600bps • 2 inputs 2 outputs GPIO • Max power 33dBm, power consumption 15W 2011-2026 Shenzhen Sanray Technology Co., Ltd. www.sanrayrfid.com Product Technical Parameters NOName Parameter 1Size263 x 146 x 30mm 2Weight248g 3Connector material Brass gold plated 4PCBFR$ gold plated 5Shield MaterialAluminum Alloy 6ChipImpinj E710 7Air Protocol EPC global UHF Class 1 Gen 2 (ISO 18000-6C)&Gen2X 8Frequency NA: 902 ~ 928MHz EU: 865 ~ 868MHz CN: 920 ~ 925MHz OPEN:860 ~ 960MHz 9Sensitivity-84dBm@10%BER 10RF power-82dBm 11Antenna interfaceNon-standard RF output port 12RF Power5dBm ~ 30 or 33dBm (±1dB) 13Working ModeFixed / Hop frequency 14Temp. detectSupport 15 Ant. detectSupport 16 Inventory peak speed>1000 tags/s 17 read range>13m（8dBi antenna） 18 tag cache1000pcs, @96 bit EPC 19Hardware interface UART serial port (power, TTL,GPIO) 9600~921600bps,@115200bps 20GPIO2 GPI, 2 GPO （3.3V TTL） 21Communication15pin connector Uart3.3V（TTL） 22VoltageDC 5V±5% 23Consumption 15W（peak）, 3A@5V 1.05W（standby）,0.21A@5V 0.1W（Low power mode standby）,0.02A@5V 24 Work Temp.-25°C ~ +65°C 25Storage Temp.-40°C ~ +85°C 2011-2026 Shenzhen Sanray Technology Co., Ltd. www.sanrayrfid.com Product Technical Parameters NOName Parameter 26Humidity5 ~ 95%, Non-condensing (+25°C) 27 Electrostatic Protection Contact discharge: 6KV (antennaport) Contact discharge: 6KV (IO port) 28Heat dissipationExternal heat sink air cooling 29API supportC, C#/.NET, Java Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF exposure statement: The transmitter must not be colocated or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a Minimum distance of 20cm between the radiator and any part of your body.

Rev 1/26/2023 SANRAY TECHNOLOGY CO.,LIMITED Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Aug 11, 2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BXMCF5816-H [SANRAY TECHNOLOGY CO.,LIMITED] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [SANRAY TECHNOLOGY CO.,LIMITED] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Jiang Hong Lei Rev 1/26/2023 SANRAY TECHNOLOGY CO.,LIMITED Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:Mar 31, 2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID:2BXMCF5816-H [SANRAY TECHNOLOGY CO.,LIMITED] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jiang Hong Lei

SANRAY TECHNOLOGY CO.,LIMITED FLAT/RM 1405B 14/F THE BELGIAN BANK BUILDING NOS.721-725 NATHAN ROAD MONGKOK KL, HONG KONG, CHINA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 12, 2026 Subject; Request for Confidentiality FCC ID: 2BXMCF5816-H To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiang Hong Lei Title:CEO

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 SANRAY TECHNOLOGY CO.,LIMITED FLAT/RM 1405B 14/F THE BELGIAN BANK BUILDING NOS.721-725 NATHAN ROAD MONGKOK KL, HONG KONG, CHINA Date：2026/07/08 Product Model Number: F5816-H FCC ID：2BXMCF5816-H To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title:CEO Email: [email protected] Telephone: 13424370830 On behalf of: SANRAY TECHNOLOGY CO.,LIMITED

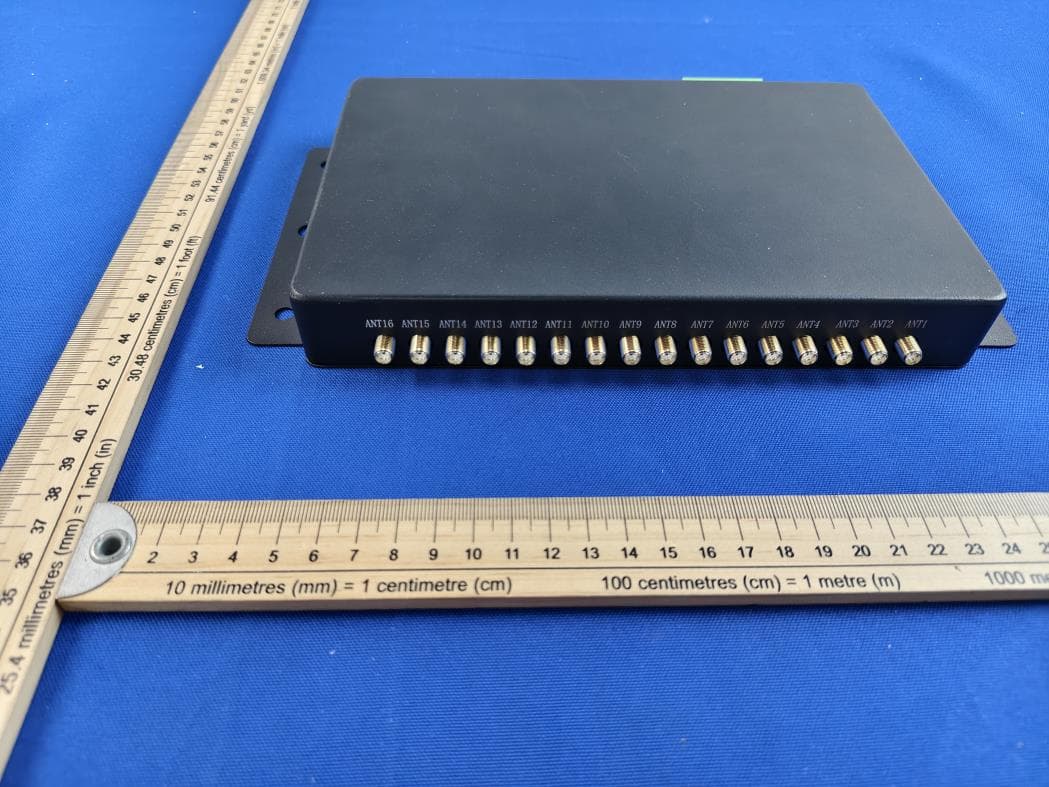

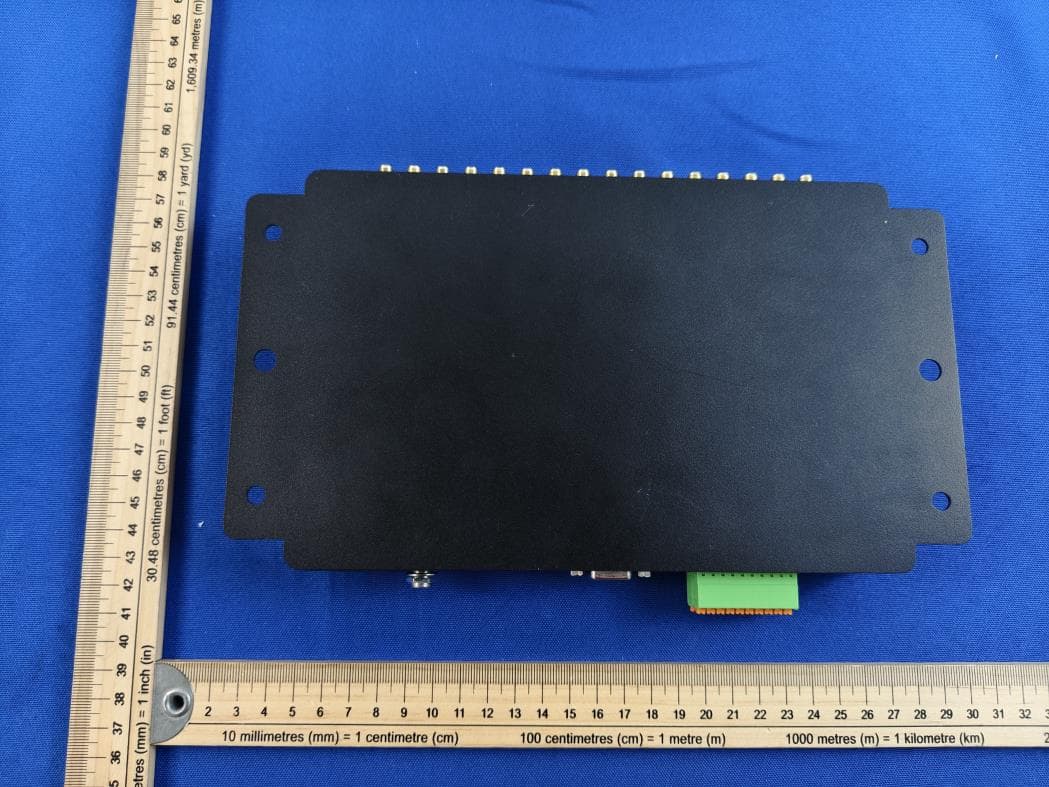

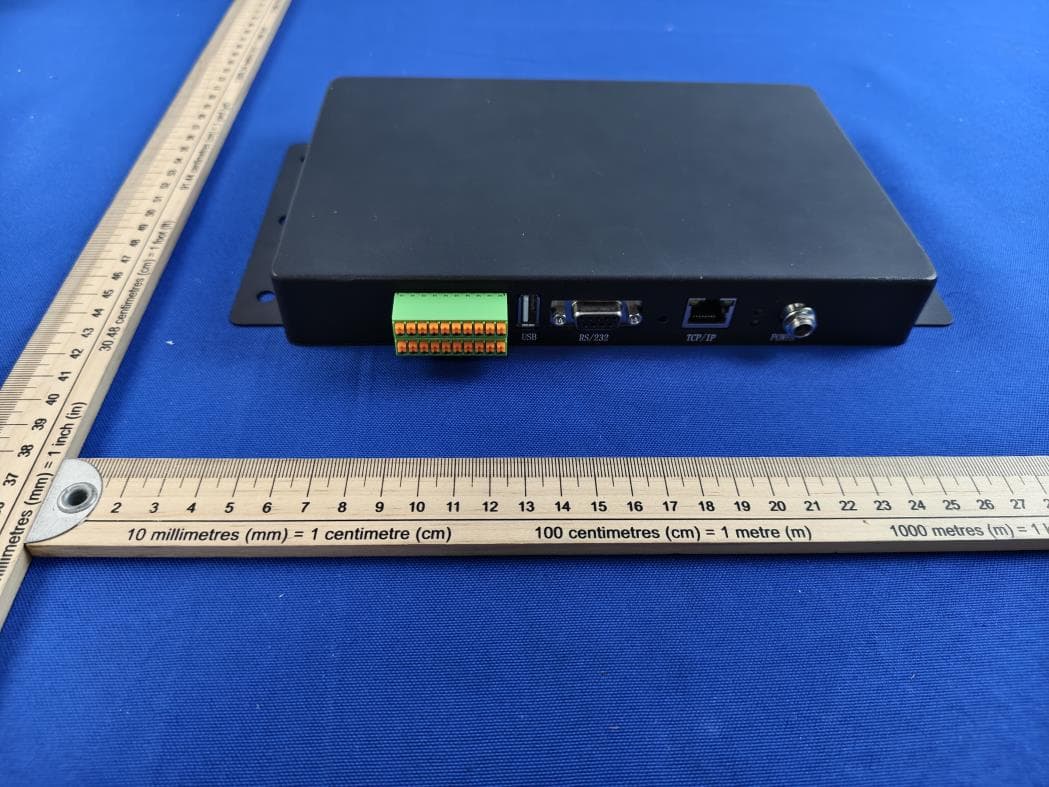

FCC ID: 2BXMCF5816-H Page 1 of 6 Report No.: CTL2607152031-WF External Photos of EUT FCC ID: 2BXMCF5816-H Page 2 of 6 Report No.: CTL2607152031-WF FCC ID: 2BXMCF5816-H Page 3 of 6 Report No.: CTL2607152031-WF FCC ID: 2BXMCF5816-H Page 4 of 6 Report No.: CTL2607152031-WF FCC ID: 2BXMCF5816-H Page 5 of 6 Report No.: CTL2607152031-WF FCC ID: 2BXMCF5816-H Page 6 of 6 Report No.: CTL2607152031-WF

FCC ID Label Information Label location: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Size:5cm*4cm Product Name : 16 ports reader Model/Type reference : F5816-H List Model(s) : N/A Trade Mark : N/A FCC ID : 2BXMCF5816-H

FCC ID: 2BXMCF5816-H Page 1 of 3 Report No.: CTL2607152031-WF Internal Photos of EUT FCC ID: 2BXMCF5816-H Page 2 of 3 Report No.: CTL2607152031-WF FCC ID: 2BXMCF5816-H Page 3 of 3 Report No.: CTL2607152031-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel:+86-755-89486194 E-Mail:[email protected] RF Exposure evaluation Report Reference No. ................ : CTL2607152031-WFH Compiled by: (printed name+signature) Andy Su Reviewed by: (printed name+signature) Happy Guo Approved by: (printed name+signature) Ivan Xie Product Name ............................. : 16 ports reader Model/Type reference ................ : F5816-H List Model(s) ............................... : N/A Trade Mark .................................. : N/A FCC ID ......................................... : 2BXMCF5816-H Applicant’s name ....................... : SANRAY TECHNOLOGY CO.,LIMITED Address of applicant .................. : FLAT/RM 1405B 14/F THE BELGIAN BANK BUILDING NOS.721-725 NATHAN ROAD MONGKOK KL Test specification ....................... : Standard ...................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2017-01 Date of receipt of test item ........ : Jul 17, 2026 Date of Test ............................... : Jul 17, 2026-Aug 06, 2026 Date of Issue .............................. : Aug 07, 2026 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 11 Report No.: CTL2606242011-WFH TEST REPORT Test Report No. : CTL2607152031-WFH Aug 07, 2026 Date of issue Product Name : 16 ports reader Sample No : CTL260715203001, CTL260715203002, CTL260715203003 Model /Type : F5816-H Listed Models : N/A Applicant : SANRAY TECHNOLOGY CO.,LIMITED Address : FLAT/RM 1405B 14/F THE BELGIAN BANK BUILDING NOS.721-725 NATHAN ROAD MONGKOK KL Manufacturer : Shenzhen Sanray technology co,.ltd Address : Room 310, Building 2, Zhongliang Business Park, No.6 Liuxianer Road, Baoan District, Shenzhen City, Guangdong Province, China. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 11 Report No.: CTL2606242011-WFH ** Modified History ** Revision Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release Aug 07, 2026 CTL2607152031-WFH Tracy Qi V1.0 Page 4 of 11 Report No.: CTL2606242011-WFH Contents 1 GENERAL INFORMATION .......................................................................................................................................... 5 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 1.2 PRODUCT DESCRIPTION ................................................................................................................................................. 5 1.3 TEST FACILITY .............................................................................................................................................................. 6 1.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2 METHOD OF MEASUREMENT ................................................................................................................................... 8 2.1 APPLICABLE STANDARD .................................................................................................................................................. 8 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 8 3 CONDUCTED POWER RESULTS ................................................................................................................................ 10 4 MANUFACTURING TOLERANCE .............................................................................................................................. 11 5 EVALUATION RESULTS ............................................................................................................................................. 11 5.1 STANDALONE EVALUATION ........................................................................................................................................... 11 6 CONCLUSION .......................................................................................................................................................... 11 V1.0 Page 5 of 11 Report No.: CTL2606242011-WFH 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 18-28°C Relative Humidity: 30-60% Air Pressure: 965-1030hPa 1.2 Product Description Product Name: 16 ports reader Model/Type reference: F5816-H Power supply: DC 12V by AC-DC adapter Adapter information: MODEL: A361-1202000DI INPUT: 100-240V~50/60Hz 1.5A OUTPUT: 12.0V2.0A 24.0W Test Voltage DC 12V by AC-DC adapter RFID Version: Supported 902MHz-928MHz Modulation: GFSK Operation frequency: 902.75MHz~927.25MHz Channel number: 50 Channel separation: 500kHz Antenna type: External antenna Antenna gain: 9 dBi provided by Applicant Manufacturer 12 dBi provided by Applicant Manufacturer Note 1: For more details, refer to the user’s manual of the EUT. Note 2: Antenna gain and cable loss provided by the applicant. V1.0 Page 6 of 11 Report No.: CTL2606242011-WFH 1.3 Test Facility Compa…

Text truncated - open the document above for the full version.

SANRAY TECHNOLOGY CO., LIMITED | UHF Antenna A4212 Page 1 | Tel: +86-755-88362356 | Fax: +86-755-22118885 SANRAY TECHNOLOGY CO., LIMITED Add: 310, Building 2, COFCO Chuangzhi Factory Area, Xingdong Community, Xin'an Street, Bao'an District, Shenzhen Tel: +86-755-88362356 Fax: +86-755-22118885 UHF RFID Antenna Model: A4212 Figure 1. Product Appearance — A4212 Applications Highway management, access control, warehouse shelves, runways, intelligent personnel management, customs entry/exit, item tracking, and various sites and operating environments. Also suitable for terminals, parking lots, shopping malls, and toll stations. Features • Attractive appearance and good environmental adaptability • Convenient and quick installation • Accurate and fast reading speed with high data security • Long read range • Waterproof rating: IP67 Electrical Specifications ParameterSpecification ModelA4212 Frequency Range865 – 928 MHz Gain12 dbi Horizontal Beamwidth (H-Beamwidth)55° Vertical Beamwidth (V-Beamwidth)50° PolarizationCircular / Linear Polarization Front-to-Back Ratio (F/B Ratio)≥ 18 dB VSWR≤ 1.3 : 1 Impedance50 Ω Max. Power100 W Connector Non-standard RF output port Lightning ProtectionDC Grounding Mechanical Specifications ParameterSpecification Dimensions445 × 445 × 35 mm Weight3.85 kg Radome ColorIvory white SANRAY TECHNOLOGY CO., LIMITED | UHF Antenna A4212 Page 2 | Tel: +86-755-88362356 | Fax: +86-755-22118885 Radome MaterialABS + UV Rated Wind Velocity120 km/h Reflector MaterialAluminum (AL) Operating Temperature-20 °C to +80 °C Protection RatingIP67 Product Dimension Drawing (Annotated) Figure 2. Annotated Dimension Drawing — Overall size 445 × 445 × 35 mm Radiation Patterns 0 11.73 0000000000000000000000000000000000 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 0.0 5.0 10.0 15.0 X SANRAY TECHNOLOGY CO., LIMITED | UHF Antenna A4212 Page 3 | Tel: +86-755-88362356 | Fax: +86-755-22118885 0.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.00 12.00 0.000.000.000.000.000.000.000.000.000.000.000.000.00 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 0.0 5.0 10.0 15.0 Y 0.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.000.00 12.00 0.000.000.000.000.000.000.000.000.000.000.000.000.00 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 0.0 5.0 10.0 15.0 Z SANRAY TECHNOLOGY CO., LIMITED | UHF Antenna A4212 Page 4 | Tel: +86-755-88362356 | Fax: +86-755-22118885 Installation Schematic Figure 5. Installation Schematic (Wall / Pole Mount) © SANRAY TECHNOLOGY CO., LIMITED. All rights reserved. Specifications are subject to change without notice. For the latest information, please contact us.

Shenzhen CTL Testing Technology Co., Ltd. Fl.A1, Bldg.A3, No.2533 GuanGuang Road, Fenghuang Community Fenghuang Street, Guangming District, Shenzhen, Guangdong, PR.C Tel: +86-755-89486194 E-mail: [email protected] Annex for 9dBi RFID Test Report No.: CTL2607152031-WF TABLE OF CONTENTS 1. Bandwidth .......................................................................................................................................... 3 1.1 Test Result ............................................................................................................................... 3 1.1.1 OBW ............................................................................................................................... 3 1.1.2 20dB BW ........................................................................................................................ 3 1.2 Test Graph ................................................................................................................................ 4 1.2.1 OBW ............................................................................................................................... 4 1.2.2 20dB BW ........................................................................................................................ 6 2. Maximum Conducted Output Power .................................................................................................. 8 2.1 Test Result ............................................................................................................................... 8 2.1.1 Power ............................................................................................................................. 8 3. Carrier Frequency Separation ............................................................................................................ 9 3.1 Test Result ............................................................................................................................... 9 3.1.1 Ant1 ................................................................................................................................ 9 3.2 Test Graph .............................................................................................................................. 10 3.2.1 Ant1 .............................................................................................................................. 10 4. Number of Hopping Frequencies ..................................................................................................... 11 4.1 Test Result ............................................................................................................................. 11 4.1.1 HoppNum ..................................................................................................................... 11 4.2 Test Graph .............................................................................................................................. 12 4.2.1 HoppNum ..................................................................................................................... 12 Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID:2BXMCF5816-H 2 / 22 5. Time of Occupancy (Dwell Time) ..................................................................................................... 13 5.1 Test Result ............................................................................................................................. 13 5.1.1 Ant1 .............................................................................................................................. 13 5.2 Test Graph .............................................................................................................................. 14 5.2.1 Ant1 .............................................................................................................................. 14 6. Unwanted Emissions In Non-restricted Frequency Bands ................................................................ 15 6.1 Test Result ............................................................................................................................. 15 6.1.1 Ref ................................................................................................................................ 15 6.1.2 CSE .............................................................................................................................. 15 6.2 Test Graph .............................................................................................................................. 16 6.2.1 Ref ................................................................................................................................ 16 6.2.2 CSE .............................................................................................................................. 19 Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID:2BXMCF5816-H 3 / 22 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 902.75 1 0.074 / Pass 915.25 1 0.074 / Pass 927.25 1 0.073 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 902.75 1 0.080 / Pass 915.25 1 0.080 / Pass 927.25 1 0.080 / Pass Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID:2BXMCF5816-H 4 / 22 1.2 Test Graph 1.2.1 OBW GFSK_LCH_902.75MHz_Ant1_NTNV GFSK_MCH_915.25MHz_Ant1_NTNV Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID:2BXMCF5816-H 5 / 22 GFSK_HCH_927.25MHz_Ant1_NTNV Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID:2BXMCF5816-H 6 / 22 1.2.2 20dB BW GFSK_LCH_902.75MHz_Ant1_NTNV GFSK_MCH_915.25MHz_Ant1_NTNV Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID:2BXMCF5816-H 7 / 22 GFSK_HCH_927.25MHz_Ant1_NTNV Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID:2BXMCF5816-H 8 / 22 2. Maximum Conducted Output Power 2.1 Test Resul…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Fl.A1, Bldg.A3, No.2533 GuanGuang Road, Fenghuang Community Fenghuang Street, Guangming District, Shenzhen, Guangdong, PR.C Tel: +86-755-89486194 E-mail: [email protected] Annex for 12dBi RFID Test Report No.: CTL2607152031-WF TABLE OF CONTENTS 1. Bandwidth .......................................................................................................................................... 3 1.1 Test Result ............................................................................................................................... 3 1.1.1 OBW ............................................................................................................................... 3 1.1.2 20dB BW ........................................................................................................................ 3 1.2 Test Graph ................................................................................................................................ 4 1.2.1 OBW ............................................................................................................................... 4 1.2.2 20dB BW ........................................................................................................................ 6 2. Maximum Conducted Output Power .................................................................................................. 8 2.1 Test Result ............................................................................................................................... 8 2.1.1 Power ............................................................................................................................. 8 3. Carrier Frequency Separation ............................................................................................................ 9 3.1 Test Result ............................................................................................................................... 9 3.1.1 Ant1 ................................................................................................................................ 9 3.2 Test Graph .............................................................................................................................. 10 3.2.1 Ant1 .............................................................................................................................. 10 4. Number of Hopping Frequencies ..................................................................................................... 11 4.1 Test Result ............................................................................................................................. 11 4.1.1 HoppNum ..................................................................................................................... 11 4.2 Test Graph .............................................................................................................................. 12 4.2.1 HoppNum ..................................................................................................................... 12 Annex for Bluetooth Test Report No.: CTL2607152031--WF FCCID: 2BXMCF5816-H 2 / 22 5. Time of Occupancy (Dwell Time) ..................................................................................................... 13 5.1 Test Result ............................................................................................................................. 13 5.1.1 Ant1 .............................................................................................................................. 13 5.2 Test Graph .............................................................................................................................. 14 5.2.1 Ant1 .............................................................................................................................. 14 6. Unwanted Emissions In Non-restricted Frequency Bands ....................................................…

Text truncated - open the document above for the full version.
