2BXMO-T01WIRELESS SPEAKER

蓝悦FA02亚马逊说明书120G双铜 展开 尺寸270*1 40MM折好 尺寸 9 0*140MM 双面印刷 WIRELESS SPEAKER User Manual 区[email protected] What's Included 。 T01 Wireless Speaker USB-C Charging Cable Specification Pair name T01 Transmission Distance 10m Charging Time 2-3 Hours,5V 1A 3 Charging Precautions:Avoidfastchargersto —prevent speaker damage. Wireless Connection 1.Turn on the Speaker: Long press the� button, The sound will be heard and the blue indicator light will flash rapidly. 2.Pair "T01": Open the wireless device setting, search the pair name "T01" to connect. 3.Success Display: The sound is heard and the blue indicator light will be stable. *Pairing Notice:When multiple wireless devices are connected, pairing may fail. Please try again. *Low Battery Warning: When the battery level drops below 10%, the speaker will emit a beeping sound and automatically turn off after 5 minutes. *Auto Shutdown: No connection BT/Pause status, no music or operation, auto shutdown after 60 min. 1.Turn on/off 2.Pair with you device ＝：：：＝ 一 ：：二二占＝ 选 0 厂 CJ T01 ·” - (j) - 0 1 - -02- II II 皿 II 十＠ ·©定 ＝ （ ＼ TWS Wireless Pairing Power Indicator Light '--- BT Mode Light Button Operation ＋ Short press Increase Volume Long press Next Song Short press Play/Pause/Answer/End Call 0 Long press Turn On/Off Double press Disconnect Wireless 也 Short press Turn on light/Switch light Long press Turn off light M Short press Switch BT/TF/USB Double press TWS Connect/Disconnect Short press Decrease Volume Long press Previous Song =-0a- Interface Description USB Type-C Charge Port TF Card Slot ( Supports:S32GB, MP3/WAV ) Indicator Light Instructions •I BT Mode Light •I Charging Mode Light Light is on: Wireless paired Flash fast: Waiting wi「elesspairing Light is on: Charging Light goes out: Fully charging 1.Turn on two T 0 1 speakers. 2.Double - click the "M" button on either speaker. The first beep indicates TWS pairing mode. 3 . After the second beep, TWS pairing is complete. 4.Click the device name" T 0 1 "to pair on. -0 3 - -04- -05- FCC STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Part 15 Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference; (2)This device must accept any interference received, including interference that may cause undesired operation. Note on Interference (Class B Digital Device – Residential Use) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.This device is intended for portable use and can be operated without maintaining a minimum distance between the antenna and the human body during normal use.

CoveredEquipmentAttestationLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(5)(i)-(ii)oftheCommission’sRules(47C.F.R.)weattestas followsfortheproductlistedbelow: FCCIDModelname 2BXMO-T01T01 We, Applicant CompanyName:ShenzhenKuailediTradingCo.,Ltd. Address:Room902,No.18ChangfaMiddleRoad, BantianCommunity,BantianSub-district, LonggangDistrict,ShenzhenCity,China Phone:N/A certifythattheequipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCC rules.Thisincludesthecybersecurityandanti-virussoftwareproducedorprovidedby KasperskyLab,Inc.oranyofistsuccessorsandassignees. Wecertifythat,asofthedateofthefilingoftheapplication,theapplicantisnotidentified ontheCoveredListasanentityproducing“covered”equipment. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, 2026-8-17 SignatureDate PrintedNameofSignee:ChaoWang Company:ShenzhenKuailediTradingCo., Ltd. Phone:-- Email:[email protected] Address:Room902,No.18ChangfaMiddle Road,BantianCommunity,BantianSub- district,LonggangDistrict,ShenzhenCity, China Fax:N/A

ConfidentialityRequestLetter ForCertificationServiceintheUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)andSection §552(b)(4)oftheFreedomofInformationAct,werequestconfidentialityforthe documentationofthefollowingproducts: FCCIDModelname 2BXMO-T01T01 Fortheproductslistedabove,werequestpermanentconfidentialityforallapplicable exhibitsasthereare:  theOperationalDescription  theBlockDiagram theSchematics Theabovelistedexhibitscontaintradesecretsandproprietaryinformationthatcouldbeof benefittoourcompetitors. Ifyouhaveanyquestions,pleasefeelfreetocontactusattheaddressshownbelow. Sincerely, 2026-8-17 SignatureDate PrintedNameofSignee/Title:ChaoWang/Manager Company:ShenzhenKuailediTradingCo.,Ltd. Address:Room902,No.18ChangfaMiddleRoad,Bantian Community,BantianSub-district,LonggangDistrict, ShenzhenCity,China Phone:-- Fax:-- Email:[email protected]

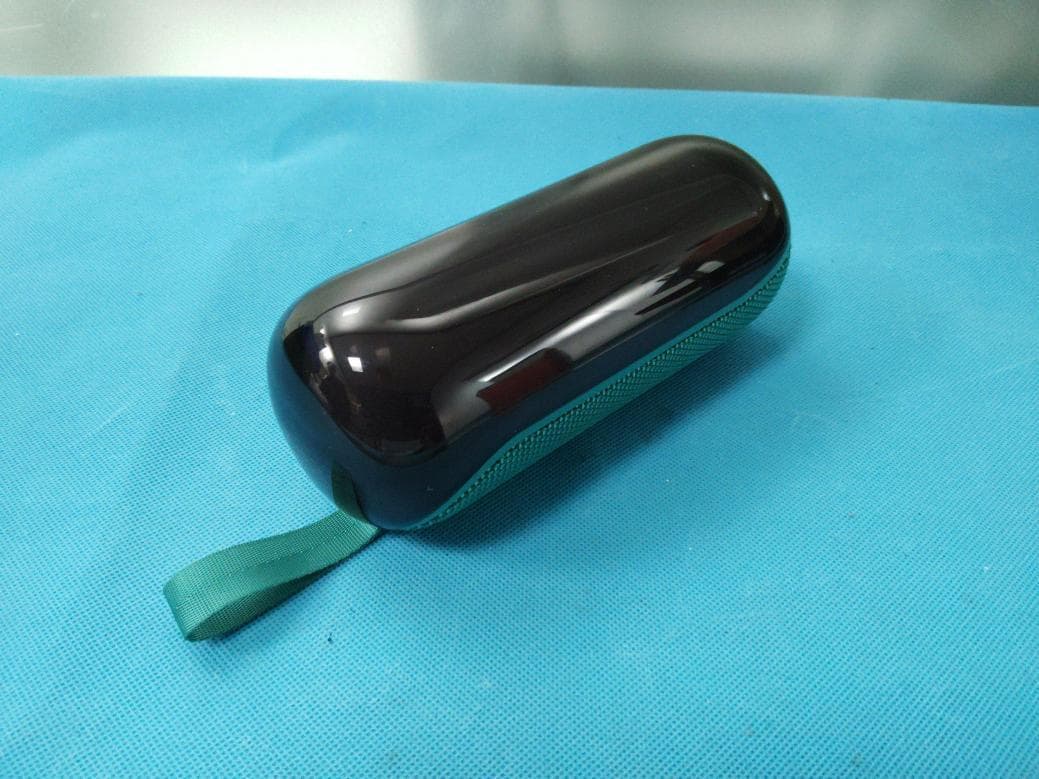

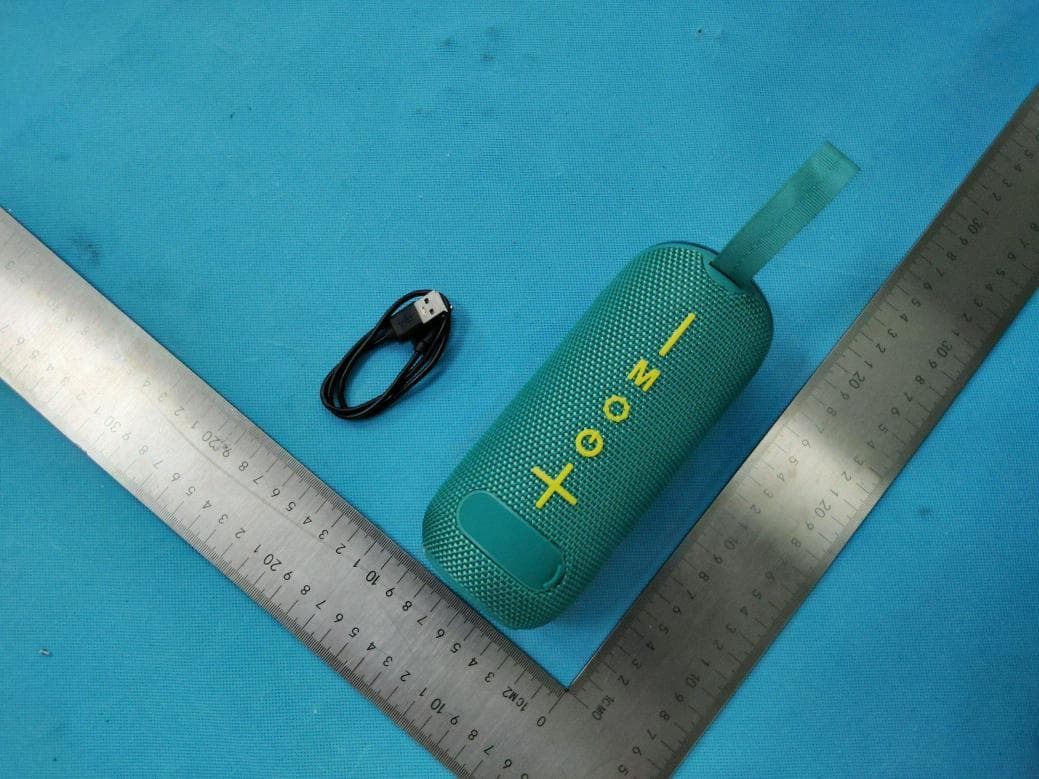

ReportNo.:CISRR26080502201 Page 85 of 91 9.EXTERNALANDINTERNALPHOTOS 9.1.ExternalPhotos ReportNo.:CISRR26080502201 Page 86 of 91

Label Size:20mm*16mm Productname:WIRELESSSPEAKER ModelName:T01 FCCID:2BXMO-T01 LabelLocation

ReportNo.:CISRR26080502201 Page 87 of 91 9.2.InternalPhotos ReportNo.:CISRR26080502201 Page 88 of 91 ANT ReportNo.:CISRR26080502201 Page 89 of 91 ReportNo.:CISRR26080502201 Page 90 of 91 ReportNo.:CISRR26080502201 Page 91 of 91 ------Endofthereport-----

ReportNo.: CISRR26080502202 Reporttemplateversion:CISE-TR-001-A0Page:1of6 TESTREPORT RFExposureEvaluation ReportNo.: CISRR26080502202 ProjectNo.: CISR260805022 FCCID:2BXMO-T01 Applicant:ShenzhenKuailediTradingCo.,Ltd. Address: Room902,No.18ChangfaMiddleRoad,BantianCommunity,Bantian Sub-district,LonggangDistrict,ShenzhenCity,China Manufacturer: SHENZHENCHENGTAIELECTRONICANDTECHNOLOGYCO.,LTD Address: F6,BUILDINGC,QINYUINDUSTRIALAREA,SANWEICOMMUNITY, HANGCHENGSTREET,BAOANDISTRICT,SHENZHEN,China ProductName: WIRELESSSPEAKER TradeMark:MEGUO Model/Typereference:T01 ListedModel(s):- Standard:47CFRPart2.1093 Issuedate:August13,2026 Testresult:Complied Reviewedby:MorganTan Approvedby:HansHu Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangceTesting TechnologyCo.,Ltd. ReportNo.: CISRR26080502202 Reporttemplateversion:CISE-TR-001-A0Page:2of6 Contents 1.APPLICABLESTANDARD..............................................................................................................................3 2.REPORTVERSION..........................................................................................................................................3 3.RADIOSPECIFICATIONDESCRIPTION........................................................................................................4 4.SIMULTANEOUSTRANSMISSIONANALYSIS.............................................................................................4 5.TESTRESULT.................................................................................................................................................5 5.1.STANDALONETRANSMISSION.................................................................................................................5 5.2.SIMULTANEOUSTRANSMISSION.............................................................................................................6 ReportNo.: CISRR26080502202 Reporttemplateversion:CISE-TR-001-A0Page:3of6 1.APPLICABLESTANDARD 47CFRPart2.1093:Radiofrequencyradiationexposureevaluation:portabledevices ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. 47CFRPart1.1307:Actionsthatmayhaveasignificantenvironmentaleffect,forwhichEnvironmental Assessments(EAs)mustbeprepared. 2.REPORTVERSION VersionNo.IssuedateDescription 00August13,2026Original ReportNo.: CISRR26080502202 Reporttemplateversion:CISE-TR-001-A0Page:4of6 3.RADIOSPECIFICATIONDESCRIPTION Bluetooth Supportedtype:BREDRLE-1Mbps LE-2Mbps Note:PleaserefertoRFreportfordetailedtechnicalspecifications 4.SIMULTANEOUSTRANSMISSIONANALYSIS ThesedevicesuseasingletransmittermoduleandantennaforbothBT,BTcannottransmitsimultaneously. ReportNo.: CISRR26080502202 Reporttemplateversion:CISE-TR-001-A0Page:5of6 5.TESTRESULT 5.1.Standalonetransmission Limit: KDB447498D01v06,Clause4.3.1a) For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-g SARtestexclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]*[√f(GHz)]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation31The resultisroundedtoonedecimalplaceforcomparison Thevalues3.0and7.5arereferredtoasnumericthresholdsinstepb)below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm, andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingto4.1f)isappliedtodetermine SARtestexclusion. Result: Passed TestData Radiotype Frequency (GHz) Maximum output power #1 (dBm) Antenna gain #2 (dBi) Maximum EIRP #3 (dBm) Maximum tune-up EIRP #4 (dBm) Minimum distance (mm) Evaluated value LimitResult Bluetooth2.402-3.262.499-0.761.005.000.39023.00PASS Note #1:ThisvaluecomesfromtheRFtestreport. #2:Thisvalueisdeclaredbytheapplicant. #3:EIRP=Maximumoutputpower+Antennagain. #4:Thisvalueisdeclaredbytheapplicant. ReportNo.: CISRR26080502202 Reporttemplateversion:CISE-TR-001-A0Page:6of6 5.2.Simultaneoustransmission Limit: KDB447498D01v06,Clause4.3.2,47CFRPart1.1307 InthecaseofxedRFsourcesoperatinginthesametime-averagingperiod,orof multiplemobileorportableRFsourceswithinadeviceoperatinginthesametime averagingperiod,ifthesumofthefractionalcontributionstotheapplicablethresholds islessthanorequalto1asindicatedinthefollowingequation. Where a=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(B)ofthissectionforP,includingexistingexempttransmittersandthosebeing added. b=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(C)ofthissectionforThresholdERP,includingexistingexempttransmittersand thosebeingadded. c=numberofexistingfixed,mobile,orportableRFsourceswithknownevaluationforthespeci edminimumdistanceincludingexistingevaluatedtransmitters. P j =theavailablemaximumtime-averagedpowerortheERP,whicheverisgreater,forxed, mobile,orportableRFsourceiatadistancebetween0.5cmand40cm(inclusive). P th,j =theexemptionthresholdpower(P)accordingtoparagraph(b)(3)(i)(B)ofthissectionfor xed,mobile,orportableRFsourcei. ERP j =theERPoffixed,mobile,orportableRFsourcej. ERP th,j =exemptionthresholdERPforfixed,mobile,orportableRFsourcej,atadistanceofat leastλ/2πaccordingtotheapplicableformulaofparagraph(b)(3)(i)(C)ofthissection. Evaluated k =themaximumreportedSARorMPEoffixed,mobile,orportableRFsourcekeither inthedeviceoratthetransmittersitefromanexistingevaluationatthelocationofexposure. ExposureLimit k =eitherthegeneralpopulation/uncontrolledmaximumpermissibleexposure (MPE)orspecicabsorptionrate(SAR)limitforeachxed,mobile,orportableRFsourcek, asapplicablefrom§1.1310ofthischapter. Result:NotApplicable --------EndofReport--------

2.4G-2.48G频段板载PIFA天线 SPECIFICATIONS Frequency（MHz）2400-2480 PeakGain（dBi）2.499 AverageGain（dBi）＞-4 VSWR＜3.2 Impedance（Ω）50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear 测试环境：中科国技暗室测试系统 Z X Y Manufacturer:Shenzhen Zhengjie Circuit Technology Co., Ltd. Address:Factory: Building 15 & Building 35, Zhongwu Industrial Zone, Xixiang, Baoan District, Shenzhen Antenna Sample & Physical Size Antenna Passive SParams 驻波比（ VSWR ）、回波损耗（ Return Loss ）及史密斯圆图 Frequency（MHz Antenna Efficiency and Gain ）Gain（dBi）Effciency（%）AverageGain（dBi）Efficiency（dB） 24001.43359.329%-2.717-2.267 24100.92751.861%-3.416-2.852 24200.82952.112%-3.166-2.831 24300.88149.299%-3.258-3.072 24401.19250.672%-3.144-2.952 24501.68853.067%-2.735-2.752 24602.19459.423%-2.276-2.260 24702.11856.680%-2.438-2.466 24802.49961.727%-2.112-2.095 Average1.52954.908%-2.806-2.616 Peak2.49961.727%-2.112-2.095 2440MHz 2D-Theta Pattern 2440MHz 2D-Phi Pattern 2440MHz 3D-Horizontal Pattern 2440MHz 3D-Vertical Pattern 2440MHz3D-TotalPattern

ReportNo.:CISRR26080502201 Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangce TestingTechnologyCo.,Ltd. Page1of83 TESTREPORT ReportNo.CISRR26080502201 ProjectNo.CISR260805022 FCCID2BXMO-T01 ApplicantShenzhenKuailediTradingCo.,Ltd. Address Room902,No.18ChangfaMiddleRoad,BantianCommunity,Bantian Sub-district,LonggangDistrict,ShenzhenCity,China ManufacturerSHENZHENCHENGTAIELECTRONICANDTECHNOLOGYCO.,LTD Address F6,BUILDINGC,QINYUINDUSTRIALAREA,SANWEICOMMUNITY, HANGCHENGSTREET,BAOANDISTRICT,SHENZHEN,China ProductNameWIRELESSSPEAKER TrademarkMEGUO Model/TypereferenceT01 ListedModel(s)- Standard 47CFRPart15.247 DateofsamplereceiptAugust7,2026 TestdateAugust7,2026toAugust13,2026 IssuedateAugust13,2026 TestresultComplied Reviewedby:MorganTan Approvedby:HansHu ReportNo.:CISRR26080502201 Page 2 of 83 Contents 1.STANDARDANDAPPLICABLETESTMETHODS........................................................................................3 2.REPORTVERSION..........................................................................................................................................3 3.TESTDESCRIPTION.......................................................................................................................................4 4.SUMMARY........................................................................................................................................................5 4.1.ProductDescription*..................................................................................................................................5 4.2.RadioSpecificationDescription*..............................................................................................................5 4.3.ModificationofEUT.....................................................................................................................................6 4.4.Deviationfromstandards...........................................................................................................................6 4.5.TestingSite...................................................................................................................................................6 5.TESTCONFIGURATION.................................................................................................................................7 5.1.Testfrequencylist.......................................................................................................................................7 5.2.Descriptionsoftestmode...........................................................................................................................7 5.3.Supportunitusedintestconfiguration....................................................................................................7 5.4.Testsampleinformation.............................................................................................................................7 5.5.Environmentalconditions...........................................................................................................................7 5.6.Statementofthemeasurementuncertainty.............................................................................................8 5.7.EquipmentUsedduringtheTest................................................................................................................9 6.TESTRESULTS.............................................................................................................................................11 6.1.EvaluationResults(Evaluation)...............................................................................................................11 6.1.1.AntennaRequirement.............................................................................................................................11 6.2.RadioSpectrumMatterTestResults(RF)...............................................................................................12 6.2.1.20dBBandwidth......................................................................................................................................12 6.2.2.MaximumConductedOutputPower.....................................................................................................14 6.2.3.ChannelSeparation................................................................................................................................15 6.2.4.NumberofHoppingFrequencies..........................................................................................................16 6.2.5.DwellTime...............................................................................................................................................17 6.2.6.Conductedbandedgeandspuriousemission...................................................................................19 6.2.7.Radiatedbandedgeemission...............................................................................................................21 6.2.8.RadiatedSpuriousEmission(below1GHz).........................................................................................27 6.2.9.RadiatedSpuriousEmission(Above1GHz)........................................................................................31 7.APPENDIXREPORT......................................................................................................................................39 ReportNo.:CISRR26080502201 Page 3 of 83 1.STANDARDANDAPPLICABLETESTMETHODS Thetestswereperformedaccordingtofollowingstandards: 47CFRPart15.247:Operationwithinthebands902-928MHz,2400-2483.5MHz,and5725-5850MHz ANSIC63.10-2020:AmericanNationalStandardofProceduresforComplianceTestingofUnlicensed WirelessDevices. 2.REPORTVERSION VersionNo.IssuedateDescription 00August13,2026Original ReportNo.:CISRR26080502201 Page 4 of 83 3.TESTDESCRIPTION No.TestItemStandardRequirementResult 1AntennaRequirement47CFR15.203Pass 220dBBandwidth47C…

Text truncated - open the document above for the full version.

ReportNo.:CISRR26080502201 Page 84 of 91 8.TESTSETUPPHOTOS Radiatedbandedgeemission RadiatedSpuriousEmission(Above1GHz) RadiatedSpuriousEmission(below1GHz)
