01020304 0506070809 01020304 CELL PHONE SIGNAL BOOSTER USER MANUAL SOLVE SIGNAL PROBLEMS AND IMPROVE QUALITY OF LIFE CATALOG INTRODUCTION WHAT IS INCLUDED FOR THE KIT SPECIFICATIONS HOW IT WORKS LCD SCREEN INTRODUCTION HOW TO INSTALL YOUR SIGNAL BOOSTER INSTALLATION OVERVIEW 1.1 Install Outdoor Antenna 1.2 Install Indoor Antenna 1.3 Install Signal Booster SAFETY GUIDELINES PRODUCT WARRANTY 1 2 3 4 10 10 12 15 16 16 19 20 This series booster has been sold offline for a very long time and has won unanimous praise from customers. It can enhance indoor signal, such as voice, data in home and office etc, so as to reduce the problem of call interruption, poor signal, can help improve voice quality, faster internet speed and wider coverage. It also has an advanced set of technical features, will give you the ultimate control over your signal quality. Wireless connects multiple devices, Automatic gain control, this booster has strong anti-interference, low noise characteristic,Works on bands 5/12/13/17, Support all US and Canadi- an carriers of AT&T, Verizon, T-Mobile, Sprint, Straight Talk, U.S. Cellular, etc. Cover 2G, 3G, 4G LTE, and 5G compatible. INTRODUCTION WHAT IS INCLUDED FOR THE KIT Adapter Outside antenna Outside cable Indoor antenna Indoor antenna Accessories It can cover up to 2500sq.ft coverage. SPECIFICATIONS Electrical specification LTE(A&B) LTE（C） CDMA 698~ 716 MHz 776~ 787MHz 824~849 MHz ≤65dB ≤22dBm Wide Band ≥ 31dB/1dB step 728 ~746 MHz 746 ~757 MHz 869~894MHz ≤65dB ≤10dBm 9KHz~1GHz 1GHz~12.75GHz 9KHz~1GHz 1GHz~12.75GHz ≤ -19dBm ≤ -19dBm ≤ -36dBm ≤ -30dBm Cell Phone Signal Booster*1 5G Outdoor Log-periodic antenna *1 Indoor whip antenna*1 50ft Cable*1 Kit Including: ≤ -19dBm ≤ -19dBm Max .Gain Max .Output Power Band width MGC function Gain Flatness Noise Figure VSWR Group Delay Frequency stability LED Alarm Power LED ALC LED Mechanical Specifications I /O Port Impedance Operating Temperature Environment Conditions Dimensions Weight Power Supply ≤8dB ≤6dB ≤2 ≤ 1.0μs ≤ 0.01ppm Standard Power Indicator Orange @ ALC 1~5dB, Red @ ALC15dB~20dB, Standard SMA-Female 50 ohm -25ºC~+55ºC IP40 131*89*22mm/5.16*3.5*0.866in 0.2kg/0.441Lb Input AC100~240V,output DC5V/2A Intermodulation Products Spurious Emission Frequency Range (700+850Mhz) UplinkDownlink The coverage area and the strength of the boosted signal are directly related to two key factors: Signal strength received by the outdoor unit. So, setting up the outside unit where the signal is the strongest will provide the best results. 1. Working Principle： Outside Signal: Outdoor Antenna Gain: The gain of outdoor antenna Outdoor Cable Loss: The loss of the outdoor cable Booster Gain: The actual working gain of the booster Indoor Cable Loss: The loss of the indoor cable Indoor Antenna Gain: The gain of indoor antenna Receive the signal from the outdoor base station signal tower HOW IT WORKS outside signal Base Station outdoor calbeboosterindoor antennaoutside antenna Signal transmission loss and power level Distance of separation between the outdoor unit and the indoor unit.2. Please make sure the horizontal distance between outdoor antenna and indoor antenna is more than 6 meters(20ft);The vertical distance between indoor antenna and outdoor antenna is more than 3 meters(10ft) 3. Tips:The user guide is focused on: 1. Getting the best outside signal. 2. Keeping the maximum booster gain. For example: -65dBm + 6dBi - 5dB + 70dB - 3dB + 6dBi = 9dBm (System Output Power) Note: FCC regulations limit the amplification of all cell phone boosters in order to prevent damage to the telecommunications infrastructure. Therefore, the maximum coverage area of a booster depends on the original power level of the signal captured by the outdoor unit. Notice: Not recommended when outdoor signal strength is less than -110dbm (3G/lx) or -120dBm(4G/LTE). The resulting coverage area of the boosted signal will be prohibitively small. Find your cell tower nearby! There are a variety of resources available online, here is a third party website recommended. Use it to locate your nearest cell tower: www.cellmapper.net Preparation Coverage area ability Visit website www.cellmapper.net Step 1. Power Level at the outdoor antenna location Strong(4~5 bars on the cellphone) Coverage Area (sq.ft) Medium(3~4 bars on the cellphone) Weak(1~2 bars on the cellphone) 2,500 1,000 300 Select Provider. You will find the cell tower around your house. Step 3. Find your location on the map and zoom in on your area Step 2. Click the red or green dot on the map that represents the base station, and the detailed information of the base station will be displayed. The first important information, you can see from the above four pictures, the coverage area (shaded part) of each base station is different. You have to find a base station with signal coverage to your house, or the coverage direction is facing you, and the coverage area is closest to you. The second important information, you can scroll the information content on the right to find the specific carrier information of this base station, including the communication standard and frequency band. Please reference the right picture, "LTE〃 and "B2 FDD'(Band 2, FDD). Find your cell tower Step 4. How to choose the right booster before purchase? For iPhone - Please dial *3001#12345#* → Press call button → Click 'Serving Cell Info' → Check 'Freq Band Indicator'. For Android - Please download 'LTE Discovery' APP →Click ‘SIGNALS’ → Check ‘EARFCN’. [email protected] www.szzjtechnology.com [email protected] www.szzjtechnology.com 12131415 1718192016 1011 LCD SCREEN INTRODUCTION The strength of the outdoor input signal ①.Very Strong(it will have 5 bars, the red bar also lights up ) ②.Strong(it will have 5 bars )， ③.Medium(about 3~4 bars )， ④.Weak(only have 1-2 bars )， HOW TO INSTALL YOUR SIGNAL BOOSTER This user manual will help you properly install your signal booster kit. lt is important to read through all of the installation steps …

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BXPG20T-LC-A01 20T-LC-A01 We, Applicant Company Name: SZZJ COMMUNICATION TECHNOLOGY CO., LIMITED Address: Room A22, Unit 2208, Block A, Union Square No.5022 Binhe Avenue, Futian Subdistrict, Futian District, Shenzhen, Guangdong, China Phone: +86-18928220053 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-09-16 Signature Date Name / Title: ZhouHui Huang / Manager Company: SZZJ COMMUNICATION TECHNOLOGY CO., LIMITED Address: Room A22, Unit 2208, Block A, Union Square No.5022 Binhe Avenue, Futian Subdistrict, Futian District, Shenzhen, Guangdong, China Phone: +86-18928220053 Fax: N/A E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BXPG20T-LC-A01 20T-LC-A01 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-09-12

SZZJ COMMUNICATION TECHNOLOGY CO., LIMITED Room A22, Unit 2208, Block A, Union Square No.5022 Binhe Avenue, Futian Subdistrict, Futian District, Shenzhen, Guangdong, China Date: September 16, 2026 FCC ID: 2BXPG20T-LC-A01 Model Number: 20T-LC-A01 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, SZZJ COMMUNICATION TECHNOLOGY CO., LIMITED hereby declare that our product (Booster) Model Number: 20T-LC-A01 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent for Fixed consumer booster has been obtained (consent be made available upon FCC/TCB request) (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to "ON" configuration (in operation) (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed (5) This Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation. (6) Future software upgrade will not cause non-compliance. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: ZhouHui Huang / Manager Company: SZZJ COMMUNICATION TECHNOLOGY CO., LIMITED Address: Room A22, Unit 2208, Block A, Union Square No.5022 Binhe Avenue, Futian Subdistrict, Futian District, Shenzhen, Guangdong, China Phone: +86-18928220053 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BXPG20T-LC-A01 20T-LC-A01 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-09-16 Signature Date Name / Title: ZhouHui Huang / Manager Company: SZZJ COMMUNICATION TECHNOLOGY CO., LIMITED Address: Room A22, Unit 2208, Block A, Union Square No.5022 Binhe Avenue, Futian Subdistrict, Futian District, Shenzhen, Guangdong, China Phone: +86-18928220053 Fax: N/A E-Mail: [email protected]

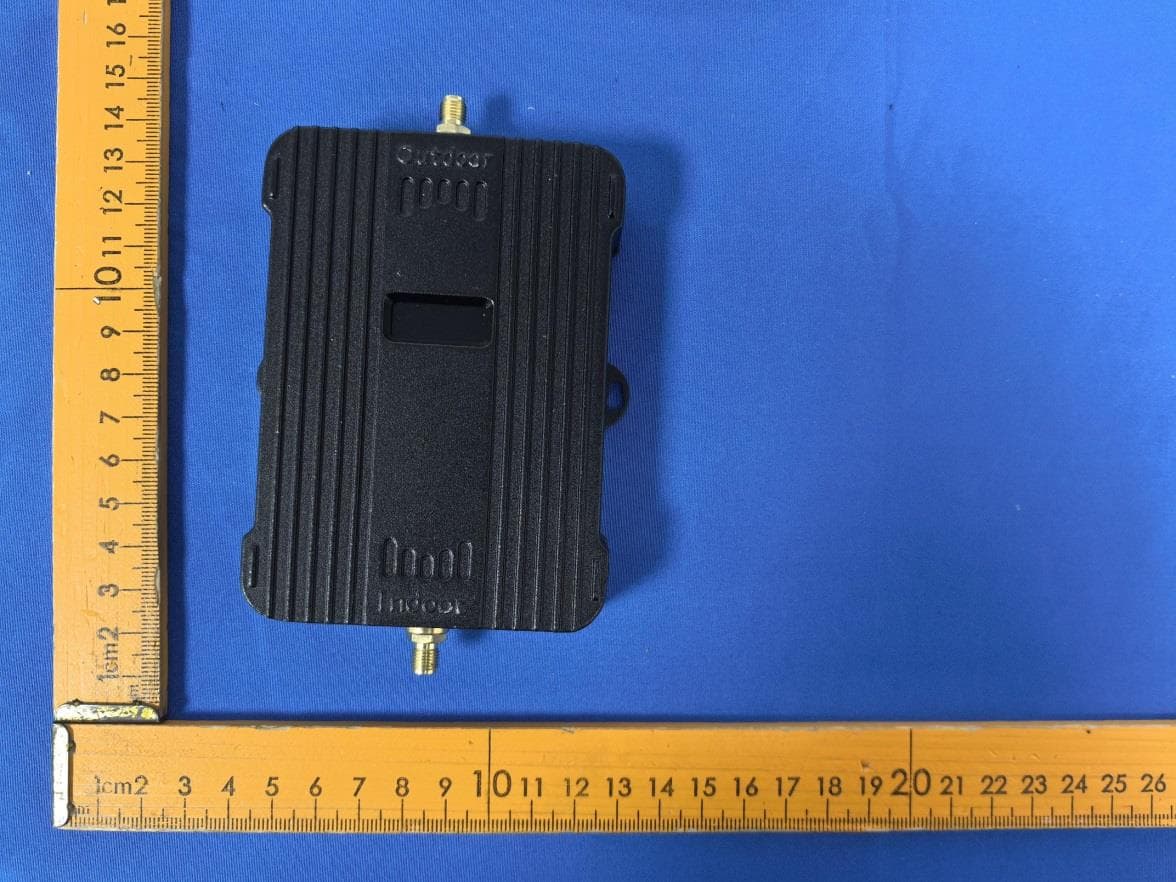

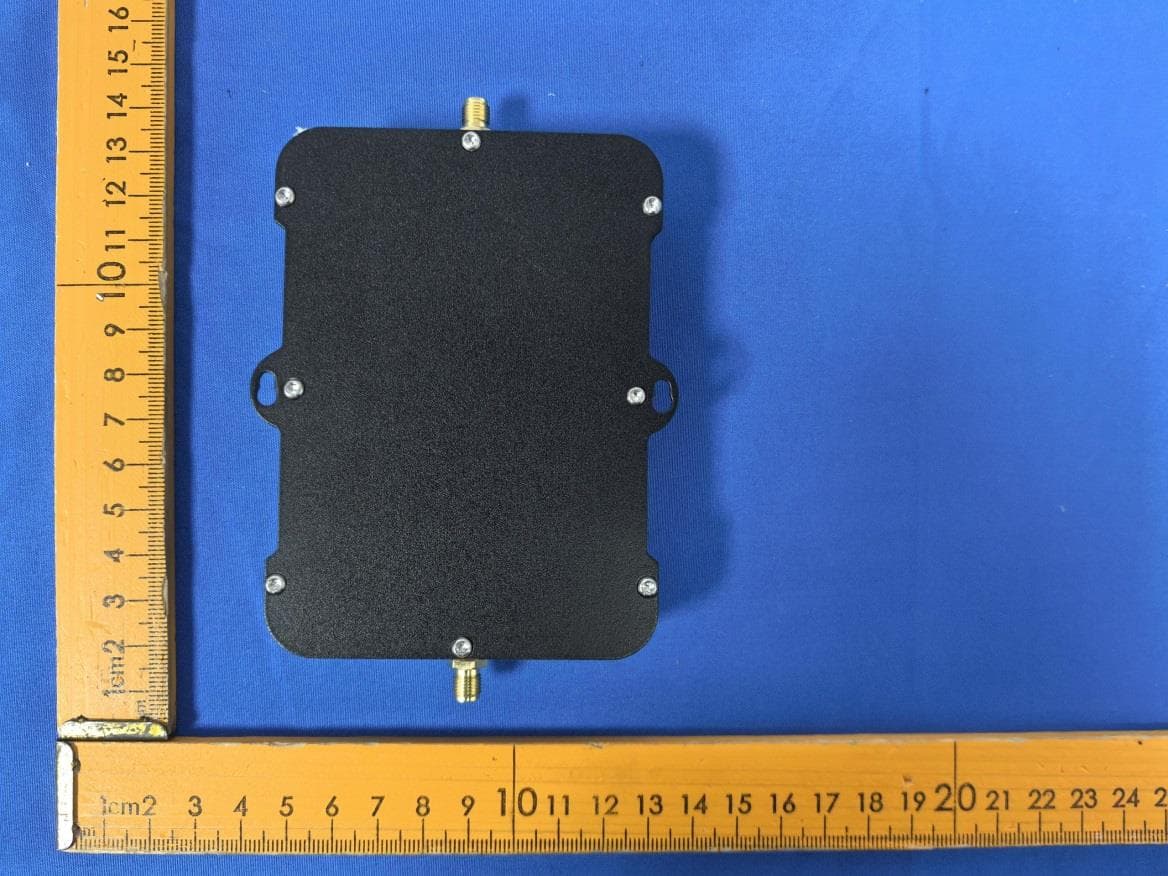

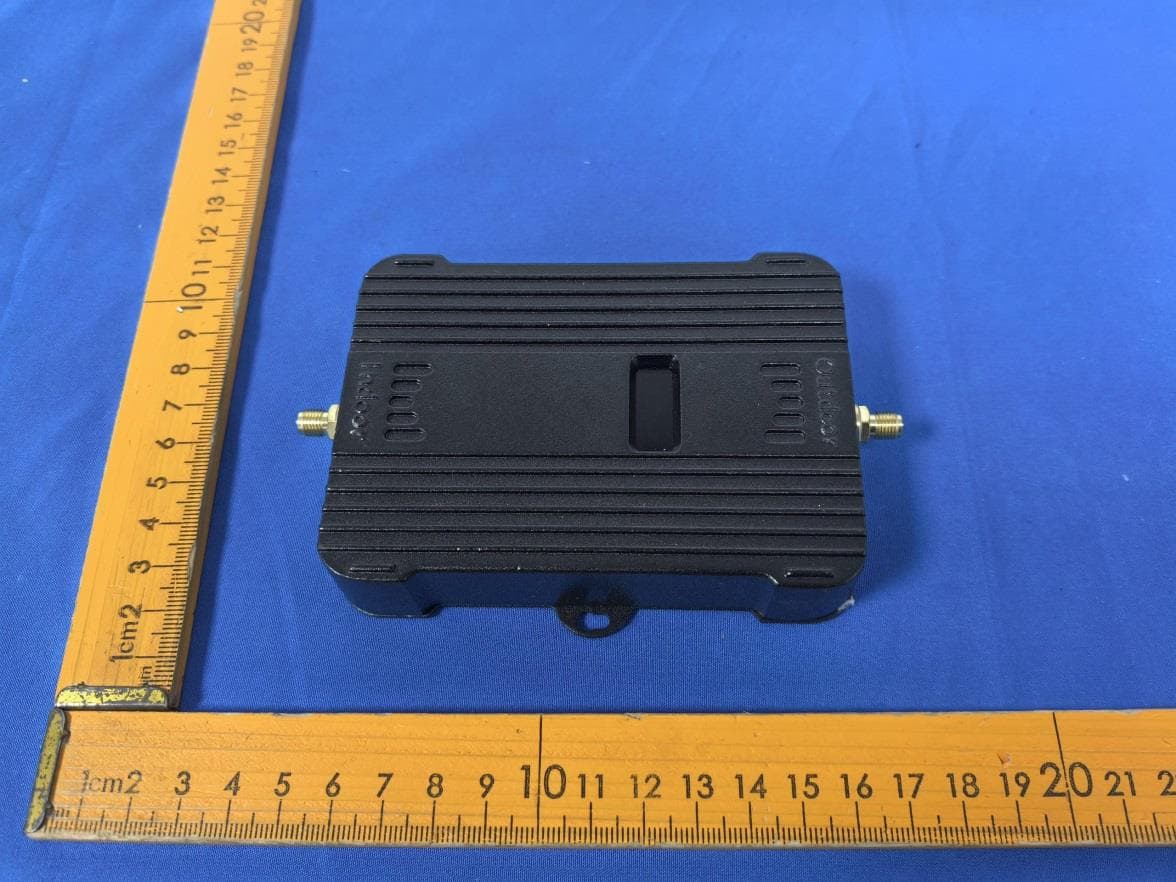

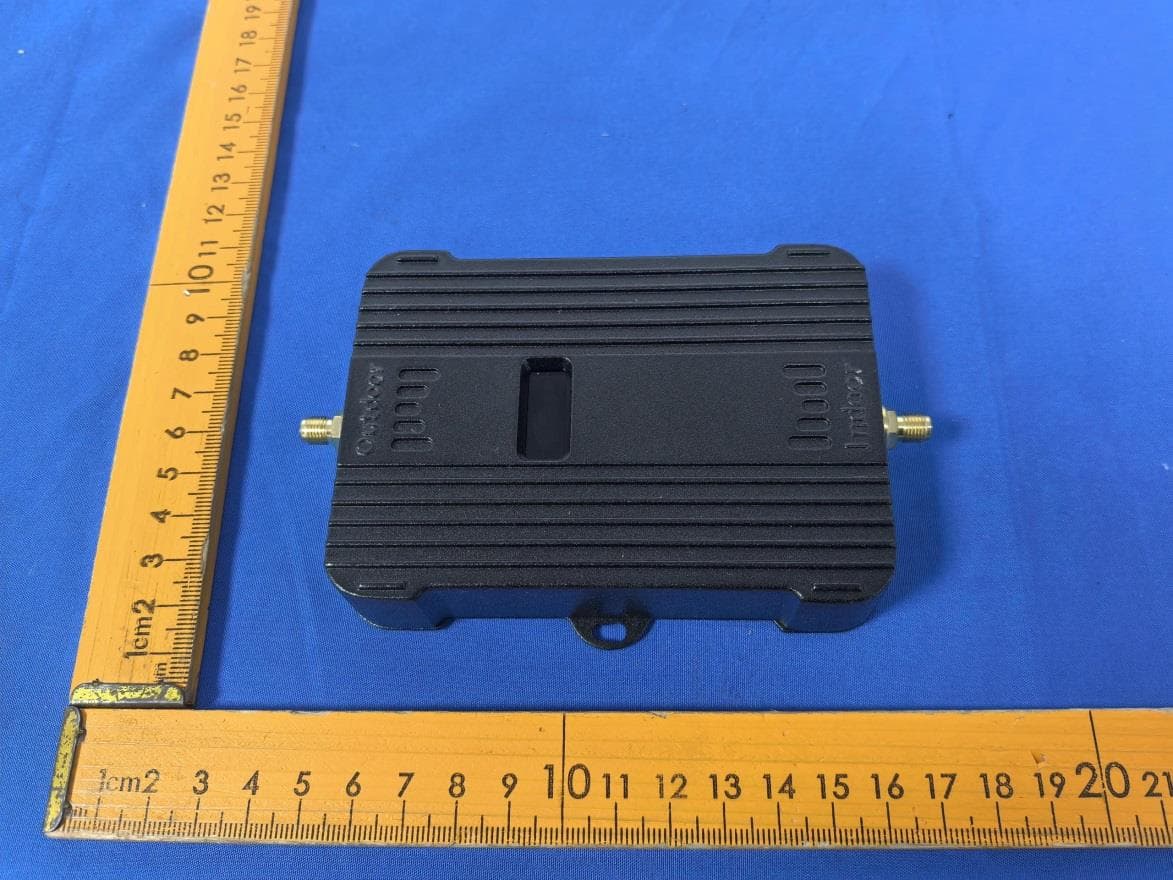

Page 1 of 5 FCC ID: 2BXPG20T-LC-A01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Exterior Photographs Fig.1 Fig.2 Outdoor LPDA Antenna Indoor Whip Antenna Outside cable Page 2 of 5 FCC ID: 2BXPG20T-LC-A01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig.3 Fig.4 Page 3 of 5 FCC ID: 2BXPG20T-LC-A01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig.5 Fig.6 Page 4 of 5 FCC ID: 2BXPG20T-LC-A01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig.7 Fig.8 Page 5 of 5 FCC ID: 2BXPG20T-LC-A01 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Fig.9 Fig.10
