文件版本（FileVersion）：202201版权所有（propertyincopyright） 1 中泰样品承认书 PartsApprovalSheet 生产供应商：国质信 Supplier 适用项目： H1 Type/Spec 品牌： NQI Brand 送样日期： 2026/09/01 SendoutDate 承认日期： ApproveDate 物料名称： WIFI 天线 ( 后锁 WIFI 天线 ) PartsName NQI 规格 :NQI-HG550G-WF2-85X PartsNo 客户料号： Quantity 文件编号： NQI-RD-SPEC-20260901 DocumentNo 样品版本： V0 Version SupplierCustomer ApprovedByPreparedByEngineeringDeptQualityDept 联系方式（Contact）：深圳龙岗区平湖街道禾花社区福星路157号湾区智汇港1栋702 Email：[email protected] Tel：+86-0755-28500656 Fax：+86-0755-28700656 文件版本（FileVersion）：202201版权所有（propertyincopyright） 2 承认书履历表 （Resume） 日期 （Date） 天线版本 （Versins） 变更原因 （Reasonsforchange） 变更内容 （Contentofchange） 备注 （Note） 2026.09.01V0首版发行 文件版本（FileVersion）：202201版权所有（propertyincopyright） 3 目录 一 . 样品及说明 （Samplepictureanddescription）..........................................................4 二 . 测试设备及项目 （Testequipmentanditems）...................................................4-6 三 . 暗室连接及坐标 （Chamberconnectionandcoordinates）...........................................6 四 . 天线匹配网络 （Antennamatchingnetwork）.........................................................7 五 . 天线电性能测试数据 （ElectricalperfornancetestData）.....................................7-8 六.天线结构图纸（Antennastructuredrawing）.........................................................9 七.重点尺寸检验报告（Keydimensioninspectionreport）............................................10 文件版本（FileVersion）：202201版权所有（propertyincopyright） 4 一 . 样品及说明 （Samplepictureanddescription） ： 二.试设备及项目（Testequipmentanditems）： 类别（Class）测试项目（Testitem）设备（Equipment） 1.Sparameter 1.回波损耗(RL) 2.驻波比（VSWR） 3.斯密斯原图（Smithchart） 网分（VNA）:AgilentE5071B R&SZVB8 Protek A333 电气参数说明（ElectricalSpecifications） 频率范围（Frequencyrange）（2400-2500)MHz 特性阻抗（impedance）50ohm 电压驻波比（VSWR）≤2.5 峰值增益（Gain）4.83DBi 极化形式（Polarization）线性 辐射方向（Radiationdirection）全向 连接方式说明（ConnectionModeDescription） 连接器（connector）IPEX(一代端子） 线缆规格（Cablespecifications）1.13*85MM同轴线（黑色） 工作/储存温度（Working/Storagetemperature） 工作温度（Workingtemperature）-30°C～65°C 储存温度（Storagetemperature）-30°C～75°C 文件版本（FileVersion）：202201版权所有（propertyincopyright） 5 2.耦合测试（ Coupling testing） 1.发射功率（MAXPower） 2.接收灵敏度（MINSens） 1.2G/3GTester：Agilent8960 2.Thecouplingbox：TESCOMTC-5060A 3.3DChamber：ETS3DChamber（5x3x3） 3.3D无源测试 （PassiveTest） 1.效率（Effeciency） 2.增益（Gain） 3.辐射方向图 （Radiationpattern） 1.3DChamber：TEM243DChamber（5x5x5） ETS3DChamber（5x3x3） 2.网分（VNA）：AgilentE5071B R&SZVB8 4.3D有源测试 （ActiveTest） 1.3D功率（TRP） 2.3D灵敏度（TIS） 3.吞吐率（Throughputrate） 1.3DChamber：TEM243DChamber（5x5x5） ETS3DChamber（5x3x3） 2.2G/3GTester:Agilent8960 3.4GTester：MT8820C/CMW500 4.WIFI/BT/NB-iotTester：CMW500 5.5GTester：SP9500-CTS 6.Head：HEAD-P10（FACE-P10） 文件版本（FileVersion）：202201版权所有（propertyincopyright） 6 三.暗室连接及坐标（Chamberconnectionandcoordinates）： 文件版本（FileVersion）：202201版权所有（propertyincopyright） 7 四 . 天线匹配网络 （Antennamatchingnetwork） ：主板原匹配，无更改 4.1天线贴装以及注意事项 五 .RL/VSWR/SmithChat （回波损耗 / 驻波比 /Smith ） Element（ Value ） E1(0201)NC E2(0201)0Ω E3(0201)NC 天线贴装位 置 文件版本（FileVersion）：202201版权所有（propertyincopyright） 8 5.1增益及效率(Gainandefficiency) 5.23D图 文件版本（FileVersion）：202201版权所有（propertyincopyright） 9 六、结构图纸 （Antennastructuredrawing） 文件版本（FileVersion）：202201版权所有（propertyincopyright） 10 七重点尺寸检验报告 （Keydimensioninspectionreport） ： 尺寸检验报告 客户中泰项目 H1 材质 FPC 环保材料非环保材料 外观检查项目 □漏漆□断线□短路□划伤□脏污□开裂 不良数： 0 轻微严重致命 外观判定结果：合格不合格 功能或尺寸检查记录 NO检查序号尺寸公差 检查结果 检测仪器判定 12345 FPC 125.20±0.1525.2325.2025.2425.2125.23DNOK 211.50±0.1511.5211.5111.5011.5311.51DNOK 总体判定：合格不合格 不合格处理方式：返工特采使用 计量仪器代号说明：投影仪-PP塞规-PG高度规-HG角度规-AG游标卡尺-N数显卡尺-DN 外径千分尺-M 其它测试手段代码：三座标-3D螺纹规-SG专用治具-SE目视-E 备注： 测定人：刘敏 深圳市国质信网络通讯有限公司

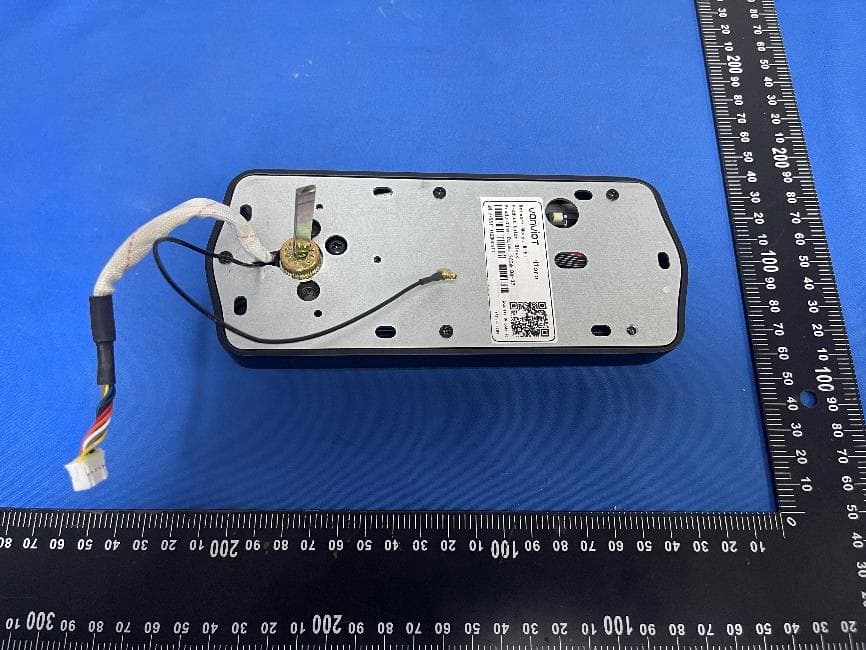

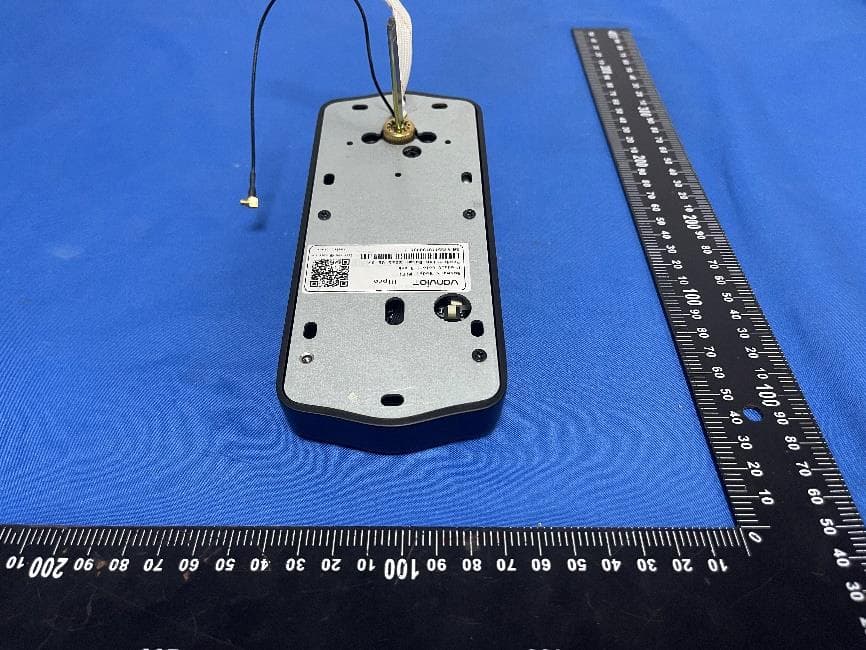

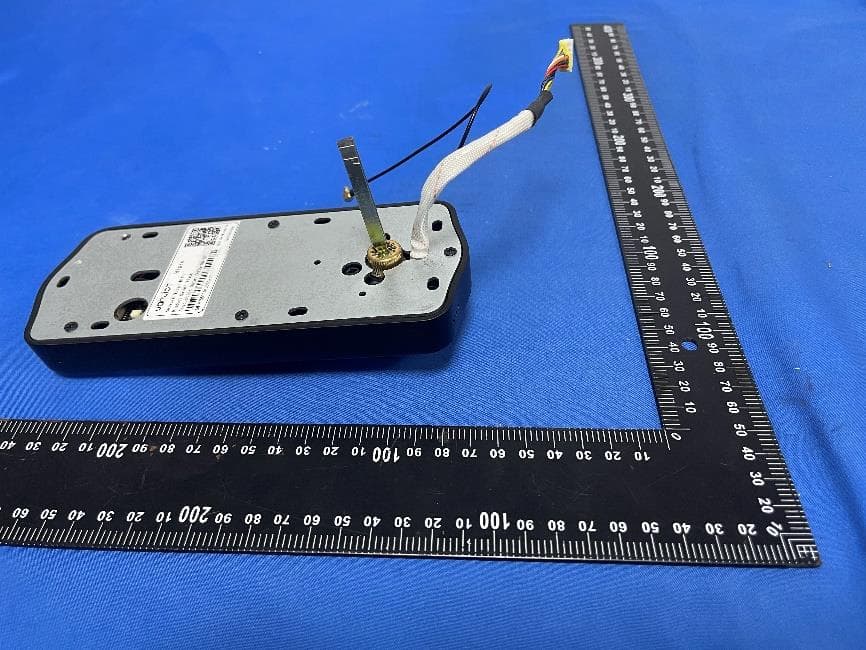

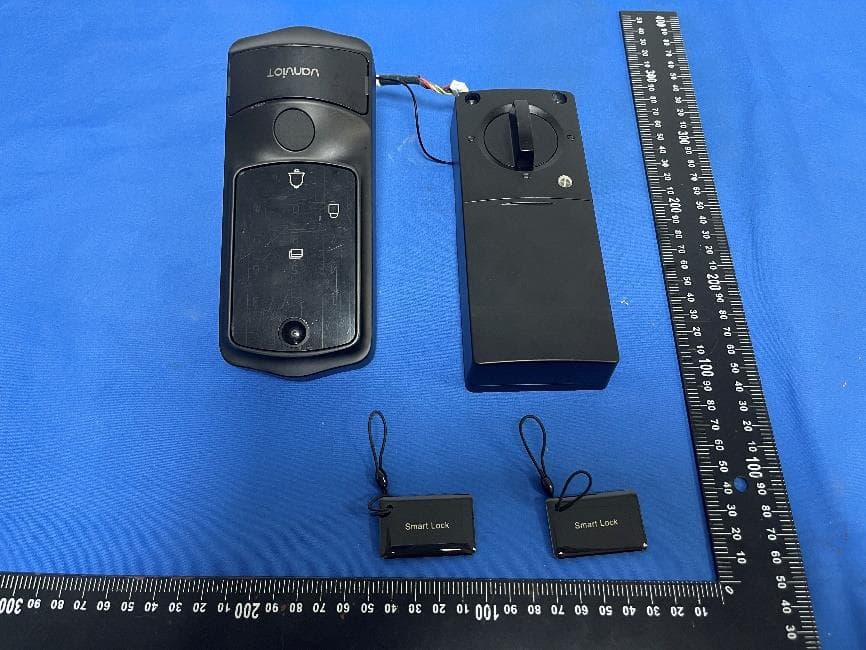

FCC ID:2BXSK-H1PRO Test Setup Photos of the EUT FCC ID:2BXSK-H1PRO FCC ID:2BXSK-H1PRO

1 FCC Appendix RF Test Data for BLE FCC ID : 2BXSK-H1PRO Company : Shenzhen Zontek IoT Co., Ltd. EUT : Smart Lock Model Number : H1 Pro Report No. : CTA26081700701 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.640 2401.692 2402.332 0.5 PASS 2440 0.640 2439.696 2440.336 0.5 PASS 2480 0.660 2479.680 2480.340 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0052 2401.5202 2402.5254 --- --- 2440 1.0075 2439.5174 2440.5249 --- --- 2480 1.0079 2479.5185 2480.5264 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.49 ≤30 PASS 2440 -3.57 ≤30 PASS 2480 -3.81 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.28 ≤8.00 PASS 2440 -19.40 ≤8.00 PASS 2480 -19.67 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -4.16 -53.8 ≤-24.16 PASS High 2480 -4.25 -55.03 ≤-24.25 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.96 -4.96 --- PASS 30~1000 -4.96 -68.13 ≤-24.96 PASS 1000~26500 -4.96 -45.26 ≤-24.96 PASS 2440 Reference -5.19 -5.19 --- PASS 30~1000 -5.19 -67.95 ≤-25.19 PASS 1000~26500 -5.19 -45.46 ≤-25.19 PASS 2480 Reference -4.60 -4.60 --- PASS 30~1000 -4.60 -67.7 ≤-24.6 PASS 1000~26500 -4.60 -46.35 ≤-24.6 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.61 2.00 1.80 38.39 ≤54 PASS AV 2374.655 -59.26 2.00 1.80 39.74 ≤54 PASS AV 2390.000 -60.12 2.00 1.80 38.88 ≤54 PASS Peak 2310.000 -52.86 2.00 0.00 44.34 ≤74 PASS Peak 2341.790 -49.03 2.00 0.00 48.17 ≤74 PASS Peak 2390.000 -51.91 2.00 0.00 45.29 ≤74 PASS High 2480 AV 2483.500 -58.69 2.00 1.80 40.31 ≤54 PASS AV 2483.760 -58.17 2.00 1.80 40.83 ≤54 PASS AV 2500.000 -58.87 2.00 1.80 40.13 ≤54 PASS Peak 2483.500 -51.1 2.00 0.00 46.10 ≤74 PASS Peak 2485.040 -48.87 2.00 0.00 48.33 ≤74 PASS Peak 2500.000 -52.22 2.00 0.00 44.98 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

99 11G_Ant2_2412 11G_Ant2_2437 100 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 101 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 102 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 103 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant2 Low 2412 AV 2310.000 -60.09 4.54 0.03 39.68 ≤54 PASS AV 2386.060 -50.47 4.54 0.03 49.30 ≤54 PASS AV 2390.000 -55.38 4.54 0.03 44.39 ≤54 PASS Peak 2310.000 -51.22 4.54 0.00 48.52 ≤74 PASS Peak 2386.710 -43.27 4.54 0.00 56.47 ≤74 PASS Peak 2390.000 -47.16 4.54 0.00 52.58 ≤74 PASS High 2462 AV 2483.500 -55.25 4.54 0.03 44.52 ≤54 PASS AV 2488.070 -51.79 4.54 0.03 47.98 ≤54 PASS AV 2500.000 -57.07 4.54 0.03 42.70 ≤54 PASS Peak 2483.500 -48.24 4.54 0.00 51.50 ≤74 PASS Peak 2486.420 -44.37 4.54 0.00 55.37 ≤74 PASS Peak 2500.000 -50.26 4.54 0.00 49.48 ≤74 PASS 11G Ant2 Low 2412 AV 2310.000 -60.04 4.54 1.25 40.95 ≤54 PASS AV 2389.830 -58.64 4.54 1.25 42.35 ≤54 PASS AV 2390.000 -59.47 4.54 1.25 41.52 ≤54 PASS Peak 2310.000 -49.82 4.54 0.00 49.92 ≤74 PASS Peak 2360.450 -49.27 4.54 0.00 50.47 ≤74 PASS Peak 2390.000 -52.74 4.54 0.00 47.00 ≤74 PASS High 2462 AV 2483.500 -56.61 4.54 1.03 44.16 ≤54 PASS AV 2484.770 -56.83 4.54 1.03 43.94 ≤54 PASS AV 2500.000 -58.81 4.54 1.03 41.96 ≤54 PASS Peak 2483.500 -46.59 4.54 0.00 53.15 ≤74 PASS Peak 2485.650 -46.57 4.54 0.00 53.17 ≤74 PASS Peak 2500.000 -51.13 4.54 0.00 48.61 ≤74 PASS 11N20SI SO Ant2 Low 2412 AV 2310.000 -60.6 4.54 1.12 40.26 ≤54 PASS AV 2389.960 -58.71 4.54 1.12 42.15 ≤54 PASS AV 2390.000 -58.71 4.54 1.12 42.15 ≤54 PASS Peak 2310.000 -52.87 4.54 0.00 46.87 ≤74 PASS Peak 2384.630 -48.62 4.54 0.00 51.12 ≤74 PASS Peak 2390.000 -50.48 4.54 0.00 49.26 ≤74 PASS High 2462 AV 2483.500 -59.22 4.54 1.06 41.58 ≤54 PASS AV 2484.550 -58.16 4.54 1.06 42.64 ≤54 PASS AV 2500.000 -59.42 4.54 1.06 41.38 ≤54 PASS Peak 2483.500 -51.67 4.54 0.00 48.07 ≤74 PASS Peak 2485.760 -48.44 4.54 0.00 51.30 ≤74 PASS Peak 2500.000 -52.25 4.54 0.00 47.49 ≤74 PASS 104 11N40SI SO Ant2 Low 2422 AV 2310.000 -60.74 4.54 1.06 40.06 ≤54 PASS AV 2389.400 -55.18 4.54 1.06 45.62 ≤54 PASS AV 2390.000 -55.49 4.54 1.06 45.31 ≤54 PASS Peak 2310.000 -51.98 4.54 0.00 47.76 ≤74 PASS Peak 2382.650 -46.4 4.54 0.00 53.34 ≤74 PASS Peak 2390.000 -47.46 4.54 0.00 52.28 ≤74 PASS High 2452 AV 2483.500 -56.6 4.54 1.06 44.20 ≤54 PASS AV 2483.750 -55.52 4.54 1.06 45.28 ≤54 PASS AV 2500.000 -57.65 4.54 1.06 43.15 ≤54 PASS Peak 2483.500 -47.19 4.54 0.00 52.55 ≤74 PASS Peak 2484.375 -46.53 4.54 0.00 53.21 ≤74 PASS Peak 2500.000 -50.59 4.54 0.00 49.15 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 105 Test Graphs 11B_Ant2_Low_2412_AV 11B_Ant2_Low_2412_Peak 11B_Ant2_High_2462_AV 106 11B_Ant2_High_2462_Peak 11G_Ant2_Low_2412_AV 107 11G_Ant2_Low_2412_Peak 11G_Ant2_High_2462_AV 11G_Ant2_High_2462_Peak 108 11N20SISO_Ant2_Low_2412_AV 11N20SISO_Ant2_Low_2412_Peak 109 11N20SISO_Ant2_High_2462_AV 11N20SISO_Ant2_High_2462_Peak 11N40SISO_Ant2_Low_2422_AV 110 11N40SISO_Ant2_Low_2422_Peak 11N40SISO_Ant2_High_2452_AV 111 11N40SISO_Ant2_High_2452_Peak

66 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 67 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 68 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 69 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant2 2412 14.84 ≤30.00 PASS 2437 14.93 ≤30.00 PASS 2462 15.19 ≤30.00 PASS 11G Ant2 2412 14.32 ≤30.00 PASS 2437 14.47 ≤30.00 PASS 2462 14.61 ≤30.00 PASS 11N20SISO Ant2 2412 14.18 ≤30.00 PASS 2437 14.31 ≤30.00 PASS 2462 14.39 ≤30.00 PASS 11N40SISO Ant2 2422 14.53 ≤30.00 PASS 2437 14.78 ≤30.00 PASS 2452 14.73 ≤30.00 PASS 70 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant2 2412 -10.90 ≤8.00 PASS 2437 -10.67 ≤8.00 PASS 2462 -10.57 ≤8.00 PASS 11G Ant2 2412 -17.13 ≤8.00 PASS 2437 -17.30 ≤8.00 PASS 2462 -17.37 ≤8.00 PASS 11N20SISO Ant2 2412 -17.35 ≤8.00 PASS 2437 -17.56 ≤8.00 PASS 2462 -15.98 ≤8.00 PASS 11N40SISO Ant2 2422 -19.38 ≤8.00 PASS 2437 -20.53 ≤8.00 PASS 2452 -18.82 ≤8.00 PASS 71 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 72 11G_Ant2_2412 11G_Ant2_2437 73 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 74 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 75 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 76 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant2 Low 2412 2.55 -49.69 ≤-17.45 PASS High 2462 2.96 -50.95 ≤-17.04 PASS 11G Ant2 Low 2412 -2.04 -33.36 ≤-22.04 PASS High 2462 -1.77 -56.33 ≤-21.77 PASS 11N20SISO Ant2 Low 2412 -2.21 -33.71 ≤-22.21 PASS High 2462 -1.74 -58.2 ≤-21.74 PASS 11N40SISO Ant2 Low 2422 -5.60 -34.65 ≤-25.6 PASS High 2452 -5.13 -54.5 ≤-25.13 PASS 77 Test Graphs 11B_Ant2_Low_2412 11B_Ant2_High_2462 11G_Ant2_Low_2412 78 11G_Ant2_High_2462 11N20SISO_Ant2_Low_2412 79 11N20SISO_Ant2_High_2462 11N40SISO_Ant2_Low_2422 11N40SISO_Ant2_High_2452 80 81 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 Reference 1.82 1.82 --- PASS 30~1000 1.82 -68.61 ≤-18.18 PASS 1000~26500 1.82 -46.92 ≤-18.18 PASS 2437 Reference 2.68 2.68 --- PASS 30~1000 2.68 -69.26 ≤-17.32 PASS 1000~26500 2.68 -45.95 ≤-17.32 PASS 2462 Reference 2.24 2.24 --- PASS 30~1000 2.24 -69.22 ≤-17.76 PASS 1000~26500 2.24 -46.28 ≤-17.76 PASS 11G Ant2 2412 Reference -2.14 -2.14 --- PASS 30~1000 -2.14 -69.25 ≤-22.14 PASS 1000~26500 -2.14 -45.83 ≤-22.14 PASS 2437 Reference -2.38 -2.38 --- PASS 30~1000 -2.38 -69.59 ≤-22.38 PASS 1000~26500 -2.38 -47.01 ≤-22.38 PASS 2462 Reference -2.12 -2.12 --- PASS 30~1000 -2.12 -69.22 ≤-22.12 PASS 1000~26500 -2.12 -46.48 ≤-22.12 PASS 11N20SISO Ant2 2412 Reference -2.47 -2.47 --- PASS 30~1000 -2.47 -68.25 ≤-22.47 PASS 1000~26500 -2.47 -46.51 ≤-22.47 PASS 2437 Reference -3.30 -3.30 --- PASS 30~1000 -3.30 -68.72 ≤-23.3 PASS 1000~26500 -3.30 -46.94 ≤-23.3 PASS 2462 Reference -3.51 -3.51 --- PASS 30~1000 -3.51 -69.02 ≤-23.51 PASS 1000~26500 -3.51 -46.78 ≤-23.51 PASS 11N40SISO Ant2 2422 Reference -6.31 -6.31 --- PASS 30~1000 -6.31 -69.17 ≤-26.31 PASS 1000~26500 -6.31 -46.99 ≤-26.31 PASS 2437 Reference -5.50 -5.50 --- PASS 30~1000 -5.50 -68.71 ≤-25.5 PASS 1000~26500 -5.50 -46.78 ≤-25.5 PASS 2452 Reference -5.16 -5.16 --- PASS 30~1000 -5.16 -68.93 ≤-25.16 PASS 1000~26500 -5.16 -45.83 ≤-25.16 PASS 82 Test Graphs 11B_Ant2_2412_0~Reference 11B_Ant2_2412_30~1000 11B_Ant2_2412_1000~26500 83 11B_Ant2_2437_0~Reference 11B_Ant2_2437_30~1000 84 11B_Ant2_2437_1000~26500 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 85 11B_Ant2_2462_1000~26500 11G_Ant2_2412_0~Reference 86 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 11G_Ant2_2437_0~Reference 87 11G_Ant2_2437_30~1000 11G_Ant2_2437_1000~26500 88 11G_Ant2_2462_0~Reference 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 89 11N20SISO_Ant2_2412_0~Reference 11N20SISO_Ant2_2412_30~1000 90 11N20SISO_Ant2_2412_1000~26500 11N20SISO_Ant2_2437_0~Reference 11N20SISO_Ant2_2437_30~1000 91 11N20SISO_Ant2_2437_1000~26500 11N20SISO_Ant2_2462_0~Reference 92 11N20SISO_Ant2_2462_30~1000 11N20SISO_Ant2_2462_1000~26500 11N40SISO_Ant2_2422_0~Reference 93 11N40SISO_Ant2_2422_30~1000 11N40SISO_Ant2_2422_1000~26500 94 11N40SISO_Ant2_2437_0~Reference 11N40SISO_Ant2_2437_30~1000 11N40SISO_Ant2_2437_1000~26500 95 11N40SISO_Ant2_2452_0~Reference 11N40SISO_Ant2_2452_30~1000 96 11N40SISO_Ant2_2452_1000~26500 97 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant2 2412 8.35 8.40 99.40 0.03 0.12 2437 8.36 8.40 99.52 0.02 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant2 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant2 2412 0.17 0.22 77.27 1.12 5.88 2437 0.18 0.22 81.82 0.87 5.56 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant2 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 98 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.36 8.40 99.52 0.02 0.12 2437 8.36 8.40 99.52 0.02 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.17 0.22 77.27 1.12 5.88 2462 0.17 0.22 77.27 1.12 5.88 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.99 4.83 0.02 40.06 ≤54 PASS AV 2386.190 -49.99 4.83 0.02 50.06 ≤54 PASS AV 2390.000 -54.68 4.83 0.02 45.37 ≤54 PASS Peak 2310.000 -52.15 4.83 0.00 47.88 ≤74 PASS Peak 2386.710 -43.04 4.83 0.00 56.99 ≤74 PASS Peak 2390.000 -45.82 4.83 0.00 54.21 ≤74 PASS High 2462 AV 2483.500 -54.36 4.83 0.03 45.70 ≤54 PASS AV 2488.400 -51.46 4.83 0.03 48.60 ≤54 PASS AV 2500.000 -57.42 4.83 0.03 42.64 ≤54 PASS Peak 2483.500 -48.83 4.83 0.00 51.20 ≤74 PASS Peak 2488.510 -44.38 4.83 0.00 55.65 ≤74 PASS Peak 2500.000 -49.06 4.83 0.00 50.97 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.73 4.83 1.25 40.55 ≤54 PASS AV 2374.230 -59.2 4.83 1.25 42.08 ≤54 PASS AV 2390.000 -59.26 4.83 1.25 42.02 ≤54 PASS Peak 2310.000 -52.15 4.83 0.00 47.88 ≤74 PASS Peak 2357.330 -49.14 4.83 0.00 50.89 ≤74 PASS Peak 2390.000 -51.09 4.83 0.00 48.94 ≤74 PASS High 2462 AV 2483.500 -59.52 4.83 1.03 41.54 ≤54 PASS AV 2483.560 -58.48 4.83 1.03 42.58 ≤54 PASS AV 2500.000 -59.24 4.83 1.03 41.82 ≤54 PASS Peak 2483.500 -51.41 4.83 0.00 48.62 ≤74 PASS Peak 2492.140 -48.18 4.83 0.00 51.85 ≤74 PASS Peak 2500.000 -50.95 4.83 0.00 49.08 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.62 4.83 1.12 40.53 ≤54 PASS AV 2389.310 -59.06 4.83 1.12 42.09 ≤54 PASS AV 2390.000 -59.5 4.83 1.12 41.65 ≤54 PASS Peak 2310.000 -51.08 4.83 0.00 48.95 ≤74 PASS Peak 2353.300 -49.33 4.83 0.00 50.70 ≤74 PASS Peak 2390.000 -50.75 4.83 0.00 49.28 ≤74 PASS High 2462 AV 2483.500 -58.84 4.83 1.12 42.31 ≤54 PASS AV 2484.110 -58.72 4.83 1.12 42.43 ≤54 PASS AV 2500.000 -59.53 4.83 1.12 41.62 ≤54 PASS Peak 2483.500 -52.08 4.83 0.00 47.95 ≤74 PASS Peak 2497.860 -48.64 4.83 0.00 51.39 ≤74 PASS Peak 2500.000 -53.2 4.83 0.00 46.83 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.42 4.83 1.06 40.67 ≤54 PASS AV 2389.400 -57.56 4.83 1.06 43.53 ≤54 PASS AV 2390.000 -58.21 4.83 1.06 42.88 ≤54 PASS Peak 2310.000 -53.45 4.83 0.00 46.58 ≤74 PASS Peak 2387.450 -46.42 4.83 0.00 53.61 ≤74 PASS Peak 2390.000 -50.45 4.83 0.00 49.58 ≤74 PASS High 2452 AV 2483.500 -58.77 4.83 1.06 42.32 ≤54 PASS AV 2493.625 -58.35 4.83 1.06 42.74 ≤54 PASS AV 2500.000 -59.44 4.83 1.06 41.65 ≤54 PASS Peak 2483.500 -49.55 4.83 0.00 50.48 ≤74 PASS Peak 2499.750 -48.54 4.83 0.00 51.49 ≤74 PASS Peak 2500.000 -51.72 4.83 0.00 48.31 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak 57 FCC Appendix RF Test Data for 2.4GWIFI BK7258 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant2 2412 15.720 2404.120 2419.840 0.5 PASS 2437 15.920 2429.120 2445.040 0.5 PASS 2462 15.960 2454.040 2470.000 0.5 PASS 11N20SISO Ant2 2412 16.560 2403.440 2420.000 0.5 PASS 2437 17.080 2428.400 2445.480 0.5 PASS 2462 16.080 2454.120 2470.200 0.5 PASS 11N40SISO Ant2 2422 35.600 2404.400 2440.000 0.5 PASS 2437 35.520 2419.560 2455.080 0.5 PASS 2452 35.440 2434.400 2469.840 0.5 PASS 58 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 59 11G_Ant2_2412 11G_Ant2_2437 60 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 61 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 62 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 63 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 13.436 2405.2862 2418.7222 --- --- 2437 13.427 2430.2998 2443.7268 --- --- 2462 13.429 2455.3080 2468.7370 --- --- 11G Ant2 2412 16.877 2403.6042 2420.4812 --- --- 2437 16.837 2428.6373 2445.4743 --- --- 2462 16.899 2453.5922 2470.4912 --- --- 11N20SISO Ant2 2412 17.845 2403.1058 2420.9508 --- --- 2437 17.832 2428.1098 2445.9418 --- --- 2462 17.848 2453.0608 2470.9088 --- --- 11N40SISO Ant2 2422 35.993 2404.1580 2440.1510 --- --- 2437 36.064 2419.1089 2455.1729 --- --- 2452 36.068 2434.1370 2470.…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BXSK-H1PRO Company : Shenzhen Zontek IoT Co., Ltd. EUT : Smart Lock Model Number : H1 Pro Report No. : CTA26081700702 Reviewed By : Eric Wang 2 FCC Appendix RF Test Data for 2.4GWIFI ESP32-C5 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.800 2404.080 2419.880 0.5 PASS 2437 15.560 2429.240 2444.800 0.5 PASS 2462 15.760 2454.280 2470.040 0.5 PASS 11N20SISO Ant1 2412 15.960 2404.440 2420.400 0.5 PASS 2437 17.200 2428.440 2445.640 0.5 PASS 2462 17.000 2453.640 2470.640 0.5 PASS 11N40SISO Ant1 2422 35.680 2404.320 2440.000 0.5 PASS 2437 35.040 2419.720 2454.760 0.5 PASS 2452 35.520 2434.640 2470.160 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.438 2405.2838 2418.7218 --- --- 2437 13.422 2430.3059 2443.7279 --- --- 2462 13.426 2455.3092 2468.7352 --- --- 11G Ant1 2412 16.824 2403.6143 2420.4383 --- --- 2437 16.885 2428.5864 2445.4714 --- --- 2462 16.819 2453.6185 2470.4375 --- --- 11N20SISO Ant1 2412 17.958 2403.0623 2421.0203 --- --- 2437 17.941 2428.0401 2445.9811 --- --- 2462 17.862 2453.0709 2470.9329 --- --- 11N40SISO Ant1 2422 36.042 2404.1414 2440.1834 --- --- 2437 36.104 2419.0922 2455.1962 --- --- 2452 36.007 2434.1307 2470.1377 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.82 ≤30.00 PASS 2437 14.86 ≤30.00 PASS 2462 15.10 ≤30.00 PASS 11G Ant1 2412 13.99 ≤30.00 PASS 2437 14.03 ≤30.00 PASS 2462 14.33 ≤30.00 PASS 11N20SISO Ant1 2412 13.58 ≤30.00 PASS 2437 14.02 ≤30.00 PASS 2462 14.17 ≤30.00 PASS 11N40SISO Ant1 2422 14.15 ≤30.00 PASS 2437 14.33 ≤30.00 PASS 2452 14.45 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.24 ≤8.00 PASS 2437 -10.53 ≤8.00 PASS 2462 -10.60 ≤8.00 PASS 11G Ant1 2412 -18.22 ≤8.00 PASS 2437 -17.27 ≤8.00 PASS 2462 -17.15 ≤8.00 PASS 11N20SISO Ant1 2412 -16.81 ≤8.00 PASS 2437 -16.47 ≤8.00 PASS 2462 -17.51 ≤8.00 PASS 11N40SISO Ant1 2422 -20.24 ≤8.00 PASS 2437 -20.87 ≤8.00 PASS 2452 -19.65 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 2.68 -47.89 ≤-17.32 PASS High 2462 2.91 -50.93 ≤-17.09 PASS 11G Ant1 Low 2412 -2.36 -35.01 ≤-22.36 PASS High 2462 -2.31 -57.35 ≤-22.31 PASS 11N20SISO Ant1 Low 2412 -2.69 -33.73 ≤-22.69 PASS High 2462 -2.09 -58.31 ≤-22.09 PASS 11N40SISO Ant1 Low 2422 -5.68 -34.2 ≤-25.68 PASS High 2452 -5.43 -57.48 ≤-25.43 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 2.02 2.02 --- PASS 30~1000 2.02 -67.48 ≤-17.98 PASS 1000~26500 2.02 -46.79 ≤-17.98 PASS 2437 Reference 2.00 2.00 --- PASS 30~1000 2.00 -69.41 ≤-18 PASS 1000~26500 2.00 -46.37 ≤-18 PASS 2462 Reference 1.56 1.56 --- PASS 30~1000 1.56 -69.03 ≤-18.44 PASS 1000~26500 1.56 -47.06 ≤-18.44 PASS 11G Ant1 2412 Reference -2.65 -2.65 --- PASS 30~1000 -2.65 -68.89 ≤-22.65 PASS 1000~26500 -2.65 -46.46 ≤-22.65 PASS 2437 Reference -3.53 -3.53 --- PASS 30~1000 -3.53 -68.91 ≤-23.53 PASS 1000~26500 -3.53 -45.8 ≤-23.53 PASS 2462 Reference -2.08 -2.08 --- PASS 30~1000 -2.08 -68.96 ≤-22.08 PASS 1000~26500 -2.08 -46.33 ≤-22.08 PASS 11N20SISO Ant1 2412 Reference -2.42 -2.42 --- PASS 30~1000 -2.42 -69.14 ≤-22.42 PASS 1000~26500 -2.42 -47.34 ≤-22.42 PASS 2437 Reference -3.38 -3.38 --- PASS 30~1000 -3.38 -69.27 ≤-23.38 PASS 1000~26500 -3.38 -46.97 ≤-23.38 PASS 2462 Reference -2.14 -2.14 --- PASS 30~1000 -2.14 -68.26 ≤-22.14 PASS 1000~26500 -2.14 -46.25 ≤-22.14 PASS 11N40SISO Ant1 2422 Reference -6.08 -6.08 --- PASS 30~1000 -6.08 -68.14 ≤-26.08 PASS 1000~26500 -6.08 -46.86 ≤-26.08 PASS 2437 Reference -5.39 -5.39 --- PASS 30~1000 -5.39 -69.54 ≤-25.39 PASS 1000~26500 -5.39 -45.77 ≤-25.39 PASS 2452 Reference -6.02 -6.02 --- PASS 30~1000 -6.02 -69.07 ≤-26.02 PASS 1000~26500 -6.02 -46.94 ≤-26.02 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26081700702 2BXSK-H1PRO Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 25, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Zontek IoT Co., Ltd. Address ............................................ : Room 801, Building 14, No.8 Golf Avenue, Guangpei Community, Guanlan Subdistrict, Longhua District, Shenzhen City, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Smart Lock Trade Mark ....................................... : vanviot Manufacturer .................................... : Shenzhen Zontek IoT Co., Ltd. Model/Type reference ...................... : H1 Pro Listed Models ................................... : H1, H2, H3, H5 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....…
