2BXTM-NOTRAN-CATracker Tags

Nocaus Start User Manual �� �. Power On/Off Press and hold the function button of the Nocaus Locator; it will make two "ticks" to indicate that it is powered on. To power off the Nocaus locator, press the same button five times consecutively, and you will hear a long "tick" to indicate that the Nocaus locator has been turned off. �. Check For Updates When using Apple's Find My app to locate items, it is recommended to update to the latest version of iOS, iPadOS, watchOS and macOS. Add Your Nocaus �� �. Launch The APP Open Find My app on your supported iPhone. �.Connect Your Nocaus Long press the function button to power on your Nocaus. Open Find My App, click "Add Item", then click "Other Supported Items." When the Nocaus is located, click "Connect". Enter a name and choose an emojifor your Nocaus, then click "Continue." The Find My app will send a confirmation request to connect your Apple ID to the Nocaus locator. Click "Agree." Then click "Finish", your Nocaus locator is now connected and ready to use. Locating The Nocaus �� �. Find Nocaus When It’s Nearby Open the Find My app, and select the "Items" option. Click on the Nocaus from the list Click "Play Sound" and your Nocaus will make a beeping sound. When you find your item, click "Stop Sound" to pause the sound. �. Find Nocaus ’s Location Open the Find My app and select the "Items" option. Click on the Nocaus in the list The location of your Nocaus will appear on the map. Note: "Notify when found" can only be activated when your item locator is out of range. 123 Notification �� �. Enabling “Notify When Left Behind” Open the Find My app and select the "Items" option. Click on the Nocaus from the list Under the "Notifications" option, activate the "Notify When Left Behind" option. You will be notified when you leave your Nocaus and it is out of range of your device. �. Launch "Notify when found" Under the "Notifications" option, enable "Notify When Left Behind"toggle You will receive a notification when you leave your Nocaus behind and it’s no longer in range of your device. Note: Notify When Found can only be activated if your item locator is out of range! 4 When Your Nocaus Is Lost �� �.Enabling "Lost Mode" Open the Find My app and select the "Items" option. Click on the Nocaus from the list Under"Lost Mode", click "Start". A detailed description of "Lost Mode" will pop up on the screen, click "Continue". Enter your cell phone number or email address and click "Continue". You can enter a message that can be shared with the person who found your item. Click "Enable". Note: When "Lost Mode" is activated, "Notify When found" is automatically activated. Note: When "Lost Mode" is activated, your Nocaus will be locked and cannot be paired with a new device. 5 Resetting Nocaus �� �.Remove The Nocaus From Find My App Open Find My app and select the "Items" option. Click Nocaus from the list Please ensure "Lost Mode" is disabled Scroll down to the bottom of the screen and click "Remove Item". A summary will appear on your screen. Click on "Remove" to confirm �.Factory Reset Your Nocaus After you have successfully removed the Nocaus from the Find My App, press the Nocaus function key twice quickly to hear a ringtone, then press and hold until you hear a ringtone and release. The Nocaus is now reset and ready to be paired to a new Apple ID. 6 Additional Content �� �. Unwanted Tracking If any Find My network accessory separated from its owner is seen moving with you over time, you’ll be notified in one of two ways: (1) If you have an iPhone or iPad, the Find My app will send a notification to your Apple device, this feature is available for IOS, iPadOS 14.5 or later. (2) If you don’t have an ios device or a smartphone, a Find My network accessory that isn’t with its owner for a period of time will emit a sound when it’s moved. These features are designed to prevent people from trying to track you without your knowledge. 7 Apple, Apple Find My, Apple Watch, Find My, iPhone, iPad, iPadOS, Mac, macOS and watchOS are the trademarks of Apple Inc. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help.ct. *RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CERTIFICATIONDESIGNATINGAU.S.AGENTFORSERVICEOFPROCESS Date:Sep.08,2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 FCCID:2BXTM-NOTRAN-CA ToWhomItMayConcern: Asrequiredbysection2.911(d)(7),we[ShenzhenYinYiE-commerceCo.,Ltd.,FRN: 0038803094]certifiesthatweacknowledgethedesignationofacontactlocatedinthe UnitedStatesforpurposesofactingastheapplicant’sagentforserviceofprocess.We [ShenzhenYinYiE-commerceCo.,Ltd.]acceptstomaintainanagentfornoless thanoneyearafterthegranteehasterminatedallmarketingandimportationorthe conclusionofanyCommission-relatedproceedinginvolvingtheequipment. Asrequiredbysection2.911(d)(7),we[ LOBOSIOWAINC,4623BittercreekDrColorado SpringsCO80922US,FRN:0036413961 ]certifiesthatweacknowledgeourobligation actingastheapplicant’sagentforserviceofprocessfortheabovereferencedFCCID. We[ LOBOSIOWAINC ]confirmthatwearenotassociatedwithorpartofanyTCBor FCCrecognisedtestlab. Thankyouforyourattentiontothismatter. Sincerelyyours, SignaturebyapplicantSignaturebydesignatedagent(ifdifferent fromapplicant) PrintedName:RijunChenPrintedName:HarleyLi Company: ShenzhenYinYiE-commerceCo.,Ltd. Company:LOBOSIOWAINC Address:1605,BuildingC,NanyanNew Village,NanshenCommercialPlaza,Minzhi Street,Longhua,Shenzhen,Guangdong, China Address:4623BittercreekDrColoradoSprings CO80922US JobTitle:ManagerJobTitle:Manager Email:[email protected]:[email protected] Telephone:18822850808Telephone:(818)818-0538

AttestationStatement. OldCode:C526609124NewCode:00015544Ed.3 Changereason:FRNisaddedtotheApplicantinformationsection. 1/1 [ShenzhenYinYiE-commerceCo.,Ltd.] TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenYinYiE-commerceCo.,Ltd. Granteecode:2BXTM FCCID:2BXTM-NOTRAN-CA FRN:0038803094 ContactName:RijunChen Address:1605,BuildingC,NanyanNewVillage,NanshenCommercialPlaza,MinzhiStreet, Longhua,Shenzhen,Guangdong,China TelephoneNo:18822850808 FaxNo:18822850808 Email:[email protected] i.[ShenzhenYinYiE-commerceCo.,Ltd.](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.[ShenzhenYinYiE-commerceCo.,Ltd.](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicant[isnot](asaspecifically namedentityoranyofitssubsidiariesoraffiliates)identifiedontheCovered Listasanentityproducing“covered”equipment.Theapplicantmustsign thiscertification. [ShenzhenYinYiE-commerceCo.,Ltd.](“theapplicant”)certifiesthat,asofthe dateofthefilingofthe application,theapplicant[isnot]identifiedontheCoveredList asanentityproducing“covered” equipment. Date:2026-09-09 Applicant’sName:RijunChen Title:Manager Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

ShenzhenYinYiE-commerceCo.,Ltd. Code00018768Ed.1 Item1.Thedeviceisabletoinstallsoftware/programinstallation? ☐ Yes,gotoItem2. ☒ No.Inthiscase,therestoftheitemsdonotapply.ThedevicecannotsupportinstallationofKaspersky cybersecurityoranti-virussoftware. DeviceTrackerTags CompanynameShenzhenYinYiE-commerceCo.,Ltd. Granteecode2BXTM FCCID2BXTM-NOTRAN-CA FRN0038803094 ContactnameRijunChen Address1605,BuildingC,NanyanNewVillage,Nanshen CommercialPlaza,MinzhiStreet,Longhua, Shenzhen,Guangdong,China Telephonenumber18822850808 [email protected] Chipset/moduleinformationRFIC:RM1230 OperatingSystem(ifapplicable)N/A StorageCapacity(harddriveorother permanentmemorystorage,ifapplicable) N/A 2 Item2.TechnicalRequirementsforKasperskyCybersecuritySoftware: #GeneralRequirements(ForallDevices)Yes/NoorN/AComments 1Internetconnectionforactivationandupdates(ForallOperating Systems) N/A #GeneralRequirements(ForWindowsDevices)Yes/NoorN/AComments 1Storage:1500MBfreespaceontheharddriveN/A 2OperatingSystem: MicrosoftWindows8,8.1,10&11Home/Pro/Enterprise Microsoft Windows7Starter/HomeBasic&Premium/Professional/ UltimateSP1orhigher N/A 3Processor:1GHzorhigher(x86orx64)N/A 4Memory(RAM)1GB(32-bit)or2GB(64-bit)N/A 5ScreenResolution:Minimumresolutionof1024x768N/A #GeneralRequirements(FormacOSdevices)Yes/NoorN/AComments 1OperatingSystemmacOS®13–14N/A 2Memory(RAM)4GBN/A 3Storage:3455MBfreespaceontheharddriveN/A #GeneralRequirements(ForAndroidDevices)Yes/NoorN/AComments 1Storage:150MBfreespaceN/A 2OperatingSystem:Android™10–14N/A 3ScreenResolution:Minimumresolutionof320x480N/A 3 #GeneralRequirements(foriOSdevices)Yes/NoorN/AComments 1Storage:150MBfreespaceN/A 2OperatingSystem:iOS®17N/A #GeneralRequirements(ForLinuxsystem)Yes/NoorN/AComments 1Harddrive:1GBoffreespaceN/A 2CPU:IntelPentium1GHzorhigherN/A 3RAM:1GBNO 4Minimumsoftwarerequirements: AlmaLinuxOS8orlater; AlterOS7.5orlater; AstraLinuxCommonEdition2.12orlater; CentOS6.7orlater; DebianGNU/Linux10.0orlater; EulerOS2.0orlater; OracleLinux7.3orlater; RedHatEnterpriseLinux6.7orlater; RockyLinux8.5orlater; SUSELinuxEnterpriseServer12.5orlater; Ubuntu12.04orlater; UncomOSHome/Business/Education/Enterprise2.2orlater; ALTLinuxWorkstaton/WorkstationK/Server/Education8or later; ROSALinuxWorkstation/Server12orlater; REDOS7.3andlater; NO Afterreviewedthetechnicalrequirements,isthedevicecapableofsupportingtheinstallationof Kasperskysoftware? 4 ☐Yes,gotoItem3. ☒ No.Inthiscase,therestoftheitemsdonotapply.ThedevicecannotsupportinstallationofKaspersky software Item3.ConnectivityCapabilities: #PhysicalInterfacePurposeJustification 1 //// #WirelessInterfacePurposeJustification 1 //// //// Afterthereviewofthisitems,thedevice: ☒Cannotsupportinstallationofanycybersecurityoranti-virussoftwareonthecoveredlist. ☐ Potentiallycanoperatewithanycybersecurityoranti-virussoftwareonthecoveredlist–additionalthird- partyproofisprovidedtodemonstratecompliancewithrequirementsasof2.911(d)5(i),(ii)–“Proofof CompliancewithCoveredListSoftwareRequirements”ofthisdocumentapplies Signature:Name:RijunChen Date:2026-09-09 1 Thejustificationfieldisusedtojustifywhythesoftwarecannotbereceivedthroughthatinterface.Checktheannexformore indications.

ShenzhenYinYiE-commerceCo.,Ltd. ProductSimilarityDeclaration Productname:TrackerTags Modelname:NOTRAN-CA,NOTRAN-CA01,NOTRAN-CA02, NOTRAN-CA03,NOTRAN-CA04 FCCID:2BXTM-NOTRAN-CA We(ShenzhenYinYiE-commerceCo.,Ltd.)herebystatethatall themodelsareelectricalidenticalincludingthesamesoftware parameterandhardwaredesign(i.e.,circuitdesign,PCBLayout, RFmodule/circuit,antennatype(s)andantennalocation, componentsonPCB,etc.,),samemechanicalstructureand design(includingproductenclosure,materials,etc.,). Theproductisdifferentformodelnameandoutlookcolor. Signature PrintedName:RijunChen Company:ShenzhenYinYiE-commerceCo.,Ltd. JobTitle:Manager Email:[email protected] Telephone:18822850808

TCB CALL página 1 File FCC ID: 2BXTM-NOTRAN-CA Please upload an exhibit that explains how does the TCB verify the new agent information: 1- Is the address of the agent a valid physical US mailing address (not a US post office box, not a virtual mailbox, not P.O. Boxes, not a vacant lot, not a public building, etc.) ○ We have checked if the address exists in a real and potential building (Google maps) + official US register, after this verification and the evidence below we can guarantee the following: not a US post office box not a virtual mailbox not P.O. Boxes not a vacant lot not a public building(note) ► We checked the FCC FRN Search based on the information provided by the grantee. On the official register from : https://opencorporates.com/companies/us_co/20248329243 In google: TCB CALL página 2 TCB CALL página 3 TCB CALL página 4 TCB CALL página 5 TCB CALL página 6 TCB CALL página 7 TCB CALL página 8 TCB CALL página 9 ► CONCLUSION by TCB: The ASOP defined and provided by grantee is VALID and confirmed. Therefore the exhibit "U.S. Agent Designation Attestation Letter" included in the file is ok. 2- Is the agent physically located at that valid US address such that the agent can be legally served at that address? Yes , check above 3- Has the listed agent clearly agreed in writing to serve as the agent for the grantee at that address? Yes, it is included in the exhibit "U.S. Agent Designation Attestation Letter" >

C5266091_X10_Ed.2 1/1 <ShenzhenYinYiE-commerceCo.,Ltd.> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2026-09-09 Subject:RequestforConfidentiality FCCID:2BXTM-NOTRAN-CA ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselectedabove arewithheldfrompublicviewforaperiodof______daysfromthedateoftheGrantof EquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Name:RijunChen Signature:Title:Manager

C5266091_X8_Ed.1 1/1 LetterofAuthorization <ShenzhenYinYiE-commerceCo.,Ltd.> Company:ShenzhenYinYiE-commerceCo.,Ltd. Address:1605,BuildingC,NanyanNewVillage,NanshenCommercial Plaza,MinzhiStreet,Longhua,Shenzhen,Guangdong,China ProductName:TrackerTags ModelNumber:NOTRAN-CA,NOTRAN-CA01,NOTRAN-CA02, NOTRAN-CA03,NOTRAN-CA04 FCCIdentifier:2BXTM-NOTRAN-CA WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningtheabove namedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformationrelated totheapprovalprojecttotheFederalCommunicationCommissionandtodiscuss anyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby LGAITechnologicalCenterS.A.onourbehalfshallhavethesameeffectasacts ofourown. Name:RijunChenDate:2026-09-09 Title:Manager Signatureofapplicant:

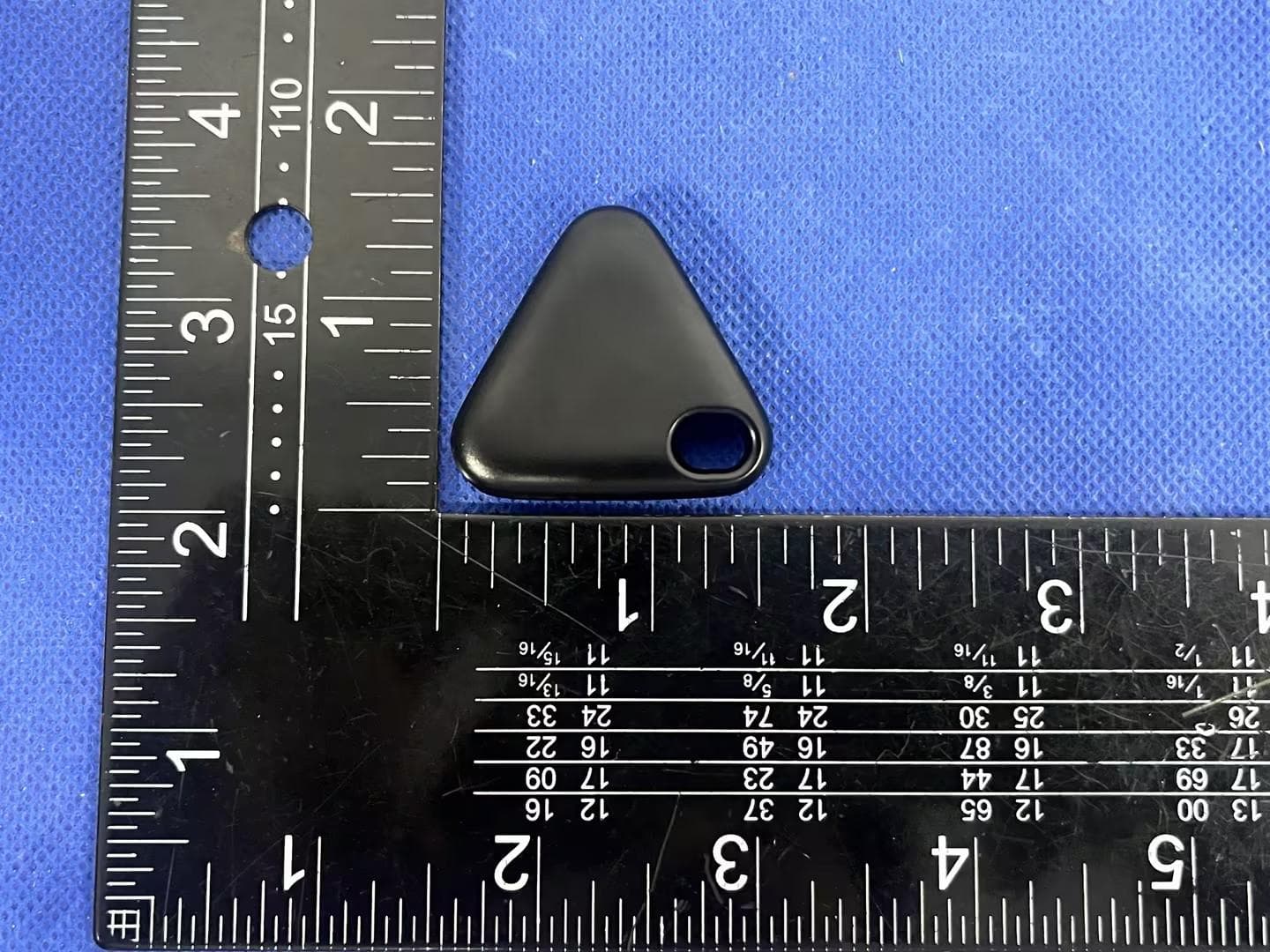

ReportNo.:BKC26084758HE-4 ExternalPhotos Model:NOTRAN-CA ReportNo.:BKC26084758HE-4

FCCID: 2BXTM-NOTRAN-CA 1.5CM 1CM

ReportNo.:BKC26084758HE-5 InternalPhotos Model:NOTRAN-CA ReportNo.:BKC26084758HE-5 ReportNo.:BKC26084758HE-5 ReportNo.:BKC26084758HE-5 ※※※※※ENDOFREPORT※※※※※

FCCID:2BXTM-NOTRAN-CA FCCRFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093，Unlessspecifically requiredbythepublishedRFexposureKDBprocedures,standalone1-gheadorbodyand10-gextremity SARevaluationforgeneralpopulationexposureconditions,bymeasurementornumericalsimulation,isnot requiredwhenthecorrespondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtestexclusion thresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)] ≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, FCCExposureEvaluation MaxPower(dBm)MaxPower(mW)Frequency(MHz)Min.distance(mm)Calc.Resultlimit -1.570.697248050.2203.0 EIRP(dBm)=E(dBuV/m)-95.2=93.63-95.2=-1.57dBm ANTGain=2.5dBi Results:PASS SoaSARtestisnotrequired

ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26084758HE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage1of37 TESTREPORT Applicant:ShenzhenYinYiE-commerceCo.,Ltd. Address: 1605,BuildingC,NanyanNewVillage,NanshenCommercialPlaza, MinzhiStreet,Longhua,Shenzhen,Guangdong,China Manufacturer:ShenzhenYinYiE-commerceCo.,Ltd. Address: 1605,BuildingC,NanyanNewVillage,NanshenCommercialPlaza, MinzhiStreet,Longhua,Shenzhen,Guangdong,China ProductName:TrackerTags ModelNumber: NOTRAN-CA,NOTRAN-CA01,NOTRAN-CA02,NOTRAN-CA03, NOTRAN-CA04 Trademark:NOCAUS FCCID:2BXTM-NOTRAN-CA TestDate:Aug.08,2026-Sep.16,2026 DateofReport:Sep.16,2026 TestResult: ThisdevicedescribedabovehasbeentestedbyBKC,andthetest resultsshowthattheequipmentundertest(EUT)isincompliance withtheStandardrequirements.Anditisapplicableonlytothetested sampleidentifiedinthereport. TestProcedureUsed: Standards:FCCCFRTitle47Part15SubpartCSection15.249 ANSI C63.10-2020+Cor.1-2023+C63.10a-2024+Erratato C63.10a-2024 Preparedby(TestEngineer): CareyZheng Reviewer(Supervisor): CaseyWang Approved(Manager): JerryLiao ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26084758HE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage2of37 TABLEOFCONTENT 1.GeneralInformation......................................................................................4 1.1.DescriptionofDevice(EUT).......................................................................................................................4 1.2.ChannelList..................................................................................................................................................4 1.3.Summaryoftestresult................................................................................................................................5 1.4.SpecialAccessoriesandAuxiliaryEquipment........................................................................................5 1.5.BlockDiagram...............................................................................................................................................5 1.6.Testmode......................................................................................................................................................6 1.7.Testconfiguration.........................................................................................................................................6 1.8.TestConditions.............................................................................................................................................6 1.9.MeasurementUncertainty(95%confidencelevels,k=2)......................................................................6 1.10.TestFacility..................................................................................................................................................7 1.11.TestEquipment...........................................................................................................................................7 2.Conductedemissionatthemainsterminalstest......................................9 2.1.Limit................................................................................................................................................................9 2.2.TestSetup......................................................................................................................................................9 2.3.TestProcedure..............................................................................................................................................9 2.4.TestResult.....................................................................................................................................................9 3.RadiatedSpuriousEmissions...................................................................10 3.1.Limit..............................................................................................................................................................10 3.2.TestSetup....................................................................................................................................................11 3.3.TestProcedure............................................................................................................................................13 3.4.TestResult...................................................................................................................................................14 4.-20dBBandwidthMeasurement...............................................................32 4.1.Limit..............................................................................................................................................................32 4.2.TestSetup....................................................................................................................................................32 4.3.TestProcedure............................................................................................................................................32 4.4.TestResult...................................................................................................................................................32 5.AntennaRequirement.................................................................................35 6.TestPhotographs........................................................................................36 7.AppendixI:PhotosoftheEUT..................................................................37 ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26084758HE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage3of37 RevisionHistoryofThisTestReport ReportNumberDescriptionIssuedDate BKC26084758HE-1InitialIssue2026-09-16 ShenzhenBKCTestingCo.,Ltd.ReportNo.:BKC26084758HE-1 TestReportTel:4000-875-3820755-84829082Web:Http://www.bkc-lab.comPage4of37 1.GeneralInformation 1.1.DescriptionofDevice(EUT) EUTName:Tra…

Text truncated - open the document above for the full version.

深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 1 OF 9 2.0X1.2X0.65 (mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification 1. Product Number (1)Product Type Chip Antenna (2)Size Code 2.0x1.2x0.65mm (3)Type Code C2 (4)Packing Paper &Reel (5)Frequency 2.4GHz YF 2012 C2 P 2G45 1 2 3 4 5 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD 412, Building 7, Phase II, Nanshan Yungu Entrepreneurship Park, No. 2 Pingshan 1st Road, Pingshan Community, Taoyuan Street, Nanshan District, Shenzhen 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 2 OF 9 2. Features *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 4. Description Yingfeng chip antenna series are specially designed for WiFi/Bluetooth applications. Based on yingfeng proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications (80 x 40 mm 2 ground plane) 5-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 2.0x1.2x0.65 mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50  Polarization Linear Polarization Gain Peak 2.5 (typical) dBi Efficiency 75 (typical) % 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 3 OF 9 5-2. Return Loss & VSWR Return Loss (S 11 ) VSWR(S 11 ) 6. Antenna Dimensions & Test Board (unit: mm) a. Antenna Dimensions 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 4 OF 9 7. Radiation Pattern (80 x 40 mm 2 ground plane) 7-1. 3D Gain Pattern @ 2442 MHz Z Y X X Y Y X X Y Z 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 5 OF 9 7-2. 3D Efficiency Table Frequency( MHz) 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Efficiency (dB) -1.4 -1.0 -0.9 -0.7 -0.7 -0.8 -0.9 -1.1 -1.2 -1.3 -1.4 Efficiency (%) 72.8 73.7 74.3 74.4 75.5 75.0 74.0 73.6 73.1 72.6 71.5 Gain (dBi) 2.1 2.2 2.3 2.4 2.5 2.5 2.4 1.8 1.7 1.6 1.4 8. Layout Guide a. Solder Land Pattern: Land pattern for soldering (gray marking areas) is as shown below. Depending on Customer’s requirement, matching circuit as shown below is also recommended. Top View Bottom View Unit： mm 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 6 OF 9 b. Test Board with Antenna 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 7 OF 9 9. Frequency tuning a. Chip antenna tuning scenario： b. Matching circuit：(Center frequency is about 2442 MHz @ 80 x 40 mm 2 ground plane) System Matching Circuit Component Location Description Vendor Toleranc e 1 1.2 pF* Murata (0402) ±0.1 pF 2 10PF* Murata(0402) ±0.5 PF 3 N/A* - - Fine tuning element 4 10 pF* Murata (0402) ±0.1 pF *Typical reference values which may need to be changed when circuit boards or part vendors are different. c. Fine tuning element vs. Center frequency Matching circuit Feed 4. Fine tuning elemet 1 2 3 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：2.0 x 1.2 x 0.65(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF2012C2) Engineering Specification DOCUMEN T YF2012C2P2G45 REV. NO. A PAGE 8 OF 9 10. Soldering Conditions a. Typical Soldering Profile for Lead-free Process 11. Packing (1) Quantity/Reel: 4000 pcs/Reel (2) Plastic tape: Time 60-180s 60-150s 20- Pre- 150-200° 217°C 260° Temperature (°C) 迎丰天线技术 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOGYCO.,LTD…
