2BXTU-A700SOver-ear Headphones

深圳市澜科创科技有限公司 独立站产品说明书 20260908 IMPORTANT SAFETY INSTRUCTIONS-C AREFULLY • Retain this manual for future reference. It contains important safety and operating information. • Read all instructions before using the product and follow all safety warnings. • This product is not intended for use by children or persons with reduced physical, sensory, or mental capabili ties unless properly supervised. • Do not allow children to play with the product. • Do not expose the product to fire or excessive heat. • Do no t use or store the product in environments with extreme temperatures, moisture, or humidity. • Do not use the product if it has been dropped, damaged, or is not operating normally. • Do not disassemble, modify, or attempt to repair the product. Doing so may cause injury or damage. • Do not crush, puncture, throw, or apply excessive force to the product. • Keep the product away from flammable or explosive materials. • The buil t-in battery is not user-replaceable. • Do not open the produ ct or attempt to replace the battery. • Charge the product only with the provided or specified charging cable and a certified power source. • Do not charge the product near heat sources or in high-temperature environments. • If the product becomes excessively hot, emits an unusual odor, or shows abnormal behavior, stop using it immediately and disconnect from the power source. • Use this product only for its intended purpose and in accordance with this manual. • LK shall not be liable for damage or injury resulting from misuse, unauthorized modification, improper battery use, or operation outside recommended conditions. • Dispose of the product and batteries in compliance with local environmental and electronic waste regulations. • Thank yo u for purchasing LK Hybrid Active Noise Cancelling Headphones. Please read this User Manual thoroughly before use of the product and retain it for future reference. If yo u have any problem using this product, please contact us by the email address provided on the back cover of the manual. Charging Instructions FCC STATEMENT: When the headset is low on power, it will broadcast the voice prompt "Battery low", and the indicator light flashes red once every two seconds. Please charge the headset with the original matching charging cable. The indicator light stays solid red during charging and turns off once fully charged. This device complie s wi th Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference receive d, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against har mful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installe d and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equ ipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receive r. • Connect the equipment into an outlet on a circuit different from that to which the receive r is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. What this warranty covers? Shenzhenshi Lankechaung Technology Co.,Ltd. (Manufacturer: "Lankechaung") warrants to the original purchaser of this LK product that the product shall be free of defects in design, asse mbly, material, or workmanship. What the period of coverage is? Lankechaung warrants the LK product for 12 months. What will we do to corre ct pro blems? Lankechaung will repair or replace, at its option, any defective product free of charge (except for shipping charges for the product). What is not covere d by this warranty? All above warranties are null and void if the LK product is not provided to Lankechaung for inspection upon Lankechaung’s request at the sole e xpense of the purchaser, or if Lankechaung determines that the LK product has been improperly installe d, altered in any way, or tampered with. The LK Product Warranty does not protect against acts of God such as flood, earthquake, lightning, war, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage disturbances (e.g. brownouts or sags), non-authorized program, or system equipment modification or alteration. How to claim the warrant y? For more information, please contact yo ur retaile r, visit the LK offici al website, or reach us via the email address provided on the back cover. To extend the warranty period, please visit LK website and register yo ur LK products within 90 days of purchase. Disclaimer Every effort has been made to ensure that the information and procedures in this guide are accurate and complete, no liabilit y can be accepted for any errors or omissions and we r eserve the right to make any changes without further notice to any products mentioned herein. Limite d 12-Month Warranty Correct Disposal of This Product (Waste Electrical& Electronic Equipment) This Marking shown on the product or its literature, indicate that it should not be disposed with other ho…

Text truncated - open the document above for the full version.

Shenzhen Tianji Chuangke Information Co., Ltd. 2026/09/02 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BXTU-A700S [Shenzhen Tianji Chuangke Information Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Client’s signature: Client’s name / title : Wang Tao /Assistant to General Manager Shenzhen Tianji Chuangke Information Co., Ltd. 2026/09/02 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BXTU-A700S [Shenzhen Tianji Chuangke Information Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Client’s signature: Client’s name / title : Wang Tao /Assistant to General Manager

I·' ·\ e, 、 nl I压ign:tti1111for Sf"n icr of t'rocM� TO: l'l-..kral l 、 l'lllnlllllKali1•11,\· ,,1111111、“”“ 气P5 O:il,.land Mills R,i.1d C11l11mh1a. MD 210 I<, .\lTI、iTIO:'i: FCC Crr11fir11tion - S«-tinn 2.911(小(7) lnform11tion 氐叩三忙'II l'.S. ,\gt'ut 心11平叭、出nc: •\N rFK SFRVICL: INC Add心、: 901 N PENNSYLVANIA ST STE O DENVER. CO 80203 Unite S包tes J-"R�: 0033-t376的 C叩氐t�amc: Shirlc�Kwok Tel.: (303) 800--0306 丘面1: info§,31lte酝忙e.com This letter is to confinn that we (ANTEK SERVICE INC) have accepted the responsibility to act as the氏 沌nat出U.S.A如t for Service of Process as required by section 47 CFR 2.91 l(d)(7) on behalf of the Apprtcant noted below. 了·:;:乙勹尸 Signed by (Printed Nameffitle): The A p plicant acknowledges that they must maintain an agent for no less th血one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding im·otving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Tianji Chuangke Information Co., Ltd. Grantee Code: 2BXTU FCC ID: 2BXTU-A 700S Contact Name: Wang Tao Street Address: 10A, B Block, Tower 6, 16 Yifeng Rd, Longgang, Shenzhen, Guangdong, China Telephone No: 86-15327560011 Email: [email protected] FRN: 0038803193 Applicant Signature: 贝寸P Date: 2026/09/02 Signrd by (Printed NamtffiClt): Wang Tao/ Assistant to General Manager

Shenzhen Tianji Chuangke Information Co., Ltd. 2026/09/02 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR Product Name: Over-ear Headphones FCCID: 2BXTU-A700S Model(s): A700S To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Wang Tao / Assistant to General Manager Contact information / address: 10A, B Block, Tower 6, 16 Yifeng Rd, Longgang, Shenzhen, Guangdong, China

Shenzhen Tianji Chuangke Information Co., Ltd. 2026/09/02 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Wang Tao / Assistant to General Manager Contact information / address: 10A, B Block, Tower 6, 16 Yifeng Rd, Longgang, Shenzhen, Guangdong, China

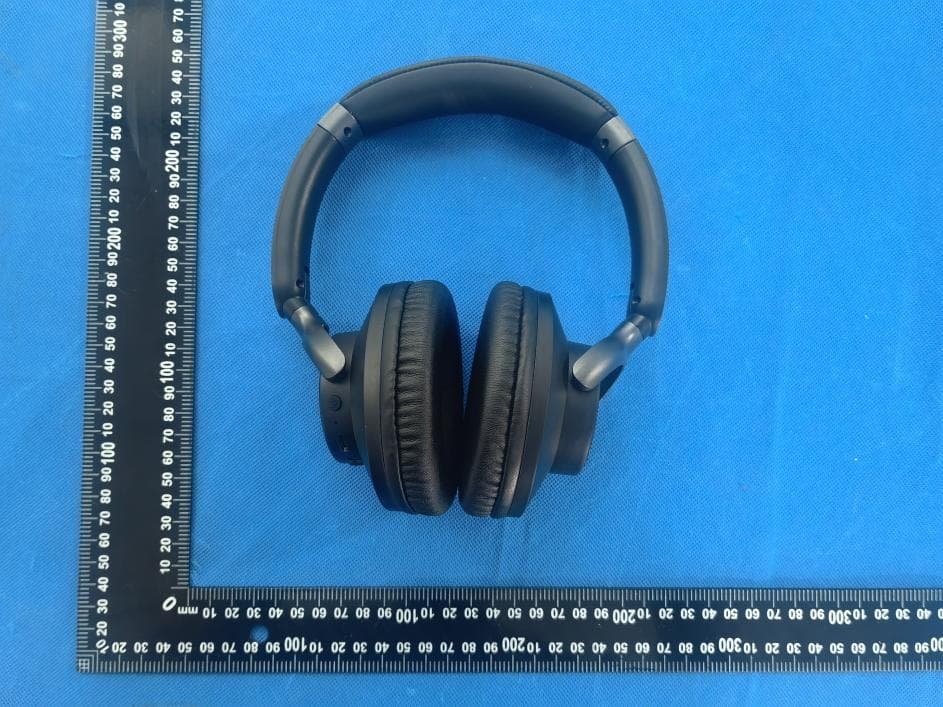

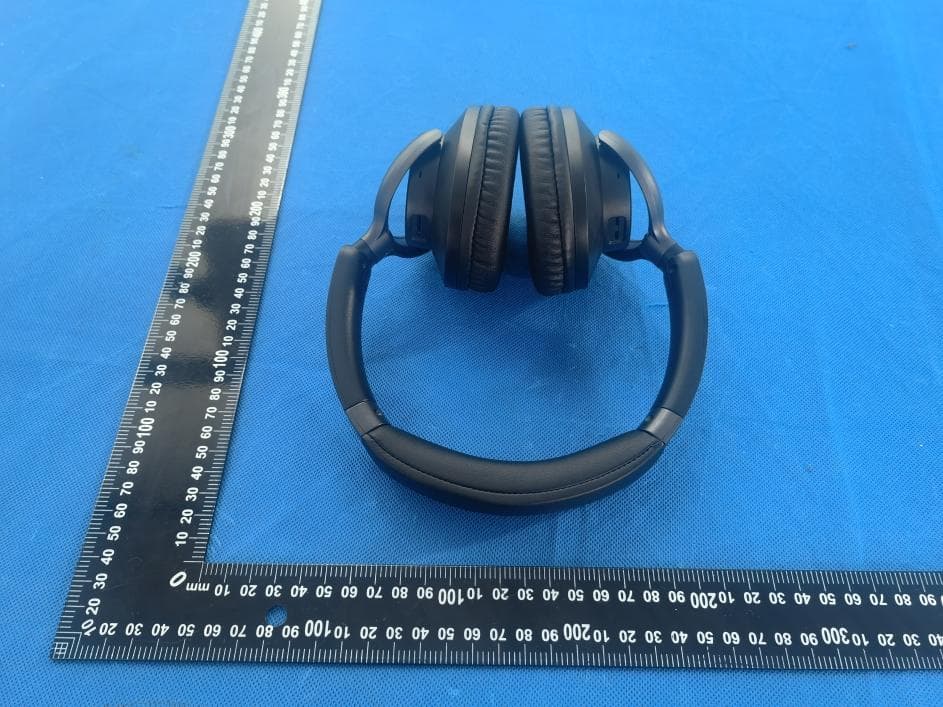

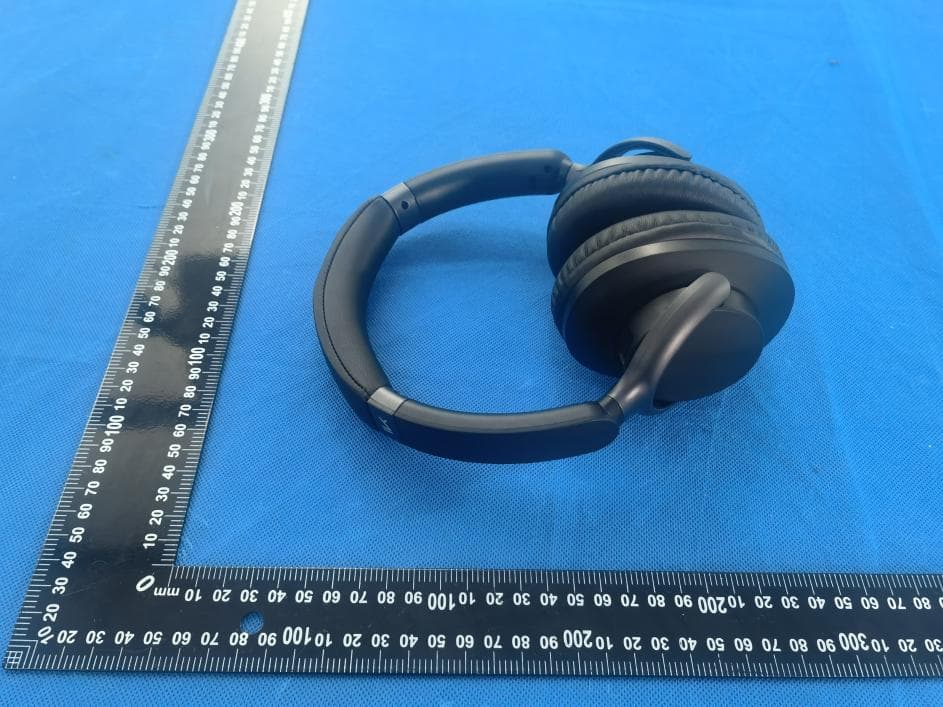

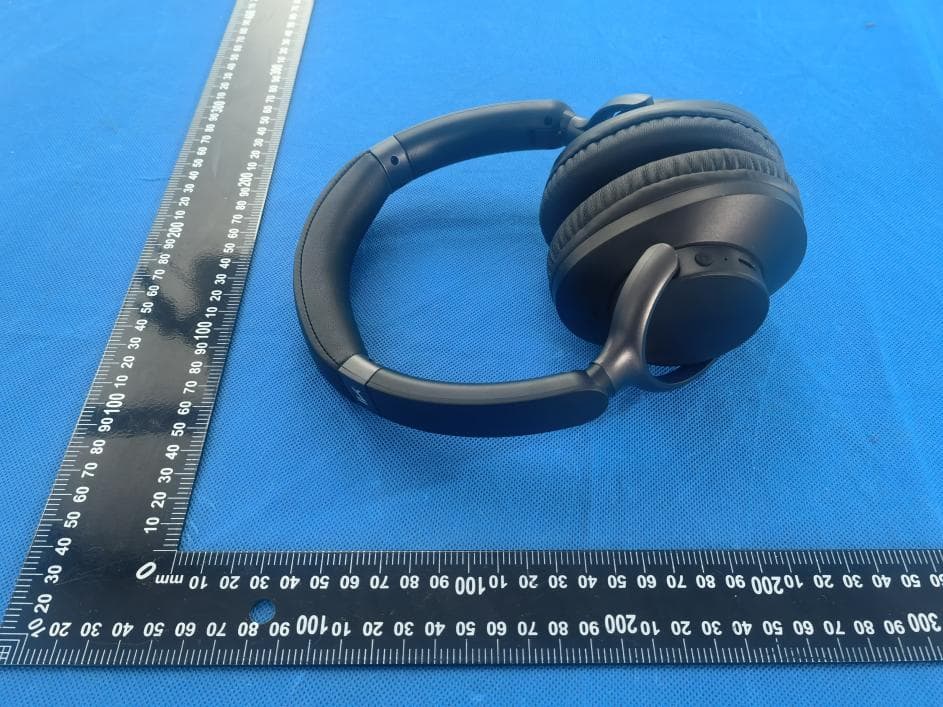

External Photos

Label location

Internal Photos Antenna

FCC ID: 2BXTU-A700S Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK(2M bps) 2.480 0.59 1.15 0±1 1.00 1.26 <5 0.39651 3.00 YES BT Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK 2.480 -4.23 0.38 -4±1 -3.00 0.50 <5 0.15785 3.00 YES π/ 4 DQPSK 2.480 -3.26 0.47 -3±1 -2.00 0.63 <5 0.19873 3.00 YES 8DPSK 2.480 -2.95 0.51 -2±1 -1.00 0.79 <5 0.25018 3.00 YES Conclusion: For the max result : 0.39023＜3, the SAR testing is not required.

Customer ShenzhenLighkeep Co.,Ltd. Project A700SD Antenna Revision AO Prepared by 18814303605 Checked by Date 2025.06.10 Purpose This report is to measure the performance of antenna for A700SD The antenna operating frequency at 2400-2500MHz All test data are showed as below. Content 2. Product Overview & Dimension ● 3.OTA Data Shenzhen He Yi Xun Technology Co., Ltd. 02 03 1. Test system 01 Shenzhen He Yi Xun Technology Co., Ltd. Sequence Number Test Item equipment S parameter VSWR Agilent 5071C & Agilent 5071B OTA Test TRP& TIS Agilent 8960 & CMW500 STIMO Gain & Efficiency Gain & Efficiency SATIMO Agilent 5071C 1.TestSystem Shenzhen He Yi Xun Technology Co., Ltd. Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 0.5P 0R Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Antenna size Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd. Address: Building 2, 1903-1905, Jiufang Plaza, Tie Zai Road, Gongle Community, Xixiang Street, Bao'an District, Shenzhen City. TEL: 0755-23591525 FAX: 0755-23591525 Shenzhen He Yi Xun Technology Co., Ltd.

No.：BCTC/KJ-RF-ICT-001 Page 1 of 87 Edition：B.1 TEST REPORT Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC2608083294E Applicant: Shenzhen Tianji Chuangke Information Co., Ltd. Product Name: Over-ear Headphones Test Model: A700S Tested Date: 2026-08-11 to 2026-08-21 Issued Date: 2026-08-24 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 2 of 87 Edition：B.1 FCC ID: 2BXTU-A700S The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Technology Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Over-ear Headphones Trademark: Model/Type Reference: A700S Prepared For: Shenzhen Tianji Chuangke Information Co., Ltd. Address: 10A, B Block, Tower 6, 16 Yifeng Rd, Longgang, Shenzhen, Guangdong, China Manufacturer: Shenzhen Lighkeep Co., Ltd. Address: 1st, 3rd and 4th Floors, Factory Building, No.19 South Baotong Road, Xikeng Community, Yuanshan Subdistrict, Longgang District, Shenzhen City, Guangdong Province, P.R.China Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: Room 101M, Unit 1, Building1, Pengyuan, No.18, Lilang Road, Shanglilang, Nanwan Subdistrict, Longgang District, Shenzhen, Guangdong, China. Sample Received Date: 2026-08-07 Sample Tested Date: 2026-08-11 to 2026-08-21 Report No.: BCTC2608083294E Test Standards 47 CFR Part 15 Subpart C (clause 15.247) ANSI C63.10-2020 Test Results PASS Remark: This is Bluetooth Classic radio test report. Prepared by : Reviewer by : Approved by: Eric Yang Mike Zheng Sewen Guo Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 3 of 87 Edition：B.1 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands of Operation ...... 26 8.1 Block Diagram Of Test Setup .............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test procedure .................................................................................................... 27 8.4 EUT operating Conditions ................................................................................... 27 8.5 Test Result .......................................................................................................... 28 9. Spurious RF Conducted Emissions ..................................................................... 29 9.1 Block Diagram Of Test Setup .............................................................................. 29 9.2 Limit .................................................................................................................... 29 9.3 Test procedure .................................................................................................... 29 9.4 Test Result .............…

Text truncated - open the document above for the full version.

Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 55 of 87 Edition：B.1 -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 56 of 87 Edition：B.1 -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 57 of 87 Edition：B.1 -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 58 of 87 Edition：B.1 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH5 2402 -5.21 21 Pass NVNT 1-DH5 2441 -4.51 21 Pass NVNT 1-DH5 2480 -4.23 21 Pass NVNT 2-DH5 2402 -4.29 21 Pass NVNT 2-DH5 2441 -3.55 21 Pass NVNT 2-DH5 2480 -3.26 21 Pass NVNT 3-DH5 2402 -3.84 21 Pass NVNT 3-DH5 2441 -3.22 21 Pass NVNT 3-DH5 2480 -2.95 21 Pass Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 59 of 87 Edition：B.1 Test Graphs Power NVNT 1-DH5 2402MHz Ant1 Power NVNT 1-DH5 2441MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 60 of 87 Edition：B.1 Power NVNT 1-DH5 2480MHz Ant1 Power NVNT 2-DH5 2402MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 61 of 87 Edition：B.1 Power NVNT 2-DH5 2441MHz Ant1 Power NVNT 2-DH5 2480MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 62 of 87 Edition：B.1 Power NVNT 3-DH5 2402MHz Ant1 Power NVNT 3-DH5 2441MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 63 of 87 Edition：B.1 Power NVNT 3-DH5 2480MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 64 of 87 Edition：B.1 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 2401.999 2402.977 0.98 0.63 Pass NVNT 1-DH5 2440.999 2441.974 0.98 0.635 Pass NVNT 1-DH5 2478.975 2479.959 0.988 0.685 Pass NVNT 2-DH5 2401.978 2403.142 1.16 0.851 Pass NVNT 2-DH5 2440.975 2442.139 1.16 0.853 Pass NVNT 2-DH5 2479.137 2479.98 0.84 0.788 Pass NVNT 3-DH5 2401.813 2402.824 1.01 0.851 Pass NVNT 3-DH5 2440.819 2441.989 1.17 0.862 Pass NVNT 3-DH5 2478.822 2479.974 1.15 0.796 Pass Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 65 of 87 Edition：B.1 Test Graphs CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 66 of 87 Edition：B.1 CFS NVNT 1-DH5 2480MHz Ant1 CFS NVNT 2-DH5 2402MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 67 of 87 Edition：B.1 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 68 of 87 Edition：B.1 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 69 of 87 Edition：B.1 CFS NVNT 3-DH5 2480MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 70 of 87 Edition：B.1 13. Number of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Condition Mode Hopping Number Limit Verdict NVNT 1-DH5 79 15 Pass NVNT 2-DH5 79 15 Pass NVNT 3-DH5 79 15 Pass Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 71 of 87 Edition：B.1 Test Graphs Hopping No. NVNT 1-DH5 2402MHz Ant1 Hopping No. NVNT 2-DH5 2402MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 72 of 87 Edition：B.1 Hopping No. NVNT 3-DH5 2402MHz Ant1 Report No.:BCTC2608083294E No.：BCTC/KJ-RF-ICT-001 Page 73 of 87 Edition：B.1 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Measurement Photos Radiated Measurement Photos ----------------The end----------------
