2BXVG-T29OMOX Controller

GCC Game Pad Setup： Part1： Getting Started 入门指南 Connect and configure your Controller 连接并配置你的控制器 Getting Started with Your Controller 如何开始使用你的手柄 Welcome! This guide gets your controller up and running with the ConsoleNinja companion app — from unboxing to your first game session. The whole process takes about 5 minutes. 欢迎！本指南将让你的手柄通过ConsoleNinja伴随应用运行——从开箱到首次游戏体验。 整个过程大约需要5分钟。 What you need Your controller (charged, or plugged into USB-C power) A phone with the ConsoleNinja app: 你需要什么 你的手柄（充电或插在USB-C电源上） 一款带有ConsoleNinja应用的手机： Your home WiFi name and password (2.4 GHz) 你的家庭WiFi名称和密码（2.4 GHz） Bluetooth or enabled on your device (used only for the initial setup) 蓝牙或在设备上启用（仅用于初始设置） Step 1 — Install the app and sign in Install ConsoleNinjas from your app store and open it. Create an account (or sign in if you already have one). Your account keeps your controllers, button profiles, and macros synced across devices. Once you're signed in, you'll land on the Home screen. 步骤1 — 安装应用并登录 从你的应用商店安装ConsoleNinjas并打开它。 创建一个账户（如果你已经有账户，请登 录）。你的账户会在不同设备上保持手柄、按钮配置文件和宏同步。 登录后，你会进入主屏 幕。 Step 2 — Power on the controller Press the HOME button to turn the controller on. 步骤2 — 开启控制器 按下HOME键即可开启手柄。 The LED glows yellow while it boots. 启动时LED会发出黄色光芒。 On its first power-on (or whenever WiFi isn't set up yet), the controller automatically enters WiFi setup mode — the LED breathes blue. 在第一次开机（或尚未设置WiFi时），手柄会自动进入WiFi设置模式——LED灯会发出蓝 色信号。 If the LED isn't breathing blue, hold HOME + D-pad Up for 2 seconds to enter WiFi setup manually. 如果LED灯没有蓝光，按住Home + 方向键上键2秒，手动进入WiFi设置。 Step 3 — Add the controller in the app 步骤3 — 在应用中添加手柄 On the Home screen, tap Add Controller. The app scans over Bluetooth and lists nearby controllers as GCC_XXXXXXXX. Tap your controller to connect. 在主界面，点击添加手柄。 应用通过蓝牙扫描，并显示附近的控制器为GCC_XXXXXXXX。 点击你的手柄即可连接。 SETUP TIP 设置技巧 Keep your phone close to the controller during this step — Bluetooth is only used to hand over your WiFi details; it's not how you play. 在此过程中，保持手机靠近手柄——蓝牙仅用于传递WiFi信息;关键不是你怎么玩。 Step 4 — Connect the controller to WiFi 步骤4 — 将手柄连接到WiFi After connecting, the app shows the WiFi networks the controller can see: 连接后，应用会显示控制器能看到的WiFi网络： Select your network from the list (or type the name if it's hidden). Enter your WiFi password. Tap Connect. The controller LED turns cyan while it joins your network, then steady cyan once it's online. The app confirms the connection and moves on automatically. 从列表中选择你的网络（如果隐藏了，也可以输入名称）。 输入你的WiFi密码。 点击连接。 控制器LED在加入网络时会变成青色，上线后会稳定为青色。 应用会确认连接并自动继续。 SETUP TIP 设置技巧 The controller remembers this network, so you only do this once. To change networks later, hold HOME + D-pad Up for 2 seconds to re-run WiFi setup. 控制器会记住这个网络，所以你只做一次。之后要切换网络，按住 HOME + 方向键上 2 秒， 重新运行 WiFi 设置。 Step 5 — Choose your platform 第五步 — 选择你的平台 With the controller online, the app guides you through picking your gaming platform and signing in to the matching console account where required. 手柄在线后，应用会引导你选择游戏平台，并在需要时登录匹配的主机账户。 Pick your platform in the app and follow the on-screen steps (the linked guides have the full detail). When the controller connects to your console, the LED turns green. 在应用中选择你的平台，并按照屏幕上的步骤操作（链接的指南中有完整细节）。当手柄连 接到主机时，LED会变绿。 Step 6 — You're ready to play 第六步——你准备好开始了 That's it — your controller is set up. From the app you can now: 仅此而已——你的手柄已经设置好了。通过应用程序，你现在可以： Profiles & macros — create button-remap profiles and macros per game, synced to your account. Calibration — fine-tune stick and trigger response (Settings → Calibration). Input test — verify every button and stick (Settings → Input Test). Firmware updates — keep the controller current (Settings → Update). 个人资料与宏——为每个游戏创建按键重映射配置文件和宏，并同步到你的账户。 校准——微调摇杆和扳机响应（设置→校准）。 输入测试——验证每个按钮和摇杆（设置→输入测试）。 固件更新——保持手柄最新（设置→更新）。 Quick reference 快速参考 LED colors Color Meaning Yellow (breathing) Booting up Blue (breathing) Waiting for app — WiFi setup Cyan (breathing) Connecting to WiFi Cyan (steady) WiFi connected Green (breathing) Connecting to console Green (steady) Playing — session active Red (blinking) Error or disconnected LED颜色 颜色含义 黄色（呼吸声）启动中 蓝色（呼吸）等待应用——WiFi设置 青色（呼吸声）连接WiFi。 青色（稳定）WiFi连接 绿色（呼吸）连接控制台 绿灯（稳定）演奏中——会话进行中 红色（闪烁）错误或断线 Button combos (hold 2 seconds) 按键组合（按住2秒） Combo Action HOME (quick press) Turn on / wake HOME + D-pad Up Re-run WiFi setup HOME + D-pad Left Reset platform pairing (start fresh) HOME + D-pad Down Power off 组合按键 主页（快速按键）开机/唤醒 HOME + 方向键上 重新运行 WiFi 设置 HOME + 方向键 左 复位平台配对（重新开始） 主页 + 方向键 下 电源关闭 Troubleshooting故障排除 The controller doesn't appear in the app 手柄在应用里没有显示 Make sure the LED is breathing blue (WiFi setup mode). If not, hold HOME + D-pad Up for 2 seconds. 确保LED灯是蓝色的（WiFi设置模式）。如果没有，按住 Home + 方向键上键 2 秒。 Confirm Bluetooth is enabled on your phone and keep the phone close. 确认手机已启用蓝牙，并保持手机近距离。 WiFi won't connect WiFi无法连接 Double-check the password and use a 2.4 GHz network. Re-enter WiFi setup (HOME + D-pad Up, 2 seconds) and try again. 请再次核对密码，并使用2.4 GHz的网络。 重新进入WiFi设置（主页+方向键向上，2秒）然后再试一次。 The console can't find the controller 主机找不到手柄 Make sure the controller and console are on the same WiFi network (for Remote Play platforms). Hold HOME + D-pad Left for 2 seconds to clear pairing and re-run the platform setup. 确保手柄和主机连接同一个WiFi网络（针对远程游玩平台）。 按住 HOME + 方向键左键 2 秒以清除配对并重新运行平台设置。 Controller won't power on 手柄开不了机 Plug in the USB-C cable to charge — the LED breathes a warm white while charging. 插入USB-C线充电——充电时LED会发出温暖的白色光。 Part2 for PS5 What You Need • A PlayStation 5 console with Remote Play enabled • Your PSN (PlayStation Network) account credentials • The PS5 and controller on the same WiFi network • The ConsoleNinjas companion app 你需要什么 一台启用远程游玩的PlayStation 5主机 你的PSN（PlayStation Network）账户及密码 PS5主机和手柄在同一个WiFi网络上 ConsoleNinjas APP Enable Remote Play on Your PS5 在你的PS5上启用远程游玩 Before setting up the controller, make sure Remote Play is enabled on your PS5: 1. On your PS5, go to Settings > System > Remote Play 2. Turn on Enable Remote Play 3. Go to Settings > System > Power Saving > Features Available in Rest Mod…

Text truncated - open the document above for the full version.

ShenZhen McGRID Industrial Co.,Ltd 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/08/24 U.S. Agent Designation ShenZhen McGRID Industrial Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BXVG-T29): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of ShenZhen McGRID Industrial Co.,Ltd with the FRN [0038816708] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yuanning Chen Employee ShenZhen McGRID Industrial Co.,Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

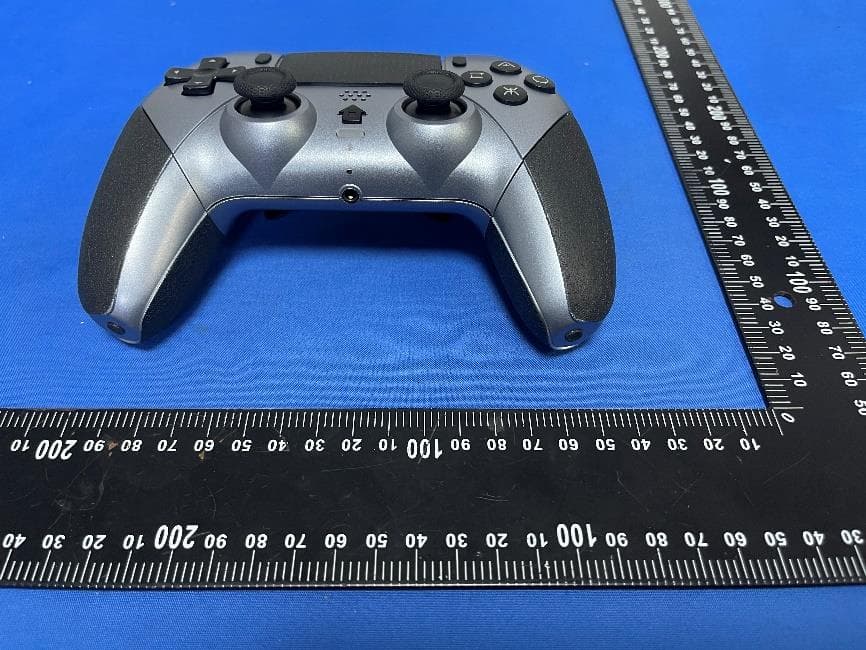

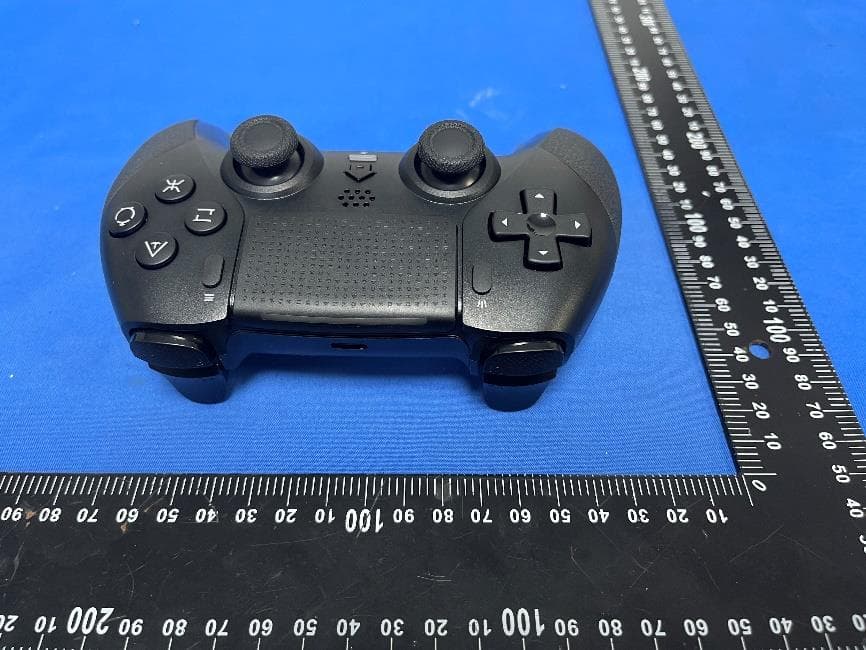

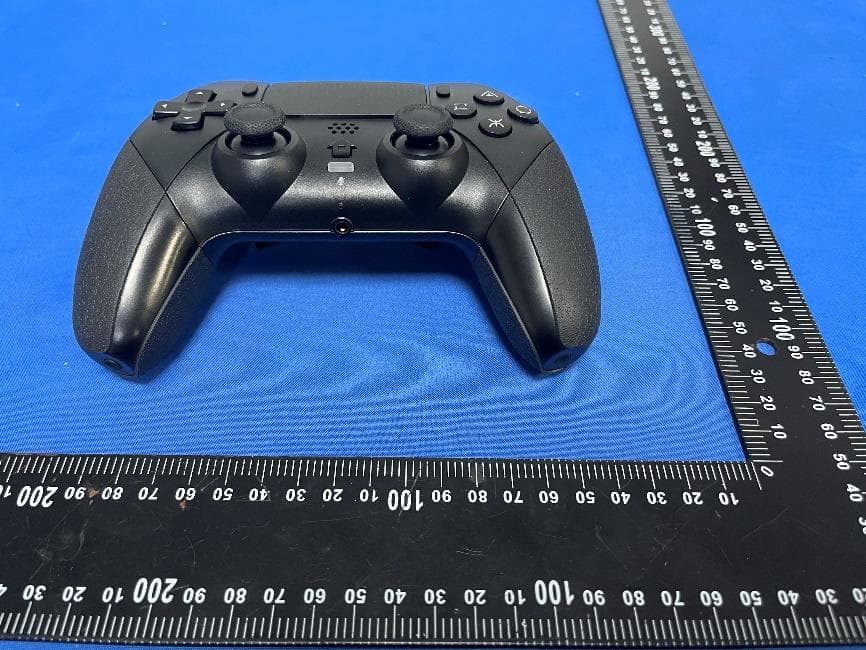

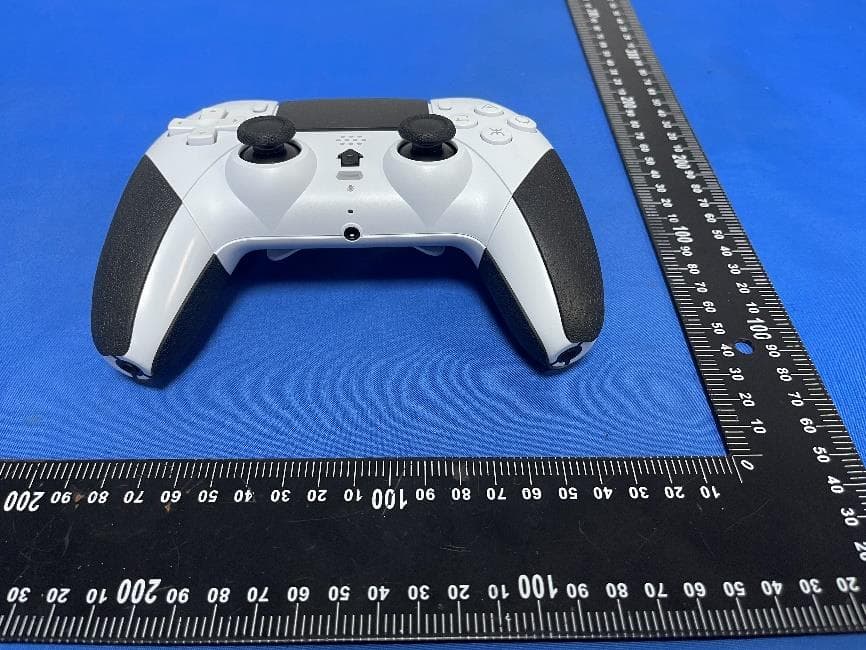

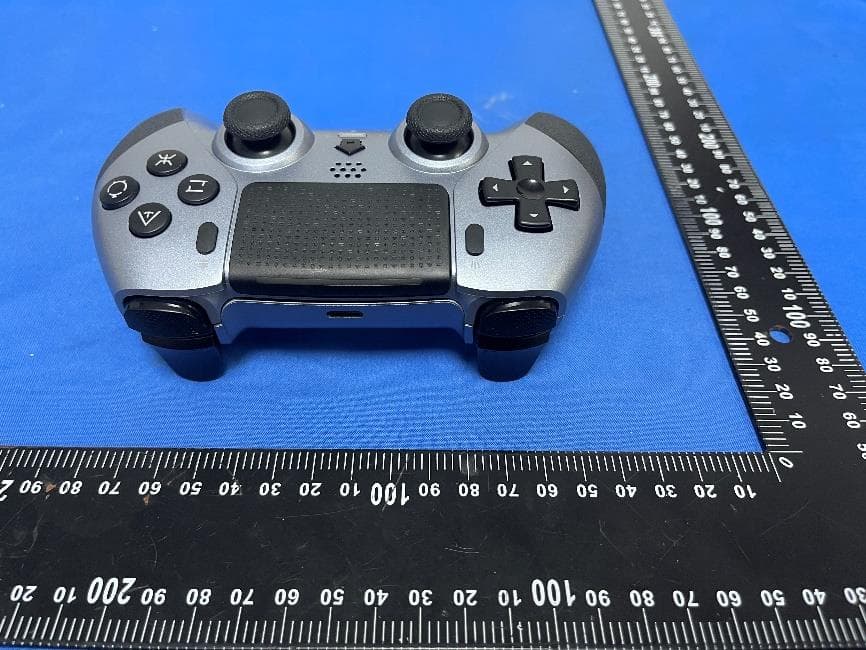

FCC ID: 2BXVG-T29 External Photos of the EUT FCC ID: 2BXVG-T29 FCC ID: 2BXVG-T29 FCC ID: 2BXVG-T29 FCC ID: 2BXVG-T29 FCC ID: 2BXVG-T29 FCC ID: 2BXVG-T29

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BXVG-T29

FCC ID: 2BXVG-T29 Internal Photos of the EUT FCC ID: 2BXVG-T29 Antenna

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26081000803 2BXVG-T29 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 22, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : ShenZhen McGRID Industrial Co.,Ltd Address............................................ : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : OMOX Controller Trade Mark ....................................... : OMOX Manufacturer .................................... : ShenZhen McGRID Industrial Co.,Ltd Model/Type reference ...................... : T29 ultra Listed Models ................................... : N/A Rating ............................................... : Input:5V 700mA Battery:3.7V 1500mAh 5.55Wh Result ............................................... : PASS Report No.: CTA26081000803 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : OMOX Controller Model /Type : T29 ultra Listed Models : N/A Applicant : ShenZhen McGRID Industrial Co.,Ltd Address : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Manufacturer : ShenZhen McGRID Industrial Co.,Ltd Address : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000803 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26081000803 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, …

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26081000801 2BXVG-T29 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Aug. 22, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: ShenZhen McGRID Industrial Co.,Ltd Address ...........................................: 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : OMOX Controller Trade Mark ......................................: OMOX Manufacturer ...................................: ShenZhen McGRID Industrial Co.,Ltd Model/Type reference .....................: T29 ultra Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input:5V 700mA Battery:3.7V 1500mAh 5.55Wh Result ..............................................: PASS Report No.: CTA26081000801 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : OMOX Controller Model /Type : T29 ultra Listed Models : N/A Applicant : ShenZhen McGRID Industrial Co.,Ltd Address : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Manufacturer : ShenZhen McGRID Industrial Co.,Ltd Address : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000801 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ....................................................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26081000802 2BXVG-T29 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 22, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : ShenZhen McGRID Industrial Co.,Ltd Address ............................................ : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : OMOX Controller Trade Mark ....................................... : OMOX Manufacturer .................................... : ShenZhen McGRID Industrial Co.,Ltd Model/Type reference ...................... : T29 ultra Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input:5V 700mA Battery:3.7V 1500mAh 5.55Wh Result ............................................... : PASS Report No.: CTA26081000802 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : OMOX Controller Model /Type : T29 ultra Listed Models : N/A Applicant : ShenZhen McGRID Industrial Co.,Ltd Address : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Manufacturer : ShenZhen McGRID Industrial Co.,Ltd Address : 4A65, 4th Floor, Building 205, Shangbu Industrial Zone, No. 144 Zhenxing Road, Huahang Community, Huaqiangbei Street, Futian District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081000802 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility............................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BXVG-T29 Company : ShenZhen McGRID Industrial Co.,Ltd EUT : OMOX Controller Model Number : T29 ultra Report No. : CTA26081000802 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.960 2467.160 0.5 PASS 11G Ant1 2412 15.920 2404.080 2420.000 0.5 PASS 2437 15.640 2429.080 2444.720 0.5 PASS 2462 15.840 2454.120 2469.960 0.5 PASS 11N20SISO Ant1 2412 16.560 2403.480 2420.040 0.5 PASS 2437 16.720 2428.680 2445.400 0.5 PASS 2462 16.520 2453.720 2470.240 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.464 2405.2786 2418.7426 --- --- 2437 13.474 2430.2858 2443.7598 --- --- 2462 13.460 2455.3057 2468.7657 --- --- 11G Ant1 2412 16.822 2403.6306 2420.4526 --- --- 2437 16.853 2428.6078 2445.4608 --- --- 2462 16.823 2453.6400 2470.4630 --- --- 11N20SISO Ant1 2412 17.877 2403.0657 2420.9427 --- --- 2437 17.953 2428.0145 2445.9675 --- --- 2462 17.925 2453.0613 2470.9863 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 6.72 ≤30.00 PASS 2437 6.95 ≤30.00 PASS 2462 7.14 ≤30.00 PASS 11G Ant1 2412 7.60 ≤30.00 PASS 2437 7.74 ≤30.00 PASS 2462 7.91 ≤30.00 PASS 11N20SISO Ant1 2412 7.28 ≤30.00 PASS 2437 7.65 ≤30.00 PASS 2462 7.66 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -19.46 ≤8.00 PASS 2437 -18.81 ≤8.00 PASS 2462 -18.81 ≤8.00 PASS 11G Ant1 2412 -24.38 ≤8.00 PASS 2437 -23.83 ≤8.00 PASS 2462 -24.40 ≤8.00 PASS 11N20SISO Ant1 2412 -23.37 ≤8.00 PASS 2437 -23.57 ≤8.00 PASS 2462 -23.69 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -5.31 -56.73 ≤-25.31 PASS High 2462 -4.84 -57.77 ≤-24.84 PASS 11G Ant1 Low 2412 -8.90 -38.7 ≤-28.9 PASS High 2462 -8.45 -58.46 ≤-28.45 PASS 11N20SIS O Ant1 Low 2412 -8.87 -40.35 ≤-28.87 PASS High 2462 -8.58 -57.94 ≤-28.58 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -5.71 -5.71 --- PASS 30~1000 -5.71 -69.14 ≤-25.71 PASS 1000~26500 -5.71 -46.99 ≤-25.71 PASS 2437 Reference -5.34 -5.34 --- PASS 30~1000 -5.34 -67.23 ≤-25.34 PASS 1000~26500 -5.34 -46.45 ≤-25.34 PASS 2462 Reference -5.97 -5.97 --- PASS 30~1000 -5.97 -65.04 ≤-25.97 PASS 1000~26500 -5.97 -46.75 ≤-25.97 PASS 11G Ant1 2412 Reference -9.63 -9.63 --- PASS 30~1000 -9.63 -69.33 ≤-29.63 PASS 1000~26500 -9.63 -46.63 ≤-29.63 PASS 2437 Reference -9.25 -9.25 --- PASS 30~1000 -9.25 -61.71 ≤…

Text truncated - open the document above for the full version.
