2BXVU-S10Dash Cam

HX255D-ID9 Specification I.BASIC EQUIPMENT CPU SA255D Front Sensor IMX675 Rear Sensor AHD Sensor Reverse Image Supported Display 640*360 Resolution DDRM 2G bit SPI NOR Flash 16M Bytes Audio Yes，Audio Recording Supported G-Sensor Supported GPS Supported WIFI 5.8G/2.4G Dual-Band RTC Yes，Built-in Real-Time Clock Memory Card SDHC Class10（32GB-256GB），Speed Class 10 or Above Key 5 key Compression Format H264 File Formats Video: TS; Photo: JPG Voice Control Supported Operating Temperature -20-70°C (Storage Temperature: -30-80°C) Operating Current 5V 900ma（Requires 5V / 2A Car Charger） RTC Standby Current 2uA (Coin Cell Fully Charged Lasts Approx. 1 Month) Device Standby Current 6mA II. MAIN FEATURES 1. Recording Mode When a TF card is inserted, the device automatically starts recording after power-on. A flashing icon in the top-left corner indicates active recording. Short press OK: Stop / Start Recording; Long press OK (approx. 2 seconds): Capture Photo (Snapshot) Short press M: Enter Main Menu Short press Up: Capture Photo (Snapshot); Long press Up: Turn WiFi On / Off Short press Down: Switch Preview Display; Long press Down: Lock / Unlock Recording File Note: Short press the Power Button to turn off the screen in any interface; long press the Power Button to power off the device. 2.Playback Mode (File Management) After power-on, the device enters auto-recording. Short press the M key to enter the Main Menu, then select File Management. In the file list interface: Short press OK: Play the selected file Short press M: Return to the previous level Short press Up: Select previous file Long press Up: Lock / Unlock file (not available in the photo folder) Short press Down: Select next file Long press Down: Delete file During file playback: Short press OK: Pause / Resume playback Short press M: Exit playback and return to the file list Short press Down: Switch to next file Short press Up: Switch to previous file Note: Normal files occupy 70% of the total card capacity; locked files occupy 30%. When capacity is full, the oldest files will be cyclically overwritten first. 3. System Settings After power-on, the device enters auto-recording. Short press the M key to enter the Main Menu, then select System Settings.  Recording Resolution: 1080P+1080P, 2.5K+1080P, 2.5K+2.5K, 4K+1080P, 4K+2.5K, 4K+4K  Loop Recording: 1 min, 2 min, 3 min  Light Frequency (Anti-Flicker): 50Hz, 60Hz  G-Sensor Sensitivity: Off, Low, Medium, High  Parking Monitor: Off, Low, Medium, High  Time-Lapse Recording: Off, 1 FPS/S, 2 FPS/S, 5 FPS/S  Time-Lapse Duration: 12h, 24h, 48h, 72h  Audio Recording: On, Off  Video Watermark: On, Off  Rear Camera Orientation: Off, Flip 180°, Preview Mirror, Flip 180° + Preview Mirror  Volume: Off, Low, Medium, High, Max  Key Tone: On, Off  Screen Saver (Screen Sleep): Off, 1 min, 3 min  Language: English, Simplified Chinese, Traditional Chinese, Japanese, Russian, Thai, Vietnamese, Arabic, Malay, Pilipino  WiFi Infomation: On, Off, WiFi Name, WiFi Password  WiFi Band: 2.4GHz, 5.8GHz  Voice Control: On, Off, Command Instructions  Time Setting: RTC System Time  Format Card: Confirm, Cancel  Version Infomation: System Version Number  Factory Reset: Confirm, Cancel III. PRECAUTIONS 1. Do not insert or remove the TF card while the device is operating, as this may cause damage. 2. Pay attention to the insertion direction of the TF card. Inserting it in reverse may damage both the device and the card. 3. After inserting a TF card, the device will set it as the default storage device; data on the previously used card may become unreadable. 4. Supports up to 128GB. If the TF card is incompatible with the device, please reinsert it or try another card. 5. If the device displays "Card Full" or "Card Error" and cannot record, check whether the G-Sensor sensitivity is set to High. If the sensitivity is too high, bumps and shakes during driving will cause files to be locked. Locked files cannot be overwritten by loop recording; an accumulation of too many locked files will result in the memory card being full and recording being unable to continue. 6. For first-time use of a new card, please format it on the device before use. 7. If a "Card Error" prompt appears or the device cannot read the card, try reinserting the TF card and formatting it on the device. If the problem persists, try formatting the card on a computer; if it cannot be formatted, the card is likely damaged. IV. SYSTEM ERROR MESSAGE DEFINITIONS Error Message Description Solution No Card Inserted No TF card detected, recording unavailable Insert a TF card No File No card inserted / No recording yet Insert card and record or take photos Card Error / Please Format Incorrect card format Go to menu to format the card SENSOR FAIL Sensor initialization error, cannot record If it persists, please contact the dealer for repair SD Card Full Insufficient space when taking a photo, displayed during photo capture Delete or unlock some files to free up space V. WiFi INSTRUCTIONS 1. Install the mobile app by scanning the QR code in the device's WiFi Infomation, or search for “Viidure” in the app store to download and install. 2. WiFi Connection a. Enable WiFi via WiFi Info in the device’s System Settings, or long-press the Up key on the preview screen to turn WiFi on. b. Search for WiFi networks on your mobile phone. Select the WiFi name: H255D-********, password: 12345678 to connect. After successful connection, launch the APP and add the dashcam following the on-screen instructions. 3.After successful addition, you can access the Preview, Settings and Playback interfaces. Note: Only one mobile phone can connect to one dashcam at a time. 4. Tap the preview thumbnail to enter playback mode. Long‑press the preview thumbnail for batch‑selecting files to download or delete.(Videos played before downloading are in low resolution. It is recommended to download them first for playback.) 5. Other Notes:  WiFi connection fails: Confirm whether t…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Shenzhen Chenxin Fengte Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-28-2026 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BXVU-S10 [Shenzhen Chenxin Fengte Technology Co., Ltd] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Shenzhen Chenxin Fengte Technology Co., Ltd] certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, (Applicant signature) (Applicant printed name) Lu Fu Rev 1/26/2023 Shenzhen Chenxin Fengte Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08-28-2026 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BXVU-S10 [Shenzhen Chenxin Fengte Technology Co., Ltd] ce8rtifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Lu Fu

Shenzhen Chenxin Fengte Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: August 28, 2026 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BXVU-S10 Shenzhen Chenxin Fengte Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Company Name: Shenzhen Chenxin Fengte Technology Co., Ltd FRN: 0038816997 Address: Room 816, 8/F, Building B, Zhongjia Mansion, No.2 Donghuan 1st Road, Fukang Community, Longhua, Subdistrict, Longhua District, Shenzhen City, China Signature: Contact Person: Lu Fu Tel: +86-18123680172 Email: [email protected]

Shenzhen Chenxin Fengte Technology Co., Ltd Date: August 28, 2026 Product Model Number: S10 FCC ID: 2BXVU-S10 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Lu Fu Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-18123680172 On behalf of: Shenzhen Chenxin Fengte Technology Co., Ltd

Shenzhen Chenxin Fengte Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 28, 2026 Subject; Request for Confidentiality FCC ID: 2BXVU-S10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lu Fu Title: Manager

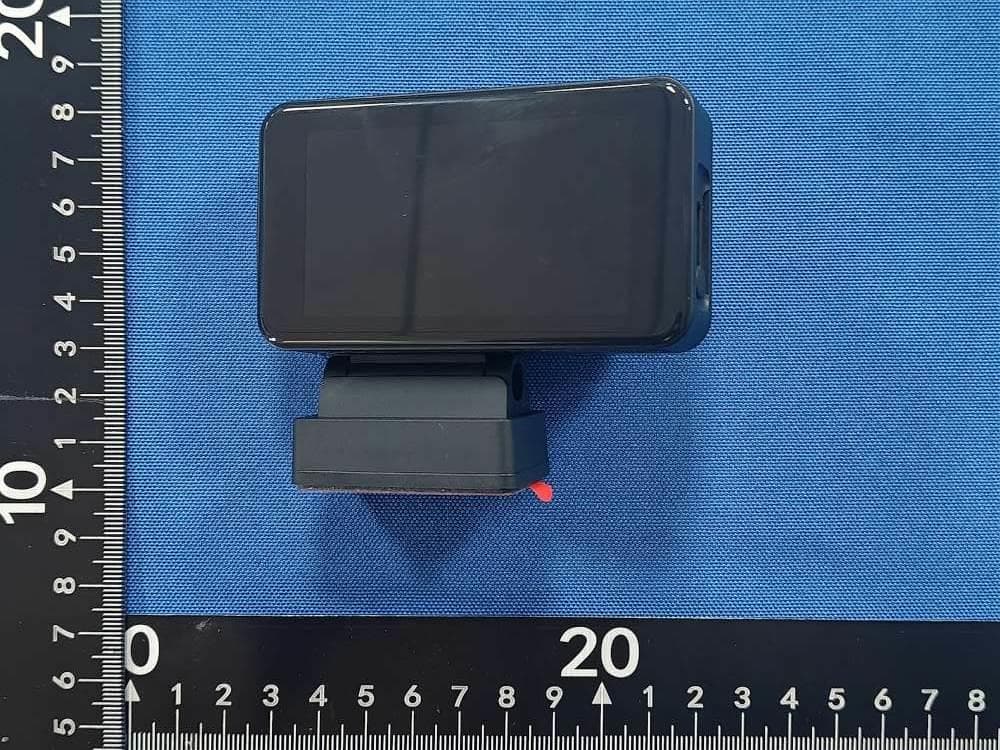

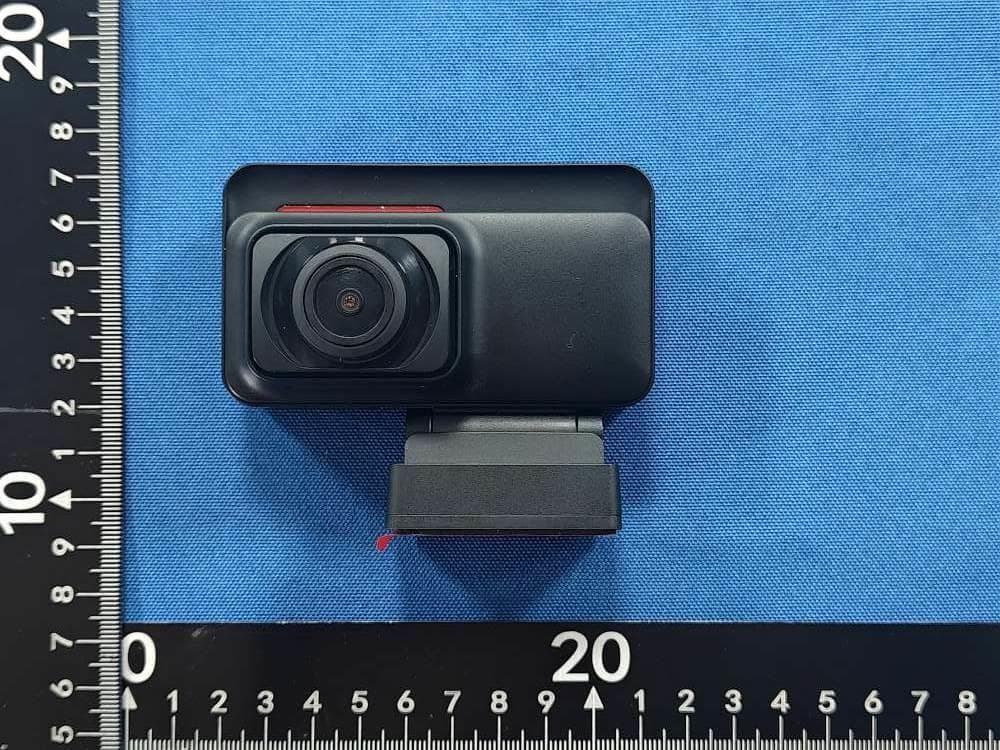

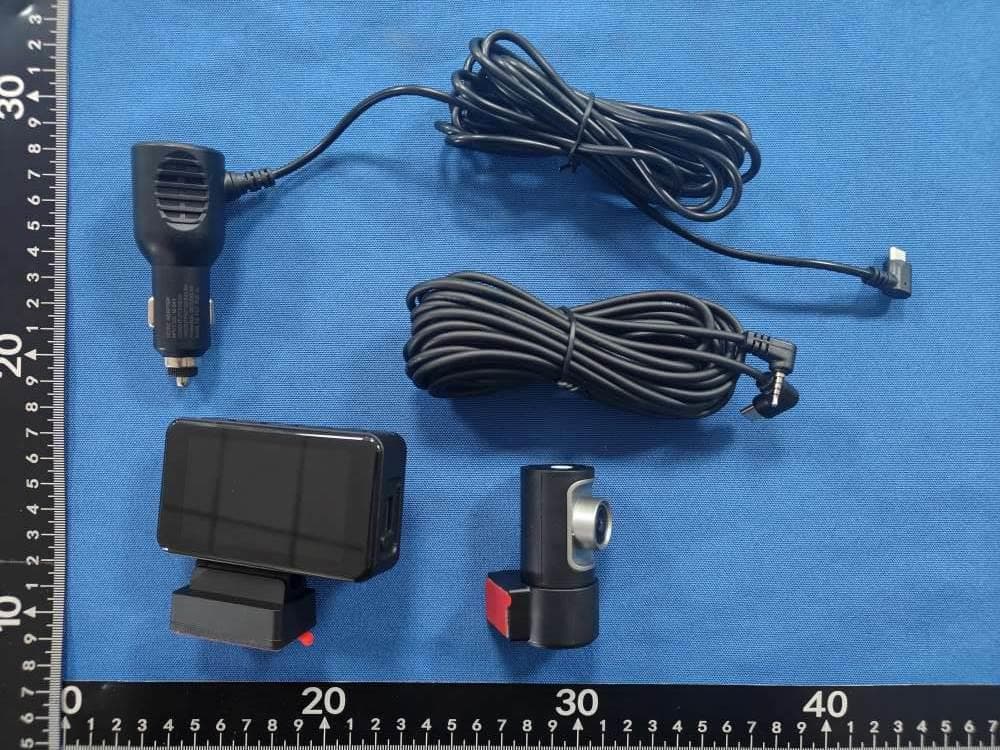

Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report Annex A. EUT External Photos Model: S10 EUT View 1 EUT View 2 Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report EUT View 7

Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Labe Size: 36mm *8mm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location Label Location

Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report Annex B. EUT Internal Photos Model: S10 EUT Internal View 1 EUT Internal View 2 Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report EUT Internal View 3 EUT Internal View 4 SMD ANT Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report EUT Internal View 5 EUT Internal View 6

FCC ID: 2BXVU-S10 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 2.4G WI-FI Mode Output power to antenna (dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 14.09 14(±1) 15 31.62 0.0112 1.0 PASS 5.8G WI-FI Mode Output power to antenna (dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11ac 12.89 12(±1) 13 19.95 0.0071 1.0 PASS Remark: antenna gain= 2.4G WI-FI: 2.5dBi, 5.8G WI-FI: 2.55dBi The device cannot transmit with 2.4G WI-FI and 5.8G WI-FI simultaneously.

Report No: SSP26080342-1 FCC Test Report Page 1 of 48 FCC TEST REPORT FCC ID: 2BXVU-S10 Report No. : SSP26080342-1 Applicant : Shenzhen Chenxin Fengte Technology Co., Ltd Product Name : Dash Cam Model Name : S10 Test Standard : FCC Part 15.247 Date of Issue : 2026-08-24 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.zrlklab.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. Report No: SSP26080342-1 FCC Test Report Page 2 of 48 Test Report Basic Information Applicant..................................: Shenzhen Chenxin Fengte Technology Co., Ltd Address of Applicant...............: Room 816, 8/F, Building B, Zhongjia Mansion, No.2 Donghuan 1st Road, Fukang Community, Longhua, Subdistrict, Longhua District, Shenzhen City, China Manufacturer..........................: Shenzhen Huanxiang Electronic Co.,Ltd Address of Manufacturer........: 3/F, Building 8, Zone 1, Fuqiao Industrial Park, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen City, China Product Name.........................: Dash Cam Brand Name.............................: Cyperpig Main Model..............................: S10 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Date of Test .............................: 2026-08-16 to 2026-08-21 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lorzix Luo) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. Report No: SSP26080342-1 FCC Test Report Page 3 of 48 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 14 5.1 Standard and Limit.............................................................................................................................................. 14 5.2 Test Procedure.................................................................................................................................................... 14 5.3 Test Data and Results .......................................................................................................................................... 16 6. Band-edge Emissions(Radiated) ............................................................................................................................... 20 6.1 Standard and Limit.............................................................................................................................................. 20 6.2 Test Procedure.................................................................................................................................................... 20 6.3 Test Data and Results .........................…

Text truncated - open the document above for the full version.

SPECIFICATION FOR APPROVAL CUSTOMER : Antenna : SMD Antenna PART NO. : DZZ NO. :N12-7701-R0A REV. : 1.0 Shenzhen be-comfortable Technology Co. Ltd. Shenzhen be-comfortable technology.co.,LTD 深圳市得自在科技有限公司 Address：No.1606,Build C6,HengFeng industrial city,xixiang street,baoan district,Shenzhen shanghai mengju technology co., LTD 上海市盟钜科技有限公司 103B, Build10, No.198 Zhang Heng Road , Pudong New Area,Shanghai MANUFACTURERR SIGNATURE CUSTOMER SIGNATURE APPROVED BY: DATE: 13/09/2023 13/09/2023 Huiping Feng Jiehui Liu CONTENTS It emDescr iptio nPag e 1. ... ...............cover................................1 2.....................Test Report .....................5-8 3.....................Drawing ...........................9 4....................Packing ...........................10 Shenzhen be-comfortable Technology Co. Ltd. VSWR and Return Loss measurements (S11) were performed using an KeySight E5071C Network Analyzer. The isolation between antennas is also teste. The testing was performed with apparatus in free space. 1.1.2 Anechoic Chamber Test Setup When we test Gain and Efficiency of the antenna, we will use the ETS 3D chamber. The chamber provides test frequency from 400MHz to 6GHz.The real test environment is showing as following picture Shenzhen be-comfortable Technology Co. Ltd. 1.RF Fixture Experiment 1.1 Test Setup 1.1.1 VNA Test Setup 1.2 UE configuration 1.2.1 Antenna pictures and size information Shenzhen be-comfortable Technology Co. Ltd. Unit (mm): Length 8mm, Width 3mm Shenzhen be-comfortable Technology Co. Ltd. 2. S11 3. Peak Gain & Efficiency Shenzhen be-comfortable Technology Co. Ltd. Frequency (MHz)Gain(dBi)Efficiency(%) 2400 2.0462.48 2410 2.1362.94 2420 2.1563.58 2430 2.2263.83 2440 2.3162.94 2450 2.50 63.58 2460 2.3863.77 2470 2.19 62.34 2480 2.2162.58 2490 2.2562.19 2500 2.1761.57 Frequency (MHz)Gain(dBi)Efficiency(%) 5100 2.3854.38 5200 2.3454.83 5300 2.3153.97 5400 2.4454.61 5500 2.4654.89 5600 2.5555.13 5700 2.5254.87 5800 2.4654.61 5900 2.4153.89 2.4G 5G

Report No: SSP26080342-1-1&2 FCC ID: 2BXVU-S10 Annex of Test Report Annex C. Test Photos Radiated Emission Test View Below 1GHz Radiated Emission Test View Above 1GHz
