2BXWT-DAXIU3daxiu3.0

Optional Handle Bracket Setup Align the insertable attachment with the mounting slot and push it fully into the main unit. Turn clockwise to lock the attachment in place. Turn clockwise to tighten the bracket locking knob. Remove the standard bracket.Align the handle bracket screw with the mounting hole on the main unit. Standard Setup Align the insertable attachment with the mounting slot and push it fully into the main unit. Turn clockwise to lock the attachment in place. Turn the bracket locking knob counterclockwise to loosen the bracket. Adjust the angle as needed, then tighten the bracket locking knob clockwise. Place the suction cup on a smooth surface, then turn clockwise to secure it. Charging and Power Dispose of this product as electronic waste. Do not dispose of it with regular household trash. This product uses a rechargeable lithium battery. Do not expose the battery to high temperatures, excessive heat, or liquids. There is no need to completely drain the battery before charging. Dispose of the device properly to help prevent battery pollution. A full charge provides up to about 80 minutes of use. A full charge takes about 180 minutes. Actual charging time may vary de- pending on the remaining battery level. Connect the USB cable to a USB power adapter or USB port to charge. Before charging, ensure the product especially the charging contacts is co pletely dry. After charging, unplug the charger and charging cable promptly to avoid risk. Care and Maintenance Safety Warnings The main unit is not waterproof. For cleaning, remove the insertable at-tach- ment and wash the attachment separately with clean water or a mild cleaner, then dry it thoroughly. Water damage to the main unit is not covered under warranty. This product is intended for adults only. It is not a contraceptive product. Keep it out of reach of children. Do not use excessive force during use. Stop immediately if you feel pain or discomfort. Do not share this product with other people. Do not wipe the product with alcohol, as it may damage the appearance of the product. Store the product in a cool, dry, well-ventilated place. Keep it away from direct sunlight, high temperatures, heavy pressure, and contamination. Brand Cachito Materials Silicone/ABS+PC Battery Voltage 7.4V Input 5V 2A Insertable attachment length L142mm Model DaXiu 3.0 Battery Capacity 2200mAh Function Variable Stroke Product size 210x54x54 mm Insertable attachment diameter 31mm Keep out of direct sunlight Keep below 122°F . 122 Do not use during pregnancy Use mild detergent. Keep away from children Power off before charging. Adults only Rinse with clean water. Basic Information Scan the QR code to access the app, or search for “cachito global” in the App Store or Google Play. Scan the QR code to view the English/Japanese/Korean user guide. DaXiu 3.0 App-controlled adjustable automatic thrusting sex machine Product Overview Important Notes Package Including Product Overview FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

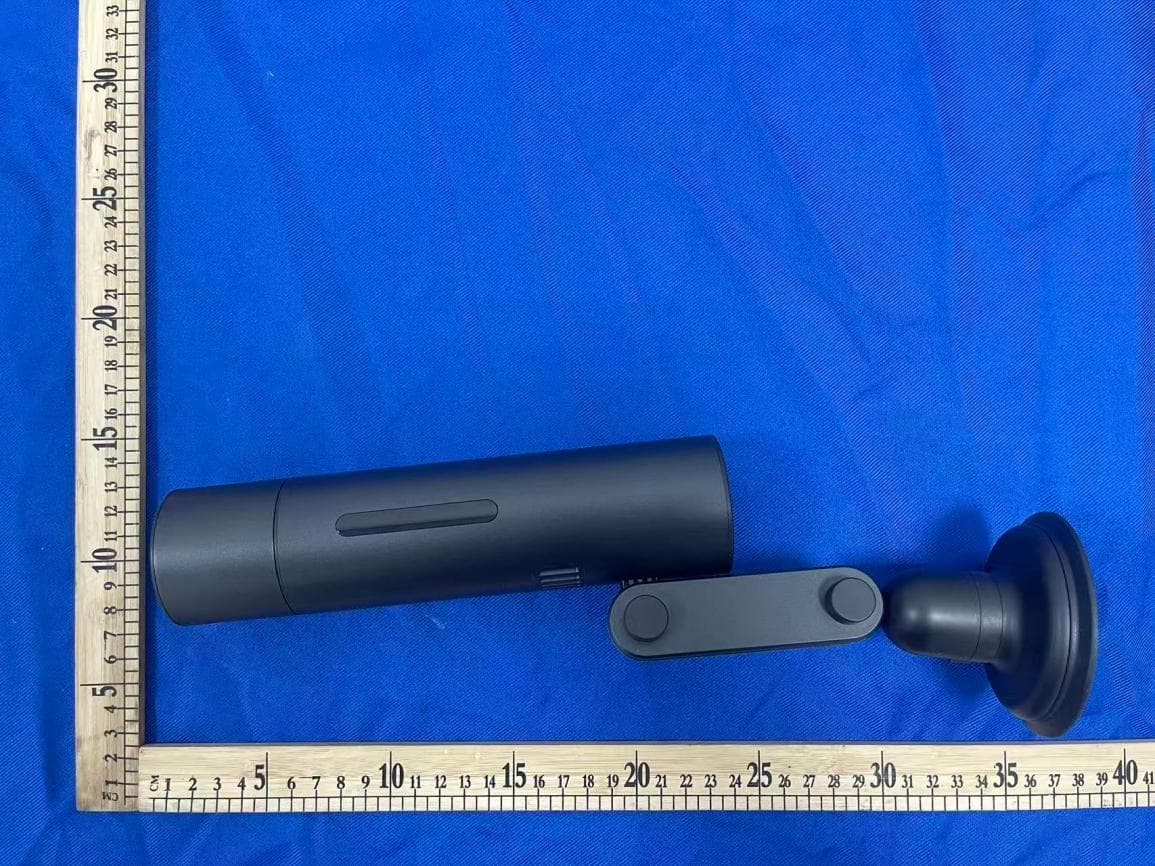

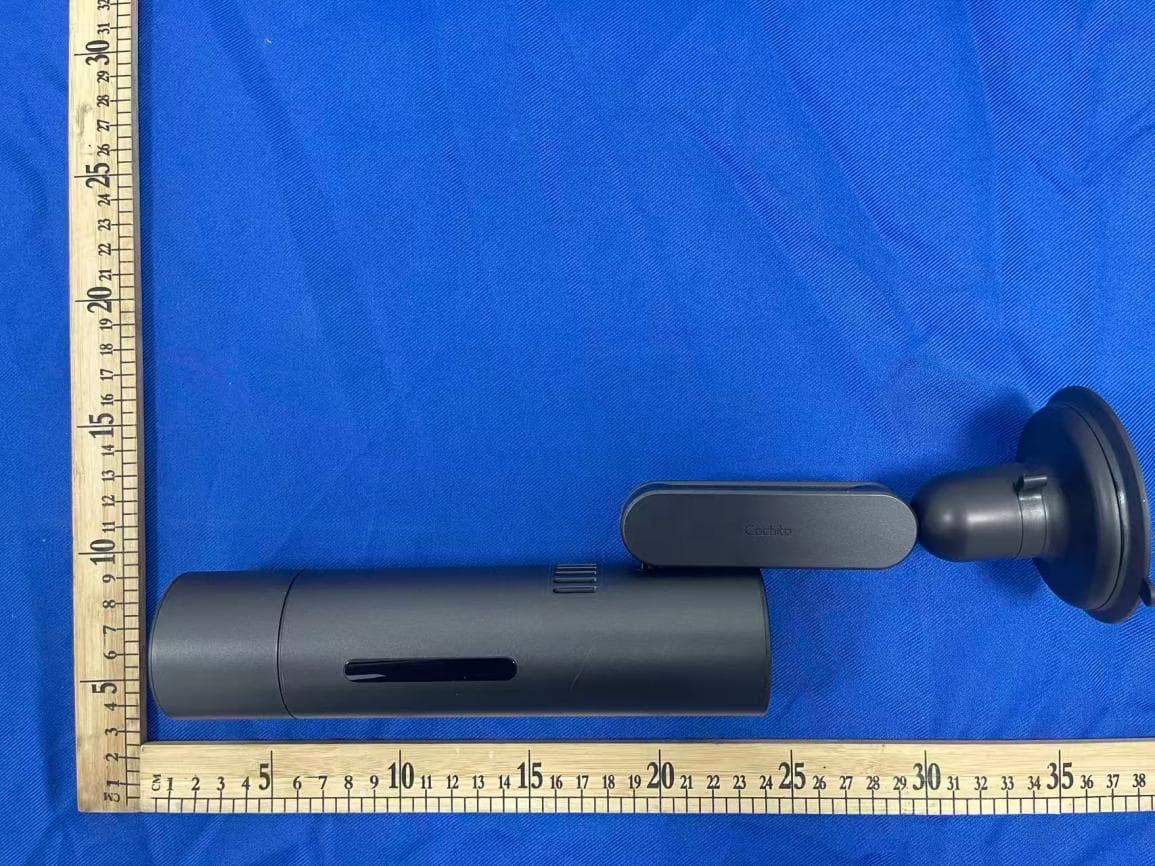

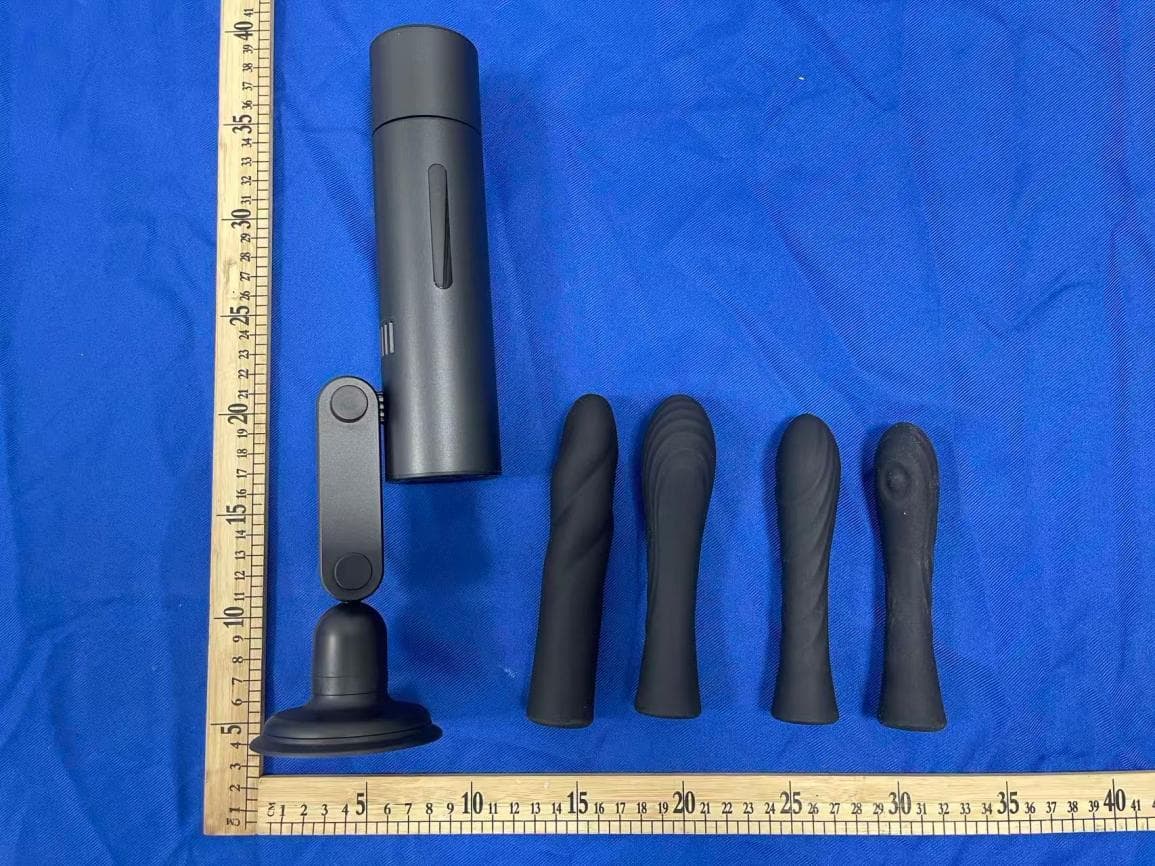

DNT2607315259R11750-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2BXWT-DAXIU3 ExternalPhotos ExternalPhotos DNT2607315259R11750-P01Page: 2 of 4 ExternalPhotos ExternalPhotos DNT2607315259R11750-P01Page: 3 of 4 ExternalPhotos ExternalPhotos DNT2607315259R11750-P01Page: 4 of 4 ExternalPhotos ExternalPhotos --END--

FCCID:2BXWT-DAXIU3

DNT2607315259R11750-P01Page: 1 of 6 PHOTOGRAPHSOFEUT FCCID:2BXWT-DAXIU3 InternalPhotos InternalPhotos DNT2607315259R11750-P01Page: 2 of 6 InternalPhotos InternalPhotos DNT2607315259R11750-P01Page: 3 of 6 InternalPhotos InternalPhotos DNT2607315259R11750-P01Page: 4 of 6 InternalPhotos InternalPhotos DNT2607315259R11750-P01Page: 5 of 6 InternalPhotos InternalPhotos DNT2607315259R11750-P01Page: 6 of 6 InternalPhotos InternalPhotos --END--

GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2607315259R11750-14593 Applicant: FangchangInternationalImport&ExportTradeCo.,Ltd. AddressofApplicant: 2#1103,BaojinFutureCommercialCenter,CangqianStreet,Yuhang District,HangzhouCity,ZhejiangProvince EUTDescription: daxiu3.0 ModelNo.: daxiu3.0 FCCID: 2BXWT-DAXIU3 PowerSupply: Input:DC5V;DC7.4Vfromrechargeablelithium-ionbattery TradeMark: 6438242 Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/07/31 DateofTest: 2026/08/01to2026/08/10 DateofIssue: 2026/08/21 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2607315259R11750-14593Date：August21,2026Page： 2 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/August21,2026ValidOriginalReport ReportNo.:DNT2607315259R11750-14593Date：August21,2026Page： 3 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2607315259R11750-14593Date：August21,2026Page： 4 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:GuangdongDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang’anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: WuhanYoutaoTechnologyCo.,Ltd. AddressofManufacture: Room701,7thFloor,YunhaoScienceandTechnologyMansion,No.1 WenxiuStreet,HongshanDistrict,WuhanCity,HubeiProvince,P.R.China Factory: HaijiTech(Dongguan)Co.,Ltd. AddressofFactory: Room201,No.57WaihuandaoRoad,HumenTown,DongguanCity, GuangdongProvince,P.R.China ProductName: daxiu3.0 ModelNo.: daxiu3.0 AdditionalModel: / PowerSupply: Input:DC5V;DC7.4Vfromrechargeablelithium-ionbattery TradeMark: 6438242 HardwareVersion:V1.0 SoftwareVersion:V1.0 Serialnumber:PR2607315259R11750 ChipType: AC6323A(BP3D138-23A2) SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 2.92dBi(ANT1) Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityand resultsofthedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2607315259R11750-14593Date：August21,2026Page： 5 / 8 GuangdongDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Tel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) GUANGDONGDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada GUANGDONGDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemMeasurementUncertainty 1ConductionEmission±3.0dB(150kHzto30MHz) 2RadiatedEmission ±4.8dB(Below1GHz) ±4.8dB(1GHzto6GHz) ±4.5dB(6GHzto18GHz) ±5.02dB(Above18GHz) ReportNo.:DNT2607315259…

Text truncated - open the document above for the full version.

Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2607315259R11750-14597 Applicant: Fangchang International Import & Export Trade Co., Ltd. Address of Applicant: 2#1103, Baojin Future Commercial Center, Cangqian Street, Yuhang District, Hangzhou City, Zhejiang Province EUT Description: daxiu3.0 Model No.: daxiu3.0 FCC ID: 2BXWT-DAXIU3 Power Supply: Input:DC 5V;DC 7.4V from rechargeable lithium-ion battery Trade Mark: 6438242 Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/07/31 Date of Test: 2026/08/01 to 2026/08/10 Date of Issue: 2026/08/21 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 2 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/August 21, 2026ValidOriginal Report Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 3 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement 15.203/247(b)--Clause 3.1PASS Duty Cycle----Clause 3.2PASS DTS (6 dB) Bandwidth15.247 (a)(2)ANSI C63.10: 2020Clause 3.3PASS Conducted Output Power15.247 (b)(3)ANSI C63.10: 2020Clause 3.4PASS Power Spectral Density15.247 (e)ANSI C63.10: 2020Clause 3.5PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.6PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS Radiated Spurious Emissions15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.8PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d);15.205/15.209ANSI C63.10: 2020Clause 3.9PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.10PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 4 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 Duty Cycle............................................................................................................................................................12 3.3 DTS (6 dB) Bandwidth......................................................................................................................................... 13 3.4 Conducted Output Power..............................................…

Text truncated - open the document above for the full version.

Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 42 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 43 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 4.4 Appendix D: Maximum power spectral density 4.4.1Test Result TestModeAntennaFreq(MHz)Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-19.03≤8.00PASS 2440-18.13≤8.00PASS 2480-17.52≤8.00PASS BLE_2MAnt1 2402-21.16≤8.00PASS 2440-20.65≤8.00PASS 2480-19.97≤8.00PASS Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 44 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 4.4.2Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 45 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 46 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 4.5 Appendix E: Band edge measurements 4.5.1Test Result TestModeAntennaChNameFreq(MHz)RefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low2402-4.11-53.71≤-24.11PASS High2480-2.20-54≤-22.2PASS BLE_2MAnt1 Low2402-4.20-39.47≤-24.2PASS High2480-4.10-43.38≤-24.1PASS Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 47 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 4.5.2Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 48 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_High_2480 Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 49 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 4.6 Appendix F: Conducted Spurious Emission 4.6.1Test Result TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference-4.54-4.54---PASS 30~1000-4.54-67.5≤-24.54PASS 1000~26500-4.54-45.78≤-24.54PASS 2440 Reference-3.81-3.81---PASS 30~1000-3.81-67.11≤-23.81PASS 1000~26500-3.81-44.91≤-23.81PASS 2480 Reference-3.12-3.12---PASS 30~1000-3.12-67.95≤-23.12PASS 1000~26500-3.12-45.92≤-23.12PASS BLE_2MAnt1 2402 Reference-3.93-3.93---PASS 30~1000-3.93-67.87≤-23.93PASS 1000~26500-3.93-46.24≤-23.93PASS 2440 Reference-5.38-5.38---PASS 30~1000-5.38-67.78≤-25.38PASS 1000~26500-5.38-46.01≤-25.38PASS 2480 Reference-4.77-4.77---PASS 30~1000-4.77-67.77≤-24.77PASS 1000~26500-4.77-45.97≤-24.77PASS Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 50 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] 4.6.2Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 51 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 52 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_0~Reference Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 53 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 54 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_0~Reference Report No.: DNT2607315259R11750-14597Date：August 21, 2026Page： 55 / 55 Guangdong DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Tel:+86-769-88087383E-mail: [email protected] BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 The End Report

DongGuanSYLTechnologyCO.,LTD AntennaSpecification Manufacture：SYL ProductName：HJ-DX03-BT大秀Antenna AntennaType：PCB TestDate：2026/7/14 Testedby ：CheckedBy:ApprovedBy: ChengMingWeiDuLinQianCongGen DongGuanSYLTechnologyCO.,LTD 1、GeneralDescription Manufacturer：DongGuanSYLTechnologyCO.,LTD Address： Room701,Building6,No.15,YiHengRoad,Liánfēng, Dàtáng,DalingshanTown,DongguanCity,Guangdong Province,China ProductName：HJ-DX03-BT大秀Antenna Productmodel ： HJ-DX03-BT 大秀 AntennaType ：PCBAntenna TestFrequency ：2400-2480MHz PeakGain （ dBi ）2.92dBi AverageGain（dBi）>-3dBi VSWR：<1.6dBi Impedance：50Ω Polarization：Linear DongGuanSYLTechnologyCO.,LTD 2、Antennasize: DongGuanSYLTechnologyCO.,LTD 3、GainandEfficiency Frequency （ MHz ） Gain （ dBi ） Effciency （ % ） AverageGain （ dBi ） Efficiency （ dB ） 24002.9272.20%-1.14-1.41 24101.9561.36%-2.05-2.12 24202.0061.00%-1.98-2.15 24300.8047.29%-3.09-3.25 24400.1240.82%-3.87-3.89 24500.9748.41%-3.08-3.15 24601.2853.80%-2.81-2.69 24701.2951.75%-2.98-2.86 24801.7958.79%-2.45-2.31 Average1.4655.05%-2.61-2.65 Peak2.9272.20%-1.14-1.41 DongGuanSYLTechnologyCO.,LTD 4、VSWR；ReturnLoss DongGuanSYLTechnologyCO.,LTD 5、2400MHz2D-ThetaPattern 6、2440MHz2D-ThetaPattern DongGuanSYLTechnologyCO.,LTD 7、2480MHz2D-ThetaPattern 8、2400MHz2D-PhiPattern DongGuanSYLTechnologyCO.,LTD 9、2440MHz2D-PhiPattern 10、2480MHz2D-PhiPattern DongGuanSYLTechnologyCO.,LTD 11、2400MHz3D-TotalPattern 12、2440MHz3D-TotalPattern 13、2480MHz3D-TotalPattern DongGuanSYLTechnologyCO.,LTD 14、TestSetupPhoto

DNT2607315259R11750-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BXWT-DAXIU3 AntennaTerminalTestView DNT2607315259R11750-P01Page: 2 of 3 ConducedEmissionTestView RadiatedEmissionTestView(Below1G) DNT2607315259R11750-P01Page: 3 of 3 RadiatedEmissionTestView(Above1G) --END--
