2BXXE-Y07Bluetooth headset

2 1 3 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Tongyan Technology Co., Ltd. Add: 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Date: 2026-8-27 FCC ID: 2BXXE-Y07 Dear Sir/Madam, We, Shenzhen Tongyan Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these models are same, only model number and colour are different for these models. So the tests were performed on model Y07 and the test results for the main test model can cover the listed models: Product name: Bluetooth headset Model no.: Y07, Y01, Y02, Y04, Y06, Y15, A9pro Additionally, for each model above, the left&right earphones are the same schematic circuits, but the locations of components are different. Refer to the follow photos: Left Right Shenzhen Tongyan Technology Co., Ltd. Add: 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Sincerely, Name/Title： Chen Jinghao/Manager Company: Shenzhen Tongyan Technology Co., Ltd. Address: 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Phone: 18124595867 Fax: E-Mail: [email protected]

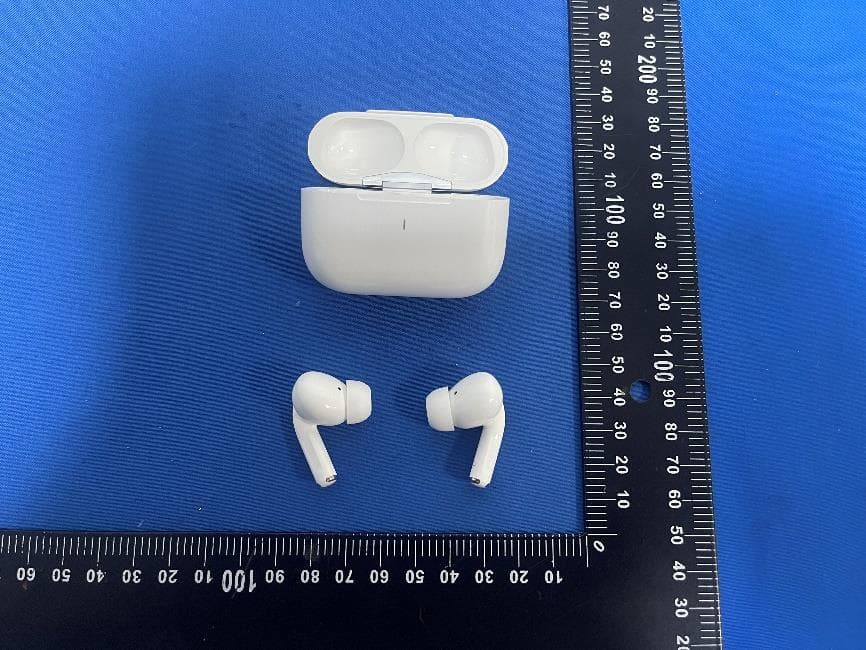

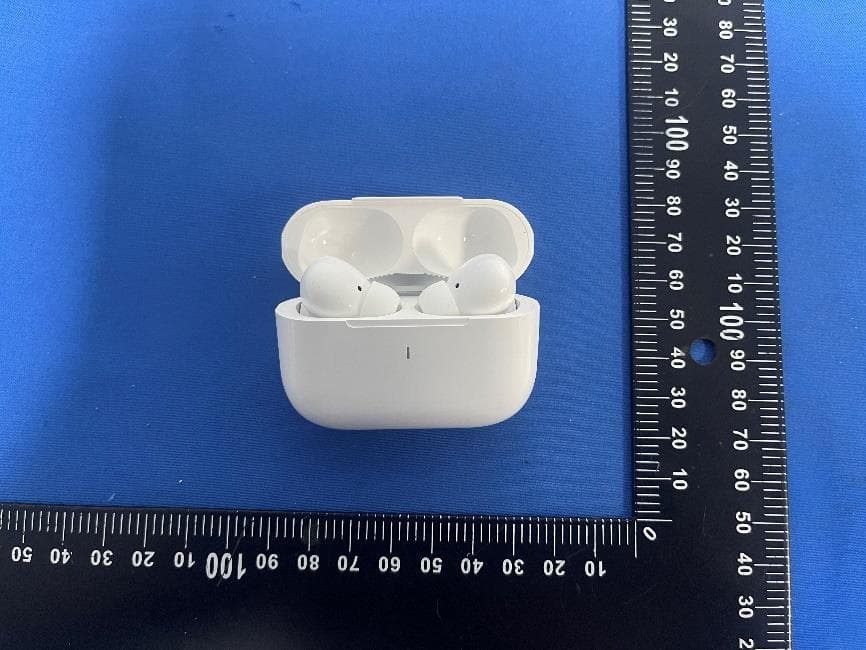

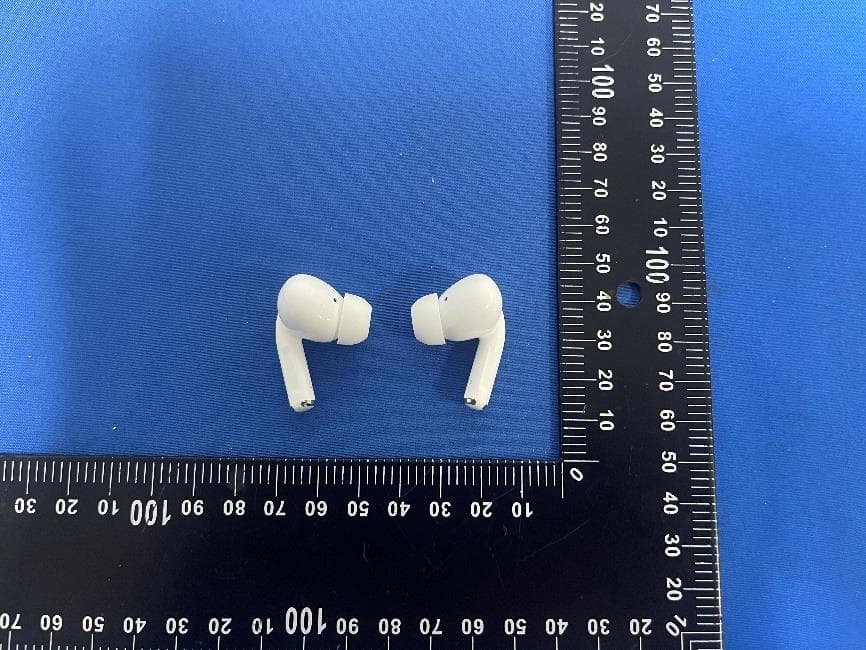

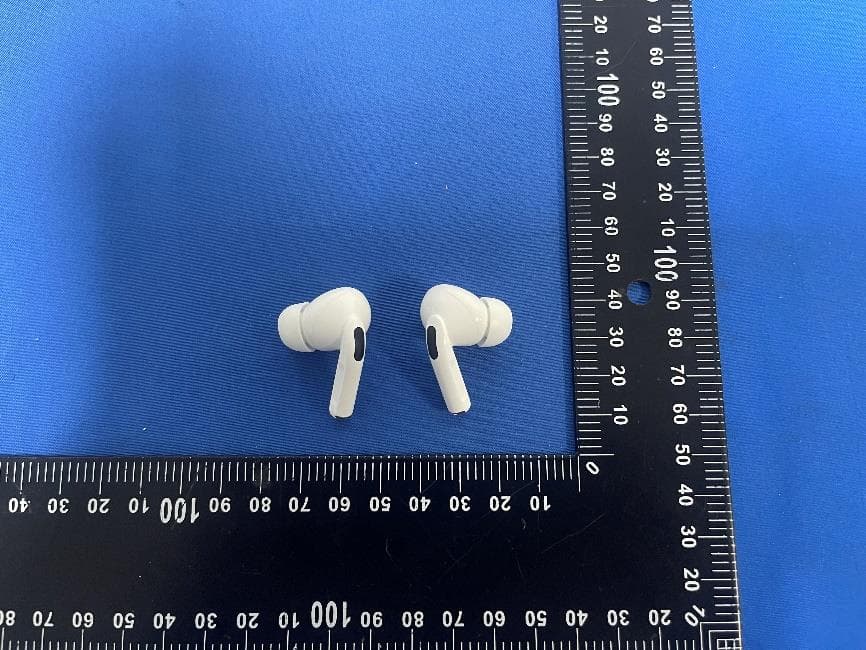

FCC ID: 2BXXE-Y07 External Photos of the EUT FCC ID: 2BXXE-Y07 FCC ID: 2BXXE-Y07

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BXXE-Y07

FCC ID: 2BXXE-Y07 Internal Photos of the EUT Left FCC ID: 2BXXE-Y07 Right Antenna FCC ID: 2BXXE-Y07 FCC ID: 2BXXE-Y07

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26081100102 2BXXE-Y07 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 21, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Tongyan Technology Co., Ltd. Address............................................ : 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth headset Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Tongyan Technology Co., Ltd. Model/Type reference ...................... : Y07 Listed Models ................................... : Y01, Y02, Y04, Y06, Y15, A9pro Rating ............................................... : Input: 5V 0.2A Battery: 3.7V 35mAh 0.1295Wh Result ............................................... : PASS Report No.: CTA26081100102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth headset Model /Type : Y07 Listed Models : Y01, Y02, Y04, Y06, Y15, A9pro Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model Y07 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Tongyan Technology Co., Ltd. Address : 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Manufacturer : Shenzhen Tongyan Technology Co., Ltd. Address : 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081100102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ...............................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26081100101 2BXXE-Y07 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 21, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Tongyan Technology Co., Ltd. Address ............................................ : 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth headset Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Tongyan Technology Co., Ltd. Model/Type reference ...................... : Y07 Listed Models ................................... : Y01, Y02, Y04, Y06, Y15, A9pro Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Input: 5V 0.2A Battery: 3.7V 35mAh 0.1295Wh Result ............................................... : PASS Report No.: CTA26081100101 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth headset Model /Type : Y07 Listed Models : Y01, Y02, Y04, Y06, Y15, A9pro Model difference : The PCB board, circuit, structure and internal of these models are the same, only model number and colour are different for these models. So the tests were performed on model Y07 and the test results for the main test model can cover the listed models. Applicant : Shenzhen Tongyan Technology Co., Ltd. Address : 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Manufacturer : Shenzhen Tongyan Technology Co., Ltd. Address : 1808, Bldg B, Jiansheng Bldg, 1 Pingji Ave, Xialilang, Nanwan, Longgang, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26081100101 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility...…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BXXE-Y07 Company : Shenzhen Tongyan Technology Co., Ltd. EUT : Bluetooth headset Model Number : Y07 Report No. : CTA26081100101 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.951 2401.547 2402.498 --- --- 2441 0.954 2440.547 2441.501 --- --- 2480 0.894 2479.550 2480.444 --- --- 2DH5 Ant1 2402 0.933 2401.553 2402.486 --- --- 2441 0.888 2440.550 2441.438 --- --- 2480 0.963 2479.541 2480.504 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.85707 2401.5819 2402.4389 --- --- 2441 0.85082 2440.5858 2441.4366 --- --- 2480 0.86589 2479.5746 2480.4405 --- --- 2DH5 Ant1 2402 0.86790 2401.5786 2402.4465 --- --- 2441 0.86647 2440.5767 2441.4432 --- --- 2480 0.86877 2479.5776 2480.4464 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Left: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -3.49 ≤20.97 PASS 2441 -3.56 ≤20.97 PASS 2480 -3.81 ≤20.97 PASS 2DH5 Ant1 2402 -3.51 ≤20.97 PASS 2441 -3.57 ≤20.97 PASS 2480 -3.83 ≤20.97 PASS Right: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -3.68 ≤20.97 PASS 2441 -3.24 ≤20.97 PASS 2480 -3.16 ≤20.97 PASS 2DH5 Ant1 2402 -3.07 ≤20.97 PASS 2441 -3.15 ≤20.97 PASS 2480 -3.39 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.978 ≥0.954 PASS 2DH5 Ant1 Hop 0.97 ≥0.963 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.407 310 0.126 ≤0.4 PASS DH3 Ant1 Hop 1.661 161 0.267 ≤0.4 PASS DH5 Ant1 Hop 2.911 114 0.332 ≤0.4 PASS 2DH1 Ant1 Hop 0.415 317 0.132 ≤0.4 PASS 2DH3 Ant1 Hop 1.667 156 0.26 ≤0.4 PASS 2DH5 Ant1 Hop 2.915 105 0.306 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -4.08 -57.51 ≤-24.08 PASS High 2480 -4.68 -55.79 ≤-24.68 PASS Low Hop_2402 -4.36 -57.81 ≤-24.36 PASS High Hop_2480 -4.29 -57.2 ≤-24.29 PASS 2DH5 Ant1 Low 2402 -3.74 -58.28 ≤-23.74 PASS High 2480 -4.49 -56.25 ≤-24.49 PASS Low Hop_2402 -5.39 -57.04 ≤-25.39 PASS High Hop_2480 -5.11 -58.4 ≤-25.11 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -4.54 -4.54 --- PASS 30~1000 -4.54 -68.51 ≤-24.54 PASS 1000~26500 -4.54 -46.23 ≤-24.54 PASS 2441 Reference -4.74 -4.74 --- PASS 30~1000 -4.74 -68.88 ≤-24.74 PASS 1000~26500 -4.74 -46.56 ≤-24.74 PASS 2480 Reference -4.89 -4.89 --- PASS 30~1000 -4.89 -68.02 ≤-24.89 PASS 1000~26500 -4.89 -45.81 ≤-24.89 PASS 2DH5 Ant1 2402 Reference -5.02 -5.02 --- PASS 30~1000 -5.02 -68.3 ≤-25.02 PASS 1000~26500 -5.02 -46.77 ≤-25.02 PASS 2441 Reference -4.66 -4.66 --- PASS 30~1000 -4.66 -68.01 ≤-24.66 PASS 1000~26500 -4.66 -46.23 ≤-24.66 PASS 2480 Reference -5.01 -5.01 --- PASS 30~1000 -5.01 -68.89 ≤-25.01 PASS 1000~26500 -5.01 -47.04 ≤-25.01 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- ---

36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480 39 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m ] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -60.9 2.7 1.10 38.1 ≤54 PASS AV 2385.680 -59.28 2.7 1.10 39.72 ≤54 PASS AV 2390.000 -59.87 2.7 1.10 39.13 ≤54 PASS Peak 2310.000 -52.4 2.7 0.00 45.5 ≤74 PASS Peak 2370.035 -49.04 2.7 0.00 48.86 ≤74 PASS Peak 2390.000 -53.1 2.7 0.00 44.8 ≤74 PASS High 2480 AV 2483.500 -58.46 2.7 1.10 40.54 ≤54 PASS AV 2483.520 -58.46 2.7 1.10 40.54 ≤54 PASS AV 2500.000 -59.93 2.7 1.10 39.07 ≤54 PASS Peak 2483.500 -49.89 2.7 0.00 48.01 ≤74 PASS Peak 2487.680 -48.34 2.7 0.00 49.56 ≤74 PASS Peak 2500.000 -50.79 2.7 0.00 47.11 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.75 2.7 1.10 38.25 ≤54 PASS AV 2372.240 -58.79 2.7 1.10 40.21 ≤54 PASS AV 2390.000 -60.14 2.7 1.10 38.86 ≤54 PASS Peak 2310.000 -53.05 2.7 0.00 44.85 ≤74 PASS Peak 2375.390 -48.81 2.7 0.00 49.09 ≤74 PASS Peak 2390.000 -51.53 2.7 0.00 46.37 ≤74 PASS High 2480 AV 2483.500 -58.77 2.7 1.10 40.23 ≤54 PASS AV 2498.640 -58.5 2.7 1.10 40.5 ≤54 PASS AV 2500.000 -59.89 2.7 1.10 39.11 ≤54 PASS Peak 2483.500 -49.67 2.7 0.00 48.23 ≤74 PASS Peak 2484.640 -48.48 2.7 0.00 49.42 ≤74 PASS Peak 2500.000 -51.85 2.7 0.00 46.05 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 40 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 41 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 42 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 43

2.4GHz3216ChipAntenna:RANT1206F245S5 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT1206F245S5 (A)(B)(C)(D)(E)(F) ElectricalSpecification DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=5 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) Dimension(mm) L 1.60±0.10 W 0.80±0.10 T 0.45±0.10 咏成 國 際 科 技 有限 公 司 電 話 : 1 35305 7 6606 RAINIn t e rn a t i o n a lT ec hn o l o gy C o . , L t d . TEL : 1 35305 7 6606 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz3216ChipAntenna:RANT1206F245S5 _ 1 EvaluationBoardReference PCBDimensionUnit:mm ReturnLoss&Radiation 1206 1206 2.4GHz3216ChipAntenna:RANT1206F245S5 _ 2.4GHz3216ChipAntenna:RANT1206F245S5 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 2.4GHz3216ChipAntenna:RANT1206F245S5 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz1206ChipAntenna:RANT1206F245S5 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

FCC ID: 2BXXE-Y07 Test Setup Photos of the EUT FCC ID: 2BXXE-Y07
