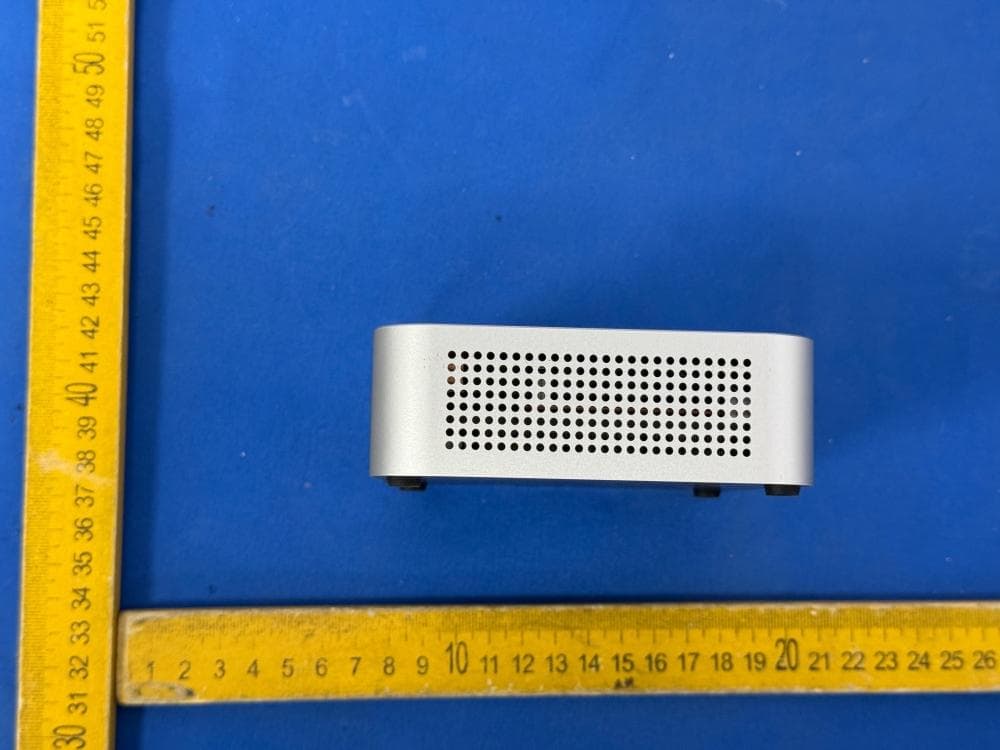

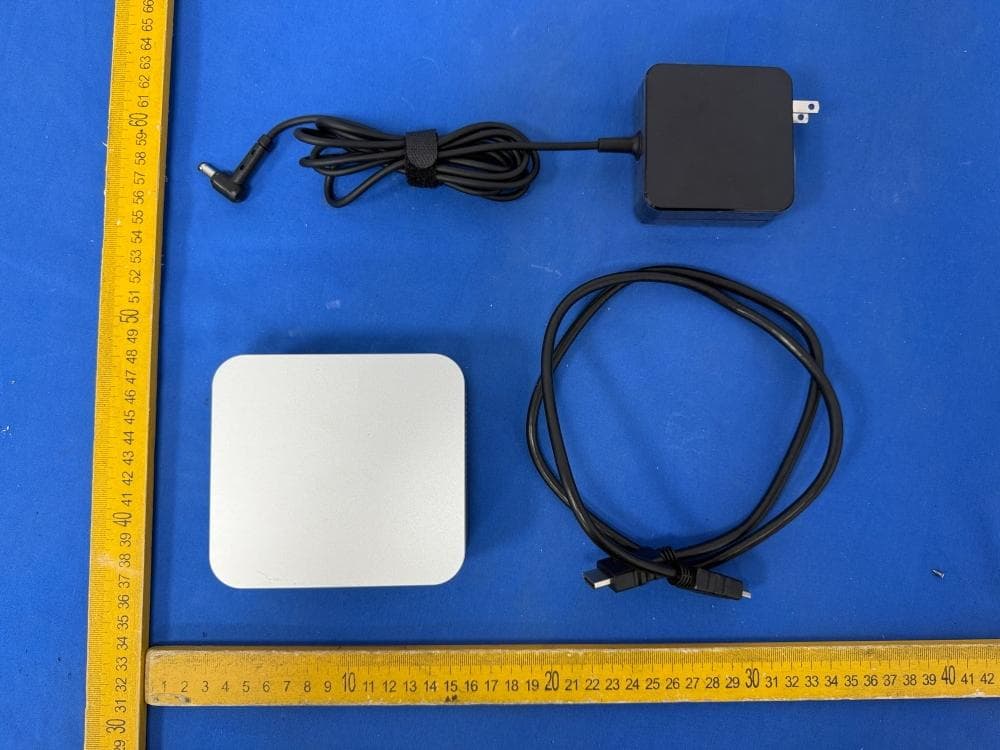

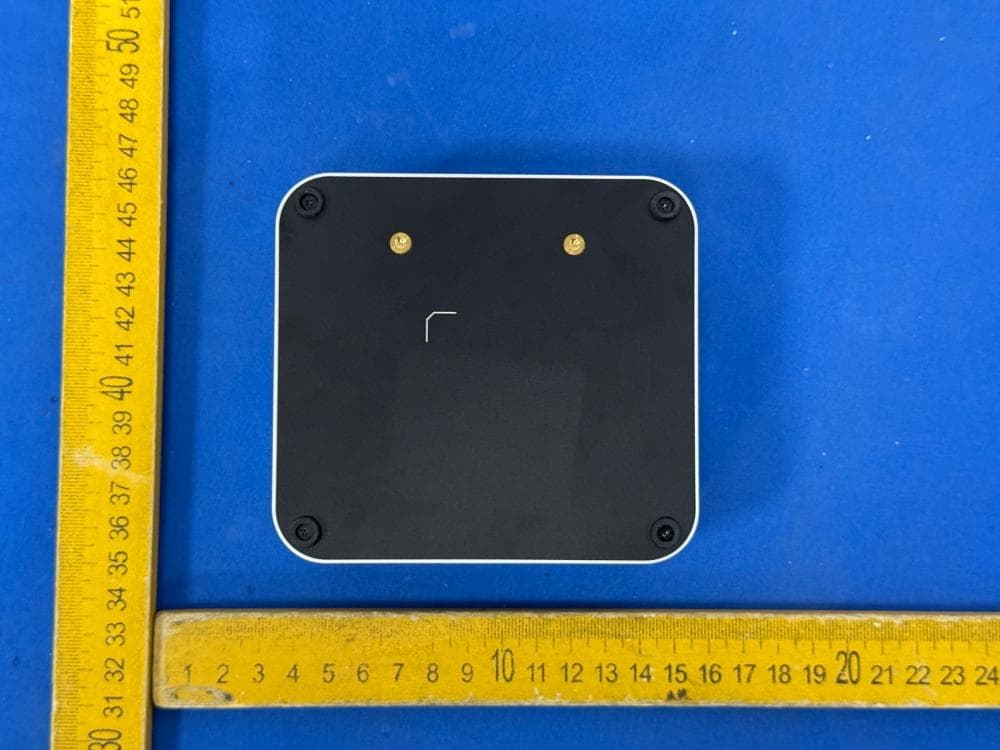

2BXZ2-W304Mini PC Wildcat Lake 304

User Manual W304 Made in China FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Ervice Assurance Thank you for purchasing this product. You can enjoy one-year free space parts and manual service assurance provided by our company. The following conditions lead to the need for our company to provide services, and the maintenance fees will be charged as appropriate: .Failure to perform proper operations according to the user manual or instructions. .Man-made damage, computer viruses, dampness, improper software installation or self-disassembly, etc. .Fire, flood, wind, earthquake and other irresistible forces. .Abrasive wear caused by accessories, consumables and natural use. .If we need to re-install software or adjust computer setting on our behalf, we will charge fees as appropriate. .Our company provides warranty for the damaged or dirty logo which may result in un-recognizability. Please backup your personal data before sending the product to repair. Product Interface Description 1, Power Button 2,USB3.2 3,Power Input 4, Earphone 5, HD Port 6,RJ45 7,USB3.2 8,USB2.0 9，HD Port 10，Type-C (DP/DATA) Instructions 1. Connect the device with the display device (such as TV, screen, projector, etc.) via HDline, and select the “video input source” of the display device to the connected HD input channel. 2. DC power supply: Connect the DC interface of the power cord of the accessories to the device and insert the other end directly into the socket. 3. Use the device by connecting it with a wired or wireless keyboard and mouse via USB port. 4. Press the power button to start the system. Packing List: 1. Computer Box *1 2. User Manual *1 3. Power Adapter *1 4. HDMI wire * 1 5. Rack accessories *1 Note 1. This Low-power RF motor is a certified and qualified product. Companies, businesses or individuals may not change the frequency, enhance the power or change the characteristics and functions of the original design without permission. 2. Low-frequency RF motors should not affect flight safety and interface with legitimate communication when they are used. When interference is found, they should be stopped using immediately and be improved to no interference before they can continue to be used. Legitimate communication refers to wireless communication in the work prescribed by law. Low-frequency RF motor must be able to tolerate the interference of legitimate communication or electromagnetic radiation motor equipment for industrial, scientific and medical purposes. 3. This product contains miniature batteries for mainboard CMOS, which can’t be replaced by consumers themselves. It may be dangerous if consumer replace incorrect types of batteries by themselves. Please properly handle the battery replacement. Attention 1.This product is suitable for places below 3000 meters above sea level, this product is only suitable for non-tropical areas. 2. After abnormal withdrawal or accidental power failure of the mini pc system, the hard disk scanning should be carried out as soon as possible to repair the errors in time. 3. If you do not use the device for a long time, please turn off the main power switch. 4. The ideal working temperature of the device is 10-35 degrees, and the relative humidity is 30-80%. 5. The device should not be turn on or off frequently. 6. Don’t get water, food and other fluids onto the device, and don’t pull the data and power lines with force. 7. Avoid direct exposure of strong light to the device, and do not put it near the strong magnetic field English

FCC ID: 2BXZ2-W304 1 Case No. : GTS20260821003-1-12 Ambient Condition: 25 °C, 47 %RH According Standard: ■Part15E Test Date: 2026.8.26-2026.9.10 Test Engineer: Evan ouyang AppendixD.1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant0 5180 18.000 5171.040 5189.040 --- --- 5200 17.920 5191.080 5209.000 --- --- 5240 18.040 5231.000 5249.040 --- --- 11N20SISO Ant0 5180 19.080 5170.520 5189.600 --- --- 5200 18.960 5190.520 5209.480 --- --- 5240 18.960 5230.520 5249.480 --- --- 11N40SISO Ant0 5190 38.160 5170.960 5209.120 --- --- 5230 38.320 5210.880 5249.200 --- --- 11AC20SISO Ant0 5180 18.880 5170.560 5189.440 --- --- 5200 18.880 5190.600 5209.480 --- --- 5240 18.960 5230.520 5249.480 --- --- 11AC40SISO Ant0 5190 38.320 5170.880 5209.200 --- --- 5230 38.240 5210.880 5249.120 --- --- 11AC80SISO Ant0 5210 78.880 5170.640 5249.520 --- --- 11AX20SISO Ant0 5180 20.000 5170.000 5190.000 --- --- 5200 20.040 5190.000 5210.040 --- --- 5240 19.960 5230.040 5250.000 --- --- 11AX40SISO Ant0 5190 39.360 5170.400 5209.760 --- --- 5230 39.600 5210.240 5249.840 --- --- 11AX80SISO Ant0 5210 80.160 5170.000 5250.160 --- --- FCC ID: 2BXZ2-W304 2 Test Graphs 11A_Ant0_5180 11A_Ant0_5200 11A_Ant0_5240 FCC ID: 2BXZ2-W304 3 11N20SISO_Ant0_5180 11N20SISO_Ant0_5200 FCC ID: 2BXZ2-W304 4 11N20SISO_Ant0_5240 11N40SISO_Ant0_5190 11N40SISO_Ant0_5230 FCC ID: 2BXZ2-W304 5 11AC20SISO_Ant0_5180 11AC20SISO_Ant0_5200 FCC ID: 2BXZ2-W304 6 11AC20SISO_Ant0_5240 11AC40SISO_Ant0_5190 11AC40SISO_Ant0_5230 FCC ID: 2BXZ2-W304 7 11AC80SISO_Ant0_5210 11AX20SISO_Ant0_5180 FCC ID: 2BXZ2-W304 8 11AX20SISO_Ant0_5200 11AX20SISO_Ant0_5240 11AX40SISO_Ant0_5190 FCC ID: 2BXZ2-W304 9 11AX40SISO_Ant0_5230 11AX80SISO_Ant0_5210 FCC ID: 2BXZ2-W304 10 AppendixD.2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant0 5180 16.194 5171.9260 5188.1200 --- --- 5200 16.190 5191.9150 5208.1050 --- --- 5240 16.218 5231.8980 5248.1160 --- --- 11N20SISO Ant0 5180 17.255 5171.3897 5188.6447 --- --- 5200 17.240 5191.3785 5208.6185 --- --- 5240 17.270 5231.3712 5248.6412 --- --- 11N40SISO Ant0 5190 35.475 5172.3446 5207.8196 --- --- 5230 35.531 5212.2664 5247.7974 --- --- 11AC20SISO Ant0 5180 17.302 5171.3646 5188.6666 --- --- 5200 17.240 5191.3628 5208.6028 --- --- 5240 17.296 5231.3587 5248.6547 --- --- 11AC40SISO Ant0 5190 35.450 5172.3350 5207.7850 --- --- 5230 35.548 5212.2445 5247.7925 --- --- 11AC80SISO Ant0 5210 74.381 5172.9636 5247.3446 --- --- 11AX20SISO Ant0 5180 18.543 5170.7465 5189.2895 --- --- 5200 18.562 5190.7401 5209.3021 --- --- 5240 18.634 5230.6864 5249.3204 --- --- 11AX40SISO Ant0 5190 37.131 5171.5252 5208.6562 --- --- 5230 37.185 5211.4120 5248.5970 --- --- 11AX80SISO Ant0 5210 75.961 5172.3249 5248.2859 --- --- FCC ID: 2BXZ2-W304 11 Test Graphs 11A_Ant0_5180 11A_Ant0_5200 11A_Ant0_5240 FCC ID: 2BXZ2-W304 12 11N20SISO_Ant0_5180 11N20SISO_Ant0_5200 FCC ID: 2BXZ2-W304 13 11N20SISO_Ant0_5240 11N40SISO_Ant0_5190 11N40SISO_Ant0_5230 FCC ID: 2BXZ2-W304 14 11AC20SISO_Ant0_5180 11AC20SISO_Ant0_5200 FCC ID: 2BXZ2-W304 15 11AC20SISO_Ant0_5240 11AC40SISO_Ant0_5190 11AC40SISO_Ant0_5230 FCC ID: 2BXZ2-W304 16 11AC80SISO_Ant0_5210 11AX20SISO_Ant0_5180 FCC ID: 2BXZ2-W304 17 11AX20SISO_Ant0_5200 11AX20SISO_Ant0_5240 11AX40SISO_Ant0_5190 FCC ID: 2BXZ2-W304 18 11AX40SISO_Ant0_5230 11AX80SISO_Ant0_5210 FCC ID: 2BXZ2-W304 19 AppendixD.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant0 5180 2.28 4.79 47.60 3.22 0.44 5200 2.28 4.79 47.60 3.22 0.44 5240 2.28 4.79 47.60 3.22 0.44 11N20SISO Ant0 5180 3.74 6.25 59.84 2.23 0.27 5200 3.74 6.25 59.84 2.23 0.27 5240 3.74 6.25 59.84 2.23 0.27 11N40SISO Ant0 5190 2.52 5.03 50.10 3.00 0.40 5230 2.53 5.03 50.30 2.98 0.40 11AC20SISO Ant0 5180 1.81 4.32 41.90 3.78 0.55 5200 1.81 4.32 41.90 3.78 0.55 5240 1.82 4.32 42.13 3.75 0.55 11AC40SISO Ant0 5190 2.52 5.03 50.10 3.00 0.40 5230 2.53 5.04 50.20 2.99 0.40 11AC80SISO Ant0 5210 2.54 5.05 50.30 2.98 0.39 11AX20SISO Ant0 5180 10.83 13.33 81.25 0.90 0.09 5200 10.82 13.33 81.17 0.91 0.09 5240 10.83 13.34 81.18 0.91 0.09 11AX40SISO Ant0 5190 4.70 7.21 65.19 1.86 0.21 5230 4.70 7.20 65.28 1.85 0.21 11AX80SISO Ant0 5210 2.28 4.78 47.70 3.21 0.44 FCC ID: 2BXZ2-W304 20 Test Graphs 11A_Ant0_5180 11A_Ant0_5200 11A_Ant0_5240 FCC ID: 2BXZ2-W304 21 11N20SISO_Ant0_5180 11N20SISO_Ant0_5200 FCC ID: 2BXZ2-W304 22 11N20SISO_Ant0_5240 11N40SISO_Ant0_5190 11N40SISO_Ant0_5230 FCC ID: 2BXZ2-W304 23 11AC20SISO_Ant0_5180 11AC20SISO_Ant0_5200 FCC ID: 2BXZ2-W304 24 11AC20SISO_Ant0_5240 11AC40SISO_Ant0_5190 11AC40SISO_Ant0_5230 FCC ID: 2BXZ2-W304 25 11AC80SISO_Ant0_5210 11AX20SISO_Ant0_5180 FCC ID: 2BXZ2-W304 26 11AX20SISO_Ant0_5200 11AX20SISO_Ant0_5240 11AX40SISO_Ant0_5190 FCC ID: 2BXZ2-W304 27 11AX40SISO_Ant0_5230 11AX80SISO_Ant0_5210 FCC ID: 2BXZ2-W304 28 AppendixD.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant0 5180 7.12 47.60 3.22 10.34 ≤23.98 PASS 5200 8.78 47.60 3.22 12.00 ≤23.98 PASS 5240 7.11 47.60 3.22 10.33 ≤23.98 PASS 11N20SISO Ant0 5180 8.00 59.84 2.23 10.23 ≤23.98 PASS 5200 8.52 59.84 2.23 10.75 ≤23.98 PASS 5240 6.81 59.84 2.23 9.04 ≤23.98 PASS 11N40SISO Ant0 5190 7.26 50.10 3.00 10.26 ≤23.98 PASS 5230 6.67 50.30 2.98 9.65 ≤23.98 PASS 11AC20SIS O Ant0 5180 7.27 41.90 3.78 11.05 ≤23.98 PASS 5200 7.25 41.90 3.78 11.03 ≤23.98 PASS 5240 6.34 42.13 3.75 10.09 ≤23.98 PASS 11AC40SIS O Ant0 5190 7.39 50.10 3.00 10.39 ≤23.98 PASS 5230 6.58 50.20 2.99 9.57 ≤23.98 PASS 11AC80SIS O Ant0 5210 7.06 50.30 2.98 10.04 ≤23.98 PASS 11AX20SIS O Ant0 5180 8.29 81.25 0.90 9.19 ≤23.98 PASS 5200 7.94 81.17 0.91 8.85 ≤23.98 PASS 5240 7.33 81.18 0.91 8.24 ≤23.98 PASS 11AX40SIS O Ant0 5190 8.26 88.53 0.53 8.79 ≤23.98 PASS 5230 7.55 88.52 0.…

Text truncated - open the document above for the full version.

FCC ID: 2BXZ2-W304 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BXZ2-W304 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3

FCC ID: 2BXZ2-W304 38 AppendixE.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5645~5650 -40.86 ≤-27 PASS 5650~5700 -39.81 ≤-26.53 PASS 5700~5720 -40.42 ≤10.35 PASS 5720~5725 -41.25 ≤15.82 PASS High 5825 5850~5855 -39.91 ≤16.65 PASS 5855~5875 -39.71 ≤10.55 PASS 5875~5925 -39.33 ≤-25.81 PASS 5925~5935 -39.56 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5645~5650 -41.22 ≤-27 PASS 5650~5700 -41.85 ≤-26.79 PASS 5700~5720 -39.93 ≤10.51 PASS 5720~5725 -40.69 ≤16.60 PASS High 5825 5850~5855 -40.02 ≤16.03 PASS 5855~5875 -40.45 ≤10.36 PASS 5875~5925 -40.18 ≤-26.81 PASS 5925~5935 -39.72 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5645~5650 -40.5 ≤-27 PASS 5650~5700 -41.37 ≤-26.80 PASS 5700~5720 -39.01 ≤10.44 PASS 5720~5725 -40.47 ≤15.74 PASS High 5795 5850~5855 -40.85 ≤15.66 PASS 5855~5875 -40.12 ≤10.48 PASS 5875~5925 -40.48 ≤-26.34 PASS 5925~5935 -38.51 ≤-27 PASS 11AC20S ISO Ant1 Low 5745 5645~5650 -40.34 ≤-27 PASS 5650~5700 -41.06 ≤-26.62 PASS 5700~5720 -39.56 ≤11.09 PASS 5720~5725 -39.76 ≤16.34 PASS High 5825 5850~5855 -39.17 ≤17.26 PASS 5855~5875 -39.38 ≤10.17 PASS 5875~5925 -40.82 ≤-26.91 PASS 5925~5935 -39.76 ≤-27 PASS 11AC40S ISO Ant1 Low 5755 5645~5650 -41.16 ≤-27 PASS 5650~5700 -41.64 ≤-26.60 PASS 5700~5720 -40.27 ≤10.10 PASS 5720~5725 -37.9 ≤16.66 PASS FCC ID: 2BXZ2-W304 39 High 5795 5850~5855 -37.56 ≤17.16 PASS 5855~5875 -38.62 ≤11.77 PASS 5875~5925 -39.52 ≤-26.71 PASS 5925~5935 -40.27 ≤-27 PASS 11AC80S ISO Ant1 Low 5775 5645~5650 -41.16 ≤-27 PASS 5650~5700 -41.79 ≤-26.57 PASS 5700~5720 -32.43 ≤10.27 PASS 5720~5725 -35.46 ≤17.06 PASS High 5775 5850~5855 -39.01 ≤17.10 PASS 5855~5875 -39.35 ≤10.92 PASS 5875~5925 -40.7 ≤-26.87 PASS 5925~5935 -40.52 ≤-27 PASS 11AX20SI SO Ant1 Low 5745 5645~5650 -40.96 ≤-27 PASS 5650~5700 -41.41 ≤-26.10 PASS 5700~5720 -40.45 ≤10.12 PASS 5720~5725 -40.22 ≤16.08 PASS High 5825 5850~5855 -37.9 ≤16.03 PASS 5855~5875 -40.08 ≤10.29 PASS 5875~5925 -41.5 ≤-26.91 PASS 5925~5935 -39.62 ≤-27 PASS 11AX40SI SO Ant1 Low 5755 5645~5650 -41.31 ≤-27 PASS 5650~5700 -40.72 ≤-26.00 PASS 5700~5720 -40.34 ≤10.06 PASS 5720~5725 -39.29 ≤15.74 PASS High 5795 5850~5855 -41.39 ≤15.66 PASS 5855~5875 -39.34 ≤10.39 PASS 5875~5925 -41.29 ≤-26.46 PASS 5925~5935 -39.94 ≤-27 PASS 11AX80SI SO Ant1 Low 5775 5645~5650 -40.74 ≤-27 PASS 5650~5700 -41.16 ≤-26.80 PASS 5700~5720 -39.53 ≤10.18 PASS 5720~5725 -39.91 ≤16.35 PASS High 5775 5850~5855 -40.01 ≤17.10 PASS 5855~5875 -40.43 ≤10.19 PASS 5875~5925 -41.83 ≤-26.87 PASS 5925~5935 -40.17 ≤-27 PASS FCC ID: 2BXZ2-W304 40 Test GraphsB4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 FCC ID: 2BXZ2-W304 41 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 FCC ID: 2BXZ2-W304 42 11N40SISO_Ant1_High_5795 11AC20SISO_Ant1_Low_5745 11AC20SISO_Ant1_High_5825 FCC ID: 2BXZ2-W304 43 11AC40SISO_Ant1_Low_5755 11AC40SISO_Ant1_High_5795 FCC ID: 2BXZ2-W304 44 11AC80SISO_Ant1_Low_5775 11AC80SISO_Ant1_High_5775 11AX20SISO_Ant1_Low_5745 FCC ID: 2BXZ2-W304 45 11AX20SISO_Ant1_High_5825 11AX40SISO_Ant1_Low_5755 FCC ID: 2BXZ2-W304 46 11AX40SISO_Ant1_High_5795 11AX80SISO_Ant1_Low_5775 11AX80SISO_Ant1_High_5775 FCC ID: 2BXZ2-W304 47 FCC ID: 2BXZ2-W304 48 AppendixE.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5745 30~5650 3017.4 -41.96 ≤-27 PASS 5925~27000 25980.67 -32.41 ≤-27 PASS 5785 30~5650 5460.79 -41.86 ≤-27 PASS 5925~27000 26780.82 -32.54 ≤-27 PASS 5825 30~5650 5457.61 -41.37 ≤-27 PASS 5925~27000 24223.02 -33.51 ≤-27 PASS 11N20SISO Ant1 5745 30~5650 5452.36 -41.82 ≤-27 PASS 5925~27000 25463.63 -33.14 ≤-27 PASS 5785 30~5650 3171.77 -41.45 ≤-27 PASS 5925~27000 26506.85 -33.4 ≤-27 PASS 5825 30~5650 5468.85 -41.85 ≤-27 PASS 5925~27000 26719.7 -33.64 ≤-27 PASS 11N40SISO Ant1 5755 30~5650 2785.3 -41.86 ≤-27 PASS 5925~27000 26531.43 -33.25 ≤-27 PASS 5795 30~5650 3192.75 -41.78 ≤-27 PASS 5925~27000 24278.52 -33.33 ≤-27 PASS 11AC20SISO Ant1 5745 30~5650 2662.41 -42.01 ≤-27 PASS 5925~27000 24275.71 -33.08 ≤-27 PASS 5785 30~5650 3126.25 -41.33 ≤-27 PASS 5925~27000 23597.09 -33.51 ≤-27 PASS 5825 30~5650 5608.79 -41.81 ≤-27 PASS 5925~27000 24756.92 -33.66 ≤-27 PASS 11AC40SISO Ant1 5755 30~5650 2658.47 -41.04 ≤-27 PASS 5925~27000 24277.81 -33.58 ≤-27 PASS 5795 30~5650 5438.5 -41.01 ≤-27 PASS 5925~27000 24288.35 -32.18 ≤-27 PASS 11AC80SISO Ant1 5775 30~5650 2671.59 -41.64 ≤-27 PASS 5925~27000 24897.42 -32.96 ≤-27 PASS 11AX20SISO Ant1 5745 30~5650 5469.04 -41.1 ≤-27 PASS 5925~27000 25098.33 -31.88 ≤-27 PASS 5785 30~5650 3192.37 -42.03 ≤-27 PASS 5925~27000 23533.16 -33.35 ≤-27 PASS 5825 30~5650 5576.75 -41.77 ≤-27 PASS 5925~27000 23573.91 -33.1 ≤-27 PASS 11AX40SISO Ant1 5755 30~5650 5458.55 -41.46 ≤-27 PASS 5925~27000 25222.68 -33.75 ≤-27 PASS FCC ID: 2BXZ2-W304 49 5795 30~5650 4981.78 -41.8 ≤-27 PASS 5925~27000 24824.36 -33.76 ≤-27 PASS 11AX80SISO Ant1 5775 30~5650 5455.36 -41.31 ≤-27 PASS 5925~27000 26024.23 -34.18 ≤-27 PASS FCC ID: 2BXZ2-W304 50 Test Graphs 11A_Ant1_5745_30~5650 11A_Ant1_5745_5925~27000 11A_Ant1_5785_30~5650 FCC ID: 2BXZ2-W304 51 11A_Ant1_5785_5925~27000 11A_Ant1_5825_30~5650 FCC ID: 2BXZ2-W304 52 11A_Ant1_5825_5925~27000 11N20SISO_Ant1_5745_30~5650 11N20SISO_Ant1_5745_5925~27000 FCC ID: 2BXZ2-W304 53 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~27000 FCC ID: 2BXZ2-W304 54 11N20SISO_Ant1_5825_30~5650 11N20SISO_Ant1_5825_5925~27000 11N40SISO_Ant1_5755_30~5650 FCC ID: 2BXZ2-W304 55 11N40SISO_Ant1_5755_5925~27000 11N40SISO_Ant1_5795_30~5650 FCC ID: 2BXZ2-W304 56 11N40SISO_Ant1_5795_5925~27000 11AC20SISO_Ant1_5745_30~5650 11AC20SISO_Ant1_5745_5925~27000 FCC ID: 2BXZ2-W304 57 11AC20SISO_Ant1_5785_30~5650 11AC20SISO_Ant1_5785_5925~27000 FCC ID: 2BXZ2-W304 58 11AC20SISO_Ant1_5825_30~5650 11AC20SISO_Ant1_5825_5925~27000 11AC40SISO_Ant1_5755_30~5650 FCC ID: 2BXZ2-W304 59 11AC40SISO_Ant1_5755_5925~27000 11AC40SISO_Ant1_5795_30~5650 FCC ID: 2BXZ2-W304 60 11AC40SISO_Ant1_5795_5925~27000 …

Text truncated - open the document above for the full version.

FCC ID: 2BXZ2-W304 1 Case No. : GTS20260821003-1-12 Ambient Condition: 23 °C, 51 %RH According Standard: ■Part15E Test Date: 2026.8.26-2026.9.10 Test Engineer: Evan ouyang AppendixE.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.202 5736.9052 5753.1072 --- --- 5785 16.197 5776.8875 5793.0845 --- --- 5825 16.218 5816.8836 5833.1016 --- --- 11N20SISO Ant1 5745 17.264 5736.3781 5753.6421 --- --- 5785 17.266 5776.3648 5793.6308 --- --- 5825 17.252 5816.3720 5833.6240 --- --- 11N40SISO Ant1 5755 35.504 5737.2983 5772.8023 --- --- 5795 35.534 5777.2385 5812.7725 --- --- 11AC20SISO Ant1 5745 17.300 5736.3390 5753.6390 --- --- 5785 17.258 5776.3552 5793.6132 --- --- 5825 17.263 5816.3454 5833.6084 --- --- 11AC40SISO Ant1 5755 35.496 5737.3078 5772.8038 --- --- 5795 35.751 5777.1495 5812.9005 --- --- 11AC80SISO Ant1 5775 74.261 5738.0030 5812.2640 --- --- 11AX20SISO Ant1 5745 18.601 5735.7225 5754.3235 --- --- 5785 18.592 5775.6945 5794.2865 --- --- 5825 18.664 5815.6622 5834.3262 --- --- 11AX40SISO Ant1 5755 37.150 5736.5021 5773.6521 --- --- 5795 37.252 5776.4117 5813.6637 --- --- 11AX80SISO Ant1 5775 75.977 5737.1709 5813.1479 --- --- FCC ID: 2BXZ2-W304 2 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2BXZ2-W304 3 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCC ID: 2BXZ2-W304 4 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2BXZ2-W304 5 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCC ID: 2BXZ2-W304 6 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2BXZ2-W304 7 11AC80SISO_Ant1_5775 11AX20SISO_Ant1_5745 FCC ID: 2BXZ2-W304 8 11AX20SISO_Ant1_5785 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 FCC ID: 2BXZ2-W304 9 11AX40SISO_Ant1_5795 11AX80SISO_Ant1_5775 FCC ID: 2BXZ2-W304 10 AppendixE.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 14.960 5737.520 5752.480 0.5 PASS 5785 13.880 5777.440 5791.320 0.5 PASS 5825 13.840 5817.480 5831.320 0.5 PASS 11N20SISO Ant1 5745 15.040 5737.440 5752.480 0.5 PASS 5785 12.560 5778.680 5791.240 0.5 PASS 5825 13.840 5817.440 5831.280 0.5 PASS 11N40SISO Ant1 5755 30.080 5742.440 5772.520 0.5 PASS 5795 32.560 5777.480 5810.040 0.5 PASS 11AC20SISO Ant1 5745 15.080 5737.440 5752.520 0.5 PASS 5785 12.520 5777.520 5790.040 0.5 PASS 5825 13.840 5817.440 5831.280 0.5 PASS 11AC40SISO Ant1 5755 33.840 5738.680 5772.520 0.5 PASS 5795 30.080 5778.680 5808.760 0.5 PASS 11AC80SISO Ant1 5775 66.240 5743.800 5810.040 0.5 PASS 11AX20SISO Ant1 5745 12.520 5738.680 5751.200 0.5 PASS 5785 14.680 5778.080 5792.760 0.5 PASS 5825 17.000 5816.520 5833.520 0.5 PASS 11AX40SISO Ant1 5755 25.680 5741.400 5767.080 0.5 PASS 5795 32.720 5777.480 5810.200 0.5 PASS 11AX80SISO Ant1 5775 60.000 5747.480 5807.480 0.5 PASS FCC ID: 2BXZ2-W304 11 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2BXZ2-W304 12 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCC ID: 2BXZ2-W304 13 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2BXZ2-W304 14 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCC ID: 2BXZ2-W304 15 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2BXZ2-W304 16 11AC80SISO_Ant1_5775 11AX20SISO_Ant1_5745 FCC ID: 2BXZ2-W304 17 11AX20SISO_Ant1_5785 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 FCC ID: 2BXZ2-W304 18 11AX40SISO_Ant1_5795 11AX80SISO_Ant1_5775 FCC ID: 2BXZ2-W304 19 AppendixE.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant1 5745 2.29 4.80 47.71 3.21 0.44 5785 2.29 4.80 47.71 3.21 0.44 5825 2.29 4.79 47.81 3.20 0.44 11N20SISO Ant1 5745 1.81 4.32 41.90 3.78 0.55 5785 1.82 4.32 42.13 3.75 0.55 5825 1.81 4.31 42.00 3.77 0.55 11N40SISO Ant1 5755 2.53 5.04 50.20 2.99 0.40 5795 2.53 5.04 50.20 2.99 0.40 11AC20SISO Ant1 5745 1.81 4.31 42.00 3.77 0.55 5785 1.81 4.31 42.00 3.77 0.55 5825 1.81 4.31 42.00 3.77 0.55 11AC40SISO Ant1 5755 2.53 5.03 50.30 2.98 0.40 5795 2.53 5.04 50.20 2.99 0.40 11AC80SISO Ant1 5775 2.90 5.41 53.60 2.71 0.34 11AX20SISO Ant1 5745 10.83 13.33 81.25 0.90 0.09 5785 10.83 13.34 81.18 0.91 0.09 5825 9.49 12.00 79.08 1.02 0.11 11AX40SISO Ant1 5755 18.70 21.20 88.21 0.54 0.05 5795 18.70 21.20 88.21 0.54 0.05 11AX80SISO Ant1 5775 22.26 24.76 89.90 0.46 0.04 FCC ID: 2BXZ2-W304 20 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCC ID: 2BXZ2-W304 21 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCC ID: 2BXZ2-W304 22 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCC ID: 2BXZ2-W304 23 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCC ID: 2BXZ2-W304 24 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCC ID: 2BXZ2-W304 25 11AC80SISO_Ant1_5775 11AX20SISO_Ant1_5745 FCC ID: 2BXZ2-W304 26 11AX20SISO_Ant1_5785 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 FCC ID: 2BXZ2-W304 27 11AX40SISO_Ant1_5795 11AX80SISO_Ant1_5775 FCC ID: 2BXZ2-W304 28 AppendixE.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 8.68 47.71 3.21 11.89 ≤30.00 PASS 5785 9.09 47.71 3.21 12.30 ≤30.00 PASS 5825 9.73 47.81 3.20 12.93 ≤30.00 PASS 11N20SISO Ant1 5745 8.18 41.90 3.78 11.96 ≤30.00 PASS 5785 8.88 42.13 3.75 12.63 ≤30.00 PASS 5825 8.86 42.00 3.77 12.63 ≤30.00 PASS 11N40SISO Ant1 5755 8.41 50.20 2.99 11.40 ≤30.00 PASS 5795 9.17 50.20 2.99 12.16 ≤30.00 PASS 11AC20SIS O Ant1 5745 8.02 42.00 3.77 11.79 ≤30.00 PASS 5785 9.11 42.00 3.77 12.88 ≤30.00 PASS 5825 8.88 42.00 3.77 12.65 ≤30.00 PASS 11AC40SIS O Ant1 5755 8.42 50.30 2.98 11.40 ≤30.00 PASS 5795 9.21 50.20 2.99 12.20 ≤30.00 PASS 11AC80SIS O Ant1 5775 8.85 53.60 2.71 11.56 ≤30.00 PASS 11AX20SIS O Ant1 5745 8.94 81.25 0.90 9.84 ≤30.00 PASS 5785 9.37 81.18 0.91 10.28 ≤30.00 PASS 5825 9.42 79.08 1.02 10.44 ≤30.00 PASS 11AX40SIS O Ant1 5755 9.14 88.21 0…

Text truncated - open the document above for the full version.

FCC ID: 2BXZ2-W304 38 AppendixE.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant0 Low 5745 5645~5650 -40.73 ≤-27 PASS 5650~5700 -40.05 ≤-25.68 PASS 5700~5720 -33.3 ≤15.56 PASS 5720~5725 -34.84 ≤16.60 PASS High 5825 5850~5855 -40.55 ≤16.34 PASS 5855~5875 -38.91 ≤10.06 PASS 5875~5925 -40.02 ≤-25.41 PASS 5925~5935 -38.32 ≤-27 PASS 11N20SI SO Ant0 Low 5745 5645~5650 -40.2 ≤-27 PASS 5650~5700 -40.07 ≤-26.53 PASS 5700~5720 -40.18 ≤10.09 PASS 5720~5725 -36.39 ≤15.82 PASS High 5825 5850~5855 -39.85 ≤15.73 PASS 5855~5875 -39.28 ≤11.04 PASS 5875~5925 -39.5 ≤-26.41 PASS 5925~5935 -39.22 ≤-27 PASS 11N40SI SO Ant0 Low 5755 5645~5650 -41.05 ≤-27 PASS 5650~5700 -42.14 ≤-26.90 PASS 5700~5720 -36.69 ≤11.23 PASS 5720~5725 -36.39 ≤15.74 PASS High 5795 5850~5855 -39.38 ≤16.03 PASS 5855~5875 -39.74 ≤10.20 PASS 5875~5925 -40.94 ≤-26.95 PASS 5925~5935 -40.21 ≤-27 PASS 11AC20S ISO Ant0 Low 5745 5645~5650 -40.7 ≤-27 PASS 5650~5700 -41.9 ≤-26.96 PASS 5700~5720 -34.25 ≤15.53 PASS 5720~5725 -34.99 ≤16.87 PASS High 5825 5850~5855 -38.62 ≤16.03 PASS 5855~5875 -39.61 ≤10.17 PASS 5875~5925 -39.83 ≤-26.91 PASS 5925~5935 -38.43 ≤-27 PASS 11AC40S ISO Ant0 Low 5755 5645~5650 -40.74 ≤-27 PASS 5650~5700 -41.46 ≤-26.30 PASS 5700~5720 -38.01 ≤11.08 PASS 5720~5725 -36.93 ≤16.04 PASS FCC ID: 2BXZ2-W304 39 High 5795 5850~5855 -39.14 ≤16.41 PASS 5855~5875 -38.89 ≤10.25 PASS 5875~5925 -41.03 ≤-26.95 PASS 5925~5935 -39.92 ≤-27 PASS 11AC80S ISO Ant0 Low 5775 5645~5650 -40.44 ≤-27 PASS 5650~5700 -41.11 ≤-26.80 PASS 5700~5720 -32.64 ≤10.83 PASS 5720~5725 -36.07 ≤15.65 PASS High 5775 5850~5855 -32.82 ≤17.10 PASS 5855~5875 -33.83 ≤14.13 PASS 5875~5925 -39.76 ≤-26.87 PASS 5925~5935 -39.05 ≤-27 PASS 11AX20SI SO Ant0 Low 5745 5645~5650 -40.47 ≤-27 PASS 5650~5700 -40.15 ≤-26.70 PASS 5700~5720 -41.03 ≤10.06 PASS 5720~5725 -38.46 ≤15.82 PASS High 5825 5850~5855 -39.97 ≤15.73 PASS 5855~5875 -39.71 ≤10.59 PASS 5875~5925 -40.19 ≤-26.81 PASS 5925~5935 -39.77 ≤-27 PASS 11AX40SI SO Ant0 Low 5755 5645~5650 -40 ≤-27 PASS 5650~5700 -40.11 ≤-26.40 PASS 5700~5720 -39.73 ≤10.25 PASS 5720~5725 -38.09 ≤15.74 PASS High 5795 5850~5855 -41.33 ≤15.66 PASS 5855~5875 -40.1 ≤10.39 PASS 5875~5925 -40.57 ≤-26.59 PASS 5925~5935 -39.38 ≤-27 PASS 11AX80SI SO Ant0 Low 5775 5645~5650 -40.56 ≤-27 PASS 5650~5700 -40.21 ≤-26.34 PASS 5700~5720 -36.07 ≤11.05 PASS 5720~5725 -38.61 ≤15.65 PASS High 5775 5850~5855 -38.33 ≤15.84 PASS 5855~5875 -38.27 ≤10.81 PASS 5875~5925 -40.26 ≤-26.46 PASS 5925~5935 -40.75 ≤-27 PASS FCC ID: 2BXZ2-W304 40 Test GraphsB4 11A_Ant0_Low_5745 11A_Ant0_High_5825 11N20SISO_Ant0_Low_5745 FCC ID: 2BXZ2-W304 41 11N20SISO_Ant0_High_5825 11N40SISO_Ant0_Low_5755 FCC ID: 2BXZ2-W304 42 11N40SISO_Ant0_High_5795 11AC20SISO_Ant0_Low_5745 11AC20SISO_Ant0_High_5825 FCC ID: 2BXZ2-W304 43 11AC40SISO_Ant0_Low_5755 11AC40SISO_Ant0_High_5795 FCC ID: 2BXZ2-W304 44 11AC80SISO_Ant0_Low_5775 11AC80SISO_Ant0_High_5775 11AX20SISO_Ant0_Low_5745 FCC ID: 2BXZ2-W304 45 11AX20SISO_Ant0_High_5825 11AX40SISO_Ant0_Low_5755 FCC ID: 2BXZ2-W304 46 11AX40SISO_Ant0_High_5795 11AX80SISO_Ant0_Low_5775 11AX80SISO_Ant0_High_5775 FCC ID: 2BXZ2-W304 47 FCC ID: 2BXZ2-W304 48 AppendixE.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant0 5745 30~5650 5576.38 -41.07 ≤-27 PASS 5925~27000 26894.63 -32.79 ≤-27 PASS 5785 30~5650 5389.79 -41.58 ≤-27 PASS 5925~27000 25219.87 -33.06 ≤-27 PASS 5825 30~5650 2840.56 -41.92 ≤-27 PASS 5925~27000 26543.38 -32.93 ≤-27 PASS 11N20SISO Ant0 5745 30~5650 3247.45 -41.36 ≤-27 PASS 5925~27000 24999.28 -33.09 ≤-27 PASS 5785 30~5650 3053 -41.7 ≤-27 PASS 5925~27000 25601.32 -33.08 ≤-27 PASS 5825 30~5650 3411.55 -41.73 ≤-27 PASS 5925~27000 26730.94 -33.65 ≤-27 PASS 11N40SISO Ant0 5755 30~5650 5449.93 -41.2 ≤-27 PASS 5925~27000 24188.6 -33.18 ≤-27 PASS 5795 30~5650 5371.25 -41.15 ≤-27 PASS 5925~27000 26029.85 -32.33 ≤-27 PASS 11AC20SISO Ant0 5745 30~5650 4895.8 -41.69 ≤-27 PASS 5925~27000 24245.5 -32.2 ≤-27 PASS 5785 30~5650 4905.91 -41.48 ≤-27 PASS 5925~27000 26487.88 -33.29 ≤-27 PASS 5825 30~5650 2641.8 -41.59 ≤-27 PASS 5925~27000 26062.87 -33.37 ≤-27 PASS 11AC40SISO Ant0 5755 30~5650 3320.32 -40.64 ≤-27 PASS 5925~27000 25575.33 -32.62 ≤-27 PASS 5795 30~5650 2671.21 -41.25 ≤-27 PASS 5925~27000 24220.21 -33.2 ≤-27 PASS 11AC80SISO Ant0 5775 30~5650 2998.86 -41.51 ≤-27 PASS 5925~27000 26811.03 -32.97 ≤-27 PASS 11AX20SISO Ant0 5745 30~5650 5463.6 -41.57 ≤-27 PASS 5925~27000 24231.45 -32.51 ≤-27 PASS 5785 30~5650 5412.09 -41.72 ≤-27 PASS 5925~27000 23561.97 -33.07 ≤-27 PASS 5825 30~5650 5475.22 -41.14 ≤-27 PASS 5925~27000 24236.37 -32.7 ≤-27 PASS 11AX40SISO Ant0 5755 30~5650 2808.34 -41.29 ≤-27 PASS 5925~27000 26911.49 -33 ≤-27 PASS FCC ID: 2BXZ2-W304 49 5795 30~5650 2699.87 -40.78 ≤-27 PASS 5925~27000 24201.94 -32.73 ≤-27 PASS 11AX80SISO Ant0 5775 30~5650 4858.33 -41.44 ≤-27 PASS 5925~27000 24744.98 -32.4 ≤-27 PASS FCC ID: 2BXZ2-W304 50 Test Graphs 11A_Ant0_5745_30~5650 11A_Ant0_5745_5925~27000 11A_Ant0_5785_30~5650 FCC ID: 2BXZ2-W304 51 11A_Ant0_5785_5925~27000 11A_Ant0_5825_30~5650 FCC ID: 2BXZ2-W304 52 11A_Ant0_5825_5925~27000 11N20SISO_Ant0_5745_30~5650 11N20SISO_Ant0_5745_5925~27000 FCC ID: 2BXZ2-W304 53 11N20SISO_Ant0_5785_30~5650 11N20SISO_Ant0_5785_5925~27000 FCC ID: 2BXZ2-W304 54 11N20SISO_Ant0_5825_30~5650 11N20SISO_Ant0_5825_5925~27000 11N40SISO_Ant0_5755_30~5650 FCC ID: 2BXZ2-W304 55 11N40SISO_Ant0_5755_5925~27000 11N40SISO_Ant0_5795_30~5650 FCC ID: 2BXZ2-W304 56 11N40SISO_Ant0_5795_5925~27000 11AC20SISO_Ant0_5745_30~5650 11AC20SISO_Ant0_5745_5925~27000 FCC ID: 2BXZ2-W304 57 11AC20SISO_Ant0_5785_30~5650 11AC20SISO_Ant0_5785_5925~27000 FCC ID: 2BXZ2-W304 58 11AC20SISO_Ant0_5825_30~5650 11AC20SISO_Ant0_5825_5925~27000 11AC40SISO_Ant0_5755_30~5650 FCC ID: 2BXZ2-W304 59 11AC40SISO_Ant0_5755_5925~27000 11AC40SISO_Ant0_5795_30~5650 FCC ID: 2BXZ2-W304 60 11AC40SISO_Ant0_5795_5925~27000 11AC80SISO_An…

Text truncated - open the document above for the full version.

FCC ID: 2BXZ2-W304 1 Case No. : GTS20260821003-1-12 Ambient Condition: 24 °C, 49 %RH According Standard: ■Part15E Test Date: 2026.8.26-2026.9.10 Test Engineer: Evan ouyang AppendixE.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant0 5745 16.199 5736.9089 5753.1079 --- --- 5785 16.191 5776.9187 5793.1097 --- --- 5825 16.…

Text truncated - open the document above for the full version.
