A28ISURF1000A1WIFI VOIP GATEWAY

iSurf 1000 Multi-Service Home Gateway User Operation Manual Version 1.1 KZ BROADBAND TECHNOLOGY Co. Ltd. CONFIDENTIAL This document and the information contained in it is confidential information of KZ Broadband Technologies Ltd (KZ Tech), and shall not be used, or publish, or disclosed, or disseminated outside of KZ Tech in whole or in part without KZ Tech’s consent. This document contains trade secrets of KZ Tech. Reverse engineering of any or all of the information in document is prohibited. The copyright notice does not imply publication of this document © COPYRIGHT 2004-2012, KZ Broadband Technology Co. Ltd. CONFIDENTIAL INFORMATION Information contained herein is proprietary to KZ Tech for whose benefit confidentiality shall be maintained. iSurf 1000 User Operation Manual - 2 - 1. Packing List The product is shipped with the following standard accessory and parts. The user should contact the local distributor if there is any part missing. Content Quantity Main System Unit 1 12V DC Power Adapter 1 RJ45 Ethernet Cable 1 Quick User Manual 1 Product Warranty Card 1 2. Introduction The iSurf TM 1000 multi-service home gateway is a state of art home gateway product specially designed to provide integrated broadband services to residential or SOHO customers. It allows broadband service provider to offer triple play services (data, VoIP, WiFi) to its residential customers at extremely affordable cost. The product offers a variety of user networking interfaces including LAN Ethernet ports, analog phone line ports, master USB port and 802.11n/g/b WiFi interfaces. User can easily connect multiple PC or LAN devices to the unit via Ethernet or WiFi interfaces while having reliable VoIP phone service at same time. The USB port provides addition flexibility to connect USB devices such as camera, sensor or 3G modem to further expand the service offering. The iSurf TM 1000 is developed using single SoC silicon solution and most advanced soft DSP processing technologies to maintain the best performance and cost in home gateway design. It also provides extensive feature and service capabilities in data, SIP VoIP and Wi-Fi networking. Its unique hardware NAT acceleration technique allows the product to achieve extremely fast data throughputs even in router operation mode. In addition to the advanced networking capabilities, iSurf TM 1000 also provides rich management interfaces to allow local and remote device management. Its user friendly WEB management interface is well designed to provide quick installation and setup for user as well as advanced configuration for the device administrator. The product detail specification is provided by the below section. iPad Phone or Fax PC xDSL/Cable/GEPON Set-top boxes Notebook Dual Mode WiFi Phone Power DC 12V ETH Internet iPad Phone or Fax PC xDSL/Cable/GEPON Set-top boxes Notebook Dual Mode WiFi Phone Power DC 12V ETH InternetInternet iSurf 1000 User Operation Manual - 3 - 3. Product Specification PHYSICAL Dimensions 135mm (L) x 105mm (W) x 30mm (H) Weight < 300g Power < 10 Watts Power Supply 12V DC ENVIRONMENTAL Temperature -10 °C - 50 °C Humidity 90% maximum Non-condensing Storage -20°C- 65°C SYSTEM Interface 1 10/100M Ethernet WAN Port (RJ45) 802.11n/g/b WiFi (2.4GHz) 3 10/100M Ethernet LAN Ports (RJ45) 2 Analog Phone Ports (RJ11) 1 USB OTG Port (2.0) System LEDs Power, WAN, WLAN, LAN1-3, Phone, Voice Mail Line Distance > 1 km WIRELESS Standards IEEE 802.11n, IEEE 802.11g&b Radio 2.4-2.497GHz (2x2 MIMO) 20dBm ± 1dB per antenna Antenna Two 3dBi dipole external antennas Security 64/128 bit WEP encryption WPA/WPA2/WAPI authentication WPS (WiFi Protected Setup) QoS Support WMM, WMM Power Save Networking Private home networking Virtual public networking VOIP PROCESSING Compression G.711 a G.711 u G.729 G.721 Comfort Noise Comfort noise generation and control Echo Cancellation G.165/G.168-2000 echo cancellation Silence Suppression Silence detection and suppression Fax Support T.30 and T.38 Delay/Jitter/Loss Delay, jitter, packet loss compensation DTMF Relay In-band DTMF, RFC 2833, SIP signal Call Duration > 48 hours Uninterrupted Call VOICE SERVICE Basic Voices Local and domestic and international long distance calls Flexible dial plan configuration support Tone customization for different countries Complementary Services Caller ID, Caller ID suppression, Call Screening, Speed dial, Call Tracing, Hotline, Unconditional call forwarding, Call Forwarding No Answer, Call Forwarding on Busy, Call Waiting, Call Back, Call Blocking, No Disturbance, Alarm, Network and Local 3-way Call, Data Call, and etc. Billing Service Support Z interface polarity reversal NETWORKING CAPABILITIES Data Networking Router and Bridge operation mode support WAN DHCP or static IP address assignment L2TP, PPTP and PPPoE client support DHCP and NAT service for LAN and WiFi devices SPI Firewall and DMZ support VPN Pass-through support (PPTP / L2TP / IPSec) Support for DNS, NTP, TFTP, FTP services QoS and VLAN management support (coming release) VoIP Networking Soft switch based network configuration Device peer to peer networking support INDUSTRY STANDARDS IEEE IEEE 802.3 10Base Ethernet IEEE 802.3u Fast Ethernet IEEE 802.1p CoS Priority Protocol IEEE 802.1Q VLAN Tagging IETF IP voice SIP v2.0 M ANAGEMENT User Management Telnet, Web, Console (debug) Others FTP Auto Firmware Upgrade 4. Front Panel Description Table 1 Front Panel LED Specification LED Function Description PWR Power supply indicator, dual color LED Orange Color – Device is booting up Green Color – Device in normal operation WAN WAN port status LED ( dual color) Orange Color – Device WAN port is not yet ready for normal operation. Solid Green – Device WAN port is up and ready. Blinking Green – WAN port data transmission in progress. WiFi WiFi status indicator Green Color – WiFi is enabled and working LAN 1-3 LAN port status Solid Green – The LAN port is up Blinking Green – LAN data transmission in progress PHONE POTS line status i…

Text truncated - open the document above for the full version.

KZ Broadband Technologies, Ltd. Date: May 8, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The KZ Broadband Technologies, Ltd., the undersigned, hereby authorizes Mr.Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the KZ Broadband Technologies, Ltd.. solely in matters relating to the application for an FCC equipment authorization for FCC ID # A28ISURF1000A1 including the signing of documents in connection with this Application. Necessary acts carried out by KZ Broadband Technologies, Ltd. on our behalf of the KZ Broadband Technologies, Ltd. in connection with the Application shall have the same effect as acts of the KZ Broadband Technologies, Ltd. The KZ Broadband Technologies, Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, KZ Broadband Technologies, Ltd.

KZ Broadband Technologies, Ltd. Date: May8, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: KZ Broadband Technologies, Ltd. FCC ID: A28ISURF1000A1 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. KZ Broadband Technologies, Ltd. requests that the following documents regarding this submission for FCC ID: A28ISURF1000A1 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX A28ISURF1000A1_Block Diagram.pdf Schematics CONF APPENDIX A28ISURF1000A1_Schematics.pdf Operational Description CONF APPENDIX A28ISURF1000A1_Operational Description.pdf Part list CONF APPENDIX A28ISURF1000A1_BOM.pdf Those documents contain detailed system and equipment description and related information about the product which KZ Broadband Technologies, Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, KZ Broadband Technologies, Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, KZ Broadband Technologies, Ltd.

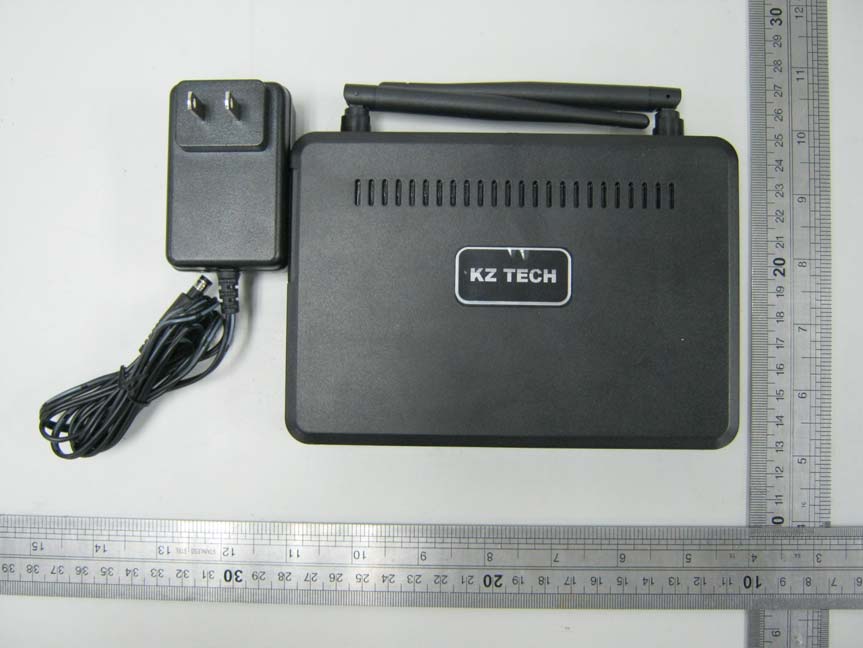

External Photos

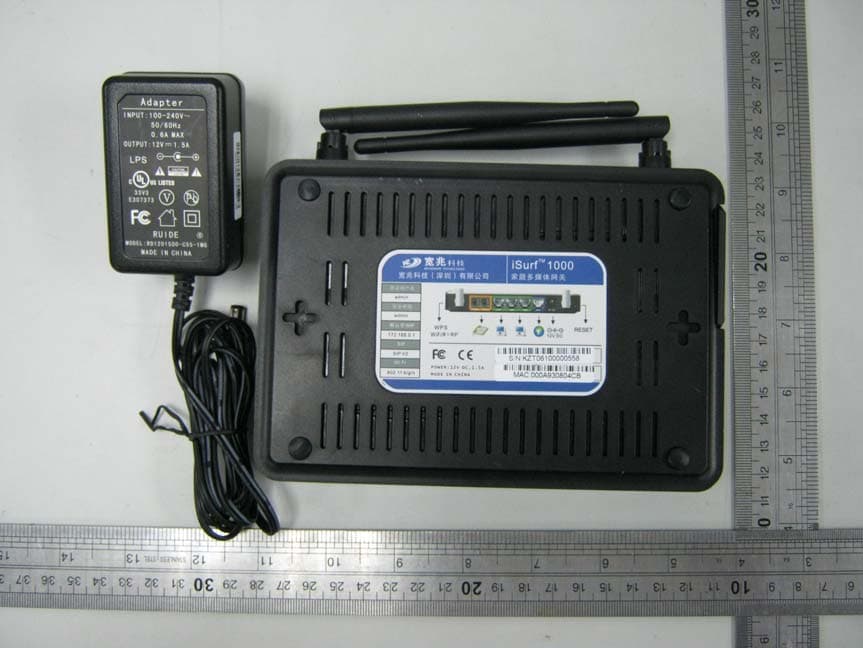

FCC ID: A28ISURF1000A1 Label Label Location

Internal Photos

FCC ID: A28ISURF1000A1 Page 1 of 2 Prediction of MPE limit at given distance Product Description: WIFI VOIP Gateway Type: iSurf 1000 1. Introduction Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2. Limits for Maximum Permissible Exposure According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. According to FCC Part 1.1310 RF exposure is calculated. Limits for General Population/ Uncontrolled Exposure Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 FCC ID: A28ISURF1000A1 Page 2 of 2 3. Test result Maximum peak output power at antenna input terminal(dBm): 16.81 Total Maximum peak output power at antenna input terminal(mW): 48.64 Prediction distance(cm): 20 Predication frequency(MHz): 2437 Antenna Gain (typical) (dBi): 3 Power density at predication frequency at 20 cm(mW/cm 2 ): 0.01 MPE limit for RF exposure at prediction frequency(mW/cm 2 ): 1 4. Conclusion The predicted power density level at 20cm is 0.01mw/cm 2 which is below the uncontrolled exposure limit of 1.0mw/cm2. The EUT is used at least 20cm away from user’s body. It is determined as mobile equipment and complied with the MPE limit.

Report No.: SZ11070055E02 Page 2 of 14 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 1.3.1 Facilities .................................................................................................................................... 6 1.3.2 Test Environment Conditions .................................................................................................... 6 1.3.3 Measurement Uncertainty ......................................................................................................... 6 2. TEST CONDITIONS SETTING............................................................................................... 7 2.1 Test Mode .................................................................................................................................... 7 2.2 Test Setup and Equipments List ................................................................................................ 8 2.2.1 Conducted Emission.................................................................................................................. 8 2.2.2 Radiated Emission ..................................................................................................................... 9 3. 47 CFR PART 15B REQUIREMENTS .................................................................................. 10 3.1 Conducted Emission ................................................................................................................. 10 3.1.1 Requirement ............................................................................................................................ 10 3.1.2 Test Description ...................................................................................................................... 10 3.1.3 Test Result ............................................................................................................................... 10 3.2 Radiated Emission .................................................................................................................... 12 3.2.1 Requirement ............................................................................................................................ 12 3.2.2 Test Description ...................................................................................................................... 12 3.2.3 Test Result ............................................................................................................................... 12 Change History Issue Date Reason for change 1.0 April 20, 2012 First edition Report No.: SZ11070055E02 Page 3 of 14 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ..........................WIFI VOIP Gateway Serial No. ..........................(n.a., marked #1 by test site) Hardware Version ............ .V1.1 Software Version ............... Applicant ........................... Manufacturer .................... . V2.0.0 KZ Broadband Technologies., Ltd. Shenzhen Headquarter: 1601 Tower C, Skyworth Building. High-Tech Industrial Park Nanshan District, Shenzhen, China KZ Broadband Technologies., Ltd. Shenzhen Headquarter: 1601 Tower C, Skyworth Building. High-Tech Industrial Park Nanshan District, Shenzhen, China Modulation Type .............. .DSSS Ancillary Equipment 1 ..... .AC Adapter (Charger for Battery) Brand Name: RUIDE ELECTRONICAL INDUSTRIAL SHENZHEN CO., LTD Model No.: RD1201500-C55-1MG Serial No.: (n.a. marked #1 by test site) Rated Input: 100-240V, 600mA Max, 50/60Hz Rated Output: 12V, 1500mA NOTE: 1. The EUT is a WIFI VOIP Gateway. It supports 2.4G WiFi band and the following is ports parameters: The EUT equipped two FXS ports, four Ethernet Interfaces (one for WAN and three for LAN), a USB port and so on. However, the USB port for this sample is not available, so we don’t test the Report No.: SZ11070055E02 Page 4 of 14 USB port in this report. 2. For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ11070055E02 Page 5 of 14 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC and IC rules and results are as below: No. Section Description Result 1 15.109 Radiated Emission PASS 2 15.107 Conducted Emission PASS NOTE: The tests were performed according to the method of measurements prescribed in ANSI C63.4 2009. Report No.: SZ11070055E02 Page 6 of 14 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 - 60 Atmospheric Pressure (kPa): 86 - 106 1.3.3 Measurement Uncertainty The uncertainty is calculated usi…
