A2EFT004TWireless Thermometer

WIRELESS THERMOMETER FT004 Instruction Manual Inventory of content 1. The indoor station (FT004R) 2. The remote sensor (FT004T) 3. Instruction Manual Function: z Indoor temperature z Outdoor temperature Quick Setup Note: Use good quality Alkaline batteries and avoid rechargeable batteries 1. Place the batteries into the remote sensor first then into the indoor station. The indoor/outdoor temperature will be displayed in indoor station. 2. If there is no temperature reading in the indoor station, make sure the units are within rang of each other or repeat the battery installation procedure. Wait 10 seconds before re-insert the battery again to make a proper reset. Caution z Do not reverse polarity of the batteries z Do not put receiver close to metal How to fix outdoor sensor Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We recommend that you mount the remote sensor on an outside North-facing wall; obstacles such as walls, concrete, and large metal objects will reduce the range. To wall mount, use a screw to affix the back case of the remote sensor . FCC STATEMENT Part 15.19 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Part 15.21 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Part 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Eonword Technology Electronics Co.,Ltd. 2011-11-23 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong ;Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Eonword Technology Electronics Co.,Ltd. 41Room,11Floor,Block B, HedongEdifice, XixiangTown ,BaoanDistrict, ShenzhenCity, Guangdong,China . Dated this Day of 2011-11-23 20 Agency agreement expiration date: 2012-11-23 By: Qing e Xu Signature Printed Title: General Manager On behalf of : Eonword Technology Electronics Co.,Ltd. Telephone: 0755-33518765

Eonword Technology Electronics Co.,Ltd. 2011-11-23 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A2EFT004T Product Name:_ Wireless Thermometer Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2011-11-23 20 By: Qing e Xu Signature Printed Title: General Manager On behalf of : Eonword Technology Electronics Co.,Ltd. Telephone: 0755-33518765

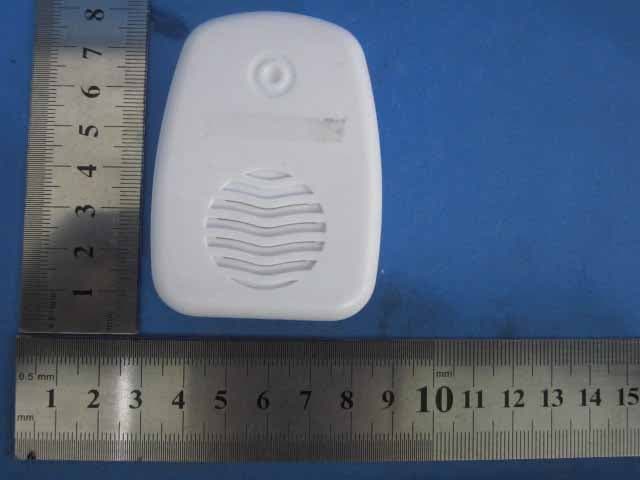

Report No: GTSE11110092301 Global United Technology Services Co., Ltd. Project No.: GTSE111100923RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 19 of 21 8 Photographs - EUT Constructional Details

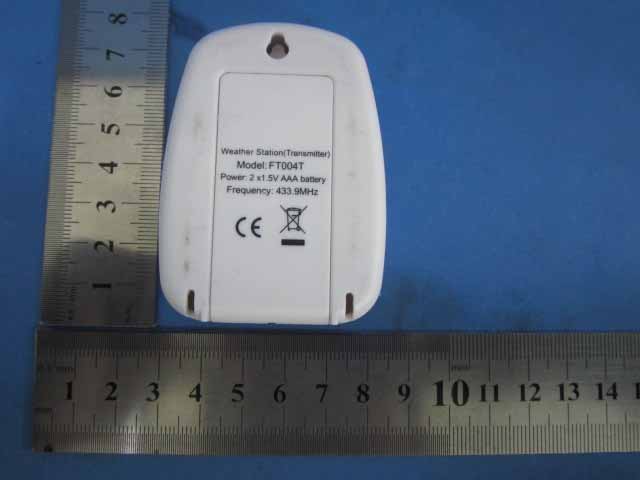

Label 1 Size: 24.00mm x 8.00mm Label 2 Size: 10.00mm x 8.00mm Weather Station (Transmitter) Model: FT004T FCC ID:A2EFT004T

Label 1 location Label 2 location

Report No: GTSE11110092301 Global United Technology Services Co., Ltd. Project No.: GTSE111100923RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 20 of 21 Report No: GTSE11110092301 Global United Technology Services Co., Ltd. Project No.: GTSE111100923RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 21 of 21 ------End------

Global United Technology Services Co., Ltd. Report No: GTSE11110092301 Authorized Signature: Stephen Guo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover PageFCC REPORT Applicant: Eonword Technology Electronics Co.,Ltd. Address of Applicant: 41Room,11Floor,Block B, Hedong Edifice, Xixiang Town, Baoan District, Shenzhen City, Guangdong, China Equipment Under Test (EUT) Product Name: Wireless Thermometer Model No.: FT004T FCC ID: A2EFT004T Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231:2010 Date of sample receipt: Nov. 17, 2011 Date of Test: Nov. 17-21, 2011 Date of report issue: Nov. 21, 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: GTSE11110092301 Global United Technology Services Co., Ltd. Project No.: GTSE111100923RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 21 2 Version Version No. Date Description 00 Nov. 21, 2011 Original Prepared By: Date: Nov. 21, 2011 Project Engineer Check By: Date: Nov. 21, 2011 Reviewer Report No: GTSE11110092301 Global United Technology Services Co., Ltd. Project No.: GTSE111100923RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 21 3 Contents Page 1 COVER PAGE......................................................................................................................................................... 1 2 VERSION.................................................................................................................................................................. 2 3 CONTENTS.............................................................................................................................................................. 3 4 TEST SUMMARY.................................................................................................................................................... 4 5 GENERAL INFORMATION................................................................................................................................... 5 5.1 CLIENT INFORMATION....................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 5 5.3 TEST MODE....................................................................................................................................................... 5 5.4 TEST FACILITY................................................................................................................................................... 6 5.5 TEST LOCATION................................................................................................................................................ 6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 6 5.7 TEST INSTRUMENTS LIST.................................................................................................................................. 7 6 TEST RESULTS AND MEASUREMENT DATA................................................................................................ 8 6.1 ANTENNA REQUIREMENT:................................................................................................................................. 8 6.2 RADIATED EMISSION......................................................................................................................................... 9 6.2.1 Field Strength Of The Fundamental Signal......................................................................................... 11 6.2.2 Spurious Emissions................................................................................................................................. 12 6.3 20DB BANDWIDTH........................................................................................................................................... 14 6.4 DWELL TIME:................................................................................................................................................... 16 6.5 SILENT PERIOD:............................................................................................................................................... 17 7 PHOTOGRAPHS-TEST SETUP PHOTO..............................................................................…

Text truncated - open the document above for the full version.

Report No: GTSE11110092301 Global United Technology Services Co., Ltd. Project No.: GTSE111100923RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 18 of 21 7 Photographs-test setup photo Radiated Emission(below 1G) Radiated Emission(above 1G)
