A3L-EFNN980LED View Cover

English 1 2 Copyright © 2020 Samsung Electronics America, Inc. Other marks are the property of their respective owners. • Attach the LED View Cover to your mobile device () and close the cover () to use it. • The LED View Cover contains magnets. Keep cards with magnetic strips onl y in the pocket of the LED View Cover. • It is recommended to remove your device cover be fore using the Wireless PowerShare feature. • It is recommended to use your device cover without flipping it back before using the UWB feature. • If the product is exposed to humidity or solvents suc h as acetone, it may get stained, wrinkled, miss hapen, or change color. • While using the case, be cautious to prevent scratches or damage from debris. • Visit www.samsung.comto view the user manual m and the safety information. • Your consumer rights are governed by the law of t he country in which you purchased the product. Please contact your service provider for more information. FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device ma y not cause harmful interference, and (2) this device must accept an y inter ference received, including interference that ma y cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to t his device that are not expressly approved b y the manufacturer may void the user’s aut hority to operate the equipment. Samsung Mobile Products and Rec ycling Samsung cares for the environment and encourages its customers to properly dispose of Devices and Samsung accessories in accordance with local re gulations. In some areas, disposal of these items in household or business trash ma y be prohibited. Dispose of other unwanted electronics through an approved rec ycler. To find the nearest rec ycling location, go to our website: http://www.samsung.com/recycling or call 1-800-SAMSUNG. Samsung Electronics America, Inc 85 Challenger Road, Ridgefield Park, New Jersey, 07660 Phone: 1-800-SAMSUNG (726-7864) Printed in Korea A00829 Rev.1.1 USA Type 06/2020 QUICK START GUIDE SMART LED VIEW COVER EF-NN980 Español (castellano) 1 2 Copyright © 2020 Samsung Electronics America, Inc. Otras marcas son propiedad de sus respectivos prop ietarios. • Coloque la LED View Cover en su dispositivo móvil () y cierre la cubierta () para usarlo. • La LED View Cover tiene imanes. Guarde las tarjetas que tengan bandas magnéticas únicamente en el compartimiento de la LED View Cover. • Se sugiere quitar la cubierta del dispositivo antes de utilizar la función Wireless PowerShare. • Se sugiere utilizar la funda de su dispositivo sin cerrarla antes de usar la función de banda ultraancha (BUA). • Si expone el producto a humedad o solventes tales como acetona, es posi ble que se manche, se arrugue, se deforme o cambie el color. • Cuando utilice el estuche, tenga cuidado para evitar raspones o daños causados por la suciedad. • Visite www.samsung.compara ver el manual delm usuario y la información sobre seguridad. • Sus derechos como consumidor se encuentran regi dos por la ley del país en el cual haya adquirido el producto. Para solicitar más información, comuní quese con su proveedor de servicios. Sección 15.19 de la FCC Este dispositivo cumple con la sección 15 de las normas de la Comisión Federal de Comunicaciones (FCC). La operación se encuentra su jeta a las siguientes dos con diciones: (1) el dispositivo no puede provocar inter ferencia dañina, y (2) este dispositivo deberá ace ptar cualquier tipo de interferencia que reciba, inclusive inter ferencia que pueda provocar un funcionamiento no deseado. Sección 15.21 de la FCC Cualquier cambio o modificación (incluyendo las antenas) que se rea lice a este dispositivo y que no se encuentre expresamente autorizada por el fabricante podría anular la autoridad del usuario para operar el equipo. Productos Móviles de Samsung y recic laje Samsung se preocupa por el medio ambiente y recomien da a sus clientes que reciclen los dispositivos y accesorios originales de Samsung de acuerdo con las regulaciones locales. En algunas áreas, la eliminación de estos artículos en la basura doméstica o comercial puede estar prohibida. Deseche otros componentes electrónicos no deseados a través de un reciclador aprobado. Para encontrar el lugar de reciclaje más cercano, visite: http://www.samsung.com/recycling o llame al 1-800-SAMSUNG. Samsung Electronics America, Inc 85 Challenger Road, Ridgefield Park, New Jersey, 07660 Teléfono: 1-800-SAMSUNG (726-7864) GUÍA DE INICIO RÁPIDO SMART LED VIEW COVER EF-NN980

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 6, 2020 FCC ID: A3L-EFNN980 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, LLC. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea June 23 rd , 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L-EFNN980 Gentlemen: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d) The label statement is as follows: The FCC ID label is located inside the LED cover. Users must open the LED cover in order to install the Phone and operate the device. At this time the FCC ID is readily visible to the user without the aid of magnification. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you or it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

SAMS UNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 6, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L-EFNN980 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily re leased to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information pri or to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

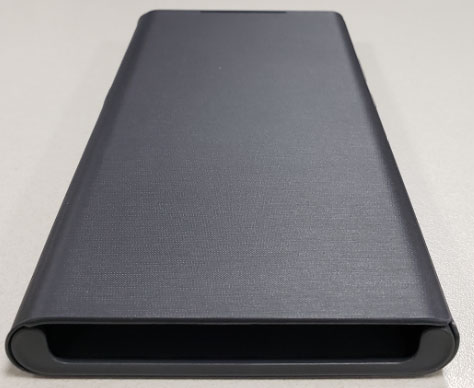

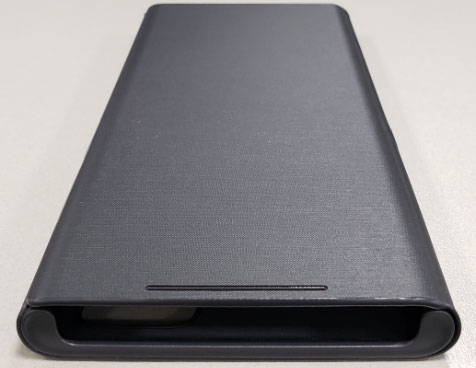

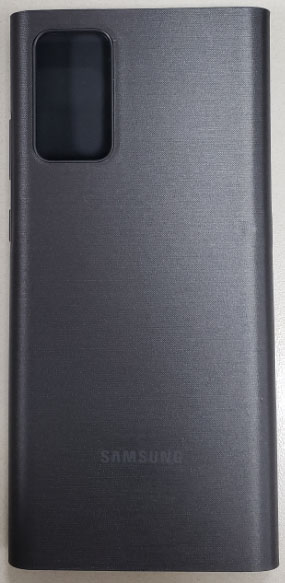

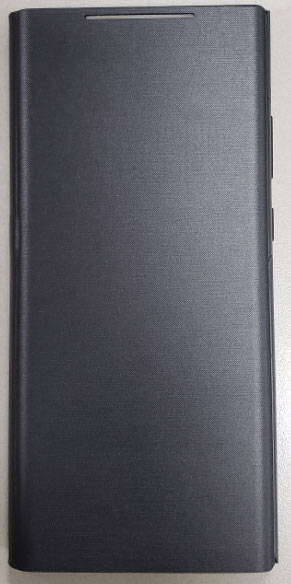

Name of ModelEF-NN980 Samsung Electronics Co., Ltd. Photos of Product (EXTERNAL) FCC IDA3L-EFNN980 SLIDE UP/FOLDER OPEN Top Left FrontBack BottomRight

Label and Location Samsung LED View Cover Model Name: EF-NN980 FCC ID: A3L-EFNN980 Sample Label: Location: Top Inside view Bottom FCC ID is located inside the LED View Cover. Smart LED view cover Model:EF-NN980 Input:3.0V 40 mA PO Box 12987, Dublin, IE IC:649E-EFNN980 FCC ID:A3L-EFNN980 기자재의 명칭:RFID용 무선기기 (13.56MHz 주파수 대역) 모델명:EF-NN980 식별부호:R-R-SEC-EFNN980 상호명:삼성전자(주) 제조연월:별도표시 제조자/제조국가:삼성전자(주)/한국 AS문의/예약:1588-3366/www.3366.co.kr Чехол Smart LED view cover МОДЕЛЬ:EF-NN980 ВХОД/ВХІД:3.0 V 40 mA СДЕЛАНО В КОРЕЕ/ВИРОБЛЕНО В КОРЕЇ EF-NN980 Smart LED view cover Model:EF-NN980 Input:3.0V 40 mA PO Box 12987, Dublin, IE IC:649E-EFNN980 FCC ID:A3L-EFNN980 기자재의 명칭:RFID용 무선기기 (13.56MHz 주파수 대역) 모델명:EF-NN980 식별부호:R-R-SEC-EFNN980 상호명:삼성전자(주) 제조연월:별도표시 제조자/제조국가:삼성전자(주)/한국 AS문의/예약:1588-3366/www.3366.co.kr Чехол Smart LED view cover МОДЕЛЬ:EF-NN980 ВХОД/ВХІД:3.0 V 40 mA СДЕЛАНО В КОРЕЕ/ВИРОБЛЕНО В КОРЕЇ EF-NN980

Name of ModelEF-NN980 ANT Module(Front)ANT Module(Back)Internal Samsung Electronics Co., Ltd. Photos of Product (INTERNAL) FCC IDA3L-EFNN980 SLIDE UP/FOLDER OPENLED Module(Front)LED Module(Back)

FCC ID: A3L-EFNN980 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 28 1M2006110092-01.A3L 06/14 – 06/29/2020 LED View Cover © 2020 PCTEST V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-si Gyeonggi-do, 16677, Korea Date of Testing: 06/14 – 06/29/2020 Test Site/Location: PCTEST Lab. Columbia, MD, USA Test Report Serial No.: 1M2006110092-01.A3L FCC ID: A3L-EFNN980 IC: 649E-EFNN980 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model/HVIN: EF-NN980 EUT Type: LED View Cover Frequency: 13.56MHz FCC Classification: Low Power Communications Device Transmitter (DXX) FCC Rule Part(s): Part 15 Subpart C (15.225) ISED Specification: RSS-210 Issue 10 Test Procedure(s): ANSI C63.10-2013 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctest.com MEASUREMENT REPORT FCC PART 15.225 / ISED RSS-210 NFC FCC ID: A3L-EFNN980 MEASUREMENT REPORT (CERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 28 1M2006110092-01.A3L 06/14 – 06/29/2020 LED View Cover © 2020 PCTEST V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1.0 Introduction ...................................................................................................................................... 3 1.1 Scope..................................................................................................................................................... 3 1.2 PCTEST Test Location .......................................................................................................................... 3 1.3 Test Facility / Accreditations .................................................................................................................. 3 2.0 PRODUCT INFORMATION ............................................................................................................. 4 2.1 Equipment Description ........................................................................................................................... 4 2.2 Test Configuration ................................................................................................................................. 4 2.3 EMI Suppression Device(s)/Modifications .............................................................................................. 4 3.0 DESCRIPTION OF TEST ................................................................................................................ 5 3.1 Evaluation Procedure............................................................................................................................. 5 3.2 AC Line Conducted Emissions .............................................................................................................. 5 3.3 Radiated Emissions ............................................................................................................................... 6 3.4 Environmental Conditions ...................................................................................................................... 6 4.0 ANTENNA REQUIREMENTS .......................................................................................................... 7 5.0 MEASUREMENT UNCERTAINTY .................................................................................................. 8 6.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 9 7.0 TEST DATA ................................................................................................................................... 10 7.1 Summary ............................................................................................................................................. 10 7.2 Occupied Bandwidth Measurement ..................................................................................................... 11 7.3 Frequency Stability Test Data .............................................................................................................. 13 7.4 In-Band Radiated Spurious Emission Measurements .......................................................................... 16 7.5 Radiated Spurious Emission Measurements, Out-of-Band .................................................................. 19 7.6 Line Conducted Measurement Data .......................................................................…
