Printed in Korea E Type. 12/2014 A00429 Rev.1.0 www.samsung.com 2 Copyright © 2014 Samsung Electronics • Please read this manual before using the device to ensure safe and proper use. • Images may differ in appearance from the actual product. Content is subject to change without prior notice. Notices for using Bluetooth • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • When the device is connected to another device via a wireless connection, place your device near to the connected device. Otherwise, the device may not work properly or it may be affected by signal interference. • Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m). The range may change depending on the environment the device is used in. • Ensure that there are no obstacles between your device and a connected device while using a wireless connection. Obstacles include walls and fences. If there are obstacles between the devices, the operating distance may be reduced. • Ensure that the Bluetooth antenna on the connected device is not covered or obstructed. • Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products and interference may occur when making connections near these types of products. 3 • Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your device. • Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files or illegally tapping communications for commercial purposes). Samsung is not responsible for the repercussion of illegal use of the Bluetooth feature. Device layout NFC antenna Charger jack Microphone Noise-cancelling microphone Headband Ear pad Noise-cancelling switch Power switch Notification light Touch pad Audio cable jack Noise-cancelling microphone Adjustable slider / Hinge 4 Package contents Device, Pouch, USB cable, 3.5 mm audio cable, user manual The items supplied with the device and any available accessories may vary depending on the region or service provider. Charging the battery This device has a built-in battery. Before using the device for the first time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. Connect the device to a computer or the USB power adaptor via the USB cable. • The notification light turns red while the device is being charged. The notification light turns green when charging is complete. 5 • To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. • The socket-outlet shall be installed near the equipment and shall be easily accessible. Turning the device on or off Slide the Power switch up to turn on the device. ONOFFPairing mode 6 Registering the device and connecting via the Bluetooth feature Connecting via the NFC feature 1 Activate the NFC and Bluetooth features on the other device. 2 Turn on the headset and place the other device’s NFC antenna near the NFC antenna area ( ) of the headset. Device connection is complete after you allow the other device to connect to your headset. Connecting devices manually 1 Slide the Power switch to pairing mode and hold it for 3 seconds. The headset enters the Bluetooth pairing mode and the notification light flashes red, green, and then blue. 2 On the Bluetooth-enabled device, activate the Bluetooth feature and select Samsung Level On from the detected device list. 7 • Once devices are paired, recently connected devices automatically connect to your headset whenever you turn it on. • The NFC antenna area and the method for connecting via the Bluetooth feature may differ depending on the device. For more information, refer to the device’s user manual. Disconnecting from other devices Turn off the headset or deactivate the Bluetooth feature. Alternatively, place the connected device’s NFC antenna near the NFC antenna area ( ) of the headset. Removing background noise To remove background noise, activate the noise- cancelling feature by sliding the noise-cancelling switch upward. Using the touch pad Use the touch pad on the right side of the headset to control the connected device’s functions. 8 • Use only one finger on the touch pad. It may not work if you use more than one finger. • The touch pad cannot be used while the headset is connected to another device via an audio cable. FunctionMethod Adjusting the volume • Drag upwards or downwards. Playing multimedia files • Play or pause the file: Double- tap. • Play the next or previous file: Drag forwards or backwards. Using calling features • Answer or end a call: Double-tap. • Reject a call: Tap and hold for more than 3 seconds. Launching S Voice • Tap and hold for more than 3 seconds. 9 Sharing music with other headsets Share music that you are listening to on your headset with other headsets of the same model. Ensure that the headset that you want to share music with is turned on. Method 1 Using the Power switch Slide the Power switch to pairing mode. Music that you are currently listening to on your headset is shared with other headsets of the same model. To listen to music playing on another headset, slide the Power switch to pairing mode twice. Method 2 Using Samsung Level On the connected smartphone, download the Samsung Level application from Google Play or GALAXY Apps. Launch the application to share music with other headsets of the same model. For more information, refer to the application’s help information. This application is compatible with Samsung smartphones running Android operating system 4.2.2 or later. The functions may differ depending on the smartphone or the operating s…

Text truncated - open the document above for the full version.

129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐ 742, Korea December 05 , 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, t he undersigned, hereby authorize Lab Manager Hyunchae, You (or Logan, Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relat ing to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the sa me effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐Ro, Yeongtong‐Gu, Suw on‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea December 05, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3L-EOPN900 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

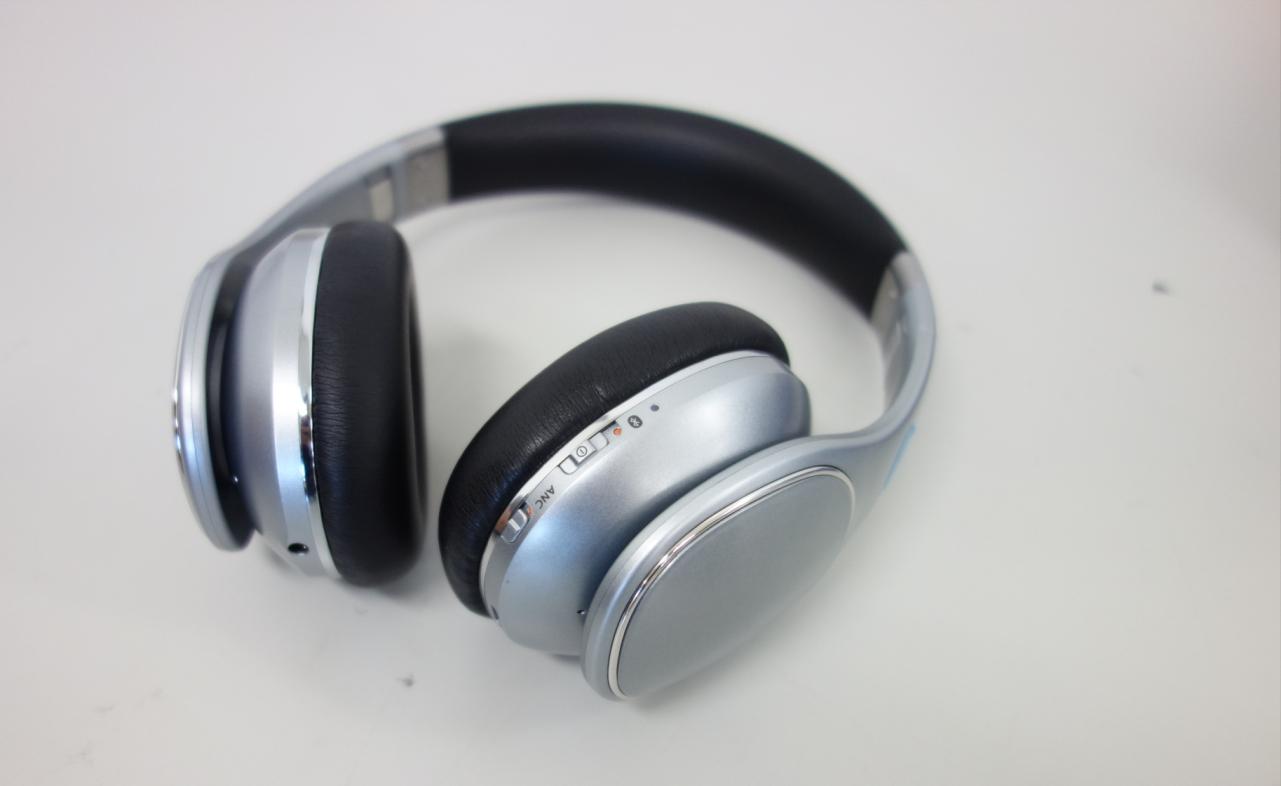

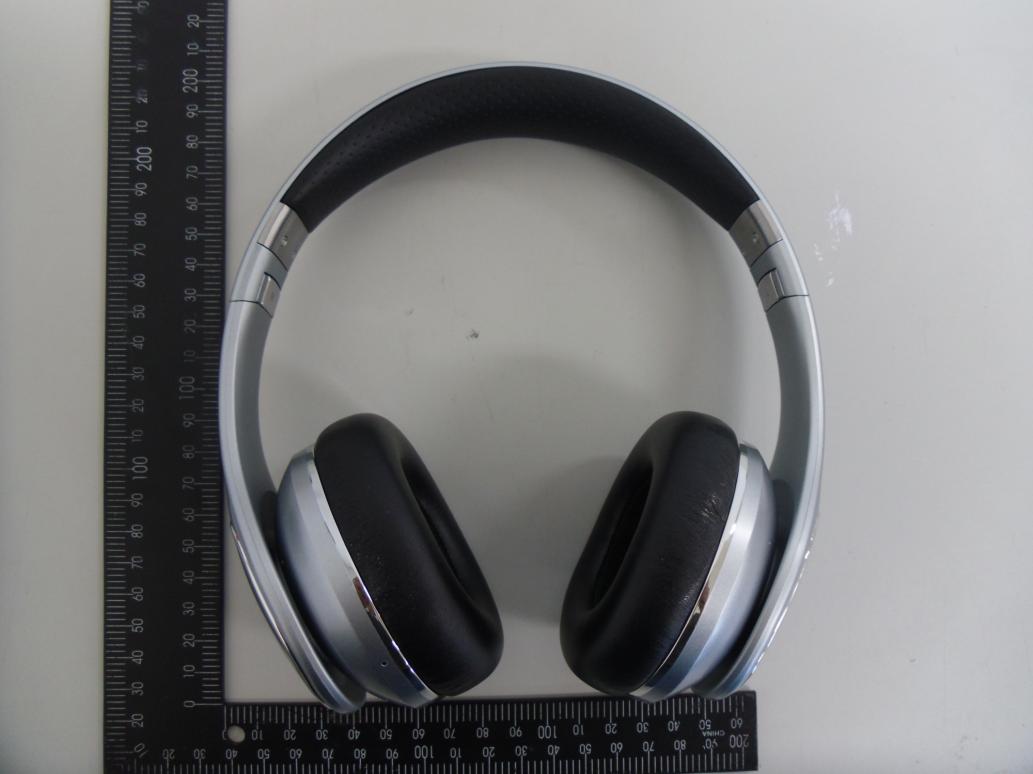

Model : EO-PN900 External photos of EUT Model : EO-PN900 Top view of EUT Bottom view of EUT Model : EO-PN900 Side view of EUT

Label Information FCC ID: A3L-EOPN900 IC: 649E-EOPN900 Left side of EUT

Report Number: F690501/RF-RTL008227-2 Page: 2 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth ------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power ------------------------------------------------------------------- 43 5. Hopping Channel Separation --------------------------------------------------------------------- 45 6. Number of Hopping Frequency ------------------------------------------------------------------ 48 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 52 8. Transmitter AC Power Line Conducted Emission ------------------------------------------- 66 9. Antenna Requirement ------------------------------------------------------------------------------ 71 Report Number: F690501/RF-RTL008227-2 Page: 3 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Lim Yang-Hoon Phone No. : + 82 31 301 7404, + 82 10 2412 1251 1.3. Description of EUT Kind of Product Level On Model Name EO-PN900 Power Supply DC 3.70 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT) Antenna Type Internal type Antenna Gain 2 402 ㎒ ~ 2 480 ㎒ : 5.90 ㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. Report Number: F690501/RF-RTL008227-2 Page: 4 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.5.3. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1 ㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL008227-2 Page: 5 of 71 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMBV100A 255834 Jun. 25, 2014 Annual Jun. 25, 2015 Signal Generator R&S SMR40 100272 Jul…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated Spurious Emission Test (Below 1GHz) B. Photo of Radiated Spurious Emission Test (Above 1GHz) C. Photos of AC Power line emission test
