A3L-EP-PG900IBUS Charger Pad

1 English Safety information To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device Samsung cannot be held responsible for any injury or property damage caused by failure to comply with the safety cautions and regulations Do not use damaged power cords or plugs, or loose electrical sockets Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Do not bend or damage the power cord Do not store your device with metal objects, such as coins, keys, and necklaces Your device may overheat. Do not use your device for a while if the device is overheated Prolonged exposure of your skin to an overheated device may cause low temperature burn symptoms, such as red spots and pigmentation. Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers Your device may overheat and cause a fire. Do not drop or cause an impact to the charger or the device • Store your device only on flat surfaces. • If your device falls, it may be damaged. English 2 Do not bite or suck the device • Doing so may damage the device or cause an explosion. • If children use the device, make sure that they use the device properly. Keep your device dry • Humidity and liquids may damage the parts or electronic circuits in your device. • If your device is wet, dry the device with a towel and take it to a service centre. Do not disassemble, modify, or repair your device • Your device may malfunction and your risk of electric shock is increased. • Any changes or modifications to your device can void your manufacturer’s warranty. If your device needs servicing, take your device to a Samsung Service Centre. 3 English This manual’s images and content may differ from the product. Overview Check the product box for the following items: Wireless Charging Pad and user manual. The items supplied with the Wireless Charging Pad and any available accessories may vary depending on the region. 4 Using the Wireless Charging Pad 1 Connect the Wireless Charging Pad and a charger with a charging cable, and plug the charger into an electric socket. • When the Wireless Charging Pad is connected to the electric socket, the indicator light flashes from red to green to orange, and then turns off. Use only Samsung-approved chargers (over 2 A). Unauthorized chargers may cause damage or the Wireless Charging Pad may malfunction. • The charger and the charging cable are sold separately. • The Wireless Charging Pad’s indicator light flashes differently depending on its status. For more information about the indicator light, see below. If the indicator light is not working properly, reconnect the charger to the Wireless Charging Pad. • To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. • The socket-outlet shall be installed near the equipment and shall be easily accessible. 5 English Indicator lightDevice status Red → Green → Orange When connecting to the power outlet OrangeWhen not charging properly GreenWhen charging properly OffWhen in Idle mode 2 Attach the Wireless Charging Cover to a smartphone, and then place the smartphone on the Wireless Charging Pad. The Wireless Charging Cover is sold separately. For more information about the Wireless Charging Cover, refer to the Wireless Charging Cover’s user manual. 6 3 When the smartphone is fully charged, disconnect the charger from the Wireless Charging Pad. • Check the smartphone’s battery status using the charging icon displayed on the screen. • Do not place any other object between the smartphone and the Wireless Charging Pad. The smartphone may not charge properly. • Charging a smartphone with the Wireless Charging Pad in an area with a weak signal may cause a significant drop in reception. • The Wireless Charging Pad is compatible with WPC certified devices. Do not place the Wireless Charging Cover solely on the Wireless Charging Pad Doing so may overheat the device and cause a fire. 7 English Place the smartphone properly on the Wireless Charging Pad The position guide indicates the upper side, lower side and the centre of the Wireless Charging Pad. Match the upper and lower side of the smartphone with the Wireless Charging Pad, and place the smartphone in the middle. If not, the smartphone may not charge properly, and its signal may drop. 8 Correct disposal of this product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. This EEE is compliant with RoHS. RSS-GEN section 7.1.3 statements This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Indus…

Text truncated - open the document above for the full version.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea February 06, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize th at we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and res olution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate th e products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made know n to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

ϭϮε͕ ^ĂŵƐƵŶ Ő‐ZŽ͕ zĞŽŶŐƚŽŶŐ‐'Ƶ͕ ^ƵǁŽŶ‐ ŝƚLJ 'LJĞŽŶŐŐŝ‐Ž͕ κκϯ‐ϳκϮ͕ <ŽƌĞĂ KĐƚŽďĞƌ Ϯρ͕ ϮϬϭϯ &ĞĚĞƌĂů ŽŵŵƵŶŝĐĂƚŝŽŶƐ ŽŵŵŝƐƐŝŽŶ ƵƚŚŽƌŝnjĂƚŝŽŶ ĂŶĚ ǀĂůƵĂƚŝŽŶ ŝǀŝƐŝŽŶ ϳκϯρ KĂŬůĂŶĚ DŝůůƐ ZŽĂĚ͕ ŽůƵŵďŝĂ͕ D ϮϭϬκς REQUEST OF CONFIDENTIALITY for FCC ID: A3L-EP‐PG900IBU dŽ tŚŽŵ /ƚ DĂLJ ŽŶĐĞƌŶ͗ WƵƌƐƵĂŶƚ ƚŽ ^ĞĐƚŝŽŶƐ Ϭ͘κρϳ ĂŶĚ Ϭ͘κρε ŽĨ ƚŚĞ ŽŵŵŝƐƐŝŽŶ͛Ɛ ZƵůĞƐ ;&Z κϳͿ͕ ĂŶĚ ^ĞĐƚŝŽŶ ρρϮ ;ďͿ ;κͿ ŽĨ ƚŚĞ &ƌĞĞĚŽŵ ŽĨ /ŶĨŽƌŵĂƚŝŽŶ Đƚ͕ ^ĂŵƐƵŶŐ ůĞĐƚƌŽŶŝĐƐ Ž͕͘ >ƚĚ͘ ŚĞƌĞďLJ ƌĞƋƵĞƐƚƐ ĐŽŶĨŝĚĞŶƚŝĂůŝƚLJ ĂŶĚ ƚƌĞĂƚŵĞŶƚ ŽĨ ĐĞƌƚĂŝŶ ŝŶĨŽƌŵĂƚŝŽŶ ĂĐĐŽŵƉĂŶLJŝŶŐ ƚŚŝƐ ĂƉƉůŝĐĂƚŝŽŶ͘ dŚĞ ŵĂƚĞƌŝĂůƐ ĐŽŶƚĂŝŶ ƚƌĂĚĞ ƐĞĐƌĞƚƐ ĂŶĚ ƉƌŽƉƌŝĞƚĂƌLJ ŝŶĨŽƌŵĂƚŝŽŶ ŶŽƚ ĐƵƐƚŽŵĂƌŝůLJ ƌĞůĞĂƐĞĚ ƚŽ ƚŚĞ ƉƵďůŝĐ͘ dŚĞ ƉƵďůŝĐ ĚŝƐĐůŽƐƵƌĞ ŽĨ ƚŚĞƐĞ ŵĂƚƚĞƌƐ ŵŝŐŚƚ ďĞ ŚĂƌŵĨƵů ƚŽ ƚŚĞ ƉƉůŝĐĂŶƚ ĂŶĚ ƉƌŽǀŝĚĞ ƵŶũƵƐƚŝĨŝĞĚ ďĞŶĞĨŝƚƐ ƚŽ ŝƚƐ ĐŽŵƉĞƚŝƚŽƌƐ͘ tĞ ĂƌĞ ĂůƐŽ ŚĞƌĞďLJ ƌĞƋƵĞƐƚ ^ŚŽƌƚ‐dĞƌŵ ŽŶĨŝĚĞŶƚŝĂůŝƚLJ ĨŽƌ ϭΘϬ ĚĂLJƐ ĂĨƚĞƌ ƚŚĞ ŐƌĂŶƚ ĂƐ ŽƵƚůŝŶĞĚ ŝŶ WƵďůŝĐ EŽƚŝĐĞ  Ϭκ‐ϭϳϬρ͘ dŚŝƐ ƉƌŽǀŝƐŝŽŶ ǁŝůů ŐŝǀĞ ^ĂŵƐƵŶŐ ůĞĐƚƌŽŶŝĐƐ Ž͕͘ >ƚĚ ƚĞŵƉŽƌĂƌLJ ĐŽŶĨŝĚĞŶƚŝĂůŝƚLJ ŽĨ ĐŽŵŵĞƌĐŝĂůůLJ ƐĞŶƐŝƚŝǀĞ ŝŶĨŽƌŵĂƚŝŽŶ ƉƌŝŽƌ ƚŽ ƉƌŽĚƵĐƚ ƌĞůĞĂƐĞ͘ dŚĞ ƌĞƋƵĞƐƚĞĚ WĞƌŵĂŶĞŶƚ ĂŶĚ dĞŵƉŽƌĂƌLJ ŽŶĨŝĚĞŶƚŝĂů ĞdžŚŝďŝƚƐ ĂƌĞ ůŝƐƚĞĚ ĂƐ ĨŽůůŽǁƐ͗ CONFIDENTIAL LIST WĞƌŵĂŶĞŶƚ ϭ ůŽĐŬ ŝĂŐƌĂŵ Ϯ KƉĞƌĂƚŝŽŶĂů ĞƐĐƌŝƉƚŝŽŶƐ ϯ ^ĐŚĞŵĂƚŝĐƐ ^ŚŽƌƚ‐dĞƌŵ κ džƚĞƌŶĂů WŚŽƚŽƐ ρ /ŶƚĞƌŶĂů WŚŽƚŽƐ ς dĞƐƚ‐^ĞƚƵƉ WŚŽƚŽƐ ϳ hƐĞƌ͛Ɛ DĂŶƵĂů dŚĞ ƉƉůŝĐĂŶƚ ƵŶĚĞƌƐƚĂŶĚƐ ƚŚĂƚ ƉƵƌƐƵĂŶƚ ƚŽ ZƵůĞ Ϭ͘κρϳ͕ ĚŝƐĐůŽƐƵƌĞ ŽĨ ƚŚŝƐ ĂƉƉůŝĐĂƚŝŽŶ ĂŶĚ Ăůů ĂĐĐŽŵƉĂŶLJŝŶŐ ĚŽĐƵŵĞŶƚĂƚŝŽŶƐ͕ ǁŚĞƌĞ ĂƉƉůŝĐĂďůĞ͕ ǁŝůů ŶŽƚ ďĞ ŵĂĚĞ ƉƵďůŝĐ ďĞĨŽƌĞ ƚŚĞ ĚĂƚĞ ŽĨ ƚŚĞ 'ƌĂŶƚ ĨŽƌ ƚŚŝƐ ĂƉƉůŝĐĂƚŝŽŶ͘ ^ŝŶĐĞƌĞůLJ zŽƵƌƐ͕ ^ĂŶŐ Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

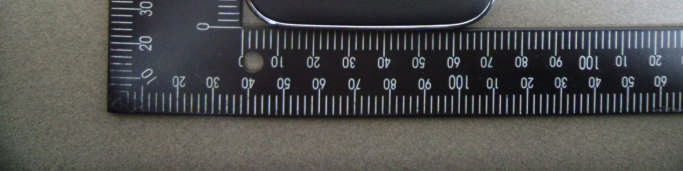

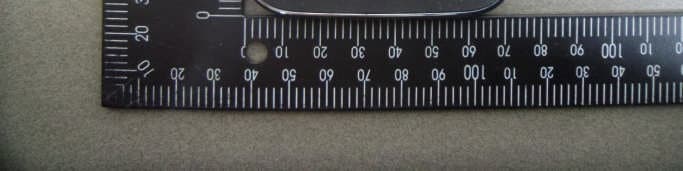

Model : EP-PG900IBU External photos of EUT Model : EP-PG900IBU Front view of EUT Rear view of EUT Model : EP-PG900IBU Top view of EUT Bottom view of EUT Model : EP-PG900IBU Side view of EUT Model : EP-PG900IBU External view of client device with receiver(Galaxy S4)

Label & Location FCC ID: A3L-EP-PG900IBU IC: 649E-EPPG900IBU FCC ID: A3L-EP-PG900IBU IC: 649E-EPPG900IBU This device complies with part 18 of the FCC Rules. This device complies with part 18 of the FCC Rules. MSIP-RMM-SEC-EP-PG900IBK MSIP-RMM-SEC-EP-PG900IBK

Model :EP-PG900IBU Internal photos of EUT Model :EP-PG900IBU Internal view of EUT Model :EP-PG900IBU Top view of main board Bottom view of main board Loop Coil Antenna

Report Number :F690501/RF-RTL007370 Page:2of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------3 2. Test Result -----------------------------------------------------------------------------------7 Report Number :F690501/RF-RTL007370 Page:3of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 - 35, Giheungdanji-ro 121beon-gil, Giheung-gu, Yongin-si, Gyeonggi-do, Korea 446-901 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 428 5700 Fax No. :+82 31 427 2370 1.2. Details of applicant Applicant:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person:Lee, Woo Ram Phone No.:+82 31 301 5379 1.3. Description of EUT Kind of Product S Charger Pad Mini Model Name EP-PG900IBU Power Supply DC 5 V (Used adapter: AC 100 V-240 V) Frequency Range 110㎑~ 205㎑ Operating Conditions -20°C~ 50°C Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature: -20°C~ 50°C 1.5. Test report revision RevisionReport numberDescription 0F690501/RF-RTL007370Initial Report Number :F690501/RF-RTL007370 Page:4of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Spectrum Analyzer R&SFSV30101004Jul. 20, 2013 Annual Jul. 20, 2014 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Jul. 29, 2013BiennialJul. 29, 2015 E-Field ProbeSchaffnerHI-600500086968Jul. 25, 2013 Annual Jul. 25, 2014 Magnetic Field Hitester HIOKI3470080431057Nov. 07, 2013AnnualNov. 07, 2014 Anechoic Chamber WILL TECHNOLOGY L × W × H (7.0 m × 4.0 m × 3.0 m) N/AN/AN/AN.C.R. Mobile Test Unit R&SCMU200109496Feb. 13, 2013 Annual Feb. 13, 2014 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 25Maximum resistive load 250Medium resistive load 666Minimum resistive load Charging Mode 2) with client device (FCC ID : A3LGTI9500) GT-I9500Less than 1 % of battery GT-I9500Less than 50 % of battery GT-I9500100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output current = 25㎃/ 250㎃/ 666㎃ 2) WPC device with client device was investigated each battery status. Report Number :F690501/RF-RTL007370 Page:5of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Battery status during charging condition : -Less than 1 % of battery -Less than 50 % of battery -100 % of battery Galaxy S4 (GT-I9500) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery Report Number :F690501/RF-RTL007370 Page:6of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Operating configurations : Galaxy S4 (GT-I9500) -While the client device was in airplane mode (Trace#1 “M1”) -While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result,GSM850 / GPRS / 1 TXwas found inMiddle channel. -While the wireless charger is charging without the client device. (Trace#3 “M3”) -While the wireless charger is charging with the client device turned off. (Trace#4 “M4”) Plot – fundamental emission comparison -The level of Trace#2 was more than Trace#1, 3 and 4 so Trace#2 was selected. -Trace#2 asGSM850 / GPRS / 1 TXwhich was found inMiddle channelshould be tested with the client device as a worst case. Report Number :F690501/RF-RTL007370 Page:7of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except …

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL007371-2Page:2of28 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information --------------------------------------------------------------------------3 2. Field Strength of Fundamental & Spurious emissions -------------------------------8 3. AC Conducted Power Line emissions----------------------------------------------------15 Report Number:F690501/RF-RTL007371-2Page:3of28 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 - 35, Giheungdanji-ro 121beon-gil, Giheung-gu, Yongin-si, Gyeonggi-do, Korea 446-901 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 428 5700 Fax No. :+82 31 427 2370 1.2. Details of applicant Applicant:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person:Lee, Woo Ram Phone No.:+82 31 301 5379 1.3. Description of EUT Kind of Product S Charger Pad Model Name EP-PG900IBU Power Supply DC 5 V (Used adapter: AC 100 V-240 V) Frequency Range 110㎑~ 205㎑ Operating Conditions -20°C~ 50°C Maximum Field strength 22.08㏈㎶/m at 10 m, -7.46㏈㎶/m at 300 m Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature: -20°C~ 50°C Report Number:F690501/RF-RTL007371-2Page:4of28 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Spectrum Analyzer R&SFSV30101004Jul. 20, 2013 Annual Jul. 20, 2014 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Jul. 29, 2013BiennialJul. 29, 2015 Mobile Test Unit R&SCMU200109496Feb. 05, 2014 Annual Feb. 05, 2015 Test ReceiverR&SESU26100194Sep. 13, 2013 Annual Sep. 13, 2014 2-Line V-Network R&SENV216101180May 15, 2013 Annual May 15, 2014 Turn Table INNCO SYSTEMS DT-3000S-3TN/AN/AN/AN.C.R. Open Area Test Site WILL TECHNOLOGY CO., LTD L × W (22 m × 20 m) N/AN/AN/AN.C.R. 1.6. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 25Maximum resistive load 250Medium resistive load 666Minimum resistive load Charging Mode 2) with client device (FCC ID : A3LGTI9500) GT-I9500Less than 1 % of battery GT-I9500Less than 50 % of battery GT-I9500100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output current = 25㎃/ 250㎃/ 666㎃ 2) WPC device with client device was investigated each battery status. Report Number:F690501/RF-RTL007371-2Page:5of28 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Battery status during charging condition : -Less than 1 % of battery -Less than 50 % of battery -100 % of battery Galaxy S4 (GT-I9500) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery Report Number:F690501/RF-RTL007371-2Page:6of28 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Operating configurations : Galaxy S4 (GT-I9500) -While the client device was in airplane mode (Trace#1 “M1”) -While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result,GSM850 / GPRS / 1 TXwas found inMiddle channel. -While the wireless charger is charging without the client device. (Trace#3 “M3”) -While the wireless charger is charging with the client device turned off. (Trace#4 “M4”) Plot – fundamental emission comparison -The level of Trace#2 was more than Trace#1, 3 and 4 so Trace#2 was selected. -Trace#2 asGSM850 / GPRS / 1 TXwhich was found inMiddle channelshould be tested with the client device as a worst case. Report Number:F690501/RF-RTL007371-2Page:7of28 The results shown in this test report refer only to the sample(s) …

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Radiated Field strength at open area test site Frequency range : 9㎑~ 30㎒ A. the photos of Field strength with Resistive load. Charging current(25 mA) Charging current(250 mA) Charging current(666 mA) B. the photos of Field strength with client device Client device(Galaxy S4) 2. AC Conducted power line emissions Charging current(25 mA) Charging current(250 mA) Charging current(666 mA) Client device(Galaxy S4)
