A3L-HEG-110DR Gateway

DRGWUser’s Manual 1.Main Features The DR Gateway enables you to monitor and control power consumption of installed appliances through WiFi and ZigBee Modem. The DR Gateway enables you to detect the maximum power consumption of home and control power consumption. The DR Gateway collects and saves real-time electricity rates and electricity consumption data using Internet connection with external network. The DR Gateway collects and saves power consumption of home and each appliance. The DR Gateway enables internet connectivity and sharing of standard wired and wireless network devices which connected to gateway. When connected to Broadband internet, the DR Gateway offers remote access from any internet enabled computer. This allows users to monitor and control their home appliances. 2.Product Specifications ItemsSpecifications Fast Ethernet 10Base-T / 100Base-Tx / 1000Base-T WAN 1 port / LAN 4 port WiFiIEEE 802.11b/g/n support ZigBee 2 Channel built-in 802.15.4 support SerialRS-232C console port (For Services Use Only) Power Source Power Adapter : DC 5V / 2A Power Source : 110-220VAC 50Hz/60Hz Temperature and Humidity Operation Temperature : 0°C ~ 50 °C Humidity : 10% ~ 90% Size (L x W x H)230 x 120 x 45 mm Functions of LED LEDStateColorFunctions RUN ONBlueNormal Operation OFFNoneNo Power, or Abnormal State WAN ON BlueNormal linked state (1G bps network) Yellow-GreenData transmission (1G bps network) BLINK BlueNormal linked state (100M/10M bps network) Yellow-GreenData transmission (100M/10M bps network) OFFNoneNot connected state LAN 1 2 3 4 ON BlueNormal linked state (1G bps network) Yellow-GreenData transmission (1G bps network) BLINK BlueNormal linked state (100M/10M bps network) Yellow-GreenData transmission (100M/10M bps network) OFFNoneNot connected state PLCBLINKBlueData transmission of ZigBee Modem A Indicates ON and OFF state of the DR Gateway Indicates the Internet connection and Communicationstate ZigBee Modem B communication state Indicates LAN connection and communication state ZigBee Modem A communication state OFFNoneInitial power on state of ZigBee Modem A RF BLINKBlueData transmission of ZigBee Modem B OFFNoneInitial power on state of ZigBee Modem B Accessories -AC Adapter 1 EA -LAN Cable 1 EA -User ’s Manual For Service Use Only Jack forconnecting the power source cable RJ-45 jack for connecting UTP cable for WAN connectivity RJ-45 jacks for connecting UTP cables for LAN connectivity -Please make sure that you read and follow all safety instructions described in this manual. Instructions for connecting the power source Only use the AC adapter provided with the product. Do not touch the power source plug with wet hands. When using multi-outlet extension cord, do not exceed the rating specifications (voltage/current) of the extension cord.  If exceeding the rating of the extension cord, it may result in a risk of fire. Do not bend the power cord and ensure it is not placed under a heavy object.  If the power source is left plugged in when the cord is damaged, it may result in a risk of electric shock and fire. If water or other substances get inside the power source or the system, unplug the power source and contact your dealer.  It may result in a risk of fire. If the power source plug/outlet are covered with dust, clean them.  It may result in a risk of fire. Plug the power source to an outlet with a grounding terminal.  Not using an outlet with a grounding terminal may result in a risk of electric shock. Instructions when Installing Cut off the power sources of all the peripheral devices connected to the product. Unplug the power cord to turn the power off. Do not attempt to repair any part of the power supply on your own.Contact your dealer if you believe that it requires repair or maintenance. The system power cord must be plugged into a properly grounded outlet to prevent electric shock. Ensure that it is plugged into a grounded outlet. Do not install the product in locations with high humidity. It may result in a risk of electric shock. Use the product within the operational humidity range specified in the manual. Keep plastic packaging away from children.  If they wear the plastic package on their heads, they can suffocate. Do not block any of the product's ports or vents. Do not put any object inside the product.  If ports or vents are blocked with any material, internal parts of the product can be damaged and result in a risk of fire or electric shock. When installing the product, check the following before selecting the location.  Air is clean.  Proper ventilation is provided.  Not in direct sunlight, or near heat sources.  There is no vibration or physical shock.  Well away from electric devices causing strong electromagnetic radiation.  Outlet is properly grounded.  Enough space to reach power cords.  In areas where severe thunderstorm might occur, connect the system to a circuit breaker and separate the communication lines from the modem. Connect power source directly to the outlet.  Otherwise it may result in a risk of fire. If there is any noise from the power source plug or the outlet, unplug the power source and contact your dealer.  If the power source is left plugged in, it may result in a risk of electric shock and fire. Instructions when using DR Gateway When cleaning the product, make sure that you unplug all the power source cables before cleaning.  It may result in a risk of electric shock. Do not place cup or any container filled with chemical or water on or near the product.  If chemical or other substances leak inside of the product, it can cause parts to be damaged and result in a risk of electric shock and fire. Do not expose the product to direct sunlight.  In particular, if the product is exposed to direct sunlight in an airtight space such as in a car, the inside temperature of the product increases and it can cause its shape to be deformed or it may result in a risk of fire. If the product is dropped or broken …

Text truncated - open the document above for the full version.

Date: Oct 19, 2010 Fe deral Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL CCS Certi fication Division 47173 Benicia Street Fremont, CA 94538, USA Dear Sir/Madam We, SAMSUNG ELECTRONICS CO., LTD., located at 416, Maetan-3dong, Yeongtong-gu, Suwon-City, Gyeonggi-do, 443-742, Korea as manufacturer of the product model: HEG­110, declare that HEG­110 only support 1~11 channels in USA. The other channels will be disabled by software. FCC ID: A3L­HEG­110 Sincerely, _________________________________ Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: February 14, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

If you have not received all pages, please call the direct phone number. FAX : 031-428-5859 TEL : 031-428-5744 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Samsung Electronics , would like the following documents regarding this submission for FCC ID: A3L ­H EG­110 to be kept confidential. 1. Schematics 2. Operating description 3. Block diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

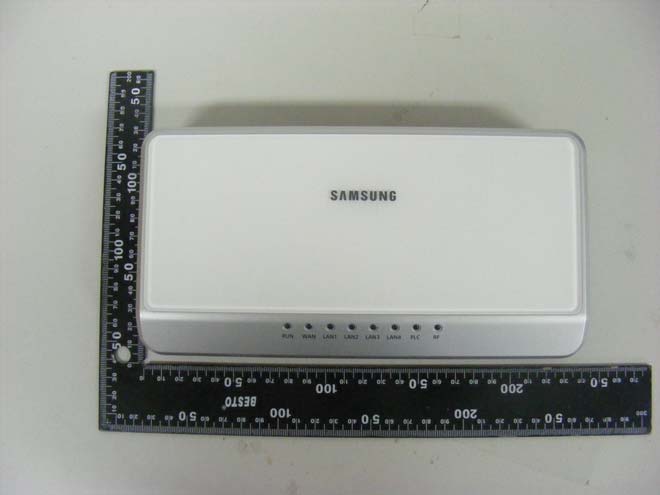

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC/IC Label 1. FCC Label Drawing 2. FCC Label Location

Internal photos of EUT PCB top view (Main Board) PCB bottom view (Main board) PCB top view (WLAN Module Board) PCB bottom view (WLAN Module board) WALN Antenna1 view WALN Antenna2 view Zigbee Antenna view

Report Number: F690501/ RF-RTL004757-1 Page: 2 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee INDEX Table of contents 1. General information -------------------------------------------------------------------------------------- 3 2. Transmitter radiated spurious emissions and conducted spurious emission -------------- 6 3. 6 ㏈ bandwid th ------------------------------------------------------------------------------------------- 46 4. Maximum peak output power -------------------------------------------------------------------------- 60 5. Power Spectral Density --------------------------------------------------------------------------------- 63 6. Transmitter AC Power Line Conducted Emission------------------------------------------------- 78 7. Antenna Requirement ----------------------------------------------------------------------------------- 83 8. RF Exposure evaluation -------------------------------------------------------------------------------- 84 Report Number: F690501/ RF-RTL004757-1 Page: 3 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-dong, Korea - 705, Dongcheon-dong Suji-gu, Yongin-si, Gyeonggi-do, Korea www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 416, Maetan3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Dong-Seok Kim Phone No. : +82 +31 279 7481 1.3. Description of EUT Kind of Product DR Gateway Model Name HEG-110 Serial Number N / A Power Supply AC 100 ~240 V Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (80 2.11b/g/n-HT20, 2X2 MIMO) 2 422 ㎒ ~ 2 452 ㎒ (8 02.11n-HT40, 2X2 M IMO) 2 405 ㎒ ~ 2 475 ㎒ (Zig bee) Modulation Technique DSSS, OFDM Number of Channels 11 Ch (b/g/n-HT20), 7 Ch (HT40), 15 Ch (Zigbee) Antenna Type Integral Type Antenna Gain 7.006 ㏈i(Combined), 4.887 ㏈i( Ant 1), 2.873 ㏈i( Ant 2), 0.477 ㏈i( Zigbee) 1.4. Declaration by the manufacturer - This device include 2 same zigbee module which has 2 antenna each.(MISO) Those zigbee modules can transmit at the same time but only transmit in different frequency. Report Number: F690501/ RF-RTL004757-1 Page: 4 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator R & S SMR40 Jul. 15, 2011 Spectrum Analyzer R & S FSV30 Apr. 01, 2012 Preamplifier H.P 8447F Jul. 05, 2011 Preamplifier Agilent 8449B Mar. 31, 2012 Power Sensor R & S 100748 Aug. 14, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2011 Test Receiver R & S ESU26 Feb. 21, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2011 Horn Antenna R & S HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170 Mar. 17, 2012 Antenna Master EMCO 1050 N.C.R. Turn Table Daeil EMC DI-1500 N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m×6.4 m×6.6 m) N.C.R. Two-Line V-Network R & S ENV216 Jan. 04, 2012 Test Receiver R & S ESHS10 Jul. 13, 2011 Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N.C.R. Report Number: F690501/ RF-RTL004757-1 Page: 5 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart C Standard section Test Item Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) 6 dB Bandwidth Complied 15.247(b)(3) Maximum Peak Output Power Complied 15.247(e) Power Spectral Density Complied 15.207 Transmitter AC Power Line Conducted Emission Complied 15.247(i) 1.1307(b)(1) Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.7. Conclusion of worst-case The field strength of spurious emission was measured in three orthogonal EUT positions (X-axis, Y-axis and Z-axis). Worst case is X -axis. 1 Mbps is the highest output power in the 11b. 6 Mbps is the highest output power in the 11g. MCS0 mode is the highest output power in the 11n (HT20), MCS0 mode is the highest output power in the 11n (HT40). 1.8. Test report revision Revision Report number Description 0 F690501/RF-RTL004757 Initial 1 F690501/RF-RTL004757-1 Retest for conducted spurious emission Report Number: F690501/ RF-RTL004757-1 Page: 6 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.co…

Text truncated - open the document above for the full version.

Report Number: F690501/ RF-RTL004757-1 Page: 51 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 6 ㏈ Bandwidth OFDM : 802.11g ANT1 Low Channel Middle Channel Report Number: F690501/ RF-RTL004757-1 Page: 52 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee High Channel 6 ㏈ Bandwidth OFDM : 802.11g ANT2 Low Channel Report Number: F690501/ RF-RTL004757-1 Page: 53 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee Middle Channel High Channel Report Number: F690501/ RF-RTL004757-1 Page: 54 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 6 ㏈ Bandwidth OFDM : 802.11n HT20 ANT1 Low Channel Middle Channel Report Number: F690501/ RF-RTL004757-1 Page: 55 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee High Channel 6 ㏈ Bandwidth OFDM : 802.11n HT20 ANT2 Low Channel Report Number: F690501/ RF-RTL004757-1 Page: 56 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee Middle Channel High Channel Report Number: F690501/ RF-RTL004757-1 Page: 57 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 6 ㏈ Bandwidth OFDM : 802.11n HT40 ANT1 Low Channel Middle Channel Report Number: F690501/ RF-RTL004757-1 Page: 58 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee High Channel 6 ㏈ Bandwidth OFDM : 802.11n HT40 ANT2 Low Channel Report Number: F690501/ RF-RTL004757-1 Page: 59 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee Middle Channel High Channel Report Number: F690501/ RF-RTL004757-1 Page: 60 of 86 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 4. Maximum Peak Output Power Measurement 4.1. Test Setup EUT Power sensor Notebook 4.2. Limit According to §15.247(b)(3), for systems using digital modulation in the 902 ~ 928 ㎒, 2 400 ~2 483.5 ㎒, and 5 725 ~ 5 850 ㎒ band: 1 Watt. As an alternative to a peak power measurement, compliance with the one watt limit can be based on a measurement of the maximum conducted output power. Maximum Conducted output Power is defi ned a s the total tran smit power d elivered to all ant ennas an d a ntenna el ements ave raged across all symbols in the signaling alphabet when the transmitter is operating at its maximum powe r control level. Power must be su mmed across all antenna e lements. The average mu st not includ e any intervals during which the transmitter is off or i s transmitting at a reduced power level. If multiple modes of operation are possible (e.g., alternat ive modulation methods), the maximum condu cted output powe r is the highest total transmit power occurring in any mode. According to §15.247 (b)(4), the con ducted o utput powe r limit specified in paragraph(b) of this section is based on th e use of an tenna with d irectional gai ns that do not excee d 6 ㏈i. Except as sho wn in paragraph(c) of this se ction, if transm itting antenn a of dire ctional gain greater than 6 ㏈i a re us ed, the conducted output power from the intentional radiator shall be reduced …

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL004758 Page: 2 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.kr.sgs.com/ee INDEX Table of contents 1. General information -------------------------------------------------------------------------------------- 3 2. Transmitter radiated spurious emissions and conducted spurious emission -------------- 6 3. 6 ㏈ bandwid th ------------------------------------------------------------------------------------------- 20 4. Maximum peak output power -------------------------------------------------------------------------- 25 5. Power Spectral Density --------------------------------------------------------------------------------- 27 6. Transmitter AC Power Line Conducted Emission------------------------------------------------- 32 7. Antenna Requirement ----------------------------------------------------------------------------------- 37 8. RF Exposure evaluation -------------------------------------------------------------------------------- 38 Report Number: F690501/RF-RTL004758 Page: 3 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.kr.sgs.com/ee 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 416, Maetan3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Dong-Seok Kim Phone No. : +82 +31 279 7481 1.3. Description of EUT Kind of Product DR Gateway Model Name HEG-110 Serial Number N / A Power Supply AC 100 ~240 V Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (80 2.11b/g/n-HT20, 2X2 MIMO) 2 422 ㎒ ~ 2 452 ㎒ (8 02.11n-HT40, 2X2 MIMO) 2 405 ㎒ ~ 2 475 ㎒ (Zig bee) Modulation Technique DSSS, OFDM Number of Channels 11 Ch (b/g/n-HT20), 7 Ch (HT40), 15 Ch (Zigbee) Antenna Type Integral Type Antenna Gain 7.006 ㏈i(Combined), 4.887 ㏈i( Ant 1), 2.873 ㏈i( Ant 2), 0.477 ㏈i( Zigbee) 1.4. Declaration by the manufacturer - This device include 2 same zigbee module which has 2 antenna each.(MISO) Those zigbee modules can transmit at the same time but only transmit in different frequency. Report Number: F690501/RF-RTL004758 Page: 4 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.kr.sgs.com/ee 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator Agilent E4438C Mar. 31, 2012 Signal Generator Rohde & Schwarz SMR40 Jul. 15, 2011 Spectrum Analyzer R & S FSV30 Apr. 01, 2012 Power sensor R & S NRP-Z81 Aug. 14, 2011 Preamplifier H.P 8447F Jul. 05, 2011 Preamplifier Agilent 8449B Mar. 31, 2012 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2011 Test Receiver R & S ESU26 Feb. 21, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK 396 Jul. 22, 2011 Horn Antenna R & S HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170 Mar. 17, 2012 Anechoic Chamber SY Corporation L × W × H (9.6 m×6.4 m×6.6 m) N.C.R. Two-Line V-Network R & S ENV216 Jan. 04, 2012 Test Receiver R & S ESHS10 Jul. 13, 2011 Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N.C.R. Report Number: F690501/RF-RTL004758 Page: 5 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.kr.sgs.com/ee 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart C Standard section Test Item Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) 6 dB Bandwidth Complied 15.247(b)(3) Maximum Peak Output Power Complied 15.247(e) Power Spectral Density Complied 15.207 Transmitter AC Power Line Conducted Emission Complied 15.247(i) 1.1307(b)(1) Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.7. Test report revision Revision Report number Description 0 F690501/RF-RTL004758 Initial Report Number: F690501/RF-RTL004758 Page: 6 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.kr.sgs.com/ee 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission 2.1. Test Setup 2.1.1. Transmitter Radiated Spurious Emissions The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ E missions. The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓ to 24 ㎓ E missions. Report Number: F690501/RF-RTL004758 Page: 7 of 39 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunp…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Spurious Emission Test B. Photos of conducted power line test
