A3L-HHG3004H2Home Gateway

Home Gateway HHG-3004H2 User’s Manual ELECTRONICS RUN WAN LAN1 LAN2 LAN3 LAN4 PLC RF HHG-3004H2(16~21) 12/28/05 2:19 PM Page 21 HHG-3004H2(02~15) 12/28/05 2:18 PM Page 2 3 Features of the Home Gateway Safety Instructions Product Overview Product Specifications 5 6 12 14 Introduction 1 Others 2 Maintenance and Troubleshooting Glossary FCC Notices 17 18 19 Table of Contents HHG-3004H2(02~15) 12/28/05 2:18 PM Page 3 4 HOME GATEWAY SYSTEM Page 5 Introduction The Home Gateway is a home network controller using diverse technologies such as Ethernet, power line communication and RF communication. In addition to providing high speed Internet for computer and information communication devices, it also monitors and controls the status of electronic appliances (Light switch, Thermostat, Plug-in Adaptor and etc,). PART 1 RUN WAN LAN1 LAN2 LAN3 LAN4 PLC RF Page 6 Page 12 Page 14 Features of the Home Gateway Safety Instructions Product Overview Product Specifications HHG-3004H2(02~15) 12/28/05 2:18 PM Page 4  4 Port Fast Ethernet Router  External ADSL/Cable modem support (PPPoE)  Very High Speed Data Communication  Remote Web-based Access and Management  Home device control using Power Line Communication (PLC / LonWorks)  Home device control using RF communication Features of the Home Gateway 5 PART 1. Introduction ◗ Diverse Applications The Home Gateway provides connectivity across various network platforms, including Ethernet, Power Line Control, and RF. Through its built-in web server, it provides an easy to use interface enabling device monitoring and control. The homevita software also enables automation, scheduling, and other advanced features providing easy and convenient control of everyday tasks. The Home Gateway enables Internet connectivity and sharing through standard TCP/IP routing, Networking and AC power line communication using an Internet connection with external ADSL or Cable modem. ◗ Remote Web-based Management When connected to Broadband Internet, the Home Gateway offers remote access from almost any Internet enabled computer. This allows users to securely log in to the home gateway when away from home, and monitor and control their homevita system. 1. Main Features ◗ PLC (Power line communication) Home Device Control The Home Gateway enables you to monitor and control various PLC devices such as light switches. ◗ Internet Access from IT devices including PC The Home Gateway enables you to access the Internet from multiple IT devices at the same time. ◗ RF Home Appliances Control The Home Gateway enables you to monitor and control the status of various RF electronic devices including your home Thermostat. 2. Various Services Main Features ✻ PLC (Power Line Communication) is a wire line technology that uses the AC wiring in your home for data transmission. HHG-3004H2(02~15) 12/28/05 2:18 PM Page 5 6 Safety Instructions • Please make sure that you read and follow all safety instructions described in this manual. • This product is installed and managed by authorized installation personnel, so please consult the installing dealer if there is any problem. Caution Please check the following items on the power supply system in order to prevent electric shock accident. Instructions on power supply cord  Only use the AC adapter provided with the product.  The power cord should meet the AC voltage standard of the region it will be used in.  The power cord, including the cable and the plugs at either end, must be rated to 150% of the electricity supplied by the power source.  The power cord must be approved by the safety regulatory of the region it will be used in.  The power cord plug should be plugged into an IEC Female connector.  The power cord is the main device used to cut AC power. It should be installed in an easy to reach place near the device in case the power cord needs to be unplugged. Caution Only a service person should open the product because the internal part of the product can cause electric shock and system malfunction. Unplug the AC power cord before opening the product. Caution The system power cord must be plugged into a properly grounded outlet to prevent electric shock. Ensure that it is plugged into a grounded outlet. Instructions before installing  Cut off the power sources of all the peripheral devices connected to the product.  Unplug the power cord to turn the power off.  Label each cable and communication line connected to I/O connector at the back of the product in order to identify them, and then pull them out of the connector.  Do not attempt to repair any part of the power supply on your own. Contact your dealer if you believe that it requires repair or maintenence. Description of Safety Symbol If the instructions are not followed, user may be injured, property damage may occur or the product may not function properly. If the instructions are not followed, user may be fatally injured or seriously wounded. Warning Caution HHG-3004H2(02~15) 12/28/05 2:18 PM Page 6 7 PART 1. Introduction Warning Do not install the product in locations with high humidity. It may result in a risk of electric shock. Use the product within the operational humidity range specified in the manual. Caution Keep plastic packaging away from children. Instructions when installing Warning When installing the product, check the following before selecting the location.  Air is clean.  Proper ventilation is provided.  Not in direct sunlight, or near heat sources.  There is no vibration or physical shock.  Well away from electric devices causing strong electromagnetic radiation.  Outlet is properly grounded.  Enough space to reach power cords.  In areas where severe thunderstorm might occur, connect the system to a circuit breaker and separate the communication lines from the modem.  If they wear the plastic package on their heads, they can suffocate. Caution Do not block any of the product's ports or vents. Do not put any object inside the product.  If ports or vents …

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. www.samsung.com Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Title / Model A3L-HHG3004H2 Home Gateway / HHG-3004H2 For the product stated above, we request that the following information be held confidential: 1) Block Diagram 2) Schematic Diagram 3) Part List No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Samsung Electronics Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Seung Bum Oh / Assistant Manager email: [email protected] Samsung Electronics Co., Ltd. #416 Metan-Dong, Yeongtong-Gu, Suwon-City, Gyunggi-Do, Korea. Tel: 82-31-229-1414 Fax: 82-31-229-1029 http://www.samsung.com

Samsung Electronics Co., Ltd. #416 Metan-Dong, Yeongtong-Gu, Suwon-City, Gyunggi-Do, Korea Date: MAR 19, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: A3L-HHG3004H2 Samsung Electronics Co., Ltd. Part 15 Certification To whom it ma y concern: We, the undersigned. here by authorized KOREA EMC LABORATORY toact on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to thes e manners. Any and all acts carried out by KOREA EMC LABORATORY on our behalf shall have the same effect as acts of our own. This authorization is valid until April 31, 2006. Sincerel y Yours, ---------------------------------------------- Seung Bum, Oh / Assistant Manager CS part/ Digital System Division,

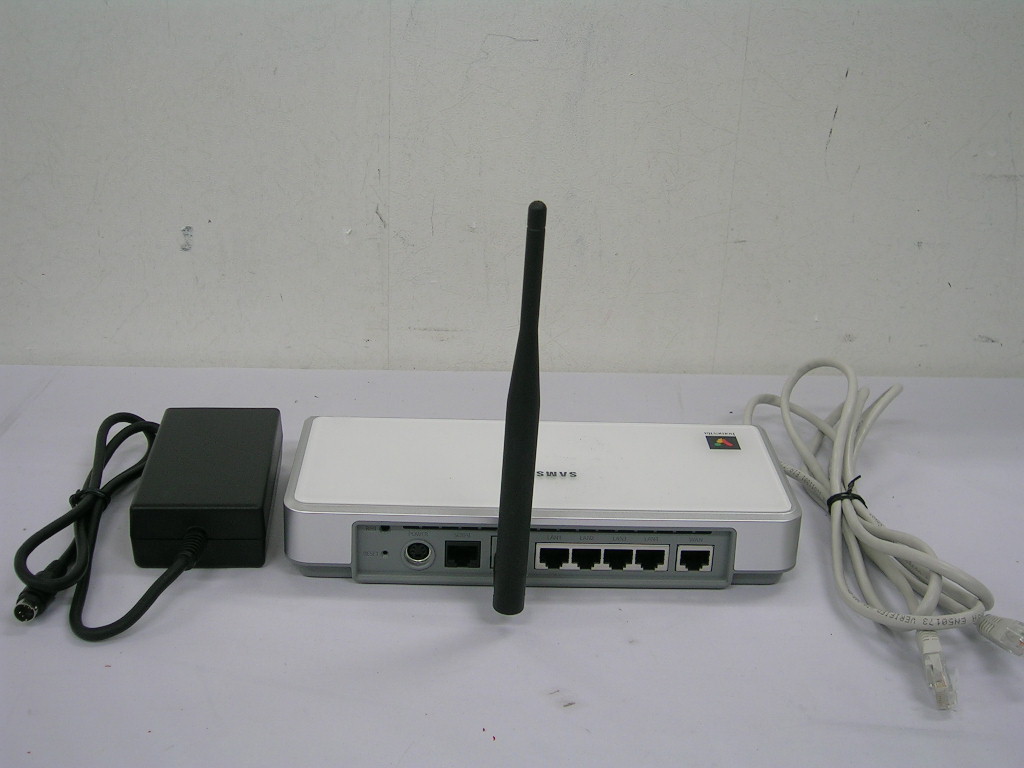

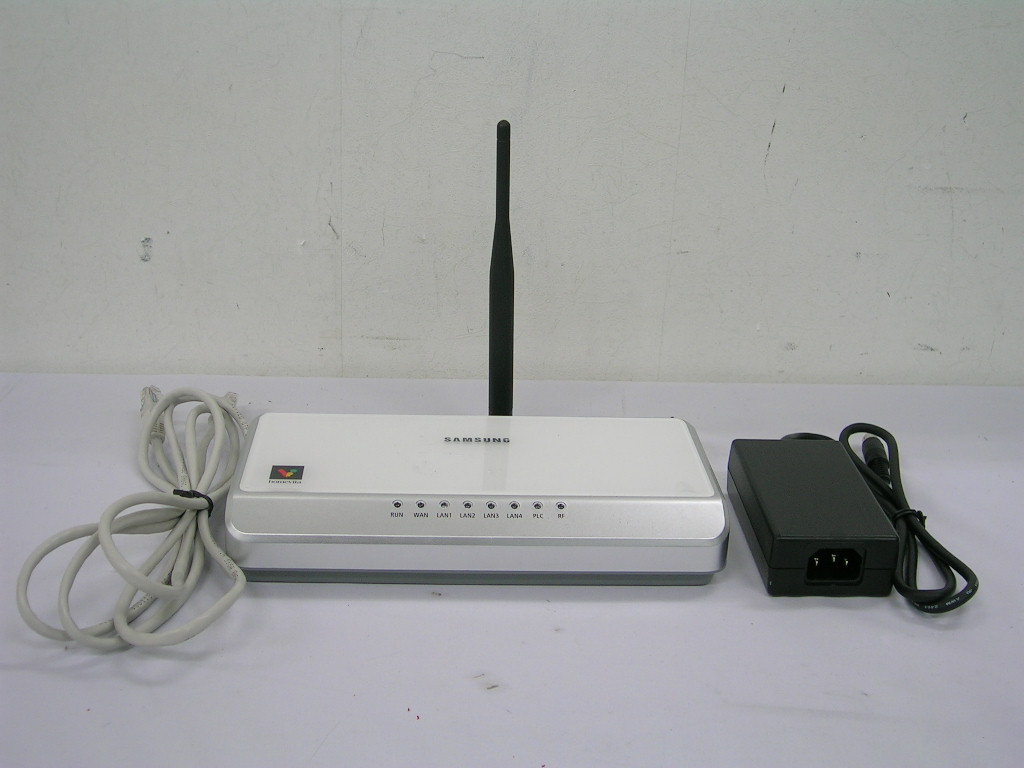

External Photographs of EUT

FCC ID Label Location & Sample Label is permanently attached on the rear of the product 94 mm 42 mm

Internal Photographs of EUT Main Board RF(Zigbee) Board PLC Board

2.4GHz APXtender “Rubber Duck” Omni Features • 5.5dBi Gain 2.4GHz Omni Directional Indoor Antenna • Direct replacement for 2.2dBi rubber duck antenna that is standard on most indoor access points and bridges. • Extends Range of 2.4GHz Wireless Access Points or Wireless Bridges Applications • 2.4GHz Wireless Access Points • 2.4GHz Wireless Client Bridges • 2.4GHz Wireless Routers • 54G Wireless Equipment Description The 5.5dBi APXtender Indoor Rubber Duck Omnidirectional Antenna is used to extend the range of indoor access points or client bridges in 802.11 2.4GHz wireless LAN environments. The antenna features a 360 Degree Horizontal Transmission Pattern and a 50 Degree Vertical Transmission Pattern. The transmit/receive element can be tilted in relation to the base to direct signal where it is needed (0, 45, 90 degrees). The antennas are available in various connectors to fit most wireless radio equipment. Parameter Min Typ Max Units Frequency Range 2400 2485 MHz Gain 5.5 dBi VSWR 1.5:1 Impedance 50 OHM Input Power 10 W Operating Temperature -10 +60 Deg C Weight 0.9 (25) oz (gr) Dimension RPSMA/SMA - 7.75 x 0.5D (197 x 12.7D) TPTNC – 7.97 x 0.57D (203 x 14.5D) In (mm) Specifications IN24-5RD DATASHEET IN24-5RD Specifications Subject to Change Without Notice IN24-5RD Spec Rev 3 21-Mar-05 Page 2 Notes: • All shipments F.O.B. Bluffdale, UT 84065 • All antennas carry a 2 Year Warranty System Ordering: IN24-5RD-SMA 5.5dBi 2.4GHz APXtender – SMA Male Connector IN24-5RD-RSMA 5.5dBi 2.4GHz APXtender – Reverse Polarity SMA Connector (Dlink, smartBridges, etc) IN24-5RD-RTNC 5.5dBi 2.4GHz APXtender – Reverse Polarity TNC Connector (Linksys, Cisco, etc) For further information contact: H Plane - Azimuth E Plane - Vertical Antenna Plots @ 2450 MHz [email protected] Connex Wireless Website: www.connexwireless.com

Theory of Operation The Radio Module consists of two subsections – an RF Processor and an RF Transceiver. See the Block Diagram on page 2. RF Processor The onboard RF Processor is responsible for communicating with the host device that it is plugged into, controlling the RF Transceiver, and controlling the LEDs. The RF Processor communicates with the host device using a UART running at 38.4 kbaud. The host device can set the Radio Module up to be an IEEE 802.15.4 PAN coordinator, send or receive IPv6 application packets, etc. The RF Processor communicates with the RF Transceiver using a Serial Peripheral Interface (SPI) connection. The RF Processor controls the channel used by the RF Transceiver, the transmit power of the RF Transceiver and the maximum duty cycle of data sent over the RF link. The RF Processor also controls the LEDs. At this time, only one of the two LEDs is used. If the radio is functioning as a PAN coordinator, the LED will blink fast until the radio establishes a Network (selects a unique channel and PAN ID). It will then blink once per second. If the radio is not a PAN coordinator, the LED will blink fast until it associates with a Network. It will then blink once every three seconds. These flashing patterns may be briefly interrupted when the radios are handling message traffic. RF Transceiver The transmitter portion of the RF Transceiver takes serial data and wraps it in a Header and a Frame Check Sequence. It then spreads the data and upconverts it to the transmit frequency using the Phase Shift Modulator and a signal generated by the on-chip Synthesizer. Finally the RF Transceiver sends the signal to a Power Amplifier whose output level is regulated by an on-chip Analog Regulator. In order to limit out-of- band emissions, the RF Processor only allows the Transmitter to operate on channels 11-25 as defined by the 802.15.4 specification. <Operating Frequency List> Frequency Channel Frequency Channel Frequency Channel 2405 MHz 1 2430 MHz 6 2455 MHz 11 2410 MHz 2 2435 MHz 7 2460 MHz 12 2415 MHz 3 2440 MHz 8 2465 MHz 13 2420 MHz 4 2445 MHz 9 2470 MHz 14 2425 MHz 5 2450 MHz 10 2475 MHz 15

KOREA EMC LABORATORY Page 1 of 30 KEL06-F01047 FCC ID: A3L-HHG3004H2 Certificate of Compliance Test Report No. KEL06-F01047 Applicant SAMSUNG ELECTRONICS CO., LTD. Applicant Address #416 Metan-Dong, Yeongtong-Gu, Suwon-City, Gyunggi-Do, Korea. Manufacturer Oriental Integrated Electronics Co., Ltd. Manufacturer Address 81-34, Dodang-Dong, Wonmi-Ku, Bucheon-City, Kyonggi-Do, Korea Device Under Test Home Gateway FCC ID A3L-HHG3004H2 Model No.: HHG-3004H2 Date of incoming Jan 31, 2006 Date of Issue April 5, 2006 Location of Testing KOREA EMC LABORATORY 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea 446-904 Test Procedure ANSI C63.4 / 2003 Test Specification 47CFR, Part 15 Subpart C Equipment Class DSS - Part 15 Spread Spectrum Transmitter Test Result The above-mentioned device has been tested and passed. Tested & Reported by: Chang-Min, Moon April 6, 2006 Approved by: Su-Gil, Moon April 6, 2006 Signature Date Signature Date Other Aspects Abbreviations · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. • We certify that this test report has been based on the measurement standard that is traceable to the national or International standards. KOREA EMC LABORATORY Page 2 of 30 KEL06-F01047 FCC ID: A3L-HHG3004H2 >> CONTENTS << 1. GENERAL ············································································································· 3 2. TEST SITE ············································································································ 3 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ········································· 5 4. MEASUREMENT CONDITIONS ··········································································· 6 5. TEST AND MEASUREMENTS ············································································· 7 5.1 ANTENNA REQUIREMENT ·········································································· 7 5.1.1 Regulation ······························································································· 7 5.1.2 Result ······································································································ 7 5.2 MAXIMUM PEAK OUTPUT POWER ···························································· 8 5.2.1 Regulation ······························································································· 8 5.2.2 Test Procedure ························································································ 8 5.2.3 Test Results ····························································································· 8 5.3 6dB BANDWIDTH ······················································································· 11 5.4.1 Regulation ····························································································· 11 5.4.2 Test Procedure ······················································································ 11 5.4.3 Test Results ··························································································· 11 5.4 Out of Band Emissions & Band Edge ······················································ 14 5.4.1 Regulation ····························································································· 14 5.4.2 Test Procedure ······················································································ 14 5.4.3 Test Results ··························································································· 16 5.5 PEAK POWER SPECTRAL DENSITY ······················································· 23 5.5.1 Regulation ····························································································· 23 5.5.2 Test Procedure ······················································································ 23 5.5.3 Test Results ··························································································· 23 5.6 CONDUCTED EMISSIONS ········································································· 26 5.6.1 Regulation ····························································································· 26 5.6.2 Test Procedure ······················································································ 26 5.6.3 Test Results ··························································································· 27 5.7 RF EXPOSURE ··························································································· 30 5.7.1 Regulation ····························································································· 30 5.7.2 RF Exposure Compliance Issue ···························································· 30 KOREA EMC LABORATORY Page 3 of 30 KEL06-F01047 FCC ID: A3L-HHG3004H2 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.4, 2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.247 for Spread Spectrum Transmitter. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by KOREA EMC LABORATORY and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. TEST SITE KOREA EMC LABORATORY 2.1 Location 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea 446-904 The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC Requirements in documents ANSI C63.4-2003. Korea EMC Laboratory was refilled in FCC in April 13, 2005. (Registration Number: 90751). KOREA EMC LABORATORY Page 4 of 30 KEL06-F01047 FCC ID: A3L-HHG3004H2 …
