A3L-WIS10ABGNWireless LAN adapter

English-1 2009 Wireless LAN Adapter WIS10ABGN Features • Compatible with IEEE 802.11a/b/g and 802.11n draft 2.0 • Supports USB 2.0 • Compact and Lightweight Pocket-Sized Design • Supports 2009 SAMSUNG TVs with Internet@TV (For compatible TV models, refer to the information printed on the product box.) • Supports 2009 SAMSUNG Blu-ray Disc Players / Home Theater Systems (For more information, please refer to the Blu-ray Disc Players / Home Theater Systems User Manual.) Accessory • USB right angle adapter (only for Blu-ray Disc Players / Home Theater Systems) Installing the Adapter • Insert the Wireless LAN Adapter into the TVs / Blu-ray Disc Players / Home Theater Systems’ USB port. • For installation precautions and instructions, refer to the TVs / Blu-ray Disc Players / Home Theater Systems User Manual. - TV: “Network Connection → Wireless” section - Blu-ray Disc Player / Home Theater System: “Network Setup → Wireless Network” section Safety Precautions • Do not let children swallow the product or play with the plastic bag. Keep the product and the plastic bag out of the reach of children. • Do not let water or other liquids come into contact with the product, as it may result in damage. • Keep the product away from direct sunlight, fire or a heat source such as a heater. This may reduce the product lifetime or result in fire. Warranty: 1 Year • If the product is not working properly due to a performance defect that appears under normal circumstances within the warranty period, please visit the retailer where you purchased it. (Please contact Samsung service center in Argentina, Brazil, Chile, Colombia, Mexico and Panama.) FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. Specifications (WIS10ABGN) StandardIEEE 802.11 a/b/g/n ( n : draft 2.0) Host InterfaceUSB 2.0 Frequency Range 2.412 ~ 2.4835GHz 5.15 ~ 5.850GHz Security64/128bit WEP, WPA /WPA2, 802.1x, WPS Output Power 802.11a: 11dBm at 54Mbps 802.11b: 17dBm at 11, 5.5, 2, and 1Mbps 802.11g: 14dBm at 54Mbps 802.11n(2.4GHz): 14dBm (20MHz) / 12dBm (40MHz) 802.11n(5GHz): 11dBm (20MHz) / 9dBm (40MHz) Data Rate 802.11a/g: 54,48,36,24,18,12,9 and 6Mbps 802.11b: 11,5.5,2 and 1Mbps 802.11n: up to 300Mbps (40MHz / spatial streams: 2) Sensitivity 802.11a: –68dBm at 54Mbps 802.11b: –84dBm at 11Mbps 802.11g: –68dBm at 54Mbps 802.11n: –68dBm (20MHz) / –65dBm (40MHz) Power consumption TX: 500mA at continuous transmit mode (2 Tx chains on ) RX: 300mA at continuous receive mode (2 Rx chains on ) Supported Models 2009 SAMSUNG LED TV Series : UN**B6*** (USA / Canada only), UN**B7*** / B8*** / B9*** 2009 SAMSUNG LCD TV Series : LN**B6** / B7** / B8** 2009 SAMSUNG PDP TV Series : PN**B6** / B8** 2009 SAMSUNG Blu-ray Disc Players : BD-P1590 / P16** / P36** / P46** 2009 SAMSUNG Home Theater Systems : HT-BD12** / BD32** / BD72** / BD8200 * In TV series above, only the TVs with Internet@TV logo are supported. Dimensions (L X W X D)3.3 X 1.047 X 0.63 inches (84 X 26.6 X 16 mm) Ideal For802.11n (5GHz)802.11n (2.4GHz)802.11 a/b/g streaming HD video recommended not recommendednot recommended recommendedrecommended streaming SD video music, photo - Network conditions and environmental factors (including but not limited) volume of network traffic, building materials and construction, may lower actual data throughput rate. - Environmental conditions will affect wireless signal coverage. - Video clips with lower than 20Mbps bit-rates are recommended for the wireless video streaming. English-2 2009 Wireless LAN Adapter WIS10ABGN Caractéristiques • Compatible avec IEEE 802.11a/b/g et 802.11n draft 2.0 • Compatible avec USB 2.0 • Appareil de poche compact et léger • Est compatible avec les téléviseurs SAMSUNG 2009 dotés de l’option Internet@TV (Pour les modèles de téléviseurs compatibles, consulter l’information imprimée sur la boîte du produit.) • Compatible avec les lecteurs Blu-ray ou systèmes de cinéma maison SAMSUNG 2009 (Pour de plus amples renseignements, consultez le manuel d’utilisation du lecteurs Blu-ray ou du systèmes de cinéma maison.) Accessoire • Adaptateur à angle droit pour clé USB (seulement pour les lecteurs Blu-ray ou systèmes de cinéma maison) Installation de l’adaptateur • Insérez l’adaptateur LAN sans fil dans le port USB du téléviseur, du lecteurs Blu-ray ou du systèmes de cinéma maison. • Pour obtenir les précautions et les instructions pour l’installation, consultez le manuel d’utilisation du téléviseur, du lecteurs Blu-ray ou du systèmes de cinéma maison. - Téléviseur : Section « Connexion réseau → Sans fil » - Lecteur Blu-ray ou système de cinéma maison : Section « Configuration du réseau - Réseau sans fil » Mesures de précaution • Ne pas laisser les enfants jouer avec l’emballage en plastique et veiller à ce qu’ils ne portent pas le produit à la bouche. Conserver le produit et l’emballage en plastique hors de la portée des enfants. • Éviter que le produit n’entre en contact avec de l’eau ou des substances étrangères. Cela risque d’endommager le produit. • Ne pas exposer le produit directement à la lumière du soleil, à une flamme ou à une source de chaleur comme un appareil de chauffage. Cela peut réduire la durée de vie du produit ou causer un incendie. Garantie : un an • Si le produit ne fonctionne pas correctement en raison d’une défectuosité qui se manifeste, dans des circonstances normales, pendant la durée de validité de la garantie, veuillez vous rendre au détaillant où vous avez effectué l’ac…

Text truncated - open the document above for the full version.

Samsung Electronics CO. LTD General Declaration To whom it may concern: We, Samsung Electronics CO. LTD declares that device does not have “Ad Hoc on non-US frequencies” while applying for the follow product. FCC ID: A3L-WIS10ABGN If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] 2010/1/20 We, Samsung Electronics CO. LTD declares that device does not have “Ad Hoc on non-US frequencies & DFS frequency bands” while applying for the follow product.

Samsung Electronics CO. LTD Federal Communications Commission Authorization and Evaluation Division Declaration Letter To whom it may concern: We, the undersigned Samsung Electronics CO. LTD hereby to declare our software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. FCC ID: A3L-WIS10ABGN Model name: WIS10ABGN Sincerely yours, ------------------------------------------ Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] 2010/1/20

Samsung Electronics CO. LTD Declaration letter FCC ID: A3L-WIS10ABGN IC: 649E-WIS10ABGN To whom it may concern, We hereby declare that this device couldn’t work when it was used to connect the device to a standard laptop PC, and this equipment can only work with the TVs and Blue-ray disc players. This device will not be recognised by the Windows/Linux/other operating system of a standard PC, and that no drivers are available which would support such a configuration. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Sang Kyung (Peter) Ra / General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] 2010/2/2

Samsung Electronics CO. LTD Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: A3L-WIS10ABGN Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] 2010/1/20

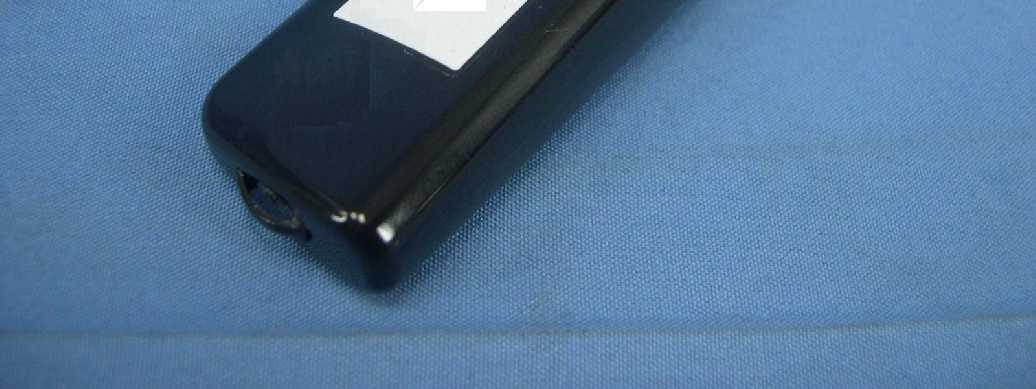

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 8

FCC ID： A3L-WIS10ABGN Label location FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Company Confidential

Company Confidential

Page 4 Page 5 Page 6 Page 7

FCC ID: A3L-WIS10ABGN Report No. : RF980609H02A Reference No. : 980910H01 Technical Description This device is a Wireless LAN adapter operates in both the 5GHz and 2.4GHz Bands with DSSS and OFDM technique. The transmitter rate could be 11Mbps for 11b; 54Mbps for 11a/g; 144.44Mbps for 802.11n (20MHz); 300Mbps for 802.11n (40MHz). The transmitter of EUT is powered by host equipment. NOTE: 1. There are two antennas provided to this EUT, please refer to the following table: For 5GHz Gain (dBi) No. Antenna Type For 2.4GHz Gain (dBi) 5.125 ~ 5.25 MHz 5.25 ~ 5.35 MHz 5.47 ~ 5.725 MHz 5.725 ~ 5.850 MHz Antenna Connector CHAIN(0) Printed 0.46 0.9 1.53 1.58 1.72 NA CHAIN(1) Printed -0.04 -0.91 1.71 0.79 0.09 NA 2. The EUT was pre-tested in chamber as the following test modes: Test Mode Description Mode 1 With Cradle Mode 2 Without Cradle From the above modes, the worse emission level was found in Mode 1. Therefore only the test data of the mode was recorded in this report individually. 3. The EUT incorporates a MIMO function with 802.11n. Physically, the EUT provides two completed transmitters and two completed receivers. 4. The EUT is 2 * 2 spatial MIMO (2Tx & 2Rx) without beam forming function. The antenna configurations are two transmitter antennas and two receiver antennas, as there are 2 Printed antennas. Spatial multiplexing modes for simultaneous transmission using 2 antennas, and for simultaneous receiver using 2 antennas. 5. The EUT complies with 802.11n standards and backwards compatible with 802. 11a, 802.11b, 802.11g products. 6. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual. FCC ID: A3L-WIS10ABGN Report No. : RF980609H02A Reference No. : 980910H01 FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA980609H02A Report Format Version 3.0.1 Reference No.: 980910H01 1 RF EXPOSURE REPORT REPORT NO.: SA980609H02A MODEL NO.: WIS10ABGN ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Samsung Electronics CO. LTD ADDRESS: 416, Maetan-3Dong, Yeongtong-Gu Suwon-City, Gyeonggi-Do, 443-742, Korea ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan. Report No.: SA980609H02A Report Format Version 3.0.1 Reference No.: 980910H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA980609H02A Report Format Version 3.0.1 Reference No.: 980910H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This Wireless LAN adapter will be sold and used with SAMSUN TV series. So the antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Report No.: SA980609H02A Report Format Version 3.0.1 Reference No.: 980910H01 4 6. TEST RESULTS 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: For 5GHz Gain (dBi) No. Antenna Type For 2.4GHz Gain (dBi) 5.125 ~ 5.25 MHz 5.25 ~ 5.35 MHz 5.47 ~ 5.725 MHz 5.725 ~ 5.850 MHz Antenna Connector CHAIN(0) Printed 0.46 0.9 1.53 1.58 1.72 NA CHAIN(1) Printed -0.04 -0.91 1.71 0.79 0.09 NA Report No.: SA980609H02A Report Format Version 3.0.1 Reference No.: 980910H01 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 15.247(2.4GHz): 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 131.8 0.029 1.0 6 2437 239.9 0.053 1.0 11 2462 120.2 0.027 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 128.8 0.028 1.0 6 2437 269.2 0.060 1.0 11 2462 269.2 0.060 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 532.2 0.118 1.0 6 2437 545.4 0.121 1.0 11 2462 491.1 0.109 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 360.0 0.080 1.0 4 2437 571.1 0.126 1.0 7 2452 351.8 0.078 1.0 Report No.: SA980609H02A Report Format Version 3.0.1 Reference No.: 980910H01 6 For 15.247(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 144.5 0.043 1.0 157 5785 147.9 0.044 1.0 165 5825 134.9 0.040 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 303.0 0.090 1.0 157 5785 292.6 0.086 1.0 165 5825 260.8 0.077 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151 5755 273.8 0.081 1.0 159 5795 261.1 0.077 1.0 Report No.: SA980609H02A Report Format Version 3.0.1 Reference No.: 980910H01 7 For 15.407(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 25.1 0.007 1.0 40 5200 28.8 0.008 1.0 48 5240 25.7 0.007 1.0 52 5260 33.9 0.010 1.0 60 5300 31.6 0.009 1.0 64 5320 30.2 0.009 1.0 100 5500 18.2 0.005 1.0 120 5600 33.1 0.009 1.0 140 5700 32.4 0.009 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 23.8 0.007 1.0 40 5200 26.1 0.008 1.0 48 5240 25.5 0.008 1.0 52 5260 88.3 0.026 1.0 60 5300 94.6 …

Text truncated - open the document above for the full version.

Report No.: RF980609H02A 1 Report Format Version 3.0.1 Reference No.: 980910H01 FCC TEST REPORT (15.247) REPORT NO.: RF980609H02A MODEL NO.: WIS10ABGN RECEIVED: Sep. 10, 2009 TESTED: Dec. 25, 2009 to Jan. 13, 2010 ISSUED: Jan. 14, 2010 APPLICANT: Samsung Electronics CO. LTD ADDRESS: 416, Maetan-3Dong, Yeongtong-Gu Suwon-City, Gyeonggi-Do, 443-742, Korea ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 122 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980609H02A 2 Report Format Version 3.0.1 Reference No.: 980910H01 Table of Contents 1. CERTIFICATION................................................................................................5 2. SUMMARY OF TEST RESULTS.........................................................................6 2.1 MEASUREMENT UNCERTAINTY.......................................................................8 3. GENERAL INFORMATION..................................................................................9 3.1 GENERAL DESCRIPTION OF EUT....................................................................9 3.2 DESCRIPTION OF TEST MODES....................................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.......................13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................16 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................17 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................17 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band)..............18 4.1 CONDUCTED EMISSION MEASUREMENT......................................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................18 4.1.2 TEST INSTRUMENTS......................................................................................18 4.1.3 TEST PROCEDURES.......................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD..............................................................19 4.1.5 TEST SETUP...................................................................................................20 4.1.6 EUT OPERATING CONDITIONS......................................................................20 4.1.7 TEST RESULTS...............................................................................................21 4.2 RADIATED EMISSION MEASUREMENT..........................................................23 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.........................................23 4.2.2 TEST INSTRUMENTS......................................................................................24 4.2.3 TEST PROCEDURES.......................................................................................25 4.2.4 DEVIATION FROM TEST STANDARD..............................................................25 4.2.5 TEST SETUP...................................................................................................26 4.2.6 EUT OPERATING CONDITIONS......................................................................26 4.2.7 TEST RESULTS...............................................................................................27 4.3 6dB BANDWIDTH MEASUREMENT.................................................................56 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................56 4.3.2 TEST INSTRUMENTS......................................................................................56 4.3.3 TEST PROCEDURE.........................................................................................57 4.3.4 DEVIATION FROM TEST STANDARD..............................................................57 4.3.5 TEST SETUP...................................................................................................57 4.3.6 EUT OPERATING CONDITIONS......................................................................57 4.3.7 TEST RESULTS...............................................................................................58 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................62 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................62 4.4.2 INSTRUMENTS................................................................................................62 4.4.3 TEST PROCEDURES.......................................................................................62 Report No.: RF980609H02A 3 Report Format Version 3.0.1 Reference No.: 980910H01 4.4.4 DEVIATION FROM TEST STANDARD..............................................................62 4.4.5 TEST SETUP...................................................................................................62 4.4.6 EUT OPERATING CONDITIONS......................................................................63 4.4.7 TEST RESULTS...............................................................................................64 4.5 POWER SPECTRAL DENSITY MEASUREMENT..............................................66 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT............................66 4.5.2 TEST INSTRUMENTS......................................................................................66 4.5.3 TEST PROCEDURE.........................................................................................67 4.5.4 DEVIATION FROM TEST STANDARD............................................…

Text truncated - open the document above for the full version.

Report No.: RF980609H02A-1 1 Report Format Version 3.0.1 Reference No.: 980910H01 FCC TEST REPORT (15.407) REPORT NO.: RF980609H02A-1 MODEL NO.: WIS10ABGN RECEIVED: Sep. 10, 2009 TESTED: Dec. 25, 2009 to Jan. 13, 2010 ISSUED: Jan. 15, 2010 APPLICANT: Samsung Electronics CO. LTD ADDRESS: 416, Maetan-3Dong, Yeongtong-Gu Suwon-City, Gyeonggi-Do, 443-742, Korea ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 129 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980609H02A-1 2 Report Format Version 3.0.1 Reference No.: 980910H01 Table of Contents 1. CERTIFICATION................................................................................................4 2. SUMMARY OF TEST RESULTS.........................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3. GENERAL INFORMATION..................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................7 3.2 DESCRIPTION OF TEST MODES....................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:......................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................15 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................16 4. TEST TYPES AND RESULTS...........................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT......................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................17 4.1.2 TEST INSTRUMENTS......................................................................................17 4.1.3 TEST PROCEDURES.......................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD..............................................................18 4.1.5 TEST SETUP...................................................................................................19 4.1.6 EUT OPERATING CONDITIONS......................................................................19 4.1.7 TEST RESULTS...............................................................................................20 4.2 RADIATED EMISSION MEASUREMENT..........................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.........................................22 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS.........23 4.2.3 TEST INSTRUMENTS......................................................................................24 4.2.4 TEST PROCEDURES.......................................................................................25 4.2.5 DEVIATION FROM TEST STANDARD..............................................................25 4.2.6 TEST SETUP...................................................................................................26 4.2.7 EUT OPERATING CONDITION.........................................................................26 4.2.8 TEST RESULTS...............................................................................................27 4.3 PEAK TRANSMIT POWER MEASUREMENT....................................................71 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT..................................71 4.3.2 TEST INSTRUMENTS......................................................................................71 4.3.3 TEST PROCEDURE.........................................................................................72 4.3.4 DEVIATION FROM TEST STANDARD..............................................................72 4.3.5 TEST SETUP...................................................................................................72 4.3.6 EUT OPERATING CONDITIONS......................................................................72 4.3.7 TEST RESULTS...............................................................................................73 4.4 PEAK POWER EXCURSION MEASUREMENT.................................................88 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT...............................88 4.4.2 TEST INSTRUMENTS......................................................................................88 Report No.: RF980609H02A-1 3 Report Format Version 3.0.1 Reference No.: 980910H01 4.4.3 TEST PROCEDURE.........................................................................................89 4.4.4 DEVIATION FROM TEST STANDARD..............................................................89 4.4.5 TEST SETUP...................................................................................................89 4.4.6 EUT OPERATING CONDITIONS......................................................................89 4.4.7 TEST RESULTS...............................................................................................90 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT....................................99 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT..................99 4.5.2 TEST INSTRUMENTS......................................................................................99 4.5.3 TEST PROCEDURES.............................…
