A3L04DELTA2Digital Camcorder

ENGLISH ELECTRONICS *Samsung Electronics’ Internet Home Pagehttp://www.samsungusa.com AD68-00743R THIS CAMCORDER IS MANUFACTURED BY: SERVICE DIVISION 400 Valley Road, Suite 201, Mt. Arlington N.J. 07856 Tel: 1-800-SAMSUNG (1-800-726-7864) 00743R SCD103 SEA (01~27) 11/26/03 4:43 PM Page 100 ENGLISH Digital Video CamcorderOwner’s Instruction BookBefore operating the unit, please read thisinstruction book thoroughly, and retain it forfuture reference. AF Auto Focus CCD Charge Coupled Device LCD Liquid Crystal Display SCD107 ELECTRONICS S T A R T / S T O P S E L F T IM E R A . D U B Z E R O M E M O R Y P H O T O D I S P L A Y X 2 S L O W F . A D V P H O T O S E A R C H D A TE / T IM E US PATENT 4415844 00743R SCD103 SEA (01~27) 11/26/03 4:43 PM Page 101 FCC Warning Class B Computing Device Information to the User This Equipment has been tested and found to comply with the limits for a class B digital device pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4. FCC Warning The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. ENGLISH Notices and Safety Instructions Safety Instructions RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE COVER(OR BACK). NO USER SERVICEABLEPARTS INSIDE, REFER SERVICING TO QUALIFIEDSERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulateddangerous voltage within the product’s enclosure that may be ofsufficient magnitude to constitute a risk of fire or electric shock. This symbol is intended to alert the user to the presence of importantoperating and maintenance instructions in the literature accompanyingthis product. To prevent electric shock, match wide blade of plugto wide slot and fully insert.1. READ INSTRUCTIONS: All the safety and operating instructions should be read before the CAMCORDER is operated. 2. RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS: All warnings on the CAMCORDER and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS: All operating and maintenance instructions should be followed. 5. CLEANING: Unplug this CAMCORDER from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth used for dusting cabinets. 6. ATTACHMENTS: Do not use attachments not recommended by the CAMCORDER product manufacturer as they may be hazardous. 7. WATER AND MOISTURE: Do not use this CAMCORDER near water; for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or lake. 8. ACCESSORIES: Do not place this CAMCORDER on an unstable cart, stand, tripod,bracket or table. The CAMCORDER may fall, causing serious injuryto a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommendedby the manufacturer or sold with the CAMCORDER. Any mountingof the unit should follow the manufacturer’s instructions and shoulduse a mounting accessory recommended by the manufacturer.A. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. PORTABLE CART WARNING(Symbol provided by RETAC) CAUTION 00743R SCD103 SEA-SAFETY 11/26/03 4:47 PM Page 100 ENGLISH Notices and Safety Instructions9. VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is providedor the manufacturer’s instructions have been adhered to. 10. POWER SOURCES: The CAMCORDER should be operated only from the type of power source indicated on the label.If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions. 11. GROUNDING OR POLARIZATION: This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other)or a 3-wire grounding type plug, a plug having a third (grounding)pin.If you are unable to insert the plug fully into the outlet, try reversingthe plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug. 12. POWER-CORD PROTECTION: Power-supply cord…

Text truncated - open the document above for the full version.

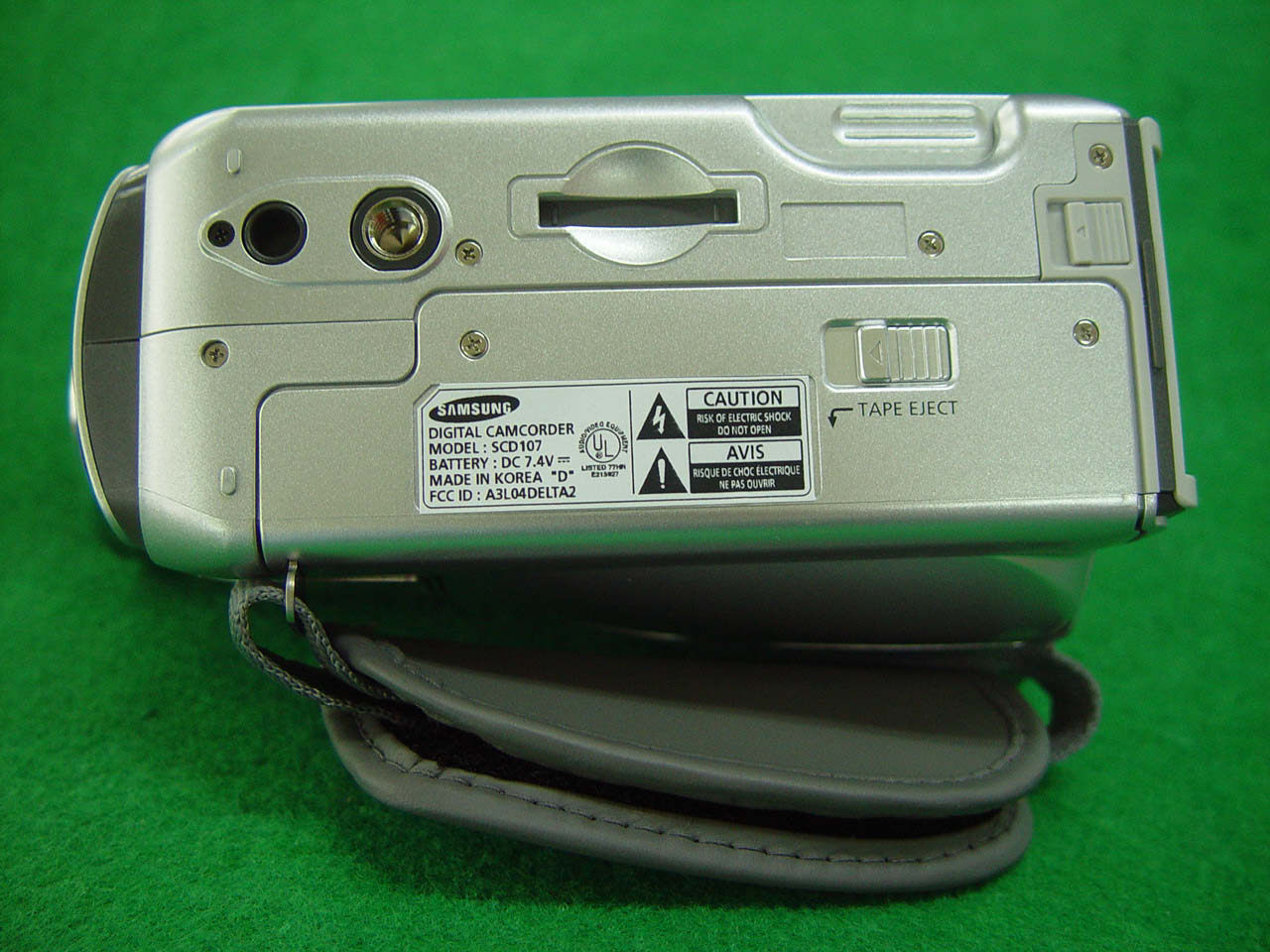

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Page : 1 of 16 Samsung EMC Testing and Certification LaboratoryProject No. : LBE032403 Applicant FCC ID Product Name Model Name Manufacturer Brand Name Variant Model Name/Position Jay Yong, PARK Test Engineer No Cheon, Park Manager of EMC Lab. Kyu Baek, Chung Chief of EMC Lab. Address Telephone No. Fax No. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory SUWON EMC Test Lab. EMC Test Report Authorized by SAMSUNG ELECTRONICS Co., Ltd. LBE032403 Passed The equipment under test has found to be compliant with the applied standards. Signature Tested by Reviewed by Applied Standards Result Project No. Equipment under Test Issued Date Samsung Electronics Co.Ltd 416 Maetan-3 Dong, Youngtong-Ku, Suwon City, Gyeonggi-Do, Korea, 442-742 A3L04DELTA2 SCD-107 Samsung Electronics Co. Ltd Digital Camcorder SAMSUNG See Page 2 05-Dec-03 FCC Part 15 82-31-200-2189 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators.All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 416 Maetan-3 Dong, Youngtong-Ku, Suwon City, Kyungki-Do,Korea, 442-742 82-31-200-2135 Page : 2 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 1. General Information 1.1 Basic Information related Product 1.2 Power Input Ports DescriptionVoltage(V)Frequency(Hz) No of phases Mains Cable120V60Hz1 1.3 EUT & Support Equipment MarkItemModel No.Serial No.ManufacturerRemark ADigital Camcorde rSCD-107-SAMSUNGEUT BCradlePR03S4M279A02DELL- CNote PCOX138-A01-T1009-007DELL- DPrinterBJC-50 CLG001000275 CANON- EAC AdapterAD-360U CLG001000275 CANONFor Printer FAC AdapterAA-E8 6CAWB00014 For EUT GAC AdapterPA-E8H051DELL For Notebook HUSB Memory256MB- - This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Applicant Samsung Electronics Co. Ltd Product name A3L04DELTA2 Model name SCD-107 Brand Name SAMSUNG Used EUT and Peripherals Manufacturer Samsung Electronics Co. Ltd Variant Models - Page : 3 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Page : 4 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 1.4 Operating Mode and Conditions The system was configured for testing in typical fashion use. The mode of operation utilized for testing was selected to best simulate typical EUT use. - Recording - Play 1.5 Block Diagram This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory F A C B D G E H Ferrite Core POWER POWER POWER 1 2 6 34 5 7 Page : 5 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 1.6 Test Facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Youngtong-Ku, Suwon City, Gyeonggi-Do, Korea. This sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation scheme(KOLAS) which . signed the International Laboratory Accreditation Cooperation(ILAC) Mutual Recognition Arrangement (M for the above test item(s) and test method(S) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory General Information Accreditation and Listing LAB CODE 200447-0 R-1221,C-1095 No.195 Reg. No.98856 Reg. No. KR0004 App. No.001 H9354285 Reg. No. 124 Page : 6 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 1.7 Applied Standards List This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory FCC Rule Part(s)Test Procedure(s) FCC Part 15 Subpart BANSI C63.4-2001 - - Page : 7 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 2. Summary of Test Results Result : The equipment under test(EUT) has been found to comply with the applied standards Applied StandardResult 3.1Conducted EmissionFCC Part 15Complied 3.2Radiated EmissionFCC Part 15Complied * N/A : Test not applicable This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Section of the Product Standard Electromagnetic Emission Test Page : 8 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 3. Description of Individual Tests 3.1 Disturbance voltage at the mains terminals Test Information Test Engineer Test Date Climate Condition Test Place Test Equipments EquipmentModel Name ManufacturerSerial No. TEST RECEIVERESI26R & S839809/002 LISNESH3-Z5R & S847265/028 LISNESH3-Z5R & S100261 Test SoftwareEP5/CETOYOVersion : 2.0.860 Test Setup EUT was placed on a platform of nominal size, raised 80cm above the conducting ground plane. The rear of table top was located 40cm to the vertical conducting plane. The rear of EUT was aligned and flushed with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment Test Result This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Jay Yong, PARK 03-Dec-03 Ambient Temperature : 27.0 , Relative Humidity : 31% Shield Room #5 Measurement Results Passed The Measured emissions of the EUT have found to be below the specified limits. Page : 9 of 16 Samsung EMC Testi…

Text truncated - open the document above for the full version.

Page : 14 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 4. Appendix 4.1 Test Photography This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Pic. 1 Conducted Emission [Front] Pic. 2 Conducted Emission [Rear] Page : 15 of 16 Samsung EMC Testing and Certification Laboratory Project No. : LBE032403 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory Pic. 3 Radiated Emission [Front] Pic. 4 Radiated Emission [Rear]
