ENGLISH ELECTRONICS *Samsung Electronics’ Internet Home Page http://www.samsungusa.com AD68-00616B THIS CAMCORDER IS MANUFACTURED BY: SERVICE DIVISION 400 Valley Road, Suite 201, Mt. Arlington N.J. 07856 Tel: 1-800-SAMSUNG (1-800-726-7864) ENGLISH Digital Video Camcorder Owner’s Instruction Manual Before operating the unit, please read this instruction manual thoroughly, and retain it for future reference. AFAuto Focus CCDCharge Coupled Device LCDLiquid Crystal Display SCD6050 ELECTRONICS US PATENT 4415844 ENGLISH Notices and Safety Instructions Notices and Safety Instructions 1. READ INSTRUCTIONS: All the safety and operating instructions should be read before the CAMCORDER is operated. 2. RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS: All warnings on the CAMCORDER and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS: All operating and maintenance instructions should be followed. 5. CLEANING: Unplug this CAMCORDER from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth used for dusting cabinets. 6. ATTACHMENTS: Do not use attachments not recommended by th CAMCORDER product manufacturer as they may be hazardous. 7. WATER AND MOISTURE. Do not use this CAMCORDER near water; for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or lake. 8. ACCESSORIES: Do not place this CAMCORDER on an unstable cart, stand, tripod, bracket or table. The CAMCORDER may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the CAMCORDER. Any mounting of the unit should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. A. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. PORTABLE CART WARNING (Symbol provided by RETAC) This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock. This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product. To prevent electric shock, match wide blade of plug to wide slot and fully insert. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ENGLISH Notices and Safety Instructions 9. VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 10. POWER SOURCES: The CAMCORDER should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. ACAMCORDER is intended to be operated from battery power, or other wources, refer to the operating instructions. 11.GROUNDING OR POLARIZATION: This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug. 12. POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, playing particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit. 13. OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the CAMCORDER, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See figure below. ELECTRIC SERVICE EQUIPMENT GROUND CLAMP ANTENNA LEAD IN WIRE ANTENNA DASCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC NATIONAL ELECTRICAL CODE ENGLISH Functions 14. LIGHTNING: For added protection of this CAMCORDER during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the CAMCORDER due to lightning and power-line surges. 15. POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with th…
Text truncated - open the document above for the full version.
ENGLISH The Camcorder : Advanced Recording 5959 Selecting a Digital Special Effect in Camcorder Mode 1. Turn your camcorder on by setting the Power Switch to REC mode. 2. Press the MENU button. The top menu including “CAMERA” is displayed. 3. Press the DOWN button to select “CAMERA” then press the OK button. The submenu including “DSE SELECT” is displayed. 4. Press the DOWN button to select “DSE SELECT” then press the OK button. The available DSE SELECT options are listed. 5. Select you option by pressing the DOWN or UP button then press the OK button. The selected option is applied. 6. Press the MENU button to exit the menu screen. DSE and NITE PIX cannot be used at the same time. DSE mode is not available in EASYQ mode. The selected DSE mode can be accessed through the Quick Menu by using the Navigation Wheel (refer to Quick Menu on page 69). Notes REC MODEREC MODE REC MODEREC MODE REC MODEREC MODE ENGLISH The Camcorder : Advanced Recording 6060 Selecting the Record Mode for Camcorder Use You can select the Recording mode in the REC and PLAY (DV IN) modes of your camcorder. This camcorder records and plays back in SP (Standard Play) and LP (Long Play) modes. -SP: Standard Play, this mode permits 60 minutes of recording time with a normal DVM60 tape. -LP: Long Play, this mode permits 90 minutes of recording time with a normal DVM60 tape. 1. Turn your camcorder on by setting the Power Switch to REC mode. 2. Press the MENU button. The top menu including “A/V” is displayed. 3. Press the DOWN button to select “A/V” then press the OK button. The submenu including “REC MODE” is displayed. 4. Press the DOWN or UP button to select “REC MODE” then press the OK button. Each press of the OK button toggles the REC MODE between SL and LP. 5. Press the MENU button to exit the menu screen. Playback of a tape recorded by different equipment may produce mosaic shaped distortion. When you record a tape in both SP and LP modes, or only in LP mode, the playback picture may be distorted or the time code may not be properly written between scenes. Record using SP mode for the best picture and sound quality. Notes REC MODEREC MODE REC MODEREC MODE REC MODEREC MODE ENGLISH The Camcorder : Advanced Recording 6161 Selecting the Audio Mode for Camcorder Use You can select the Audio recording mode in REC mode. This camcorder records audio signals in two ways. -12bit: Your can record two 12bit stereo sound tracks along with the video. The original stereo sound can be recorded onto the MAIN (SOUND1) track and an additional soundtrack can be dubbed onto the SUB (SOUND2) track. For dubbing audio, refer to page 78. -16bit: You can record one high quality stereo track using the 16bit recording mode. Audio dubbing is not available for video using 16bit sound. 1. Turn your camcorder on by setting the Power Switch to REC mode. 2. Press the MENU button. The top menu including “A/V” is displayed. 3. Press the DOWN button to select “A/V” then press the OK button. The submenu including “AUDIO MODE” is displayed. 4. Press the DOWN or UP button to select “AUDIO MODE” then press the OK button. Each press of the OK button toggles the AUDIO MODE between 12bit and 16bit. 5. Press the MENU button to exit the menu screen. REC MODEREC MODE A/V SET STBY WIND CUT PB DSE AV IN/OUT OUT REC MODE PHOTO SEARCH AUDIO MODE AUDIO SELECT 12bit SOUND 1 REC MODEREC MODE ENGLISH The Camcorder : Advanced Recording 6262 Cutting Off Wind Noise (WIND CUT) The WIND CUT function works only in REC and PLAY modes. To reduce microphone wind noise, use the Wind Cut function. Use the Wind Cut function when recording in a windy place such as on the beach, in the mountains or near buildings. 1. Turn on your camcorder by setting the Power Switch to REC mode. 2. Press the MENU button. The top menu including “A/V” is displayed. 3. Press the DOWN button to select “A/V” then press the OK button. The submenu including “WIND CUT” is displayed. 4. Press the DOWN button to select “WIND CUT” then press the OK button. Each press of the OK button toggles the WIND CUT function between ON and OFF. 5. Press the MENU button to exit the menu screen. When the Wind Cut function is set to ON, low pitched tones might be eliminated along with the wind noise. Be sure that Wind Cut is set to OFF when higher microphone sensitivity is required. Notes REC MODEREC MODE A/V SET STBY WIND CUT PB DSE AV IN/OUT OUT REC MODE PHOTO SEARCH AUDIO MODE AUDIO SELECT 12bit SOUND 1 REC MODEREC MODE LP A/V SET STBY WIND CUT PB DSE AV IN/OUT OUT REC MODE PHOTO SEARCH AUDIO MODE AUDIO SELECT 12bit SOUND 1 REC MODEREC MODE LP ENGLISH The Camcorder : Advanced Recording 6363 Using Backlight Compensation Mode (BLC) The Back Light Compensation function works only in REC mode. The Back Light Compensation function helps to make the subject brighter when the light source is behind the subject, throwing their features into shadow, or when the subject is in the shade but the background is brightly lit. Use BLC when: -The subject is in front of a window -The subject is wearing white or shiny clothes and in a front of a bright background; or the subject is too dark to distinguish his/her/their/its features -Outdoor filming with a bright background -The light source is too bright -The subject is against a snowy background 1. Turn your camcorder on by setting the Power Switch to REC mode. 2. Press the BLC (STOP) button. BLC is displayed on the LCD screen. 3. To exit BLC mode, press the BLC (STOP) button again. Each press of the BLC ( STOP) button toggles the BLC function between ON and OFF. BLC and NITE PIX modes cannot be used at the same time. The BLC function is not available in EASYQ mode. Notes OFF R E C P L A Y OFFO F F O F F O F F ENGLISH The Camcorder : Advanced Recording 6464 Setting the Slow Shutter Speed The Slow Shutter function works only in REC mode. The Slow Shutter allows the user to record dark subjects or in darker areas, mak…
Text truncated - open the document above for the full version.
EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval ID Label EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval ID Label Location

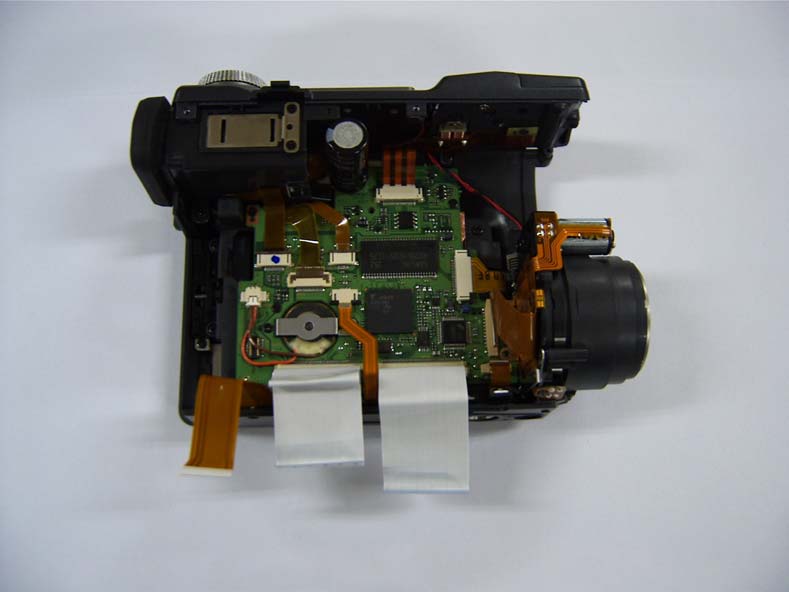

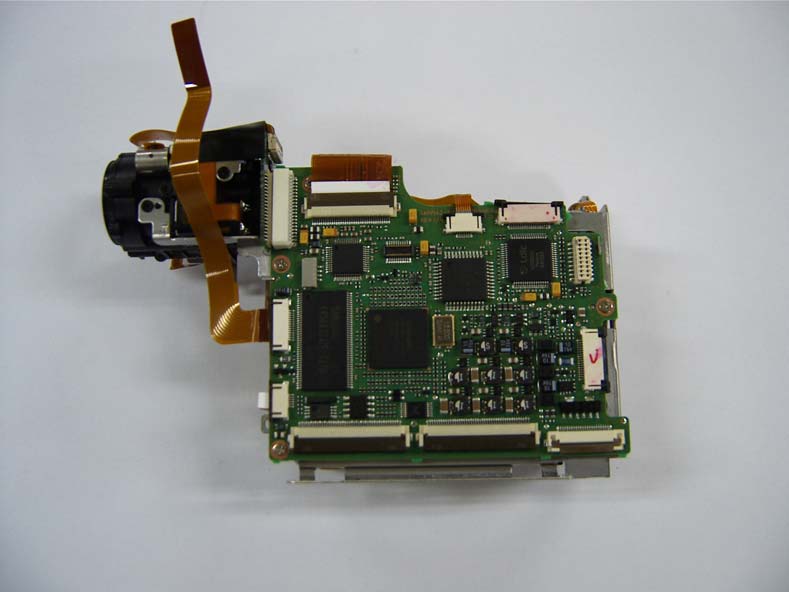

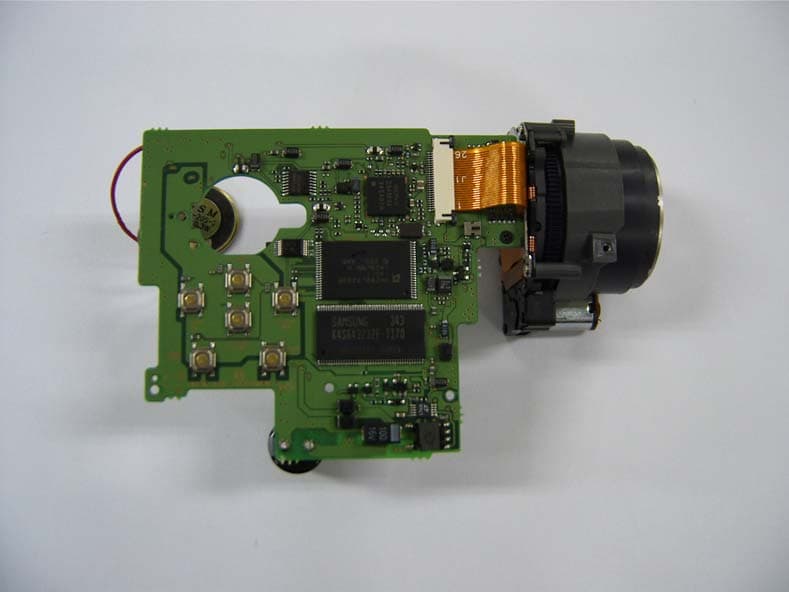

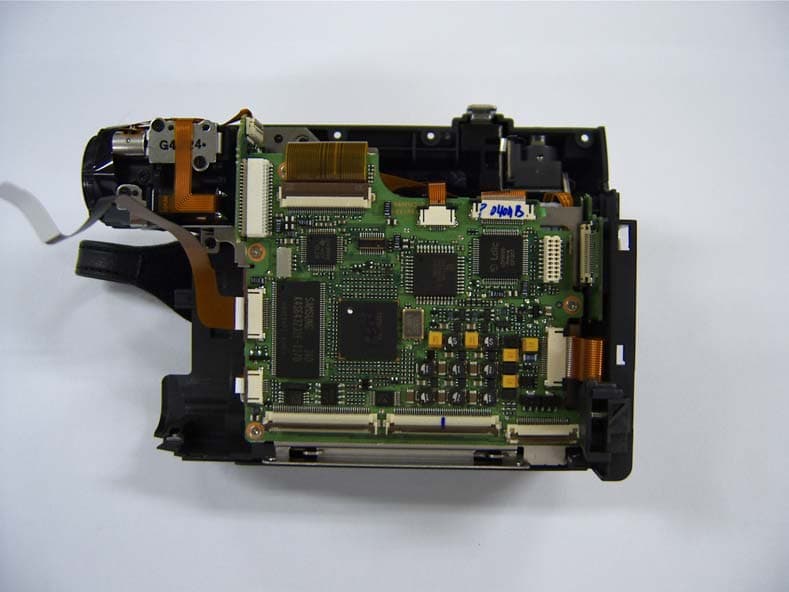

EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval SCD6050 Internal photos EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval Main board EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval Sub board EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval Camera Board EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval Tape Head Board
EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Operation Description This device is DIGITAL CAMCORDER. It uses either lithium ion battery or power supply. A data transfer through USB connection to a PC or IEEE1394 connection to a PC.
EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0145 Page : 1 of 15 EMI TEST REPORT Test report No. : EMC- FCC- 0145 Type of equipment : DIGITAL CAMCORDER Model No. : SCD6050 FCC ID. : A3L04GAMMA2 Applicant : SAMSUNG ELECTRONICS CO., LTD. Test standards : FCC part 15 subpart B, Class B Test Procedure and Items : - AC Power Line Conducted Emissions Measurement: ANSI C63.4-1992 - Radiated Emissions Measurement : ANSI C63.4-1992 Test result : Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: 2004. 4.23~4.26 Issued date: 2004 .4. 27 Test ed b y : Approved by: Kim, Jung-Soo Chung, Min-Seok EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0145 Page : 2 of 15 [ Contents ] 1. Client information ................................................................................... 3 2. Laboratory information ............................................................................ 4 3. Test system configuration......................................................................... 5 3.1 Operation Environment .................................................................... 5 3.2 Measurement Uncertainty ................................................................. 5 3.3 Sample calculation .......................................................................... 6 4. Description of EUT .................................................................................. 7 4.1 Product Description ......................................................................... 7 4.2 Peripherals ..................................................................................... 7 4.3 Used cables .................................................................................... 8 4.4 Operating conditions ........................................................................ 8 4.5 EUT test configuration ...................................................................... 9 5. Summary of test results........................................................................... 9 5.1 Modification to the E.U.T. .................................................................. 9 5.2 Standards & results ......................................................................... 9 6. Test results .......................................................................................... 10 6.1 Conducted emission....................................................................... 10 6.1.1 Measurement procedure................................................... 10 6.1.2 Used equipments ............................................................ 10 6.1.3 Measurement uncertainty................................................. 10 6.1.4 Test data ....................................................................... 11 6.1.5. Result .......................................................................... 11 6.2 Radiated emission ......................................................................... 12 6.2.1 Measurement procedure .................................................... 12 6.2.2 Used equipments ............................................................ 12 6.2.3 Measurement uncertainty................................................. 12 6.2.4 Test data ....................................................................... 13 6.2.5. Result .......................................................................... 13 7. Test Graph ........................................................................................... 14 Conducted emission test graph EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0145 Page : 3 of 15 1. Client information Applicant: SAMSUNG ELECTRONICS CO., LTD. Address: 416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Kyungki-Do, Korea Telephone number: 82-31-200-5922 Facsimile number: 82-31-200-5938 Contact person: Jei-Soon Kang / Manager Manufacture: SAMSUNG ELECTRONICS CO., LTD. Address: 416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Kyungki-Do, Korea Telephone number: 82-31-200-5922 Facsimile number: 82-31-200-5938 EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0145 Page : 4 of 15 2. Laboratory information Address EMC compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone Number : 82 31 336 9919 Facsimile Number : 82 31 336 4767 FCC Filing No. : 793334 VCCI Registration No. : C-1713, R-1606 SITE MAP EMC compliance Yongin city EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0145 Page : 5 of 15 3. Test system configuration 3.1 Operation Environment Temperature Humidity Pressure OATS : 14 °C 36 % 1014 hPa Shielded room : 26 °C 33 % 1014 hPa Test site These testing were performed following locations; Shielded room: Conducted emission OATS (10m) : Radiated emission 3.2 Measurement Uncertainty All measurements involve certain levels of uncertainties,…
