A3L05DRAGON2Digital Camcorder

Samsung Enterprise Portal mySinglePage 1 of 3 12/27/2005 Mia From: SUNGJOO KIM [[email protected]] Sent: Thursday, December 22, 2005 10:49 PM To: 'Gregory Czumak' Cc: Mia Kang; 'Alfred Cirwithian'; 'Randy Ortanez'; ???; ???; ??? Subject: Re: FCC ID: A3L05DRAGON2 Dear Gregory, How have you been! Time was really fast almost we stand at the end of 2006 meanwhile coming the Christmas. Regarding to your points of review for subject ID, I reply you as below; 1.Please provide the FCC ID’s of the support equipment, or else indicate if they were approved under DoC. (Ans) According to your recommendation, we did indicated the approval status(FCC ID or DoC) for supported equipment to the table 1.5 in the test report. Please confirm the attached #1 Test report. 2.The block diagram submitted with the application is actually a wiring diagram. Please submit a block diagram that shows all of the clocks/oscillators. (Ans) For your reference, we send you the block diagram as attached #2. 3.The AC Line Conducted test set up photos appears to show that the EUT is not connected to the pc (the radiated emission test set up photos show that it is connected to the EUT). Please address. (Ans) EUT have been connected to the PC during the AC conducted emission test. But, photos in the page 19 of test report seems to be only on USB cable was connected to the PC even EUT have two cable ports. A reason of that, measurement of conduction for #1 USB was impossible(PC recognize the #2 at first) when two cables connected with same time basically, so we have to disconnected #2 USB during the testing for #1 USB cable. But, we could measurement of conduction test for #2 USB whatever #1 was connected to the PC or not. Please refer to this special situation. I hope you can accept this feedback, then I can receive the grant as soon as possible. Sincerely.. Samsung Enterprise Portal mySinglePage 2 of 3 12/27/2005 ------- Original Message ------- Sender : Mia Kang<[email protected]> Date : 2005-12-20 14:11 Title : FCC ID: A3L05DRAGON2 To: Steve Kim/ Samsung Electronics Co., Ltd. From: Gregory Czumak/PCTEST TCB Re: FCC ID: A3L05DRAGON (Digital Camcorder) Applicant: Samsung Electronics Co., Ltd. Application Received: 12/16/05 Correspondence Reference Number: 251220A.A3L Confirmation Number: 1512160590 Date of Original Email: 12/20/05 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. RT Questions: 1.Please provide the FCC ID’s of the support equipment, or else indicate if they were approved under DoC. 2.The block diagram submitted with the application is actually a wiring diagram. Please submit a block diagram that shows all of the clocks/oscillators. 3.The AC Line Conducted test set up photos appears to show that the EUT is not connected to the pc (the radiated emission test set up photos show that it is connected to the EUT). Please address. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fees. - ------- Sung Joo Kim (Steve Kim) Product Compliance America QA Lab Samsung Electronics America SAMSUNG ELECTRONICS CO., LTD Mobile : +1-949-701-2610 Office : +1-310-900-5250 Fax : +1-310-537-5500 E-Mail : [email protected] Samsung Enterprise Portal mySinglePage 3 of 3 12/27/2005 If you have any questions, please do not hesitate to contact us. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

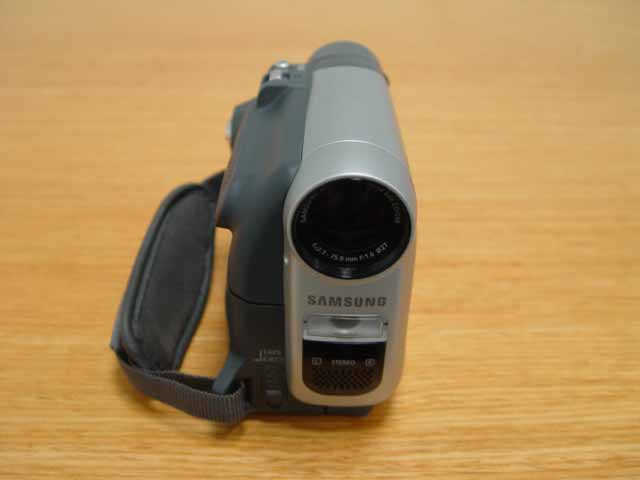

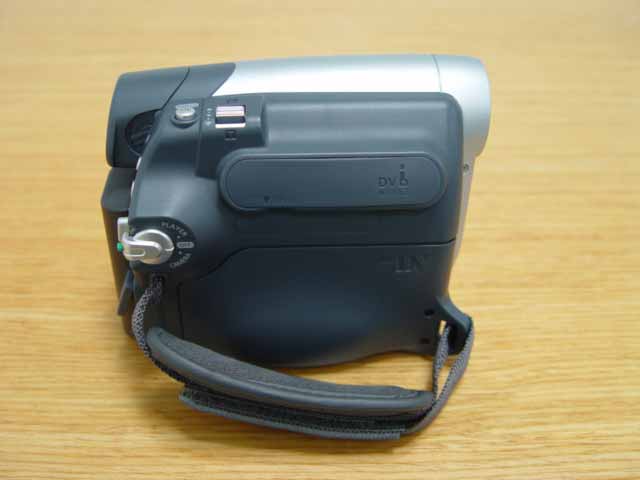

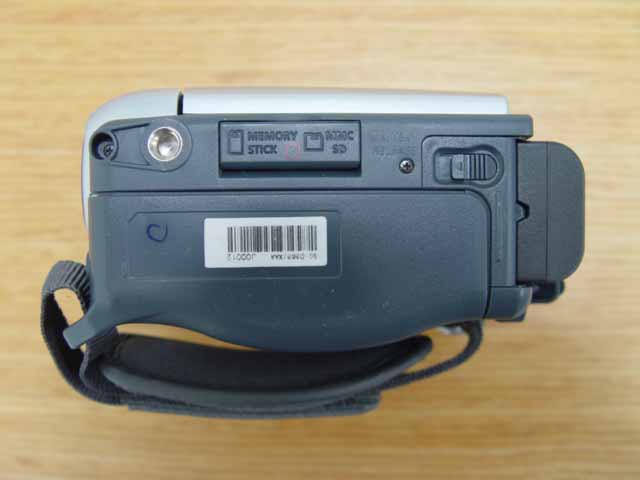

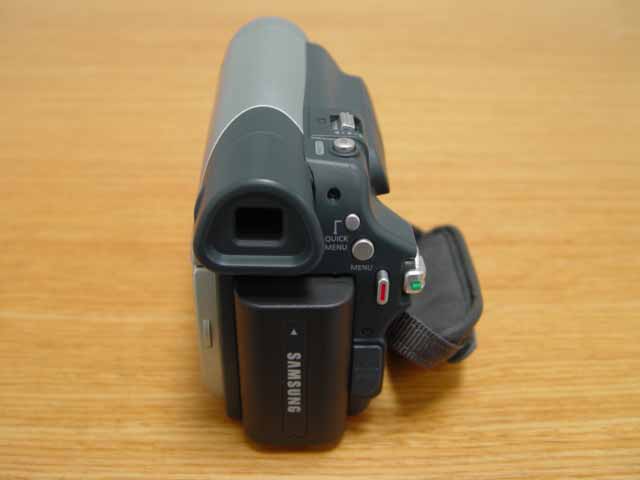

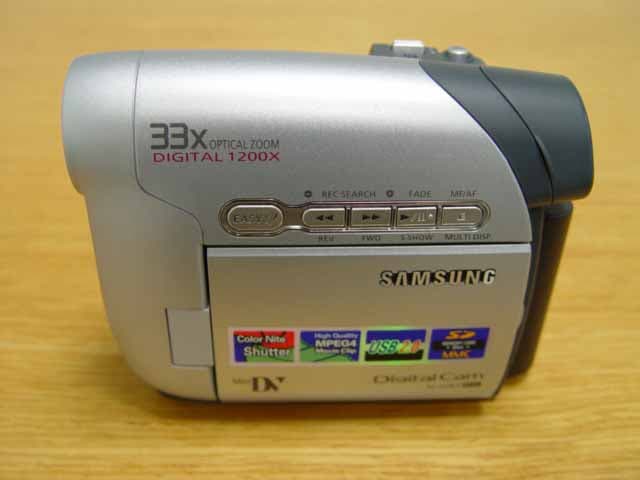

Page : 21 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4.2 EUT Photography Picture 5. EUT (Front) Picture 6. EUT (Rear) Page : 22 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 7. EUT (Side) Picture 8. EUT (Side) Page : 23 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 9. EUT (Top) Picture 10. EUT (Bottom)

Page : 28 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Label

Page : 24 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 11 Picture 12 Page : 25 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 13 Picture 14 Page : 26 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 15 Picture 16 Page : 27 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 17 Picture 18

Page : 1 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE052891 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-Si,Gyeonggi-Do, Korea,443-742 Product Name Digital Camcorder Model Name SC-D365 Manufacturer Samsung Electronics Co., Ltd Brand Name SAMSUNG Variant Model See Page 3 FCC ID A3L05DRAGON2 Date of Test December 12, 2005 Issued Date December 15, 2005 Name/Position Signature Tested by Byeong Soo, Kim Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. Page : 2 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Radiated Emission 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd Model name SC-D365 Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Contact Person Byeong Soo, Kim Kind of product Digital Camcorder Valiant list SC-D263, SC-D362, SC-D363, SC-D364, SC-D366 Manufacturer Samsung Electronics Co., Ltd New / Alternative / Permissive change Information This report is original report # 1.2 Detail Information related Product Specification Page : 4 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. - Memory Card (External) - Internal Memory - Tape Play - Tape Record 1.4 Equipment Modifications No equipment modifications were required. Page : 5 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Mark Item Model No. Serial No. Manufacturer FCC ID A Digital Camcorder SC-D365 - SAMSUNG A3L05DRAGON2 B AC Power Adapter AA-E8 6CAY321537 SAMSUNG - C Note PC SENS Q30 087E93CY900252K SAMSUNG FCC DoC D Printer ML-1740 BABX820386E SAMSUNG A3LML-1710P E MIC YMC-2511 - SAMSUNG - Used Cable Description Connect Cable Length [m] Shielded [Y/N] Remark 1 AC Power cable 1.8 No 2 AV out Cable 1.5 No 3 USB Cable 1.5 No 4 DV Cable (1394) 1.9 Yes 5 MIC Cable 3.5 No 6 Printer Power Cable 1.8 No 7 Note PC Power Cable 1.8 No 8 Printer Cable 1.8 Yes Page : 6 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram Page : 7 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Product or Generic Standards Basic Standards FCC Part15 Subpart B ANSI C63.4 : 2003 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1, 16-2. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Conducted Emission 3.3 Radiated Emission (Hor) ± 4.2 (Ver) ± 4.8 (According to NAMAS Pub.NIS81) Page : 8 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. Summary of Test Results Result : PASS The equipment under test(EUT) has been found to comply with the applied standards. Test Name Applied Standard Result Electromagnetic Emission Test 3.1 Conducted Emission FCC Part15 Subpart B Complied 3.2 Radiated Emission FCC Part15 Subpart B Complied Page : 9 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 3. Description of Individual Tests 3.1 Conducted Emission Test Information Test Engineer Byeong Soo, Kim Test Date December 12, 2005 Clim…

Text truncated - open the document above for the full version.

Page : 19 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Side) Page : 20 of 28 Samsung EMC Testing and Certification Laboratory Project NO. :LBE052891 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear)
