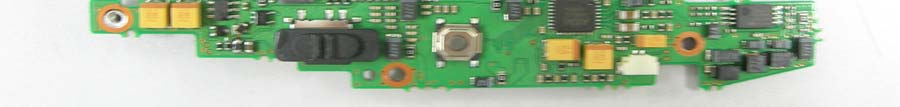

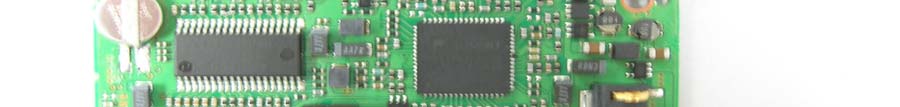

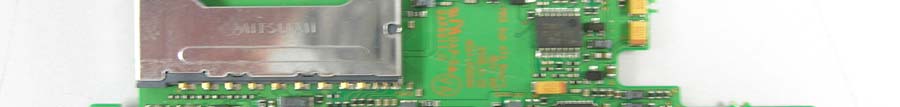

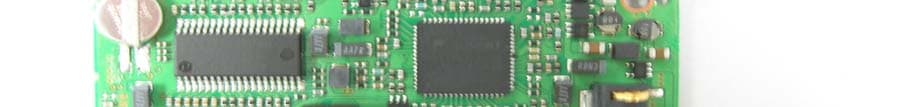

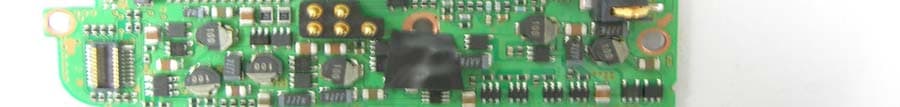

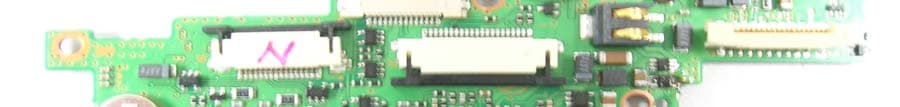

A3L06MM2MX2Digital Camcorder

ENGLISH MENUMODE DC IN W T HOLD D IS P L A Y D E L E T E Sports Camcorder Owner’s Instruction BookBefore operating the unit, please read thisInstruction Book thoroughly, and retain it forfuture reference. AF Auto Focus CCD Charge Coupled Device LCD Liquid Crystal Display SC-X205(L)/X210(L)/X220(L) US PATENT 4415844 Use only approved battery packs.Otherwise, there is a danger of overheating, fire or explosion.Samsung is not responsible for problems occurring due to using unapproved batteries. RoHS compliantOur product complies with “TheRestriction Of the use of certainHazardous Substances in electrical andelectronic equipment”, and we do not use the 6 hazardous materials- Cadmium(Cd), Lead(Pb), Mercury (Hg), Hexavalent Chromium (Cr +6 ), Poly Brominated Biphenyls (PBBs), Poly BrominatedDiphenyl Ethers(PBDEs)- in our products. ENGLISH Notices and Safety Instructions Safety Instructions This symbol is intended to alert the user to the presence ofuninsulated “dangerous voltage” within the product’s enclosurethat may be of sufficient magnitude to constitute a risk of electricshock to persons.This symbol is intended to alert the user to the presence ofimportant operating and maintenance (servicing) instructions inthe literature accompanying the appliance. WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture. 1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. Apolarized plug has two blades with one wider than the other. Agrounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plugdoes not fit into your outlet. Consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the pointwhere they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold withthe apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been moisture, does not operate normally, or has been dropped. CAUTION RISK OF ELECTRIC SHOCK DO NOTOPEN RISK OF ELECTRIC SHOCK DO NOTOPEN CAUTION: TO REDUCE THE RISK OFELECTRIC SHOCK, DO NOTREMOVECOVER (OR BACK). NO USER-SERVICEABLE PARTSINSIDE, REFER SERVICING TOQUALIFIED SERVICE PERSONNEL. CAUTION Shock Hazard Marking and Associated Graphical Symbols Explanation of Safety Related Symbols ENGLISH Notices and Safety Instructions15. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall beplaced on the apparatus. 16. VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is providedor the manufacturer’s instructions have been adhered to. 17. POWER SOURCES: The CAMCORDER should be operated only from the type of power source indicated on the label.If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. ACAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions. 18. GROUNDING OR POLARIZATION: This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other)or a 3-wire grounding type plug, a plug having a third (grounding)pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purposeof the polarized plug. 19. POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely tobe walked on or pinched by items placed upon or against them, paying particular attention to cordsor plugs, convenient receptacles, and the point where they exit from the unit. 20. OUTDOOR ANTENNAGROUNDING: If an outside antenna or cable system is connected to the CAMCORDER, be sure the antenna or cable system is groundedto provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPANo. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, groundingof the lead-in wire and supporting structure, grounding of the mastand supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, locationof antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.See figure below. GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H) NEC NATIONAL ELECTRICAL CODE ELECTRICSERVICEEQUIPMENT GROUNDCLAMP ANTENNALEAD INWIRE ANTENNADISCHARGE UNIT(NEC SECTION 810-20) …

Text truncated - open the document above for the full version.

You can copy mp3 files from a PC to the Sports Camcorder while connected to the PC with a USB cable. Before your start!  You can copy the MP3 files when <USB Mode> sets to <Mass Storage> ➥ page 98  <Mass Storage> is set basically in <USB Mode>. 1. Press the [POWER] button to turn on the Sports Camcorder.  The Movie Record screen appears. 2. Connect the Sports Camcorder to the PC using the USB cable provided.  A- Connect the USB cable to the Sports Camcorder.  B - Connect the other end of the USB cable to the PC. 3. Double-click the new removable drive to open.4. Select the MP3 folder and double-click to enter.5. Drag and drop the MP3 file from your PC into the MUSIC folder.  The maximum music memory capacity is 2000 MP3 files. Disconnecting USB Connection After completing the data transfer, you must disconnect the cable in the following way.1. Select the removable disk icon and click the right mouse button to select ‘Safely Remove Hardware’. 2. Select ‘Stop’and disconnect the USB cable when the pop-up screen disappears.[ Warning ]✤ Copying and redistributing of MP3files may violate the copyright law. [ Notes ]✤ You can copy a folder on your Sports Camcorder. ✤ To see MP3 file capacity with regards to the Sports Cam's memory capacity.➥ page 32. ✤ It is recommended to use an AC Power Adapter during the file transfer to avoidunintended power outage due to low battery power. ENGLISH 7676 MP3 Mode : Storing MP3in the Sports Camcorder Copying MP3Files to the Sports Camcorder A B USB MMC/SD [ Notes ]✤ The MP3 file with tag information will display the artist name. MP3 files with no tag information will leave the item blank. ✤ If a broken file name is displayed, try renaming it on a PC. ✤ When language of Setting is not equal to language of Tag information for MP3 file, Artist indicator may not display correctly. ✤ When the earphones, Audio/Video cable or *External Camera Module cable is connected to the Sports Camcorder, the built-in speak er will turn off automatically.(* Items apply to SC-X205L/X210L/X220Lonly.) ✤ Sports Camcorder only supports MP3 file format. ✤ Damaged or non-standard MP3 files may not display properly or fail to play back. ✤ MP3 files with VBR setting will appear as VBR on the LCD monitor and its play time and recording time may differ from the displ ayed diagram. ✤ If a title of a track is too long, it may appear cropped on the LCD monitor. ENGLISH 7777 MP3 Mode : Playing Playing MP3Files You can play back stored MP3files.1. Press the [ POWER] button to turn on the Sports Camcorder.  The Movie Record screen appears. 2. Set the MP3 mode by pressing the [MODE] button.  The MP3 playlist appears.  If there is no MP3file stored, the message “No Files...” appears. 3. Select a MP3 file to play by moving the [Joystick] up / down, and then press the [Joystick(OK)]. 4. The selected MP3 file is played back.  Each time you press the [PLAY] button or [Joystick(OK)], play or pause is selected repeatedly.  To adjust volume, move [Joystick] up / down. Volume indicator appears and disappears after few seconds. 4 Move Play Life is cool.mp3Everytime.mp3Toxic.mp3Don’t push me.mp3Love you.mp3 Search 1/10 Pause OK List Life is cool.mp3Sweetbox 00:01:07/00:03:27 Stereo 44.1KHz 192Kbps 3 Move Play OK Life is cool.mp3Everytime.mp3T oxic.mp3 Don ’ t push me.mp3 Don ’ t push me.mp3 Love you.mp3 Search 1/10 Pause List Life is cool.mp3Sweetbox Setting to Hold [MP3/ *External Camera Module HOLD] switchIf you slide the [MP3/ *External Camera Module HOLD] switch down,all buttons except the Power button and Volume control are locked. The [MP3/ *External Camera Module HOLD] switch operates only inthe MP3 mode or when connecting *External Camera Module. Using the Joystick (left/right) Move the [J oystick] left  Within 2 seconds after starting playback - Previous file plays.  In Pause/Stop mode - Previous file appears.  2 seconds after starting playback - Current file starts again. Move the [J oystick] right  During playback - The next file plays.  In Pause/Stop mode - The next file appears. ENGLISH 7878 Deleting MP3Files You can delete a selected MP3file or group of MP3 files.1. Press the [POWER] button to turn on the Sports Camcorder.  The Movie Record screen appears. 2. Set the MP3 mode by pressing the [MODE] button.  The MP3 playlist appears.  Move to desired MP3 file, using the [Joystick]. 3. Press the [DELETE] button on the LCD monitor in pause mode. Select an option by moving the [Joystick] up / down and then press the [Joystick(OK)]. <OK>: Deletes the selected MP3file.  <Multi Select>: Multiple MP3files can be selected using the [Joystick(OK)]. < ✔ > indicator appears on the selected files. Press the [PLAY] button.  <All>: All MP3files will be deleted.  <Cancel>: Cancels the deletion. 3. Press the [PLAY] button or [Joystick(OK)].  The selected MP3 file is played. 4. Press the [DELETE] button on the LCD monitor in pause mode. Select an option by moving the [Joystick] up / down and then press the [Joystick(OK)]. <OK>: Deletes the selected MP3file.  <Cancel>: Cancels the deletion. [ Note ]✤ You cannot access the menu during playback. MP3Mode : Setting the MP3Play Options Deleting MP3Files in MP3 playlist Deleting MP3File in Full screen 34 Pause Move Play Life is cool.mp3Everytime.mp3Toxic.mp3Don ’ t push me.mp3 Love you.mp3 Move Select Life is cool.mp3Everytime.mp3Toxic.mp3Don ’ t push me.mp3 Love you.mp3 Search 1/10 Pause OK List Life is cool.mp3Sweetbox 00:00:00/00:03:27 Stereo 44.1KHz 192Kbps Move 1/10 Select Life is cool.mp3Sweetbox Pause OK Move Play Life is cool.mp3Everytime.mp3Toxic.mp3Don ’ t push me.mp3 Love you.mp3 Move Select Life is cool.mp3Everytime.mp3Toxic.mp3Don ’ t push me.mp3 Love you.mp3 Search 1/10 Pause List Life is cool.mp3Sweetbox Move 1/10 Select Life is cool.mp3Sweetbox 00:00:00/00:03:27 Stereo 44.1KHz 192Kbps CancelOK OK 32 Pause Move Play OK Life is cool.mp3Everytime.mp3T oxic.mp3 Don ’ t push me.mp3 Don ’ t push me.mp3 Love you.mp3 Move Select Life …

Text truncated - open the document above for the full version.

S5C7341X01 S.LSI Modecon uPD70F3017AYF1-A6 (NEC) EEPROM Reset ZOOM Focus Driver IRIS Hall O L P F CCD (680K) TLV990B CDS/AGC/ ADC V.drv IRIS/Hall Circuit Video ENC ITU 656 I/F Video DEC DAC1 ITU 656 I/F DAC2DAC3DAC4DAC5ADC1ADC2 Video AMP NJM2561F1 LCD drv CXM3005ER LCD ACX319 EEPROM KS24C020 Audio Codec I2S I/F Audio AMP Audio PLL DC/DC Conv. SMB120NCT-400L Battery Charger Assy-Rear Key Battery 1200mA/h SpeakerEarphoneMic VD LCD module x1 or x1/2 Techwell TW9920-BABB1 C-Version AUDIO(AK4642EN) Updated 2006.01.31 LEDs RTC PR818S4 Protocom SDRAM K4M563233D 32MB NAND Controller Video OutVideo In ITU656 MPEG CODEC UI JPEG CODEC Camera Process ARM Linear Interpolation EIS ARM Camera Process MM2/MX2 Block Diagram(DSP4+PR818S4) USB 2.0 High Speed USB(ISP1583S) USB Gyro Gyro AMP NJM2112V TA75W01FU uPD16835A XV-3500CB×2 Chargeer BQ24035 Analog Switch×2 FSAV330MTC Strobo LED LT1618EMS SD/MMC Socket CIM-F23N 20MHz CRYSTAL 32.768KHz CRYSTAL 54MHz OSC 12MHz CRYSTAL Li-ion 512M/1G/2G NAND FLASH

-36/37- 4.2 EUT photography Picture 5. EUT (Front) Picture 6. EUT (Rear) -37/37- Picture 7. EUT (Right Side) Picture 8. EUT (Left Side)

-1/37- EMC TEST REPORT Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si,Gyeonggi-Do, 443-742 Korea (Tel: 031 277 7752, Fax: 031 277 7753) Project No. : LBE060302 Page (1)/(37) 1. Applicant ◦ Name of organization : Samsung Electronics Co., Ltd. ◦ Address : 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea ◦ Date of application : 2006. 01. 13 2. Purpose for the report : Approval for EMC 3. Kind of product : Digital Camcorder(Model name : SC-X210L) 4. Date of test : 2006.01. 20 ~ 2006.01.26 5. Applied standard : FCC Part 15:2003 Subpart B 6. Test result : PASS The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) 7. FCC ID : A3L06MM2MX2 Tested by Name : Sang Kyu, Seo Reviewed by Name : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. 2006. 02. 01 Samsung Electornics Co., Ltd. Chief of CS Management Center -2/37- TEST RESULT Test Report No. : LBE060302 Applicant / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Manufacture / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea EUT : 1. Product name : Digital Camcorder 2. Model name : SC-X210L 3. Brand name : Samsung 4. Variant model : SC-MM10, SC-MM11, SC-MM12, SC-MM14, SC-X205L, SC-X220L SC-X204L Test Method : ANSI C 63.4:2003 Test Result : PASS The equipment under test has found to be compliant with the applied standards Test Lab. : CS Management Center, Samsung Electronics Co., Ltd. Tested by : Sang Kyu, Seo Reviewed by : No Cheon Park Date of Issue : 2006. 02. 01 -3/37- Table of contents 1. General information 1.1 Basic information related product 1.2 Detail information related product 1.3 Operating mode and condition 1.4 Equipment modifications 1.5 Test procedure 1.6 Test configuration 1.7 Applied standard 1.8 Test facility 2. Summary of test results 3. Description of individual tests 3.1 Conducted emission 3.2 Radiated emission 4. Appendix 4.1 Test photography 4.2 EUT photography -4/37- 1. General information 1.1 Basic information related product Applicant Samsung Electronics Co., Ltd. Model name SC-X210L Applicant address 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Contact person Jei Soon, Kang Kind of product Digital Camcorder Valiant model SC-MM10, SC-MM11, SC-MM12, SC-MM14, SC-X205L, SC-X220L, SC-X204L Manufacturer Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Rated power AC 120 V, 60 Hz New / Alternative / Permissive change information New -5/37- 1.2 Detail Information related product 1.2.1 Specification -6/37- 1.3 Operating mode and condition The system was configured for testing in typical fashion use. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. - External Camera : AV Port - External Memory : MMC/SD Slot - PC Camera : USB - Power : DC Jack 1.4 Equipment modifications No equipment modifications were required. -7/37- 1.5 Test procedure 1.5.1 Conducted emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80 cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and were handed at a 40 cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. Frequency Band [MHz] Instrument Detector Resolution Bandwidth Video Bandwidth Quasi-Peak 9 kHz - 0.15 to 30 EMI Receiver Average 9 kHz - -8/37- 1.5.2 Radiated emission EUT was placed on a platform of nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. The I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30 cm to 40 cm long and were hanged 40 cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane and the trun table azimuth was varied to obtain the maximum signal strength The system configuration, clock speed, mode of operation or video resolution, turntable azimuth with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 to 1 000 MHz using biconiLog antenna. Also, the EMI Receiver was scanned from 1 000 to 2 000 MHz using linearly polarization Double ridge horn antennas were used. The explanation of measuring instrument setup when Respective function is used in any frequency band is as following; Frequency Band [MHz] Instrument Detector Resolution Bandwidth Video Bandwidth 30 to 1 000 EMI Receiver Quasi-Peak 120 kHz - Above 1 000 EMI Receiver Peak 1 MHz 1 MHz -9/37- 1.6 Test configuration 1.6.1 Used EUT and peripherals Mark Item Model No. Serial No. Manufacturer Note A Digital Camcorder SC-X210L - SAMSUNG A3L06MM2MX2 B Remote Control - - SAMSUNG - C External Camera - - SAMSUNG - D AC Adapter AA-M2DG 6DA03119 Dong Yang NP - E Note PC P40 SKU29REXB00004TSAMSUNG DcC F AC Adapter(Note …

Text truncated - open the document above for the full version.

-34/37- 4. Appendix 4.1 Test photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) -35/37- Picture 3. Radiated emission (Front) Picture 4. Radiated emission (Rear)
