Rainbow1 Project DVS( μ¬ ) R&D 3 Group * System Block Diagram * * System Block Diagram System Block Diagram CCD (1/6 β SONY) CDS/AGC/AD (TLV990BF) DSP6 (S5C7375X) 54Mhz Speaker 17Ξ¦,8Ξ© MIC -42dB USB 2.0 A/V SDRAM-256Mb (K4S56163E) FLASH-4MB (AM29DL323DB) AUDIO I/F,AD/DA (BU7807KV) LCD DRIVE (CXA3582) LCD (2.5 β ,112K,D/I LCD μ΄κ΄) PRODUCT JIG FUNC.KEY DC/DC 15V10V 8.5V4.5V5.0V3.3V1.8V -7.5V (BD9833KV) LENS X33 12Mhz Z/F M.DRIVE (uPD168103) CCD VDRIVE (KS72210) B/E CODEC CVF (0.33 β ) LOADER (TSST) MICOM (Upd000) SDRAM-64Mb (M12L64322L) FLASH-2MB (MR27T1602) 24Mhz EEPROM (S524L50) 32.768Khz 1βST ATA I/F CVBSY/C AUDIO I/O GIO/ROM I/F SDRAM I/F Bt 656 CSI GPIO EEPROM (S524L50) Bt 656(?) YPbPr

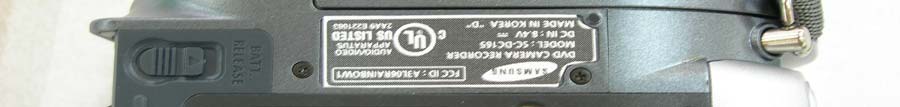

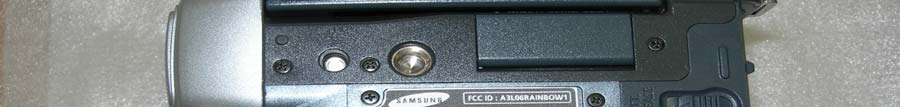

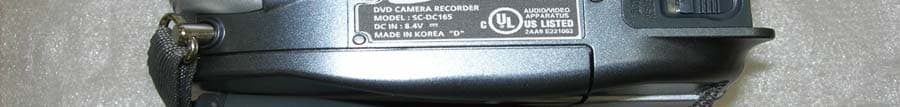

-1/23- EMC TEST REPORT Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si,Gyeonggi-Do, 443-742 Korea (Tel: 031 277 7752, Fax: 031 277 7753) Project No. : LBE052974 Page (1)/(23) 1. Applicant β¦ Name of organization : Samsung Electronics Co., Ltd. β¦ Address : 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea β¦ Date of application : 2006. 01. 02 2. Purpose for the report : Approval for EMC 3. Kind of product : DVD Camera Recorder (Model name : SC-DC165) 4. Date of test : 2005.12.20 ~ 2005.12.21 5. Applied standard : FCC Part 15:2003 Subpart B 6. Test result : PASS The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) 7. FCC ID : A3L06RAINBOW1 Tested by Name : Young Jin, Kim Reviewed by Name : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. 2006. 01. 02 Samsung Electornics Co., Ltd. Chief of CS Management Center -2/23- TEST RESULT Test Report No. : LBE052974 Applicant / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Manufacture / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea EUT : 1. Product name : DVD Camera Recorder 2. Model name : SC-DC165 3. Brand name : Samsung 4. Variant model : SC-DC163, SC-DC164 Test Method : ANSI C 63.4:2003 Test Result : PASS The equipment under test has found to be compliant with the applied standards Test Lab. : CS Management Center, Samsung Electronics Co., Ltd. Tested by : Young Jin, Kim Reviewed by : No Cheon Park Date of Issue : 2006. 01. 02 -3/23- Table of contents 1. General information 1.1 Basic information related product 1.2 Detail information related product 1.3 Operating mode and condition 1.4 Equipment modifications 1.5 Test procedure 1.6 Test configuration 1.7 Applied standard 1.8 Test facility 2. Summary of test results 3. Description of individual tests 3.1 Conducted emission 3.2 Radiated emission 4. Appendix 4.1 Test photography 4.2 EUT photography -4/23- 1. General information 1.1 Basic information related product Applicant Samsung Electronics Co., Ltd. Model name SC-DC165 Applicant address 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Contact person Jei Soon, Kang Kind of product DVD Camera Recorder Valiant model SC-DC163, SC-DC164 Manufacturer Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Rated power AC 120 V, 60 Hz New / Alternative / Permissive change information New 1.2 Detail Information related product 1.2.1 Specification -5/23- 1.3 Operating mode and condition The system was configured for testing in typical fashion use. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. - External Memory : USB - PC Camera : USB 1.4 Equipment modifications No equipment modifications were required. -6/23- 1.5 Test procedure 1.5.1 Conducted emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80 cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and were handed at a 40 cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. Frequency Band [MHz] Instrument Detector Resolution Bandwidth Video Bandwidth Quasi-Peak 9 kHz - 0.15 to 30 EMI Receiver Average 9 kHz - -7/23- 1.5.2 Radiated emission EUT was placed on a platform of nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. The I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30 cm to 40 cm long and were hanged 40 cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane and the trun table azimuth was varied to obtain the maximum signal strength The system configuration, clock speed, mode of operation or video resolution, turntable azimuth with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 to 1 000 MHz using biconiLog antenna. Also, the EMI Receiver was scanned from 1 000 to 2 000 MHz using linearly polarization Double ridge horn antennas were used. The explanation of measuring instrument setup when Respective function is used in any frequency band is as following; Frequency Band [MHz] Instrument Detector Resolution Bandwidth Video Bandwidth 30 to 1 000 EMI Receiver Quasi-Peak 120 kHz - Above 1 000 EMI Receiver Peak 1 MHz 1 MHz -8/23- 1.6 Test configuration 1.6.1 Used EUT and peripherals Mark Item Model No. Serial No. Manufacturer Note A DVD Camera Recorder SC-DC165 - SAMSUNG A3L06RAINBOW1 B Adapter AA-E8 6CAXC 62025 SAMSUNG DoC C Note PC NT-Q30 087E93CY900252K SAMSUNG DcC D Adapter(Note PC) AD-8019 NBP001275-00 SAMSUNG DoC E Printer ML-1740 BABX820386E SAMSUNG A3LML-1710P F MIC YMC-2521 - SAMSUNG DoC 1.6.2 Used cable description No Connect Cable Length [m] Shielded [Y/N] Remark 1 Power (Eβ¦
Text truncated - open the document above for the full version.
-20/23- 4. Appendix 4.1 Test photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) -21/23- Picture 3. Radiated emission (Front) Picture 4. Radiated emission (Rear)
