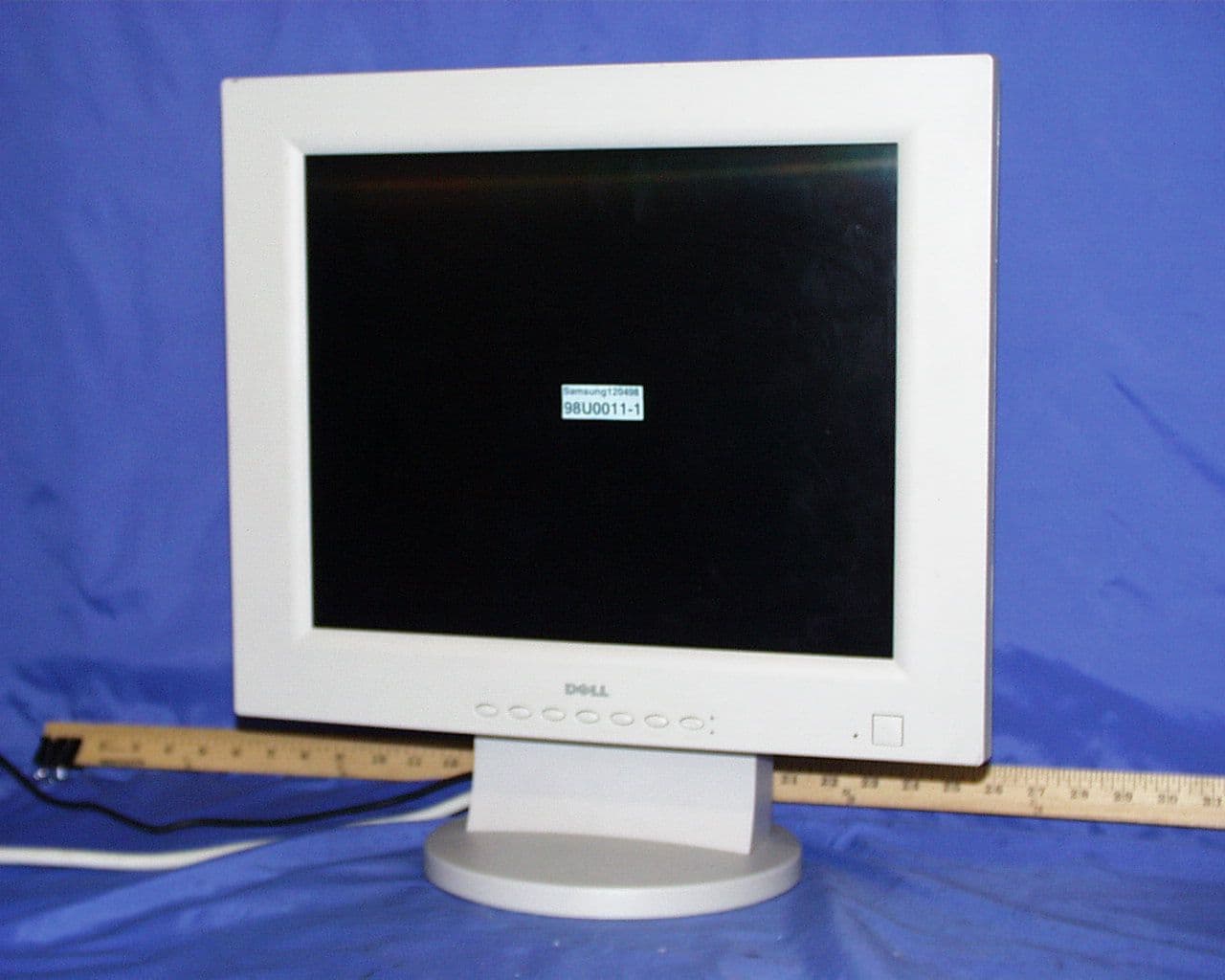

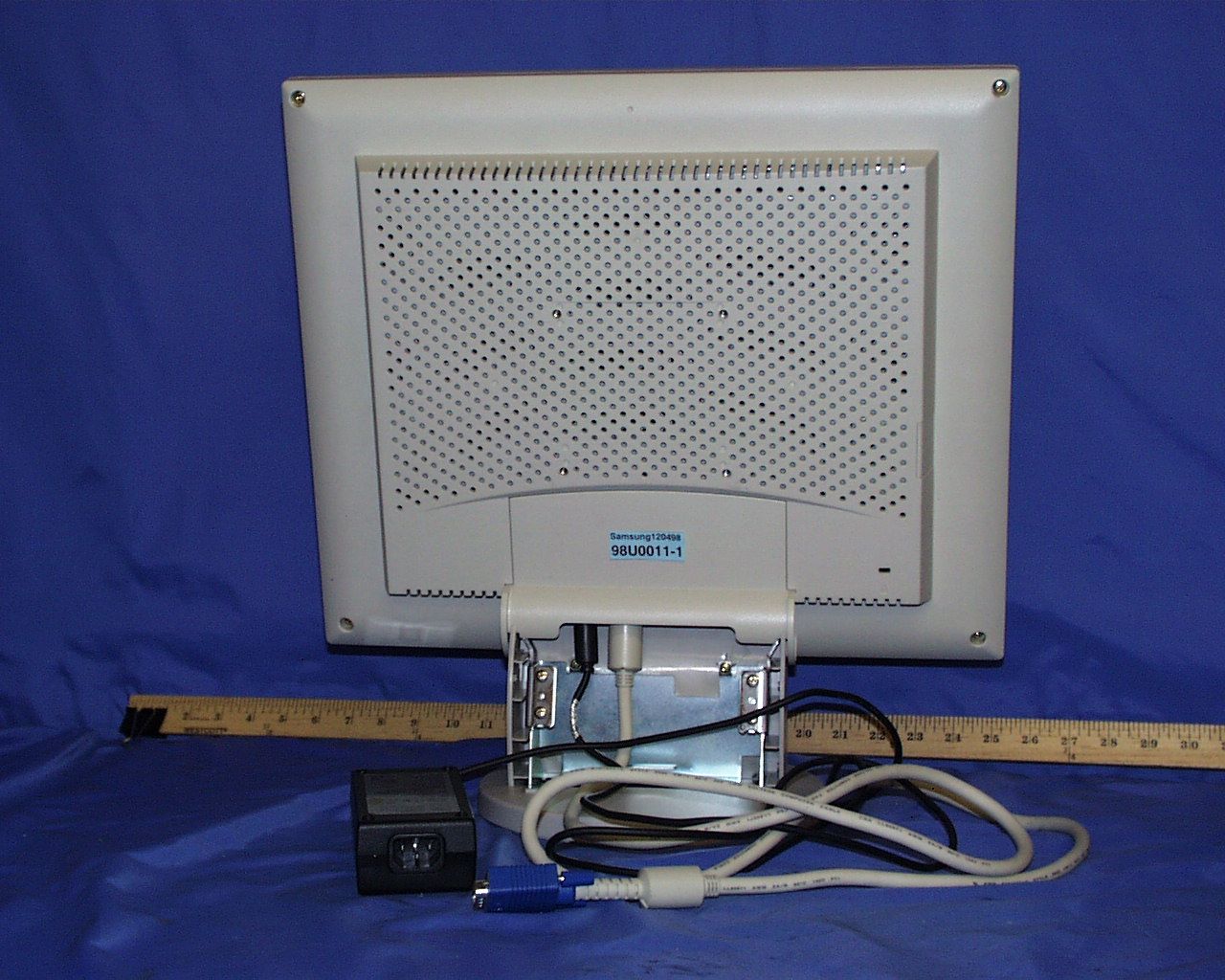

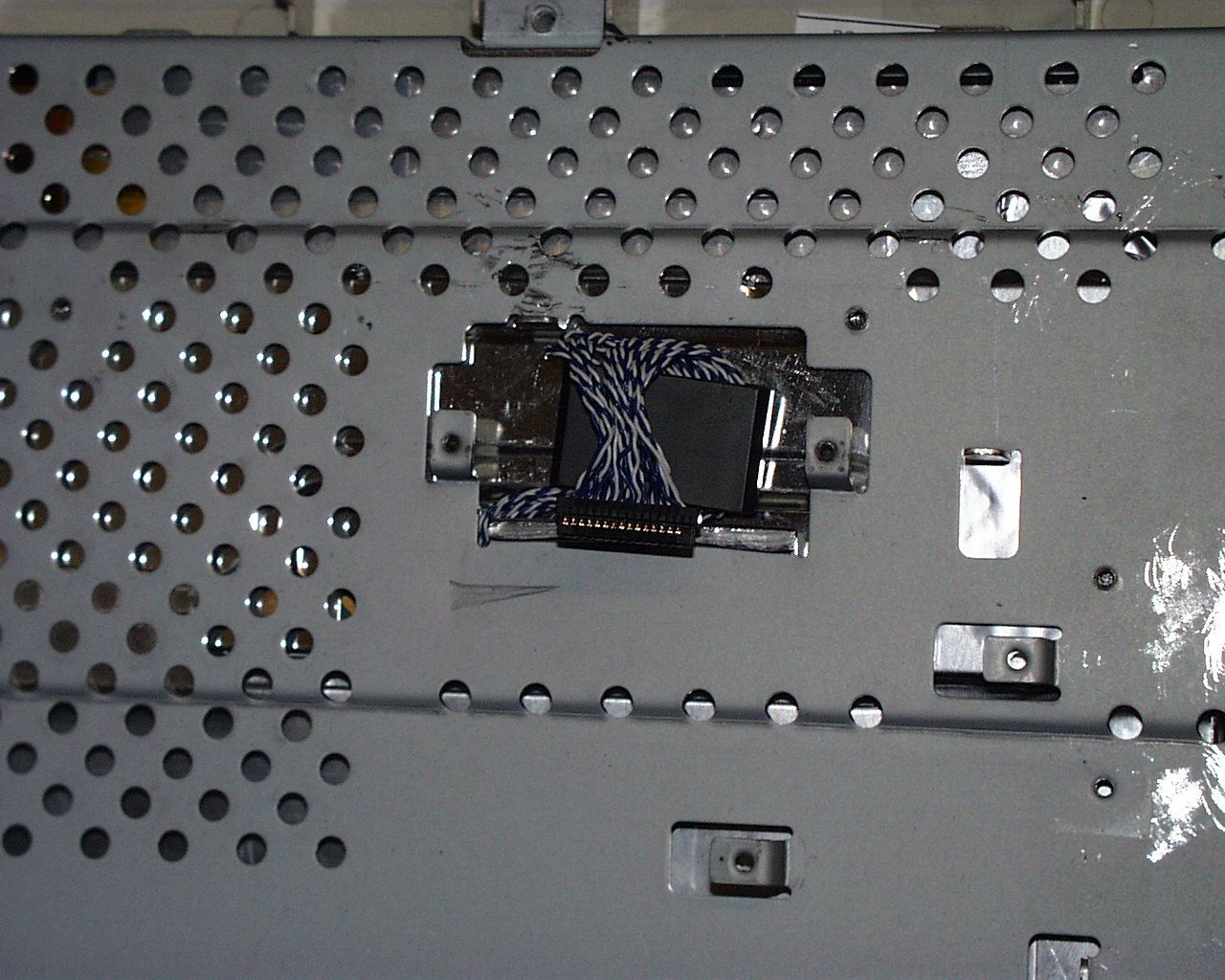

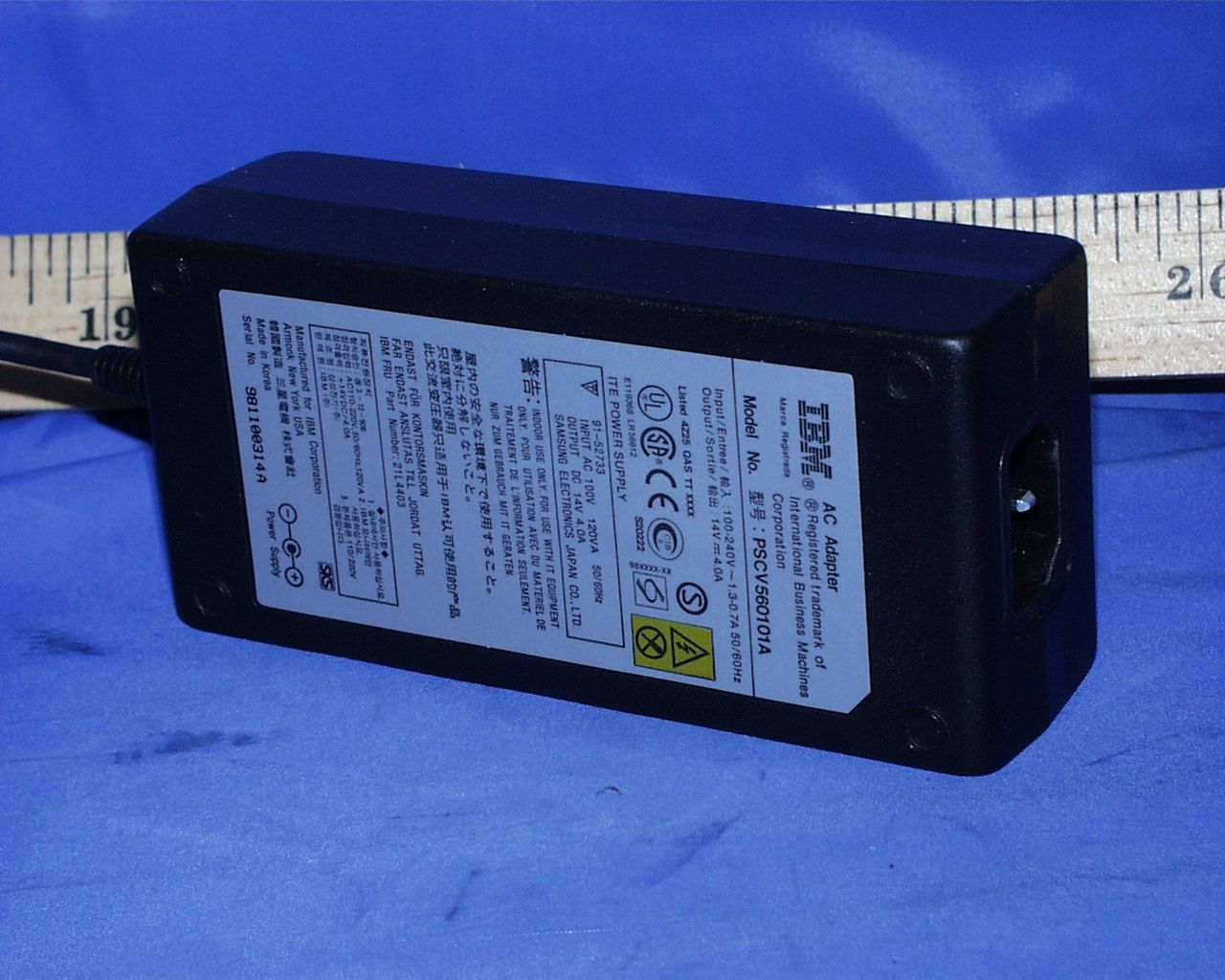

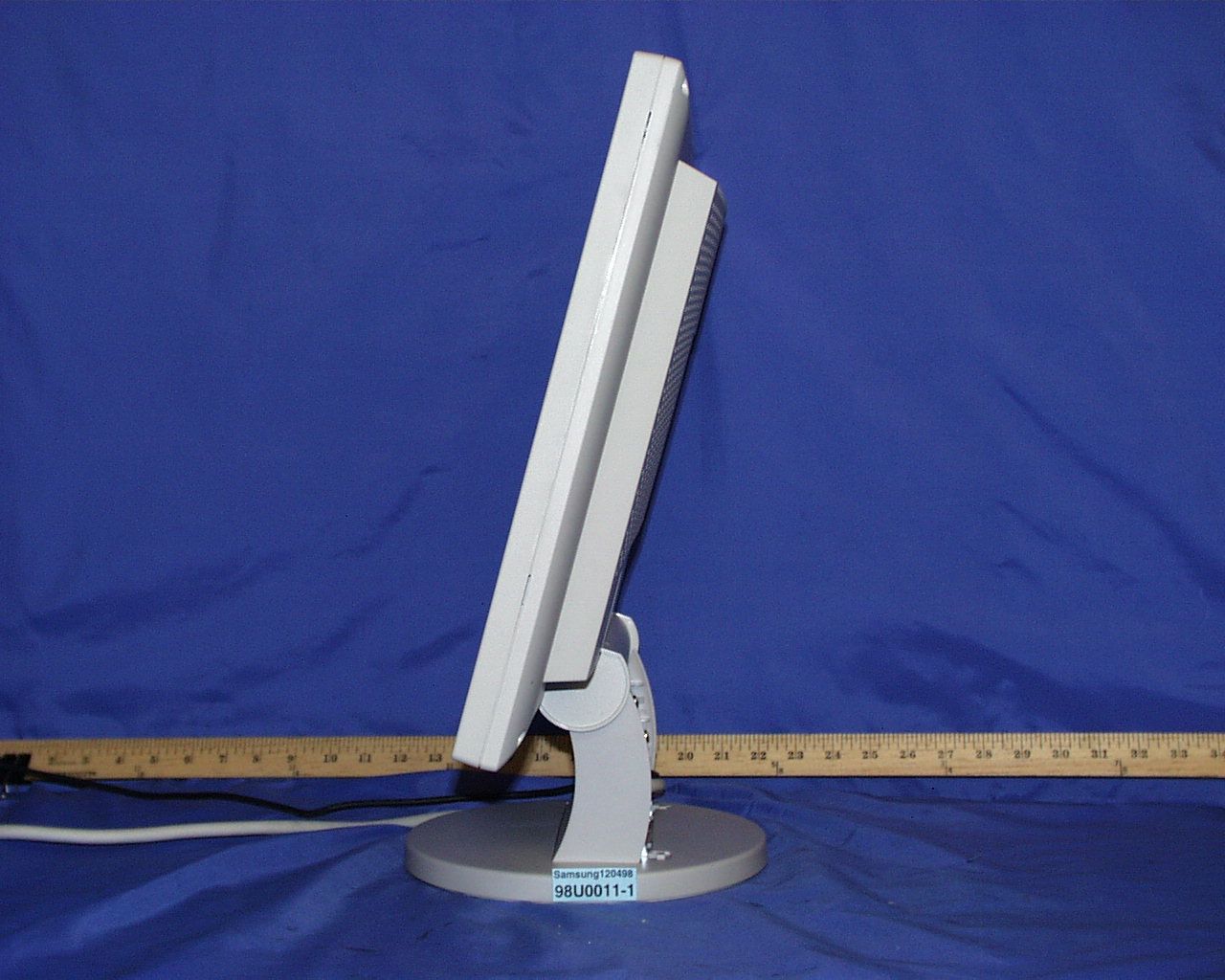

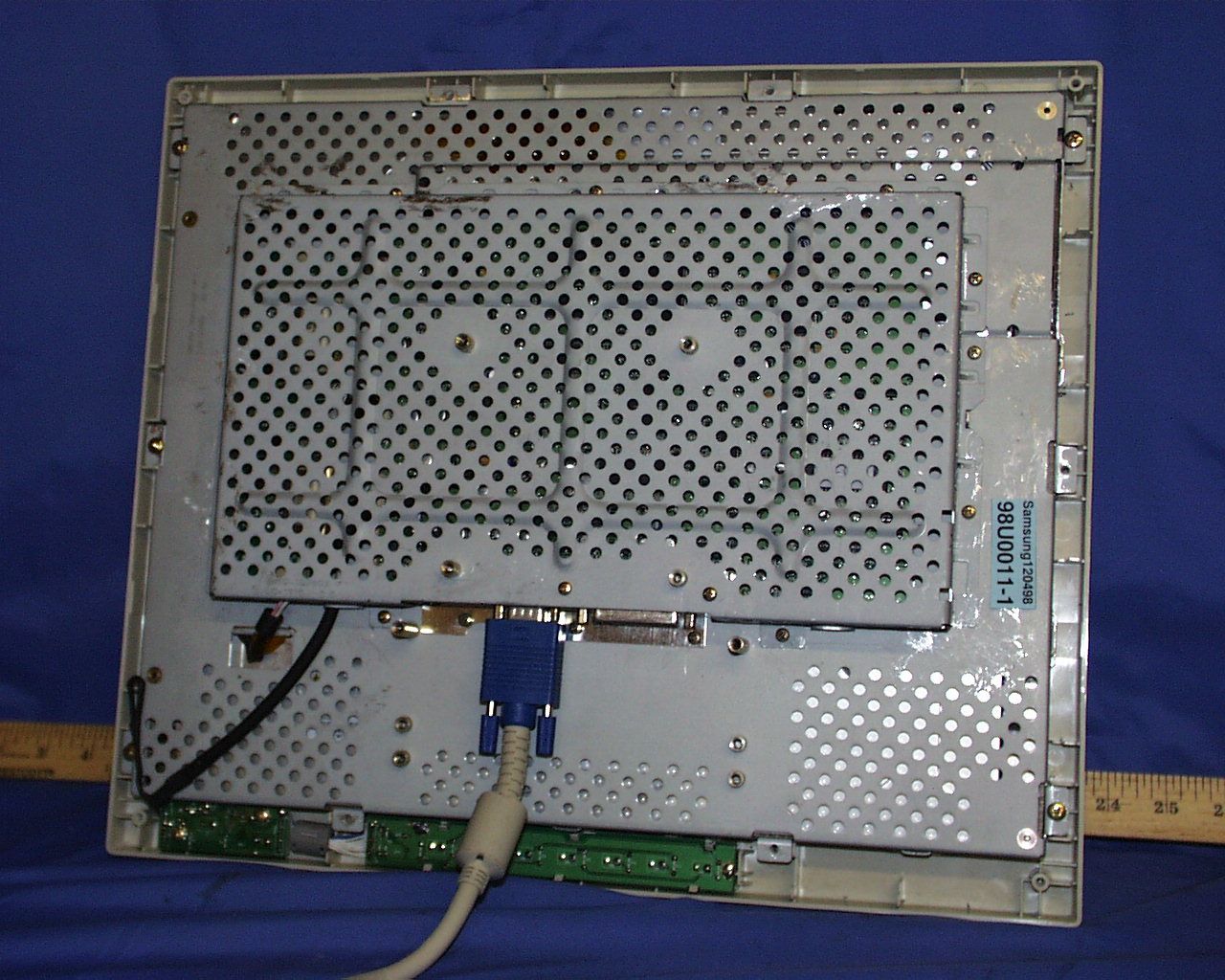

A3L1700F17 INCHES TFT FLAT PANEL MONITOR 1280X1024

www.dell.com ® Dell ® 1700 Flat Panel Monitor User’s Guide 1700FP-E.book Page 1 Monday, November 2, 1998 4:51 PM Warnings, Cautions, and Notes Throughout this document, there may be blocks of text printed in bold type or in italic type. These blocks are warn- ings, cautions, and notes, and they are used as follows: WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. NOTE: A NOTE indicates important information that helps you make better use of your computer system. ____________________ Information in this document is subject to change without notice. © 1994–1998 Dell Computer Corporation. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden. Trademarks used in this text: Dell and the DELL logo are registered trademarks of Dell Computer Corporation; Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation; VESA is a registered trademark of Video Electronics Standards Association; IBM is a registered trademark of International Business Machines Corporation; The E NERGY STAR name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an E NERGY STAR Partner, Dell Computer Corporation has determined that this product meets the E NERGY STAR guidelines for energy efficiency. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own. December 1998 P/N: 8164D and 9164D 1700FP-E.book Page 2 Monday, November 2, 1998 4:51 PM 1-ix Safety Instructions Please read and follow these instructions when connecting and using your computer monitor: •To help avoid damaging your computer, be sure the voltage selection switch on the power supply is set to match the alternating current (AC) power available at your location: —115 volts (V)/60 hertz (Hz) in most of North and South America and some Far Eastern countries such as Japan, South Korea, and Taiwan —230 V/50 Hz in most of Europe, the Middle East, and the Far East Also be sure your monitor is electrically rated to operate with the AC power available in your location. •Never insert anything metallic into the monitor openings. Doing so may create the danger of electric shock. •To avoid electric shock, never touch the inside of the monitor. Only a qualified techni- cian should open the monitor’s case. •Never use your monitor if the power cord has been damaged. Do not allow anything to rest on the power cord, and keep the cord away from where people could trip over it. •Be sure to hold the plug, not the cord, when disconnecting the monitor from an elec- tric socket. •Openings in the monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered. Also, avoid using the monitor on a bed, sofa, rug, or other soft surface. Doing so may block the ventilation openings in the bottom of the cabinet. If you put the monitor in a bookcase or some other enclosed space, be sure to provide adequate ventilation. •Put your monitor in a location with low humidity and a minimum of dust. Avoid places like damp basements or dusty hallways. •Do not expose the monitor to rain or use it near water (in kitchens, next to swimming pools, etc.). If the monitor accidentally gets wet, unplug it and contact an authorized dealer immediately. You can clean the monitor with a damp cloth when necessary, but be sure to unplug the monitor first. •Place the monitor on a solid surface and treat it carefully. The screen can be damaged if dropped, sharply hit or touched with a sharp or abrasive implement. •Locate your monitor near an easily accessible AC outlet. •If your monitor does not operate normally – in particular, if there are any unusual sounds or smells coming from it – unplug it immediately and contact an authorized dealer or service center. 1700FP-E.book Page ix Monday, November 2, 1998 4:51 PM 1-x •High temperatures can cause problems. Don’t use your monitor in direct sunlight, and keep it away from heaters, stoves, fireplaces, and other sources of heat. •Unplug the monitor when it is going to be left unused for an extended period of time. •Unplug your monitor from the AC outlet before any service. 1700FP-E.book Page x Monday, November 2, 1998 4:51 PM Dell ® 1700 Flat Panel Monitor User’s Guide1-v Contents Overview of Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5 Plug and Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5 Auto Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5 Maintenance of Your Flat Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6 Monitor Self Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6 Adjusting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7 Automatic Save. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8 Direct-Access Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8 Contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

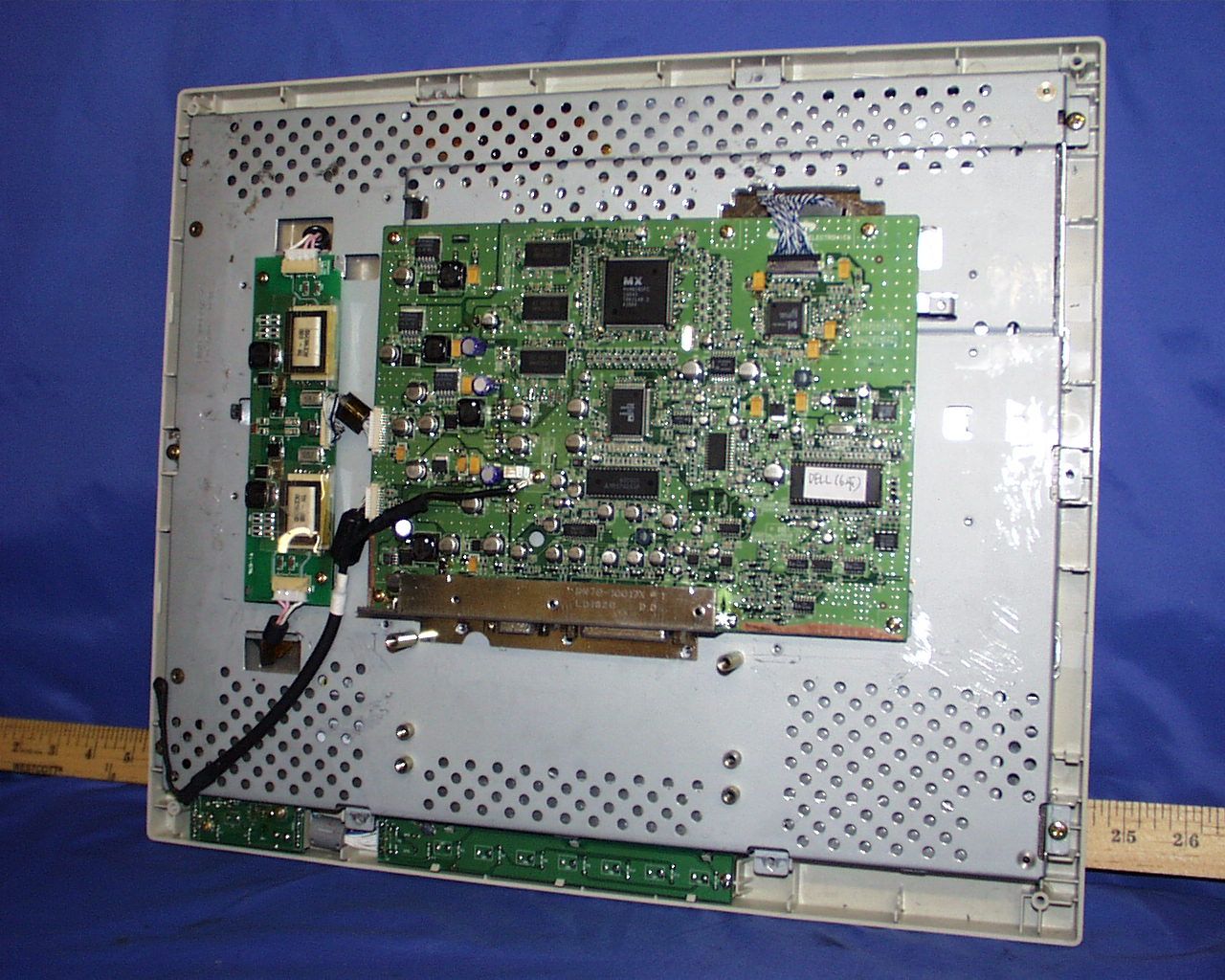

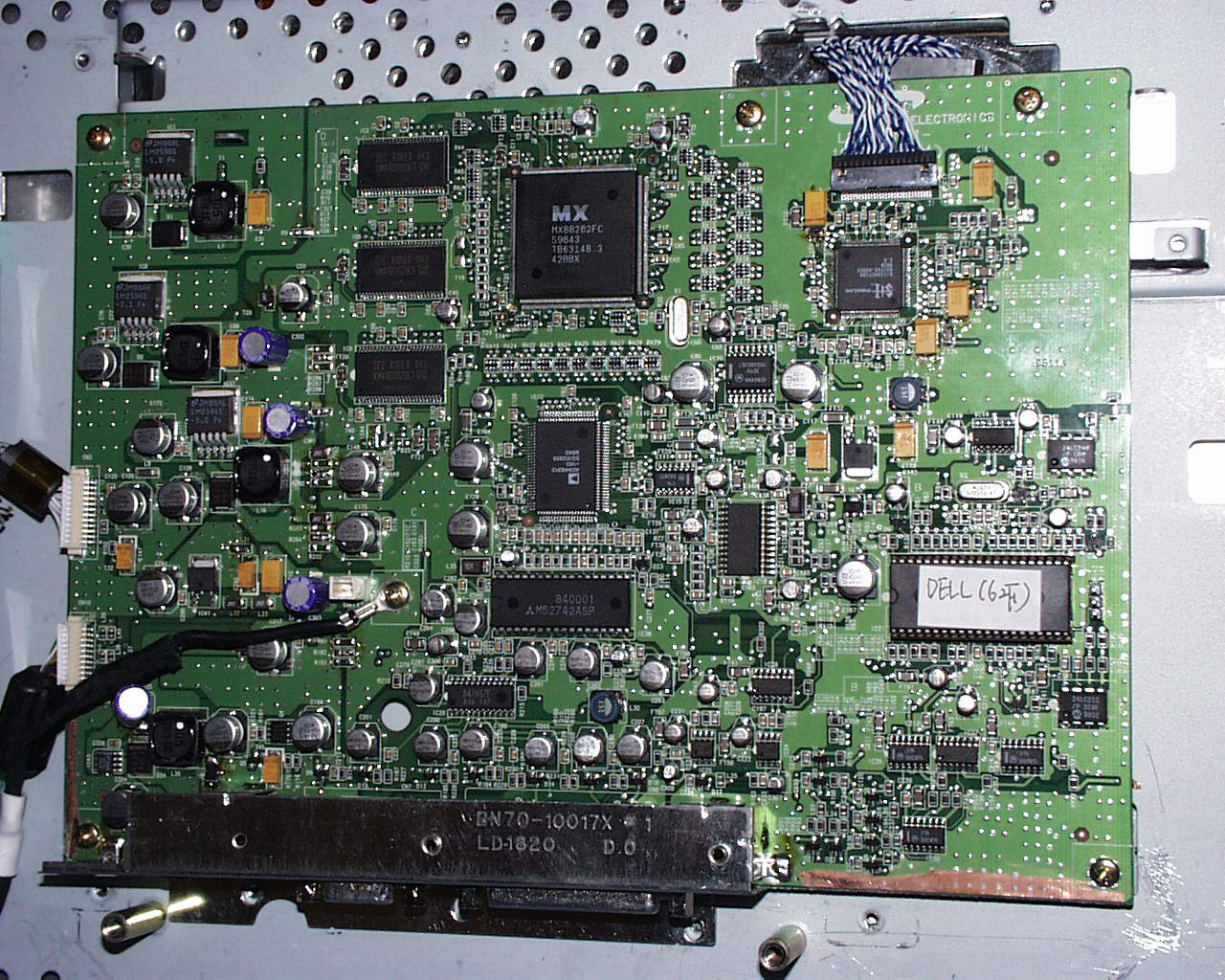

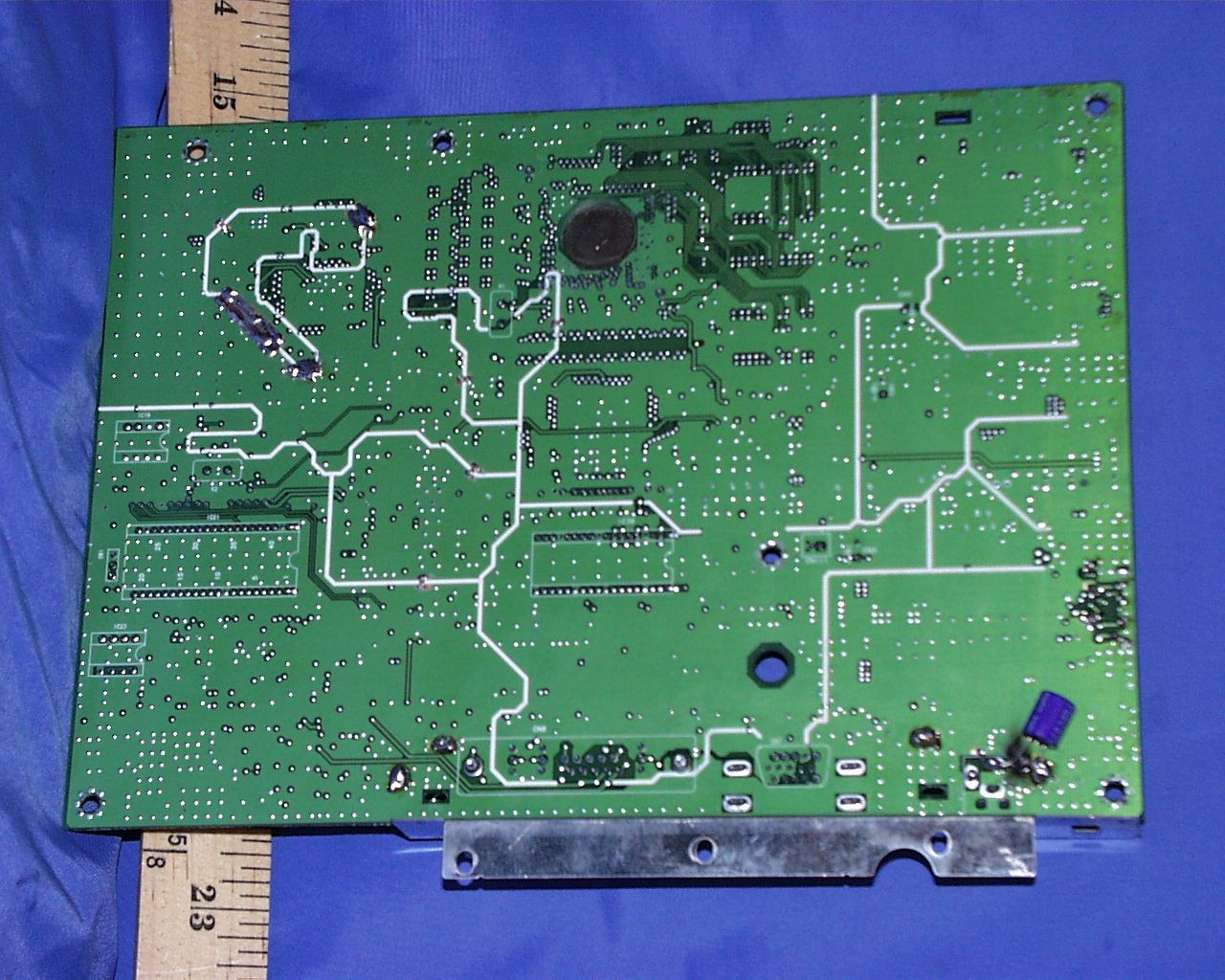

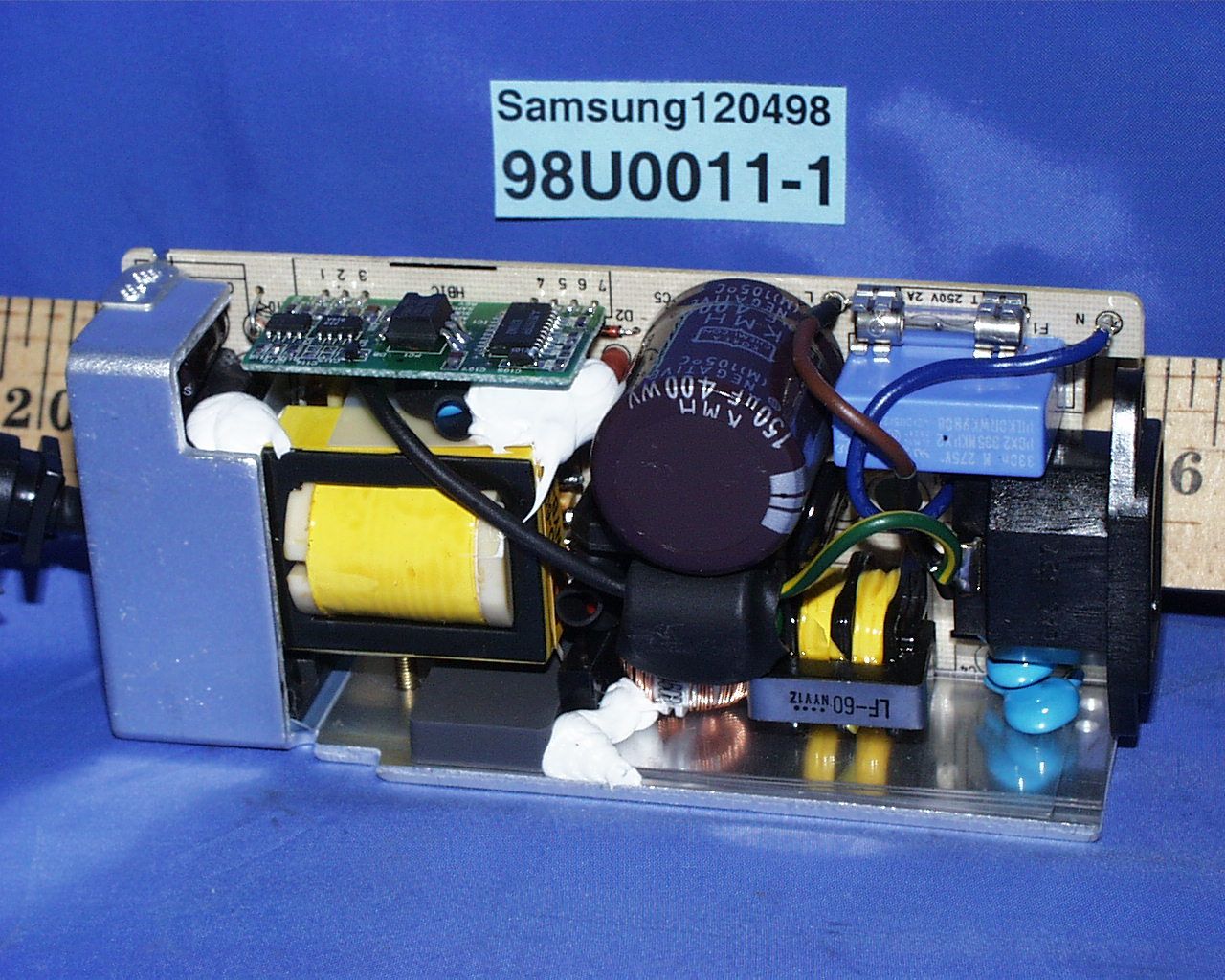

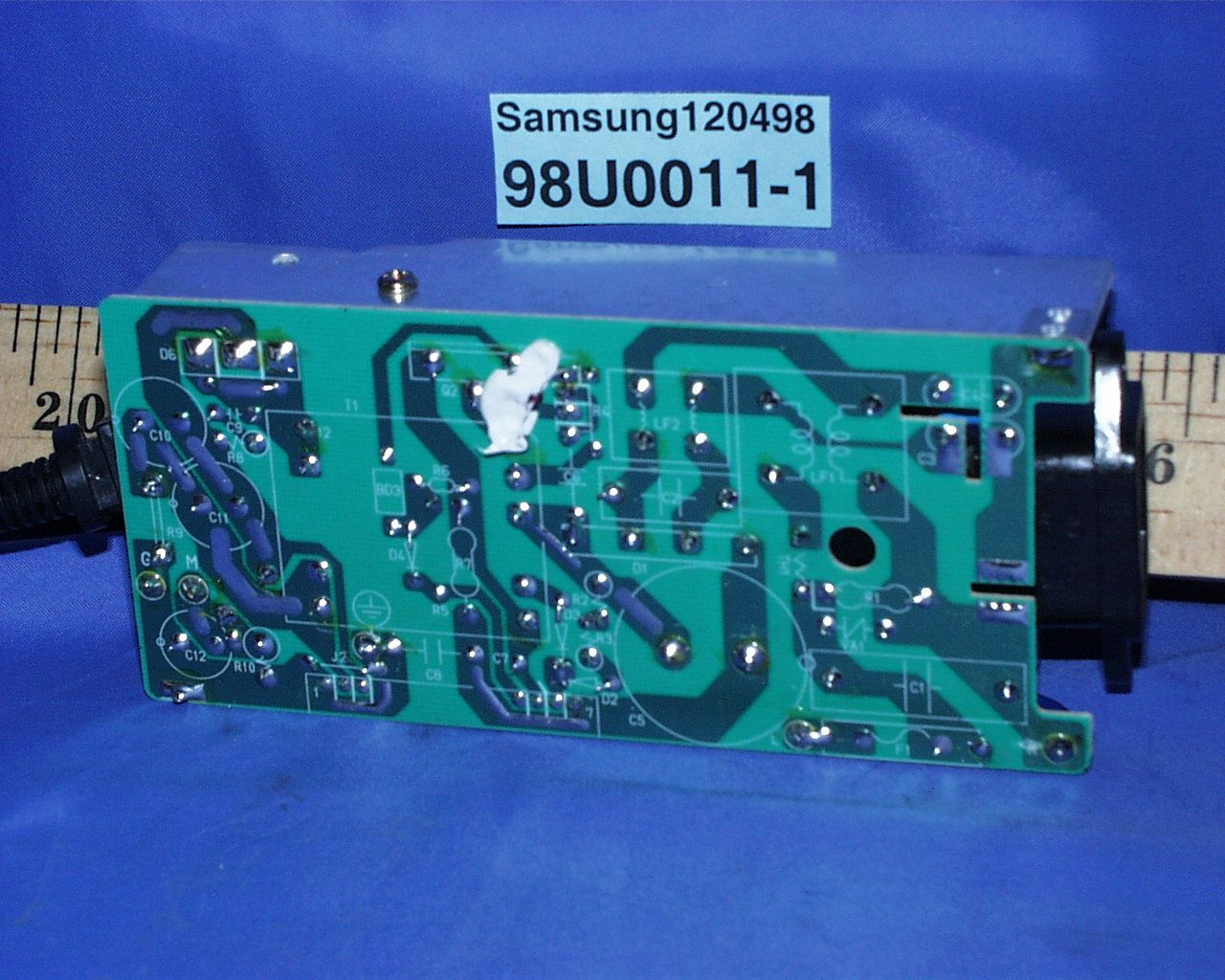

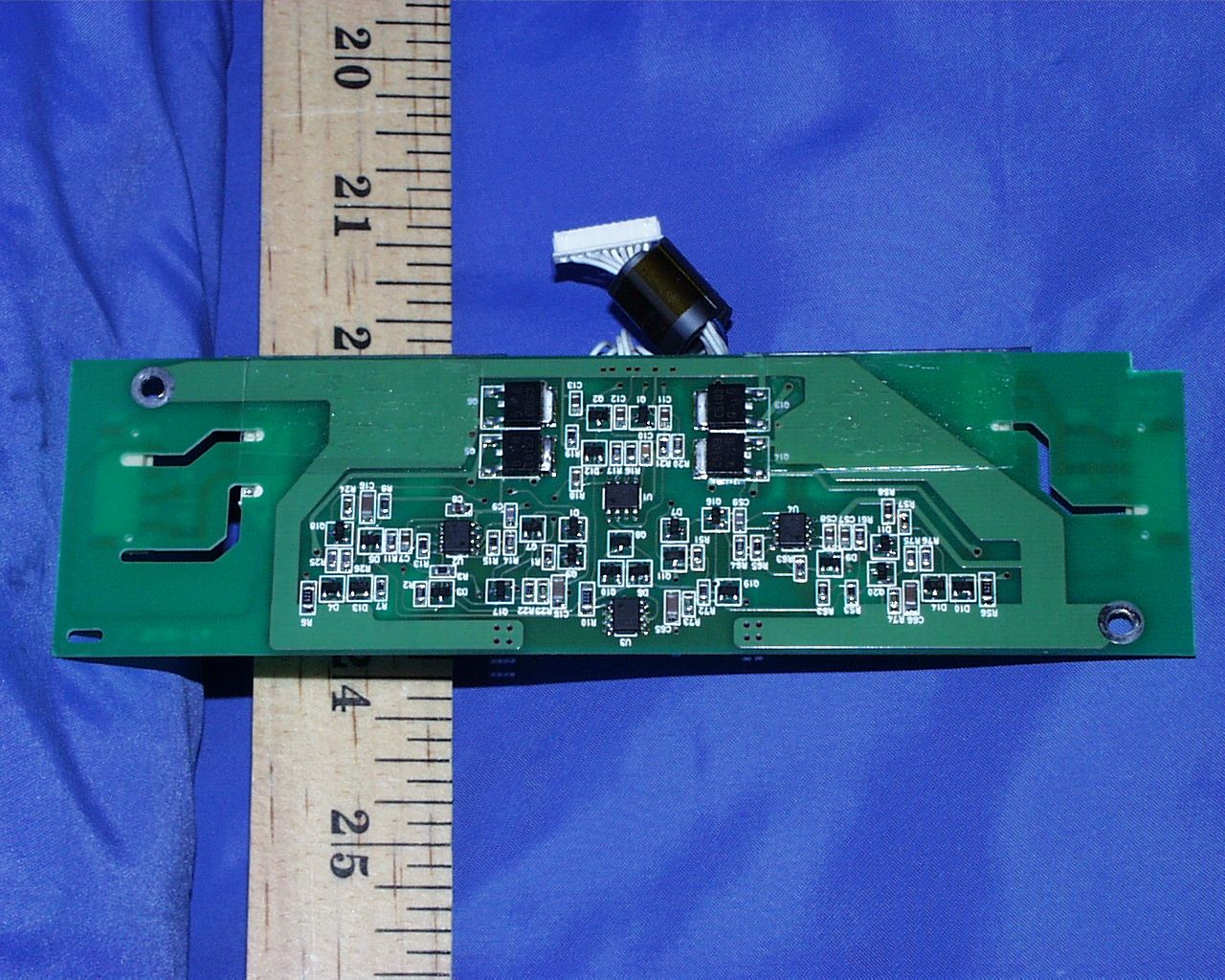

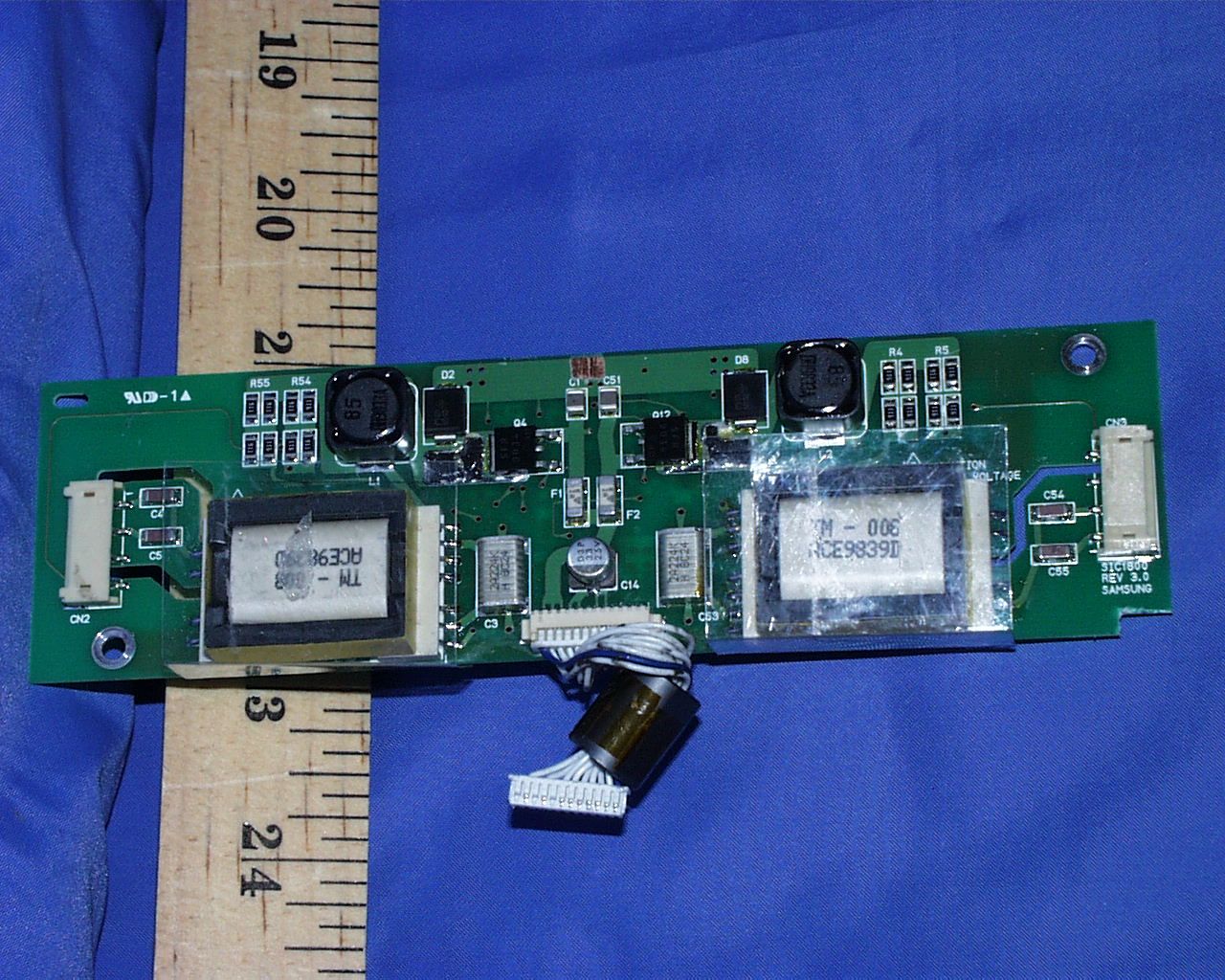

10 Block Diagrams 1700FP 10-1 DDC (24LC21A) PLL (ICS1523) OSD (LMOSD II) Automatic Adjustment (ASIC181-1) EEPROM (24C08) SDRAM (KM416S1020BT) Scaling Engine (MX88282FC) (AD9483) ADC & Pre-Amp (M52747) Video Switch (BA7657F) Sync Separater (LM1881) TMDS (SIL150) MICOM (ST7275) Brightness & Contrast Control X-T AL X-T AL 15pin D-sub DC 14 V 13W3 DC-DC Inverter Control Key Output – DC 14 V – DC 12 V – DC 5 V – DC 3.3V to LCD Panel to W/S or PC Adaptor Video Y Video X RGBxSYNCx SOG RGBySYNCy Green, Digital OSD Control Sampling Clk PDEN DC 14 V DDC Signal DC 5 V to MICOM RGBdigital Datasync RGBlcd to LCD Panel Delayed Vsync SYNC Control Signals Key Input BrightnessControl for FRC

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attention: To whom it may concerns Subject: POWER OF ATTORNEY AND AUTHORIZATION LETTER Dear Madam or Sir: I appoint Compliance Consulting Services to act as agents in the preparation and singing of this FCC application for the following model under FCC rules and regulations The applicant certificates that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non-individual applicant ( corporation, partnership or other unincorporated association ) no party in the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section, FCC Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the report properly describes the device for which certification is sought. MODEL: 1700FP FCC ID: A3L1700F APPLICANT: Samsung Electronics Co.,Ltd ADDRESS: 416 Maetan Dong, Paldal Gu, Suwon Shi, Korea PHONE: 408-544-5124 FAX: 408-544-5191 Signature: Date: Dec 2, 1998 Printed: Ben Kim Title: Manager

FCC ID LABEL LOCATION APPLICANT :SAMSUNG ELECTRONIC CO., LTD. ( FOR DELL COMPUTER) FCC ID:A3L1700F FCC ID LABEL AREA

FCC CFR47 PART 15 DIGITAL DEVICE TEST REPORT FOR 17" TFT MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED (80.1 KHz) MODEL: 1700FP, LSA700 FCC ID: A3L1700F REPORT NUMBER: 98U0011-1 ISSUE DATE: NOVEMBER 13, 1998 Prepared for DELL COMPUTER 1 DELL WAY ROUND ROCK, TX 78682 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 98U0011-1 DATE: NOVEMBER 13, 1998 FCC ID:A3L1700F EUT: 17" COLOR MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED (80 KHz) COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002C 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE..............................................1 2. PRODUCT DESCRIPTION.....................................................2 3. TESTED SYSTEM DETAILS...................................................2 4. TEST FACILITY...........................................................3 5. ACCREDITATION AND LISTING...............................................3 6. MEASUREMENT INSTRUMENTATION.............................................3 7. MEASURING INSTRUMENT CALIBRATION........................................3 8. UNITS OF MEASUREMENT....................................................4 9. ANTENNAS................................................................4 10. CLASSIFICATION OF DIGITAL DEVICE........................................5 11. RADIATED EMISSION LIMITS................................................5 12. CONDUCTED EMISSION LIMITS...............................................6 13. CONDUCTED EMISSION TEST PROCEDURE.......................................8 14. RADIATED EMISSION TEST PROCEDURE........................................8 15. AMBIENT CONDITIONS......................................................9 16. SYSTEM TEST CONFIGURATION...............................................9 17. EQUIPMENT MODIFICATIONS................................................10 18. EUT SETUP PHOTOS.......................................................11 19. TEST EQUIPMENT LIST....................................................12 20. TEST RESULT SUMMARY....................................................13 APPENDICES..................................................................15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .EUT PHOTOGRAPHS REPORT NO:98U0011-1 DATE:NOVEMBER 13, 1998 FCC ID: A3L1700F EUT: 17" TFT MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED (80.1 KHz) 1OF20 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME: DELL COMPUTER 1 DELL WAY ROUND ROCK, TX 78682 USA CONTACT PERSON: BEN KIM / MANAGER TELEPHONE NO: 408-544-5124 MODEL NO/NAME: 1700FP, LSA700 SERIAL NO: N/A DATE TESTED: NOVEMBER 13, 1998 TYPE OF EQUIPMENT: INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE:()3METER (X)10METER TECHNICAL LIMIT: CLASS B FCC RULES: PART 15 MEASUREMENT PROCEDURE ANSI C63.4:92 / EN 55022 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUTYESNO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 20 for comments) NO RADIATED EMISSION TEST RESULT -4.21 dB @ 222.15 MHz/VERTICAL CONDUCTED EMISSION TEST RESULT -10.30 dB @ 12.23 MHz/L1 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE CERTIFICATION SERVICES REPORT NO:98U0011-1 DATE:NOVEMBER 13, 1998 FCC ID: A3L1700F EUT: 17" TFT MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED (80.1 KHz) 2OF20 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC CPU SPEEDS TESTED 133 MHz PENTIUM LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 14.3, 24.0 MHz CHIPSET BRAND AND PART NO. MXIC POWER SUPPLY/NAME/MODEL/S.N. IBM PSCV560101A NUMBER OF PCB LAYERS 6 BOARD REVISION NO REV 1.0 POWER REQUIREMENTS 100-240 V AC, 60/50 Hz NO. OF EXTERNAL I/O CONNECTORS 1 LINE FILER NAME AND MODEL BUILT-IN MAX. RESOLUTION 1280X1024 NI MAX. HOR/VERT FREQUENCY 80.1 KHz/75 Hz 3. TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device Type ManufacturerModel NumberSerial No.FCC ID / DoC KEYBOARD DIGITAL RT6656TW 62051025 AQ6-MTN4XZ15 MOUSE DIGITAL M-S35 LT54402451 DZL210472 MODEM HAYES 4007AM A00840073172 BFJ4000AM PRINTER HP 2225C 2930S52630 DSI6XU2225 COMPUTER DIGITAL 963WW TA551T2397 A09-96XWW REPORT NO:98U0011-1 DATE:NOVEMBER 13, 1998 FCC ID: A3L1700F EUT: 17" TFT MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED (80.1 KHz) 3OF20 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication …

Text truncated - open the document above for the full version.
