A3L2005ZEUSDVD Player/ Video Cassette Recorder

Instruction Manual DVD-V5500 www.samsungusa.com Table of Contents ENG-3 Remote Control Overview Safety Instructions ENG-2 Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper ground- ing and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. Caution:FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it. Caution:To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention:Pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. Important :One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may be copyrighted and any unauthorized recording in whole or in part may be a violation of these rights. To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons. This symbol is intended to alert the user to the presence of important oper- ating and maintenance (servicing) instructions in the literature accompany- ing the appliance. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli fiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Safety Important Safety Instructions . . . . . . . . . . . . . 2 Welcome Feature Summary . . . . . . . . . . . . . . . . . . . . . 4 Disc Type and Characteristics . . . . . . . . . . . . 4 1 - System Overview Front Panel Overview . . . . . . . . . . . . . . . . . . 5 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Unpack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Front Panel Display . . . . . . . . . . . . . . . . . . . . 6 Insert Batteries into Remote . . . . . . . . . . . . . 6 2 - Getting Started Basic Connections/Auto Setup . . . . . . . . . . . 6 3 - Advanced Connections Stereo Connections . . . . . . . . . . . . . . . . . . . . 7 S-Video/Component Video Connections (for DVD) . . . . 8 Monitor TV Connections . . . . . . . . . . . . . . . . . 9 Connecting Other Video Equipment . . . . . . . . . 9 4 - DVD Sound Setup A/V Receiver Connections . . . . . . . . . . . . . . . . 10 5 - Basic Operation Deck Control Buttons . . . . . . . . . . . . . . . . . . . 10 Basic DVD Operation . . . . . . . . . . . . . . . . . . . 10 Basic VCR Operation . . . . . . . . . . . . . . . . . . . 11 Basic TV Tuner Operations . . . . . . . . . . . . . . . 11 6 - System Setup On-Screen Menu Navigation . . . . . . . . . . . . . . 11 Menu Language . . . . . . . . . . . . . . . . . . . . . . . 12 Auto Clock Set . . . . . . . . . . . . . . . . . . . . . . . . 12 Manual Clock Set . . . . . . . . . . . . . . . . . . . . . . 13 Tuner Band Setting . . . . . . . . . . . . . . . . . . . . . 14 RF Output Channel . . . . . . . . . . . . . . . . . . . . . 14 Auto Channel Memory . . . . . . . . . . . . . . . . . . . 15 Channel Add/Delete . . . . . . . . . . . . . . . . . . . . 15 Front Panel Dimmer . . . . . . . . . . . . . . . . . . . . 16 Auto Power Off . . . . . . . . . . . . . . . . . . . . . . . . 16 7 - DVD Setup Disc Menu Language . . . . . . . . . . . . . . . . . . . 17 Audio Language . . . . . . . . . . . . . . . . . . . . . . . 17 Subtitle Language . . . . . . . . . . . . . . . . . . . . . . 18 Digital Output . . . . . . . . . . . . . . . . . . . . . . . . . 18 DTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Dynamic Compression . . . . . . . . . . . . . . . . . . 19 PCM Down Sampling . . . . . . . . . . . . . . . . . . . 20 TV Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . 20 Black Level . . . . . . . . .…

Text truncated - open the document above for the full version.

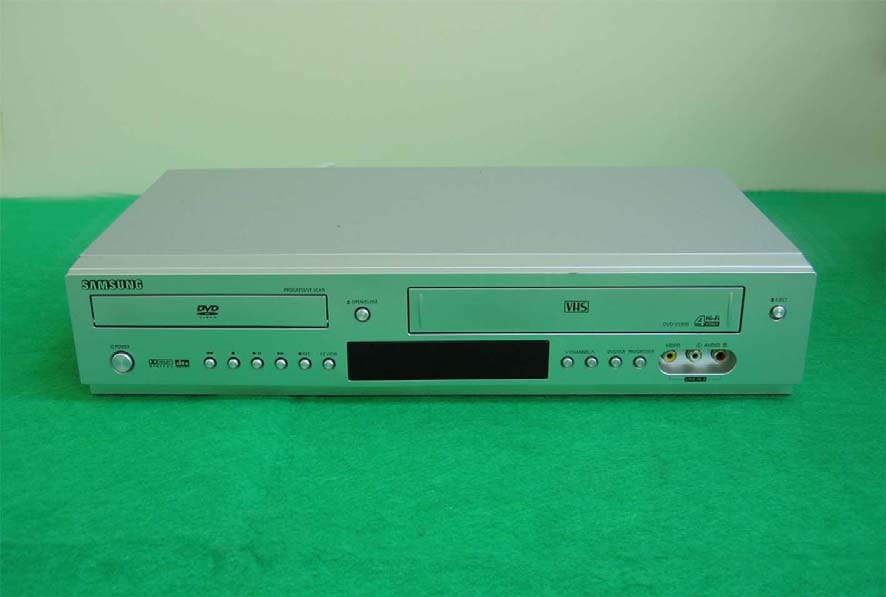

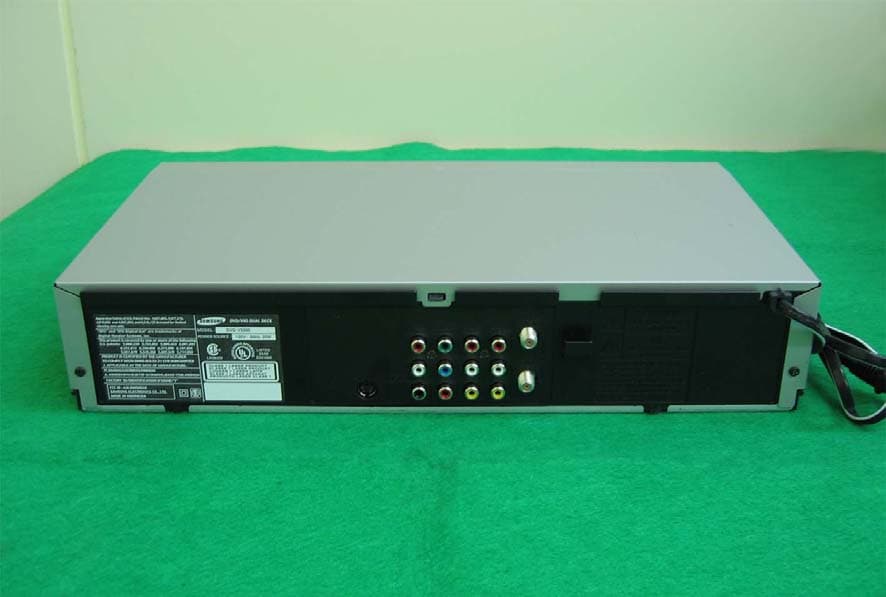

Photograph of DVD-V5500 FCC ID : A3L2005ZEUS Fro nt View Rear View

Labeling requirement FCC IDENTIFICATION Location: on the label rating STATEMENT Location: on the bottom of product THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: A3L2005ZEUS SAMSUNG ELECTRONICS CO., LTD. MADE BY SAMSUNG IN INDONESIA

Photograph of DVD-V5500 - FCC ID : A3L2005ZEUS Front View – Front/Top cover open Top View – Top cover open Photograph of DVD-V5500 - FCC ID : A3L2005ZEUS Top of Main PCB View Bottom of Main PCB View Photograph of DVD-V5500 - FCC ID : A3L2005ZEUS Top of DVD PCB View Bottom of Main PCB View Photograph of DVD-V5500 - FCC ID : A3L2005ZEUS Top of SMPS PCB View Bottom of SMPS PCB View Photograph of DVD-V5500 - FCC ID : A3L2005ZEUS Top of Key function PCB View Bottom of Key function PCB View Photograph of TM-BLOCK TM-BLOCK TYPE: VHA35ASE To p V i e w Bottom View
