A3L30118Multi Function Monitor

1 iCEBOX Owner’s Manual Owner’s Manual •email •internet •monitoring •security •music •DVD video •TV 2 ©CMi Worldwide, August 2000 Contacting CMi Worldwide All of us at CMi Worldwide are committed to excellence in our products and services. Your input is important to us, especially if questions or problems arise. Please phone, write, or email with your concerns and our team will strive to resolve each issue to your ultimate satisfaction. You can reach us at: [email protected] CMi Worldwide, 600 Stewart St., Suite 700, Seattle, WA 98101 Please refer to the warranty service card for additional information and phone numbers. 3 iCEBOX Owner’s Manual Table of Contents 1. Getting Started with the iCEBOX ...................................................page 6 Introduction .......................................................................................................6 Unpacking the iCEBOX ....................................................................................7 Installing the batteries .......................................................................................8 Connecting cable TV or antenna ......................................................................9 Connecting the phone line ..............................................................................10 Connecting to power .......................................................................................11 Optional connections ......................................................................................11 TV setup .........................................................................................................12 Viewing the Welcome CD ...............................................................................13 2. Push Buttons and Connectors ......................................................page 14 TV/monitor front panel push buttons ..............................................................14 TV/monitor rear panel connections ................................................................15 TV/monitor side panel buttons ........................................................................16 Remote control - TV and CD functions ...........................................................18 Remote control - Internet functions ................................................................19 Keyboard ........................................................................................................20 3. Internet ................................................................................................page 19 Registration ...................................................................................................19 Accessing Web sites outside the CMi Web portal .........................................25 Error messages .............................................................................................25 4. Security and Monitoring .................................................................page 29 Monitor mode .................................................................................................29 Security mode ................................................................................................29 4 ©CMi Worldwide, August 2000 5. Troubleshooting ................................................................................page 30 6. Privacy Policy .....................................................................................page 31 Scope of the privacy policy .............................................................................31 Personal identification information .................................................................31 Cookies ..........................................................................................................32 Privacy of children .........................................................................................32 How we use and disclose your information ...................................................33 Other sites .....................................................................................................33 Security information .......................................................................................33 7. Specifications ....................................................................................page 35 Appendix ..................................................................................................page 37 Analog vs digital phone lines .........................................................................37 Advantage 2000 printer compatibility .............................................................38 Caring for your Advantage 2000 ....................................................................38 Service .....................................................................................................38 Cleaning ...................................................................................................38 5 iCEBOX Owner’s Manual List of Figures Figure 1. Unpacking the iCEBOX .................................................................page 7 Figure 2. Remote control battery installation ..........................................................8 Figure 3. Keyboard battery installation ...................................................................9 Figure 4. Cable/antenna connector .......................................................................9 Figure 5. Phone cord with splitter ........................................................................10 Figure 6. Phone connector ..................................................................................10 Figure 7. Power connectors .................................................................................11 Figure 8. TV adjustment buttons (right side of TV/monitor) .................................12 Figure 9. TV/monitor front panel push buttons ..................................................…

Text truncated - open the document above for the full version.






                                      !   "#  #  $%%& '#( )
   *              #  *         #















       !  " #$%&#        '   '
 (

Block Diagrams ICEBOX 8-1 SCREEN RGB VIDEO BOARD TO D-COILON THE CRT VIDEO INPUT H/V SYNC VIDEO OUTPUT IC103(LM2439) RGB - CUTOFF QR, G,B01,02 G1 HEATER VIDEO PRE-AMP IC101(KA2504) SOCKET SOCKET FBT T501 H/V SIZE REG. VERTICAL FOCUS HOR. DY CN401 VER. DY CN401 H. D. T T401 S-COR. VER. OUTPUT IC301 HOR. DRIVE Q401 HOR./VER. PROCESSOR IC401 H-SYNC1 V-SYNC1 E/W_OUT I2C D ATA I2C CLK REG. V-MUTE S-CORRECTION PS-1(SUSPEND) PS-2(POWER OFF) HOR. LINEARITY TILT POWER PWM CONTROL IC601 BRIDGE RECTIFIER EPROM IC203 DEGAUSSING BLOCK RL601 UP, DOWN BRIGHTNISS CONTRASTER PIN, TRAP SIZE, POSI, DEGA. LED POWER AC INPUT SOCKET CN601 LINE FILTER L601 SWITCHING TRANS T601 ACL CIRCUIT CONTRAST CONTROL BRIGHTNESS CONTROL +53V+13V -10V +6.3V +70V PS-2 VER.OUT & TILT CONTORL HEATER VOLTAGE CONTROL POWER-OFF MODE CONTROL Q604 +12V REGULATOR PS-1(From MCU) CRT HEATER G1 +12V TO VIDEO -210V +12V CONTRASTCONTROL BRIGHTNESSCONTROL -210V (FROM FBT) 24C041 FROM MCU B(+) FROM IC401 H-SYNC, V-SYNC STV7779 TDA9302 FRONT CONTROLBOARD SIGNAL MAIN BOARD H/V FOCUS MCU IC201 HOR. OUT Q402 KSC5802 MAXIMUM GENERATING FREQUENCY : 49.5MHz

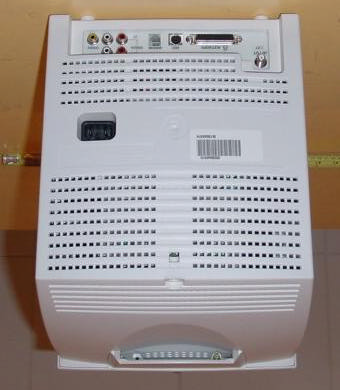

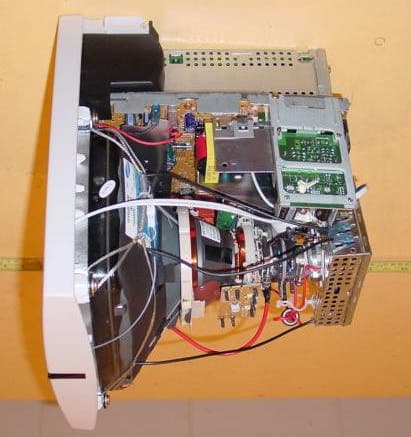

Front view of EUT Rear view of EUT Side view of EUT Internal view of EUT

Page 13 of 14 JOB NO. : SEMC897 7. Label and Label Location 7.1 Label 7.2 Label location This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.

Front of Logic Board Rear of Logic Board Front of Monitor Main Board Rear of Monitor Main Board Front of Video Board Rear of Video Board Front of Sub Power Board Rear of Sub Power Board

Page 1 of 14 JOB NO. : SEMC897 Product :Multi Function Monitor Model No. :30118 FCC ID : A3L30118 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. Date of test :October 12, 2000 Issued Date :October 17, 2000 Tested by: Byeong Soo, KIM / Test Engineer Reviewed by: Seung Kyu, CHA / Manager of EMC Lab Authorised by: Taek Jeong, Shin / Chief of EMC Lab This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT FCC Part 15 Subpart B, Class B Page 2 of 14 JOB NO. : SEMC897 Table of Contents 1. General Information 1.1 Product Description 1.2 Tested System Details 1.3 Test Methodology 1.4 Test Facility 2. System Test Configuration 2.1 Operation Environment 2.2 Justification 2.3 EUT Exercise Software 2.4 Test Procedure 2.5 Test System configuration 3. Conducted and Radiated Measurement Photos 3.1 Conducted Measurement Photos 3.2 Radiated Measurement Photos 4. Measurement Uncertainty 4.1 Conducted Emission Test 4.2 Radiated Emission Test 5. Conducted Emission Test Data 6. Radiated Emission Test Data 7. Label and Label Location 8. Test Equipment Used This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 3 of 14 JOB NO. : SEMC897 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416, Maetan-3 Dong, Paldal-Gu Suwon City, Kyungki-Do, Korea, 442-742 CONTACT PERSON :Byeong Soo, KIM TEL. +82-31-200-2135 CONTACT ADDRESS :416, Maetan-3 Dong, Paldal-Gu Suwon City, Kyungki-Do, Korea, 442-742 REGULATION(S) :FCC Part 15 Subpart B, Class B MODEL NUMBER :30118 SERIAL NUMBER :- KIND OF PRODUCT :Multi Function Monitor TESTED DATE :October 12, 2000 TEST SITE :Open Field Test Site & Shield Room TEST SITE ADDRESS :781-14, Chung-Ri, Dongtan-Myun, Hwasung-Kun, Kyungki-Do, Korea 416, Maetan-3 Dong, Paldal-Gu Suwon City, Kyungki-Do, Korea, 442-742 This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 4 of 14 JOB NO. : SEMC897 1.1 Product Description The Samsung Electronics Co., Ltd. Multi Function Monitor 30118 is used as a kitchen appliance that provides extensive capability to the user. This screen will operates as a television, a DVD player, an Internet Browser, a CD audio player. It can be operated in AC100~120V. See attached User's Guide for more information. 1.2 Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: ModelFCC ID/DoCDescriptionCable description (1)Samsung ElectronicsFCC ID : A3L30118Multi Function MonitorUnshielded AC Power Cable M/N : 30118Shielded Parallel Cable S/N : -Unshielded Video Cable (EUT) (2)Samsung Electronics FCC ID : A3LTWIN2KVCR Unshielded AC Power Cable M/N : VR633HFUnshielded Video Cable S/N : 011360434 (3)HP DoCPrint Unshielded AC Power Cable M/N : 810CShielded Parallel Cable S/N : CN0561N1S3 (4)HP-AC Power AdapterUnshielded AC Power Cable M/N : C6409-60152Shielded Video Cable S/N : B0B15BUnshielded Video Cable (5)--Security BoxUnshielded AC Power Cable M/N : -Unshielded Video Cable S/N : - (6)Samsung Electronics-KeyboardWireless M/N : - S/N : - (7)Samsung Electronics -Remocon Wireless M/N : - S/N : - This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 5 of 14 JOB NO. : SEMC897 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT. 1.4 Test Facility All test described in this report were performed by : 1) Open field test site : 781-14, Chung-Ri, Dongtan-Myun, Hwasung-Kun, Kyungki-Do, Korea 2) Conducted measurement facility : 416, Maetan-3 Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 6 of 14 JOB NO. : SEMC897 2. System Test Configuration 2.1 Operation Environment ConductionRadiation Temperature [°...] :2425.5 Humidity [%] :3543 Power supply :AC110V/60HzAC110V/60Hz 2.2 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.3 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.4 Test Procedure 2.4.1 Conducted Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 7 of 14 JOB NO. : SEMC897 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.4.2 Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was ali…

Text truncated - open the document above for the full version.

Page 8 of 14 JOB NO. : SEMC897 3. Conducted and Radiated Measurement Photos * Cabling was taken into consideration and test data was taken under worse case conditions. 3.1 Conducted Measurement Photos §∑ Conduction(Front View) §∑ Conduction(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 9 of 14 JOB NO. : SEMC897 * Cabling was taken into consideration and test data was taken under worse case conditions. 3.2 Radiated Measurement Photos §∑ Radiation(Front View) §∑ Radiation(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.
