A3L820SCPCS GSM/ EDGE Phone with Bluetooth

Introduction Thank you for purchasing the SoftBank 820SC. ٨Read this guide thoroughly before using 820SC to ensure proper usage. ٨After reading this guide, keep it for later reference. ٨Should you lose or damage this guide, contact Customer Service ( P.25-25). ٨Accessible services may be limited by contract conditions or service area. 820SC is compatible with both 3G and GSM network technologies. Note Unauthorized copying of any part of this guide is prohibited. Contents are subject to change without prior notice. Not all functions and services described in this user guide are available in Japan. Steps have been taken to ensure the accuracy of descriptions in this guide. If you find inaccurate or missing information, contact Customer Service ( P.25-25). If there are any missing/misplaced pages in this manual, SoftBank will replace it. i Accessories Make sure the following accessories are included in the package with handset. These accessories are also sold separately. For details on accessories or optional items, contact Customer Service ( P.25-25). *Utility Software updates/upgrades may become available via SoftBank Website (http://www.softbank.jp) without prior notification. Please check for the newest versions of Utility Software and download as required. BatteryAC ChargerUtility Software* Stereo USB Cable Earphone Conversion Cable with Microphone Tip • For more about accessories, contact SoftBank Customer Service ( P.25-25). • Battery and AC Charger are available for separate purchase. ii Contents Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . xii Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . .xiv General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvi SAR Certification Information. . . . . . . . . . . .xxxiii FCC RF Exposure Information . . . . . . . . . . .xxxiv European RF Exposure Information . . . . . . . xxxv 1 Getting Started USIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 General Information & Precautions . . . . . . . . . . . . . . 1-2 Inserting & Removing USIM Card . . . . . . . . . . . . . . 1-3 USIM PINs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Handset Parts & Functions. . . . . . . . . . . . . . . . .1-6 Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Display Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 Sub Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10 Battery & Charger. . . . . . . . . . . . . . . . . . . . . . .1-11 Before Using Battery or Charger . . . . . . . . . . . . . . . 1-11 Inserting & Removing Battery . . . . . . . . . . . . . . . . . 1-13 AC Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15 In-Car Charger (Optional) . . . . . . . . . . . . . . . . . . . . 1-16 Power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17 Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17 Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18 Time & Date . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18 Time & Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18 Time Zone Updating . . . . . . . . . . . . . . . . . . . . . . . . .1-19 Changing Home Time Zone . . . . . . . . . . . . . . . . . . .1-20 820SC Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-20 Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-22 Switch Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-22 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23 Security Codes. . . . . . . . . . . . . . . . . . . . . . . . . . 1-23 Phone Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-23 Center Access Code. . . . . . . . . . . . . . . . . . . . . . . . . .1-23 Network Password. . . . . . . . . . . . . . . . . . . . . . . . . . .1-24 2 Basic Handset Operations Initiating a Call . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Receiving a Call. . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Reject Incoming Call . . . . . . . . . . . . . . . . . . . . . 2-4 iii Answer Machine . . . . . . . . . . . . . . . . . . . . . . . . .2-5 Activating & Canceling . . . . . . . . . . . . . . . . . . . . . . . 2-5 Ringing Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Sound Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Checking Recordings . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Engaged Call Operations . . . . . . . . . . . . . . . . . .2-7 Earpiece Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Speaker Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Voice Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Engaged Call Options. . . . . . . . . . . . . . . . . . . . . . . . . 2-8 Call Log Records . . . . . . . . . . . . . . . . . . . . . . . . .2-9 Viewing Call Log Records . . . . . . . . . . . . . . . . . . . . . 2-9 Calling from Call Log Records . . . . . . . . . . . . . . . . . 2-9 Deleting Call Log Records . . . . . . . . . . . . . . . . . . . . 2-10 Call Log Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Call Manager . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11 Data Counter, Call Costs, & Call Times . . . . . . . . . 2-11 Edit Cost Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Display Call Cost during a Call . . . . . . . . . . . . . . . . 2-13 International Roaming . . . . . . . . . . . . . . . . . . .2-13 Changing Network …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: December 20, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L820SC To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics CONFIDENTIAL 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

VJK0Y;53VF Odeho Srvlwlrq

of 26 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: 820SC FCC ID (Requested): A3L820SC Job No: FE-224 Report No: FE-224-S1 Date issued: Dec.18, 2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By KS PARK-Test Engineer Authorized By JH NAM-Technical Manager Report Number: FE-224-S1 2 of 26 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 20 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 21 8.3 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 22 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 23 8.5 Measurement Results(GSM1900 Body SAR without Holster) ............................................. 24 9. CONCLUSION .............................................................................................................................. 25 10. REFERENCES ............................................................................................................................ 26 Report Number: FE-224-S1 3 of 26 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM/EDGE Phone Model Number : 820SC Serial Number : Identical prototype (S/N : # FE-224-E) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SJ PARK Phone : +82-54-479-3551 Fax : +82-54-479-5866 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Dec.13, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) Antenna Manufacturer : YOKOWO Model No.: 820SC Antenna Dimensions : 46.58 * 9.44 * 6.23 mm GPRS Class 12 Report Number: FE-224-S1 4 of 26 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Report Number: FE-224-S1 5 of 26 data acquisition e…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : 820SC FCC ID(Requested) : A3L820SC Report No : FE-224-R1 Job No : FE-224 Date issued : December 15, 2007 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By SH ONG – Test Engineer Authorized By WW JANG – Technical Manager Report Number : FE-224-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................6 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................6 5.2. Radiated Spurious & Harmonic Emission ......................................................6 5.3. Occupied Bandwidth ......................................................................................6 5.4. Spurious and Harmonic Emission at Antenna Terminal..................................6 5.4.1. Occupied Bandwidth Emission Limits ................................................6 5.4.2. Conducted Spurious Emission ...........................................................6 5.5. Frequency Stability / Temperature Variation ...................................................6 6. TEST DATA ...............................................................................................................6 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ..............................................6 6.2. GSM1900 Radiated Spurious & Harmonic measurement ..............................6 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ........................6 6.4. Frequency Stability.........................................................................................6 6.4.1. GSM1900 Frequency Stability Table ..................................................6 6.4.2. GSM1900 Frequency Stability Graph.................................................6 7. CONCLUSION...........................................................................................................6 8. TEST PLOTS.............................................................................................................6 Report Number : FE-224-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3L820SC • Quantity : Quantity production is planned • Emission Designators : 250KGXW(GSM1900), 246KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.069 W EIRP GSM1900 (30.29dBm) 0.210 W EIRP GSM1900 EDGE(23.22dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : December 11 - 12, 2007 • Place of Test : SAMSUNG Lab, • Test Report S/N : FE-224-R1 Report Number : FE-224-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FE-224-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FE-224-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2008-10-17 E4440A(3Hz~26…

Text truncated - open the document above for the full version.

© 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3L820SC Single-Band PCS GSM/EDGE Phone with Bluetooth

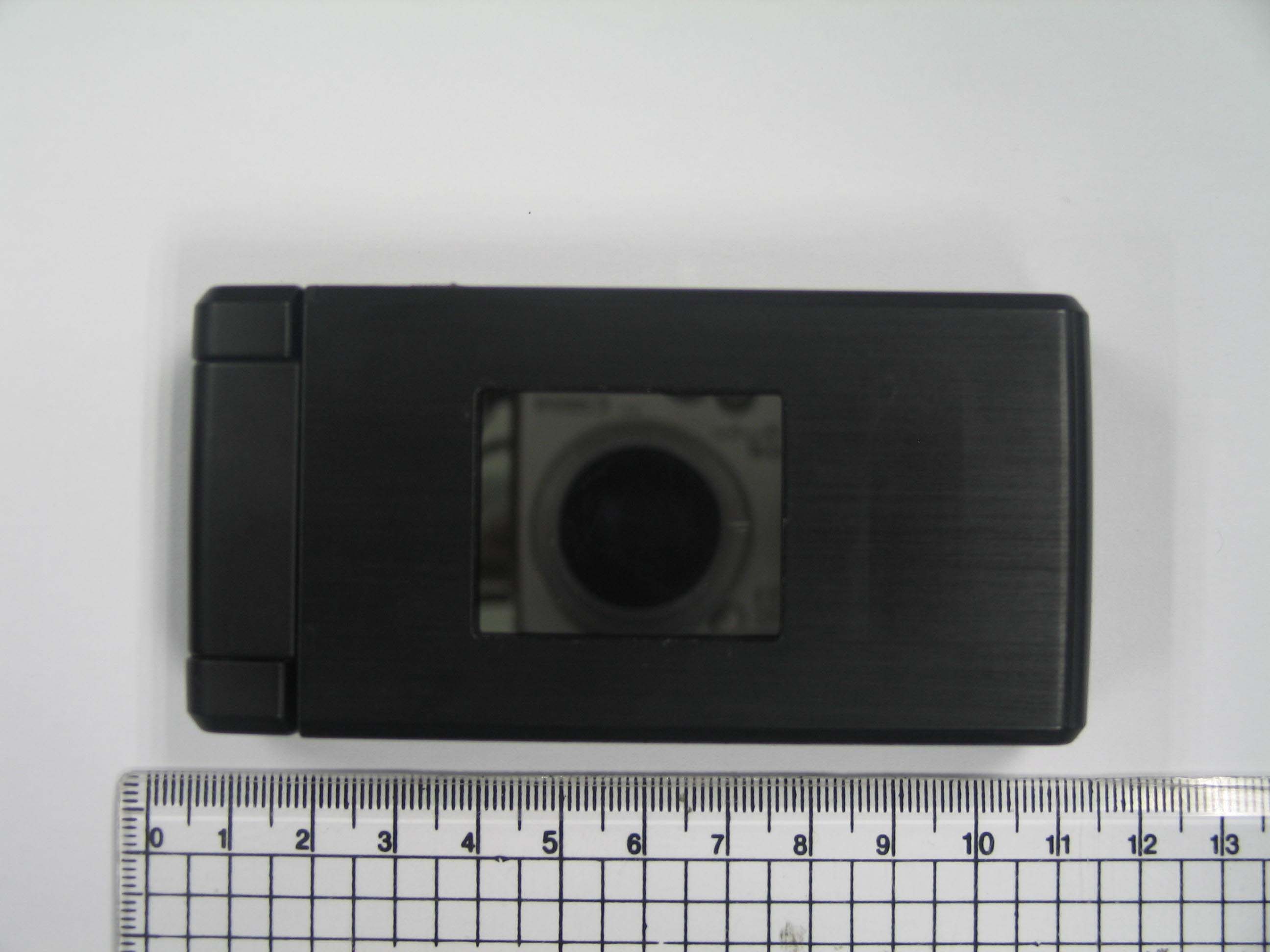

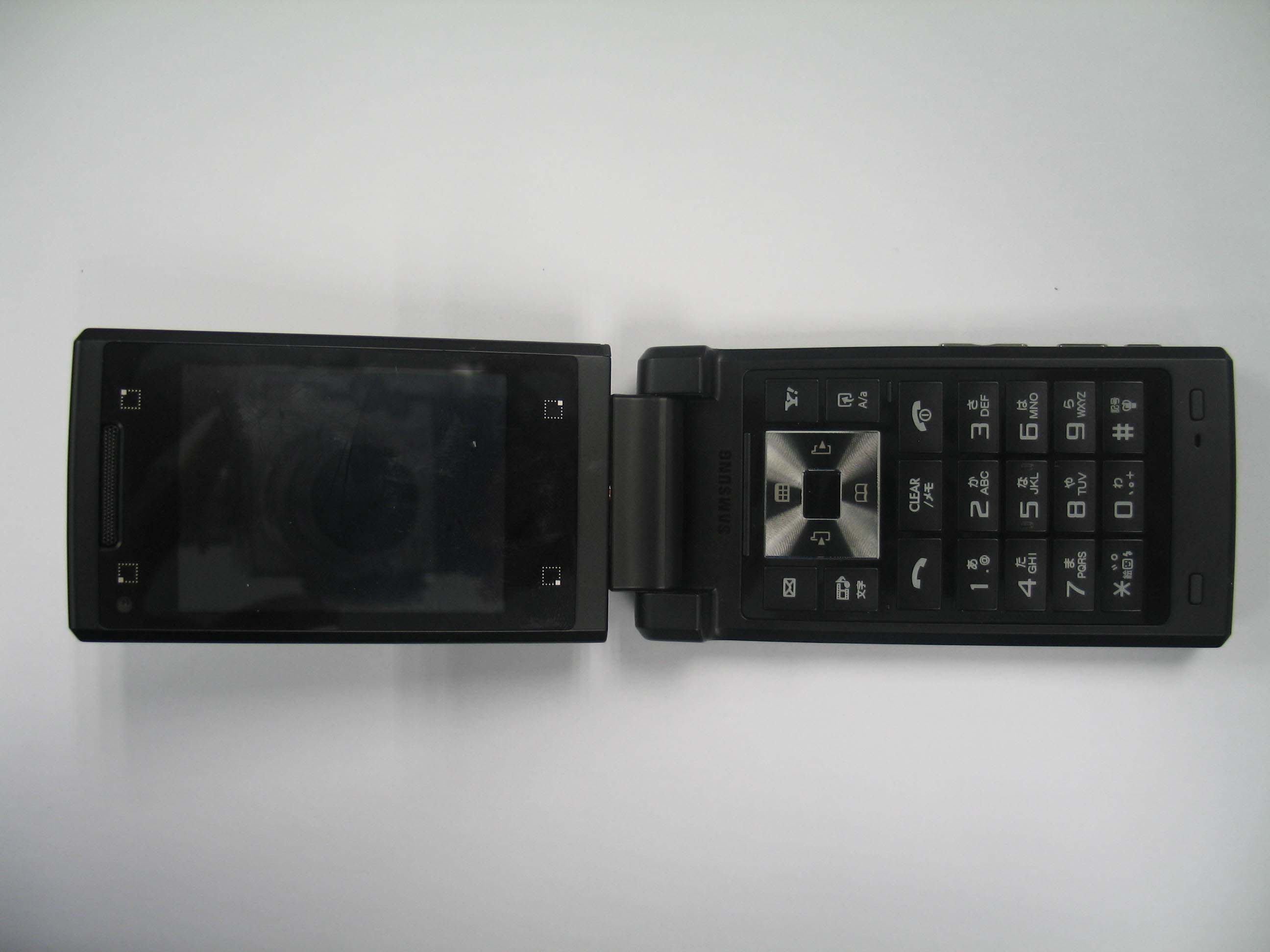

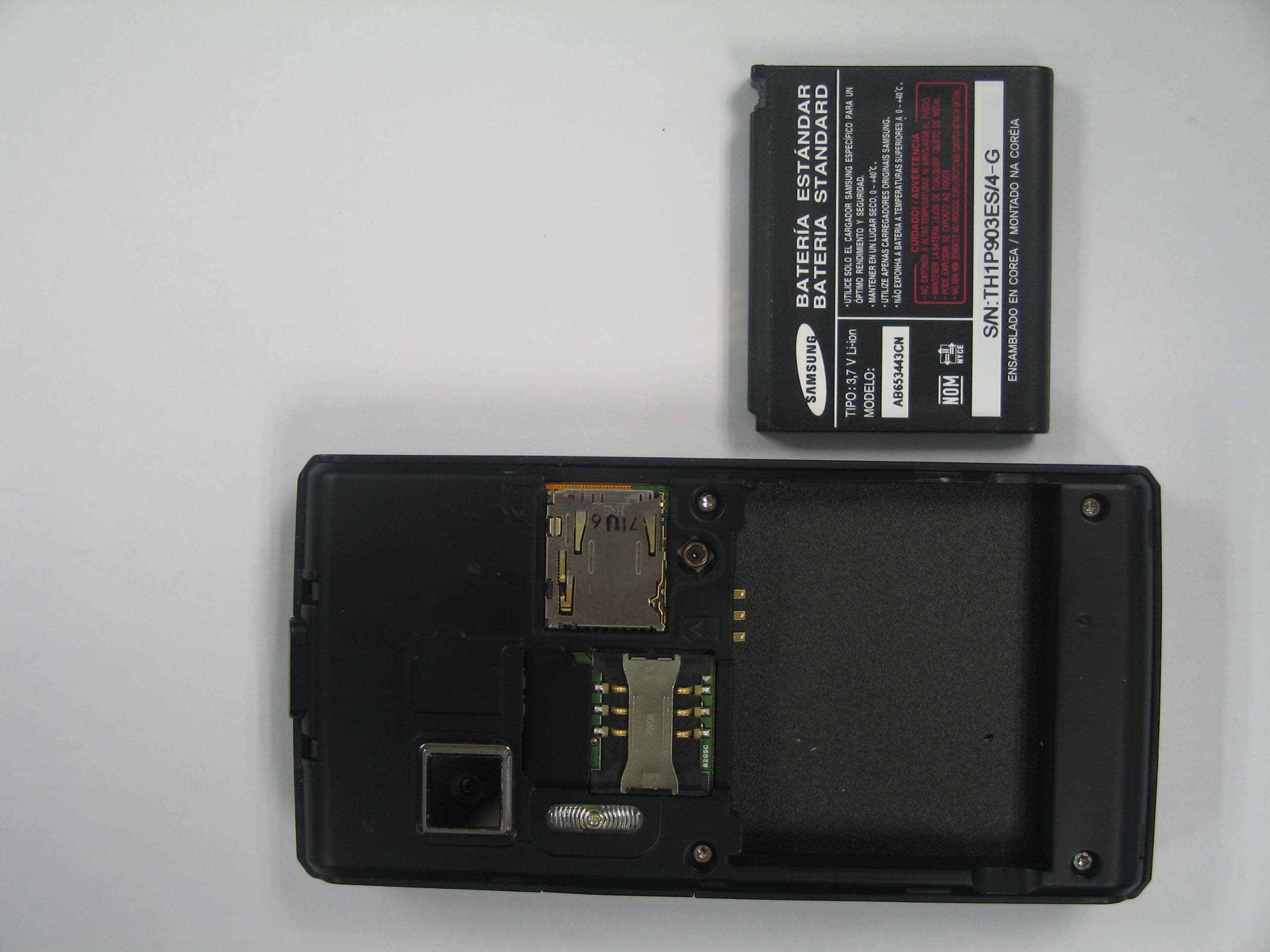

© 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L820SC Single-Band PCS GSM/EDGE Phone
