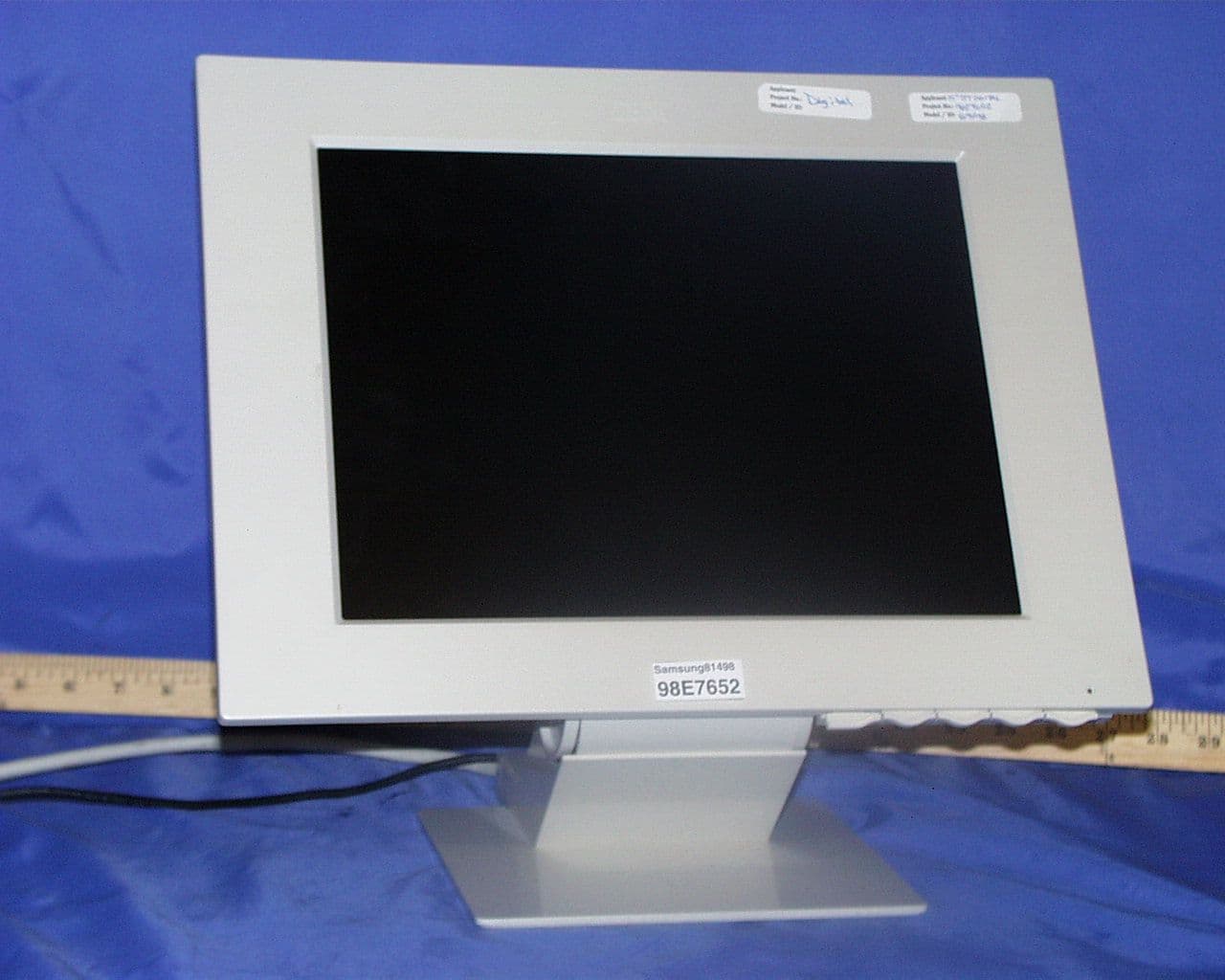

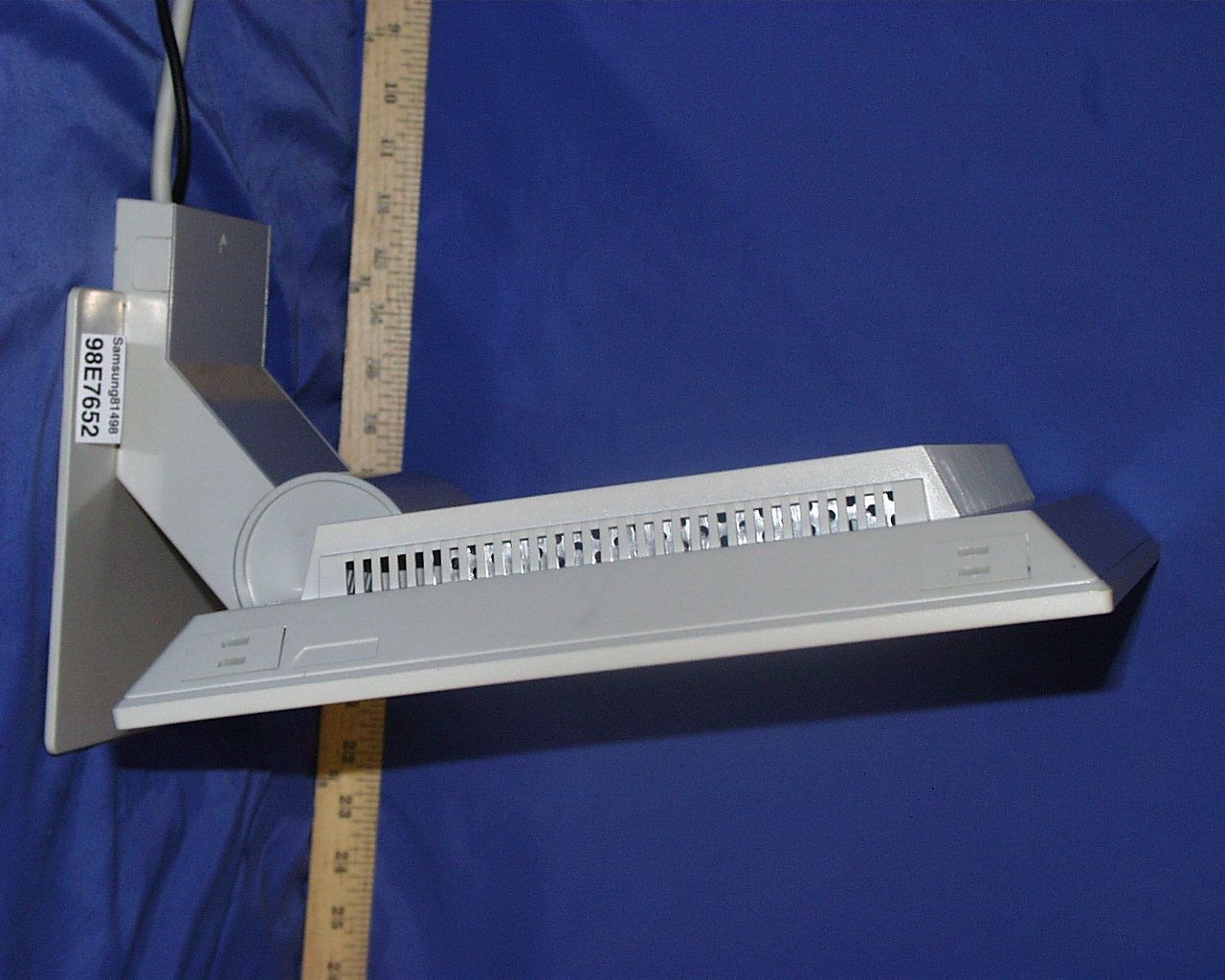

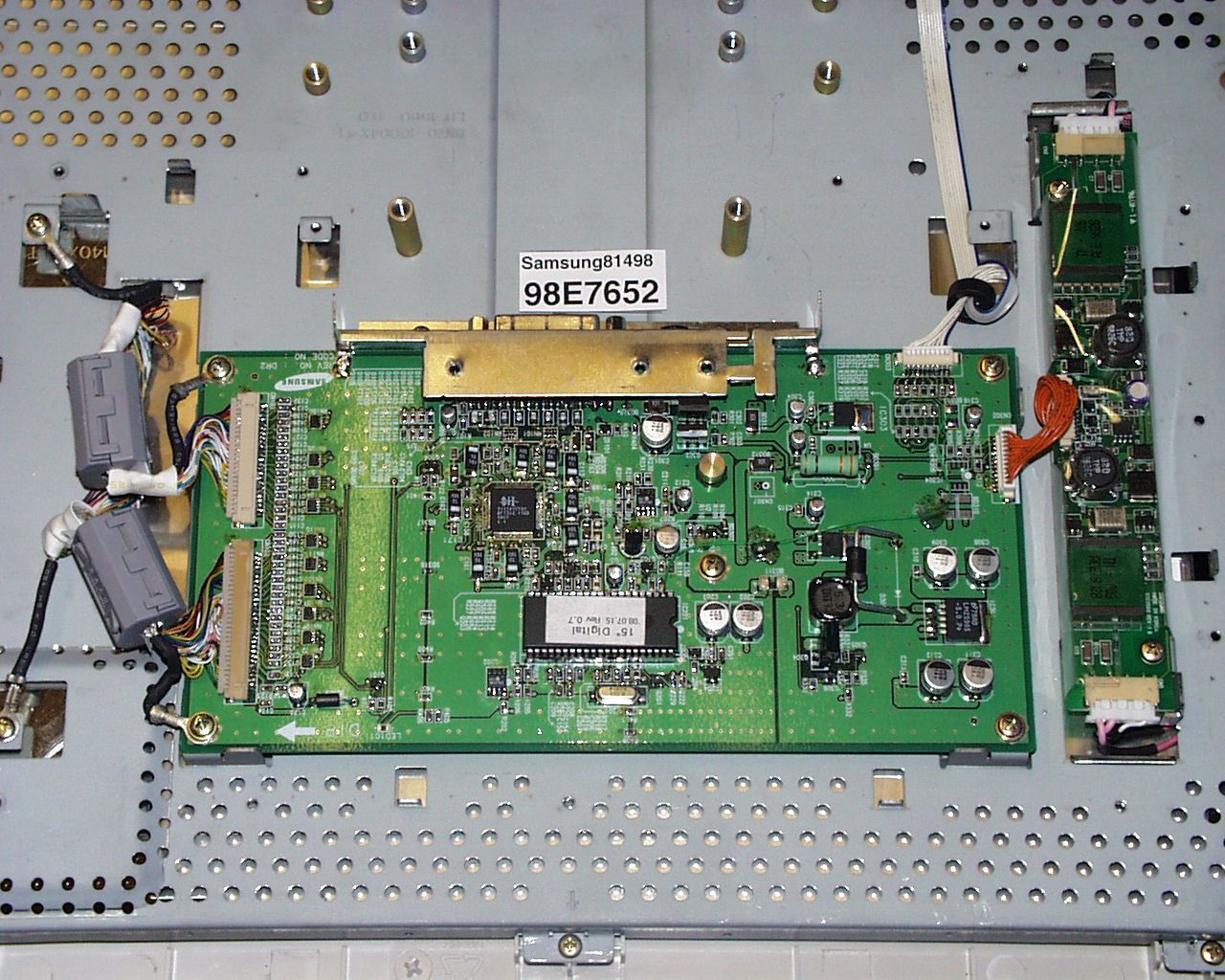

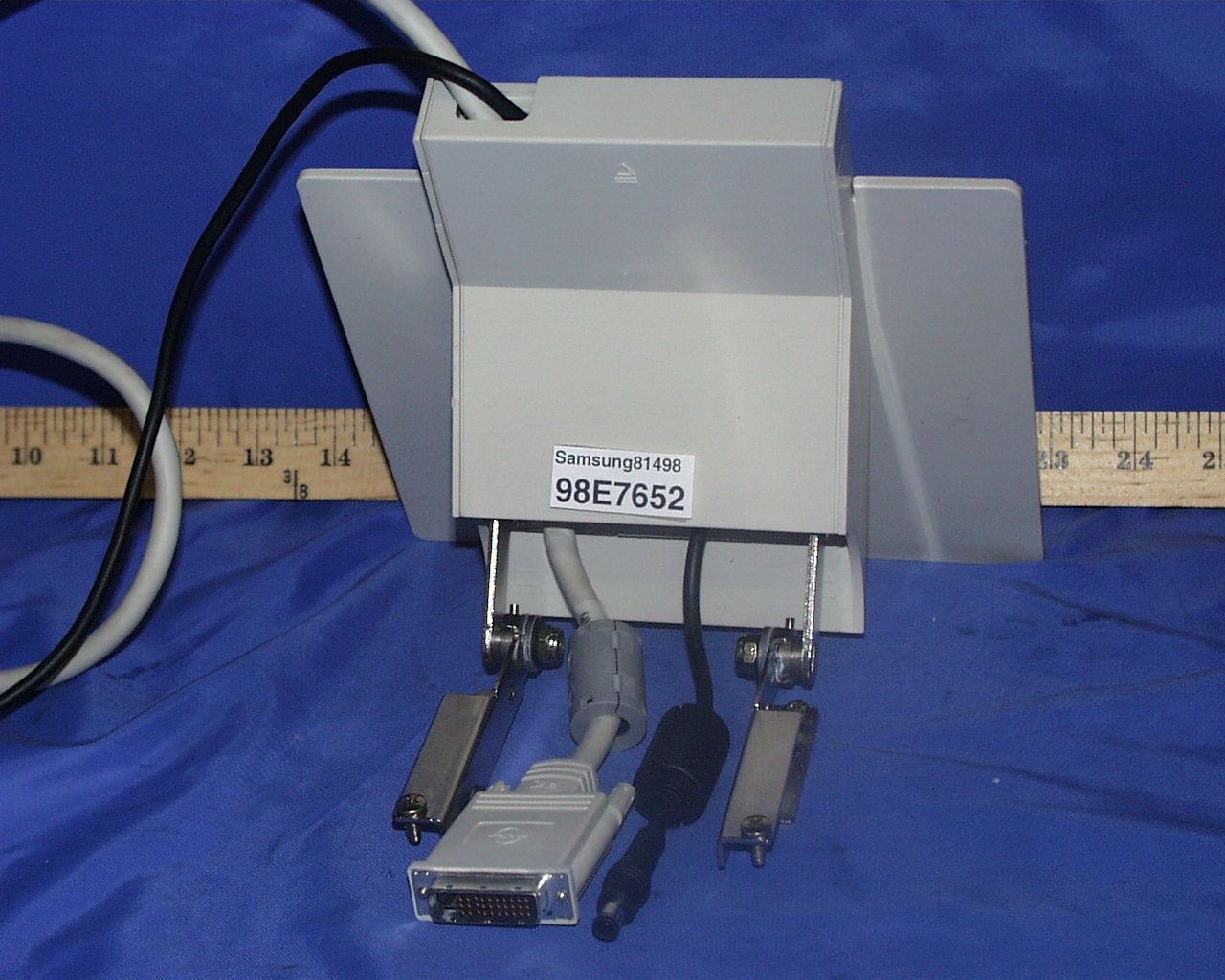

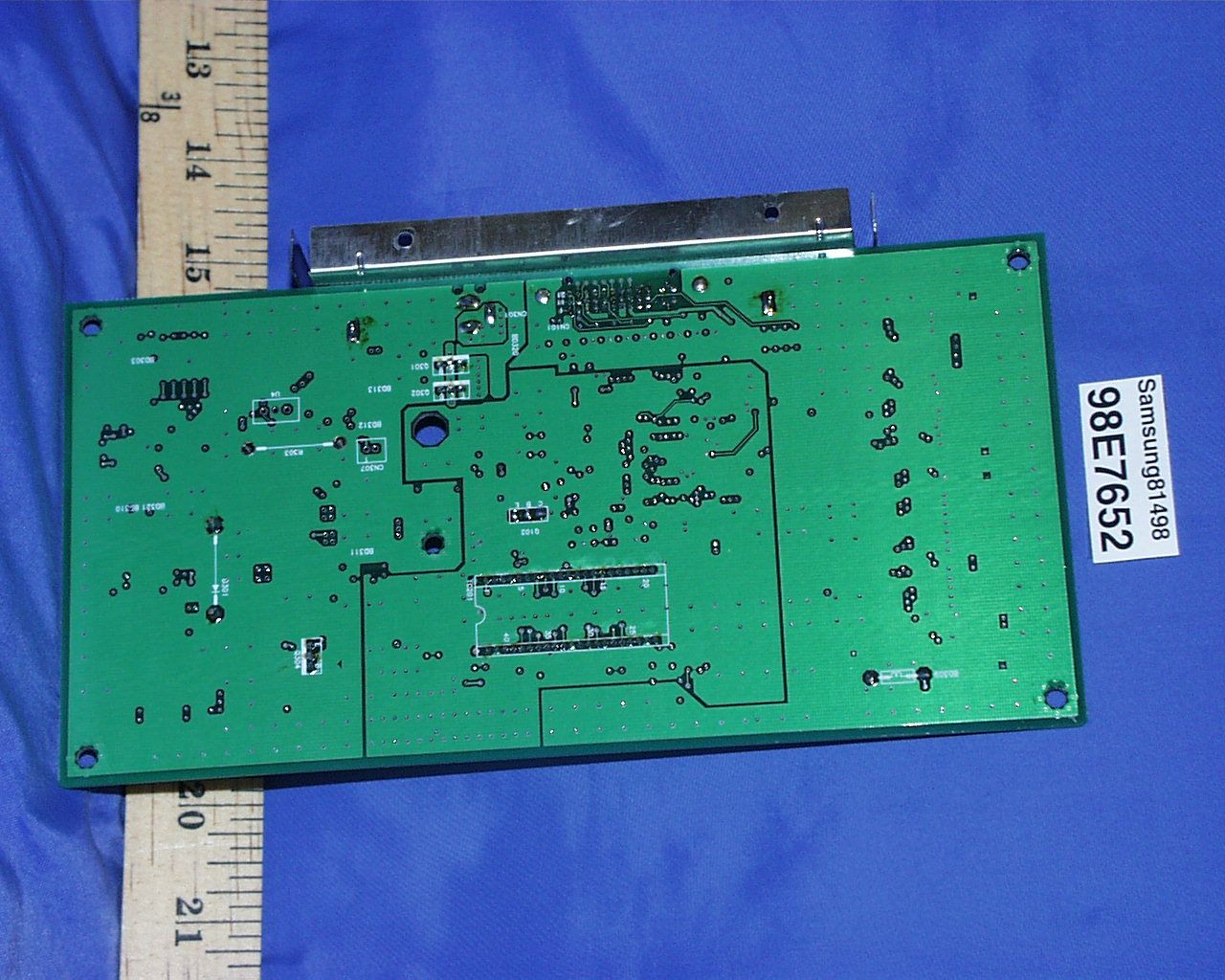

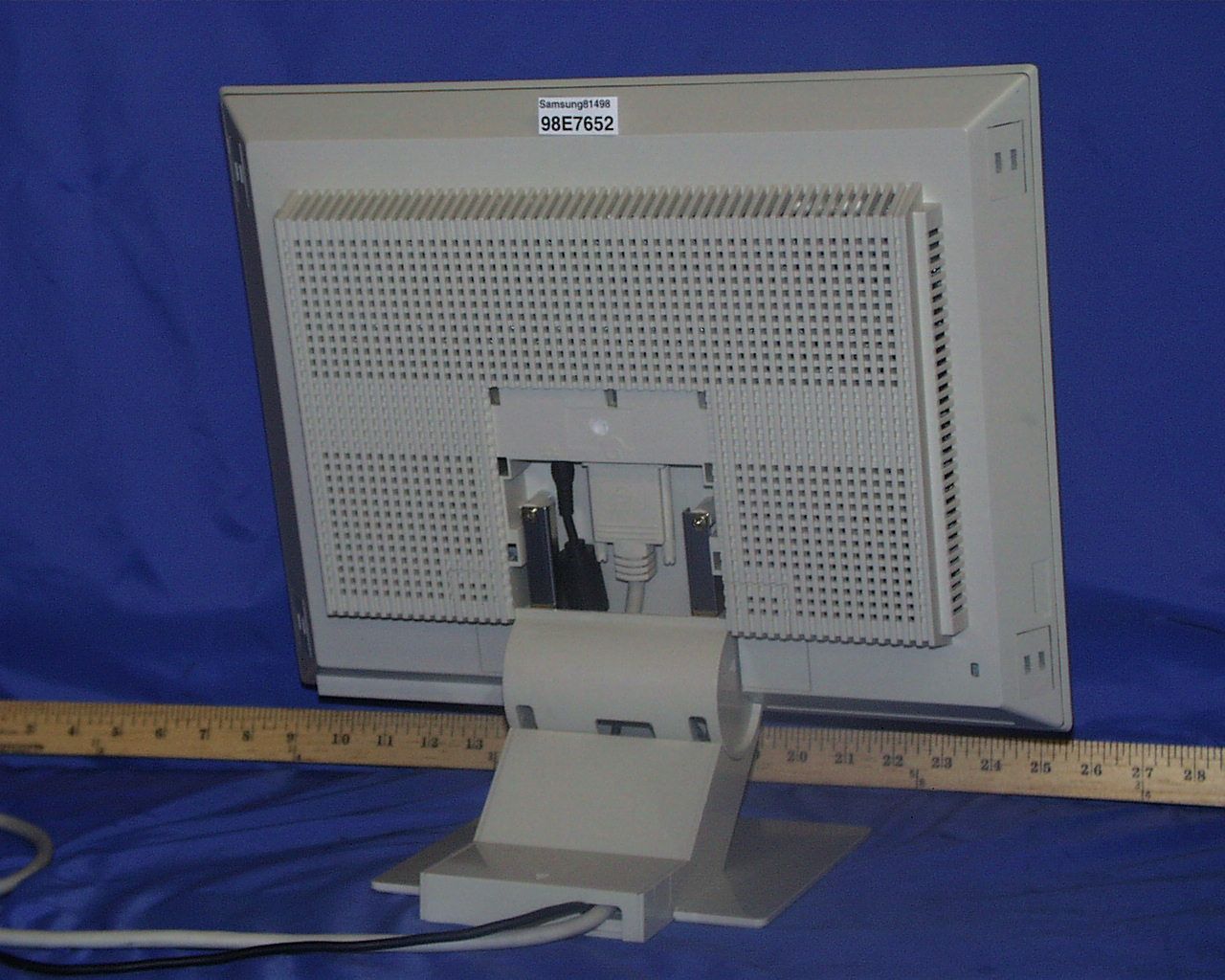

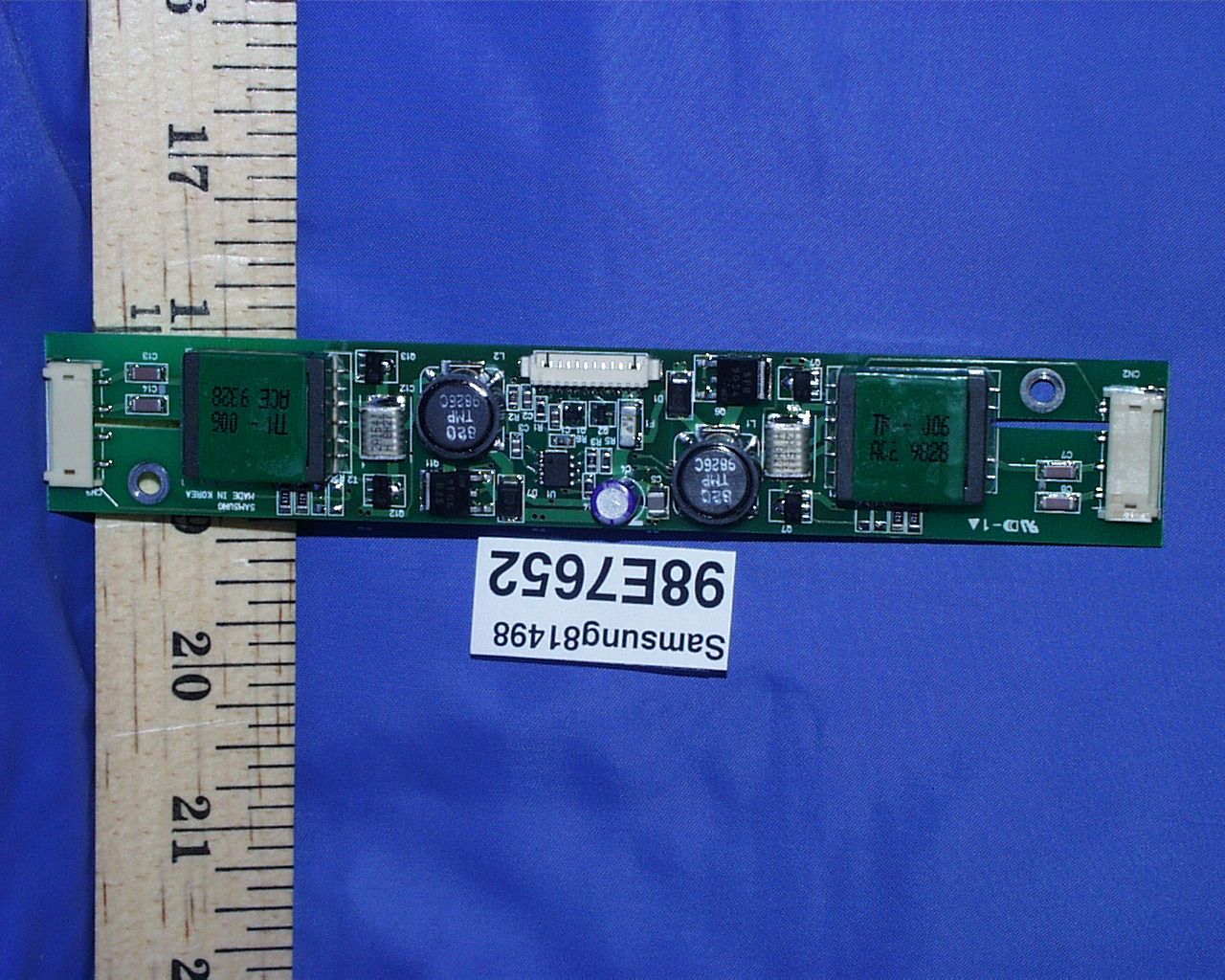

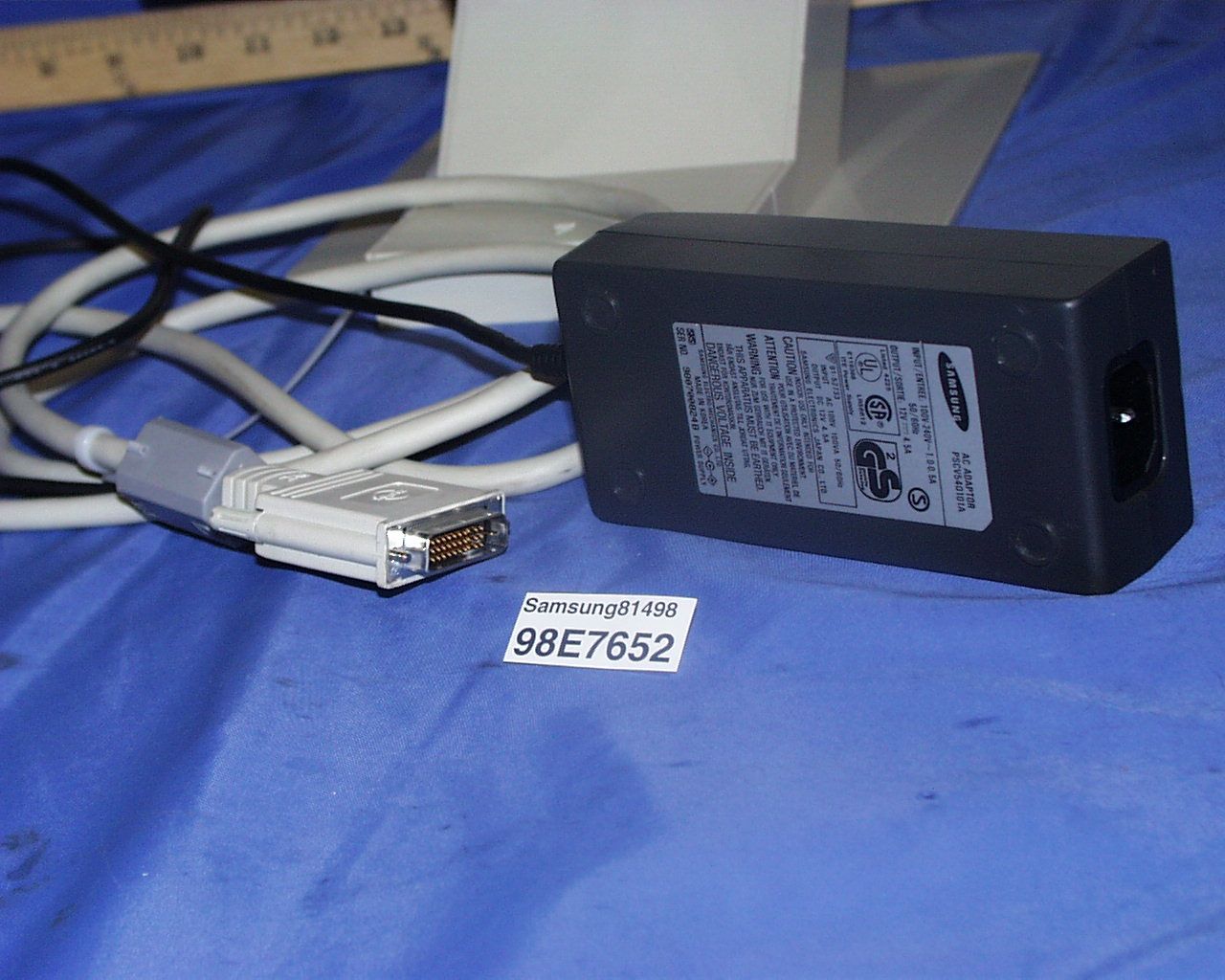

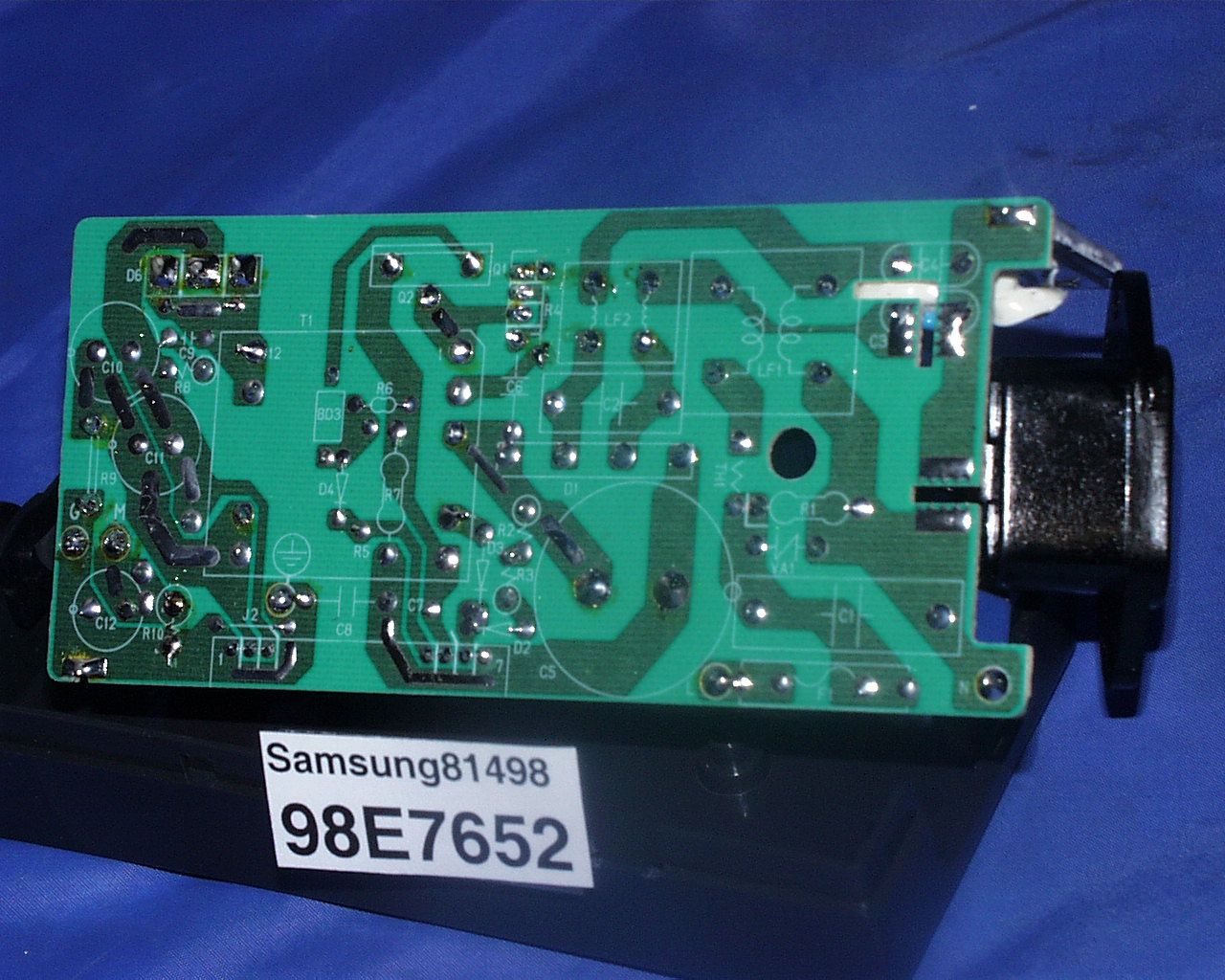

A3L9513D15 INCHES TFT LCD DIGITAL MONITOR

These user’s setup instructions cover typical user environments. The on-screen messages may differ depending on the level of your hardware and software. In some cases you may need to vary the setup procedures. For more information, refer to your computer or operating system manuals or consult your system administrator or dealer. Ces instructions de configuration d’exploitation s’appliquent aux environnements d’utilisation types. Les messages affichés à l’écran peuvent varier en fonction du niveau de votre matériel et de vos logiciels informatiques. Dans certains cas, vous pouvez être amenés à changer de procédures de configuration. Pour de plus amples informations à ce sujet, veuillez vous reporter aux manuels de votre ordinateur et de votre système d’exploitation, ou consultez l’administrateur de votre système ou votre revendeur. Diese Anweisungen für die Einstellung durch den Benutzer gelten für typische Betriebsumgebungen. Die Bildschirmmeldungen können je nach Art der verwendeten Hardware und Software auch anders lauten. In einigen Fällen müssen die Einstellungsschritte unter Umständen abgeändert werden. Weitere Informationen finden Sie im Computer- oder Betriebssystemhandbuch, oder wenden Sie sich an Ihren Systemadministrator oder Fachhändler. En estas instrucciones de configuración se describen entornos de usuarios típicos. Los mensajes en pantalla, pueden diferir según sea el nivel del hardware y del software. En algunos casos, necesitará seguir otros procedimientos para la configuración. Para obtener más información, puede consultar los manuales del ordenador o del sistema operativo o ponerse en contacto con el administrador del sistema o con el distribuidor. Queste istruzioni di configurazione per l’utente coprono gli ambienti operativi comuni. I messaggi che appaiono sul video possono differire a seconda dell’hardware e del software utilizzati. In alcuni casi potrebbe essere necessario variare le procedure di configurazione. Per ulteriori informazioni, fare riferimento ai manuali del computer o del sistema operativo, o consultare il proprio amministratore di sistema o il concessionario. T55D.book Page 1 Wednesday, July 29, 1998 11:40 PM 2 T55D.book Page 2 Wednesday, July 29, 1998 11:40 PM DANGER To avoid shock hazard: •Do not remove the covers. •Do not operate this product unless the stand is attached. •Do not connect or disconnect this product during an electrical storm. •The power cord plug must be connected to a properly wired and grounded power outlet. •Any equipment to which this product will be attached must also be connected to properly wired and grounded power outlets. •To isolate the monitor from the electrical supply, you must remove the plug from the power outlet. The power outlet should be easily accessible. DANGER Pour éviter les risques d’électrocution : •Ne retirez pas les capots du moniteur. •N’utilisez pas ce produit si le socle n’est pas fixé. •Ne connectez, ni ne déconnectez ce produit pendant un orage. •Le câble d’alimentation doit être connecté à une prise électrique correctement mise à la terre et en bon état de marche. •Tout équipement auquel ce produit est relié doit être également connecté à une prise correctement mise à la terre et en bon état de marche. •Pour isoler le moniteur de la source d’alimentation électrique, vous devez le débrancher de la prise électrique. Cette prise doit être facile d’accès GEFAHRENHINWEIS Um die Gefahr eines elektrischen Schlags zu vermeiden, folgendes beachten: •Unter keinen Umständen die Abdeckungen abnehmen. •Das Produkt nicht in Betrieb nehmen, wenn der Sockel nicht montiert ist. •Das Gerät nicht während eines Gewitters an eine Steckdose anschließen oder von ihr trennen. •Das Netzkabel ist an eine ordnungsgemäß verdrahtete und geerdete Steckdose anzuschließen. •Jedes Gerät, mit dem dieses Produkt verbunden wird, muß ebenfalls an eine ordnungsgemäß verdrahtete und geerdete Steckdose angeschlossen werden. •Um den Monitor von der Stromversorgung zu trennen, muß der Stecker aus der Steckdose gezogen werden. Die Steckdose sollte leicht zugänglich sein. T55D.book Page c Wednesday, July 29, 1998 11:40 PM GEVAAR Ga als volgt te werk om het gevaar van een elektrische schok te voorkomen: •Verwijder in geen enkel geval de kap. •Stel dit produkt alleen in werking als de voet is bevestigd. •Sluit dit apparaat niet aan op, of verbreek de aansluiting van dit apparaat niet van een contactdoos tijdens onweer. •Het netsnoer moet worden aangesloten op een geaarde contactdoos met correcte bedrading. •Ook alle apparatuur waarop dit produkt wordt aangesloten moet zijn aangesloten op een contactdoos met correcte bedrading. •Om het beeldscherm te ontkoppelen van de netvoeding, dient u de stekker uit de contactdoos te trekken. De contactdoos dient goed toegankelijk te zijn. PELIGRO Para evitar riesgos de descargas eléctricas: •No retire bajo ningún concepto las cubiertas. •No maneje el monitor sin antes acoplar el soporte. •No conecte ni desconecte el equipo de una toma de alimentación durante una tormenta eléctrica. •El cable de alimentación debe estar conectado a un enchufe debidamente cableado y con toma de tierra. •Cualquier equipo al que se vaya a conectar este producto también debe estar conectado a tomas de alimentación cableadas y conectadas a tierra correctamente. •Para aislar el monitor del suministro eléctrico, debe retirar el enchufe de la toma de alimentación. Esta toma deberá ser de fácil acceso. PERICOLO Per evitare il rischio di scariche elettriche: •Non rimuovere nessuna parte del telaio. •Non accendere il prodotto se il piedistallo non è stato montato. •Non collegare o scollegare il prodotto nel corso di un temporale. •La spina del cavo di alimentazione deve essere collegata ad una presa di corrente con messa a terra, installata in maniera appropriata. •Le apparecchiature a cui il prodotto viene attaccato devono essere collegate a prese di corrente con messa a terra, installate in maniera appropriata. •Per isolare il monitor …

Text truncated - open the document above for the full version.

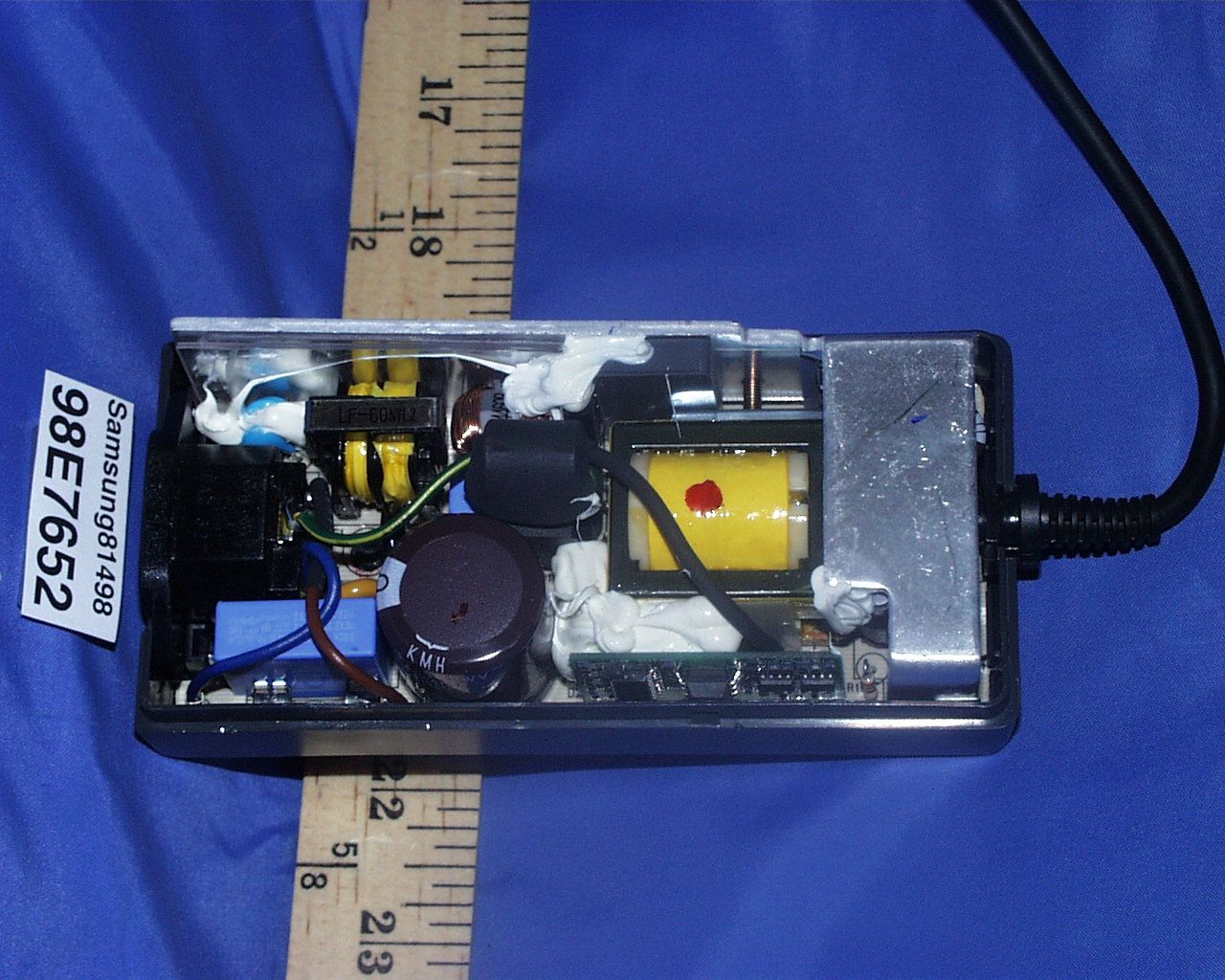

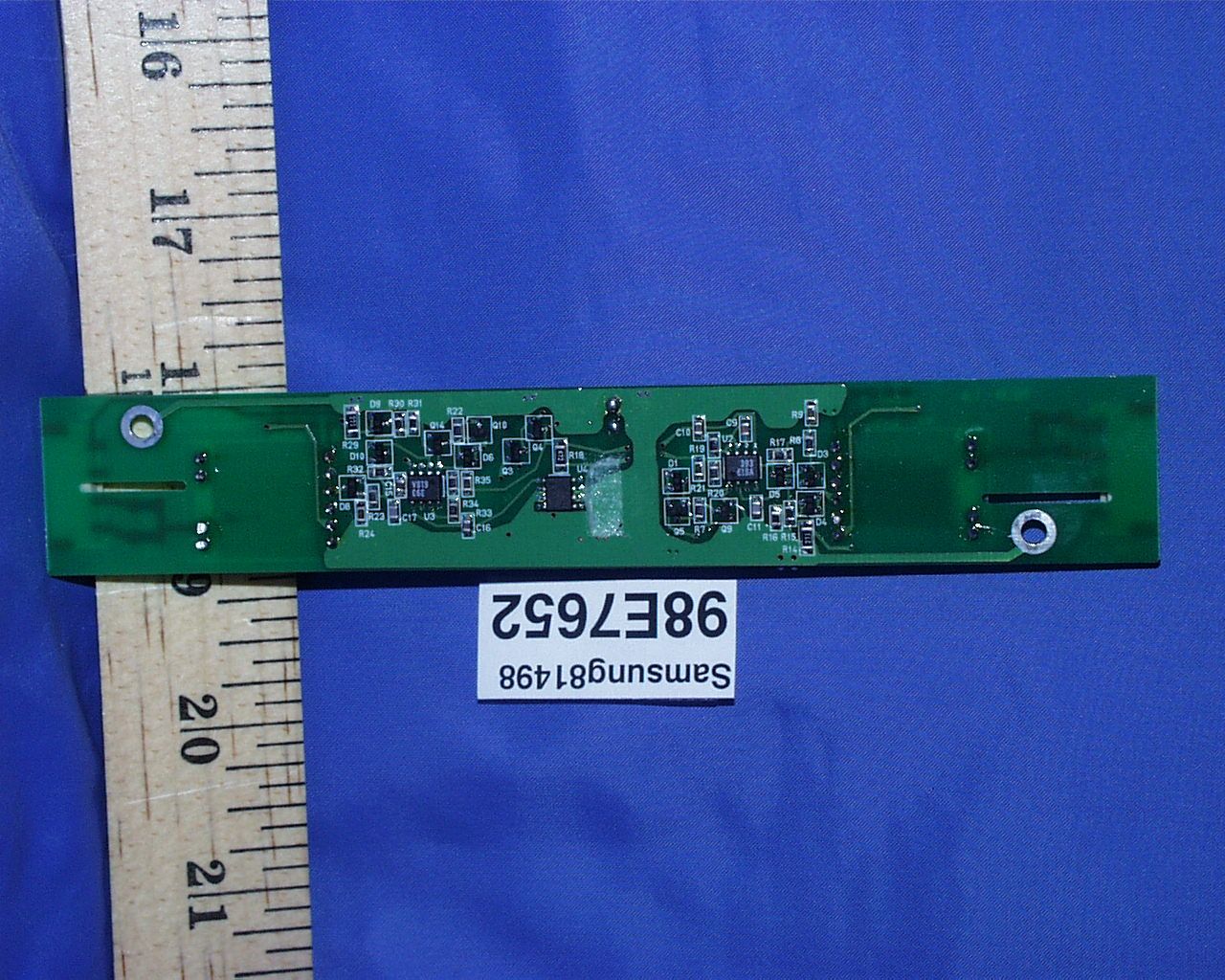

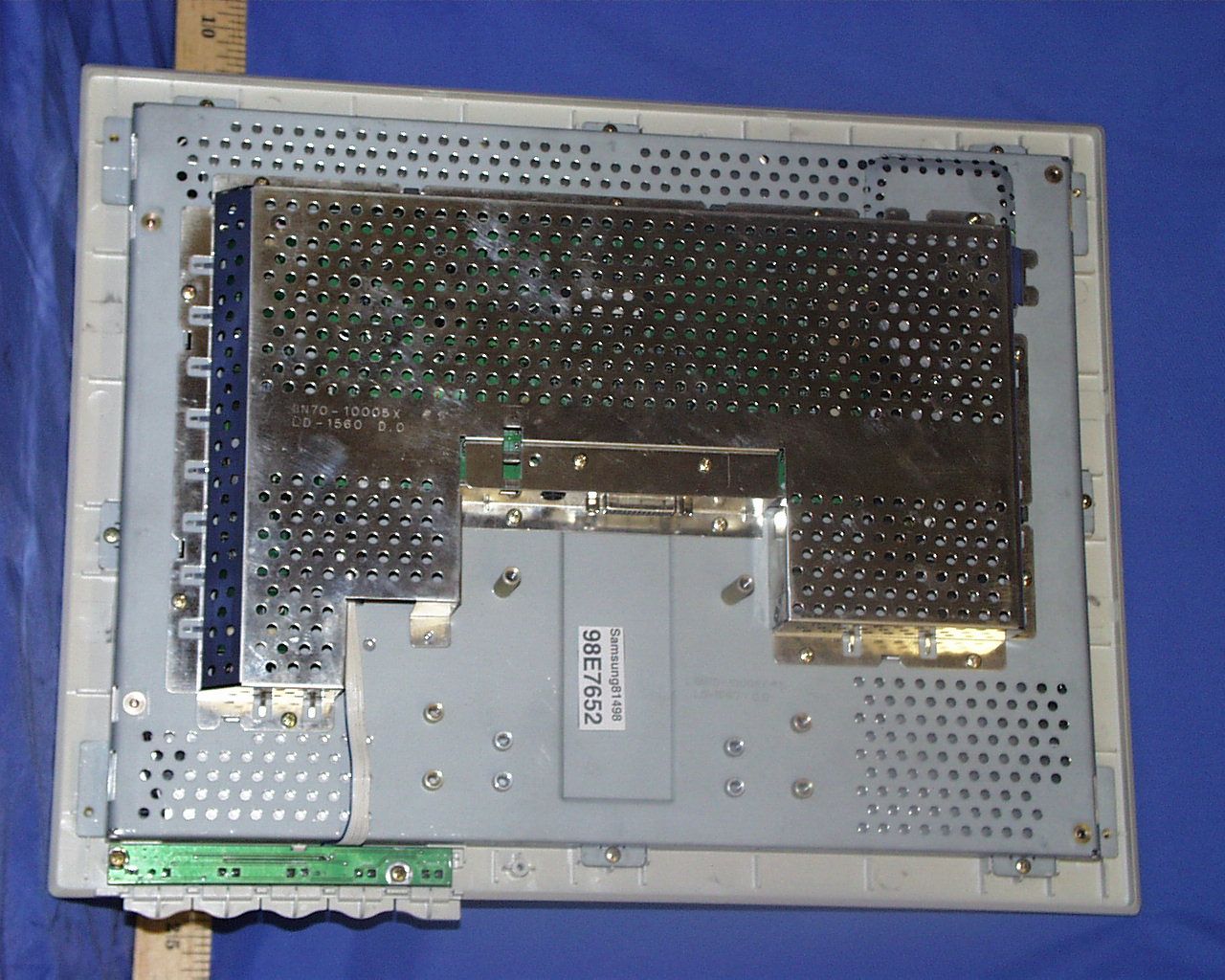

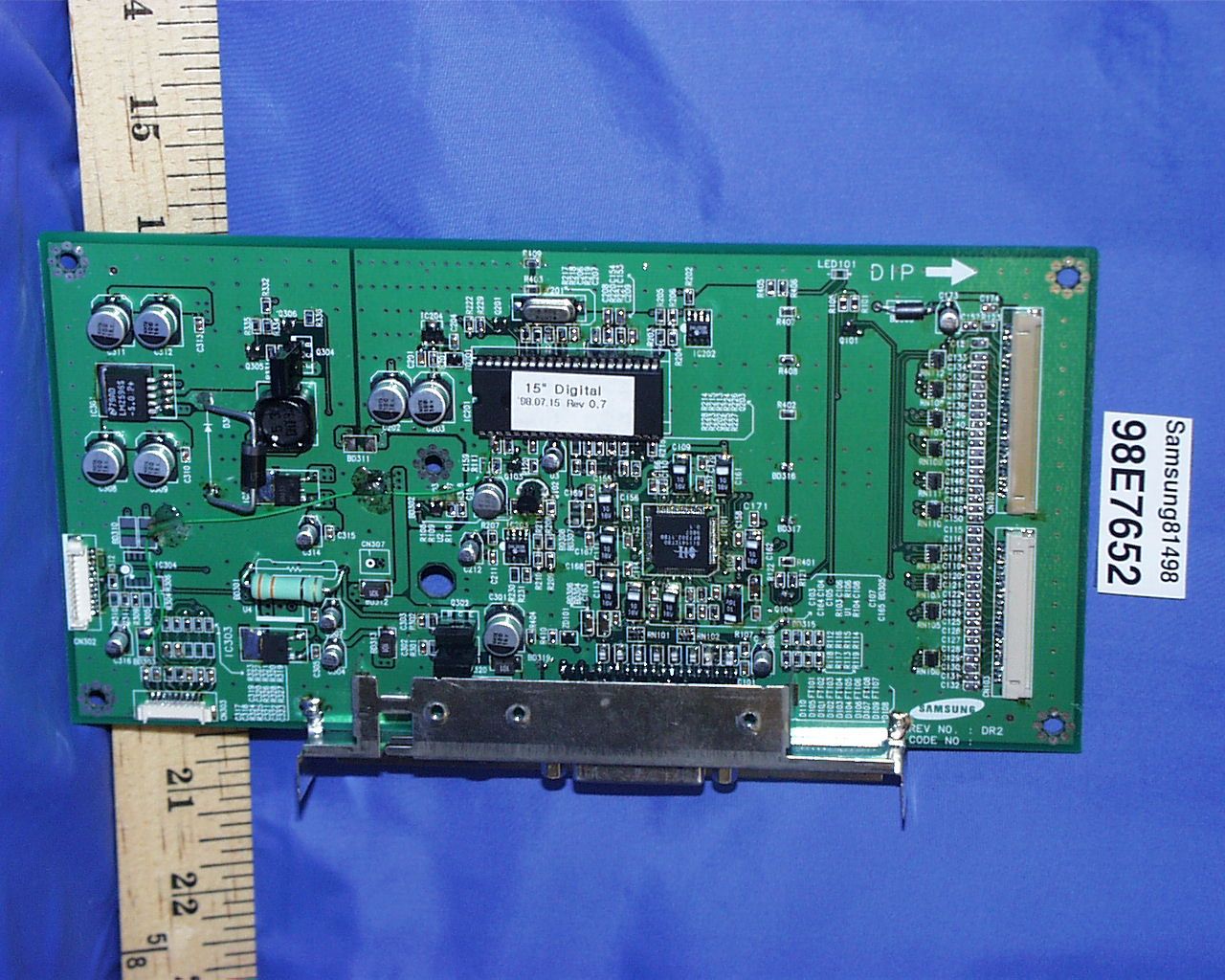

Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia MD 21046 Attention:Application Examiner Subject :Application for Certification Reference:FCC ID:A3L9513D Dear Application Examiner : On behalf of Samsung Electronics Co.,Ltd., I, the undersigned, hereby submit the application for certification per FCC Part 15 rules. EUT is an unintentional radiator to be classified as computing device peripherals. The following attachments are included in the electronic filling : Attachment A:This letter Attachment B: Agent authorization letter Attachment C: FCC ID label format and location Attachment D: Block Diagram Attachment E: Technical report w/ setup photo Attachment F: Internal / External photo Attachment G: User Manual If you have any question, please feel free to contact me. Best Regards Mike C.I. Kuo / Vice President Compliance Engineering Services, Inc. 1366 Bordeaux Drive Sunnyvale CA 94089 Tel(408)752-8166 x:105 E-Mail :[email protected]

FCC ID LABEL LOCATION Applicant:Samsung Electrinics Co., Ltd. FCC ID:A3L9513D FCC ID LABEL AREA

FCC CFR47 PART 15 DIGITAL DEVICE TEST REPORT FOR 15" TFT MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) MODEL: 9513-D**, LXC5**, MCF3801T FCC ID: A3L9513D REPORT NUMBER: 98E7652 ISSUE DATE: AUGUST 03, 1998 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:98E7652DATE:AUGUST 03, 1998 FCC ID:A3L9513D EUT: 15" TFT MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002B2 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE.......................................................................................................1 2.PRODUCT DESCRIPTION.......................................................................................................................2 3.TESTED SYSTEM DETAILS....................................................................................................................2 4.TEST FACILITY........................................................................................................................................3 5.ACCREDITATION AND LISTING..........................................................................................................3 6.MEASUREMENT INSTRUMENTATION................................................................................................3 7.MEASURING INSTRUMENT CALIBRATION.......................................................................................4 8.UNITS OF MEASUREMENT....................................................................................................................4 9.ANTENNAS................................................................................................................................................5 10.CLASSIFICATION OF DIGITAL DEVICE.............................................................................................5 11. RADIATED EMISSION LIMITS...............................................................................................................5 12. CONDUCTED EMISSION LIMITS...........................................................................................................6 13.CONDUCTED EMISSION TEST PROCEDURE.....................................................................................8 14. RADIATED EMISSION TEST PROCEDURE..........................................................................................8 15.AMBIENT CONDITIONS.........................................................................................................................9 16.SYSTEM TEST CONFIGURATION.........................................................................................................9 17.EQUIPMENT MODIFICATIONS...........................................................................................................10 18.EUT SETUP PHOTOS.............................................................................................................................11 19. TEST EQUIPMENT LIST.........................................................................................................................12 20.TEST RESULT SUMMARY....................................................................................................................13 APPENDICES....................................................................................................................................................15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .EUT PHOTOGRAPHS REPORT NO:98E7652DATE:AUGUST 03, 1998 FCC ID:A3L9513D EUT: 15" TFT MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) 1 OF 15 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002B2 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA CONTACT PERSON:BEN KIM / MANAGER TELEPHONE NO:408-544-5124 MODEL NO/NAME:9513-D**, LXC5**, MCF3801T SERIAL NO:N/ADATE TESTED:AUGUST 03, 1998 TYPE OF EQUIPMENT:INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE:( ) 3 METER (X) 10 METER TECHNICAL LIMIT:CLASS B FCC RULES:PART 15 MEASUREMENT PROCEDUREANSI C63.4:92 / EN 55022 EQUIPMENT AUTHORIZATION PROCEDURECERTIFICATION MODIFICATIONS MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 21 for comments) NO RADIATED EMISSION TEST RESULT-2.16 dB @ 323.98 MHz/VERTICAL CONDUCTED EMISSION TEST RESULT-12.6 dB @ 16.57 MHz/L2 The above equipment was tested by Compliance Consulting Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE CONSULTING SERVICES REPORT NO:98E7652DATE:AUGUST 03, 1998 FCC ID:A3L9513D EUT: 15" TFT MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) 2 OF 15 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002B2 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.PRODUCT DESCRIPTION CHASSIS TYPEPLASTIC & METAL CPU SPEEDS TESTED300 MHz LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 32.5 MHz POWER SUPPLY/NAME/MODEL/S.N.SAMSUNG PSCV540101A NUMBER OF PCB LAYERS4 LINE FILTER NAME AND MODELBUILT-IN POWER REQUIREMENTS12 V DC NO. OF EXTERNAL I/O CON…
