A3LAA-SM8PWBWS Action Mouse

www.samsung.com Bluetooth Wireless Mouse User Guide 2 Қазақша.........................................55 中文(繁體) ...................................69 English ................................................3 한국어 .............................................17 Русский ...........................................27 Українська .....................................41 3 English Power switch Battery cover Connect button Overview LED indicator Scroll wheel Right button Left buttion 4 • The appearance of the product may differ from the figure. • Usage is provided based on Windows 8. For other operating systems, refer to the help information of the corresponding operating system. Connecting and using the mouse 1 Open the battery cover and insert the batteries. • Be sure to confirm that the polarities ( + / - ) of the batteries are correct. • Do not recharge the batteries (AA type) supplied with the product. 5 English • If the system requests to enter the pincode for your mouse, please enter “0000”. • If the mouse is not used for 5 minutes, the mouse hibernates. In this case, click a mouse button to wake it up. Then, you can use the mouse after a moment. 2 Turn both the computer and the power switch at the bottom of the mouse on. Press and hold the Connect button for approximately 1 second. 3 Right-click over the Bluetooth icon (Figure) on the Desktop and select Add Bluetooth device from the popup menu. 4 Searching for devices is automatically performed. Select the mouse you want to use. 6 Specification ItemSpecification Operating Voltage 1.5VDC Input Power35mW Input Voltage1.5VDC 7 English FCC ID : A3LAA­SM8PWBW This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: i) This device may not cause harmful interference, and ii) This device must accept any interference received, including interference that may cause undesired operation. Copyright and trademarks Samsung Electronics reserves the copyright of this user guide. No part of this guide shall be reproduced or published in any media or form without consent from Samsung Electronics. The content of this guide is subject to change without notice. The logos and model names mentioned in this guide are the property of their respective owners. 8 This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. WEEE SYMBOL INFORMATION Correct disposal of this product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems.) 9 English Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. 10 mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material re-use, please separate batteries from other types of waste and recycle them through your local, free battery return system. Pb Correct disposal of batteries in this product (Applicable in countries with separate collection systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains 11 English Hereby, Samsung Electronics Co., Ltd declares that these models are in compliance with the essential requirement and other relevant provisions of directive 1999/5/EC. IC NOTICE TO USER : This device complies with Industry Canada license-exempt RSS standard(s) Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, includinginterferencethat may cause undesired operation of the device. 13 한국어 전원 스위치 배터리 커버 Connect 버튼 각 부분의 명칭 LED 표시등 스크롤 휠 오른쪽 버튼 왼쪽 버튼 14 연결 및 사용하기 1 배터리 커버를 열고 배터리를 끼워주세요. • 반드시 건전지 극성(+/-) 을 확인하시기 바랍니다. • 제공된 건전지(AA Battery)는 충전하여 사용하지 마세요. • 제품 외관이 다르게 제공될 수 있습니다. • Windows 8 설치 기준으로 사용법이 제공됩니다. 다른 OS 는 해당 OS의 도움말을 참고하세요. 15 한국어 • 설치 중에 암호 입력 창이 나오면 “0000”을 입력해 주시기 바랍니다. • 5분 이상 마우스를 사용하지 않으면 마우스는 최대절전모드로 들어가게 됩니다. 이때 마우스 버튼을 누르면 잠시 후 마우스를 사용할 수 있습니다. 2 컴퓨터를 켜고 마우스 밑면 전원 스위치를 ON으로 변경합니다. Connect 버튼을 1초 정도 누릅니다. 3 컴퓨터 바탕화면의 블루투스 아이콘을 마우스 오른쪽 클릭한 후 Blooth 장치 추가를 선택합니다. 4 자동으로 장치 추가 검색이 진행됩니다. 연결할 마우스를 선택합니다. 16 제품 규격 구분명칭 및 규격 작동전압1.5VDC 입력 전력35mW 입력 전압1.5VDC 17 한국어 해당 무선 설비는 운용 중 전파 혼선 가능성이 있음. 1. 기기의 명칭(모델명): 특정 소출력 무선기기 (AA­SM8PWBW) (AA­SM8PWBB) 2. 인증 번호: MSIP­CRM­SEC­ AA­SM8PWBW MSIP­CRM­SEC­ AA­SM8PWBB 3. 인증 받은 자의 상호: 삼성전자 (주) 4. 제조사/제조국가: 삼성전자 (주) / 중국 18 제품 사용 및 서비스 문의 ☎ 지역번호 없이 1588-3366 저작권과 등록 상표 삼성전자 주식회사가 이 사용 설명서의 저작권을 소유합니다. 이 설명서의 어떤 부분도 삼성전자 주식회사의 서면 동의 없이 어떤 수단이나 형태로든 재 가공 되거나 발행될 수 없습니다. 설명서의 내용은 예고 없이 변경될 수 있습니다. 여기에 있는 모든 제품명 또는 회사명은 각 회사의 재산입니다.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea September 27, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 ATTESTATION LETTER FCC ID: A3LAA‐SM8PWBW To Whom It May Concern: The label of product AA‐SM8PWBW (FCC ID: A3LAA‐SM8PWBW) will be placed in the battery compartment based on KDB 784748 Section 4. Users will be able to see the FCC identifier when they put a battery in the compartment which is enclosed with a detachable cover. Sincerely Yours, Tae‐Hwan, Ka / Engineer Samsung Electronics Co., Ltd.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea September 25, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LAA‐SM8PWBW To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Tae‐Hwan, Ka / Engineer Samsung Electronics Co., Ltd.

129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea September 25, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

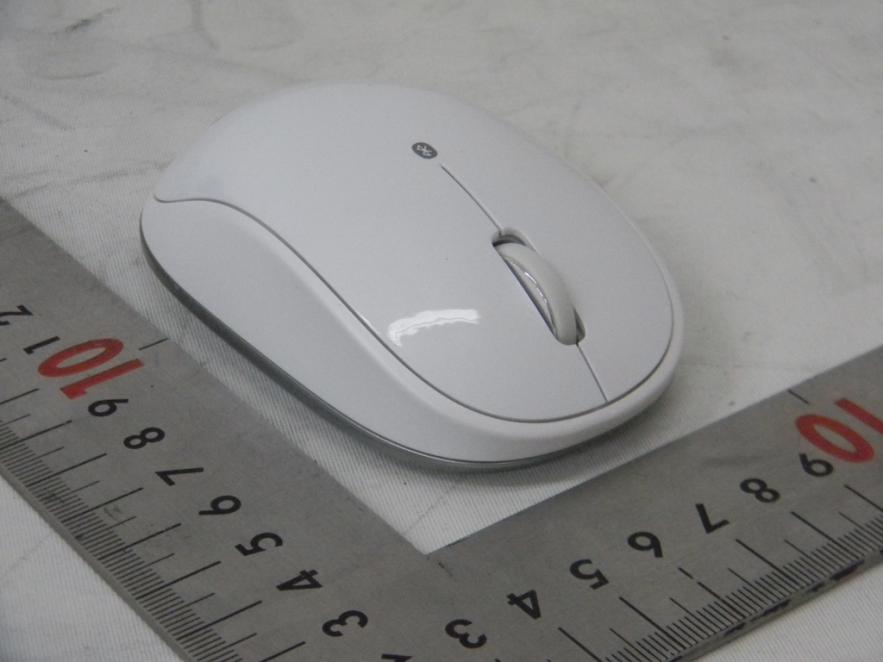

External photos of EUT Front view of EUT Rear view of EUT

Label Drawing, Location AA-SM8PWBW Inside Battery Cover Label

Model : AA-SM8PWBW Internal photos of EUT Model : AA-SM8PWBW Overview of EUT Model : AA-SM8PWBW Top view of PCB Bottom view of PCB with ground plate Model : AA-SM8PWBW Antenna Antenna

FCC ID : A3LAA-SM8PWBW According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following a) [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, mm)] x [√f (GHz) ] ≤ 3.0 1. SAR test exclusion threshold Frequency : 2 402 ㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = (3 x 5) / √ 2.402 = 9.678 ㎽ Max. conducted power(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 0.774 9.678 Calculation value : 0.774(㎽) / 5(mm) x √ 2.402 = 0.24 So, Calculation value ≤ 3.0 2. Conclusion : No SAR is required.
