A3LAIM-D00DMS ( DATA MANAGEMENT SERVER)

- DMS User Manual Copyright notice This document is Copyright © Samsung Electronics, Co. – all rights reserved. Copyright © 1999-2002 Samsung Electronics Co., Ltd. DMS User Manual Version 1.0 Software Center, Samsung Electronics Co., Ltd. 2 Table of Contents 1.GENERAL DESCRIPTION..........................................................................................................3 1.1.DMS System Feature ........................................................................................................3 1.1.1.System Establishment Environment .........................................................................3 1.2.Introduction of DMS Function .........................................................................................3 1.2.1.DMS Main Function .................................................................................................3 1.2.2.Console Function ......................................................................................................4 1.2.3.Web Fuction .............................................................................................................4 2.DMS INSTALLATION................................................................................................................5 2.1.Prapration of the installation.............................................................................................5 2.1.1.Confirmation of the package.....................................................................................5 2.1.2.Check list before the installation...............................................................................5 2.1.3.Software Requirements.............................................................................................5 2.2.Installation ........................................................................................................................6 2.2.1.DMS Interface ..........................................................................................................6 2.2.2.DMS Connection ......................................................................................................8 2.3.Check list after installation ...............................................................................................9 Software Center, Samsung Electronics Co., Ltd. 3 1. General Description 1.1. DMS System Feature 1.1.1. System Establishment Environment 1.2. Introduction of DMS Function 1.2.1. DMS Main Function 1) Wink 2) Tracking 3) DVM Monitoring/Controll 4) Fault/Error History Monitoring 5) DVM item inquiry / setting 6) Environment setting 7) DI / DO 8) Schedule setting / inquiry / execution 9) Power division setting / inquiry / data saving 10) Peak power control / setting / inquiry 11) Joint between the DMS’ Peak power control information DMS User Manual Version 1.0 Software Center, Samsung Electronics Co., Ltd. 4 12) Information inquiry / settion of the demand controller 1.2.2. Console Function 13) Network information inquiry / setting 14) Information inquiry / setting of the service server 15) Inquiry / setting of the data 16) Inquiry of tracking information / Execution of tracking 17) Setting of DMS cryptograph 18) Master DMS inquiry / setting 19) Inquiry / initialize of the setting information priority order 20) DMS rebooting 1.2.3. Web Function 1) Login 2) Monitoring / contorling 3) Inquiry of the defect history 4) Set / inquiry of the schedule setting 5) Set / inquiry of the peak power 6) Set / inquiry of the power division 7) Set / inquiry of the system circumstance 8) Tracking 9) User management Software Center, Samsung Electronics Co., Ltd. 5 2. DMS Installation 2.1. Prapration of the installation 2.1.1. Confirmation of the package „ DMS Case(UM 32009L) 1SET / pannel 2EA „ DMS Main Board, Sub Board, Cable „ Serial Cable 1EA „ Power Cable 1EA „ Ethernet Cable 1EA 2.1.2. Check list before the installation „ „ „ 2.1.3. Software Requirements DMS can be set by console and web. It is necessary software requirements of below to do normally. - Serial program to connect the console(Windows’ hyperterminal) - Java Runtime Environment 1.3.1 - Internet Explore 6.0 2.2. Installation 2.2.1. DMS Interface eset ower thernet S-485 erial ower eset thernet erial DMS User Manual Version 1.0 Software Center, Samsung Electronics Co., Ltd. 7 Item Contents Power Supply the power. Reset Used in system reset. DI Connected to switch to create signal. DO Control the on/off of the relay. Ethernet Connected to i-MFC, S-Net and Service Server though LAN cable RS-485 Connected to CAUR, outdoor equipment and indoor equipment through coaxial cable. And then DMS collect the data and control through this. Serial Used Version Upgrade and checking the defect. LED Display the system status. Power – Checking the system on / off CPU Alive – Checking the system’s normal operation nLinked / nLanLED – Checking the Ethernet’s connections and operation Tx Data / Rx Data – Checking the RS-485’s status DI 1/2 – Checking the DI’s operation DO 1/2 – Checking the DO’s operation DMS User Manual Version 1.0 Software Center, Samsung Electronics Co., Ltd. 8 2.2.2. DMS Connection 1) Power : Connect to AC Power through power cable. 2) DI : Connect to external switch. Be careful of +, - sign. 3) DO : Connect to external relay. Becareful of +, - sign. 4) Ethernet : Connect to LAN Cable. 5) RS-485 : Connect to CAUR. Be careful of C1, C2 sign. ower thernet S-485 Back side Caur DMS User Manual Version 1.0 Software Center, Samsung Electronics Co., Ltd. 9 2.3. Check list after installation Check the LED status displayed on the case after all connection is cleared. LED name Contents Power If the power is supplied, this LED is turn on. Initial state is off. CPU Alive If the CPU is alive, this LED is twinkling Initial state is off. nLinked If LAN cable is connected, this LED is turn on. Initial state is off. nLanLED If data reception/transmition is occurred through LAN cable, this LED is turn on. Initial state is off. Tx…

Text truncated - open the document above for the full version.

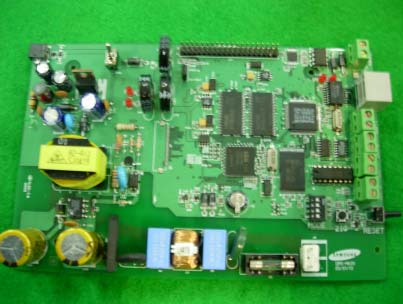

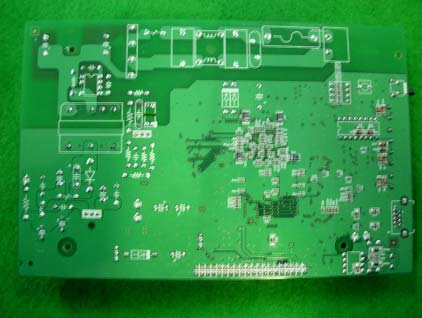

SDRAM 64MB SDRAM 64MB Transformer(Amp) Transformer(Amp) Serial(RS-232) Serial(RS-232) NAND Flash 64MB NAND Flash 64MB – JTAG JTAG RS485 Converter RS485 Converter DO 1 / 2 DO 1 / 2 DI 1 / 2 DI 1 / 2 Switch Switch Relay Relay RTC RTC AC Power AC Power SMPS SMPS

Data Management Server MODEL : AIM-D00 FCC ID : A3LAIM-D00 Manufactured by Samsung THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THATMAY CAUSE UNDESIRED OPERATION.

EMI TEST REPORT Emission of electromagnetic disturbance Test Report No. : ERI-FCC05-0021 Equipment : Data Management Server Name of basic model : AIM-D00 Family model : None Manufacturer : Samsung Electronics Co., Ltd. Applicant : Samsung Electronics Co., Ltd.. Tested date : 2005. 3. 17 Issued date : 2005. 3. 29 Test results : PASS Test Standards : FCC Part 15 Subpart B (Class B) / Class B digital devices, peripherals Test Procedure and Items: - AC Power line Conducted emissions measurement : ANSI C63.4-2003 - Radiated emissions measurement : ANSI C63.4-2003 Tested by: KIM, YOUNG-SIK Approved by: CHOI, KEE-HO The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI Laboratory. EMC RESEARCH INSTITUTE EMC Research Institute CONTENTS 1. CLIENT INFORMATION 2. LABORATORY INFORMATION 3. EQUIPMENT UNDER TEST INFORMATION (EUT) 3.1 Identification of the EUT 3.2 Additional information about the EUT 3.3 Peripheral equipment 4. CONTINUOUS DISTURBANCE Voltages, MAIN TERMINAL 4.1 Operating environment 4.2 Test set-up and test procedures5 4.3 Test instrument 4.4 Test results 5. RADIATED DISTURBANCE 5.1 Operating environment 5.2 Test set-up 5.3 Test conditions 5.4 Test instrument 5.5 Test results 6. PRODURCT PHOTOGRAPHS 6.1 Front Photograph of EUT 6.2 Rear Photograph of EUT 6.3 Inner Photograph of EUT APPENDIX. <None> EMC Research Institute 1. CLIENT INFORMATION The EUT has been tested by request of : Company : Samsung Electronics Co., Ltd Address : 416, Maetan-3 dong, Youngtong-Gu, Suwon-city, Kyungki-do, Korea Telephone : +82-31-218-5279 Contact : Kim, Min-chang / Assistant Engineer S/W Gruop System Appliance Division / Digital Appliance Business 2. LABORATORY INFORMATION The 10m semi-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS, EK, MIC of Korea and FCC of USA. Address ELECTROMAGNETIC RESEARCH INSTITUTE. 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone No. : +82-31-336-1186~7 Facsimile No. : +82-31-336-1184 Registered No. KOLAS : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT Type of equipment : DMS(Data Management server) Model name : AIM-D00 Brand name : NONE Company : Samsung Electronics Co., Ltd Address : 416, Maetan-3 dong, Youngtong-Gu, Suwon-city, Kyungki-do, Korea Telephone : +82-31-218-5279 Country of origin : KOREA Rating : 120V, 60Hz EMC Research Institute 3.2 Additional information about the EUT Class B 3.3 Peripheral equipment Defined as equipment needed for correct operation of the EUT. Description Model No. Serial No. Manufacture Note PC S640 625991DR200269 Samsung AC/DC adapter AD-6019 none “ Note PC S640 625991CR200169 “ AC/DC adapter AD-6019 none “ Hub RNSH500 RNSH5004BC0801 804 Reenet Converter Board none none Samsung AC/DC adapter AD-1005 none “ EMC Research Institute 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL : Frequency range 0.15 MHz to 30 MHz 4.1 Operating environment Temperature : 18.3 Relative Humidity : 42.0 % 4.2 Test set-up and test procedures Shield Room AC Main EUT LISN Hub Converter Board Note PC Note PC LISN EMC Research Institute The mains terminal disturbance voltage was measured with the equipment under test(EUT) in a shield room. The EUT was connected to an artificial mains network(LISN) placed on the floor. The EUT was placed on non-metallic table 0.8m above the metallic, grounded floor. The distance to other metallic surface was at least 0.4m. Amplitude measurements were performed with a quasi-peak detector and an average detector. Test configuration 1. If cables cannot be shortened to appropriate length, the excess shall be folded back and forth a bundle 30Cm to 40Cm long. If bundling is not possible, the cables shall be arranged in a serpentine fashion. 2. Excess mains cord shall be bundled in the centre or shortened to appropriate length. 3. EUT and cables shall be insulated ( up to 15Cm ) from the horizontal metal ground plane. Operation condition: Normal operated 4.3 Test instrument Instrument Model No Serial No. Makers Next cal.date Used Test receiver ESCS30 830986-015 R&S 2005. 04. 08 ESH3-Z5 82746/008 R&S 2005. 03. 31 L.I.S.N. ESH3-Z5 831887/018 R&S 2005. 03. 31 Shield room 8 6 3.3m/H - - - 4.4 Test results Date of test: Mar 17, 2005. An overview sweep performed with peak detector & average detector are included in the report as test reports. Result: Pass The measured emissions level of the EUT have found the below of the specified limit. EMC Research Institute [Live line] EMC Research Institute [Neutral line] EMC Research Institute 5. RADIATED DISTURBANCE 5.1 Operating environment Temperature : 21.0 Relative Humidity : 43.0 % 5.2 Test set-up The frequency range investigated was 30 MHz to 1000 MHz. All readings are quasi-peak unless stated otherwise. The half-wave dipole antenna was tuned to the frequency found during Preliminary radiated measurements. The EUT, support equipment and Interconnecting cables were re-configured to the set-up to the producing the Maximum emission for the frequency and were placed on top of a 0.8 meter High non-metallic 1 X 1.5 meter table. The EUT, support equipment, and interconnecting cables were re-arranged and manipulated to maximize each EME emission. The turntable containing the system was rotated the antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. And this device(EUT) was tested in 3 orthogonal planes. The antenna measured both horizontal and vertical polarization. Radiated Disturbance EMC Research Institute <General test set-up for radiated emissions> 5.3 Operation Conditions Networking mode 5.4 Test instrument Instrument Model No. Serial No. Makers Next cal.date Used Test receiver ESCS30 100022 R&S 2005. 05.30 Biconical Antenna VHA9103 91031951 Schwarzbeck 2005. 06.01 Log-Periodic Antenna UHALP9108A 393…
