A3LBN8109939AMagic Presenter Pointer

Magic Presenter is a digital pointer used with LFDs. Magic Presenter allows you to do presentations free from space limitations or obstacles that may get in the way when using laser pointers. Components Check to make sure that no component is missing from the package. Provided components are: xM agic Presenter_Pointer, Magic Presenter_Dongle, batteries and a user guide xI n this quick guide, the pointer refers to Magic Presenter_Pointer and the dongle refers to Magic Presenter_Dongle. xThe dongle comes with a user guide in PDF and an executable program for Magic Presenter. xT he product warranty is valid for one year. Refer to the user guide that came with the dongle for details on warranty conditions. Pointer buttons Press either button to start or finish a slideshow in a Power Point document. These buttons perform the same functions as the F5/Esc keys on the keyboard. Press either button to go to a specific desired page in a Power Point document. These buttons perform the same functions as the Page Up/Page Down keys on the keyboard. Press the button to show the pointer dot on the LFD. Replacing the batteries 1 Push the back on the pointer, as shown in the image, to uncover the battery chamber. 2 Insert new (AAA) batteries in the chamber. Make sure the positive and negative ends (+, –) are oriented correctly. 3 Push the cover into the battery chamber until a click is heard. xMake sure the positive and negative ends (+, –) of the batteries are oriented correctly. Incorrectly oriented batteries may break or leak, damaging the product or causing fire or personal injury. xMake sure to use the specified batteries. Do not use a new battery and old batteries together. Using an old battery with new batteries does not change the fact that the old batteries are not new. The old battery may damage the product or lead to fire or personal injury. xSeparate disused batteries and battery chargers from other waste so that they can be collected for recycling. Disused batteries can be discarded in your local recycling center or the nearest dealer that deals with waste batteries and battery chargers. xKeep ba tteries out of reach of children. Take extra care to ensure that children do not swallow batteries. If your child has swallowed a battery, see a doctor immediately. Magic Presenter 1 2 3 How to use the pointer Connecting the dongle to an LFD If the LFD has an internal PIM, insert the dongle into a USB port on the LFD and then use the pointer. PIM(Plug In Module) refers to a small computer device which is installed on an LFD to process data. Connecting the dongle to a PC If the LFD is connected to a PC, insert the dongle into a USB port on the PC and then use the pointer. Product specifications Recommended distance from a display Within 10 m (32.8 ft) Weight Magic Presenter_ Pointer 33.8 g (with the batteries: 56.8 ± 0.5 g) Magic Presenter_Dongle9.4 g Power Magic Presenter_ Pointer Internal 1.5 V alkaline AAA batteries Magic Presenter_Dongle5V 500 mA (USB power) Power consumption Magic Presenter_ Pointer 50 mA Magic Presenter_Dongle200 mA Batteries Type: 800 mAh 3V(AAA X2) Maximum hours of continuous use: 40 hours Operating conditions Operating temperature10 °C~40 °C (50 °F~104 °F) Storage temperature–20 °C~45 °C (-4 °F~113 °F) Notice FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: xReorient or relocate the receiving antenna. xIncrease the separation between the equipment and receiver. xConnec t the equipment into an outlet on a circuit different from that to which the receiver is connected. xConsult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IC Statement This Class B digital apparatus complies with Canadian ICES-003. Cetappareilnumeriquede la classeBestconformea la normeNMB-003 du Canada. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Declaration of Conformity For the following Product: Magic Presenter_Pointer / Magic Presenter_Dongle Model(s) : BN81-09939A / BN81-09990A Where * can be any alphanumeric character. Year of Affixing CE Marking : 2014 We hereby declareunder our sole responsibilitythat the electricalproduct above is in compliance with the essential requirements of R&TTE Directive (1999/5/EC), the Low Voltage Directive (2006/95/EC)…

Text truncated - open the document above for the full version.

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA ATTESTATION SATATEMENT FCC ID : A3LBN8109939A This Magic Presenter_Pointer contains an embedded Bluetooth device that Samsung confirms compliance with the following Part 15 regulations. 15.247(a)(1)  The hopping sequence is pseudorandom  All channels are used equally on average  The receiver input bandwidth equals the transmit bandwidth  The receiver hops in sequence with the transmit signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information)stream. 15.247(h) The system does not coordinate it channels selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Name : Sang Kyung (Peter), Ra Title : General Manager Company : Samsung Electronics Co., Ltd.

416, Maethan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Date: July 30, 2014 RE: Request of confidentiality for FCC ID: A3LBN8109939A, To Whom It May Concern: We, SAMSUNG ELECTRONICS CO.,LTD. Hereby declare that Samsung’s product BN81-09939A will satisfy following criteria per KDB 784748 (label is affixed inside the battery cover) • The device is handheld (notebook computers are considered as handheld); • The FCC identifier is visible at the time of purchase. Marketing the device without the battery installed when the label is in the battery compartment is acceptable. The FCC ID on the box, or additional documentation directing the user where to find the FCC label, also satisfies this requirement; • The user accessible area must not require any special tools for access, and the FCC label must not be placed on a removable part; • The FCC ID, Model Number, or FCC logo must be on the label and must meet all general labelling requirements or policies that apply for Certification, Verification or DoC. 416, Maethan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Sincerely, Name : Jaywoo Lee Title: Engineer Company: Samsung Electronics Co., Ltd.

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Date: March 19, 2014 RE: Request of confidentiality for FCC ID: A3LBN8109939A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Sectio 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. Hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. Temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Name : Sang Kyung (Peter), Ra Title : General Manager Company : Samsung Electronics Co., Ltd.

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Date : October 22 nd , 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg D Pine Brook, NJ 07058

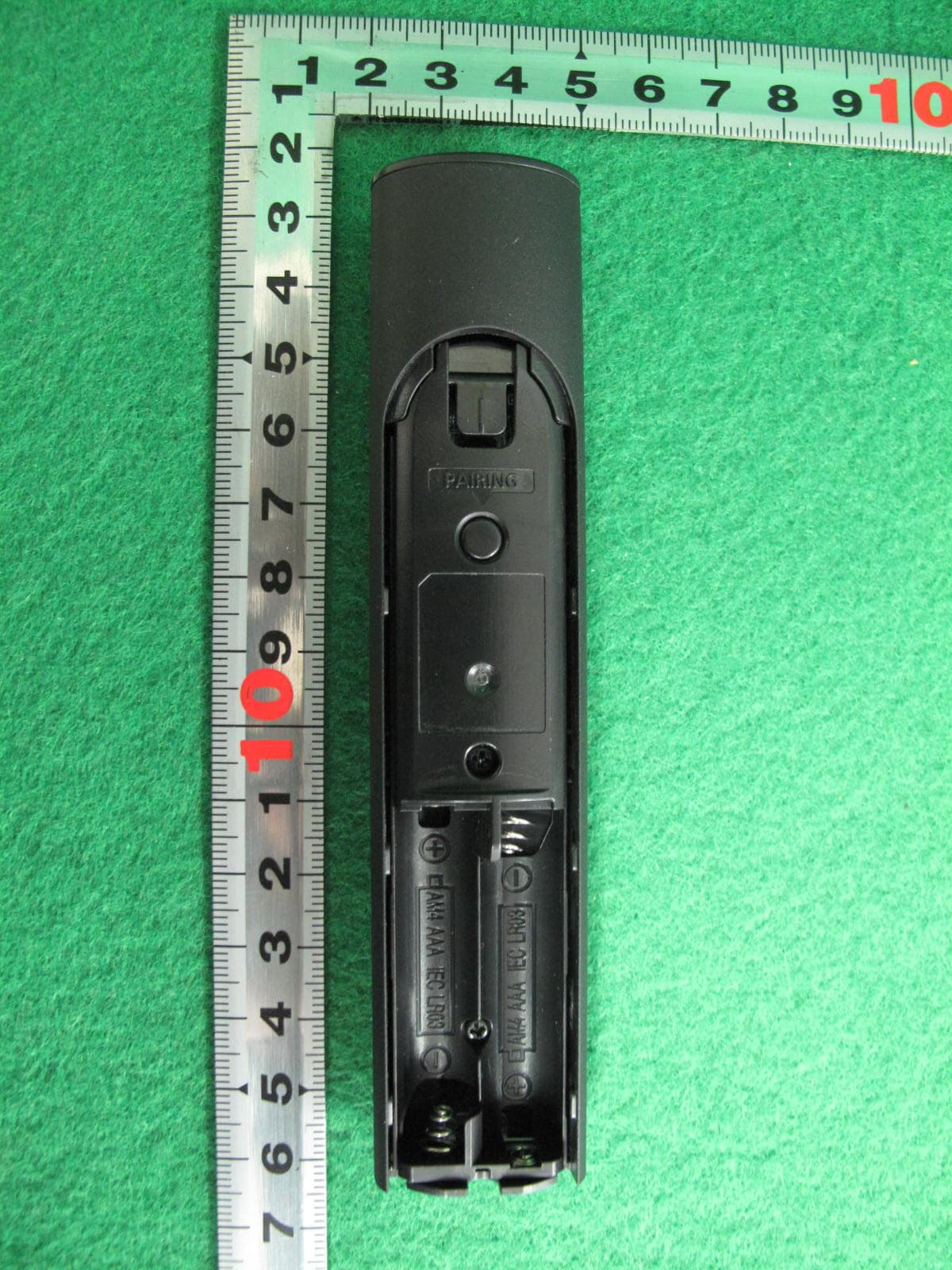

Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 62 of 71 APPENDIX C – EUT PHOTOGRAPHS Front Side View of EUT Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 63 of 71 Rear Side View of EUT Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 64 of 71 Top Side View of EUT Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 65 of 71 Bottom Side View of EUT Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 66 of 71 Left Side View of EUT Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 67 of 71 Right Side View of EUT Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 68 of 71 Rear Side View of EUT without battery case

Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 60 of 71 APPENDIX A – LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. < Rear side without battery cover > Labelling Requirements

Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 69 of 71 Inside View of EUT Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 70 of 71 Front View of Mainboard Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 71 of 71 Rear View of Mainboard

FCC RF Exposure description FCC ID : A3LBN8109939A 1. Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This Smart Touch Control can be used in a Portable device. 2. Maximum output power including tune‐up tolerance Frequency band (GHz) 1) Target power (dBm) 1) Tune‐up tolerance (dB) Target + Tune‐up tolerance (dBm) Target + Tune‐up tolerance (mW) 2.4417.51.597.9 Notes: 1) Target power and Tune‐up tolerance were declared by manufacturer. 3. SAR test exclusion thresholds Frequency band (GHz) Target power including tune‐up tolerance (mW) Min. test separation distance (mm) √ f (GHz) 1) SAR test exclusion calcuation result 2) 1‐g SAR test exclusion threshold Result 2.4417.95.01.62.53.0Pass Notes: 1) SAR test exclusion calculation result =[(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] 2) SAR Test Exclusion Thresholds at 5 mm Separation Distance were referred to Appendix A in 447498 D01 General RF Exposure Guidance v05r01. See a table for SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm in Appendix A on page 15 4. Conclusion As the output power of A3LBN8109939A is below SAR test exclusion thresholds, the SAR evaluation is not required.

Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 2 of 71 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 2.1 Test facility 5 2.2 Accreditation and listing 6 3. Test Conditions & EUT Information 7 3.1 Operation During Test 7 3.2 Support Equipment 7 3.3 Setup Drawing 8 3.4 EUT Information 9 4. Summary of Test Results 10 5. Recommendation / Conclusion 11 6. Antenna Requirements 11 7. Description of Test 12 7.1 Conducted Emissions 12 7.2 Radiated Emissions 13 7.3 20 dB Bandwidth and Carrier Frequency Separation 14 7.4 Transmitter Average Time of Occupancy 14 7.5 Number of Hopping Channels 15 7.6 Maximum Peak Output Power 15 7.7 Conducted Spurious Emissions 16 8. Test Data 17 8.1 Radiated Emissions 17 8.2 20 dB Modulated Bandwidth 18 8.3 Carrier Frequency Separation 24 8.4 Transmitter Average Time of Occupancy 27 Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 3 of 71 8.5 Number of Hopping Channels 29 8.6 Peak Power Output 30 8.7 Conducted Spurious Emissions 36 8.8 Radiated Spurious Emissions 52 8.9 Radiated Restricted Band Edge 55 9. Test Equipment 57 10 Accuracy of Measurement 58 Appendix A: Labeling Requirement 60 Appendix B: Photographs of Test Set-up 61 Appendix C: EUT Photographs 62 Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 4 of 71 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15 and IC RSS-210 Issue 8. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Jaywoo, Lee Samsung Electronics Co., Ltd. 129, samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742  FCC ID: A3LBN8109939A  IC: 649E-BN8109939A  Model: BN81-09939A  Brand Name: SAMSUNG  EUT Type: Magic Presenter_Pointer  Classification: 15C Intentional Radiator  Applied Standard: FCC 47 CFR Part 15 subpart C and IC RSS-210 Issue 8  Test Procedure(s): ANSI C63.4-2003 and FCC Public Notice DA 00-705 dated March 30, 2000 entitled “Filling and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems”  Dates of Test: February 12, 2014 ~ March 2, 2014  Place of Tests: Nemko Korea Co., Ltd. Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 5 of 71 2. INTRODUCTION 2.1 Test facility The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A and IC : 649E-BN8109939A. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 155 & 159, Osan-Ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi- Do, 449-852 KOREA, REPUBLIC OF. The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilo-meters (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18 miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 155 & 159, Osan-Ro, Mohyeon- Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, 449-852 KOREA, REPUBLIC OF Tel)+82-31-330-1700 Fax)+82-31-322-2332 Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 6 of 71 2.2 Accreditation and listing Accreditation type Accreditation number FCC part 15/18 Filing site Registration No. 97992 CAB Accreditation for DOC Designation No. KR0026 KOLAS Accredited Lab. (Korea Laboratory Accreditation Scheme) Registration No. 155 Canada IC Registered site Site No. 2040E VCCI registration site(RE/CE/Telecom CE) Member No. 2118 EMC CBTL - KCC(RRL)Designated Lab. Registration No. KR0026 SASO registered Lab and Certification Body Registration No. 2008-15 Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 7 of 71 3. TEST CONDITIONS & EUT INFORMATION 3.1 Operation During Test The Laptop was used to control the EUT to transmit the wanted TX channel by the Bluetool testing program which manufacturer supported. The Laptop and test jig were removed after controlling the EUT to transmit the wanted signal. The EUT was tested at the lowest channel, middle channel and the highest channel with the maximum output power in accordance with the manufacturer’s specifications. The worst data were recorded in the report. The EUT is programmed with the following setting during the testing: Mode Frequency Band Power Setting Level GFSK/ π/4 DQPSK/ 8DPSK 2402 MHz ~ 2480 MHz Specify Power Table index 3.2 Support Equipment Magic Presenter_ Pointer (EUT) Samsung Electronics Co., Ltd. Model: BN81-09939A FCC ID : A3LBN8109939A S/N: N/A Laptop PC HP Model : G62-355TU 1.5 m UART to USB shielded conversi on cable FCC DOC S/N: CNF0489WDT a.c.-d.c. Adaptor Delta Electronics (Jiang su), Ltd. Model : PPP009D 1.5 m unshielded powe…

Text truncated - open the document above for the full version.

Test Report No.: NK-14-R-054 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LBN8109939A / IC : 649E-BN8109939A Page 61 of 71 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Radiated Test Picture and show the worst-case configuration and cable placement.  Radiated Test Picture(Front)  Radiated Test Picture(Rear)
