A3LBTM740BBluetooth Module

Version 1.0Samsung Electronicspage 1 of 3 User Manual for BTM740B (for AIP PC) 1. Introduction BTM740B BT Module containing Bluetooth 3.0 / Mac compatible Bluetooth Module/ Baseband optimized Radio with UART interface. 2. Hardware Configuration 2.1 Main Chipset Information ItemIC VendorPart Number Bluetooth 3.0 MAC/Baseband/Radio CSRCSR8670 2.2 Block Diagram Block Diagram of BT Module is as Figure.1. Figure.1 BTM740B Block Diagram Version 1.0Samsung Electronicspage 2 of 3 3. Pin Description Pin descriptions are as Table.3. Table.3 Pin Description Version 1.0Samsung Electronicspage 3 of 3 4. Detail Specifications - Frequency : 2402~2480 MHz - Number of Channel : 79ch - Oscillation : VCO - Operating Voltage : TYP. DC 3.3 V - Current Consumption : Max.100mA - Dimension : 22 mm X 26 mm X 2.5 mm - Weight : 2.5g - Operating Temperature : -10°C ~ +50 °C - Communication : Semi-Duplex Operation - Modulation : 2FSK, pi/4 DQPSK, 8DPSK *This wireless device may cause propagation interferences so can’t available for life-saving services. V ersion 1.0 Samsung Electronics page 7 of 8 6. Notice l. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increas e the separation between the equipment and receiver. ● Con nect the equipment into an outlet on a circuit different from that to which the receiv er is conn ected. ● Cons ult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. USERS MANUAL OF THE END PRODUCT: The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this Ve rsion 1.0 Samsung Electronics page 8 of 8 device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains FCC ID: A3LBTM740B ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance requirement of the end product, which integrates this module. Under such configuration, the IC RSS-102 radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains IC : 649E-BTM740B ". IC Statement RSS-Gen 7.1.2 Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. RSS-GEN statment. : This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two…

Text truncated - open the document above for the full version.

129, Samsun g‐Ro, Yeongtong‐Gu, Suw on‐City Gyeonggi‐Do, 443‐742, Korea December 31, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevan t provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and reso lution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are ce rtified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐ Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea December 31, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LBTM740B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operation Description 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

Applicant/Grantee SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LBTM740B Modular Transmitters Request for Modular Approval ■ Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes, BTM740B complies with this requirement. 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with modular approval requirements under conditions of excessive data rates or over- modulation. Yes, BTM740B complies with this requirement. 3 The modular transmitter must have its own power supply regulation. Yes, BTM740B complies with this requirement. 4 The modular transmitter must comply with the antenna and transmission system requirements. Yes, BTM740B complies with this requirement. 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). Yes, BTM740B is tested in a stand- alone configuration. 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC Yes, BTM740B complies with this requirement. identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes, BTM740B complies with this requirement. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes, BTM740B complies with this requirement. A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

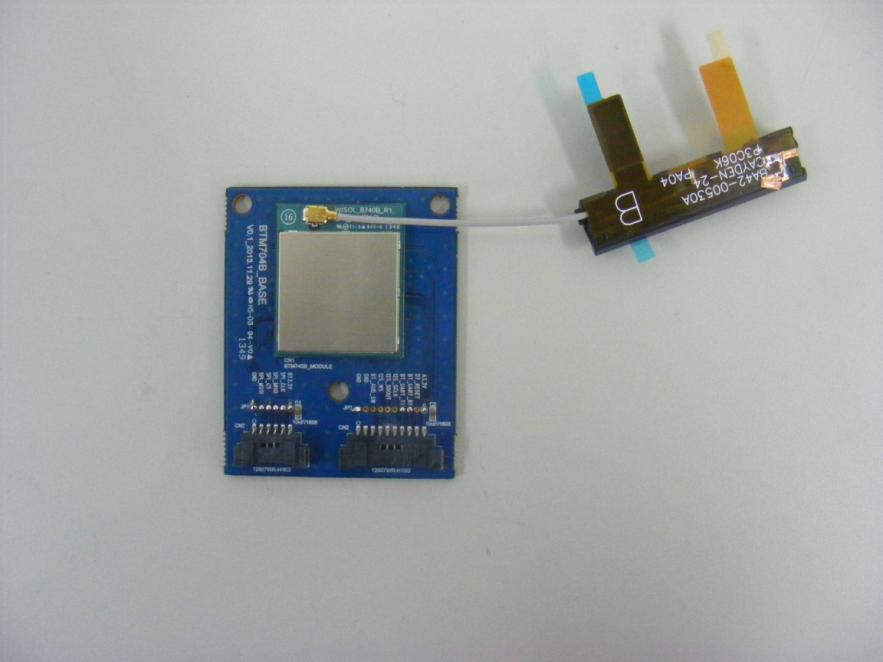

External photos of EUT Front view of EUT Front view of EUT with Antenna

FCC, IC Label 1. FCC/IC Label Drawing Model: BTM740B FCC IC: A3LBTM740B IC: 649E-BTM740B 2. FCC Label Location

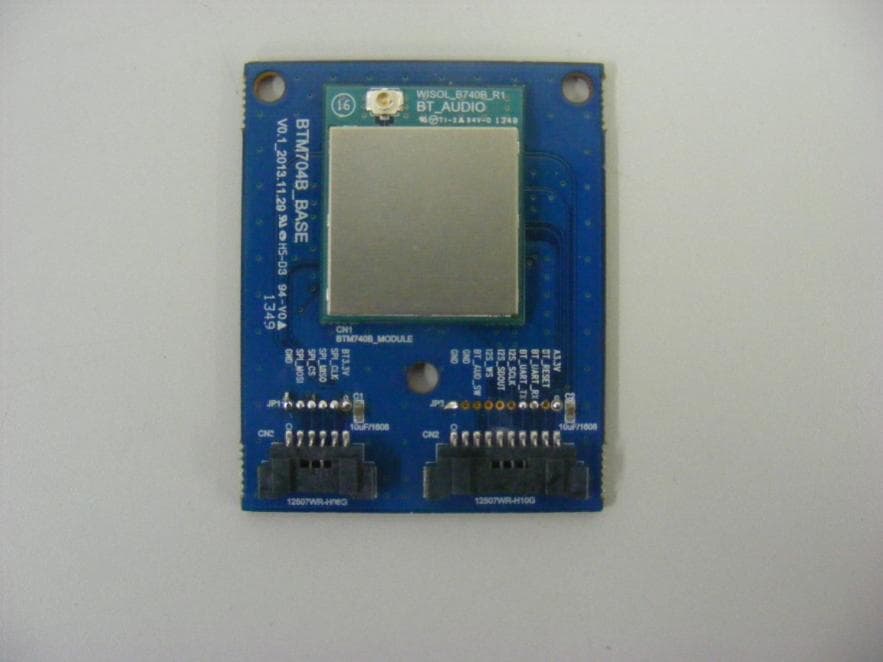

Model : BTM740B Internal photos of EUT Model : BTM740B Internal view of EUT

Report Number : F690501/RF-RTL007303-1 Page: 2 of 6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 Report Number : F690501/RF-RTL007303-1 Page: 3 of 6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - 413-15, Gomae-Dong, Giheung-Gu, Yongin-Si, Gyeonggi-Do, South Korea. (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS CO., LTD. Address : 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 433-742, Rep of Korea Contact Person : Lee, Sang-Cheong Phone No. : +82 31 277 4784 Fax No. +82 31 277 9247 1.3. Description of EUT Kind of Product Bluetooth Module Model Name BTM740B Power Supply DC 3.3 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT) Antenna Type Internal type Antenna Gain 2 400 ㎒ ~ 2 500 ㎒ : 3.28 ㏈i 1.4. Test report revision Revision Report number Description 0 F690501/RF-RTL007303 Initial 1 F690501/RF-RTL007303-1 Add Maximum average power result Report Number : F690501/RF-RTL007303-1 Page: 4 of 6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 -- -- F/1500 6 1 500 – 100 000 -- -- 1 30 Report Number : F690501/RF-RTL007303-1 Page: 5 of 6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 2.2. RF exposure limit according to IC RSS-102 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Note: f is frequency in ㎒ *Power density limit is applicable at frequencies greater than 100 ㎒ 2.2.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in W/m 2 Pout = output power to antenna in W G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in m Pd the limit of MPE, 10 W/m 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 2.3. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Average Time (minutes) 0.003 – 1 280 2.19 - 6 1 – 10 280 / f 2.19 / f - 6 10 – 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.004 2 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616 000 / f 1.2 150 000 – 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616 000 / f 1.2 Report Number : F690501/RF-RTL007303-1 Page: 6 of 6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fa…

Text truncated - open the document above for the full version.

FCC ID : A3LBTM740B According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following a) [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, mm)] x [√f (GHz) ] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2 480 ㎒ (min. Separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = (3 x 5) / √ 2.480 = 9.53 ㎽ Max. conducted power(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 3.74 9.53 Power (3.74㎽) is rounded to the nearest ㎽ before calculation Calculation value: 4 (㎽) / 5 (mm) x = 1.26 So, Calculation value ≤ 3.0 2. Conclusion: No SAR is required.

Report Number: F690501/RF-RTL007302-1 Page: 2 of 69 INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth and 99% BW ------------------------------------------------------------------- 30 4. Maximum Peak Output Power ------------------------------------------------------------------- 42 5. Hopping Channel Separation --------------------------------------------------------------------- 44 6. Number of Hopping Frequency ------------------------------------------------------------------ 47 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 51 8. Transmitter AC Power Line Conducted Emission ------------------------------------------- 64 9. Antenna Requirement ------------------------------------------------------------------------------ 69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL007302-1 Page: 3 of 69 1.
. General Information 1.9. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory). - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - Wireless Div. 1FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 428 5700 Fax No. : +82 31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS CO., LTD. Address : 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 433-742, Rep of Korea Contact Person : Lee, Sang-Cheong Phone No. : +82 31 277 4784 Fax No. +82 31 277 9247 1.3. Description of EUT Kind of Product Bluetooth Module Model Name BTM740B Power Supply DC 3.3 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT) Antenna Type Internal type Antenna Gain 2 400 ㎒ ~ 2 500 ㎒ : 3.28 ㏈i The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL007302-1 Page: 4 of 69 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL007302-1 Page: 5 of 69 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Aug. 23, 2013 Annual Aug. 23, 2014 Signal Generator R&S 8648D 3847M00534 Mar. 28, 2013 Annual Mar. 28, 2014 Spectrum Analyzer Agilent N9030A US51350132 Oct. 08, 2013 Annual Oct. 08, 2014 Bluetooth Tester TESOM TC-3000C 3000C000142 Dec. 12, 2013 Annual Dec. 12, 2014 Directional Coupler KRYTA R 152613 122660 Jun. 07, 2013 Annual Jun. 07, 2014 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jun. 08, 2013 Annual Jun. 08, 2014 High Pass Filter Wainwright WHK7.5/26.5G-6SS 11 Jun. 08, 2013 Annual Jun. 08, 2014 Low Pass Filter Mini circuits NLP-1200+ V8979400903-2 Mar. 30, 2013 Annual Mar. 30, 2014 Power Sensor R&S NRP-Z81 100669 Apr. 05. 20…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. The photo of Radiated Emission B. Transmitter AC Power Line Conducted Emission(BT)
