A3LBTW4002CH Audio Transceiver

0 connections COnnECTInG THE OPTIOnAL WIrELESS rECEIVInG AMPLIFIEr To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and TX card from your Samsung retailer. When you have Purchased the Wireless receiving Module (SWA-4000) Connect the front, center and Subwoofer speakers to the DVD Player, reffering to pages 19. With the DVD Player turned off, insert the TX card into the TX Card Connection(WIRELESS) on the back of the main unit. Hold the TX card so that the slanted side faces downward and insert the card into the port. The TX card enables communication between the main unit and the wireless receiver. Connect the left and right rear speakers to the wireless receiving module. Plug the power cord of the wireless receiving module in the wall outlet and switch the power switch On. 1. . ~ ~ . . Do not insert any other card except the TX card dedicated to the product. The product might be damaged or the card may not be removed easily. Do not insert the TX card upside down or in the reverse direction. Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned on may cause a problem. If the TX Card is inserted, sound is not output from the Rear Speaker connectors on the main unit. ` ` ` ` ipod AUX IN 2 RESET Front Speaker (R) Rear Speaker (L) Subwoofer Center Speaker Front Speaker (L) Rear Speaker (R) WIRELESS RECEIVER MODULE RESET ipod AUX IN 2 Slanted side face left tX card This product is compatible with the wireless receiver module SWA-3000. M ` �� - Ht-Z310_XAA_1214.indd 202007-12-14 �� 6:06:37 1 EnG ● COnnECTIOnS resetting the Wireless receiving Module Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not light up and the "REAR CHECK" message blinks on the main unit's display. Reset the system while the main unit and the wireless receiver module (SWA-4000) is in Power Standby mode. With the main unit turned off, press and hold the remote control's REMAIN button for 5 seconds. The STANDBY LED on the front panel of the wireless receiver module blinks. With the wireless receiver module turned on, use a ball point pen or a pair of toothpick to press the rESET button on the back of the unit. The STANDBY LED on the front panel of the wireless receiver module blinks several times. Turn on the main unit. The LINK LED of the wireless receiver module is lit and the Reset is completed. If Power Standby mode continues, repeat Steps 1 to 3 above. 1. ~ . ~ . ~ ~ When the wireless receiving module setting is complete, no sound is output from the Rear Speaker Output Connectors on the back of the main unit. The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and moisture. For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions. Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only. In 2-CH mode, no sound will be heard from the wireless rear speakers. ` ` ` ` ` Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference. If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (5.8GHz) near the system, some sound interruption may be heard due to interference. The transmission distance of a radio wave is about 10m, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal. M` ` ` �� - Ht-Z310_XAA_1214.indd 212007-12-14 �� 6:06:37

Date: Mar. 4, 2008 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Steve Kim / General Manager Samsung Electronics Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

If you have not received all pages, please call the direct phone number. FAX : 031-428-5859 TEL : 031-428-5744 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Samsung Electronics , would like the following documents regarding this submission for FCC ID: A3LBTW400 to be kept confidential. 1. Schematics and Block diagram 2. Parts List 3. Operating description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Steve. Kim / General Manager Samsung Electronics Co., Ltd.

2 To: Grace (Gunpo); Ham, Denny (Gunpo) Subject: FW: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LBTW400, Assessment NO.: AN08T7673, Notice#1 Dear Grace, Please address following issues. Q#1: According to KDB 852143 Authorized Individual Policy (Form 731), only the person who is listed as the grantee contact person on FCC website can sign the agent authorization letter. As for Samsung Electronics Co Ltd, the grantee code contact person is Steve Kim, General Manager. Please provide an authorization letter sign by him or update the grantee contact person from FCC website. Besides, please also provide the confidentiality request letter signed by Steve Kim or by his authorized agent. Attached is the new format of authorization for your reference. SGS can help Samsung to sign other doucments, for example, confidentiality request letter once you're authorized by Mr. Steve Kim. -> Please see the attachment. Q#2: Per EUT external photos, an antenna connector is attached in the rear side of EUT but there are no information mentioned about this external antenna. Please address. -> An connector is attached in the rear side of EUT, which is not an antenna connector It is test connector that can do conducted test Q#3: The user manual provided is not a user manual but a technical specificaiton. Most information indicated in the user manual are also shown on the operational description which is not acceptable because operational description is requested for long-term confidentiality. Please provide a user manual which is applied to end users and also make sure it has included 15.19, 15.21, 15.105 and RF exposure statement per 2.1091. ->Updated user manual’s attached. Q#4: Please update the block diagram to show the frequency of oscillator on it. ->Updated Block diagram attached. 3 Q#5: According to the operational description page 4 of 8-5. RF measurement results, the frequency range listed is from 5765MHz, 5785MHz, 5805MHz, 5825MHz which doesn't agree with test report. Please address. Same information is also indicated in page 5 of user manual. -> Updated Operational Description attached. Q#6: According to the EUT design, it's powered by battery; so please explain why AC line conducted emission was required. ->The sample is not powered by battery but is powered by DC 5 V Q#7: The setup photo and test configuration as indicated in page 6 of test report do not agree with the application. Please have a check and provide the correct one. ->Amended on page 6 test report Best Regards, Lucy Tsai Technical Review Engineer Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Cell phone: 886-910-133-235 Direct: (510) 771-1131 Fax: (510) 661-0888 Main: (510) 771-1000 Web Site and TCB Electronic Filing System :http://www.ccsemc.com The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 46 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix B. Photos of the EUT Front View of EUT Rear View of EUT

FCC/IC ID Label 1. FCC/IC ID label drawing & location Samsung Electronics Model : BTW400 FCC ID : A3LBTW400 IC : 649E-BTW400 2. FCC ID label location

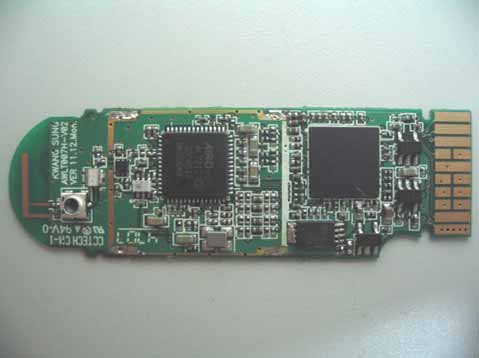

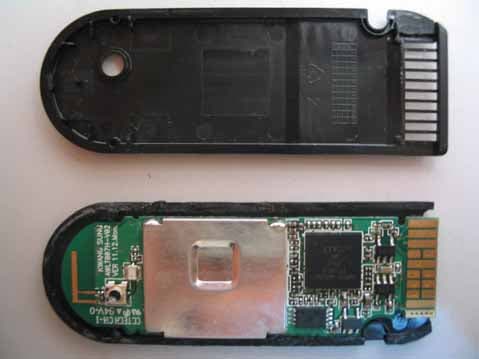

FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 47 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Inner of EUT Top View of Main-board FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 48 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of Main-board (Removal Shield Cap) Bottom View of Main-board FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 49 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com View of Antenna

FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 42 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 10. RF Exposure Evaluation According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 10.1 Friis transmission formula : Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational /Control Exposures 300 – 1500 -- -- F/300 6 1500 - 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1500 -- -- F/1500 6 1500 - 100000 -- -- 1 30 FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 43 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 10.1 Test Result of RF Exposure Evaluation Test Item RF Exposure Evaluation Data Test Mode Normal Operation 10.1.1 Output Power into Antenna & RF Exposure Evaluation Distance Operating Mode: DSSS Channel Channel Frequency (MHz) Output Peak Power to Antenna (dBm) Antenna Gain (dBi) Power Density at 20cm (mW/cm 2 ) Limits (mW/cm 2 ) Low 5745 17.37 -1.22 0.00820 1 Middle 5785 15.89 -1.22 0.00583 1 High 5805 15.09 -1.22 0.00485 1

FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 1 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com TEST REPORT OF FCC Part 15 Subpart B&C §15.247/RSS-210 Issue 7, RSS-Gen Issue 2 FCC ID/IC Certification: A3LBTW400/639E-BTW400 Equipment Under Test :2CH Audio Transceiver Model Name :BTW400 Serial No. :N/A Applicant :SAMSUNG ELECTRONICS CO.,LTD. Manufacturer : SAMSUNG ELECTRONICS HUIZHOU CO.,LTD. Date of Test(s) :2008-01-10 ~ 2008-02-20 Date of Issue :2008-03-03 In the configuration tested, the EUT complied with the standards specified above. Te s t e d B y : Date 2008-03-03 Feel Jeong Approved By Date 2008-03-03 Denny Ham FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 2 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Transmitter AC Power Line Conducted Emission----------------------------------- 6 3. Receiver AC Power Line Conducted Emission---------------------------------------- 11 4. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission--------- 15 5. Receiver Radiated Spurious Emission-------------------------------------------------- 27 6. 6 dB Bandwidth and 99 % BW---------------------------------------------------------- 29 7. Maximum Peak Output Power ---------------------------------------------------------- 35 8. Power Spectral Density ------------------------------------------------------------------- 38 9. Antenna Requirement -------------------------------------------------------------------- 41 10.RF Exposure Evaluation ----------------------------------------------------------------- 42 Appendix A-1. Photo of Spurious Emission Test Appendix A -2. Photos of Conducted Power Line Test Appendix B. Photos of the EUT FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 3 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. -Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea . www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS CO.,LTD. Address : 416, Maetan-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : O-Won, Seo Phone No. : 82-31-227-6775 Fax No. : - 1.3. Description of EUT Kind of Product 2CH Audio Transceiver Model Name BTW400 Serial Number N/A Power Supply DC 5 V Frequency Range 5745 ~ 5805 MHz Modulation Technique DSSS Number of Channels 4 Operating Conditions -20 ~ 55 Antenna Type FIFA Type Antenna Gain -1.22 dBi 1.4. Details of modification -N/A FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 4 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator Agilent E4438C May 2008 Spectrum Analyzer R&S FPS40 Dec. 2008 Pre amplifier Agilent 8449B May 2008 High Pass Filter Wainwright Instrument GmbH WHK 6.0 /18.G-10SS Dec. 2008 Attenuator Agilent 8494B May 2008 Two-Line V-Network Rohde & Schwarz ESHS10 Aug. 2008 Test Receiver Rohde & Schwarz ESVS10 May 2008 Test Receiver Rohde & Schwarz ESHS10 Aug. 2008 Ultra-Broadband Antenna Rohde & Schwarz HL562 Sep. 2008 Horn Antenna Electro-Metrics RGA-60 Jul. 2009 Horn Antenna Schwarzbeck Mess-Elektronik BBHA9170 May. 2008 Anechoic Chamber SY Corporation L WH 6.53.53.5 Aug. 2008 FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 5 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15, RSS-210,RSS-Gen Section in FCC 15 Section in RSS-210 RSS-Gen Test Item Result 15.207 RSS-Gen 7.2.2 Transmitter AC Power Line Conducted Emission Complied 15.107 RSS-Gen 7.2.2 Receiver AC Power Line Conducted Emission Complied 15.205(a) 15.209 15.247(d) A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.109(a) RSS-Gen 6 Receiver Radiated Spurious Emission Complied 15.247(a)(2) A8.2(a) 6 dB Bandwidth and 99 % BW Complied 15.247(b)(1) A8.4(3) Maximum Peak Output Power Complied 15.247(f) A8.3(1) Power Spectral Density Complied 15.247(i) 1.1307(b)(1) RSS-Gen 5.5/ RSS-102 Maximum Permissible Exposure (Exposure of Humans t…

Text truncated - open the document above for the full version.

FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 44 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix A-1. Photo of Field Strength Test FCC ID : A3LBTW400 Report File No. : F690501/RF-RTL001453 Page : 45 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix A -2. Photos of Conducted Power Line Test
