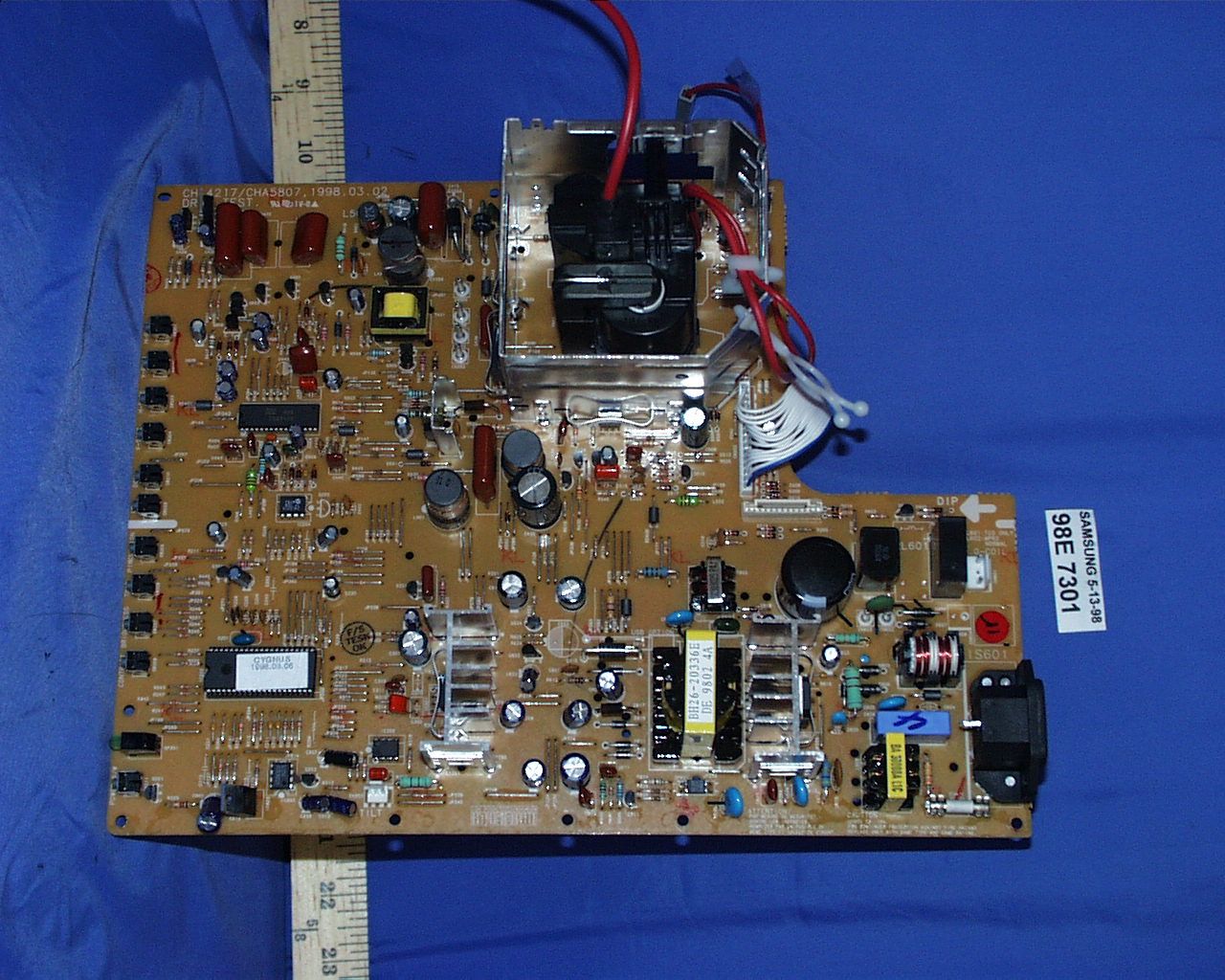

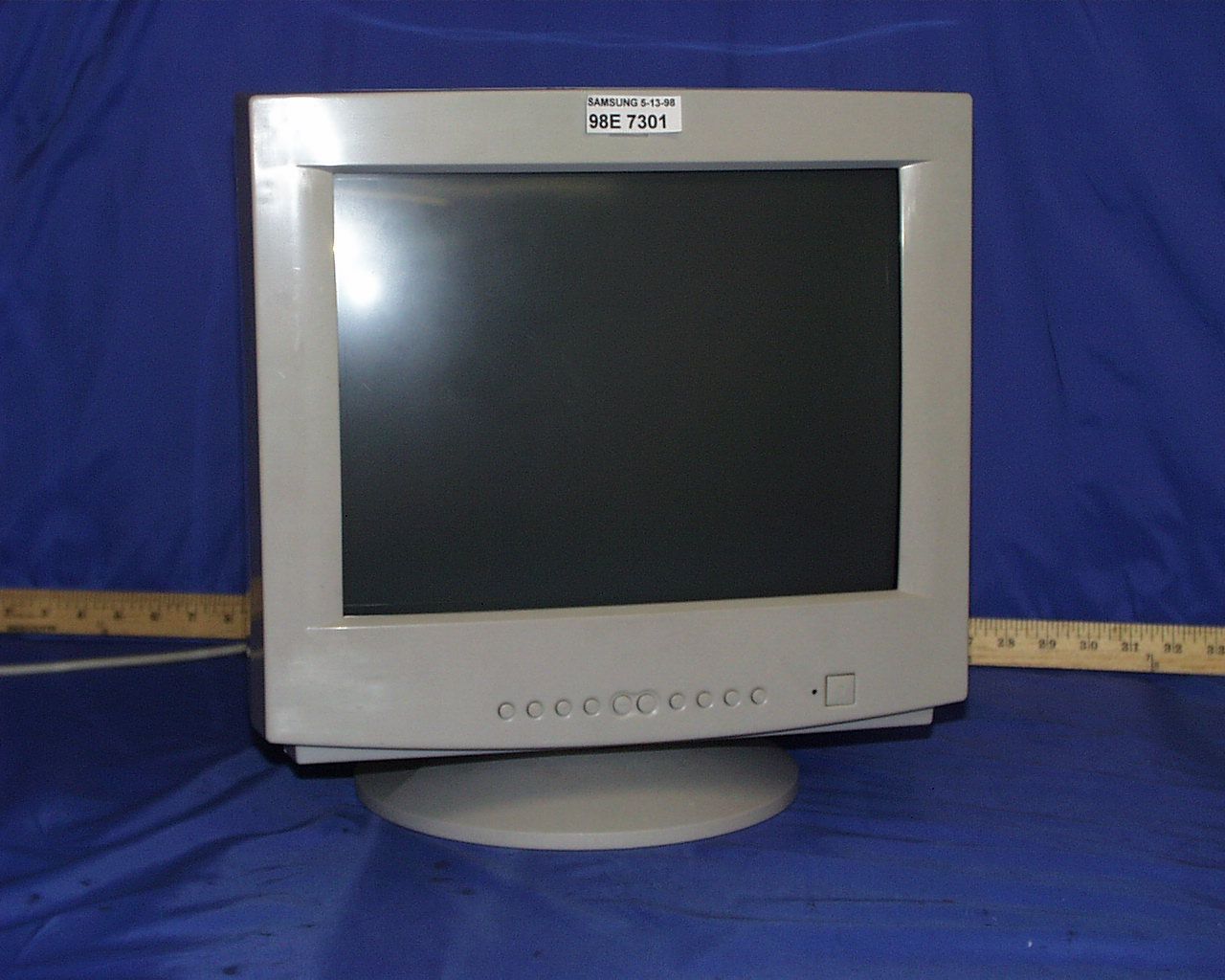

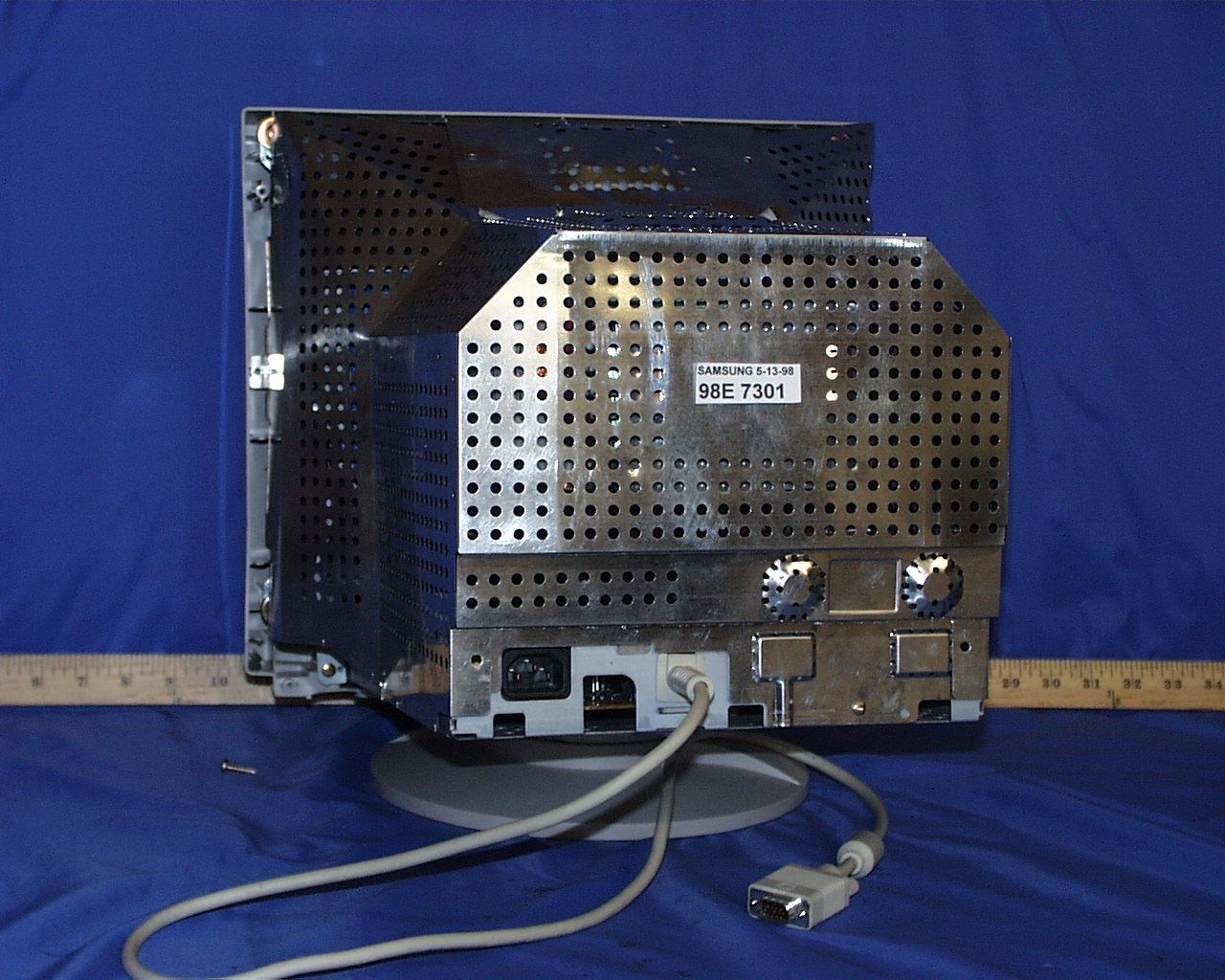

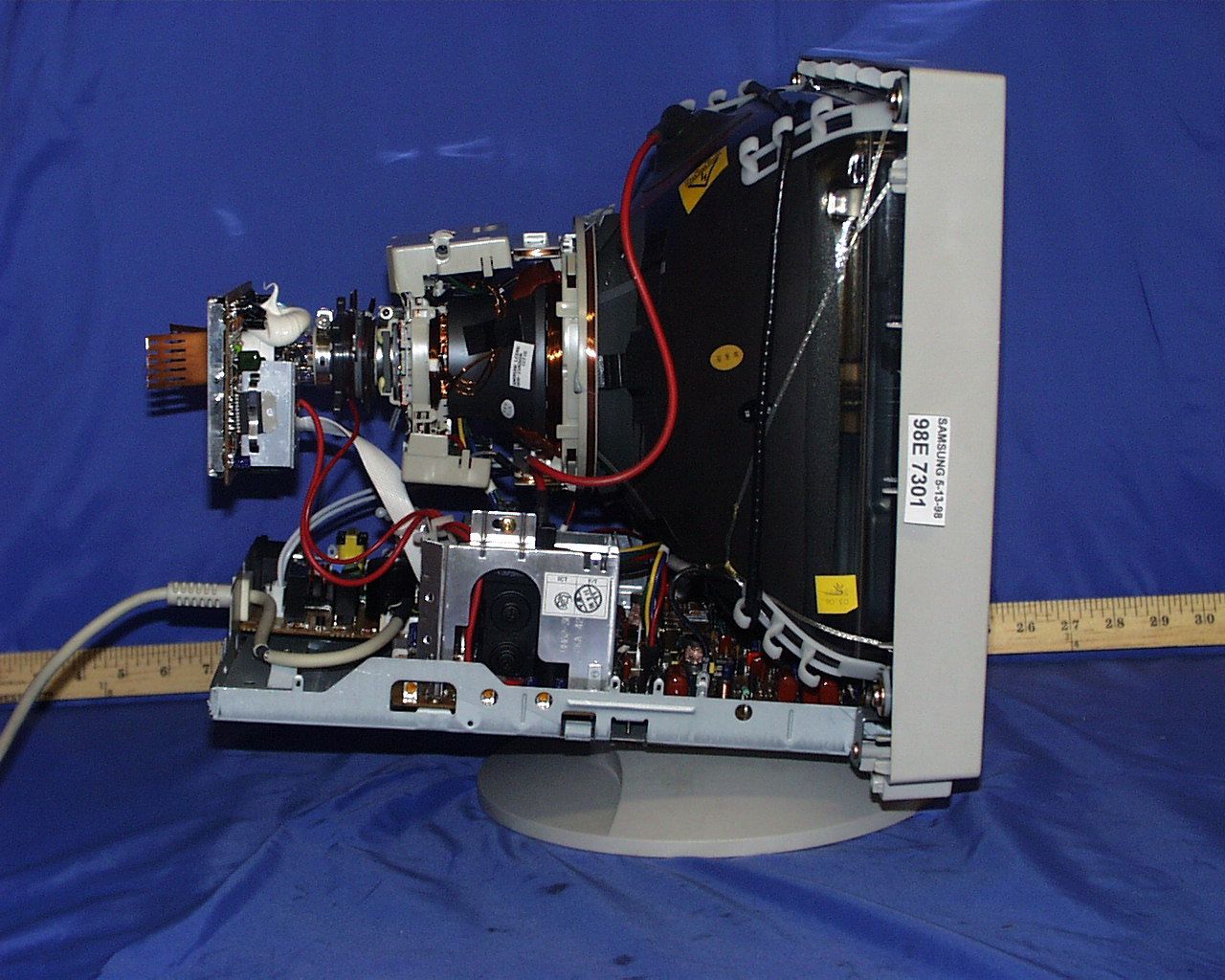

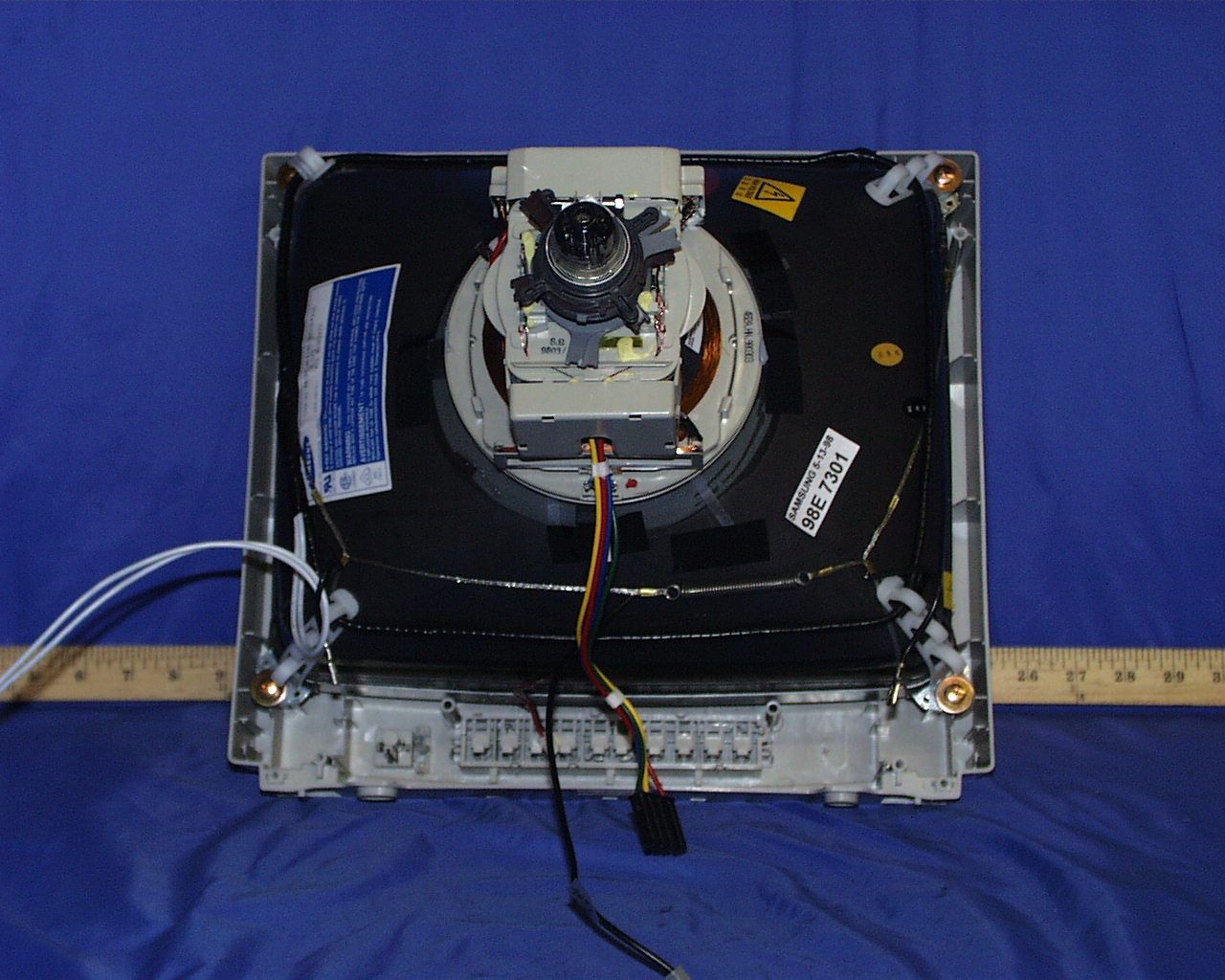

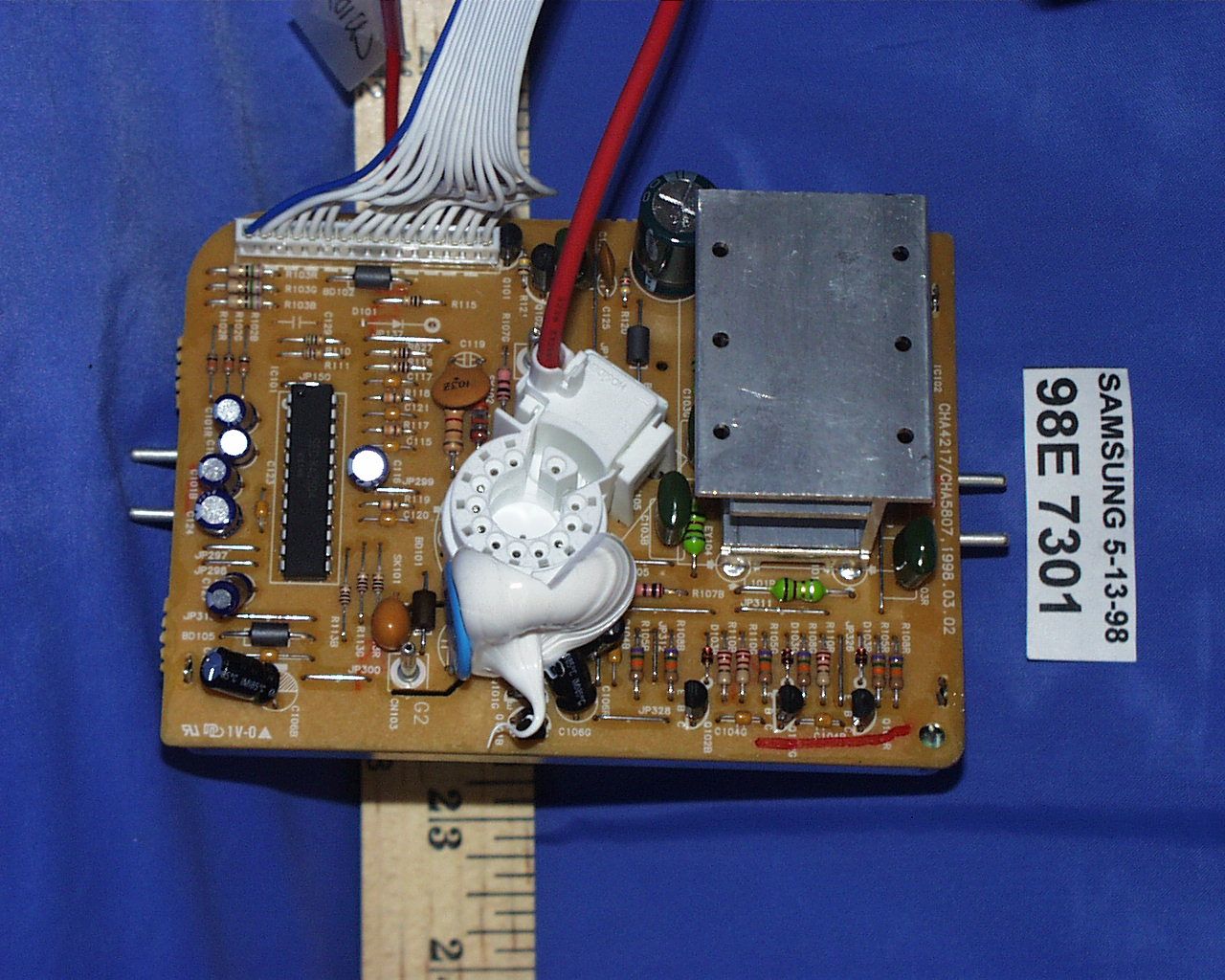

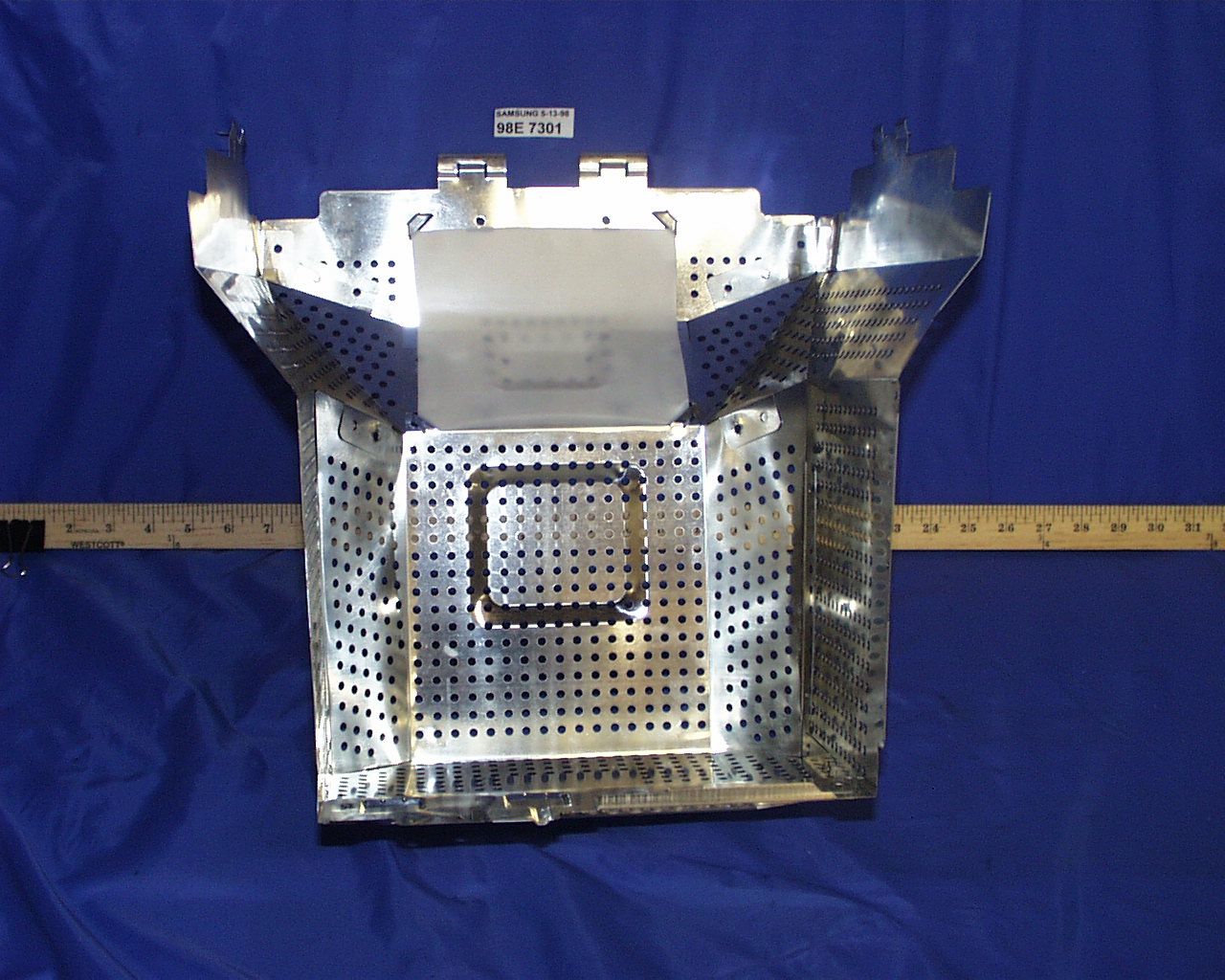

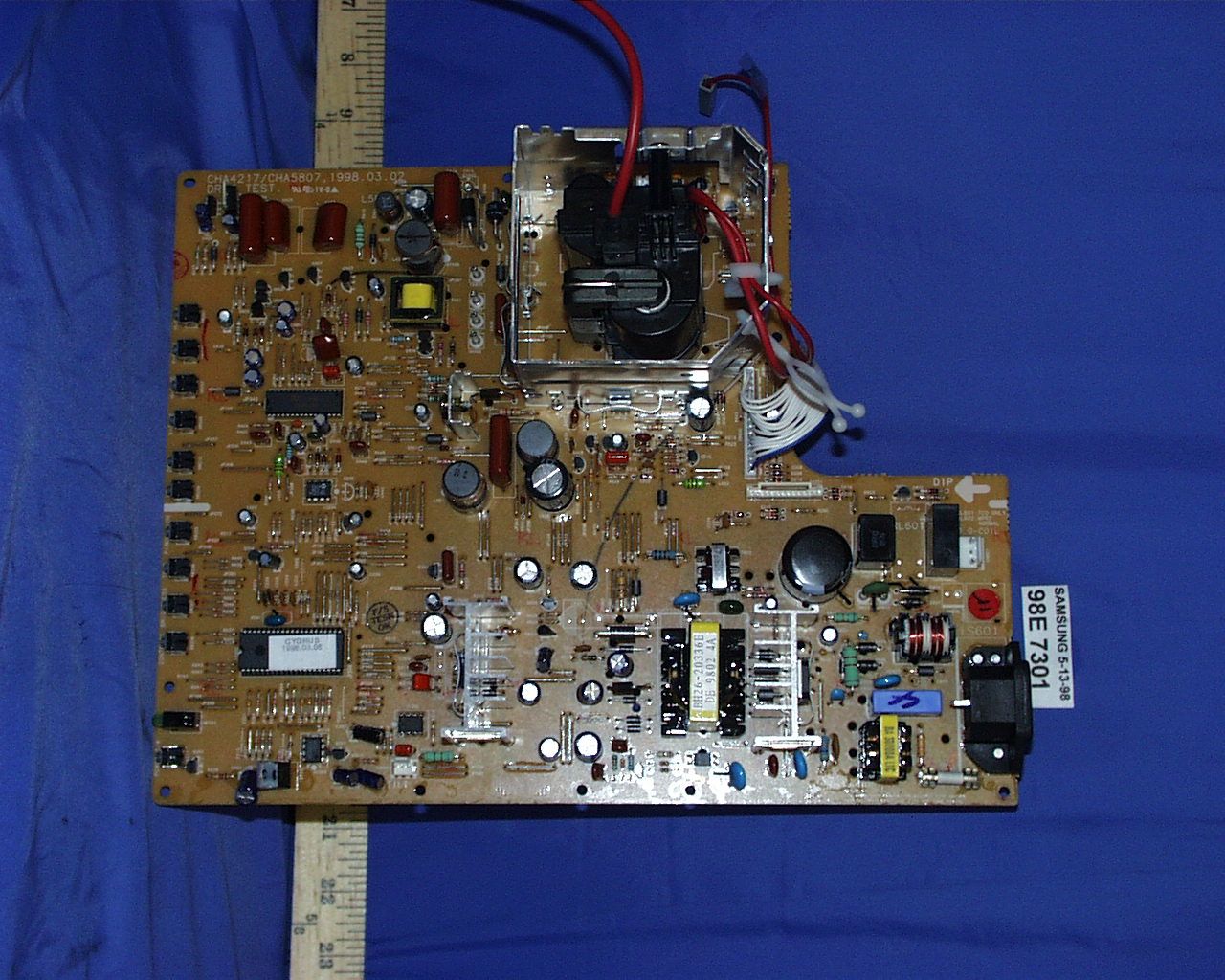

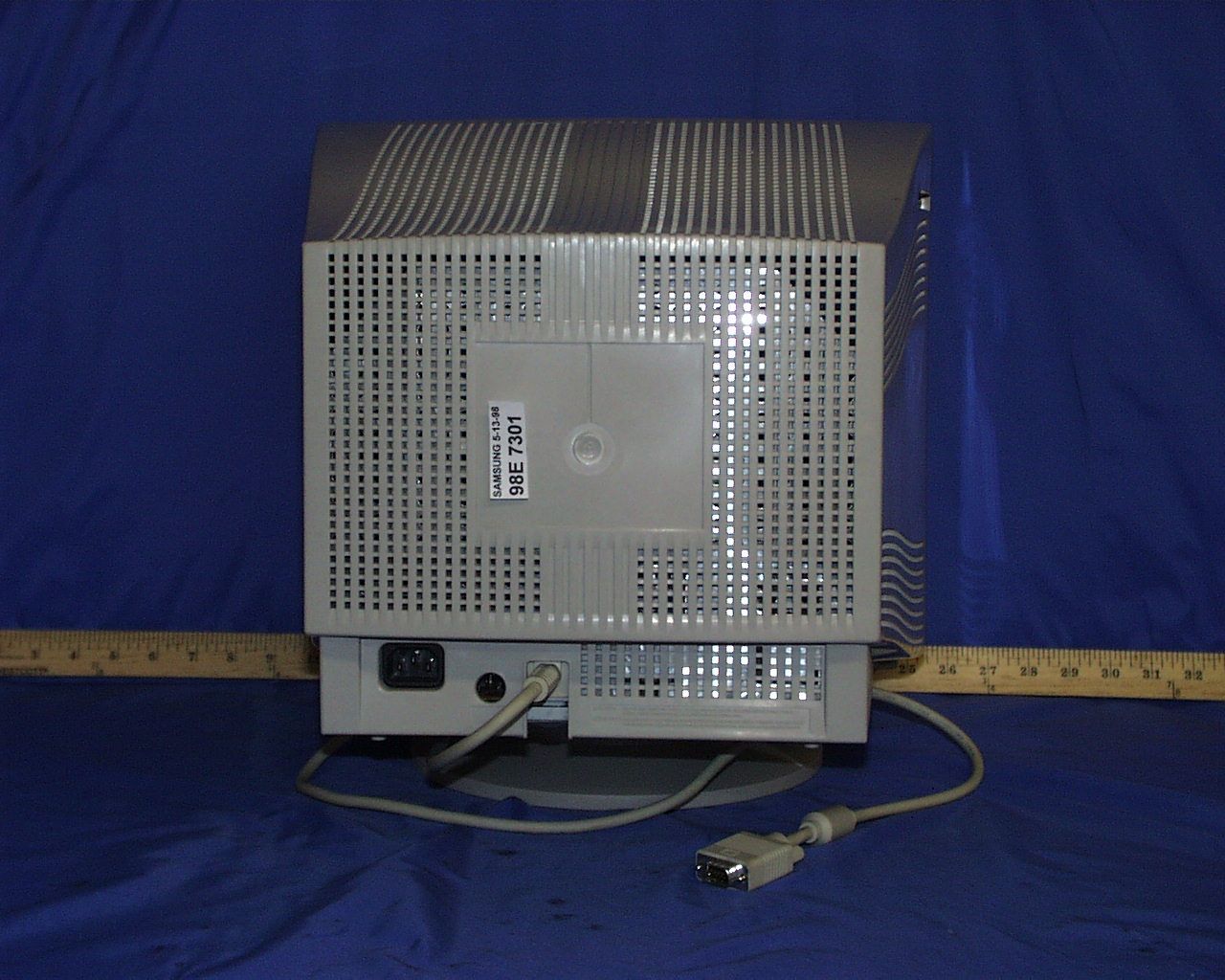

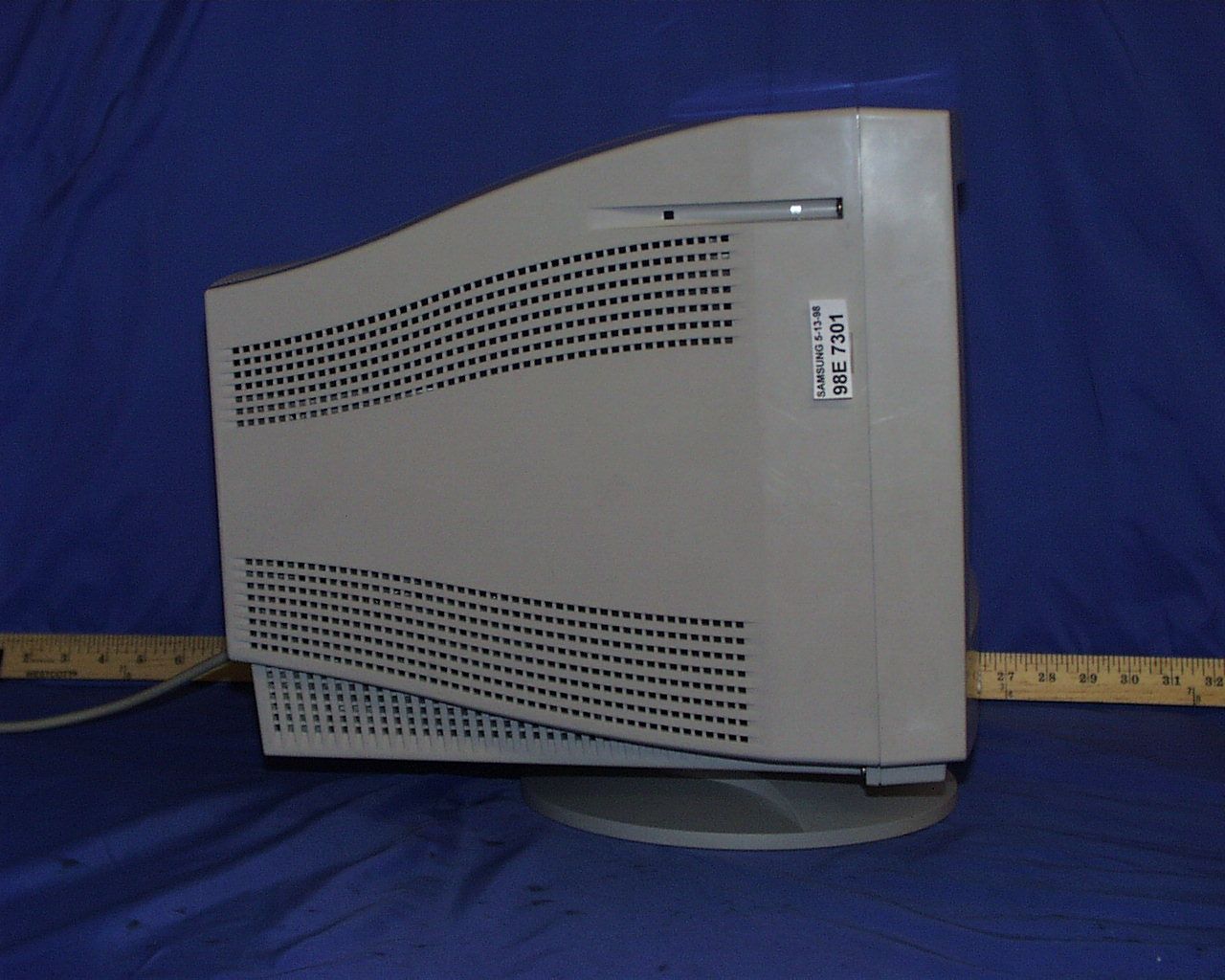

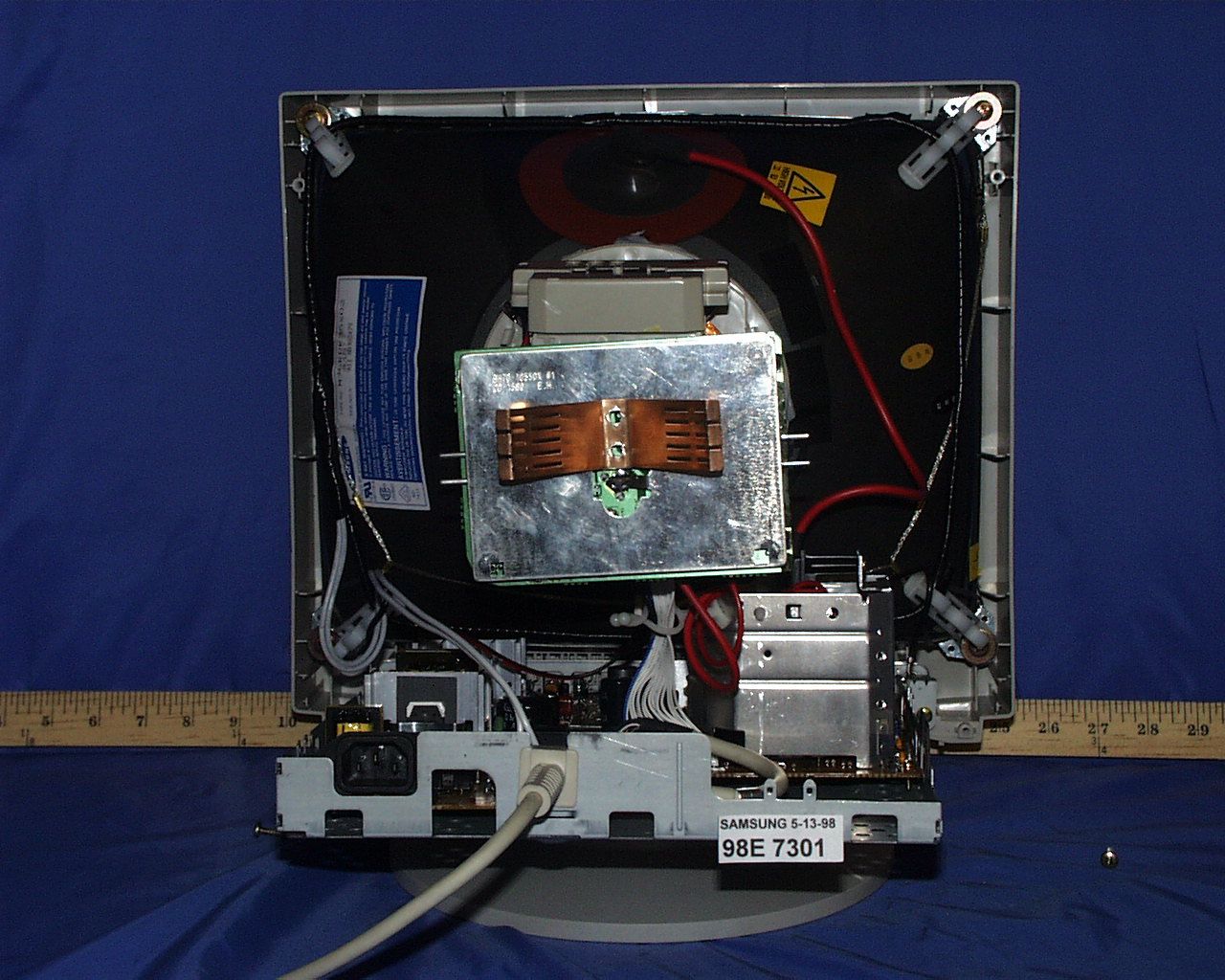

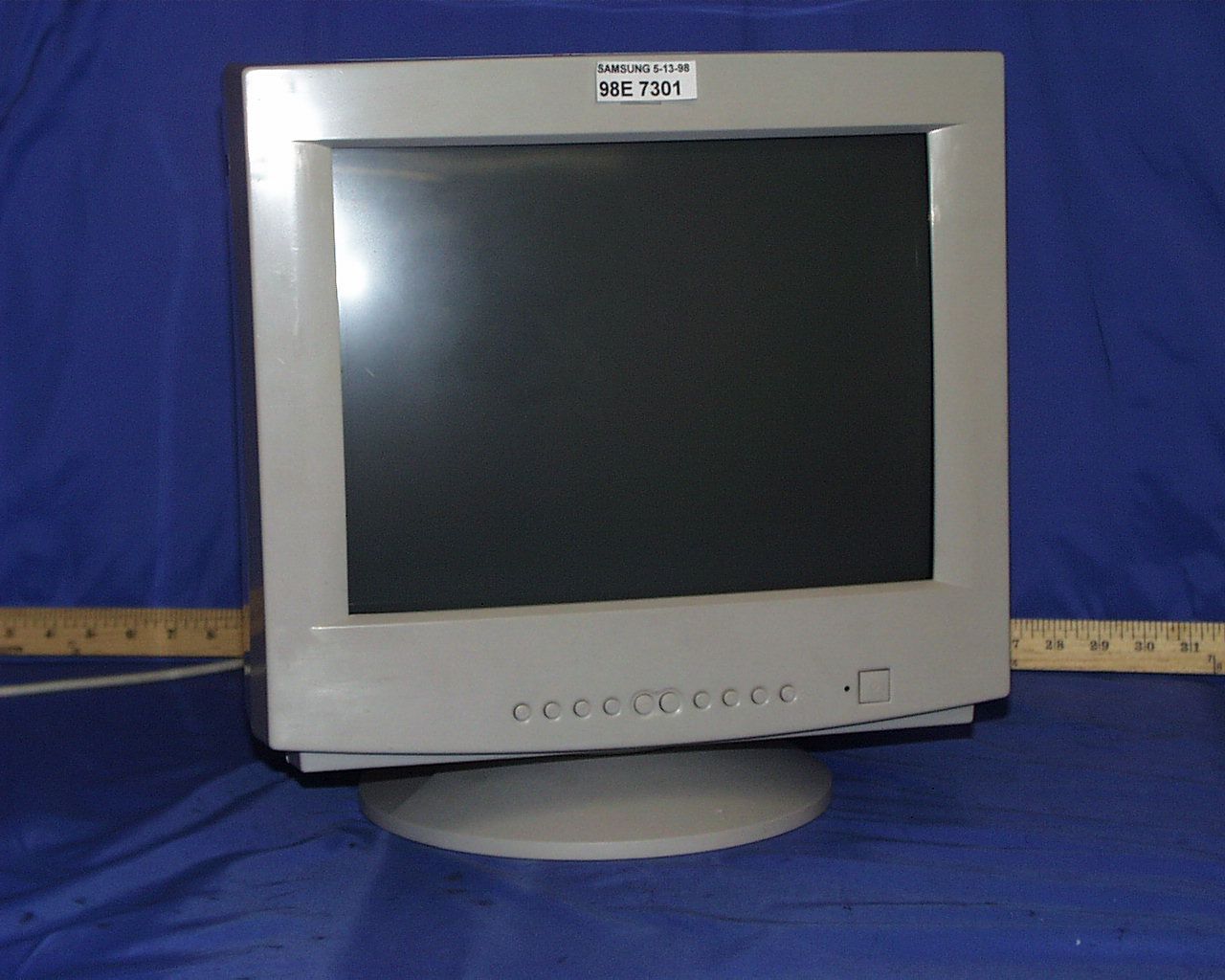

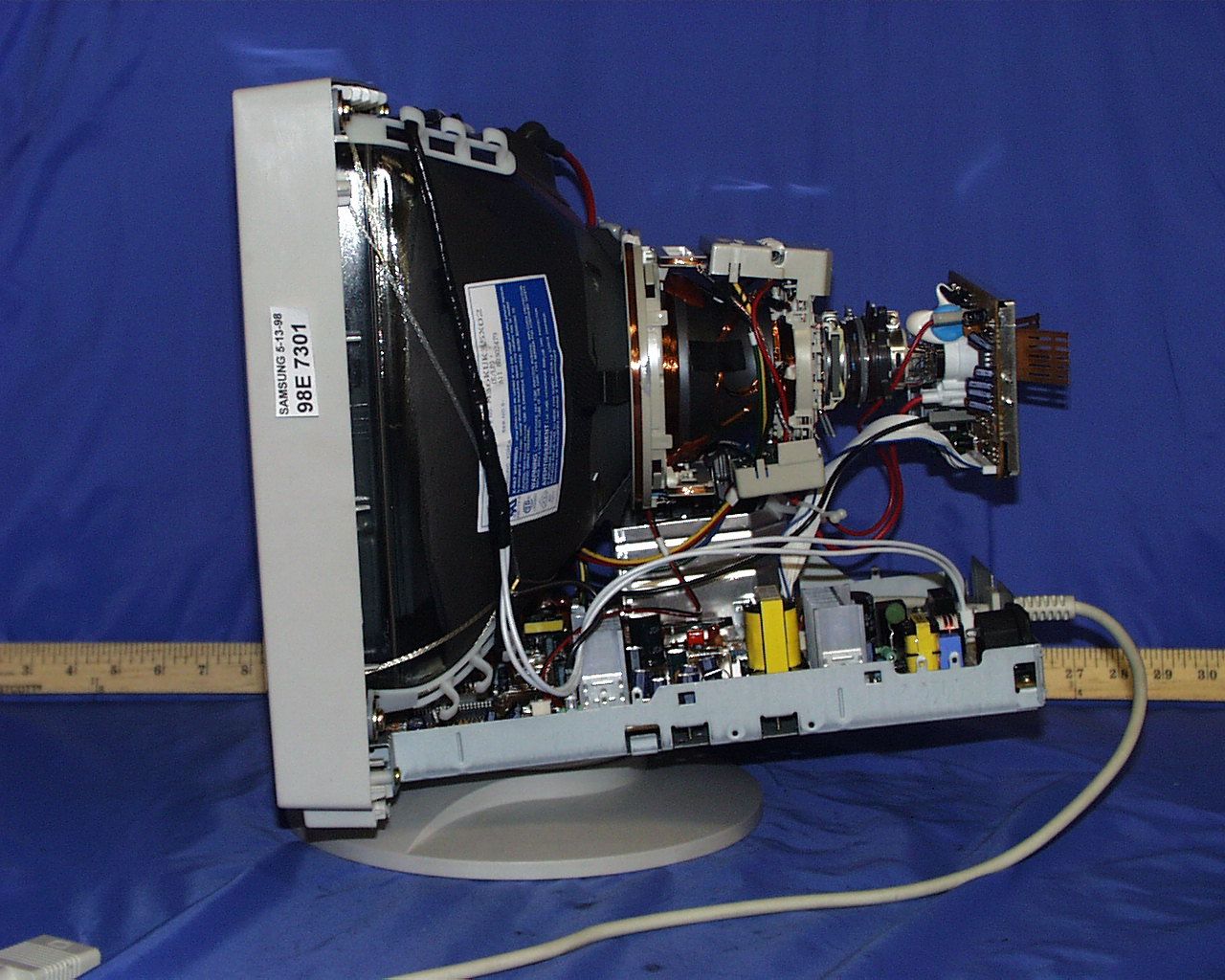

Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia MD 21046 Attention:Application Examiner Subject :Application for Certification Reference:FCC ID:A3LCHA580 Dear Application Examiner : On behalf of Samsung Electronics Co.,Ltd., I, the undersigned, hereby submit the application for certification per FCC Part 15 rules. EUT is an unintentional radiator to be classified as computing device peripherals. The following attachments are included in the electronic filling : Attachment A:This letter Attachment B: Agent authorization letter Attachment C: FCC ID label format and location Attachment D: Block Diagram Attachment E: Technical report w/ setup photo Attachment F: Internal / External photo Attachment G: User Manual If you have any question, please feel free to contact me. Best Regards Mike C.I. Kuo / Vice President Compliance Engineering Services, Inc. 1366 Bordeaux Drive Sunnyvale CA 94089 Tel(408)752-8166 x:105 E-Mail :[email protected]

PROPOSED FCC ID LABEL FORMAT APPLICANT :SAMSUNG ELECTRONICS CO.,LTD. FCC ID:A3LCHA580 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:A3LCHA580 PROPOSED FCC ID LABEL LOCATION APPLICANT:SAMSUNG ELECTRONICS CO.,LTD. FCC ID:A3LCHA580 FCC ID LABEL AREA

FCC CFR47 PART 15 DIGITAL DEVICE TEST REPORT FOR 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) MODEL: CHA5807L, CHA58*7L, CHA52*7L FCC ID: A3LCHA580 REPORT NUMBER: 98E7301 ISSUE DATE: APRIL 23, 1998 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS PAGE 1.VERIFICATIONOF COMPLIANCE..............................................1 2.PRODUCT DESCRIPTION.....................................................2 3.TESTED SYSTEM DETAILS...................................................2 4.TEST FACILITY...........................................................3 5.ACCREDITATION AND LISTING...............................................3 6.MEASUREMENT INSTRUMENTATION.............................................3 7.MEASURING INSTRUMENT CALIBRATION........................................3 REPORT NO:98E7301 DATE:APRIL 23, 1998FCC ID:A3LCHA580 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) 1 OF 16 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 8.UNITS OF MEASUREMENT....................................................4 9.ANTENNAS................................................................4 10.CLASSIFICATION OF DIGITAL DEVICE........................................5 11.RADIATED EMISSION LIMITS................................................5 12.CONDUCTED EMISSION LIMITS...............................................6 13.CONDUCTED EMISSION TEST PROCEDURE.......................................8 14.RADIATED EMISSION TEST PROCEDURE........................................8 15.AMBIENT CONDITIONS......................................................9 16.SYSTEM TEST CONFIGURATION...............................................9 17.EQUIPMENT MODIFICATIONS................................................10 18.EUT SETUP PHOTOS.......................................................11 19.TEST EQUIPMENT LIST....................................................12 20.TEST RESULT SUMMARY....................................................13 APPENDICES ..................................................................15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .EUT PHOTOGRAPHS REPORT NO:98E7301 DATE:APRIL 23, 1998FCC ID:A3LCHA580 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) 2 OF 16 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA CONTACT PERSON:BEN KIM / MANAGER TELEPHONE NO:408-544-5124 MODEL NO/NAME:CHA5807L, CHA58*7L, CHA52*7L SERIAL NO:N/ADATE TESTED:APRIL 23, 1998 TYPE OF EQUIPMENT:INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE:( ) 3 METER (X) 10 METER TECHNICAL LIMIT: CLASS B FCC RULES:PART 15 MEASUREMENT PROCEDUREANSI C63.4:92 / EN 55022 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 20 for comments) NO RADIATED EMISSION TEST RESULT -3.72 dB @ 196.86 MHz/HORIZONTAL CONDUCTED EMISSION TEST RESULT -6.7 dB @ 0.179 MHz/L1 The above equipment was tested by Compliance Consulting Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE CONSULTING SERVICES REPORT NO:98E7301 DATE:APRIL 23, 1998FCC ID:A3LCHA580 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) 3 OF 16 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.PRODUCT DESCRIPTION CHASSIS TYPEPLASTIC CPU SPEEDS TESTED133 Mhz PENTIUM LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 24 MHz CHIPSET BRAND AND PART NO.SEC KS88P6116N POWER SUPPLY/NAME/MODEL/S.N.BUILT-IN NUMBER OF PCB LAYERS1 BOARD REVISION NO01 POWER REQUIREMENTS100-230 V AC, 50/60 Hz NO. OF EXTERNAL I/O CONNECTORS1 MAX. RESOLUTION1024X768 NI MAX. HOR/VERT FREQUENCY60 KHz/75 Hz Model Differences: Model NameDifferencesTested (Checked) CHA5807L ORIGINAL MODEL CHA58*7LThe star indicates that there can and will be model differences. These differences are cosmetic and for marketing purposes only. CHA52*7LThe star indicates that there can and will be model differences. These differences are cosmetic and for marketing purposes only. 3.TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device Type ManufacturerModel NumberSerial No.FCC ID COMPUTERDIGITAL963WWTA551T2397A09-96XWW KEYBOARDDIGITALRT6656TW62051025AQ6-MTN4XZ15 MOUSEDIGITALM-S35LT54402451DZL210472 MODEMDATATRONICS1200CK07-349411E2050V1200CK PRINTERHP2225C2930S52630DSI6XU2225 REPORT NO:98E7301 DATE:APRIL 23, 1998FCC ID:A3LCHA580 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (60 KHz) 4 OF 16 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 4.TEST FACILITY The open area test sites …
