A3LCHB57015 INCHES COLOR MONITOR

Color Monitor Owner’s Instructions 510/710-E 7/21/98 3:22 PM Page i ii 3 A 1 Before connecting the AC power cord to an outlet, make sure the voltage designation on your monitor corre- sponds to the local electrical supply. 2 Never insert anything metallic into the monitor openings. Doing so may create the danger of electric shock. 3 To avoid electric shock, never touch the inside of the monitor. Only a qualified technician should open the monitor’s case. 4 Never use your monitor if the power cord has been damaged. Do not allow anything to rest on the power cord, and keep the cord away from areas where people can trip over it. 5 Be sure to hold the plug, not the cord, when disconnecting the monitor from an electric socket. 6 Openings in the monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered. Also, avoid using the monitor on a bed, sofa, rug, or other soft surface. Doing so may block the ventilation openings in the bottom of the cabinet. If you put the monitor in a bookcase or some other enclosed space, be sure to provide adequate ventilation. 7 Put your monitor in a location with low humidity and a minimum of dust. 8 Do not expose the monitor to rain or use it near water (in kitchens, near swimming pools, etc.). If the monitor accidentally gets wet, unplug it and contact an authorized dealer immedi- ately. You can clean the monitor with a damp cloth when necessary, but be sure to unplug the monitor first. 9 Place the monitor on a solid surface and treat it carefully. The screen is made of glass and can be damaged if dropped, hit or scratched. 10 Locate your monitor near an easily accessible AC outlet. 11 If your monitor does not operate normally – in particular, if there are any unusual sounds or smells coming from it – unplug it immediately and contact an authorized dealer or service center. 12 High temperatures can cause problems. Don’t use your monitor in direct sunlight, and keep it away from heaters, stoves, fireplaces, and other sources of heat. 13 Unplug the monitor when it is going to be left unused for an extended period of time. 14 Unplug your monitor from the AC outlet before any service. C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 510/710-E 7/21/98 3:22 PM Page ii 1 Safety Instructions .................................................................................................................ii Your New Monitor ..................................................................................................................2 Connecting Your Monitor ................................................................................................................2 Front Panel ........................................................................................................................................3 Direct Access Buttons ....................................................................................................................3 Operation .................................................................................................................................4 On-screen Menu System ................................................................................................................4 Monitor Function Control ................................................................................................................5 Brightness ..........................................................................................................................5 Contrast ..............................................................................................................................5 Horizontal Position ...........................................................................................................5 Vertical Position ................................................................................................................5 Horizontal Size ...................................................................................................................5 Vertical Size ........................................................................................................................5 Pincushion ..........................................................................................................................5 Display Timing ....................................................................................................................5 Advanced Features ...........................................................................................................6 Color Temperature......................................................................................................6 Language .....................................................................................................................6 Half tone .......................................................................................................................6 Moire ...................................................................................................................................6 Degauss ..............................................................................................................................6 Recall ...................................................................................................................................6 Geometry.............................................................................................................................6 Pinbalance ...................................................................................................................6 Parallelogram ..............................................................................................................6 Rotation .................................................…

Text truncated - open the document above for the full version.

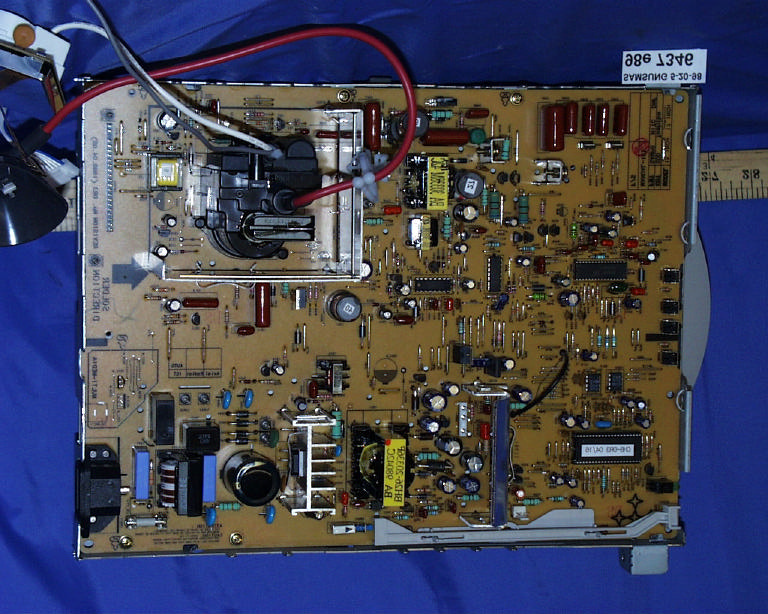

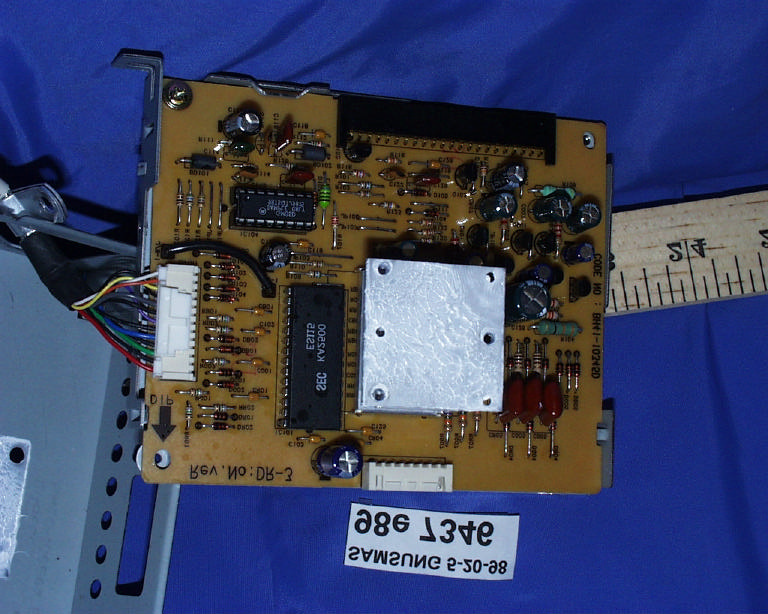

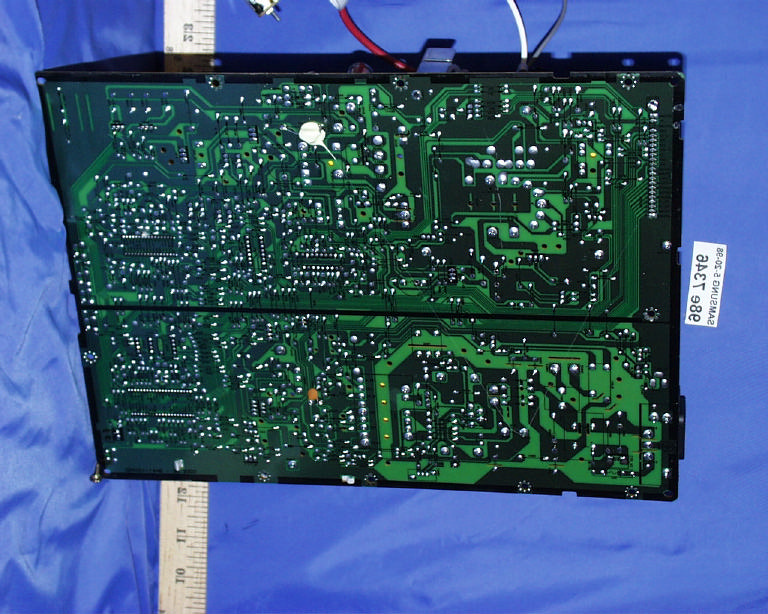

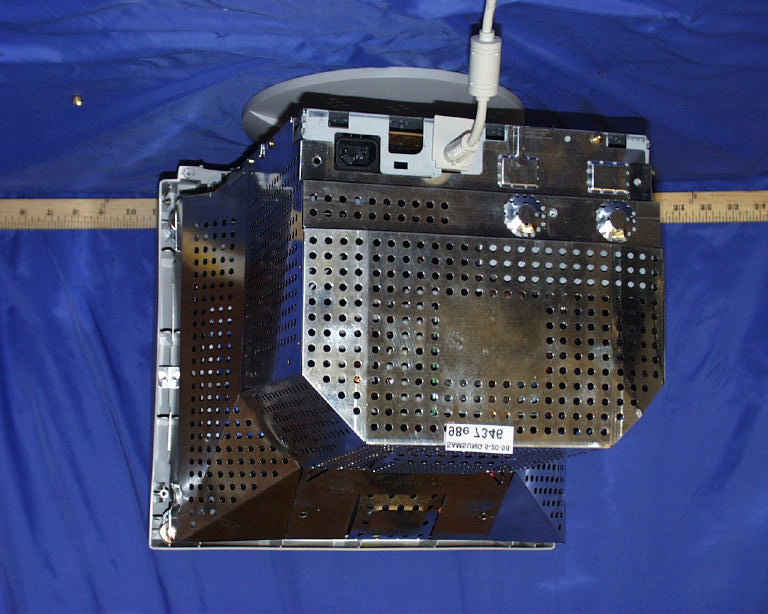

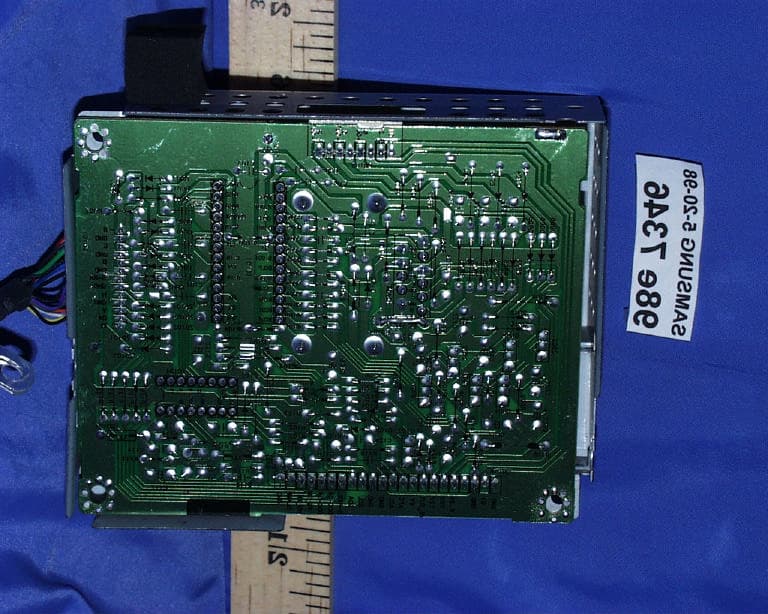

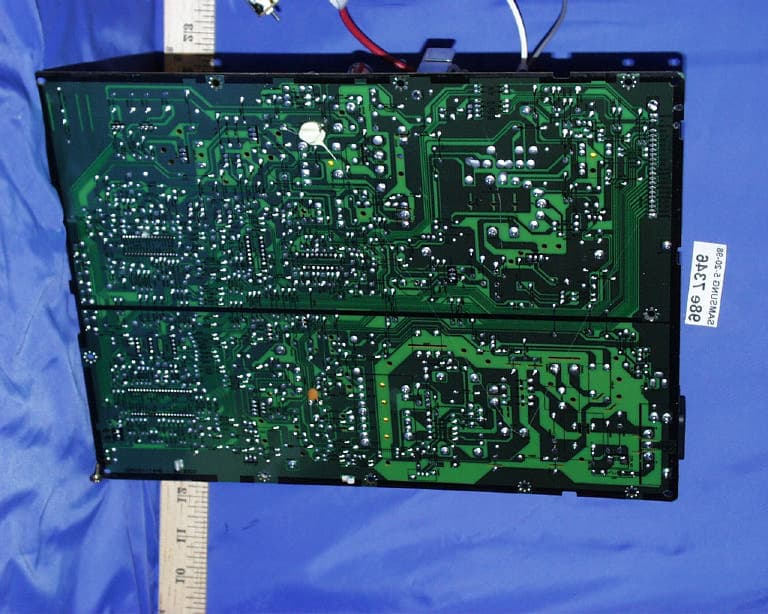

Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia MD 21046 Attention:Application Examiner Subject :Application for Certification Reference:FCC ID:A3LCHB570 Dear Application Examiner : On behalf of Samsung Electronics Co.,Ltd., I, the undersigned, hereby submit the application for certification per FCC Part 15 rules. EUT is an unintentional radiator to be classified as computing device peripherals. The following attachments are included in the electronic filling : Attachment A:This letter Attachment B: Agent authorization letter Attachment C: Block Diagram Attachment D: Technical report w/ setup photo Attachment E: Internal / External photo Attachment F: User Manual If you have any question, please feel free to contact me. Best Regards Mike C.I. Kuo / Vice President Compliance Engineering Services, Inc. 1366 Bordeaux Drive Sunnyvale CA 94089 Tel(408)752-8166 x:105 E-Mail :[email protected]

PROPOSED FCC ID LABEL LOCATION APPLICANT:SAMSUNG ELECTRONICS CO.,LTD. FCC ID:A3LCHB570 FCC ID LABEL AREA

PROPOSED FCC ID LABEL LOCATION APPLICANT:SAMSUNG ELECTRONICS CO.,LTD. FCC ID:A3LCHB570 FCC ID LABEL AREA

FCC CFR47 PART 15 DIGITAL DEVICE TEST REPORT FOR 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (69 KHz) MODEL: CHB 5707L, CHB 57*7L, CHB 52*7L FCC ID: A3LCHB570 REPORT NUMBER: 98E7346 ISSUE DATE: MAY 14, 1998 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:98E7346 DATE:MAY 14, 1998FCC ID:A3LCHB570 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (69 KHz) COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002C 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE..............................................1 2.PRODUCT DESCRIPTION.....................................................2 3.TESTED SYSTEM DETAILS...................................................2 4.TEST FACILITY...........................................................3 5.ACCREDITATION AND LISTING...............................................3 6.MEASUREMENT INSTRUMENTATION.............................................3 7.MEASURING INSTRUMENT CALIBRATION........................................3 8.UNITS OF MEASUREMENT....................................................4 9.ANTENNAS................................................................4 10.CLASSIFICATION OF DIGITAL DEVICE........................................5 11.RADIATED EMISSION LIMITS................................................5 12.CONDUCTED EMISSION LIMITS...............................................6 13.CONDUCTED EMISSION TEST PROCEDURE.......................................8 14.RADIATED EMISSION TEST PROCEDURE........................................8 15.AMBIENT CONDITIONS......................................................9 16.SYSTEM TEST CONFIGURATION...............................................9 17.EQUIPMENT MODIFICATIONS................................................10 18.EUT SETUP PHOTOS.......................................................11 19.TEST EQUIPMENT LIST....................................................12 20.TEST RESULT SUMMARY....................................................13 APPENDICES ..................................................................15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM REPORT NO:98E7346 DATE:MAY 14, 1998FCC ID:A3LCHB570 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (69 KHz) 1 OF 22 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA CONTACT PERSON:BEN KIM / MANAGER TELEPHONE NO:408-544-5124 MODEL NO/NAME:CHB 5707L, CHB 57*7L, CHB 52*7L SERIAL NO:N/ADATE TESTED:MAY 14, 1998 TYPE OF EQUIPMENT:INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE:( ) 3 METER (X) 10 METER TECHNICAL LIMIT: CLASS B FCC RULES:PART 15 MEASUREMENT PROCEDUREANSI C63.4:92 / EN 55022 EQUIPMENT AUTHORIZATION PROCEDURE CERIFICATION MODIFICATIONS MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 20 for comments) NO RADIATED EMISSION TEST RESULT -2.71 dB@ 216.37 MHz/VERTICAL CONDUCTED EMISSION TEST RESULT -12.9 dB @ 1.17 MHz/L1 The above equipment was tested by Compliance Consulting Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved By MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE CONSULTING SERVICES REPORT NO:98E7346 DATE:MAY 14, 1998FCC ID:A3LCHB570 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (69 KHz) 2 OF 22 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.PRODUCT DESCRIPTION CHASSIS TYPEPLASTIC CPU SPEEDS TESTED133 MHz PENTIUM LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 6.0 MHz POWER SUPPLY/NAME/MODEL/S.N.BUILT-IN NUMBER OF PCB LAYERS1 BOARD REVISION NO01 POWER REQUIREMENTS100-230 V AC, 50/60 Hz NO. OF EXTERNAL I/O CONNECTORS1 MAX. RESOLUTION1024X768 NI MAX. HOR/VERT FREQUENCY69 KHz/85 Hz Model Differences: Model NameDifferencesTested (Checked) CHB 5707L ORIGINAL MODEL CHB 57*7LThe star indicates that there can and will be model differences. These differences are cosmetic and for marketing purposes only. CHB 52*7LThe star indicates that there can and will be model differences. These differences are cosmetic and for marketing purposes only. 3.TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device Type ManufacturerModel NumberSerial No.FCC ID COMPUTERDIGITAL963WWTA551T2397A09-96XWW KEYBOARDDIGITALRT6656TW62051025AQ6-MTN4XZ15 MOUSEDIGITALM-S35LT54402451DZL210472 MODEMSMARTEAM103/212AA038329EF56A5103/212A PRINTERHP2225C2930S52630DSI6XU2225 REPORT NO:98E7346 DATE:MAY 14, 1998FCC ID:A3LCHB570 EUT: 15" COLOR MONITOR W/ MAX. RESOLUTION OF 1024X768 NON-INTERLACED (69 KHz) 3 OF 22 COMPLIANCE CONSULTING SERVICESDOCUMENT NO:CCSUP4002D 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 4.TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data a…

Text truncated - open the document above for the full version.
