A3LCK40PS40-inch LCD Monitor

SyncMaster 403T Main Page Safety Instructions Notational Power Installation Cleaning Other Introduction Unpacking Front Rear Remote Control Mechanical Lay-out Setup Installing Stand Kit Connecting Your Monitor Multiple Display Control (MDC) Adjusting Your LCD Monitor User Controls User control buttons On-Screen Display OSD Functions Screen Adjustment Animation Clips Troubleshooting Check before Calling for Service Problems and Solutions Q & A Specifications General Specifications PowerSaver Preset Timing Modes Information Service Center Terms Regulatory Natural Color Authority Notational Power Installation Cleaning Other Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. ProhibitedImportant to read and understand at all times Do not disassembleDisconnect the plug from the outlet Do not touchGrounding to prevent an electric shock Notational Power Installation Cleaning Other When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode. Do not use a damaged or loose plug. zThis may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. zThis may cause an electric shock or fire. Use only a properly grounded plug and receptacle. z An improper ground may cause electric shock or equipment damage. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage. z This may cause an electric shock or fire. Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time. z Failure to do so may cause an electric shock or fire. Do not connect too many extension cords or plugs to an outlet. zThis may cause a fire. Notational Power Installation Cleaning Other Do not cover the vents on the monitor cabinet. zBad ventilation may cause a breakdown or fire. Put your monitor in a location with low humidity and a minimum of dust. zAn electric shock or fire could result inside the monitor. Do not drop the monitor when moving it. zThis may cause damage to the product or human body. Place the monitor on a flat and stable surface. z The monitor can cause injury by falling. Set down the monitor carefully. zIt could be damaged or broken. Do not place the monitor face down. zThe TFT-LCD surface may be damaged. Notational Power Installation Cleaning Other When cleaning the monitor case or the surface of the TFT-LCD, wipe with a slightly moistened, soft fabric. Do not spray detergent directly on the monitor. Use the recommended detergent with a smooth cloth. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth. zA dirty connector can cause an electric shock or fire. Do not set a glass of water, chemicals or any small metal objects on the monitor. zThis may cause damage, electric shock or a fire. zIf a foreign substance gets into the monitor, disconnect the plug and then contact a service center. Notational Power Installation Cleaning Other Do not remove cover(or back). No user serviceable parts inside. zThis may cause an electric shock or a fire. zRefer servicing to qualified service personnel. If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service. zThis may cause an electric shock or fire. Do not place any heavy objects on the monitor. z This may cause an electric shock or a fire. For each hour of looking at the monitor, you should let your eyes rest for 5 minutes. z This will reduce eye fatigue. Do not use or store inflammable substances near the monitor. zThis may cause an explosion or fire. Do not try to move the monitor by pulling on the wire or the signal cable. zThis may cause a breakdown, electric shock or a fire due to damage to the cable. Do not move the monitor right or left by pulling only the wire or the signal cable. zThis may cause a breakdown, electric shock or a fire due to damage to the cable. Never insert anything metallic into the monitor openings. zThis may cause an electric shock, fire or injury. Unpacking Front Rear Remote Control Mechanical Lay-out Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Gernal Power Cord Signal Cable (15 pin D-Sub) Remote Control / Batteries (AAA X 2) MonitorRS232C CABLE User's Guide CDStand Option Wall Mount KITSpeaker SetStand Kit PIVOT Installation CD Contact a local Samsung Electronics service center to buy optional items. Unpacking Front Rear Remote Control Mechanical Lay-out For detailed information concerning the monitor functions, refer to User Controls under Adjusting Your Monitor. The monitor's front configuration may vary slightly depending on the monitor model. 1. Auto button6. Menu button 2. Source button7. Power button 3. Exit button8. Power indicator 4. Navigate button (Control OSD)9. Remote Control Sensor 5. Adjust button (Control OSD) Unpacking Front Rear Remote Control Mechanical Lay-out For detailed information concerning cable connections, refer to Connecting Cables under Setup. The monitor's rear configuration may vary slightly depending on the monitor model. 1. Power On/Off Switch 2.Power port 3.EXTERNAL CONTROL (RS232C Serial PORT) : MDC(Multiple Device Control) Program Port 4.PC Video Connection Terminal : Using D-Sub Cable (15 pin D-Sub) - RGB 1 mode (Analog PC) 5.PC Video Connection Terminal : Using DVI Cable (DVI-D to DVI-D) - RGB 2 mode (Digital PC) 6.PC Video Connection Terminal / Component Connection Terminal : BNC cable (Input) - RGB 3 (Analog PC) Connection : connecting R, G, B, H, V port - Component Connection : connecting Y, Pb, Pr port 7.PC Video Loopout Connection Terminal (RGB 3 (Analog PC)) / Component Loopout Connection Terminal (Component) - BNC cable(Output) 8.CVBS Video Connection Terminal : Video 1 mode (Input) 9.CVBS Video Loopout Connection …

Text truncated - open the document above for the full version.

Installing Stand Kit Connecting Your Monitor Multiple Display Control (MDC) 7. Time Control 1. Click Time of the main icons and the Time Control screen appears. Info Grid shows some basic information necessary to Time Control. 1) Current Time - Set the current time for the selected display (PC Time) - To change the current time, first change the PC Time. Current time is equivalent to PC time, If the Current time is not correct set the PC time The shown current time will not be applien before pressing Apply button. 2) On Time Setup - Set the hour, minute, AM/PM of On Time, Status, Source, volume of the selected display. 3) Off Time Setup - Set the hour, minute, and AM/PM, Status for Off Timer of the selected display. 4) Shows the On Timer settings. 5) Shows the Off Timer settings. Time Control is available only for the displays for which the power status is ON. 8. PIP Control - PIP Size 1. Click PIP of the main icons and the PIP control screen appears. Click Select All or use Check Box to select a display to control. Installing Stand Kit Connecting Your Monitor Multiple Display Control (MDC) Info Grid shows some basic information necessary to PIP Size Control. 1) Power - Shows the power status of the current display. 2) PIP Size - Shows the current PIP Size of the display in use. 3) PIP Source - Shows the current PIP Source of the display in use. 4) When you click PIP, the PIP Size tabs first appear. - The PIP Control button controls PIP Size available for RGB 1, 2, 3, Video 1, 2 5) Click the PIP Source tab to control PIP Source for respective Input source. 6) Click to change PIP Size of the selected display. • OFF : Turns off the PIP of the selected display. • PIP 1 : Turns on the PIP of the selected display and changes the size to PIP 1. • PIP 2 : Turns on the PIP of the selected display and changes the size to PIP 2. • Double 1 : Turns on the PIP of the selected display and changes the size to Double 1. • Double 2 : Turns on the PIP of the selected display and changes the size to Double 2. PIP Size Control is available only for the displays for which power status is ON. 8. PIP Control - PIP Source 1. Click PIP of the main icons and the PIP control screen appears. Info Grid shows some basic information necessary to PIP Source Control. 1) Click the PIP Source tab to adjust PIP Source. Click Select All or use Check Box to select a display to control. • RGB 1 : Changes the source of the PIP of the selected display to RGB 1. • RGB 2 : Changes the source of the PIP of the selected display to RGB 2. • RGB 3 : Changes the source of the PIP of the selected display to RGB 3. • Video 1 : Changes the source of the PIP of the selected display to Video 1. • Video 2 : Changes the source of the PIP of the selected display to Video 2. PIP Source Control is available only for the displays for which power status is ON. Installing Stand Kit Connecting Your Monitor Multiple Display Control (MDC) 9. Settings Control - Picture 1. Click Settings of the main icons and the Settings Control screen appears. Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value of the selected function is displayed in the slide. When Select All is selected, the default value (50) returns. If you change the value in the Settings Control screen, it switches to CUSTOM mode automatically. 1) Picture - Available only for VIDEO 1, VIDEO 2, COMPONENT. 2) Contrast - Adjusts Contrast of the selected display. 3) Brightness - Adjusts Brightness of the selected display. 4) Sharpness - Adjusts Sharpness of the selected display. 5) Color - Adjusts Color of the selected display. 6) Tint - Adjusts Tint of the selected display. Settings Control is available only for the displays for which the power status is ON and the default value is 50 when no adjustments are made. 9. Settings Control - Picture RGB 1. Click Settings of the main icons and the Settings Control screen appears. Installing Stand Kit Connecting Your Monitor Multiple Display Control (MDC) Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value of the selected function is displayed in the slide. When Select All is selected, the default value (50) returns. If you change the value in the Settings Control screen, it switches to CUSTOM mode automatically. 1) Picture RGB - Available only for RGB 1, RGB 2, RGB 3. 2) Contrast - Adjusts Contrast of the selected display. 3) Brightness - Adjusts Brightness for the selected display. 4) Color Temp. - Adjusts Color Temperature of the selected display. Settings Control is available only for the displays for which the power status is ON and the default value is 50 when no adjustments are made. This Control window is for the displays with RGB input source. 9. Settings Control - Audio 1. Click Settings of the main icons and the Settings Control screen appears. Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value of the selected function is displayed in the slide. When Select All is selected, the default value (50) returns. If you change the value in the Settings Control screen, it switches to CUSTOM mode automatically. 1) Audio - Controls audio settings for all input sources. 2) Treble - Adjusts Treble of the selected display. 3) Bass - Adjusts Bass of the selected display. 4) Balance - Adjusts Balance of the selected display. 5) Virtual Dolby - Virtual Dolby Sound On/Off of the selected display. 6) Sound Select - Select either Main or Sub when PIP is On. Settings Control is available only for the displays for which the power status is ON and the default value is 50 when no adjustments are made. Installing Stand Kit Connecting Your Monitor Multiple Display Control (MDC) 9. Settings Control – Image Lock 1 1. Click Settings of the main icons and the Settings Control screen appears. Info Grid shows some basic information necessary to Settings Control. 1) Image Lock 1 - Avai…

Text truncated - open the document above for the full version.

ٛ

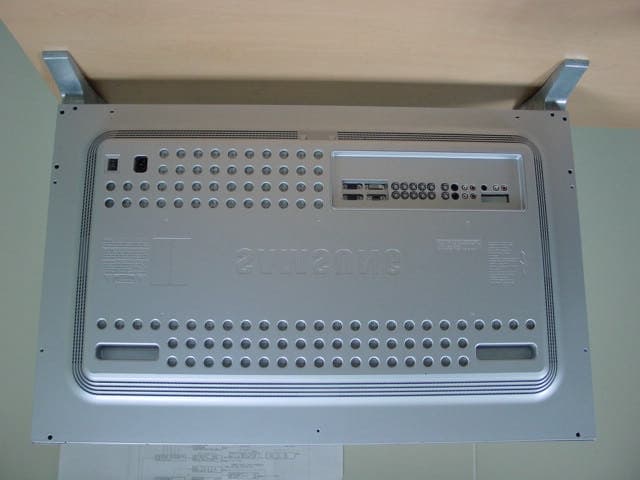

EUT Photographs

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs

Project No. : LBE030457 Page 1 of 17 Project No. :LBE030457 Product : COLOR MONITOR Model No. :CK40PS Date of test :March 5 ~ 11, 2003 Issued Date :March 13, 2003 Tested by: Kyung Chul, MIN / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE030457 Page 2 of 17 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE030457 Page 3 of 17 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Operating Frequency FCC ID Number Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. CK40PS SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE030457 LCD Monitor 60Hz A3LCK40PS 120V - Project No. : LBE030457 Page 4 of 17 1.3 Test equipment EquipmentModel No.Serial No.Makers Last calibration and Interval 8566B3340A21744H.P02/04/18, 12Months Firmware versions : Rev.29.9.86 Quasi-peak adapter85650A2521A00687H.P02/10/09, 12Months RF Preselector85685A2602A00224H.P02/10/09, 12Months ESCS30839809/022R & S02/06/18, 12Months Firmware versions : Main 1.08, OTP 02.01, GRA 02.03 Field strength meterESVP860688/015R & S02/02/28, 12Months L.I.S.N3825-29208-1981EMCO02/03/23, 12Months Bi-Log AntennaCBL6112B2767SCHAFFNER02/ 04/25, 12Months This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Spectrum analyzer Field strength meter Project No. : LBE030457 Page 5 of 17 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating ModeResolutionsRefresh ratesColors "H" Pattern display1280x76832bits Frequency Band [MHz] Equipment Horizontal F.:60kHz Vertical F. : 75Hz EMI Test receiverAbove 1000 0.45 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 Project No. : LBE030457 Page 6 of 17 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerFCC ID A LCD MonitorCK40PS -Samsung- BPersonal ComputerM6050812092FRC01962Samsung CPrinterLQ-580HCG2Y016889EPSON DPS/2 KeyboardAopen528982Aopen EUSB MouseM-U48aLZA95206393Samsung * DOC : FCC Declaration of Conformity 2) Used Cable Description No.ItemLength[m]Shielded(Y/N) 1USB Mouse Cable1.8N 2PS/2 Keyboard Cable1.6N 3Video Cable(Analog)1.5Y 4Video Cable(Digital)1.5Y 5 AC Power Cable(Monitor) 1.2N 6AC Power Cable(PC)1.8N 7Printer Cable1.6Y 8 AC Power Cable(Printer) 1.8N This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Project No. : LBE030457 Page 7 of 17 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 5 B CA E D 1 2 3 6 7 POWER POWER POWER 8 4 Project No. : LBE030457 Page 8 of 17 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. Connect the EUT's AC line cord to the EUT port of LISN. All input terminals are terminated in the proper impedance. The output ports are connected to the cable provided with the device and the ending port are terminated in the proper impedance. Using a calibrated coaxial cable, the TEST RECEIVE…
