A3LCLP310NColor Laser Printer

CLP-310 Series Color Laser Printer User’s Guide imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register 2_Features of your new laser product features of your new laser product Your new machine is equipped with a number of special features that improve the quality of the documents you print. With the machine, you can: Print with excellent quality and speed •You can print in a full range of colors using cyan, magenta, yellow, and black. •You can print with a resolution of up to 2400 x 600 dpi Effective output. •Your machine prints A4-sized paper at up to 16 ppm, letter- sized paper at up to 17 ppm in gray scale mode and 4 ppm in color mode. Handle many different types of printable material •The 150-sheet tray supports plain paper in various sizes, letterhead, envelopes, labels, custom-sized media, postcards, and heavy paper. Create professional documents •Print watermarks. You can customize your documents with words, such as “Confidential”. See Software section. •Print posters. The text and pictures of each page of your document are magnified and printed across the sheet of paper and can then be taped together to form a poster. See Software section. •You can use preprinted forms and letterhead with plain paper. See Software section. Save time and money •To save paper, you can print multiple pages on one single sheet of paper. •This machine automatically conserves electricity by substantially reducing power consumption when not in use. . Print in various environments •You can print with Windows 2000 and Windows XP/2003/ Vista as well as Linux and Macintosh systems. •Your machine is equipped with a USB interface and a network interface (CLP-310N, CLP-310W only). SPECIAL FEATURES Features of your new laser product_3 FEATURES BY MODELS The machine is designed to support all of your document needs – from printing, to more advanced networking solutions for your business. Basic features of this machine include; ( : Included, O: Optional, Blank: Not Available) ABOUT THIS USER’S GUIDE This user’s guide provides information about basic understanding of the machine as well as detailed explanation on each step during the actual usage. Both novice users and professional users can refer to this guide for installing and using the machine. Some terms in this guide are used interchangeably, as below: •Document is synonymous with original. •Paper is synonymous with media, or print media. Following table offers the conventions of this guide: FEATURESCLP-310CLP-310NCLP-310W USB 2.0 Network Interface 802.11b/g wireless LAN Network Interface Enthernet 10/100 Base TX wired LAN Duplex (2-sided) printing (Manual) CONVENTIONDESCRIPTIONEXAMPLE BoldUsed for texts on the display or actual prints on the machine.Start Note Used to provide additional information or detailed specification of the machine function and feature. The date format may differ from country to country CautionUsed to give users information to protect the machine from possible mechanical damage or malfunction. Do not touch the green underside of the toner cartridge. FootnoteUsed to provide more detailed information on certain words or a phrase. a. pages per minute (See page 1 for more information) Used to guide users to the reference page for the additional detailed information. (See page 1 for more information) 4_Features of your new laser product FINDING MORE INFORMATION You can find information for setting up and using your machine from the following resources, either as a print-out or onscreen. Quick Install GuideProvides information on setting up your machine and this requires that you follow the instructions in the guide to prepare the machine. Online User’s GuideProvides you with step-by-step instructions for using your machine’s full features, and contains information for maintaining your machine, troubleshooting, and installing accessories. This user’s guide also contains a Software section to provide you with information on how to print documents with your machine in various operating systems, and how to use the included software utilities. Note You can access the user’s guide in other languages from the Manual folder on the printer software CD. Printer Driver HelpProvides you with help information on printer driver properties and instructions for setting up the properties for printing. To access a printer driver help screen, click Help from the printer properties dialog box. Samsung websiteIf you have Internet access, you can get help, support, printer drivers, manuals, and order information from the Samsung website, www.samsungprinter.com. Safety information_5 safety information IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS What the icons and signs in this user’s guide mean: These warning signs are here to prevent injury to you and others. Follow them explicitly. After reading this section, keep it in a safe place for future reference. WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. CAUTION To reduce the risk of fire, explosion, electric shock, or personal injury when using your laser MFP, follow these basic safety precautions: Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the MFP is grounded to prevent electric shock. Call the service center for help. 1.Read and understand all instructions. 2.Use common sense whenever operating electrical appliances. 3.Follow all warnings and instructions marked on the machine and in the literature accompanying the machine. 4.If an operating instruction appears to conflict with safety information, heed the safety information. You may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales or service representative for assistance. 5.…

Text truncated - open the document above for the full version.

7p 7p 3p 3p Main B’d LSU LSU SMPS SMPS Type 2 Type 2 HVPS HVPS T1 T1 T2 T2 Charger Charger Supply Supply Fuser 2Lamp Fuser 2Lamp Joint Joint CRUM Y CRUM Y CRUM M CRUM M CRUM C CRUM C CRUM Y CRUM Y Fuser Clutch Fuser Clutch Themistor Themistor Regi Regi Clutch Clutch Pickup Clutch Pickup Clutch T2 Clutch T2 Clutch ITB Cutch ITB Cutch Deve Deve Clutch Clutch ITB Tension Clutch ITB Tension Clutch Fuser Fuser Sensor ( Sensor ( Deve Deve Home) Home) Sensor (EMPTY) Sensor (EMPTY) Sensor (Exit) Sensor (Exit) Waste Toner TX Waste Toner TX Waste Toner RX Waste Toner RX Fan (reserved) Fan (reserved) Temp (Out) Temp (Out) Display Display Panel(LED Panel(LED ) ) BLDC Motor BLDC Motor (Main) (Main) OPC OPC +5V S/W +5V S/W ERASER ERASER ITB Home Sensor ITB Home Sensor MILLET (CLP-310/310N)BLOCK DIAGRAM MILLET (CLP-310/310N)BLOCK DIAGRAM Board to Board Contact Board Board to to Board Board Contact Contact Rec Rec Terminal Terminal Imterface Imterface Con. Con. Ground Wire Ground Wire Ground Wire(225mm) Ground Wire(225mm) 10p 10p 10p 5p 5p 5p 16p FFC 16p FFC 16p FFC 16p 16p 2p 2p 2p 2p 2p 2p 2p 3p 3p 3p 3p 3p 3p 3p 3p 2p 2p 2p 2p 4p 4p 24p FFC 24p FFC 3p 3p 3p 3p 3p 3p 2p 2p 2p 2p 3p 3p 2p 2p 2p 16p FFC 16p FFC 10p 10p +24V Cover Open S/W +24V Cover Open S/W 2p 2p 2p 2p 3p 3p 2p 2p 2p Sensor ( Sensor ( Regi Regi ) ) 3p 3p ITB Tension ITB Tension 2p 2p PTL LAMP PTL LAMP 2p 2p 4p 4p 4p 4p 4p 4p 4p 4p 4p 4p 4p 4p 4p 4p PLL RAM Controller Local Controller GPIO Image Processor MAC UART I2C Step Motor ADC 8ch PWM 8ch LSU Controller HPVC ARM9 – 360MHz Chorus3 DDR2 32MB Flash N/W Φ BCM5241 KMLG EEPROM 64Kbit Vclk Mclk SCLSDA TX_CLK, RX_CLK MAC_TXD[3:0] MAC_RXD[3:0] SA[12:0], BA0,1 DQ[15:0] CKE, nCS0nRAS, nCAS,New, DM0,1, nDQS0,1, DQS1,ODT0 25MHz ※ Flash : CLP-310(2MB)/310N(4MB) ADDR[22:1] DATA[15:0] nRD, nWR, nCS USB2.0 SSCG 12MHz usbclk

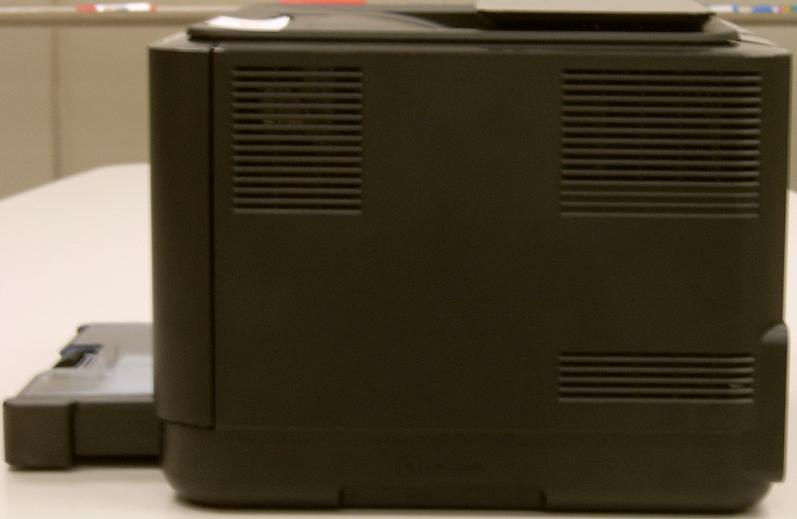

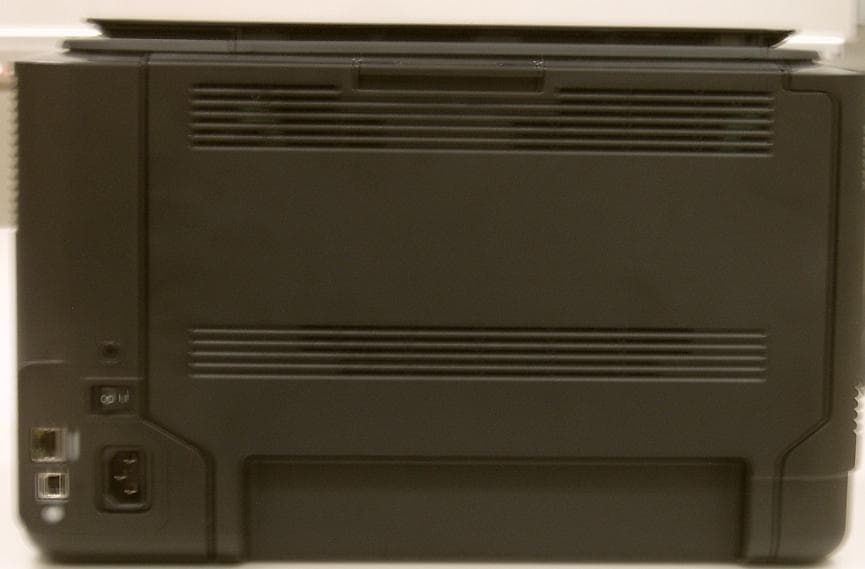

1.External Pictures. 1) Front View. 2) Rear View. 3) Side View(right) 4) Side View(left)

Project No. : LBE073255 Printer : CLP-310N - 23/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Label Location Label Project No. : LBE073255 Printer : CLP-310N - 24/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory.

2.Internal Pictures. 1) Front View. 2) Rear View. 3.PBA Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 7) Top View of OPE 8) Bottom View of OPE 9) Top View of HVPS 10) Bottom View of HVPS

Project No. : LBE073255 Printer : CLP-310N - 7/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor Chorus3(360MHz) - Standard System memory 32MB - Resolution Up to 2400x600 dpi effective output - Paper Handling Paper Tray(standard) 150 Sheets - Power Rating 110~127 VAC, 5A, 50/60 Hz - Power Consumption Average : 350W Power save mode : Less than 17W - Printer Language SPL-C - Interfaces USB2.0, Ethernet 10/100 Tx Base - OS compatibility Windows 2000/XP/2003/Vista Various Linux including Red Hat 8.0~9.0, Mandrake 9.2~10.1, SuSE 8.2~9.2 and Fedora Core 1~4 Mac OS 10.3 ~10.5 and Universal Mac - Modes of Operation USB Printing, Network Printing - Intended Class for Emissions Class B -

-1/24- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE073255 Revision No. None Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Applicant Date of application 2007.10.12 Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LCLP310N Kind of product Printer CLP-310N Model No. Variant Model No. CLP-310, CLP-315, CLP-315N EUT Equipment Under Test Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030, Korea 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Issue date 2007.10.29 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Young Ju, Ryu Reviewed by : No Cheon, Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. SEC EMC Laboratory 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE073255 Printer : CLP-310N - 2/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 2.2 Accreditation and listing 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Operating mode condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE073255 Printer : CLP-310N - 3/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standardResult Remarks Conducted Disturbance Complied Meets Class B Limit Minimum margin is 14.6 dB at 18.243 MHz Radiated Disturbance FCC Part 15 Subpart B Complied Meets Class B Limit Minimum margin is 6.0 dB at 79.998 MHz 2. General Information 2.1 Test facility The SEC EMC Laboratory is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The SEC EMC Laboratory is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE073255 Printer : CLP-310N - 4/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 2.2 Accreditation and listing Laboratory Qualifications Remarks KOLAS(Korea Laboratory Accreditation Scheme) Accredited : 124 Radio Research Laboratory Accredited : KR0004 FCC(Federal Communications Commission) Accredited : KR0004 National Voluntary Laboratory Accreditation Program Lab Code: 200623-0 Norges Elektriske Materiellkontroll Accredited : ELA 195 VCCI (Voluntary Control Council for Interference by Information Technology Equipment) C-2421,R-2224 China Quality Certification Center 5-053, 5-054 TUV Rhineland H9354285 GOST(GOSTSTANDART) ROSTEST Elektrotechnicky Zkusebni Ustav Reg. No.: 001 IC(Industry Canada) Assigned Code: 5871 Project No. : LBE073255 Printer : CLP-310N - 5/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test Setup configuration 3.1 Test Peripherals The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Description Model No. Serial No. Manufacturer FCC ID Printer CLP-310N - Samsung A3LCLP310N Note PC NP-P29 674E93AYC00024ESamsung A3L-NP-P29 AC Adapter AD-9019S CNBA4400215AD2 VH6811084 Li shin - USB Mouse MS201U 69G1736 Monterey International Corp. DoC Earphone - - COSY - 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 USB Printing Operating Mode 2 LAN Printing Operating Mode 3 Standby 3.3 Details of Sampling Customer selected, single unit. Project No. : LBE073255 Printer : CLP-310N - 6/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No - USB 1.8 Yes From PC to EUT From PC to Mouse LAN 1.0 Yes From EUT to hub Audio 1.0 No From earphone to PC Project No. : LBE073255 Printer : CLP-310N - 7/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor Chorus3(360MHz) - Standard System memory 32MB - Resolution Up to 2400x600 dpi effective output - Paper Handling Paper Tray(standard) 150 Sheets - Power Rating…

Text truncated - open the document above for the full version.

Project No. : LBE073255 Printer : CLP-310N - 12/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.2 Photograph of the test Configuration (Front) (Rear) Project No. : LBE073255 Printer : CLP-310N - 18/24- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.2 Photograph of the test Configuration (Front) (Rear)
