A3LCLX2160NMulti Function Color Laser Printer

© 2007 Samsung Electronics Co., Ltd. All rights reserved. This user’s guide is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide. • CLX-2160 and CLX-2160N are model names of Samsung Electronics Co., Ltd. • Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • PCL and PCL 6 are trademarks of Hewlett-Packard company. • Microsoft, Windows, Windows 98, Windows Me, Windows 2000, Windows XP, Windows 2003 and Windows Vista are registered trademarks of Microsoft Corporation. • UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc. • TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. • All other brand or product names are trademarks of their respective companies or organizations. CONTACT SAMSUNG WORLD WIDE If you have any comments or questions regarding Samsung products, contact the Samsung customer care center. CountryCustomer Care Center Web Site ARGENTINE0800-333-3733www.samsung.com/ar AUSTRALIA1300 362 603www.samsung.com/au BELGIUM02 201 2418www.samsung.com/be BRAZIL0800-124-421 4004-0000 www.samsung.com/br CANADA1-800-SAMSUNG (7267864) www.samsung.com/ca CHILE800-726-7864 (SAMSUNG)www.samsung.com/cl CHINA800-810-5858 010- 6475 1880 www.samsung.com.cn COLOMBIA01-8000-112-112www.samsung.com/co COSTA RICA0-800-507-7267www.samsung.com/latin CZECH REPUBLIC 844 000 844www.samsung.com/cz Distributor pro ýeskou republiku : Samsung Zrt., þeska organizaþní složka Vyskoþilova 4, 14000 Praha 4 DENMARK38 322 887www.samsung.com/dk ECUADOR1-800-10-7267www.samsung.com/latin EL SALVADOR800-6225www.samsung.com/latin FINLAND09 693 79 554www.samsung.com/fi FRANCE08 25 08 65 65 (€ 0,15/min) www.samsung.com/fr GERMANY01805 - 121213 (€ 0,14/min) www.samsung.de GUATEMALA1-800-299-0013www.samsung.com/latin HONG KONG3698 4698www.samsung.com/hk HUNGARY06 40 985 985www.samsung.com/hu INDIA3030 8282 1800 110 011 www.samsung.com/in INDONESIA0800-112-8888www.samsung.com/id ITALIA800 SAMSUNG(7267864)www.samsung.com/it JAMAICA1-800-234-7267www.samsung.com/latin JAPAN0120-327-527www.samsung.com/jp LUXEMBURG02 261 03 710www.samsung.lu MALAYSIA1800-88-9999www.samsung.com/my MEXICO01-800-SAMSUNG (7267864) www.samsung.com/mx NETHERLANDS0900 20 200 88 (€ 0,10/min) www.samsung.com/nl NORWAY231 627 22www.samsung.com/no PANAMA800-7267www.samsung.com/latin PHILIPPINES1800-10-SAMSUNG (7267864) www.samsung.com/ph POLAND0 801 801 881www.samsung.com/pl PORTUGAL80 8 200 128www.samsung.com/pt PUERTO RICO1-800-682-3180www.samsung.com/latin REP. DOMINICA1-800-751-2676www.samsung.com/latin RUSSIA8-800-200-0400www.samsung.ru SINGAPORE1800-SAMSUNG (7267864)www.samsung.com/sg SLOVAKIA0850 123 989www.samsung.com/sk SOUTH AFRICA0860 7267864 (SAMSUNG)www.samsung.com/za SPAIN902 10 11 30www.samsung.com/es SWEDEN08 585 367 87www.samsung.com/se TAIWAN0800-329-999www.samsung.com/tw THAILAND1800-29-3232 02-689-3232 www.samsung.com/th TRINIDAD & TOBAGO 1-800-7267-864www.samsung.com/latin U.A.E800SAMSUNG (7267864)www.samsung.com/mea U.K0870 726 7864www.samsung.com/uk U.S.A1-800-SAMSUNG (7267864) www.samsung.com UKRAINE8-800-502-0000www.samsung.com/ur VENEZUELA1-800-100-5303www.samsung.com/latin VIETNAM1 800 588 889www.samsung.com/vn CountryCustomer Care Center Web Site CONTENTS 1. Introduction Special features ...................................................................................................................................................... 1.1 Machine overview ................................................................................................................................................... 1.2 Front view ........................................................................................................................................................... 1.2 Rear view ........................................................................................................................................................... 1.2 Control panel overview ........................................................................................................................................... 1.3 Introducing useful buttons ....................................................................................................................................... 1.4 ID copy button .................................................................................................................................................... 1.4 USB Print button ................................................................................................................................................ 1.4 Scan to button .................................................................................................................................................... 1.4 Understanding the Status LED ............................................................................................................................... 1.4 Status LED ......................................................................................................................................................... 1.4 Status LED with the toner cartridge messages .................................................................................................. 1.5 Finding more information ........................................................................................................................................ 1.5 Selecting a location ................................................................................................................................................. 1.6 2. System setup Menu overview ........................................................................................................................................................ 2.1 Changing the display language ..................…

Text truncated - open the document above for the full version.

Maple Block diagram

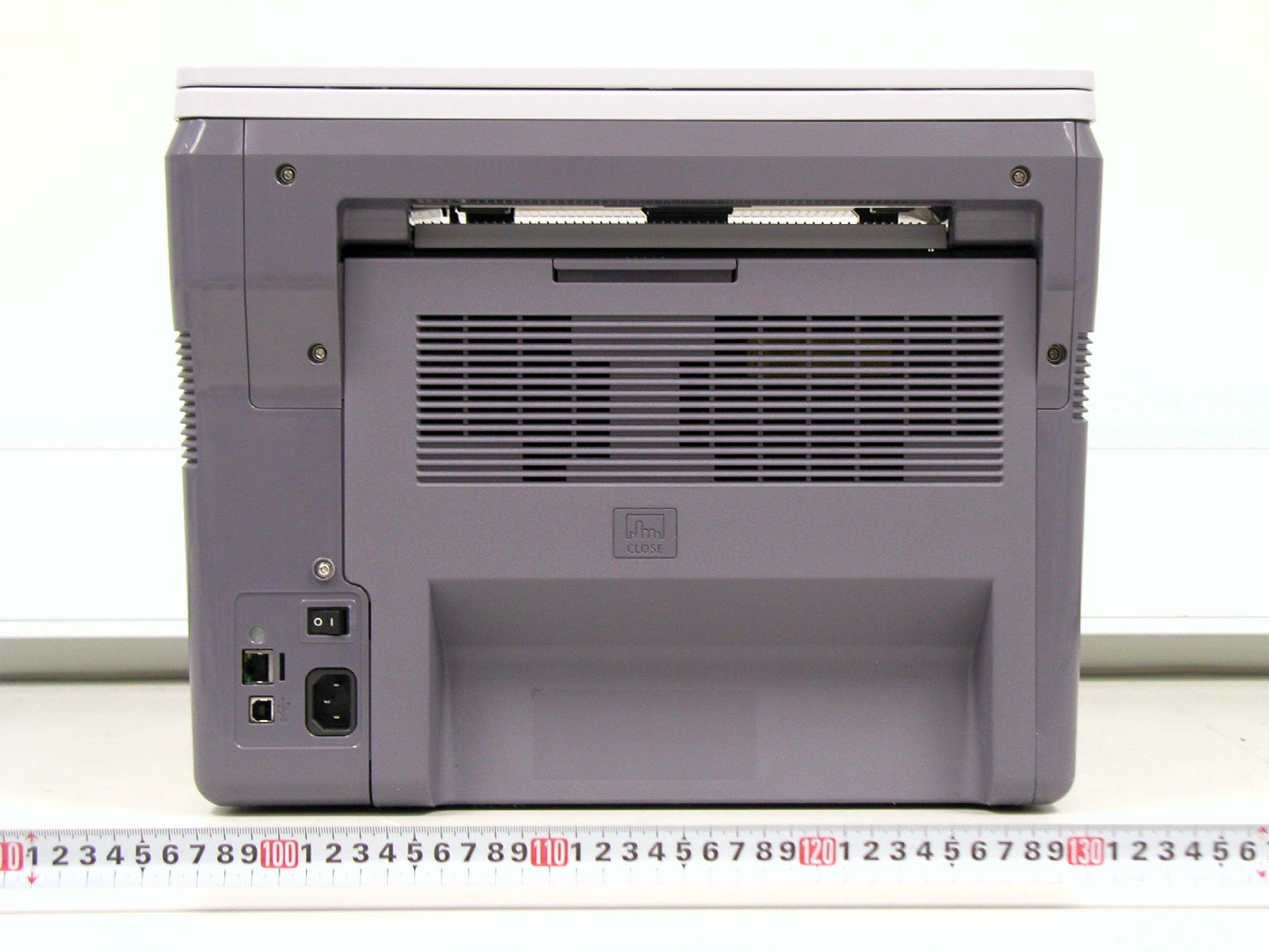

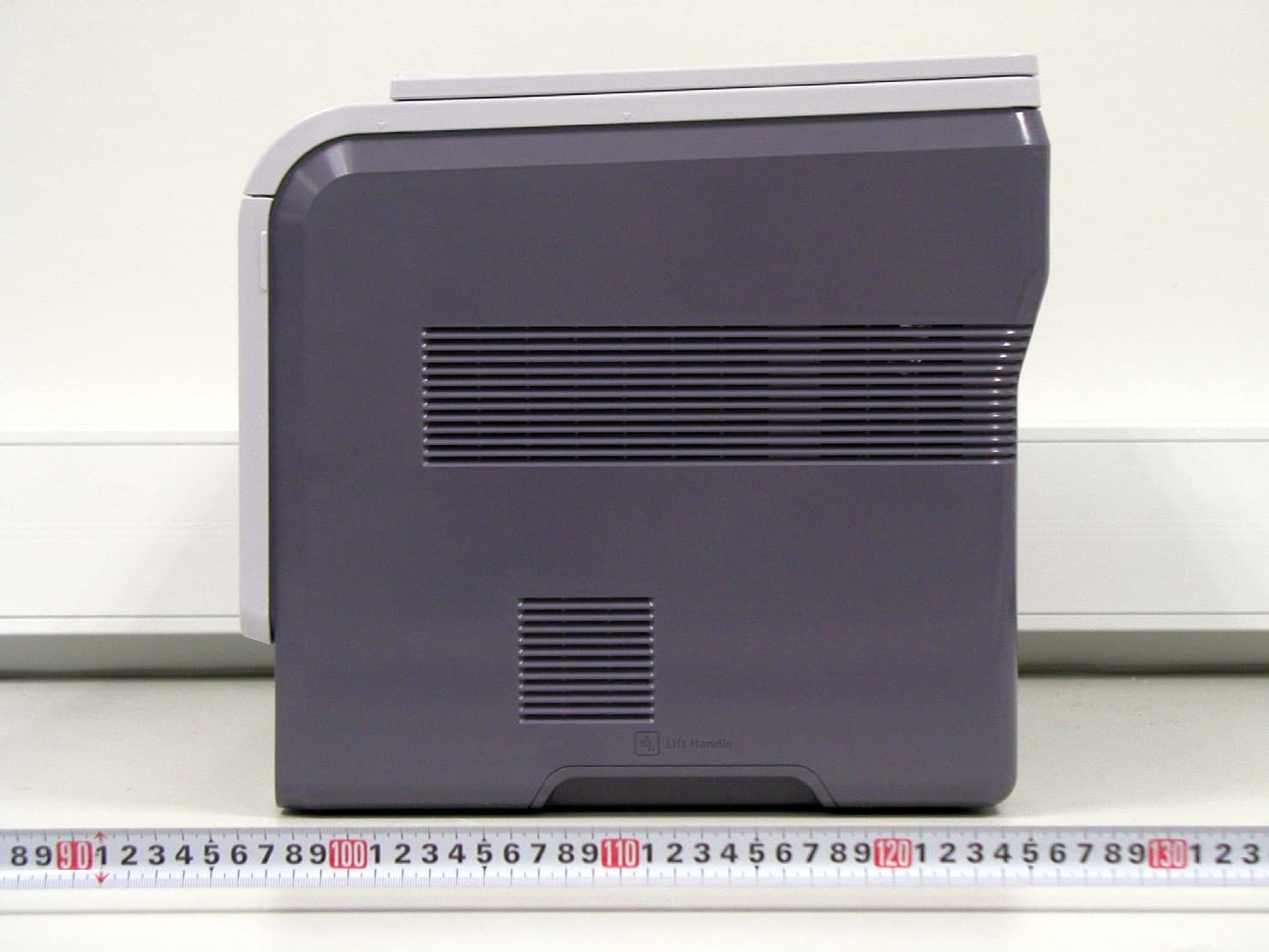

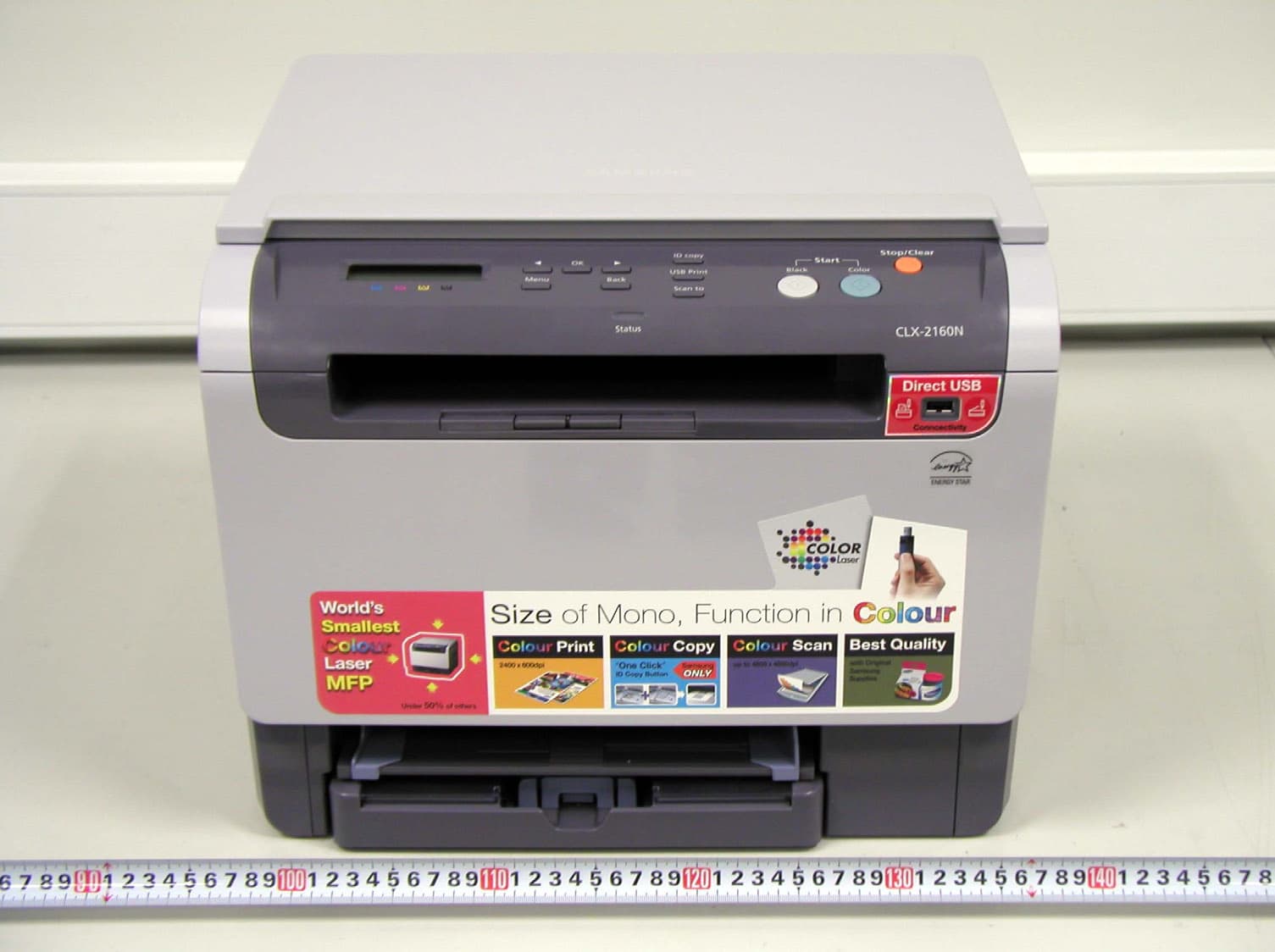

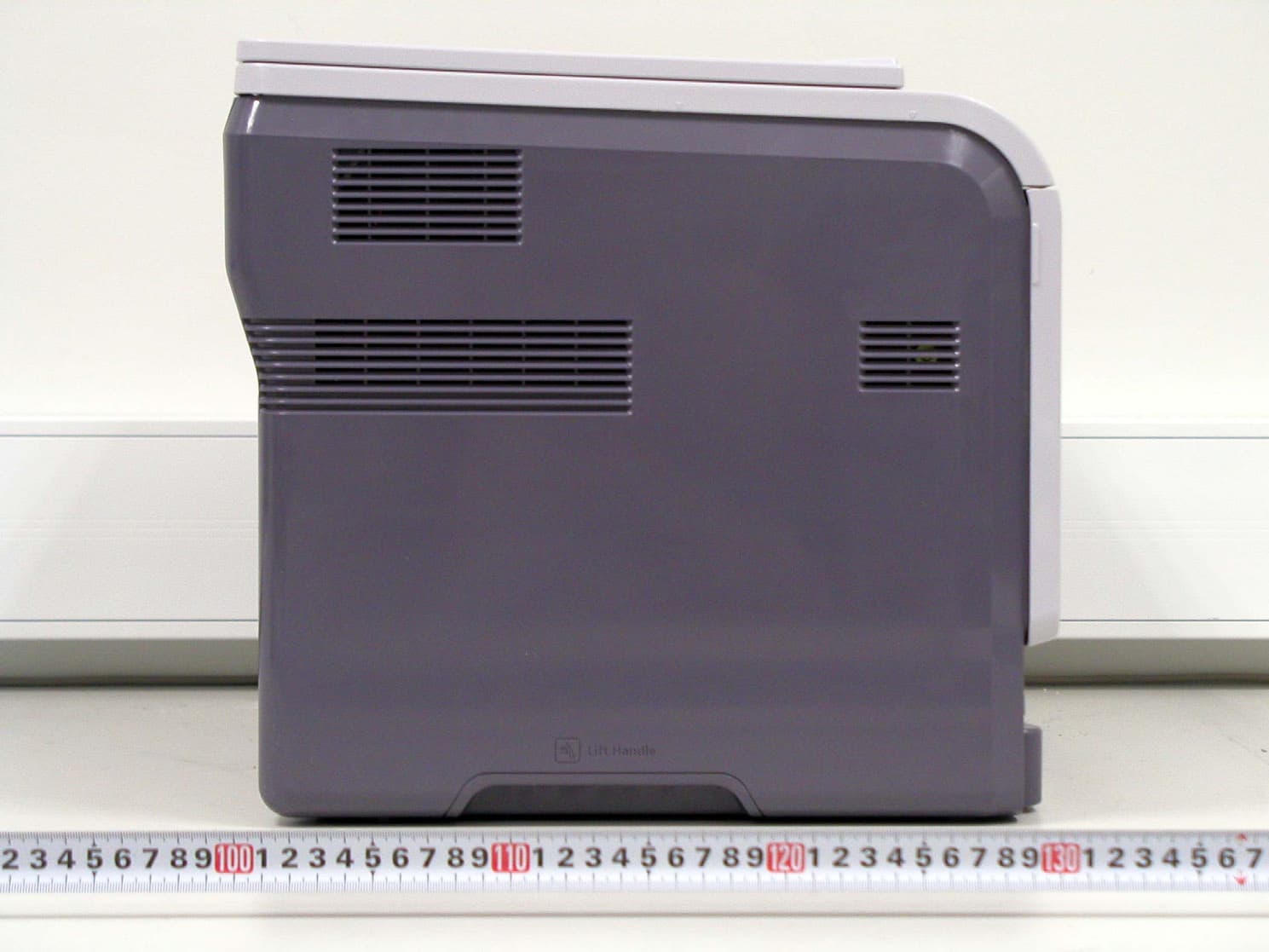

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

Test Report No. : LBE070737 -28/29- 4.3 Label and Label Location Picture 7. Label Test Report No. : LBE070737 -29/29- Picture 8. Label location

2. Internal Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2 3. Print Board Assembled (PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View of HVPS 6) Bottom View of HVPS 7) Top View of OPE 8) Bottom View of OPE

Test Report No. : LBE070737 -5/29- 1.2 Detail Information related product 1.2.1 Specification Items Maple Remarks Major Features As Standalone: Copier, Printer, Scan, Scan to USB As Network connected: Network Print, Scan to E-mail - Size (W*D*H) 413.6W×353.2D ×333.4H mm (16.26*13.9*12.12 inch) - General Net Weight(Inc. Toner Cartridg e) 20.5 Kg (45.2 lbs) - Ready Less than 160W - AVG. Less than 350W (Currency:5A(110V)/3A(220V) - Max/Peak 700W/1KW - Power Consumpt ion Sleep/Power off Less than 30W - Input Voltage Low Voltage : 110 ~ 127VAC - Power Supply Input Frequency 50 / 60Hz(+/- 3Hz) - Warm Up Time from Cold Status Less than 35 seconds Rated Voltage EMI Approval Class B - Standard / Max. 128MB / 128MB(Std./Max) - Device Memory Type SDRAM - Print Speed B&W :17ppm/Letter 16ppm/A4 Color : 4ppm/A4.Letter - PRINT Print Emulation SPL-C - Operating Frequency Main Clock = 12MHz Main CPU core Clock = 300MHz USB Clock = 6MHz SD Memory Clock = 100MHz MAC Clock = 25MHz

-1/29- EMC TEST REPORT Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si,Gyeonggi-Do, 443-742 Korea (Tel: 82 31 277 7752, Fax: 82 31 277 7753) Project No. : LBE070737 Page (1)/(29) 1. Applicant ◦ Name of organization : Samsung Electronics Co., Ltd. ◦ Address : 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea ◦ Date of application : 2007. 03. 09 2. Purpose for the report : Approval for EMC 3. Kind of product : Printer (Model name :CLX-2160N) 4. Date of test : 2007. 03. 09 ~ 2007. 03. 12 5. Applied standard : FCC Part 15, Subpart B 6. Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by Name : Young Hun, Cheong Reviewed by Name : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. 2007. 03. 19 Samsung Electornics Co., Ltd. Chief of CS Management Center Test Report No. : LBE070737 -2/29- TEST RESULT Test Report No. : LBE070737 Applicant / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Manufacture / Address : 1) Samsung Electronics Co.,Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Samsung Electronics(Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, China EUT : 1. Product name : Printer 2. Model name : CLX-2160N 3. Brand name : SAMSUNG 4. Variant model : - 5. FCC ID : A3LCLX2160N Test Method : ANSI C 63.4:2003 Test Result : PASS The equipment under test has found to be compliant with the applied standards Test Lab. : CS Management Center, Samsung Electronics Co., Ltd. Tested by : Young Hun Cheong Reviewed by : No Cheon Park Date of Issue : 2007. 03. 19 Test Report No. : LBE070737 -3/29- Table of contents 1. General information 1.1 Basic information related product 1.2 Detail information related product 1.3 Operating mode and condition 1.4 Equipment modifications 1.5 Test procedure 1.6 Test configuration 1.7 Applied standard 1.8 Test facility 2. Summary of test results 3. Description of individual tests 3.1 Conducted emission 3.2 Radiated emission 4. Appendix 4.1 Test photography 4.2 EUT photography Test Report No. : LBE070737 -4/29- 1. General information 1.1 Basic information related product Applicant Samsung Electronics Co., Ltd. Model name CLX-2160N Applicant address 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Contact person Sangsu ROH Kind of product Printer Valiant model - FCC ID A3LCLX2160N Manufacturer 1) Samsung Electronics Co.,Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Samsung Electronics(Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, China Rated power AC 120 V, 60 Hz New / Alternative / Permissive change information New Test Report No. : LBE070737 -5/29- 1.2 Detail Information related product 1.2.1 Specification Items Maple Remarks Major Features As Standalone: Copier, Printer, Scan, Scan to USB As Network connected: Network Print, Scan to E-mail - Size (W*D*H) 413.6W×353.2D ×333.4H mm (16.26*13.9*12.12 inch) - General Net Weight(Inc. Toner Cartridg e) 20.5 Kg (45.2 lbs) - Ready Less than 160W - AVG. Less than 350W (Currency:5A(110V)/3A(220V) - Max/Peak 700W/1KW - Power Consumpt ion Sleep/Power off Less than 30W - Input Voltage Low Voltage : 110 ~ 127VAC - Power Supply Input Frequency 50 / 60Hz(+/- 3Hz) - Warm Up Time from Cold Status Less than 35 seconds Rated Voltage EMI Approval Class B - Standard / Max. 128MB / 128MB(Std./Max) - Device Memory Type SDRAM - Print Speed B&W :17ppm/Letter 16ppm/A4 Color : 4ppm/A4.Letter - PRINT Print Emulation SPL-C - Operating Frequency Main Clock = 12MHz Main CPU core Clock = 300MHz USB Clock = 6MHz SD Memory Clock = 100MHz MAC Clock = 25MHz Test Report No. : LBE070737 -6/29- 1.3 Operating mode and condition The system was configured for testing in typical fashion use. Cable were attached to each of the availabl e I/O port. Where applicable, peripherals were attached to the I/O cables. This EUT is supporting the USB, Parallel and Network(LAN) printing. In each test mode, finally we found worst case emission that is above configuration with the Worst case components(in the above table). So, the data of the maximum EUT operation, Network printing(duplex mode) was reported. - Operating Mode - Standby Mode(worst emission) - Network Printing Mode - USB Printing Mode - Test Voltage : 120 V, 60 Hz 1.4 Equipment modifications No equipment modifications were required. Test Report No. : LBE070737 -7/29- 1.5 Test procedure 1.5.1 Conducted emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80 cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and were handed at a 40 cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. Frequency Band [MHz] Instrument Detector Resolution Bandwidth Video Bandwidth Quasi-Peak 9 kHz - 0.15 to 30 EMI Receiver Average 9 kHz - Test Report No. : LBE070737 -8/29- 1.5.2 Radiated emission EUT was placed on a platform of nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tab…

Text truncated - open the document above for the full version.

Test Report No. : LBE070737 -25/29- 4. Appendix 4.1 Test photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) Test Report No. : LBE070737 -26/29- Picture 3. Radiated emission (Front) Picture 4. Radiated emission (Rear)
