A3LCLX3305FWLaser Multi-funtion Printer

BASIC User’s Guide CLX-330x/330xW Series CLX-330xFN/330xFW Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 5 Features by models 7 Useful to know 12 About this user’s guide 13 Safety information 14 Machine overview 19 Control panel overview 23 Turning on the machine 29 Installing the driver locally 30 Reinstalling the driver 31 2. Menu Overview and Basic SetupMenu overview 33 Machine’s basic settings 39 Media and tray 41 Basic printing 53 Basic copying 59 Basic scanning 63 Basic faxing 64 Using USB memory device 68 3. MaintenanceOrdering supplies and accessories 74 Available supplies 75 Available maintenance parts 76 Storing the toner cartridge 77 Redistributing toner 79 Replacing the toner cartridge 81 Replacing the waste toner container 83 Replacing the imaging unit 85 Monitoring the supplies life 87 Setting the toner low alert 88 Cleaning the machine 89 Tips for moving & storing your machine 94 4. TroubleshootingTips for avoiding paper jams 96 Clearing original document jams 97 Clearing paper jams 102 Understanding the status LED 106 3 BASIC Understanding display messages 108 5. AppendixSpecifications 115 Regulatory information 124 Copyright 137 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 • Features by models 7 • Useful to know 12 • About this user’s guide 13 • Safety information 14 • Machine overview 19 • Control panel overview 23 • Turning on the machine 29 • Installing the driver locally 30 • Reinstalling the driver 31 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 57). • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 225). • To save paper, you can print on both sides of the paper (double-sided printing) (Manual) (see "Using advanced print features" on page 225). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing• You can print in a full range of colors using cyan, magenta, yellow, and black. • You can print with a resolution of up to 1,200 x 1,200 dpi effective output (600 x 600 x 2 bit). • Fast, on-demand printing.- For single-side black and white printing, 18 ppm (A4) or 19 ppm (Letter). - For single-side color printing, 4 ppm (A4 or Letter). Convenience• You can print on the go from your smartphone or computer using Google Cloud Print enabled apps G (see "Google Cloud Print" on page 196). • Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard G (see "Easy Capture Manager" on page 254). • Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 261 or "Using Samsung Printer Status" on page 269). • Samsung Easy Document Creator is an application to help users compile and share large documents or other scanned or faxed information digitally. (see "Using Samsung Easy Document Creator" on page 264 ). • AnyWeb Print helps you screen-captu re, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 256). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. Key benefits• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Wide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 117). • Print watermark: You can customize your documents with words, such as “ CONFIDENTIAL ” (see "Using advanced print features" on page 225). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 225). • You can print in various operating systems (see "System requirements" on page 120). • Your machine is equipped with a USB interface and/or a network interface. Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). • Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable. • Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 161. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (  : Included, Blank: Not available) Software Operating System CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series Windows   Macintosh   Linux   Unix Software CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series SPL printer driver   PCL printer driver   PS printer driver   XPS printer driver a   Direct Printing Utility Features by models (  : Included, Blank: Not available) Samsung Easy Printer Manager Scan to PC settings   Fax to PC settings  Device Settings   Samsung Easy Document Creator   Samsun…

Text truncated - open the document above for the full version.

Using USB memory device 71 2. Menu Overview and Basic Setup 3 Select the folder or file you want and press OK . If you see [+] or [D] in the front of a folder name, there are one or more files or folders in the selected folder. 4 Select the number of copies to be printed or enter the number. 5 Press OK , Start or Print to start printing the selected file. After printing the file, the display asks if you want to print another job. 6 Press OK when Yes appears to print another job, and repeat from step 2. Otherwise, press the left/right arrow to select No and press OK . 7 Press ( Stop/Clear ) to return to ready mode. 26 Managing USB memory You can delete image files stored on a USB memory device one by one or all at once by reformatting the device. If you see [+] or [D] in the front of a folder name, there are one or more files or folders in the selected folder. After deleting files or reformatting a USB memory device, files cannot be restored. Therefore, confirm that you no longer need the data before deleting it. Deleting an image file 1 Insert a USB memory device into the USB memory port on your machine, and then press Direct USB . 2 Select File Manage > Delete and press OK . 3 Select the file you want to delete and press OK . 4 Select Yes . 5 Press ( Stop/Clear ) to return to ready mode. Formatting a USB memory device 1 Insert a USB memory device into the USB memory port on your machine, and then press Direct USB . 2 Select File Manage > Format and press OK . 3 Select Yes . Using USB memory device 72 2. Menu Overview and Basic Setup 4 Press ( Stop/Clear ) to return to ready mode. Viewing the USB memory statusYou can check the amount of memory space available for scanning and saving documents. 1 Insert a USB memory device into the USB memory port on your machine, and then press Direct USB . 2 Select Check Space . 3 The available memory space appears on the display. 4 Press ( Stop/Clear ) to return to ready mode. 3. MaintenanceThis chapter provides information about purchasin g supplies, accessories and maint enance parts available for your machine. • Ordering supplies and accessories 74 • Available supplies 75 • Available maintenance parts 76 • Storing the toner cartridge 77 • Redistributing toner 79 • Replacing the toner cartridge 81 • Replacing the waste toner container 83 • Monitoring the supplies life 87 • Setting the toner low alert 88 • Cleaning the machine 89 • Tips for moving & storing your machine 94 74 3. Maintenance Ordering supplies and accessories Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available su pplies, and maintenance parts. To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer whe re you purchased your machine. You can also visit www.samsung.com/supplies , and then select your country/region to obtain the contact information for service. 75 3. Maintenance Available suppliesWhen supplies reach the end of their life spans, you can order the followings of supplies for your machine: Depending on the options, percentage of image area and job mode used, the toner cartridge’s lifespan may differ. When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are usin g. Otherwise, new toner cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and oth er supplies according to the specific country conditions. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot g uarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will no t be covered under the machine’s warranty. Type Average yield a a. Declared yield value in accordance wit h ISO/IEC 19798. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size. Part name Toner cartridge • Average continuous black cartridge yield: Approx. 1,500 standard pages (Black) • Average continuous color cartridge yield: Approx. 1,000 standard pages (Yellow/Magenta/Cyan) • K406 (CLT-K406S): Black • C406 (CLT-C406S): Cyan • M406 (CLT-M406S): Magenta • Y406 (CLT-Y406S): Yellow Imaging unit Approx. 16,000 images b b. Image counts based on one color on each page. If you print documents in full color (Cyan, Ma genta, Yellow, Black), the life o f this item will be reduced by 25%. CLT-R406 Waste toner container Approx. 7,000 images b CLT-W406 76 3. Maintenance Available maintenance partsTo purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed on ly by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average yield”.Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintena nce parts below should be replaced when the life span of each item has been met. Parts Average yield a a. It will be affected by the operating system used, computing performance, applic ation software, connecting method, media type, media size and job complexity. Fuser unit Approx. 20,000 black pages or 5,000 color pages Transfer roller Approx. 20,000 pages Feed roller Approx. 20,000 pages Pickup roller Approx. 20,000 pages Intermediate Transfer Belt (ITB) Approx. 20,000 pages for black and white mode or 5,000 pages for color mode ADF Feed roller b b. CLX-330xFN Series/ CLX-330xFW Series only Approx. 20,000 pages ADF Rubber Pad b Approx. 20,000 pages 77 3. Maintenance Storing the toner cartridgeToner cartridges contain components that are sensit…

Text truncated - open the document above for the full version.

ADVANCED User’s Guide CLX-330x/330xW Series CLX-330xFN/330xFW Series ADVANCED User’s Guide This guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.BASICThis guide provides information concerning installation, basic operation and troubleshooting on windows. 139 ADVANCED 1. Software InstallationInstallation for Macintosh 142 Reinstallation for Macintosh 143 Installation for Linux 144 Reinstallation for Linux 145 2. Using a Network-Connected Machine Useful network programs 147 Wired network setup 148 Installing driver over the network 151 IPv6 configuration 157 Wireless network setup 160 Samsung MobilePrint 194 AirPrint 195 Google Cloud Print 196 3. Useful Setting MenusBefore you begin reading a chapter 200 Print 201 Copy 202 Fax 205 Scan 209 System setup 211 Network setup 216 4. Special FeaturesAltitude adjustment 219 Entering various characters 220 Setting up the fax address book 221 Printing features 224 Scan features 236 Fax features 244 5. Useful Management ToolsEasy Capture Manager 254 Samsung Easy Color Manager 255 Samsung AnyWeb Print 256 Easy Eco Driver 257 Using SyncThru™ Web Service 258 140 ADVANCED Using Samsung Easy Printer Manager 261 Using Samsung Easy Document Creator 264 Using Samsung Printer Status 269 Using the Linux Unified Driver Configurator 271 6. TroubleshootingPaper feeding problems 276 Power and cable connecting problems 277 Printing problems 278 Printing quality problems 282 Copying problems 290 Scanning problems 291 Faxing problems 293 Operating system problems 295 1. Software InstallationThis chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 151).• Installation for Macintosh 142 • Reinstallation for Macintosh 143 • Installation for Linux 144 • Reinstallation for Linux 145 • If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see "Installing the driver lo cally" on page 30). • Only use a USB cable no longer then 3 meter (118 inches). 142 1. Software Installation Installation for Macintosh 1 Make sure that the machine is connected to your computer and powered on. 2 Insert the supplied software CD into your CD-ROM drive. 3 Double-click the CD-ROM icon that appears on your Macintosh desktop. 4 Double-click the MAC_Installer folder > Installer OS X icon. 5 Click Continue . 6 Read the license agreement and click Continue . 7 Click Agree to agree to the license agreement. 8 When the message that warns that all applications will close on your computer appears, click Continue . 9 Click Continue on the User Options Pane . 10 Click Install . All components necessary for machine operations will be installed.If you click Customize , you can choose individual components to install. 11 Enter the password and click OK . 12 Installing software requires you to restart your computer. Click Continue Installation . 13 After the installation is finished, click Quit or Restart . 14 Open the Applications folder > Utilities > Print Setup Utility . •For Mac OS X 10.5 -10.7, open the Applications folder > System Preferences and click Print & Fax . 15 Click Add on the Printer List . •For Mac OS X 10.5 -10.7, click the “ + ” folder icon; a display window will pop up. 16 Click Default Browser and find the USB connection. •For Mac OS X 10.5-10.7, click Default and find the USB connection. 17 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model . •For Mac OS X 10.5-10.7, if Auto Select does not work properly, select Select a driver to use... and your machine name in Print Using . Your machine appears on the Printer List , and is set as the default machine. 18 Click Add . To install the fax driver: a Open the Applications folder > Samsung > Fax Queue Creator . b Your machine appears on the Printer List c Select machine to use and click Create button 143 1. Software Installation Reinstallation for MacintoshIf the printer driver does not work properly, uninstall the driver and reinstall it. 1 Make sure that the machine is connected to your computer and powered on. 2 Insert the supplied software CD into your CD-ROM drive. 3 Double-click the CD-ROM icon that appears on your Macintosh desktop. 4 Double-click the MAC_Installer folder > Uninstaller OS X icon. 5 Enter the password and click OK . 6 When the uninstall is done, click OK . If a machine has already been added, delete it from the Print Setup Utility or Print & Fax . 144 1. Software Installation Installation for LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).1 Installing the Unified Linux Driver 1 Make sure that the machine is connected to your computer and powered on. 2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Unified Linux Driver package to your computer. 4 Right-click the Unified Linux Driver package and extract the package. 5 Double click cdroot > autorun . 6 When the welcome screen appears, click Next . 7 When the installation is complete, click Finish . The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is ava…

Text truncated - open the document above for the full version.

CLX-3305FW Series Photo External View Photo CLX-3305FW Series Photo External View Photo_Front CLX-3305FW Series Photo External View Photo_Right CLX-3305FW Series Photo External View Photo_Left CLX-3305FW Series Photo External View Photo_Rear CLX-3305FW Series Photo External View Photo_Top CLX-3305FW Series Photo External View Photo_Bottom CLX-3305FW Series Photo External View Photo_Model name

Project No. : LBE20122200 Laser MFP : CLX-3305FW -29/34- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View & Label location Project No. : LBE20122200 Laser MFP : CLX-3305FW -34/34- This report must not be reproduced, except in full, without written permission from CS & Environment center. Label

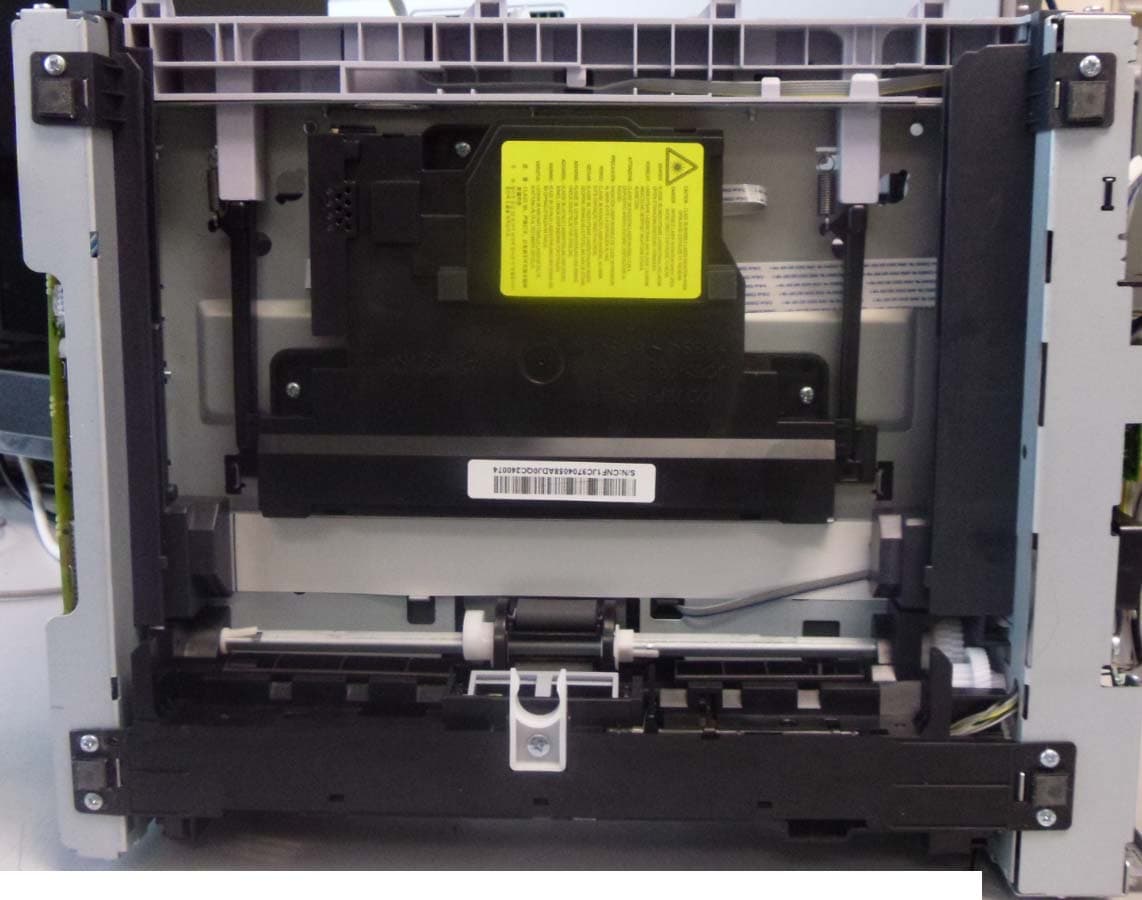

CLX-3305FW Series Photo Internal View Photo CLX-3305FW Series Photo Internal View Photo_Front CLX-3305FW Series Photo Internal View Photo_Right CLX-3305FW Series Photo Internal View Photo_Left CLX-3305FW Series Photo Internal View Photo_Rear CLX-3305FW Series Photo Internal View Photo_Top CLX-3305FW Series Photo Internal View Photo_Bottom CLX-3305FW Series Photo PBAs Photo CLX-3305FW Series Photo PBA Photo_Main PBA_Top CLX-3305FW Series Photo PBA Photo_Main PBA_Bottom CLX-3305FW Series Photo PBA Photo_SMPS PBA_Top CLX-3305FW Series Photo PBA Photo_SMPS PBA_Bottom CLX-3305FW Series Photo PBA Photo_HVPS PBA_Top CLX-3305FW Series Photo PBA Photo_HVPS PBA_Bottom CLX-3305FW Series Photo PBA Photo_Connection PBA_Top CLX-3305FW Series Photo PBA Photo_Connection PBA_Bottom CLX-3305FW Series Photo PBA Photo_CRUM PBA_Top CLX-3305FW Series Photo PBA Photo_CRUM PBA_Bottom CLX-3305FW Series Photo PBA Photo_Crumjoint PBA_Top CLX-3305FW Series Photo PBA Photo_Crumjoint PBA_Bottom CLX-3305FW Series Photo PBA Photo_USB Host PBA_Top CLX-3305FW Series Photo PBA Photo_USB Host PBA_Bottom CLX-3305FW Series Photo PBA Photo_OPE PBA_Top CLX-3305FW Series Photo PBA Photo_OPE PBA_Bottom CLX-3305FW Series Photo PBA Photo_Fax PBA_Top CLX-3305FW Series Photo PBA Photo_Fax PBA_Bottom CLX-3305FW Series Photo PBA Photo_ADF Connector PBA_Top CLX-3305FW Series Photo PBA Photo_ADF Connector PBA_Bottom CLX-3305FW Series Photo PBA Photo_WNPC PBA_Top CLX-3305FW Series Photo PBA Photo_WNPC PBA_Bottom

Key benefits Environmentally friendly •To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 57). •To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 225). •To save paper, you can print on both sides of the paper (double-sided printing) (Manual) (see "Using advanced print features" on page 225). •To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing •You can print in a full range of colors using cyan, magenta, yellow, and black. •You can print with a resolution of up to 1,200 x 1,200 dpi effective output (600 x 600 x 2 bit). •Fast, on-demand printing. -For single-side black and white printing, 18 ppm (A4) or 19 ppm (Letter). -For single-side color printing, 4 ppm (A4 or Letter). Convenience •You can print on the go from your smartphone or computer using Google Cloud Print enabled apps (see "Google Cloud Print" on page 196). •Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 254). •Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 261 or "Using Samsung Printer Status" on page 269). •Samsung Easy Document Creator is an application to help users compile and share large documents or other scanned or faxed information digitally. (see "Using Samsung Easy Document Creator" on page 264 ). •AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 256). •Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. Key benefits •If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Wide range of functionality and application support •Supports various paper sizes (see "Print media specifications" on page 117). •Print watermark: You can customize your documents with words, such as “CONFIDENTIAL” (see "Using advanced print features" on page 225). •Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 225). •You can print in various operating systems (see "System requirements" on page 120). •Your machine is equipped with a USB interface and/or a network interface. Supports various wireless network setting method •Using the WPS (Wi-Fi Protected Setup™) button -You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). •Using the USB cable or a network cable -You can connect and set various wireless network settings using a USB cable or a network cable. •Using the Wi-Fi Direct -You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 161. Features by models Some features and optional goods may not be available depending on model or country. Operating System (●: Included, Blank: Not available) Software Operating System CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series Windows●● Macintosh●● Linux●● Unix Software CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series SPL printer driver●● PCL printer driver●● PS printer driver●● XPS printer driver a ●● Direct Printing Utility Features by models (●: Included, Blank: Not available) Samsung Easy Printer Manager Scan to PC settings●● Fax to PC settings● Device Settings●● Samsung Easy Document Creator ●● Samsung Printer Status●● AnyWeb Print●● SyncThru™ Web Service● (CLX-330xW Series only) ● SyncThru Admin Web Service● (CLX-330xW Series only) ● Easy Eco Driver●● FaxSamsung Network PC Fax● ScanTwain scan driver●● WIA scan driver●● Samsung Scan Assistant●● a. For XPS driver, You can install the XPS printer driver in the Custom Installation window (Refer to Software CD that was provided with your machine). Software CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series Features by models Variety feature (●: Included, Blank: Not available) Features CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series Hi-Speed USB 2.0●● Network Interface Ethernet 10/100 Base TX wired LAN● (CLX-330xW Series only) ● Network Interface 802.11b/g/n wireless LAN a a. Depending on your country, wireless LAN card may not be available. For some counties, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you bought your machine. ● (CLX-330xW Series only) ● (CLX-330xFW Series only) Google Cloud Print™●● Eco printing (Control panel) ●● Duplex (2-sided) printing (Manual) b b. Windows only. ●● USB memory interface●● Automatic Document Feeder (ADF)● Features by models 10 1. Introduction (●: Included, Blank: Not available) Features CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series FaxMulti-send● Delay send● Priority send● Duplex send Secure receive● Duplex print Send/ Receive forward - fax● Send/ Receive forward - email Send/ Receive forward - server ScanScanning to email Scanning to SMB server Scanning to FTP server Duplex scan Scan to PC●● Features by models 11 1. Introduction (●: Included, Blank: Not available) Features CLX-330x Series CLX-330xW Series CLX-330xFN Series CLX-330xFW Series CopyID card copying●● Reduced or enlarged copying●● Collation●● Poster●● Clone●● Book 2-up/4-up●● Adjust background●● Margi…

Text truncated - open the document above for the full version.

-1/36- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20122200 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application April 13, 2012 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LCLX3305FW Kind of product Laser MFP Model No. CLX-3305FW Variant Model No. CLX-3300, CLX-3305, CLX-3306, CLX-3305N, CLX-3306N, CLX-3305W, CLX-3306W, CLX-3305FN, CLX-3306FN, CLX-3305FW, CLX-3306FW Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Intops : Intops (Weihai) Electronics Co., Ltd. Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period May 2, 2012 ~ May 3, 2012 Issue date May 3, 2012 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Young Ju Ryu Reviewed by : Tae Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20122200 Laser MFP : CLX-3305FW -2/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history 1.2 Sample calculation 2. Summary of test results 2.1 Emission 3. General Information 3.1 Test facility 4. Test configuration 4.1 Test Peripherals 4.2 EUT operating mode 4.3 Details of Sampling 4.4 Used cable description 4.5 Test arrangement 4.6 EUT Description 4.7 Clock Frequencies 4.8 Test configuration and condition 4.9 Measurement uncertainty 5. Result of individual tests 5.1 Conducted disturbance 5.2 Radiated disturbance Appendix – EUT photography - 3 page - 3 page - 3 page - 4 page - 4 page - 5 page - 5 page - 5 page - 6 page - 7 page - 8 page - 8 page - 9 page - 10 page - 18 page - 31 page Project No. : LBE20122200 Laser MFP : CLX-3305FW -3/36- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ◦ Class B limit = 60 dBμV (Quasi-peak limit) ◦ Level (50 dBμV) = Meter Reading (40.2 dBμV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ◦ Margin (10 dB) = Limit (60 dBμV) – Level (50 dBμV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ◦ Class B limit = 30 dBμV/m at 10 m ◦ Level (20 dBμV/m) = Meter Reading (40 dBμV) + factor (- 20 dB (1/m), antenna factor + cable loss – amplifier gain) ◦ Margin (10 dB) = Limit (30 dBμV/m) – Level (20 dBμV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No…

Text truncated - open the document above for the full version.
