A3LCLX4195FWColor Multi-function Printer

BASIC User’s Guide CLX-419xN/CLX-419xFN Series CLX-419xFW Series CLX-626xND/CLX-626xFD/CLX-626xFR Series CLX-626xFW Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 5 Features by models 7 Useful to know 14 About this user’s guide 15 Safety information 16 Machine overview 21 Control panel overview 26 Turning on the machine 31 Installing the driver locally 32 Reinstalling the driver 33 2. Menu Overview and Basic SetupMenu overview 36 Machine’s basic settings 45 Media and tray 47 Basic printing 63 Basic copying 70 Basic scanning 74 Basic faxing 75 Using USB memory device 79 3. MaintenanceOrdering supplies and accessories 86 Available consumables 87 Available accessories 89 Available maintenance parts 90 Storing the toner cartridge 91 Redistributing toner 93 Replacing the toner cartridge 95 Replacing the waste toner container 98 Installing accessories 99 Monitoring the supplies life 103 Setting the toner low alert 104 Cleaning the machine 105 Tips for moving & storing your machine 111 4. TroubleshootingTips for avoiding paper jams 113 Clearing original document jams 114 Clearing paper jams 119 3 BASIC Understanding the status LED 131 Understanding display messages 133 5. AppendixSpecifications 141 Regulatory information 157 Copyright 169 1. IntroductionThis chapter provides information you need to know before using the machine.• Key benefits 5 • Features by models 7 • Useful to know 14 • About this user’s guide 15 • Safety information 16 • Machine overview 21 • Control panel overview 26 • Turning on the machine 31 • Installing the driver locally 32 • Reinstalling the driver 33 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 68). • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 275). • To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 275). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing• You can print with a reso lution of up to 9,600 x 600 dpi effective output (600 x 600 x 4 bit). • Fast, on-demand printing. - CLX-419xN/CLX-419xFN/CLX-419xFW Series  For single-side printing, 18 ppm (A4) or 19 ppm (Letter). - CLX-626xND/CLX-626xFD/CLX-626xFR/CLX-626xFW Series  For single-side printing, 24 ppm (A4) or 25 ppm (Letter).  For duplex printing, 12 ppm (A4) or 12 ppm (Letter). Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard G (see "Easy Capture Manager" on page 315). • Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 330 G or "Using Samsung Easy Printer Manager" on page 327). • Samsung Easy Document Creator is an application to help users scan, compile, and save documents in multiple formats, including .epub format. These documents can be shared via soci al networking sites or fax (see "Using Samsung Easy Document Creator" on page 322 ). • AnyWeb Print helps you screen-captur e, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 317). • Smart Update allows you to check for th e latest software and install the latest version during the printer driver installation process. This is available only for Windows. Key benefits• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Wide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 143). • Print watermark: You can customize your documents with words, such as “ Confidential ” (see "Using advanced print features" on page 275). • You can print in various operating systems (see "System requirements" on page 147). • Your machine is equipped with a USB interface and/or a network interface. Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button - You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). • Using the USB cable or a network cable - You can connect and set various wireless network settings using a USB cable or a network cable. • Using the Wi-Fi Direct - You can conveniently print from your mo bile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 196. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System(  : Included, Blank: Not available) Software Operating System CLX-419xN Series CLX-419xFN Series CLX-419xFW Series CLX-626xND Series CLX-626xFD Series CLX-626xFR Series CLX-626xFW Series Windows     Macintosh     Linux     Unix     Software CLX-419xN Series CLX-419xFN Series CLX-419xFW Series CLX-626xND Series CLX-626xFD Series CLX-626xFR Series CLX-626xFW Series SPL printer driver     PCL printer driver     PS printer driver a     XPS printer driver a     Features by models Direct Printing Utility  Samsung Easy Printer Manager Scan to PC settings     Fax to PC settings  (CLX-419xFN Series only)   (CLX-626xFD/CLX- 626xFR Series only)  Device Settings     Samsung Printer S…

Text truncated - open the document above for the full version.

Media and tray 56 2. Menu Overview and Basic Setup • Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope. 1 Acceptable 2 Unacceptable • Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second about 170°C (338 °F). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser. • For the best print quality, position margins no closer than 15 mm from the edges of the envelope. • Avoid printing over the area where the envelope’s seams meet. Transparency In case of color printing using transparencies, the picture quality would be lower than mono printing when the printouts are used on the overhead projector. To avoid damaging the machine, use only transparencies designed for use in laser printers.• Must withstand the machine’s fusing temperature. • Place them on a flat surface after removing them from the machine. • Do not leave unused transparencies in the paper tray for long. Dust and dirt may accumulate on them, resulting in spotty printing. • To avoid smudging caused by fingerprints, handle them carefully. • To avoid fading, do not expose printed transparencies to prolonged sunlight. • Ensure that transparencies are not wrinkled, curled, or have any torn edges. • Do not use transparencies that separate from the backing sheet. • To prevent transparencies from sticking to each other, do not let the printed sheets stack up as they are being printed out. CLX-419xN/ CLX-419xFN SeriesCLX-419xFW Series CLX-626xND/ CLX-626xFD SeriesCLX-626xFR/ CLX-626xFW Series Media and tray 57 2. Menu Overview and Basic Setup • Recommended media: Transparency for a color laser printer by Xerox, such as 3R 91331(A4), 3R 2780 (Letter). LabelsTo avoid damaging the machine, use only labels designed for use in laser printers.• When selecting labels, consider the following factors: - Adhesives: Should be stable at your machine’s fusing temperature about 170°C (338°F). - Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams. - Curl: Must lie flat with no more than 13 mm of curl in any direction. - Condition: Do not use labels with wrinkles, bubbles, or other indications of separation. • Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components. • Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine. • Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged. Card stock/ Custom-sized paper• In the software application, set the margins to at least 6.4 mm (0.25 inches) away from the edges of the material. CLX-419xN/ CLX-419xFN SeriesCLX-419xFW Series CLX-626xND/ CLX-626xFD SeriesCLX-626xFR/ CLX-626xFW Series CLX-419xN/ CLX-419xFN SeriesCLX-419xFW Series CLX-626xND/ CLX-626xFD SeriesCLX-626xFR/ CLX-626xFW Series Media and tray 58 2. Menu Overview and Basic Setup Preprinted paperWhen loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)). • Preprinted paper ink must be non-flammable and should not adversely affect machine rollers. • Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality. Glossy Photo• Recommended media: Glossy paper (Letter) for this machine by HP Brochure Paper (Product: Q6611A) only. • Recommended media: Glossy paper (Letter) for this machine by HP Superior Paper 160 glossy (Product: Q6616A). 6 Setting the paper size and type After loading paper in the paper tray, set the paper size and type using the control panel buttons. • You can set the altitude value from Device Settings in 6DPVXQJ(DV\ 3ULQWHU0DQDJHU program. - For Windows and Macintosh users, you set from Samsung Easy Printer Manager ! (Switch to advanced mode) ! Device Settings , see "Device Settings" on page 329. • It may be necessary to press OK to navigate to lower-level menus for some models. AAAAA CLX-419xN/ CLX-419xFN SeriesCLX-419xFW Series CLX-626xND/ CLX-626xFD SeriesCLX-626xFR/ CLX-626xFW Series Media and tray 59 2. Menu Overview and Basic Setup 1 Select ( Menu ) > System Setup > Paper Setup > Paper Size or Paper Type on the control panel. Or select Setup > Machine Setup > Next > Paper Setup > select a tray > Paper Size or Paper Type on the touch screen. 2 Select the tray and the option you want. 3 Press OK to save the selection. 4 Press ( Stop/Clear ) to return to ready mode. • The settings set from the machine driver override the settings on the control panel. a To print from an application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on page 66). c Press the Paper tab G and select an appropriate paper. • If you want to use special-sized paper such as billing paper, select the Paper tab > Size > Edit... and set Custom G Paper Size Settings in the Printing Preferences (see "Opening printing preferences" on page 66). 7 Using the output support The surface of the output tray may become hot if you print a large number of pages at once. Make sure that you do not touch the surface, and do not allow children near it. The printed pages stack on the output support, and the output support will help the printed pages to align. Unfold the ou…

Text truncated - open the document above for the full version.

Installing accessories 101 3. Maintenance 6 Upgrading a memory module Your machine has a dual in-line memory module (DIMM). Use this memory module slot to install additional memory. We recommend th e use of only genuine Samsung DIMM's. You may void your warranty if it is determined that your machine problem is being caused by third party DIMM's.The order information is provided for optional accessories (see "Available accessories" on page 89). After installing the optional memory, you can use the advanced printing features, such as proofing a job and specifying of prin ting a secure print job in the printer properties window. You can controll the active job queue and file policy in Job Management menu (see "Using optional device features" on page 311). 1 2 1 2 Installing accessories 102 3. Maintenance 1 2 1 2 103 3. Maintenance Monitoring the supplies lifeIf you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Repla ce the corresponding parts, if necessary. • Accessing menus may differ from model to model (see "Accessing the menu" on page 36). • It may be necessary to press OK to navigate to lower-level menus for some models. 1 Select ( Menu ) > System Setup > Maintenance > Supplies Life on the control panel. 2 Select the option you want and press OK . • Supplies Info. : Prints the supply information page. • Total : Displays the total number of pages printed. • ADF Scan : Displays the number of pages printed by using the document feeder. • Platen Scan : Displays the number of pages scanned by using scanner glass. • Transfer Belt : Displays the number of pages by using transfer belt. • Fuser : Displays the number of pages by using fuser. • Tray1 Roller : Displays the number of pages by using tray1 roller. • Tray2 Roller a : Displays the number of pages by using tray2 roller. • MP Tray Roller a : Displays the number of pages by using mp tray roller. 3 Press ( Stop/Clear ) to return to ready mode. a. CLX-626xND/CLX-626xFD/CL X-626xFR/CLX-626xFW Series G only. 104 3. Maintenance Setting the toner low alertIf the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears. • Accessing menus may differ from model to model (see "Accessing the menu" on page 36). • It may be necessary to press OK to navigate to lower-level menus for some models. • You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHU program. - For Windows and Macintosh users, you set from Samsung Easy Printer Manager ! (Switch to advanced mode) ! Device Settings , see "Device Settings" on page 329. 1 Select ( Menu ) > System Setup > Maintenance > TonerLow Alert on the control panel. Or select Setup > Machine Setup > Next > Initial Setup > Toner Status Alert on the touch screen. 2 Select the option you want. 3 Press OK to save the selection. 105 3. Maintenance Cleaning the machineIf printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong sub stances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you. 7 Cleaning the outside Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any wat er drip onto or into the machine. Cleaning the machine 106 3. Maintenance 8 Cleaning the inside During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print q uality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of pape r, if necessary. • Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area. • Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other i nside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine. • Use a dry lint-free cloth to clean the machine. • Turn the machine off and unplug the power cord. Wait for the mach ine to cool down. If your machine has a power switch, turn th e power switch off before cleaning the machine. • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (s ee "Front view" on page 22). Cleaning the machine 107 3. Maintenance Cleaning the machine 108 3. Maintenance 9 Cleaning the pickup roller • Turn the machine off and unplug the power cord. Wait for the mach ine to cool down. If your machine has a power switch, turn th e power switch off before cleaning the machine. • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (s ee "Front view" on page 22). Cleaning the machine 109 3. Maintenance 10 Cleaning the scan unit Keeping the scan unit clean helps ensure the best possible copies. We suggest that you clean the scan unit at the start of each day and during the day as needed. • Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine. • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (…

Text truncated - open the document above for the full version.

Block Diagram CLX-4195x SeriesSystem diagram Main source : CPU internal : USB Device :Video :DDR3 : 12 MHz533 MHz12 MHz26.75 MHz377 MHz CLP- 415 Series are printers. (NW model includes Wireless network)CLX 4195 S i MFP CLX - 4195 S er i es are MFP s (FN model supports Fax, FW model supports GUI and FAX)

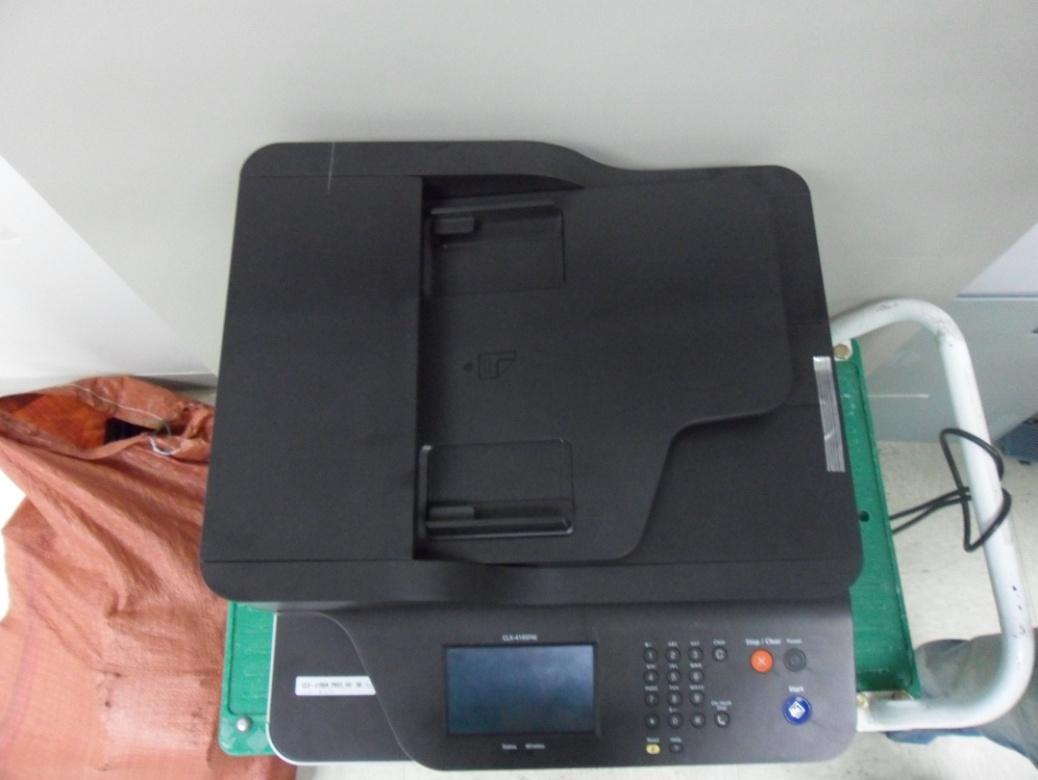

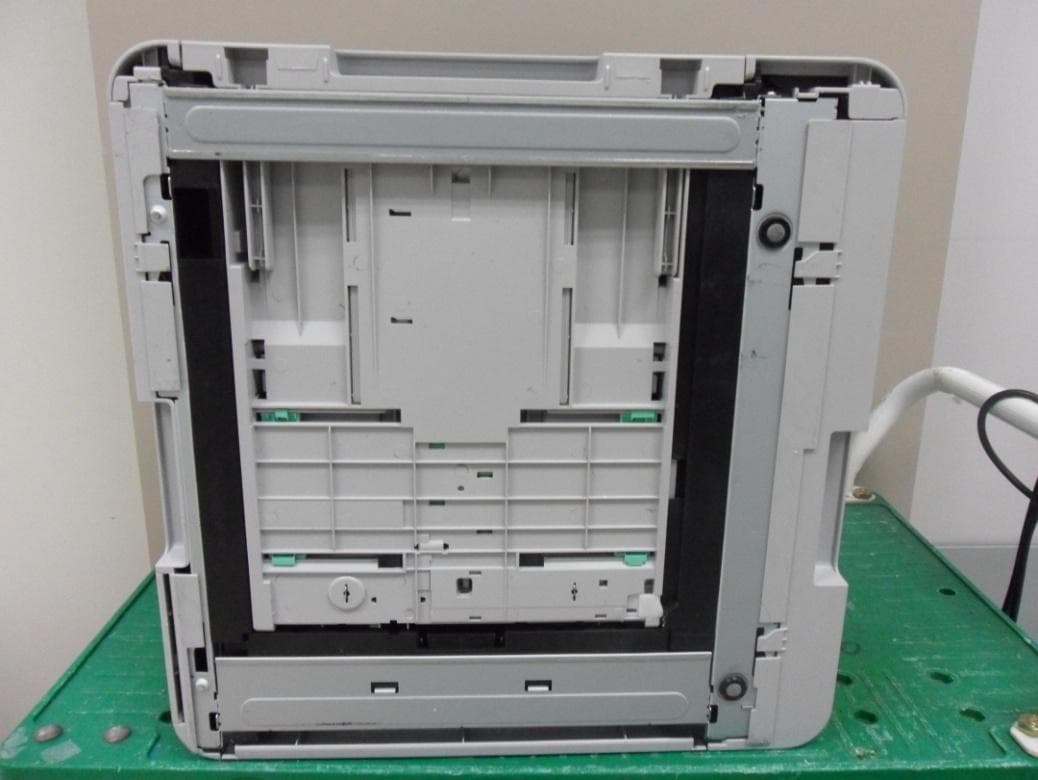

Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -36/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. Appendix – EUT photography Front View Rear View Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -37/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. TOP View Bottom View

Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -40/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. Label Location Label

Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -38/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. Inside View – Rear Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -39/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. SMPS(Dong yang) SMPS(SUNG Ho)

Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -6/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor CHORUS3N (533MHz) - Standard System memory 256MB DDR3 on all configurations (Default) 1GB(max) Customer Installable Option - Resolution Effective 2400 x 600dpi - Speed 18/18PPM (Color/Mono) - Paper Handling Paper Tray(standard) 250 Sheets Bypass Tray 1 Sheets - Power Rating 90VAC ~ 135VAC, 4A, 5 0 / 6 0 H z - Power Consumption Power save mode : 2 Watts Stand by mode : 48 Watts Printing simplex : 850 Watts - Printer Language SPLC, PCL5Ce, PCL6C, PS3, PDF V1.7 - Interfaces USB2.0, Network(Gigabit), WI-FI - OS compatibility Windows 95/98/2000/NT4.0/Win-ME/XP/Longhorn/XP 64bit/ Citrix MAC OS 8, 9, X 10.2, X 10.3 & Higher Unix/Linux - Modes of Operation USB Printing, Network Printing, Copy, Scan - Intended Class for Emissions Class B -

-1/40- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20121714 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application March 13, 2012 EUT Type of device Class B digital devices, peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LCLX4195FW Kind of product Color Multi Function Printer Model No. CLX-4195FW Variant Model No. CLX-4195N, CLX-4195FN Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd. Keji Road-268-1, Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 ICES-003 issue 4 Test Period March 13, 2012 ~ March 19, 2012 Issue date March 26, 2012 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Young-Man Lee Reviewed by : Tae Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -2/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. Table of contents 1. Summary of test results 1.1 Revision history -3 Page 1.2 Emission -3 Page 2. General Information 2.1 Test facility -3 Page 3. Test configuration 3.1 Test Peripherals -4 Page 3.2 EUT operating mode -4 Page 3.3 Details of Sampling -4 Page 3.4 Used cable description -5 Page 3.5 EUT Description -6 Page 3.6 Clock Frequencies -7 Page 3.7 Test configuration and condition -7 Page 3.8 Measurement uncertainty -7 Page 4. Result of individual tests 4.1 Conducted disturbance -9 Page 4.2 Radiated disturbance -19 Page Appendix – EUT photography Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -3/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 1. Summary of test results 1.1 Revision history 1.2 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15, Subpart B / ANSI C63.4-2009 ICES-003 issue 4 Complied Radiated Disturbance Complied 2. General Information 2.1 Test facility The CS & Environment Centre is located on Samsung Electronics Co., Ltd. at 416 Maetan 3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment Centre is operated as EMC testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. No. Revised detailed information Issue 0 There are no revisions and this version is basic test report. Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -4/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3. Test Setup configuration 3.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 DADF Copy Mode Operating Mode 2 Standby Mode Operating Mode 3 USB Printing Mode 3.3 Details of Sampling Customer selected, single unit. Description Model No. Serial No. Manufacturer FCC ID DoC Color Multi Function Printer CLX-4195NA - Samsung Certification Note book Computer Venice - Dell DoC Adapter HP-OQ065B83 CN-0N2765-47890-441-0249 Dell DoC Telephone SP-F209 - Samsung DoC Headset COV903 - COSY DoC USB Mouse SMH-210U M2UWTAKQA46984V S&J DoC Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -5/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No For EUT Power 1.8 No For Note PC USB 1.8 Yes From Note PC to EUT Ethernet 10.0 No From EUT to HUB TEL 10.0 No From EUT to K/P system TEL 2.0 No From EUT to Telephone Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -6/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor CHORUS3N (533MHz) - Standard System memory 256MB DDR3 on all configurations (Default) 1GB(max) Customer Installable Option - Resolution Effective 2400 x 600dpi - Speed 18/18PPM (Color/Mono) - Paper Handling Paper Tray(standard) 250 Sheets Bypass Tray 1…

Text truncated - open the document above for the full version.

Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -10/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 4.1.3 Photograph of Test Setup Front + Rear Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -22/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 4.2.3 Photograph of Test Setup(30 ~ 1 GHz) Front Rear Project No. : LBE20121714 Color Multi Function Printer : CLX-4195FW -23/40- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 4.2.4 Photograph of Test Setup(1 ~ 5 GHz) Front Rear
