A3LCOBRA2Video Cassette Recoder

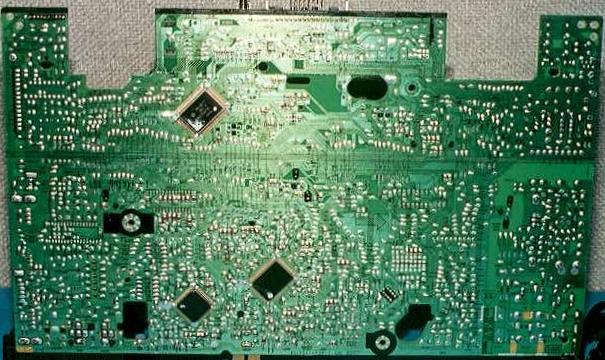

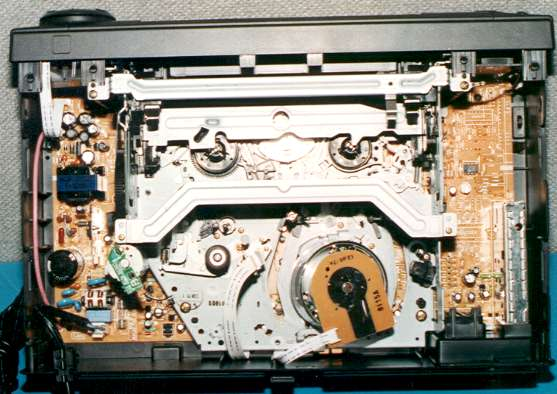

Dec 24, 1998 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Video Cassette Recorder (FCC P.15 TV Interface Device) Type of Application: Original Model: SV-C90P FCC ID No: A3LCOBRA2 FCC Confirmation Number: Gentleman: The above application has been submitted to FCC OET web site on Dec.24, 1998. A check, $940.00 will be directly mailed to Mellon Bank to pay this application. This equipment includes 5 kinds of oscillators such as, 3.579545MHz, 14.31818MHz, 32.768kHz, 10MHz, 508kHz The attached files are, for your reference, as follows: 1. FCC ID Label and location 2. Block Diagram including oscillator information 3. Test report including test set up photo’s 4. External photo’s 5. Internal photo’s 6. Specification 7. User Manual If you have any question on this application, please let me know at [email protected] or Phone) 408-544-5124. Sincerely Yours, Ben Kim Engineering Manager Samsung Electronics America

CS Center SAMSUNG ELECTRONICS CO., LTD.EMC Testing Laboratory 416 Maetan 3 Dong, Paldal-Ku,Tel. 0331/200/2212,2135 Suwon City, Kyungki Do, Korea,FAX. 0331/200/2189 441-742 REPORT OF MEASUREMENTS FOR TV INTERFACE DEVICE °¤ SAMSUNG Reference NO. : 981220 °¤ Job No. : SEMC189 This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name: SAMSUNG ELECTRONICS CO., LTD. (Company name & Address) 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 2. Identification of tested device 2.1 Device Name: Video Cassette Recorder 2.2 Brand (Trade Name): SAMSUNG 2.3 Model Number: SV-C90P 2.4 Product Type: MVP 3. Test Procedure and Items 3.1 AC Powerline Conducted Emissions Measurement: ANSI C63.4-1992 3.2 Radiated Emissions Measurement: ANSI C63.4-1992 3.3 Output Signal Level Measurement: ANSI C63.4-1992 3.4 Output Terminal Conducted Spurious Emission: ANSI C63.4-1992 Measurement 3.5 Antenna Transfer Switch Measurement: ANSI C63.4-1992 3.6 Receiver Radiated Emissions Measurement: IEEE Std 187-1990 4. Date of Measurement: December 4, 1998 5. Issued Date: December 11, 1998 Tested by : Choon-Kil, Kim Test Engineer Approved by : Teak-Jeong, Shin Chief of EMC Testing Laboratory °¤ SAMSUNG Reference NO. : 981220 Sheet 1 of 23 sheets Table of Contents 1. GENERAL INFORMATION 1.1 Description for Equipment Authorization 1.2 Test Facility 2. TESTED SYSTEM 2.1 Block Diagram of Tested Device System for Conducted and Radiated Emission Measurements 2.2 Test Planning and Test Mode 3. AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1 Reference Rule and Specification 3.2 Test Procedure 3.3 Test Arrangement 3.4 Test Results 4. RADIATED EMISSION MEASUREMENT 4.1 Reference Rule and Specification 4.2 Test Procedure 4.3 Test Arrangement 4.4 Test Results 5. OUTPUT SIGNAL LEVEL MEASUREMENT 5.1 Reference Rule and Specification 5.2 Test Procedure 5.3 Test Arrangement 5.4 Test Results 6. OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENT 6.1 Reference Rule and Specification 6.2 Test Procedure 6.3 Test Arrangement 6.4 Test Results 7. ANTENNA TRANSFER SWITCH MEASUREMENT 7.1 Reference Rule and Specification 7.2 Test Procedure 7.3 Test Arrangement 7.4 Test Results 8. RECEIVER RADIATED EMISSION MEASUREMENT 8.1 Reference Rule and Specification 8.2 Test Procedure 8.3 Test Arrangement 8.4 Test Results 9. PHOTOGRAPHS OF TESTED DEVICE CONFIGURATION 9.1 Radiated Emission Measurement 10. LIST OF TEST INSTRUMENTS °¤ SAMSUNG Reference NO. : 981220 Sheet 2 of 23 sheets 1. GENERAL INFORMATION 1.1 Description for Equipment Authorization 1.1.1 Rules Part(s) under which Equipment Authorization FCC Rule Part 15, Subpart B : Unintentional Radiators TV Interface Devices. This Product is a Video Cassette Recorder containing RF modulator. 1.1.2 Kind of Equipment Authorization : CERTIFICATION 1.1.3 FCC ID Number : A3LCOBRA2 1.1.4 Applied TM-BLOCK : RF Units Made by Sanyo : AC40-30071X 1.1.5 RF Modulator Frequency : US CH.3 Visual Carrier 61.25MHz, Aural Carrier 65.75MHz US CH.4 Visual Carrier 67.25MHz, Aural Carrier 71.75MHz 1.1.6 Rate Power Supply : AC 120V, 60Hz 1.1.7 Type of RF Output Connector : Type "F" Connector 75 ߟ (Unbalanced) 1.2 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 Anechoic Chamber #1(3 meter) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1992. °¤ SAMSUNG Reference NO. : 981220 Sheet 3 of 23 sheets 2. TESTED SYSTEM 2.1 Block Diagram of Tested Device System for Conducted and Radiated Emission Measurements 2.1.1 With the VITS Signal Generator AC Power cord : unshielded, 2pin type (Permanently attached to the EUT) °Á Video out 2.1.2 With the NTSC TV Signal Generator AC Power cord : unshielded, 2pin type (Permanently attached to the EUT) 2.2 Test Planning and Test Mode In each measurement(except antenna transfer switch measurement and receiver radiated emission measurement), the preliminary tests were performed under following two EUT operation modes. In antenna transfer switch measurement, it was done under 3 modes(A,B and C). A. Playback mode Playback the video tape that is recorded VITS signal. B. Record mode(NTSC TV signal input) NTSC TV RF signal is supplied through the Antenna input terminal. In each mode, the spectrum was checked and the data of maximum EUT operation was reported. AC120V, 60Hz °Á 75 ߟ Coaxial cable :shielded, length 1.4m (accessory of the EUT) ANT in (75 ߟ Terminator) Out to TV(RF OUT) (75 ߟ Terminator) AC120V, 60Hz NTSC TV Signal Generator °Á 75 ߟ Coaxial cable :shielded, length 1.4m (accessory of the EUT) ANT in Out to TV(RF OUT) (75 ߟ Terminator) EUT EUT °¤ SAMSUNG Reference NO. : 981220 Sheet 4 of 23 sheets 3. AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1 Reference Rule and Specification FCC Rule Part 15, Section 15.107(a) 3.2 Test Procedure 3.2.1 Configurate the EUT System in accordance with ANSI C63.4 -1992 section 7 and 12.2. See also the block diagram of tested device configuration in this report. 3.2.2 Connect the EUT's AC line cord to the EUT port of one LISN. 3.2.3 Any other equipment line cord are connected to an LISN different from LISN used for EUT. 3.2.4 All input terminals are terminated in the proper impedance. The output ports are connected to the cable provided with the device and the ending port are terminated in the proper impedance. 3.2.5 Activates the EUT system 3.2.6 Using a calibrated coaxial cable, the TEST RECEIVER(ESS) is connected to the measuring port of the LISN for EUT. The spectrum monitor function are set as follows. FREQUENCY RANGE: 0.45 - 30MHz BANDWITH: 10kHz OTHER FUNCTION: Auto 3.2.7 To the find out an EUT condition procedures th…
