MF68-00333A-00 Owner’s Manual ................................................................................................................ ............. D10-200 2230 E. Imperial Hwy El Segundo, CA 90245 Telephone: 1 800 DIRECTV (347-3288) DIRECTV ® Receiver User’s Guide D10 _ Cover - 1 6/14/04 1:36 PM Page 1 FCC Warning Class B Computing Device Information to the User This Equipment has been tested and found to comply with the limits for a class B digital device pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4. FCC Warning The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. 2 Warning! Important Safety Instructions Note to CATV system installer: This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. Caution:Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Caution:To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug. Important:One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. Always be careful when using this product. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your DIRECTV ® Receiver. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELEC TRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance have been included with this product. D10-CHAPTER 0-1 6/14/04 7:10 PM Page 2 3 Important Safety Information 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an elec trician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particu larly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When used, caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may cause undesired operation. This satellite receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules. Note you should use the Telephone line cord which is supplied with the machine. If you are replacing it with the other vendor's part, it should be minimum AWG #26 or larger gage. D10-CHAPTER 0-1 6/14/04 7:10 PM Page 3 4 Notices Attention Telephone Line Interruption A continuous land-based phone line connection is required for DIRECTV ® Pay Per View funct…

Text truncated - open the document above for the full version.

June 29, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LD10200 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America June 29, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID: A3LD10200 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests short-term confidentiality for the test setup photos, external photos, and internal photos of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

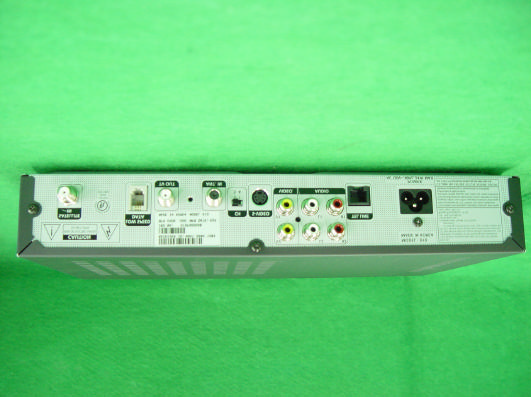

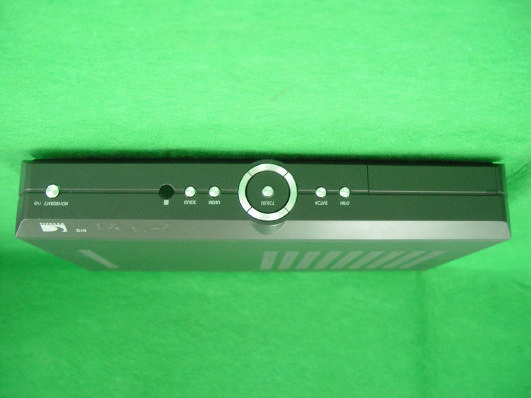

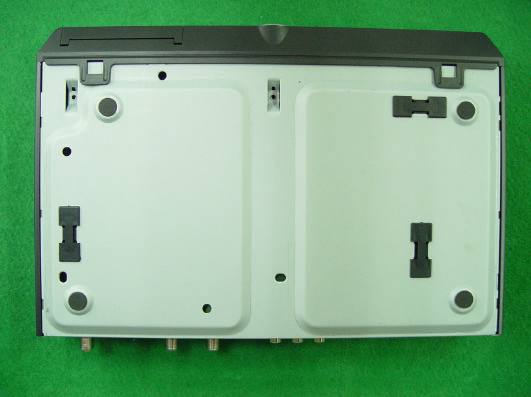

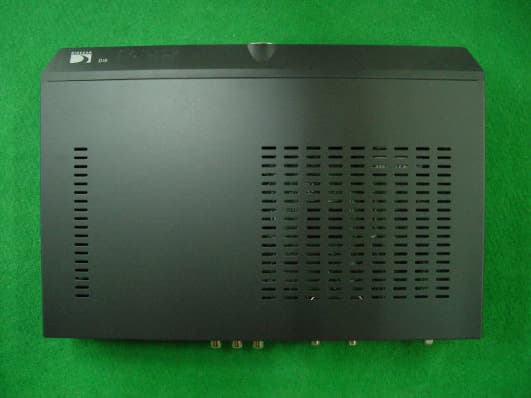

D10-200 PHOTOGRAPHS Top View Bottom View D10-200 PHOTOGRAPHS Front View Rear View

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

D10-200 PHOTOGRAPHS Top View (Top cover open) Main Board Top View D10-200 PHOTOGRAPHS Main Board Bottom View

Page : 1 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE040937 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-Si,Gyeonggi-Do, Korea,443-742 Product Name Digital Satellite Receiver Model Name D10 Manufacturer SAMSUNG Brand Name SAMSUNG Broadcasting System Satellite Variant Model See Page 3 Date of Test June 01, 2004 ~ June 08, 2004 Issued Date June 17, 2004 Name/Position Signature Tested by Sung Wook Choi Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Antenna Terminals 3. 3 Radiated Emission 3. 4 Output Signal Level 3. 5 Output Terminal Conducted Spurious Emission 3. 6 Ant. Transfer Switch 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant SAMSUNG Model name D10 Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Contact Person Sung Wook,Choi Kind of product Digital Satellite Receiver Valiant list D10-200 Manufacturer SAMSUNG New / Alternative / Permissive change Information This report is original report # 1.2 Detail Information related Product Specification Items Decription FCC ID Number A3LD10200 Tuner Freq.Range 950 ~ 2150MHz Tuner Input signal level -65 ~ -25 dBm Channel selection PLL frequency synthesizer Input Impedance 75 ohm unbalanced Tuner LNB Power Control 13V/18V, 22kHz tone Modulator Output CH 3 or CH 4 Video Type NTSC UHF Output level 66 +/- 5dBuV Output connector Female Ant. O/P connector IEC female Tuning method PLL frequency synthesizer RF modulator Page : 4 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating Frequency Tuner Freq. Range : 950 MHz ~ 2150 MHz 1.3 Operating Mode and Condition This system have following operating mode(s). - Satellite Signal Receiving The system was configured for testing in typical fashion use. All connectors not used are terminated with resistors matching the nominal terminal impedance. The mode of operation utilized for testing was selected to best simulate typical EUT use. 1.4 Equipment Modifications No equipment modifications were required. Page : 5 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A Digital Satellite Receiver D10 None SAMSUNG EUT B Remote Controller - - SAMSUNG EUT Used Cable Description Connect Cable Length [m] Shielded [Y/N]Remark 1 Power 1.5 No 2 ANT In 1.5 Yes 75 ohm Termination 3 RF Out 1.5 Yes 75 ohm Termination 4 Dish Input 1.5 Yes 75 ohm Termination 5 Loop 1.5 Yes 75 ohm Termination 6 AV Out 1 1.5 No Video Out : 75 ohm Terminated Audio Out : 10 kohm Terminated 7 AV Out 2 1.5 No Video Out : 75 ohm Terminated Audio Out : 10 kohm Terminated 8 Audio Out 1.5 No Audio Out : 10 kohm Terminated 9 S-Video Out 1.5 No 75 ohm Terminated Page : 6 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram Page : 7 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Applied Standards Test Procedure FCC Part15 Subpart B ANSI 63.4 : 1992 Page : 8 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 22, 16-1, 16-2, 11. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Radiated Disturbance 5.09 Disturbance voltage at the mains terminals 1.64 (According to NAMAS Pub.NIS81) Page : 9 of 30 Samsung EMC …

Text truncated - open the document above for the full version.

Page : 25 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) Page : 26 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Antenna Terminals Picture 4. Radiated Emission (Front) Page : 27 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 5. Radiated Emission (Rear) Picture 6. Output Signal Level Page : 28 of 30 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 7. Output Terminal Conducted Spurious Emission Picture 8. Ant. Transfer Switch
