A3LDC65CPPLaser Beam Printer

Test Report No. : LBE060045 -21/21- Picture 7. Label Location Picture 8. Label

-1/21- EMC TEST REPORT Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si,Gyeonggi-Do, 443-742 Korea (Tel: 031 277 7752, Fax: 031 277 7753) Project No. : LBE060220 Page (1)/(21) 1. Applicant ◦ Name of organization : Samsung Electronics Co., Ltd. ◦ Address : 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea ◦ Date of application : 2006.01.12 2. Purpose for the report : Approval for EMC 3. Kind of product : LASER PRINTER (Model name : CLP-650N) 4. Date of test : 2006.01.23 5. Applied standard : FCC Part 15 B 6. Test result : PASS The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by Name : Young Hun Cheong Reviewed by Name : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. 2006. 01. 23 Samsung Electornics Co., Ltd. Chief of CS Management Center Test Report No. : LBE060220 -2/21- TEST RESULT Test Report No. : LBE060220 Applicant / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Manufacture / Address : Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea EUT : 1. Product name : Laser Printer 2. Model name : CLP-650N 3. Brand name : Samsung 4. Variant model : CLP-650 Basic Standards : ANSI C63.4:2003 Test Result : PASS The equipment under test has found to be compliant with the applied standards Test Lab. : CS Management Center, Samsung Electronics Co., Ltd. ` Tested by : Young Hun Cheong Reviewed by : No Cheon Park Date of Issue : 2006. 01. 23 Test Report No. : LBE060045 -3/21- Table of contents 1. General information 1.1 Basic information related product 1.2 Detail information related product 1.3 Operating mode and condition 1.4 Equipment modifications 1.5 Test procedure 1.6 Test configuration 1.7 Applied standard 1.8 Test facility 2. Summary of test results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test photography 4.2 EUT photography Test Report No. : LBE060045 -4/21- 1. General information 1.1 Basic information related product Applicant Samsung Electronics Co., Ltd. Model name CLP-650N Applicant address 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Contact person Young Hun, Cheong Kind of product LASER PRINTER Variant model CLP-650 Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea Rated power AC 120 V, 60 Hz New / Alternative / Permissive change information New 1.2 Detail Information related product 1.2.1 Specification Item Specification Remark Print Speed Black and White/Color : Up to 20 PPM in A4(21 PPM in Letter) - Resolution Optical: 600 x 600 dpi Support: Up to 2400 x 600 dpi effective output - First print out time From Ready Black and White : Less than 20 seconds Color : Less than 20 seconds From ColdBoot(Without ACR) Black and White : Less than 50 seconds Color : Less than 50 seconds - Warm-up time Less than 30 seconds(Without ACR) - Power Rating 110 ~ 127 V AC, 9 A, 50/60 Hz - Power Consumption Average : 450 W Power Save mode : Less than 35 W - Noise Level Printing mode : Less than 51 dBA Standby mode - Test Report No. : LBE060045 -5/21- : Less than 35 dBA Consumable life Y/M/C/K Toner Cartridge : Approx. 4,000 A4/Letter pages at 5% Coverage - Duty cycle Monthly : Up to 45,000 images - Weight 29.1 kg (including consumables) - Package weight Paper : 2 kg, Plastic : 900 g - External dimensions (W x D x H) 464 x 464 x 445 mm - Operating Environment Temperature :15 ~ 30 °C) Humidity : 20 ~ 80 % RH - Printer Language SPL-Color , PS3, PCL6 - Memory 256 MB DDR1 SDRAM - Interface USB 2.0, IEEE1284, Ethernet 10/100 Base TX - OS compatibility Windows 98/Me/NT/2000/XP/2003 Various Linux OS Mac OS 10.3 ~ 10.4 - Operating Frequency Video(31.005 MHz), CPU(600 MHz), Main clock(14.318 MHz), USB clock(12 MHz), N/W clock(25 MHz) SDRAM(133 MHz) Test Report No. : LBE060045 -6/21- 1.3 Operating mode and condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O port. Where applicable, peripherals were attached to the I/O cables. This EUT is supporting the USB, IEEE1284 and Network(LAN) printing. In each test mode, finally we found worst case emission that is above configuration with the Worst case components(in the above table). So, the data of the maximum EUT operation, USB printing(duplex mode) was reported. - Operating Mode - USB Printing Mode (worst emission) - IEEE1284 Printing Mode - LAN Printing Mode - Standby Mode - Test Voltage : AC 120 V, 60 Hz 1.4 Equipment modifications No equipment modifications were required. 1.5 Test procedure 1.5.1 Conducted emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80 cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and were handed at a 40 cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. Frequency Band [MHz] Instrument Detector Resolution Bandwidth Video Bandwidth Quasi-Peak 9 kHz - 0.15 to 30 EMI Receiver Average 9 kHz - Test Report No. : LBE060045 -7/21- 1.5.2 Radiated emission EUT was placed on a platform of nominal size, 1 m by 1.5 m, raised 80 cm abov…

Text truncated - open the document above for the full version.

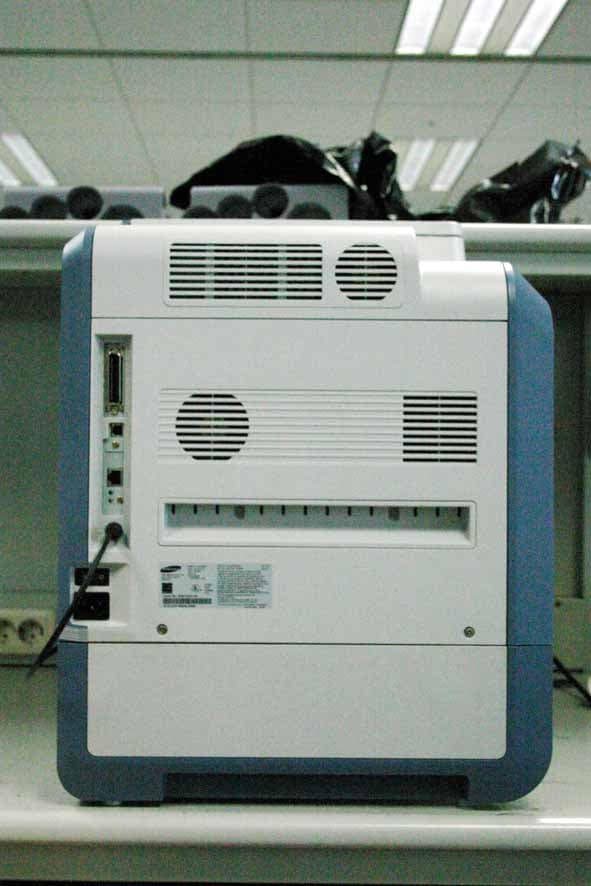

Test Report No. : LBE060045 -18/21- 4. Appendix 4.1 Test photography Picture 1. Conducted emission (Front) Picture 2. Conducted emission (Rear) Test Report No. : LBE060045 -19/21- Picture 3. Radiated emission (Front) Picture 4. Radiated emission (Rear)
